The Target HF3 is a masterpiece of R. F. engineering covering the entire spectrum between 30Khz to 30Mhz. For those new to single side band reception the unit comes complete with everything needed to 'get on the air' including a comprehensive instruction manual which includes a list of useful marine frequencies.Controls on the front of the receiver change reception mode, from a narrow filter for SSB reception to a wide filter which enables high quality audio signals to be heard from broadcast stations around the world. They also control ten memory channels to store your favourite frequencies.The large, clear liquid crystal display shows the precise frequency tuned to and there is no need for constant 'correcting' with the tuning knob so often associated with SSB signals as the receiveris fully synthesised.The HF3/W is complete with CD software and interface cable for connection to a PC sound card. The software enables reception of weatherfax pictures, Radiotelex weather forecasts and Navtex. Simply install the software, plug in the supplied cable to the receiver output and PC sound card to receive weatherfax pictures and forecasts from around the world.Technical Specifications: Signal level indicator Fully synthesised Frequency range - 30Khz - 30Mhz Modes - USB/AM/LSB Single side band - 3.8Khz wide 10 memory channels AM - 6Khz wide Audio output - 2 watts Power supply - 12 volts DC Power consumption - 300mA Dimensions - Width 180mm, Height 58mm, Depth 170mmThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

Electromagnetic 2 Speed Log Display Data Box Electromagnetic LogThe Clipper electromagnetic speed log measures the boat's speed through the water without moving parts.Robust and accurate, the sensor generates an alternating magnetic field below the boat and measures the resulting electric field produced by the boat moving through the water. It is designed for installation into most types of GRP hulls.With excellent linearity and a resolution of 0.1 Knot, over the range of 0.2 to 40 Knots, the log sensor sends signals to a control box which then converts the sensor signal to boat speed, trip, and total distance. This data is transmitted in NMEA 0183 format to a Clipper EM Log display unit.*NOTE – NOT SUITABLE FOR METAL HULLSSpecifications: Clipper EM Log display 110 x 110mm industry standard square case NMEA 0183 input Speed in Knots Trip and Total logs in nautical miles Multi-level display backlighting This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Wired Tactical Wind Mast SensorA high performance system that sends NMEA wind speed and direction data 10 times a second.In demanding conditions, where high performance is essential, the Clipper Tactical wind mast sensor is the ideal choice. With ten updates every second it responds very quickly to the changes in wind speed and direction, which occur during tricky manoeuvres. The sensor is supplied complete with a mast mounting kit, 20 metres of light weight cable and all necessary electrical connectors to complete the installation. The output data is in the NMEA 0183 format and can be used to drive any compatible display that utilises the MWV sentence.Features: Mast transmitter supplied with 20M of cable NMEA 0183 4800 Baud data sentence MWV – update rate = 10 per second Wind speed 0 to 99.9 Kts Wind direction 0 to 360° Supply voltage nominal 12V Wind sensor supply current 9mA This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Wind Box Dimensions: 5"H x 7"W x 15"L WT: 2.5 lbs UPC: 799439091993

Read more less

If you are looking for cockpit instruments that feature cutting edge technology yet are intuitively simple to operate, look no further. The outstanding Clipper range of instruments incorporate technically advanced electronics in an industry standard 110mm square case. Ease of use and display clarity were top of the design brief. All Clipper instruments have giant digits and multilevel backlighting.Technical Specifications: 40mm high digits Depth below transducer/below keel/below surface Deep and shallow alarms (audible and visual) User selectable feet or metres Intelligent gain control & manual override Selectable display rate and depth averaging rate Depth trend indicator High transmit power All settings stored in non-volatile memory Tactile keypad Complete with weather cover and transducer Consumption 20mA +25Ma for backlight (max)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Depth Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs UPC: 609722871150 Brochure (pdf)

Read more less

If you are looking for cockpit instruments that feature cutting edge technology yet are intuitively simple to operate, look no further. The outstanding Clipper range of instruments incorporate technically advanced electronics in an industry standard 110mm square case. Ease of use and display clarity were top of the design brief. All Clipper instruments have giant digits and multilevel backlighting. As with all Nasa instruments - they are excellent value too. Technical Specifications: 40mm high characters Speed (Knots/m.p.h.) Trip Distance (N.Miles / Miles) Total Distance (N.Miles / Miles) Trend indicator shows acceleration / deceleration Selectable speed averaging Tactile keypad Complete with weather cover and paddlewheel unitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Speed Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs UPC: 609722871167 Owner's Manual (pdf)

Read more less

MeteoMan BarometerThe rate of change of barometric pressure and history of wind speed can be an invaluable indicator of imminent conditions.Many sailors rely on low cost domestic barometers, which are inaccurate, have low resolution and very poor history. Several quality paper recording instruments exist but are delicate, fiddly to use and rely on paper which can jam when damp. The MeteoMan overcomes all these problems. It provides an accurate, high resolution barograph recording in excess of five days data on barometric pressure and wind speed. It is easy to use, reliable, rugged and draws very little power from the boat's battery.The MeteoMan is available with an optional NMEA Wind sensor which provides wind direction, wind speed and external temperature. The Meteoman provides reliable meteorological information for the yachtsman. The main display shows the wind speed and direction, the ambient temperature and the barometric pressure.To assist in predicting future trends the unit also displays a precision barograph and an anemograph showing barometric pressure and wind speed for the previous five days.In addition to the meteorological functions the unit includes a marine chronometer, a stop watch, a race countdown timer, display of internal temperature and battery voltage.MeteoMan can be connected to an NMEA Clipper Wind system where it will get wind speed/direction data via the Clipper wind output.NMEA Wind Sensor supplied with mounting brackets and 20 metres of two core screened cable.NMEA 0183 sentences: Wind speed/direction MWV Temperature XDRMeteoMan specifications Atmospheric pressure range850 to 1100mb (user adjustment to compensatefor altitude) Pressure historyRange 1 950 to 1050mbRange 2 980 to 1030mb with 0.5mb resolution Recording time0 to 120 hours0 to 60 hours0 to 30 hours Wind speed (when fitted with NMEA wind sensor)Maximum speed 100 knots Wind speed historyRange 1 0 to 100 knotsRange 2 0 to 50 knotsRange 3 0 to 25 knots Recording time0 to 120 hours0 to 60 hours0 to 30 hours Wind direction (when fitted with NMEA wind sensor)0 to 360 degrees (in relative mode)Port 180 degrees to Starboard 180 degrees (innautical mode)Displayed in analogue and digital formatResolution 1 degree Real time clock12 or 24 hour formatRace countdown timer 10 and 5 minutesStop watch with split timingTemperatureOutside temperature (when fitted with NMEA wind sensor)Cabin temperatureResolution 1 degree centigrade Supply voltage9.0 to 15.0 voltsThe voltage is shown on the display with a resolution of 0.1 volts Supply currentOperating current 100mA (when fitted with NMEA wind sensor)Operating current 150mA (with backlight illuminated)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Barometric Pressure: Yes Temperature: Yes Wind: Yes Box Dimensions: 4"H x 7"W x 8"L WT: 2 lbs UPC: 609722871280 Owner's Manual (pdf)Brochure (pdf)

Read more less

The AIS Engine 3 is supplied with a free copy of `SeaClear' and a trial version of Software on Board. A data cable to connect to the 9 pin serial port of a PC and a 12 volt power cable The AIS Engine 3 and a conventional marine antenna are all you need to start plotting vessels on your PC or AIS compatible plotter. The software runs in windows 95, 98, ME, XP, 2000, NT and Vista, it includes a world map on which vessels are plotted. Any vessel on the screen can be selected and its AIS data displayed. This includes the vessels name, MMSI number, position, call sign and destination etc. Also included on the AIS Engine is an optional input for a GPS (RMC sentence). With this connected the users own vessel is shown on the chart with its latitude and longitude displayed in a window. The unit can receive ships on either the A or B AIS channels. In default setting it alternates between the two channels. The AIS engine can also be used with plotters or other PC software that have an AIS input facility. Check compatibility with your software supplier. An NMEA 0183HS input at 38,400 baud is required to accept the VDM AIS strings corresponding to ITU-1371. If your PC does not have a spare 9 pin serial port a low cost serial to USB converter is available as an optional extra. Technical Data: Operating frequencies - 162.025 and 161.975 mHz Supply voltage - 10 to 16 volts DC Supply current - 43mA All class A and B AIS Messages relayed Antenna input - 50 ohm BNC Data connector - 9 pin 'D' type Mounting - via two moulded flanges Dimensions - 115 x 100 x 30mm Output format - NMEA 0183 (38400 Baud) VDM encapsulation string conforming to ITU-1371 NMEA RMC from GPS Supplied with Software, fused power cable and data cable(Various receiver parameters are factory preset but can be altered from the PC if software is available.)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Antenna Included: No Display Included: No AIS Class: Both A & B GPS Included: No Function: Receive Only Box Dimensions: 2"H x 6"W x 7"L WT: 0.95 lbs UPC: 609722871242 Owner's Manual (pdf)Brochure (pdf)

Read more less

Clipper BM-2 Battery MonitorThe BM-2 is designed to monitor performance of 12 volt lead acid battery systems with capacities of up to 600 Amp hours. It is supplied complete with a precision 200 AMP shunt and a prefabricated cable assembly to enable simple DIY installation. The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the batteries state of charge and the time to charge or discharge. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure.Specifications: Supply voltage: 8-16 volts DC Supply current: 1.5 milliamps Battery capacities: 5-600 AMP Hour Load Current: 199 Amps Max Charge Current: 199 Amps Max Shunt: Standard 50 millivolt @ 200 Amp Cables Supplied: 200 Amp shunt link to M8 Ring terminal. 5 meter from display unit to battery - fused and fitted with ring terminals for shunt, fuse holder, and M8 ring terminal to battery. Display Unit: Standard 110m squre clipper case. High contrast LCD, backlit for night viewing. Minimum voltage visual alarm Simple operation: 4 keys to select backlight, Volt/Amp/State of charge screen, AMP hours or time to run. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

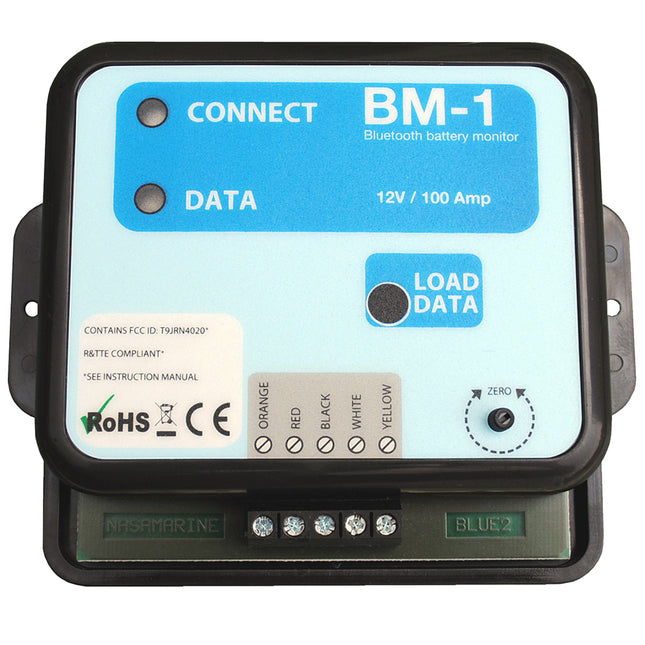

BM-1 LI Battery Monitor for 12V LithiumThe BM-1 battery monitor is designed to monitor performance of 12 volt lead acid battery systems, including AGM and GEL types with capacities of up to 600 Amp hours. It is supplied complete with a precision 100 AMP shunt and a prefabricated cable assembly to enable simple DIY installation. The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the batteries state of charge and the time to charge or discharge. It also monitors the voltage of the engine strat battery. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure.Features: Fully monitors domestic battery/bank Monitors voltage of engine start battery Specifications: Supply Voltage BM-1  12V 8 – 16 Volts DC BM-1  24V 16 – 32 Volts DC Supply current 1.5 milliamps Battery capacities 5 – 600 AMP Hour Load current 100 AMPS Maximum Charge current 100 AMPS Maximum Shunt Standard 50 millivolt @ 100 AMP Cables Supplied: 100 AMP shunt link to M8 Ring terminal.5 Metre from display unit to battery – fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery. Display unit Standard 110mm square Clipper case. High contrast LCD, backlit for night viewing.Minimum voltage visual alarm Simple operation – 4 keys to select backlight, Volt/Amp/State of Charge screen,AMP hours or Time to run. How Does It Work?A simple and intuitive display shows the service battery voltage, charge/discharge current, state of charge, and time to charge/discharge. The instrument also warns the user when the charge level is too low so that load can be shed or charging commenced to protect the battery. A resettable Amp Hour counter is provided for checking the efficiency of the charging system or keeping a track of power consumption and a second input lets the user monitor the voltage of the starter battery. The simple display format does not mean the internal software is unsophisticated. In fact two separate algorithms are used. One based on integrating amp hours over the charge and discharge cycle, the second based on an adaptive internal mathematical battery model.A unique feature of the BM1+ is its ability to use information from both algorithms, during the charge/discharge cycles, to continually update its performance. This means that, unlike many other systems that rely solely on amp hour integration, the NASA BM1+ never needs to be re-synchronised with the battery. The algorithm includes Peukert's equation to ensure accuracy over a wide range of load currents.The BM1+ does all this whist consuming a meagre one and a half milliamps. It is a true battery monitor, easy to install and excellent value for money.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

EX-1 Exhaust Temperature Monitor/AlarmThe EX-1 continually displays the exhaust gas temperature in wet exhaust systems giving advanced warning of potential problems. The EX-1 measures the exhaust gas temperature directly and displays it in degrees centigrade or Fahrenheit. Once the normal working temperature has been established a maximum temperature, a few degrees higher, can be programmed into the EX-1 which will then sound an alarm if that temperature is exceeded.Even a small rise in temperature can indicate a potential problem such as a minor blockage, leak or failing pump which can be corrected before a complete failure occurs.Technical Specifications Compact size 125 x 62 x 23mm with high contrast LCD Supply current less than 1.5mA Supply Voltage 8 to 15 volts DC. Supplied with sensor and 5M cable Temperature range -35 to +170° Centigrade Threshold range -35 to +170° Centigrade.( -31 to +338° Fahrenheit.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

The Clipper GPS repeater has quickly established itself as the market leader in cockpit GPS repeaters. Typical of the Clipper range it boats large clear digits and simple operation. Installation coundn't be simpler with just two wing nuts to fasten the unit into the panel ans two wires to connect to the GPS. Technical Specifications: Standard 110mm case Super large high contrast LCD Four instantly accessable display screens Standard NMEA 0183 interface suits most Complete with weather cover and 10 meters of cableThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: GPS Repeater Box Dimensions: 4"H x 8"W x 10"L WT: 2.05 lbs UPC: 609722871228 Owner's Manual (pdf)Brochure (pdf)

Read more less

The Clipper Compass Repeater has all the features of the master unit and an independent off course alarm.Steer to course functionWhen the steering function is selected a series of chevrons accumulate showing the magnitude and direction of the steering error. To stay on course simply turn the wheel in the direction of the chevrons until they are extinguished. The steering sensitivity can be preset by the user. An off course alarm provides a safety feature when not at the helm. If the heading deviates by more than a preset amount then the alarm will sound.Technical Specifications: Adjustable Damping 1 degree display resolution Display case size 110 x 110mm Depth behind panel 30mm Complete with 5 meter cable, 'O' ring and weather cover This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)

Read more less

NMEA Compass Sensor Compact and waterproof NMEA compass sensor transmits NMEA 0183 sentence HDG to Clipper, Target and Cruiser or other equipment. Complete with 10 meters of cable Accuracy +/- 2 degrees Gimballed to +/- 30 degrees Output frequency 1Hz Outputs NMEA 0183 sentence HDG 12V supply Dimensions 72mm x 68mm x 40mm Weight 475 grams including 10 meter cable This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)

Read more less

Tactical True Apparent Wind Display RepeaterThe Clipper True Wind Display shows apparent wind speed and direction, when connected to a log or GPS, it can also show true wind speed and direction.Requires NMEA boat speed input either VHW from log or RMC from GPS for True wind speed and direction.Features: Supply voltage nominal 12 Volts Supply current 10mA + (10mA for back light illumination Max) NMEA input sentence MWV Back light – 9 levels Pointer style – 2 Display wind speed – 0 to 99 Kts Display Wind angle – 0 to 360 degrees represented by 60 segments Display case size 110 x 110mm This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Wind Box Dimensions: 4"H x 8"W x 10"L WT: 1.2 lbs UPC: 799439091801

Read more less

Wind Repeater DisplayAdd or replace the display on the Clipper Wind V2 – 3 wire wind mast unit and the Clipper Wireless wind unit. The Clipper Wind NMEA Repeater has user a selectable pointer style and selectable wind speed scale. It requires the standard NMEA 0183 MWV data sentence.Technical Specifications: Works with NMEA 0183 NMEA protocol  7 levels of display backlighting Dimensions  (H x W x D) - 4.33" x 4.33" x 1.18" (110 x 110 x 30mm) In the Box: 16.5' (5 M) Cable Mounting 'O' ring  Weather cover *Sold as Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Wind Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs UPC: 609722886710 Owner's Manual (pdf)

Read more less

The Clipper Log Repeater has its own independent alarm function as well as repeating all data from the master unit. Technical Specifications: 40mm high digits 7 level display backlighting Complete with 5 meter cable, 'O' ring and weather cover Consumption 10mA + 25mA for display backlightThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Speed Box Dimensions: 4"H x 8"W x 10"L WT: 1.6 lbs UPC: 609722886772

Read more less

NEW - The Log without a paddlewheel and no moving partsThe Clipper EASYLOG shows speed, trip and total distance on a high visibility liquid crystal display. It utilises the RMC sentence from any GPS or plotter with an NMEA 0183 output. Alternatively the EASYLOG can repeat, using sentences VHW and VLW from an existing NMEA log.Technical Specifications: 40mm high characters Industry standard 110mm square case Speed in Knots with 0.1 knot resolution Trip in N.Miles with 0.1 N.Mile resolution Total Distance (N.miles/miles) Total log up to 9999 N.Miles 20 levels of backlighting Tactile keypad Speed trend indicator Current consumption 1.5mA at 12V (10mA with backlight) Opto isolated balanced NMEA input Includes Sun CoverThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Multifunction Box Dimensions: 4"H x 8"W x 10"L WT: 1.95 lbs UPC: 609722871211 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Supernova Tricolor Navigation LightSupernova lights use high efficiency LEDs ensuring long life and low power consumption. A tough polycarbonate shell protects Supernova from the elements while a Gore-Tex membrane vent ensures equalization of pressure on the seals.Specifications: Supply voltage – 10V to 20V (For full brightness) Supply current – 200mA @ 12V (Typically 90% less than equivalent incandescent lamp) Night time visibility – 2 nautical miles minimum (25° above and below the centerline) Waterproof Rating – IP67 (Submersion) Dimensions – 91mm diameter x 113mm Height (including mounting) Configuration:Tri-color version – 112.5 degrees red, 112.5 degrees green,135 degrees whiteThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Lens Color: White/Red/Green Visible Range (Miles): 2nm Housing: Black Voltage - Input Range (Volts): 12v LED: Yes Box Dimensions: 4"H x 7"W x 8"L WT: 0.8 lbs UPC: 609722871310

Read more less

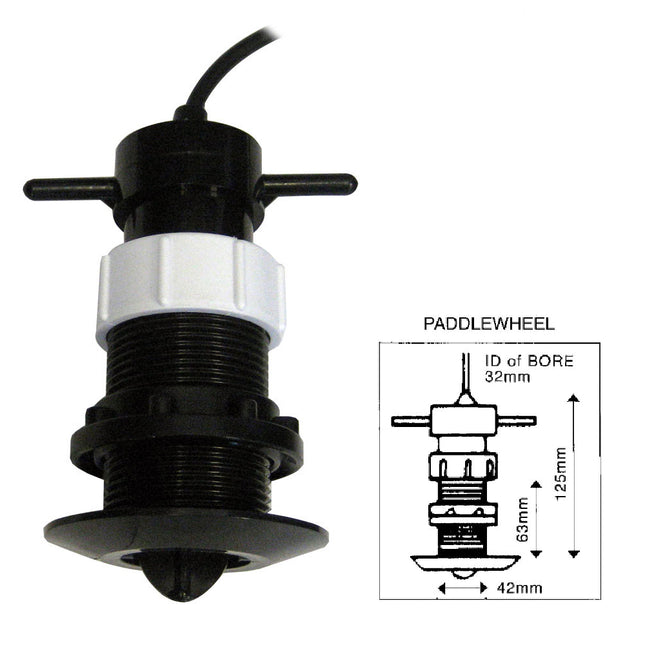

Complete Paddle Wheel Unit Spare complete log impellor unit with skin fitting and 7 meter cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Impellor unit without skin fitting Spare log impellor unit with 7 meter cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Through hull transducer mounting kitKit for mounting depth transducer through wooden or steel hulls.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Misc Box Dimensions: 3"H x 4"W x 8"L WT: 0.6 lbs UPC: 610696095169

Read more less

Complete kit for mounting depth transducer inside GRP hull.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Misc Box Dimensions: 3"H x 4"W x 8"L WT: 0.65 lbs UPC: 610696095176

Read more less

Cradle Mount BracketOptional cradle mount bracket for Clipper MOBi, Navtex, MeteoMan and AIS Radar display units.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Wind Vane KitSpare wind vane assembly with fixings and illustrated fitting instructions for Clipper, Target and Cruiser masthead units with 5 wires.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Spare wind anemometer cup kit. Spare anemometer cup assembly with fixings and illustrated fitting instructions for Clipper, Target and Cruiser masthead units.  For 5 wired units.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Wind Vane Kit Wireless Tactical for Version 2 - 3 Wire UnitsSpare wind vane assembly with fixings and illustrated fitting instructionsFor Clipper, Target, Cruiser and Wireless, Tactical masthead units.Clipper / Target / Cruiser Version 2 – three wire / Wireless / Tactical mast unit. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

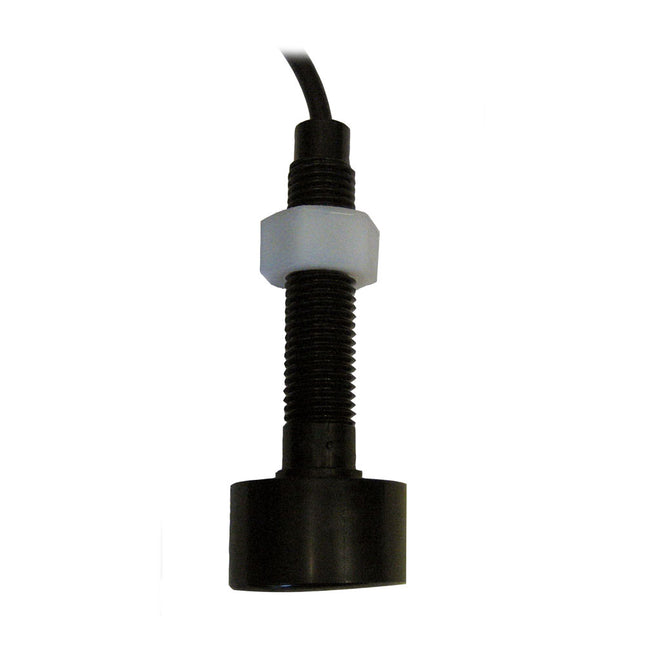

7m Depth Transducer Extension CableSpare 150kHz depth transducer with 7 meter cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Extension Box Dimensions: 1"H x 4"W x 9"L WT: 0.5 lbs UPC: 610696095213

Read more less

Spare paddlewheel and spindle, simple fit for all Clipper Logs.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Misc Box Dimensions: 2"H x 7"W x 7"L WT: 0.7 lbs UPC: 609728298852
