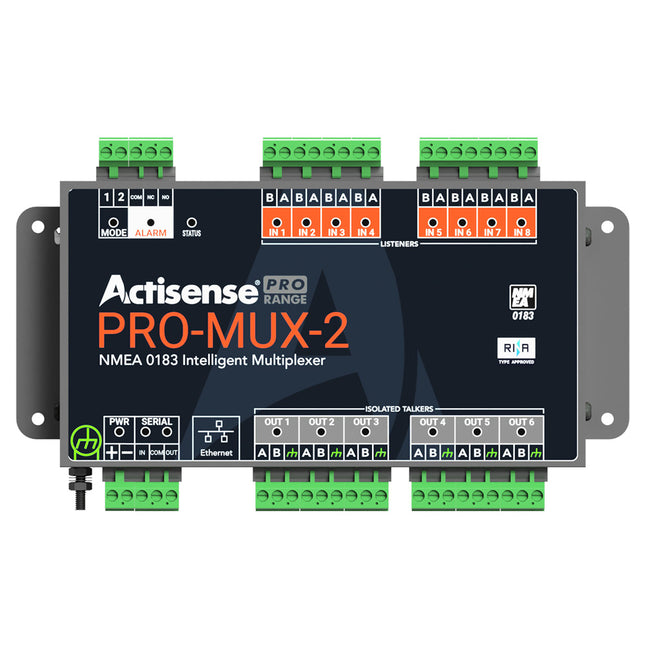

Pro NMEA 0183 MultiplexerEight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.Features: 8 OPTO-isolated NMEA 0183 inputs 6 ISO-Drive NMEA 0183 outputs Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output) 0183 streaming via Ethernet Alarm output (N/O and N/C contacts) Designed for 12- and 24-Volt supply Isolation to battery supply Configurable input and output baud rates for rate conversion Data combining from any input to any output 2 independent Autoswitch virtual inputs with priority Advanced sentence-based filtering / routing Diagnostic LEDs on all inputs and outputs Alarm, mode and Bi-colour Status LED’s 2-part pluggable connector system supports both screw and screwless terminals DIN rail or Panel mountable Advanced statistics are available via a Web Browser Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates makes the device future-proof Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohm Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG) Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 540g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications Compass Safe Distance - 175mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:Data Interface: NMEA 0183Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

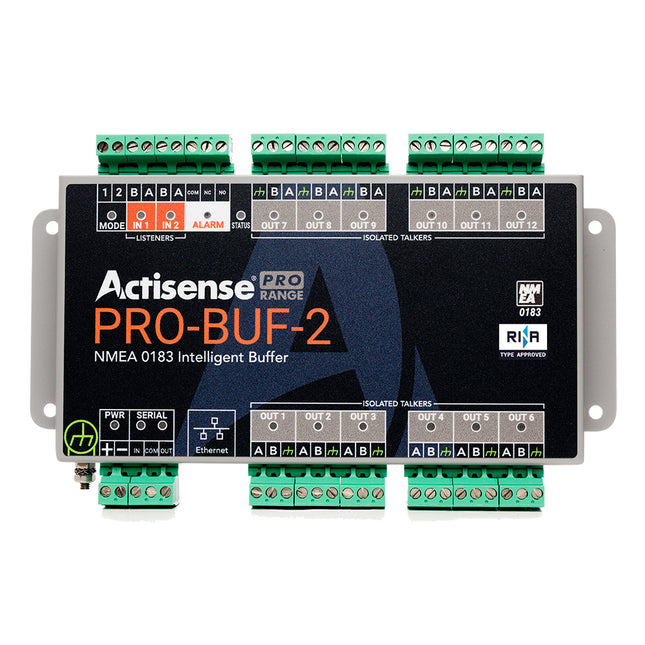

Pro NMEA 0183 Buffer - 2 OPTO Inputs, 12 ISO-Drive Outputs, Serial Port, Ethernet Port, Pluggable Screw TerminalTwo OPTO-isolated inputs and twelve ISO-Drive™ isolated outputs. Offering device protection and excellent flexibility, all in one product - the Actisense® PRO-BUF-2, the intelligent, type-approved PRO range buffer.The PRO-BUF-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With two NMEA 0183 inputs, twelve NMEA 0183 outputs, a bi-directional serial port, and an Ethernet port, the PRO-BUF-2 is a perfect solution for larger leisure vessels, commercial shipping, and is a great addition for systems that require type-approved devices.The PRO-BUF-2 is designed to suit the majority of NMEA 0183 systems and is ready to go ‘out of the box’ by simply hard-wiring the two-mode inputs as required.The Intelligent NMEA 0183 Buffer's manually configurable basic modes of operation include variations of buffer modes, intelligent auto-switch, and combine modes.For all other configurations, leaving the mode inputs floating selects the ‘User Configuration Mode’. The web-based configuration tool allows full customisation of the PRO-BUF-2, and is compatible across all popular Operating Systems. Using the web-based configuration tool allows for fine-tuning of the data available on each output.To make installation quick and simple, the PRO-BUF-2 features 2-part pluggable connectors that allow the use of screw terminals*, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead.Helpful LEDs indicate power, data in, data out, and the alarm status to aid diagnostics.Data statistics and load indication via the web tool provide a real-time view of data.Features: 2 Opto-Isolated inputs 12 ISO-Drive NMEA 0183 outputs Ethernet Port Flexible operating modes Automatic Baud Rate matching on inputs Alarm output options Web-based configuration tool Diagnostic LEDs Advanced Data Filtering and Routing 2 virtual Autoswitch modules Data statistics and load indication via a web tool Designed for a 12 / 24 Volt supply Future-proofing with easily upgradable firmware 2-part pluggable connector system Stainless Steel Housing with DIN rail mount option Type Approved Flexible configuration options to buffer autoswitch or combine NMEA data ISO-Drive separates the Listener from the Talker to protect both the PRO-BUF and each connected device. Fast bi-directional data connection to a monitor and control software application PRO-BUF can be configured using any web browser on any Operating system Works out-of-the-box without configuration for basic installations, or can be easily user-configured as required Relay output is compatible with on-board alarm systems, and the NMEA Alarm sentence can be displayed and actioned on an MFD Easy to access via network, doesn’t require the device to be moved or have a serial connection to the PC. A quick visual check gives the user confidence that each input and output is passing data Features can be utilised to fine-tune data, avoiding data overloads on the outputs and connected listeners Allows automatic data priority selection between two devices of the same type of data (e.g., GPS) Shows the NMEA 0183 on each I/O Port, and how frequently it arrives, great for low-level diagnostics Allows use on large vessel 24V DC power supply systems Additional features in future firmware revisions are accessed using a simple update process via Actisense Toolkit over Ethernet Fast installations and supports both screw and screwless terminal types. Ideal for quick diagnostic swapping Increased durability, ease of installation, and high performance Can be installed on vessels governed by Class Society Rules Type Approved (RINA) Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 325mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage, and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 2 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 12 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible Speed/baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch Serial Port Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible Speed/baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohms Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 530g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 Compass Safe Distance - 750mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Data Interface: NMEA 0183 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

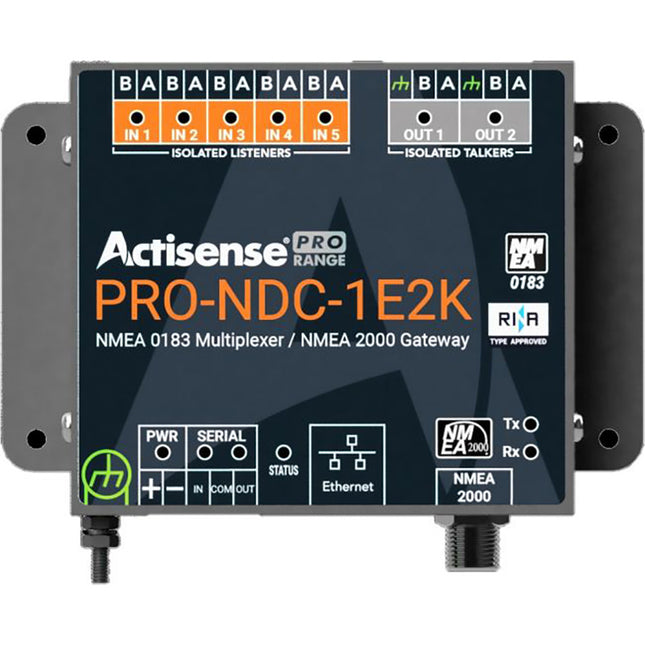

Pro NMEA 0183 Multiplexer/NMEA 2000 GatewayInterconnectivity, reimagined!The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2KFeatures: Auto-switching between inputs to allow for a primary, secondary, tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web based UI, no need to manually enter and edit strings of text. RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations. Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network. Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. NMEA 2000 data streaming over Ethernet. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments. Type-approved (RINA). NMEA 0183 Ethernet streaming NMEA 2000 Ethernet streaming NMEA 2000 output via M12 5x Configurable Opto-isolated NMEA 0183 inputs. 2x Configurable ISO-Drive isolated NMEA 0183 outputs. 1x Bi-directional, configurable, isolated serial port. Automatic baud rate matching on inputs. Advanced data filtering / routing. Free firmware updates making the device future-proof. Diagnostic LEDs on all inputs and outputs. Bi-colour status LED. Panel mountable. Stainless Steel housing for added durability Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates make the device future-proof Type Approved (RINA) Technical Specifications:Power Supply Input supply voltage - 9 to 35 V DC Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input protection - Continuous reverse polarity, transient overvoltage and ESD protection Power indicator - LED, Blue – indicates unit is functioning correctly Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes with data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes with data rate) Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 115200 bps Output voltage drive - >= 2.1V (differential) into 100 ohm Output current drive - 20 mA max. Output protection - Short circuit and ESD Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host interface - 10/100BaseT, automatic polarity detection Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Connector - RJ45 Indicators - Green – Link, Yellow – 100 Mbps NMEA 2000 Port Compatibility - NMEA 2000 Certification Pending Speed / baud rate - 250 kbps Connectivity - M12 male (A-coded) connector Isolation NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V Ethernet Port - 2kv for 60s NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V Mechanical Housing Material - 316 Stainless Steel Dimensions - 139mm (W) x 98mm (H) x 26mm (D) Weight - 360g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 Compass Safe Distance - 300mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years when registered This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs UPC: 5060998710751 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 0183 to NMEA2000 Gateway with PC Interface - USB ConnectionShare engine information on the NMEA 2000 bus.The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.Features: Enables analogue signals to be converted to NMEA 2000 messages Convert signals from up to two engines (that share a common ground) with a single EMU-1 6 gauge / parameter inputs 4 alarm inputs 2 additional auxiliary inputs 2 Tacho inputs Customized IP65 case Diagnostic LED’s Wide power compatibility of 9 to 35VDC No need to change an existing engine Easy installation Easy to configure to suit the connected engine Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000® Optional DIN rail mounting kit available Total engine hours are logged by the monitoring of engine Tach (RPM) input Technical Specifications:Power Supply Supply Voltage - 9 to 35VDC Supply Current - Typically < 25mA @ 12VDC Supply Protection - Continuous reverse polarity protection and load dump protection (meets SAE J1113) Supply Connector - Pluggable 2-way screw terminal, 3.5mm pitch Supply Voltage (NMEA 2000 Port) - 9 to 29VDC Supply Current (NMEA 2000 Port) - < 20mA @ 12VDC from NMEA 2000 bus Load Equivalent Number (LEN) - 1 Supply Protection (NMEA 2000 Port) - Continuous reverse polarity protection and overvoltage protection to 40V NMEA 2000 Port – In/Out Compatibility - Fully NMEA 2000 certified Galvanic Isolation - 2500V input to ground, 1500V output to ground using ISO-Drive Speed / Baud Rate - 250kbps NMEA 2000 Connector - M12 male (A coded) connector Gauge Inputs Voltage Range - 0 to 35VDC Input Impedance - > 50kΩ Sender Feed - 0, 4 or 18mA Accuracy - <= 2% Input Connector - Pluggable 6-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Alarm Inputs Voltage Range - 0 to 37VDC Input Impedance - > 50kΩ Threshold Voltage - Configurable, default is 5V Alarm Polarity - Configurable, default is alarm on low input Accuracy - <= 2% Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Tacho Inputs Voltage Range - ±3 to ±60V Input Impedance - > 100kΩ to ground Input Pulse Range - 4 to 50,000Hz Accuracy - <= 1% Sender Compatibility - Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender Threshold - Automatically adjusts to signal level Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Can withstand an ignition pulse to ±500V Engine LogEngine Hours - 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memoryMechanical Housing Material - Polycarbonate Protective Lid Material - Polycarbonate Sealing Materials - Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent Dimensions - 127mm (L) x 112mm (W) x 48mm (H) Weight - 250g Mounting - 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request Approvals and Certifications EMC - EN 60945 (sections 9 & 10) Environmental Protection - IP66 (PCB housing) Operating Temperature - -20°C to +55°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 – 93% RH Guarantee - 3 years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Data Interface: NMEA 2000 Box Dimensions: 3"H x 6"W x 9"L WT: 1 lbs UPC: 5060998710331 Owner's Manual (pdf)Brochure (pdf)

Read more less

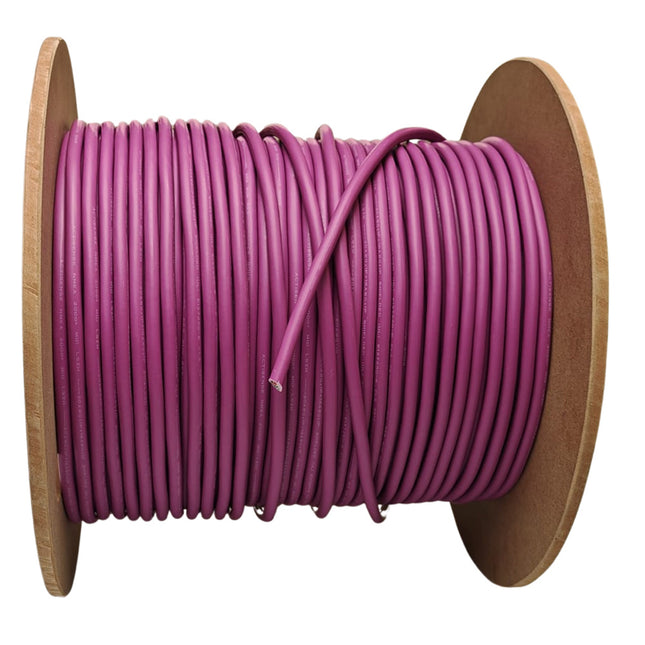

NMEA2000 Mid Bulk Cable Reel - 100MThis cable can be used to create or extend an NMEA 2000® network of flexible lengths to suit any installation. The cable is ideal for use with any of the Actisense A2K Product range for building networks.The cable is LSZH certified to give installers and end users maximum peace of mind and an extra layer of safety.The Actisense range of NMEA 2000® connectors and cables has been designed using our specialist interconnectivity and NMEA knowledge. All Actisense cables and connectors are NMEA 2000® approved.The NMEA 2000® cable includes five wires within a single waterproof cable: power and ground wires, two signal wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000® Mid cable can be used to create a backbone up to 250 meters in length, and offers a current capacity of 4A with Micro connectors, or 8A with Mini connectors.Technical Specifications:Cable Rated Voltage - 60V DC Rated Current - 8A Braid Material - 37 AWG tinned copper Braid Coverage - 65% Nom. Jacket Material - LSZH Purple (RAL4008) Jacket Outer Diameter - 8.2mm Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10.5mΩ/M) Reel Length - 100m Reel Weight - 13-14kg Power Pair Conductor - 16 AWG (19-strand tinned copper) Insulation - 0.17 mm Nom. LSZH Diameter - 1.85mm Nom. Colors - Red & Black Shield - AL Mylar tape over pair DC Resistance - 4.26Ω / 1000ft (14mΩ/M) Data Pair Conductor - 20 AWG (19-strand tinned copper) Insulation - 0.79 mm Nom. Foam PE Diameter - 2.49mm Nom Colors - Blue & White Shield - AL Mylar tape over pair Impedance - 120Ω ±10% @ 1MHz DC Resistance - 10.9Ω / 1000 ft (35.8mΩ/M) Attenuation @ 125 kHz - 0.29dB / 100ft Attenuation @ 500 kHz - 0.50dB / 100ft Attenuation @ 1 MHz - 0.70dB / 100ft Drain Conductor - 20 AWG (19-strand tinned copper) DC Resistance - 10.9Ω / 1000ft (35.8mΩ/M) Approvals and Certifications Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C NMEA 2000 Approved RoHS Compliant UL Certified (E137250), (UL13) LSZH to IEC 60754-1/2 & IEC 61034-1/2 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

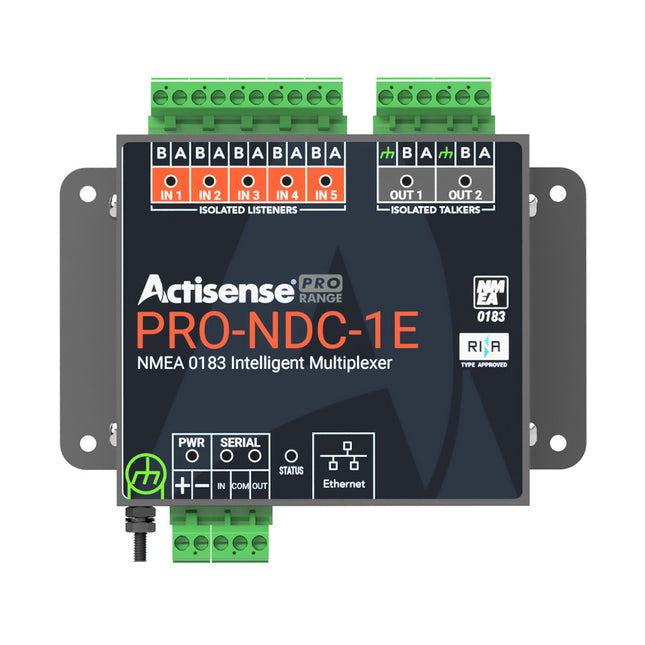

Pro NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet & Serial ConnectionsThe PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…Rugged, Robust, type-approved multiplexer with powerful, advanced features enables baud rate adjustments, auto-switching, and sentence-level filtering.Features: Auto-switching between inputs to allow for a primary, secondary, and tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web-based UI, no need to manually enter and edit strings of text. RINA type-approved device means the multiplexer is fit for leisure, commercial, and class/type installations. Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments. Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology) A serial port can be used as an additional input/output Ethernet port supports direct and network connections NMEA 0183 streaming via Ethernet Configurable input and output baud rates Allows Data combining and rate conversion 2 independent Autoswitch virtual inputs with priority Isolation from battery supply Diagnostic LED’s Optional DIN rail mount Type Approved Quick and easy to install Configuration using a standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates make the device future-proof Technical Specifications:Power Supply Input supply voltage - 9 to 35 V DC     Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)     Input protection - Continuous reverse polarity, transient overvoltage, and ESD protection     Power indicator - LED, Blue – indicates unit is functioning correctly     Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners     Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers     Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible     Speed/baud rate - 4800 to 38400 bps     Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm     Talker Output Current Drive - 20 mA maximum per output     Talker Output Protection - Short circuit and ESD     Talker Data Indicator - LED, Orange (Flashes with data rate)     Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)     Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection     Listener Data Indicator - LED, Green (Flashes with data rate)     Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible     Speed/baud rate - 115200 bps     Output voltage drive - >= 2.1V (differential) into 100 ohms     Output current drive - 20 mA max     Output protection - Short circuit and ESD     Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)     Input protection - Current limited, overdrive protection to 40 VDC, and ESD protection     Data Indicators - LED’s: Green = Receive, Orange = Transmit     Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host interface - 10/100BaseT, automatic polarity detection     Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms     Connector - RJ45     Indicators - Green – Link, Yellow – 100 Mbps Isolation NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V     NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V     Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V     Ethernet Port - 2kv for 60s Mechanical Housing Material - 316 Stainless Steel     Dimensions - 139mm (W) x 98mm (H) x 26mm (D)     Weight - 360g     Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7     Compass Safe Distance - 300mm     Type Approval Certificate - RINA     Operating Temperature - -25 to +70°C     Storage Temperature - -40 to +85°C     Relative Humidity (RH) - 95% @ 55°C     Environmental Protection - IP40     Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Data Interface: NMEA 0183 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

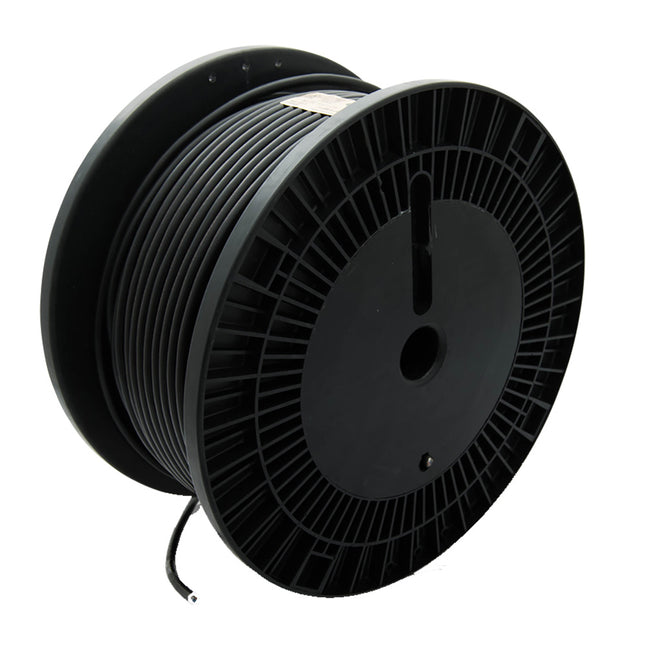

NMEA2000 Micro Bulk Cable Reel - 100MCreate or extend an NMEA 2000 backbone of flexible lengths to suit any installation.The Actisense NMEA 2000 Bulk Lite cable is available in 100-meter reels and is ideal for use with the Actisense QNB-1 Quick Network Block or Field Fit Connectors (FFC).NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum permitted length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters. To help with this limitation, Actisense has drop cable assemblies in varying lengths from 0.25 meters to 6 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Cable Specifications: Rated Voltage - 60VDC Rated Current - 3A Braid Material - 37 AWG tinned copper Braid Coverage - 65% minimum Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10mΩ/M) Reel Length - 100m Reel Weight - 7.7kg/16.9lbs Power Pair Specifications: Conductor - 22 AWG (19-strand tinned copper) Insulation - 0.3 mm Nom. PVC Diameter - 1.43mm ±0.05mm Colors - Red & black Shield - AL Mylar tape over pair DC Resistance - 17.5Ω / 1000ft (57mΩ/M) Data Pair Specifications: Conductor - 24 AWG (19-strand tinned copper) Insulation - 0.65 mm Nom. foam PE Diameter - 2.0mm ±0.05mm Colors - Blue & white Shield - AL Mylar tape over pair Impedance - 120Ω ±10% DC Resistance - 28Ω / 1000 ft (92mΩ/M) Attenuation @ 125 kHz - 0.29dB / 100ft Attenuation @ 500 kHz - 0.50dB / 100ft Attenuation @ 1 MHz - 0.70dB / 100ft Drain Specifications: Conductor - 22 AWG (19-strand tinned copper) DC Resistance - 17.5Ω / 1000ft (57mΩ/M) Technical Specifications: Operating Temperature - -25°C to +75°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 328' Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

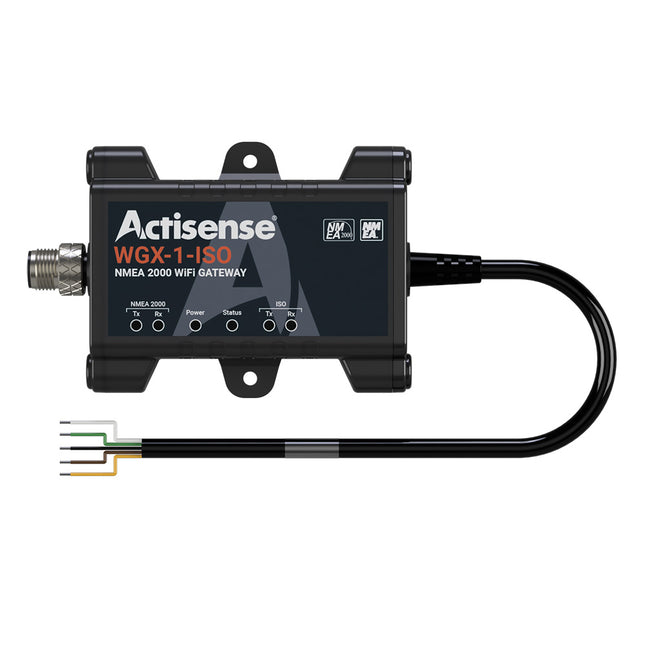

WiFi NMEA 0183 to NMEA2000 Gateway with PC Interface - ISO ConnectionThe WGX-1 is an intelligent NMEA 0183 and NMEA 2000 WiFi Gateway with bi-directional conversion capability.Transfer data from an NMEA 2000 backbone to any device (e.g, laptop, tablet, or smartphone) connected to the WGX-1 via Wi-Fi and additionally convert data bi-directionally between NMEA 0183 and NMEA 2000 using Actisense’s renowned conversion engine. The WGX also acts as a wired gateway, allowing for the transfer or conversion of data between existing NMEA 0183/NMEA2000 instruments.The WGX-1 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences and vice versa. Allowing a wide variety of vessel data (e.g., position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with connected devices and applications, both wired and wireless.Stream NMEA 0183 and NMEA 2000 data over Wi-Fi with ease, making it simple to integrate with your favorite boating apps.Data can be logged to an internal micro SD card (not supplied) for post voyage analysis. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing your voyage details.Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boat’s electronics network, including voltage issues, and the working status of all devices attached to the network. Actisense-i has been designed to save installers and boaters time and ultimately, money, by giving them confidence in their electronics onboard.The WGX-1 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs, internal antenna, enhanced password security, full certification, and all packaged in an extremely rugged IP67 case.Features: OPTO-isolated input and ISO-Drive output for safely interfacing with NMEA 0183 or RS232 / RS422. Up to 230,400 baud rate data transfer rate. Integrated 0.75m ISO cable. Advanced configuration using the Actisense Toolkit allows Tx and Rx lists and Tx rates to be set. Supports fast-heading at 10Hz. Actisense-i network health checker provides valuable feedback on the status of the NMEA 2000 network. Supports both TCP and UDP data streaming over Wi-Fi. Wide range of support for various mobile apps. Remote Firmware upgradability ensures the device is future-proof. IP67 rugged case Vital NMEA 2000 diagnostic tool Diagnostic LEDs on both input and output Technical Specifications:Power Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 78mA @ 9V DC, Max 220mA Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) ISO Port Compatibility - Full NMEA 0183, RS232 & RS422 compatible. RS-485 Listener compatible Speed/Baud Rate - 4800 to 230400 Baud Output Voltage Drive - >= 2.1V (differential) into 100Ω Output Current Drive - 20mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second) Input Protection - Current limited and overdrive protection to 40VDC Connectivity - 5mm stripped and tinned wire Cable Length - 0.75m IsolationNMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000VWi-Fi Radio Compatibility - IEEE 802.11 b/g/n Speed - 802.11n up to 150Mbps Frequency Band - Wi-Fi: 2412 -2484MHz, Wi-Fi: 19.14dBm (802.11b) Max Output power - 19.22dBm (802.11g), 19.12dBm (802.11n) Antenna - Integrated internal antenna, 3.4dBi Range (Open space) - approx. 30 meters Security - WPA_PSK,  WPA2_PSK,  WPA_WPA2_PSK Configuration IP support - Supports TCP & UDP broadcast Data protocols - NMEA 0183 & Five proprietary Security - Unique SSID and unique default Password per device. (Password is user configurable) Mechanical Housing Material Body - Flame-retardant Polycarbonate Housing Material End Caps - Flame-retardant PBT Weight - 112g Approvals and Certifications Environmental Protection - IP67 Operating Temperature - -25°C to +70°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 to 93% RH @ 40°C Guarantee - 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 2.4' Data Interface: NMEA 0183 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

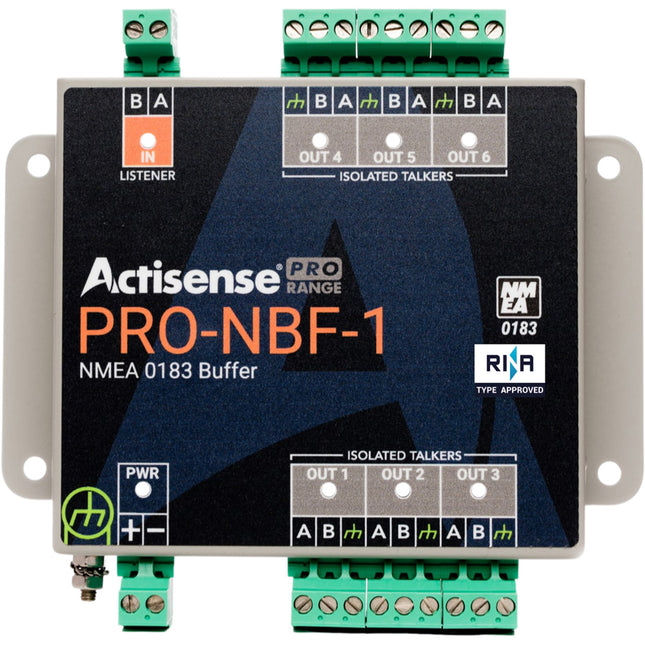

Pro NMEA Buffer - 1 OPTO Input, 6 ISO-Drive Outputs, Serial Port, Pluggable Screw TerminalsSafely connect one Talker to six Listeners with full isolation.The Type-approved NMEA Buffer PRO-NBF-1 Buffer isolates and buffers NMEA 0183 data, with the power to drive multiple devices.Able to distribute up to six identical, amplified streams of data from one source, the NMEA signals are buffered to ensure that each Listener receives the data at the required voltage levels, providing consistent data quality.Isolation of the input and outputs ensures the protection of the source Talker device and Listener devices.The NMEA Buffer has ISO-Drive™ technology on the outputs and OPTO-isolation on the input, which enables you to connect the NMEA 0183 Buffer with complete peace of mind.The stainless steel housing makes the device rugged, sturdy, and gives it increased durability. The metal case also acts as an RF Shield, making the device an ideal addition to commercial installations.To make installation quick and simple, the PRO-NBF-1 features 2-part pluggable connectors that allow use of screw terminals*, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead.The optional strain relief brackets can be provided to ensure reliable professional cable management.Helpful LEDs indicate power, input, and output operation.Features: One Opto-Isolated Input Six ISO-Drive™ outputs Outputs automatically track the input baud rate RS-232, RS-422 and RS-485 Listener compatible ISO-Drive separates the Listener from the Talker to protect both the PRO-NBF-1 and each connected device Wide compatibility means simplified installation Simple installation saves time and money and provides peace of mind Type Approved (RINA) Technical Specifications:Power Supply Input Supply Voltage - 9 to 35V DC Input Supply Current - 150mA max @ 12V DC (all outputs @ full drive into 100Ω loads) Input Protection - Continuous reverse polarity and ESD protection Power Indicator - LED, Blue – Indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch NMEA 0183 Port – Listener & Talkers Number of Listener / Input Ports - One isolated NMEA 0183 Listener Number of Talker / Output Ports - Six isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible Speed/baud rate - 4800 to 115200 bps Talker Output Voltage drive - >= 2.2V (differential) into 100Ω Talker Output Current drive - 20mA max. Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15V to +15V continuous, -35V to +35V short term (<1 second) Listener Input Protection - Current limited, overdrive protection to 40V DC, and ESD protection Listener Data Indicator - LED, green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V Mechanical Housing Material - 316 Stainless Steel Dimensions - 139mm (L) x 128mm (W) x 27mm (H) Weight - 335g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - EN 60945:2002 (Fourth Edition – 2002), DNVGL-CG-0339:2019 Compass safe distance - 600mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Maximum Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years Specifications: Cable Length (Feet): N/A Data Interface: NMEA 0183 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

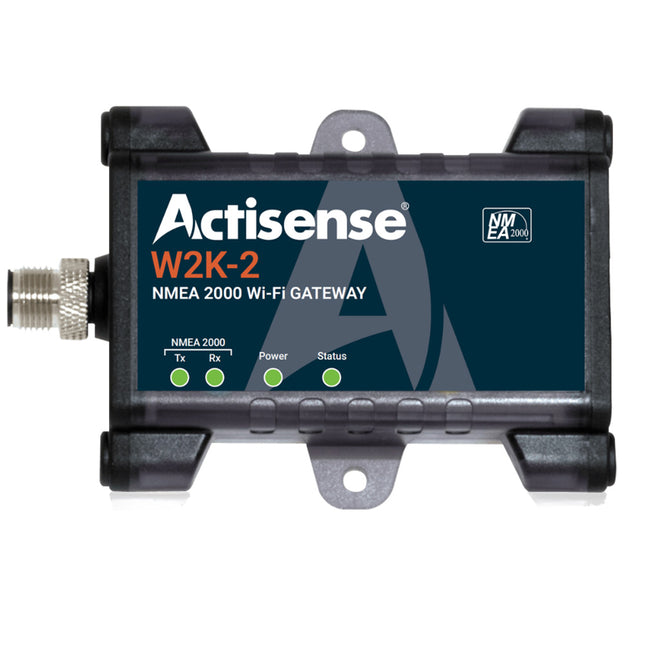

NMEA2000 to WiFi GatewayThe W2K-2 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger and Actisense-i diagnostic tools.Transfer data from an NMEA 2000 backbone to any device (e.g, laptop, tablet, or smartphone) connected to the W2K-2 via Wi-Fi and additionally convert this data to NMEA 0183 using Actisense’s renowned conversion engine. Actisense-i is a suite of diagnostic tools and a health checker for your network.Fully compatible with the industry’s most popular apps.The W2K-2 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences, thus allowing a wide variety of vessel data (e.g., position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with NMEA 0183 compatible software applications running on connected devices.All the data received (or a selected subset) can be logged to an internal micro SD card for later downloading to use for analyzing the voyage. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing your voyage details. Data can be stored on any micro SD card (up to 128GB), giving weeks or more of storage for all onboard NMEA data.The W2K-2 has adopted the latest WPA3 standards for password protection. Whilst most wireless gateways still use WPA2, WPA3 adds an extra layer of security.Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boat’s electronics network, including voltage issues, and the working status of all devices attached to the network. Actisense-i has been designed to save installers and boaters time and ultimately, money, by giving them confidence in their electronics onboard.The W2K-2 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs, an internal antenna, enhanced password security, full certification, and all packaged in an extremely rugged IP67 case.Features: Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi) Supports both TCP and UDP, streams data using up to three separate data servers Data protocols are selectable to be compatible with a huge range of navigation software and apps Voyage data recording (install SD card up to 128GB) Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status Works as an access point and a client simultaneously Remote Firmware Upgradability Low power- 2 LEN (100 mA) Supports 802.11 b/g/h (up to 150Mbps) Automatically measures and reports the NMEA 2000 bus voltage User Manual embedded on the device, easily accessible via browser Each device has a unique default SSID and Password for enhanced security Actisense-i diagnostic tools Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger Enables the use of mobile devices and laptops without the hassle of a physical connection Allows compatibility with a wide range of NMEA 2000 & NMEA 0183 applications Ruggedized IP67 casing suitable for wet and harsh environments Works out of the box – just install your choice of SD card for logging data An integrated antenna has less chance of physical damage Quick and easy to install Technical Specifications:Power Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC     Supply Current (NMEA 2000 Port) - 70mA (avg.) @ 12V DC, 100mA (avg.) @ 9V DC Load Equivalent Number (LEN) - 2     Supply protection - Continuous reverse polarity protection and transient overvoltage protection to 40V Wi-Fi Radio Compatibility - IEEE 802.11 b/g/n     Speed - 802.11n up to 150Mbps     Frequency Band - 2.4GHz 2.5GHz     Max Output power - 20 dBm     Antenna - Integrated internal antenna     Range (Open space) - 30 meters     Security - WPA_PSK,  WPA2_PSK,  WPA_WPA2_PSK Configuration IP support - Supports TCP and UDP broadcast     Data servers - Three separate data servers     Data protocols - NMEA 0183 & Five proprietary     Security - SSID and Password configurable (Unique defaults per device) Diagnostics Power LED - Blue     NMEA 2000 Tx LED - Orange     NMEA 2000 Rx LED - Green     Status LED - Yellow     Micro SD card - Not supplied – customer to install as required. Mechanical  Housing Material (body) - Polycarbonate     Housing Material (endcaps) - PBT     NMEA 2000 Connector - M12 Male (A polarized) connector molded into the case     NMEA 2000 Connector Material - Nickel-plated brass     Weight - 80g     Dimensions - 106mm (L) x 73mm (W) x 24mm (H) Environmental Environmental Protection - IP67     Operating Temperature - -20°C to +55°C     Storage Temperature - -40°C to +85°C     Recommended Humidity - 0 – 93% RH Approvals and CertificationsGuarantee - 5 yearsThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Data Interface: NMEA 2000 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

0183 to N2K Gateway with PC Interface, USB ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data conversion…The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.Features: View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard. View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway. Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183). Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1. Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs. Vital NMEA 2000 diagnostic tool Fully isolated to prevent dangerous ground loops Up to 230,400 baud data transfer rate Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set Supports Fast Heading at 10Hz Multiple diagnostic LEDs Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided Configure and flash-update Actisense products on the bus Upgrade NMEA 0183 equipment to NMEA 2000 Allow NMEA 0183 devices to receive vital NMEA 2000 data Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together Reliable, renowned bi-directional conversion engine Supports a wide range of conversions including AIS Easily configurable using Actisense Toolkit Technical SpecificationsPower Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 62mA @ 9V DC Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) USB Port Compatibility - USB 1.1, 2.0 and 3.0 Speed / Baud Rate - 4800 to 230400 Baud Connectivity - Male type A plug moulded onto cable Cable Length - 1.8m Isolation NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V Mechanical Housing Material Body - Flame retardant Polycarbonate Housing Material End Caps - Flame retardant PBT Weight - 113g Approvals and Certifications NMEA 2000 - NMEA 2000 Certified NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements RoHS and REACH - Compliant Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7 Environmental Protection    IP67 Operating Temperature    -25°C to +70°C Storage Temperature    -30°C to +70°C Recommended Humidity    0 to 93% RH @ 40°C Guarantee    3 years, extended to 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 5.9' Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 6"L WT: 0.5 lbs UPC: 5060998710560 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

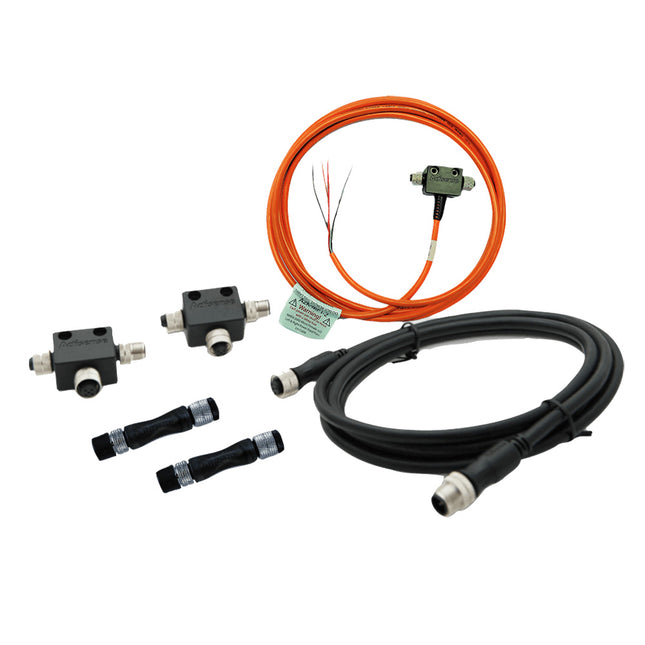

NMEA2000 Micro Starter Kit with MPT-2, TER-U (x2), T-MFF (x2) & TDC-4MThe NMEA 2000 Micro Smart Starter Kit from Actisense provides everything that is required to start an NMEA 2000 installation.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge. This kit is also the first to feature our breakthrough Smart Universal Terminators to help you easily identify any potential voltage issues on your network.In the Box: A2K-MPT-2 - Micro Power T - to power the network A2K-TER-U - 2x NMEA 2000 micro Smart Universal Terminator – to terminate each end of the network and monitor network voltage A2K-T-MFF - 2x Micro T-piece – to allow two NMEA 2000 devices to connect to the network A2K-TDC-4M - NMEA 2000 Lite cable assembly 4 meter – to extend the distance between any two network pieces. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 13.1 Data Interface: NMEA 2000

Read more less

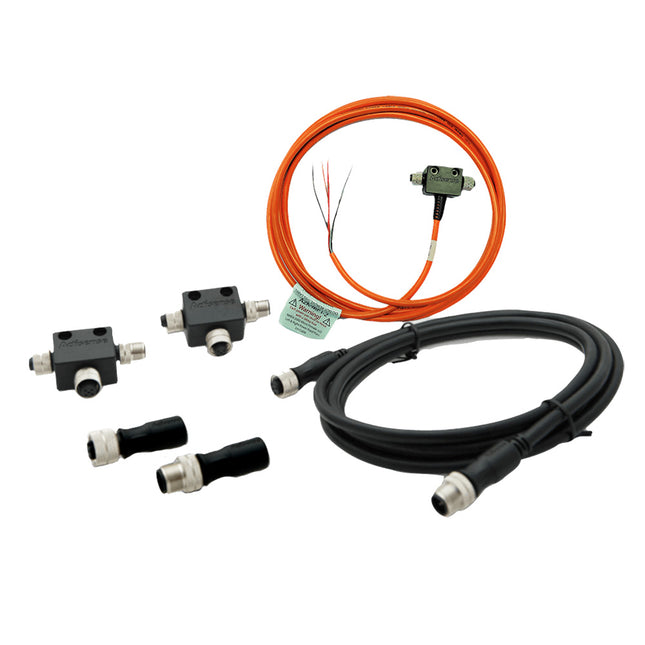

NMEA2000 Micro Starter Kit with MPT-2, TER-M (x2), T-MFF (x2) & TDC-6MThe NMEA 2000 Starter Kit 2a from Actisense provides everything that is required to start an NMEA 2000 installation.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.In the Box: A2K-MPT-2 - Micro Power T- to power the network. 2x A2K-TER-M - NMEA 2000 micro terminator male – to terminate the ends of the network A2K-T-MFF - 2x Micro T-piece – to allow two NMEA 2000 devices to connect to the network. A2K-TDC-6M - NMEA 2000 Lite cable assembly 6 meter – to extend the distance between any two network pieces. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 19.6' Data Interface: NMEA 2000

Read more less

NMEA2000 Micro Starter Kit with MPT-2, TER-M (x2), T-MFF (x2) & TDC-2MThe NMEA 2000 Starter Kit from Actisense provides everything that is required to start an NMEA 2000 installation.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Read the overview below to discover the contents of this useful NMEA 2000 Starter Kit.In the Box: A2K-MPT-2 - Micro Power T- to power the network 2x A2K-TER-M - NMEA 2000 micro terminator male – to terminate the ends of the network A2K-T-MFF - 2x Micro T-piece – to allow two NMEA 2000 devices to connect to the network A2K-TDC-2M - NMEA 2000 Lite cable assembly 2 meter – to extend the distance between any two network pieces This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 6.5' Data Interface: NMEA 2000

Read more less

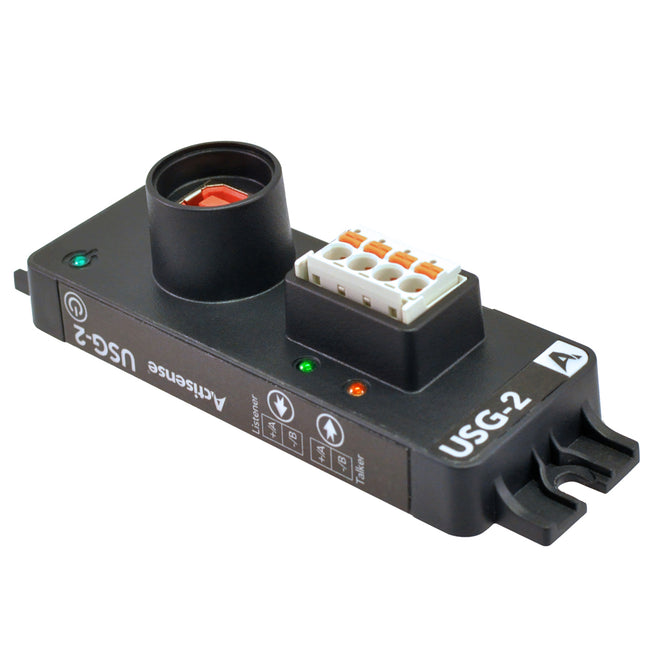

USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 And RS232The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network.The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.It provides a far safer connection when compared to standard USB to serial converters.Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from ground loops.The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.The USG-2 is the safest way to connect a boat’s data network to an on-board PC.Features: NMEA 0183, RS422 & RS232 compatible ISO-Drive™ technology Pluggable screwless connector with locking latch & strain relief Encapsulated electronics High retention USB socket Diagnostic & power LEDs Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit Pluggable screwless connector Inputs & outputs protected against over voltage, ESD & short circuits Simple installation Protects PC from damage Eliminates ground loops Technical Specifications:Power Supply (USB) Power Source - Bus powered Maximum Bus Current - 50mA NMEA 0183 Port – Talker & Listener     Number of Listener/Input Ports - One isolated NMEA 0183 Listener Number of Talker/Output ports - One isolated NMEA 0183 Talker Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Galvanic Isolation - NMEA 0183 Talker and Listener Isolation Speed/ Baud Rate - 4800 to 230400 bps / baud Connectivity - Pluggable screwless connector with locking latch and integrated push-button. Utilizes cage clamp for 12 to 24 AWG wires (both solid and stranded) Talker output voltage drive - >2.0V (differential) into 100Ω Talker output current drive - 20mA max. Talker output protection - Short circuit and ESD Listener input voltage tolerance - -15V to +15V continuous Listener input protection - Current limited, overdrive protection to 40V DC and ESD protection USB Port     Compatibility - USB 1.1, 2.0 and 3.0 Speed/ Baud Rate - 300 to 230400 Baud Connectivity - High retention type-B receptacle (supplied cable includes a custom USB Type-B sealing plug) Withdrawal Force - 1.5Kg Drivers (Latest OS) - Windows XP, Vista, 7, 8, 10,11 & MAC OS X supplied on CD & Actisense website Mechanical Materials - Housing – ABS (PA-765), flame retardant to UL94 V-0, PCB encapsulant – polyurethane, flame retardant to UL94 V-0, Pluggable screwless connector – PPA-GF with CrNi spring and tin plated Ecu contacts Mounting - Bulkhead mount (s/s self tapping screws included) or optional DIN rail mount kit available Weight - Main body 65g, USB cable 70g USB cable length - 2.0m shielded USB Type-A to Type-B cable including custom USB Type-B sealing plug Approval & Certifications     EMC - EN 60945 (sections 9 & 10) Environmental protection - IP67 (Encapsulated electronics) Operating temperature - -25°C to +70°C Storage temperature - -40°C to +85°C Relative Humidity (RH) - 0 to 93% RH Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 6.5' Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

Self-Contained Boat Network - Complete Network for 4 Devices with Internal Terminators and Power FeedInstalling small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN-1) from Actisense.The equivalent of four T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to four devices is ready to use, taking ‘plug & play’ to the next level.Features: Self-contained NMEA 2000 Network Integrated Termination Resistors 4x NMEA 2000 drops Ruggedized, flame retardant over-molded housing Metal coupling nuts Integrated EMI shield Orange, UL Rated, 3-meter power cable Color coded wires, stripped and tinned Low cost, quick to install and provides and easy way to connect multiple NMEA 2000 devices. Simple installation, fewer components, more reliable, lower cost. Accommodates the vast majority of compact NMEA 2000 networks Suitable for wet and harsh conditions- highly desirable in marine environments Reliable, long lasting connections Less likely to be susceptible to interference UL rated cable provides peace of mind. Color easily differentiates the power cable from drop cables Quick installation, no special tools required Technical Specifications:Electrical Rated Current - 3A Rated Voltage - 60 V (AC/DC) Internal Termination Resistors - 2 x 121Ω 250mW Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - TPU, Black, Halogen Free Flammability Rating - UL94 V-0 Internal Housing Shield - Copper Foil Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.8mm Cable Length - 3m Wire Length - 140mm (10mm stripped and tinned) Wire Jacket - PVC, Red & Black Power Wires - 16 AWG Shield (Drain) Wire - 18 AWG Cable Shield - Al-mylar Weight - 360g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Cable Length (Feet): 9.8' Box Dimensions: 2"H x 7"W x 9"L WT: 0.8 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

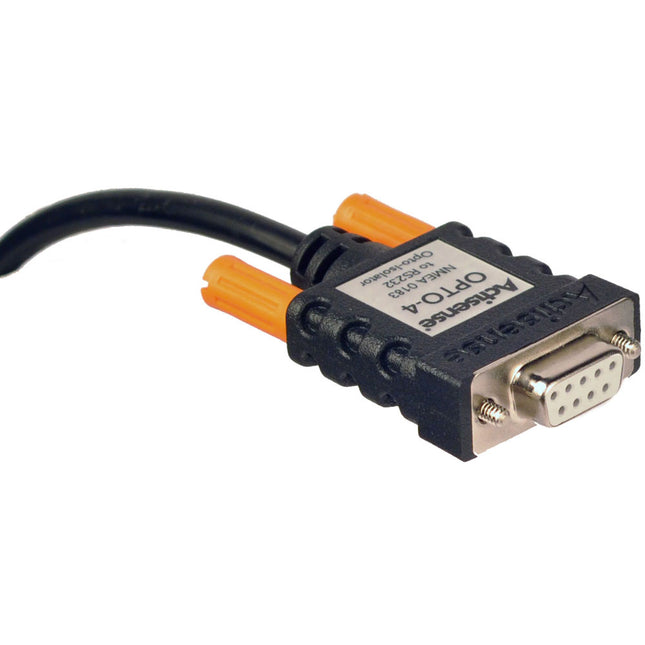

NMEA 0183 PC OPTO-Isolator Cable, RS232 DB9 Female, Shielded (Isolated to PC)Add isolation to an RS232 port to protect against ground loops. The OPTO-4 provides a safe and low cost way of connecting an RS422 (NMEA 0183) system to an RS232 (PC COM port) system, or any other device with a standard RS232 9-pin port.The OPTO-4 provides comprehensive galvanic OPTO-isolation to protect the PC input/receiver, plus important spike suppression to improve the PC output/transmitter protection. Initially designed for systems wishing to receive NMEA 0183 data without the risk of ground loop damage, the flexible OPTO-4 can be used to interface any RS422 and standard RS232 connection, whilst powering itself from the RS232 port, making installation simple and very quick.The Actisense opto isolator design integrates an over-molded case for excellent water resistance and a small footprint for installation into tight spaces.Features: One RS422 OPTO-isolated input One RS422 (NMEA 0183) output Up to 115200 baud Port powered Shielded cable and case Protects PC input/receiver from damage Water resistant cable. Ruggedized over-molded case suitable for harsh environment Quick and easy to install Technical Specifications:Electrical NMEA Listener / Input Isolation - 2kV Opto-Isolation between Red / Black NMEA Input Pair and all other Connections NMEA Listener / Input Voltage - +/-15V Continuous Maximum, +/-35V Max < 1 Second NMEA Listener / Input Signal Thresholds - Logic ‘0’ +2V to +15V, Logic ‘1’-15V to 0V NMEA Talker / Output Voltage & Current - Dependent on Host RS232 Interface. Typically +/-5V to +/-15V @ 10mA Max RS232 Voltage on Host - +/-7V to +/-15V RS232 Port Total Current Consumption - 2mA to 5mA depending on RS232 Voltage Speed / Baud Rate - 4800 to 115200 Baud Mechanical Housing Material - PVC Black Thumb Screw Material - PVC Orange Screw - Steel, Nickel Plated, M2.8 Thread DB9 Connector - 9 Pin Female Cable Length - 1.5m Cable Wire - 22AWG (17/34AWG) Tinned Stranded Copper Cable Jacket - PVC Shield - Internal Copper Foil Shield Cable Outer Diameter - 5.5mm Approvals and Certifications Operating Temperature - -20°C to +70°C Electrical Specification - Meets IEC 61162-2 Weight - 100g Guarantee - 3 Years UL Certification - Cable E137250 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 4.9' Connection Gender: Female Data Interface: NMEA 0183 Box Dimensions: 2"H x 4"W x 5"L WT: 0.25 lbs Quick Guide (pdf)Brochure (pdf)

Read more less

Actisense NMEA 2000® Small Boat NetworkModel: A2K-SBN-1 Self-contained NMEA 2000 Network Integrated Termination Resistors 4x NMEA 2000 drops Ruggedized, flame retardant over-moulded housing Metal coupling nuts Integrated EMI shield Orange, UL Rated, 3-meter power cable Colour coded wires, stripped and tinned The ideal solution for NMEA 2000 networks of up to four devices.Installing small NMEA 2000 networks is quick and easy with the Small Boat Network (SBN) from Actisense.The equivalent of four T-pieces in a single case provides a cost effective solution and significant time and space saving. Termination resistors are built in making the SBN an entirely self-contained NMEA 2000 network.Attach the three metre cable to the boats power supply and an NMEA 2000 network for up to four devices is ready to use, taking ‘plug & play’ to the next level.

Read more less

A2K-TDC-10M NMEA2000 Micro Cable Assembly - 10MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  688g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 32.8' Connection Gender: Male-Female Data Interface: NMEA 2000 Box Dimensions: 2"H x 6"W x 6"L WT: 1.5 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-8M NMEA2000 Micro Cable Assembly - 8MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  567g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 26.2' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-6M NMEA2000 Micro Cable Assembly - 6MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  430g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 19.6' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-5M NMEA2000 Micro Cable Assembly - 5MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  370g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 16.4' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

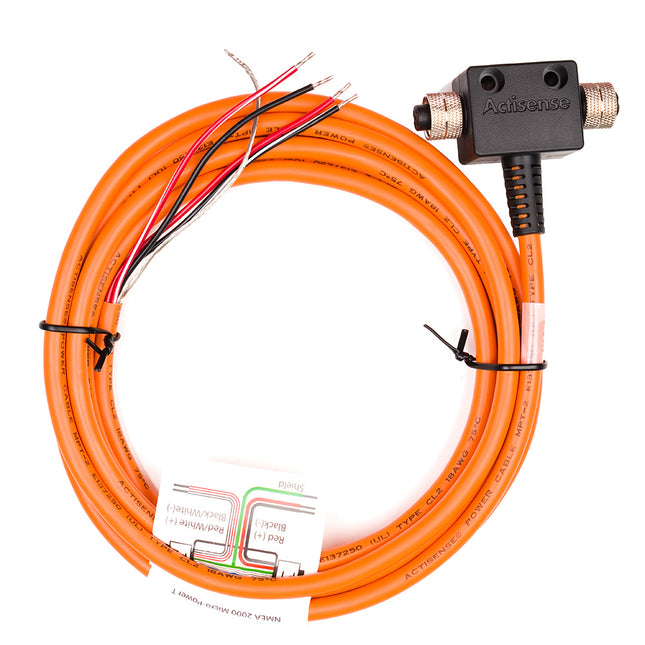

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified CableThe A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.Now with improved strain relief!The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.Technical Specifications:Electrical Rated Current - 4A (each feed) Rated Voltage - 60VDC Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass Filled), Black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.7mm ±0.254mm Cable Length - 3M Wire Length - 100mm (7mm stripped) Wire Jacket - PVC Wires - 18 AWG (stripped and tinned) Drain - 18 AWG (34-strand tinned copper) Shield - Al-mylar Weight - 290g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 9.8 Connection Gender: Female-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-4M NMEA2000 Micro Cable Assembly - 4MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  287g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 13.1' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

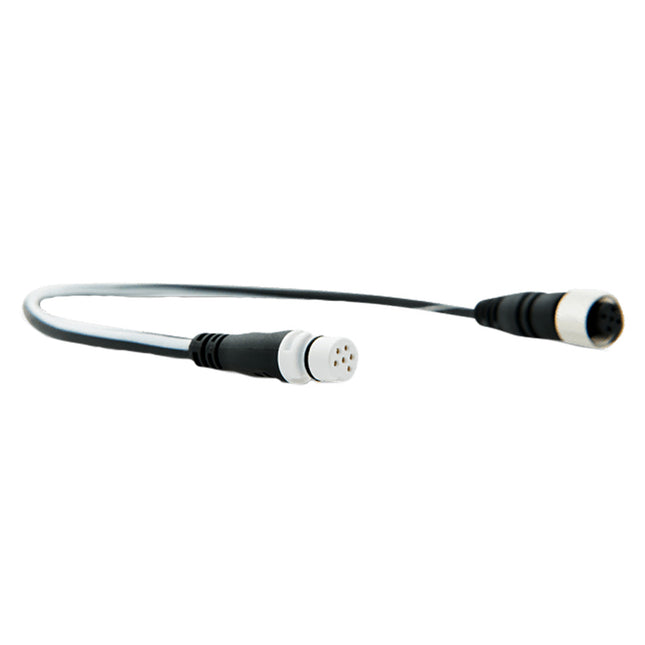

SeaTalkNG to NMEA2000 Adapter CableAdapter cable to convert SeaTalkNG data to NMEA2000.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000

Read more less

A2K-TDC-3M NMEA2000 Micro Cable Assembly - 3MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  228g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 9.8' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

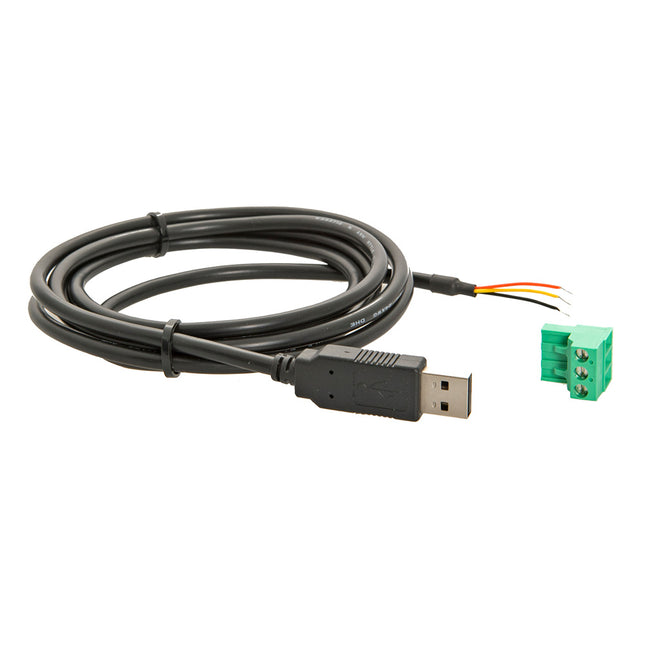

USB to Serial Adapter for Pro Range & EMU-1 ProductsSerial to USB cable assembly.*Note: this accessory is only suitable for use with Actisense PRO range products. To safely transfer NMEA 0183 data to a PC from another manufacturer's device, the Actisense USG-2 is recommended.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

A2K-TDC-2M NMEA2000 Micro Cable Assembly - 2MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  166g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 6.5' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Smart Universal Micro TerminatorTerminate your NMEA 2000 network – regardless of whether a male or female connection is required – and use the TER-U’s smart functionality to easily diagnose any power or voltage issues on your NMEA 2000 bus.The TER-U can be fitted directly at the end of your network or used as an in-line terminator in difficult-to-access locations.The TER-U acts as an intelligent diagnostic terminator, providing instant feedback on the state of the NMEA 2000 bus onboard. It is also a universal terminator which can be used as an inline terminator or else as either a Male or Female terminator, as it comes supplied with blanking caps.It has a built-in high-accuracy voltage monitoring circuit, which continuously monitors the bus voltage, and will illuminate its internal LEDs when it detects that the bus voltage is of the correct polarity. If it detects that the voltage is within the minimum required range, it will indicate ‘GREEN’ immediately, providing continuous, valuable feedback as to the state of the bus.If the voltage falls below the minimum required level of 9.0V, then the LEDs will illuminate ‘RED’, showing there is a potential problem with the NMEA 2000 bus power. Similarly, if the LEDs do not illuminate at all, this would indicate that there was no power or that the polarity was incorrect. This monitoring function happens continuously and remains permanent.Because these terminators are illuminated, they instantly provide feedback that the terminator is actually present (i.e., able to identify that there are two terminators present) – especially helpful in difficult-to-reach locations.This smart universal micro-terminator can be used as either a male or female terminator or even as a feed-through terminator for applications at the top of masts, making it truly universal.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 36VDC Terminator Resistance - 120Ω 1% Features Green LED - NET-S ≥ 9.05V ±  1% Red LED - NET-S < 9.05V ± 1% Mechanical Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Male Contact Carrier - PA66 (30% Glass-filled), black Female Contact Carrier - PA66 (30% Glass-filled), black Male Contact Polarization - Standard M12 -“A”- polarization Female Contact Polarization - Standard M12 -“A”- polarization Male Mating Thread - M12 Female Mating Thread - M12 Male Screw Cap - Brass, nickel plated Female Screw Cap - Brass, nickel plated Housing - PVC black Weight - 23.6g Flammability Rating - UL94 V0  Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Connection Gender: Male-Female Data Interface: NMEA 2000 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

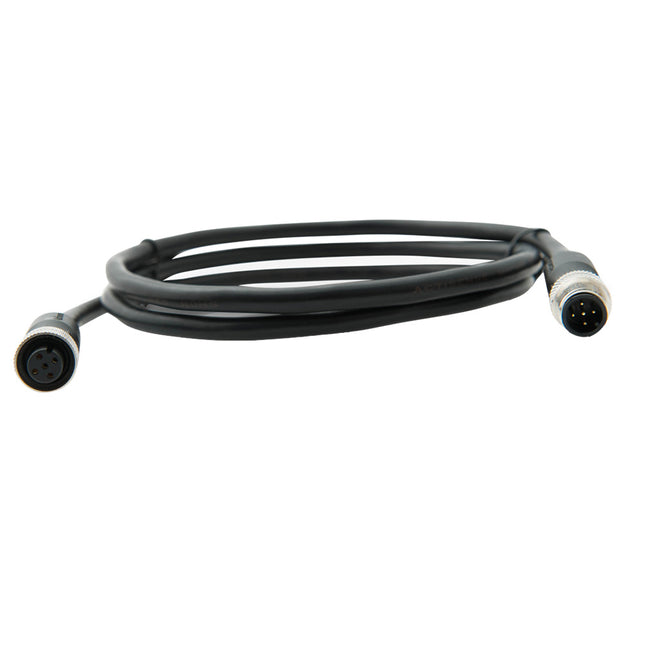

A2K-TDC-1M NMEA2000 Micro Cable Assembly - 1MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  105g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 3.2' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  67g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 1.6' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

N2K Micro Gender Changer - Male to Male - .25MUse between two cable connectors of the same type and gender of connector on an NMEA 2000® backbone.Manufactured using Actisense designed connectors with 0.25m UL certified cable, the gender changers offer easy and secure connections.The gender changers are available in male and female versions.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 1' Connection Gender: Male-Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 6"L WT: 0.1 lbs UPC: 801769003383

Read more less

A2K-TDC-0M25 NMEA2000 Micro Cable Assembly - 0.25MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  51g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 1' Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

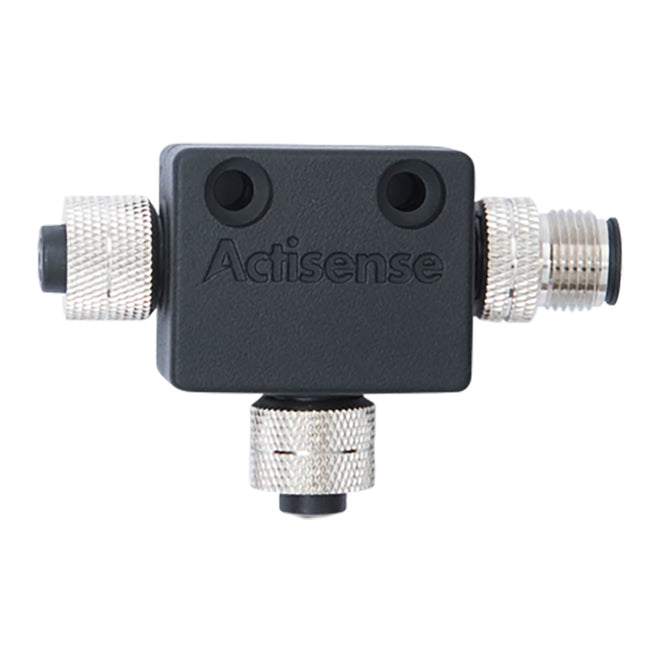

NMEA2000 Micro T ConnectorQuality-engineered connectors are shaped to allow easy and secure connections.Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 4A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Weight - 47g Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Connection Gender: Male-Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Right Angle Micro Field Fit Connector - MaleField-fit connectors allow full customization of your NMEA 2000 network cabling.Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight - 22.3g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Connection Gender: Male Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

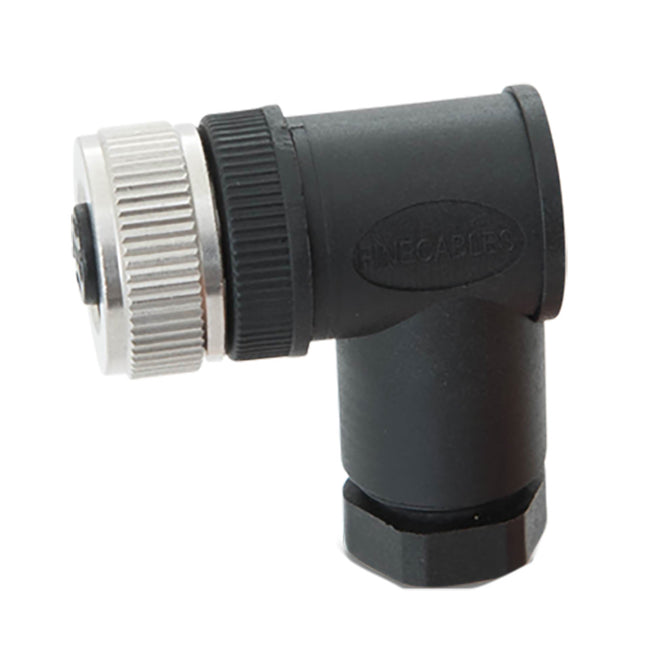

NMEA2000 Right Angle Micro Field Fit Connector - FemaleField-fit connectors allow full customization of your NMEA 2000 network cabling.Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight - 27.8g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Connection Gender: Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Straight Micro Field Fit Connector - MaleField-fit connectors allow full customization of your NMEA 2000 network cabling.Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight - 21.1g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Connection Gender: Male Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Straight Micro Field Fit Connector - FemaleField-fit connectors allow full customization of your NMEA 2000 network cabling.Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight - 26.5g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Connection Gender: Female Data Interface: NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

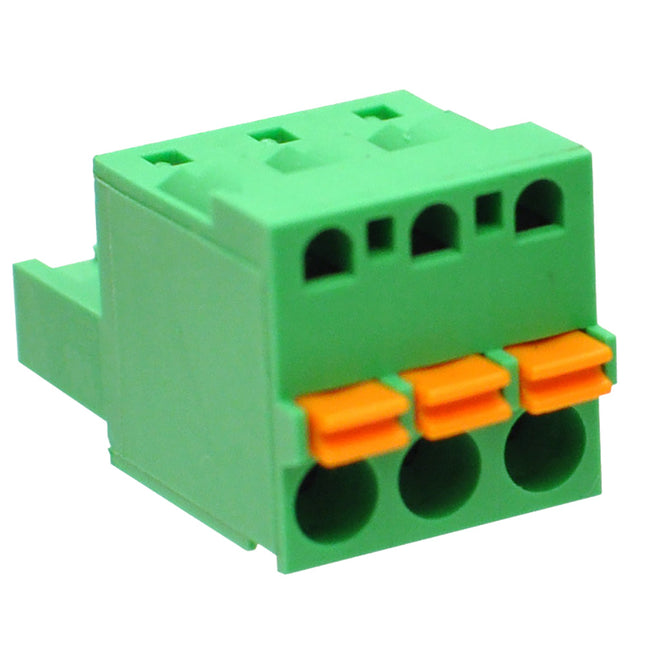

Pluggable Screw Connector Pack for PRO-BUF-2Connector pack for the PRO-BUF-2. Allows for simple screwless connection of wiring from inputs and outputs.This pack is suitable for use with PRO-BUF-2.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:Type: Parts

Read more less

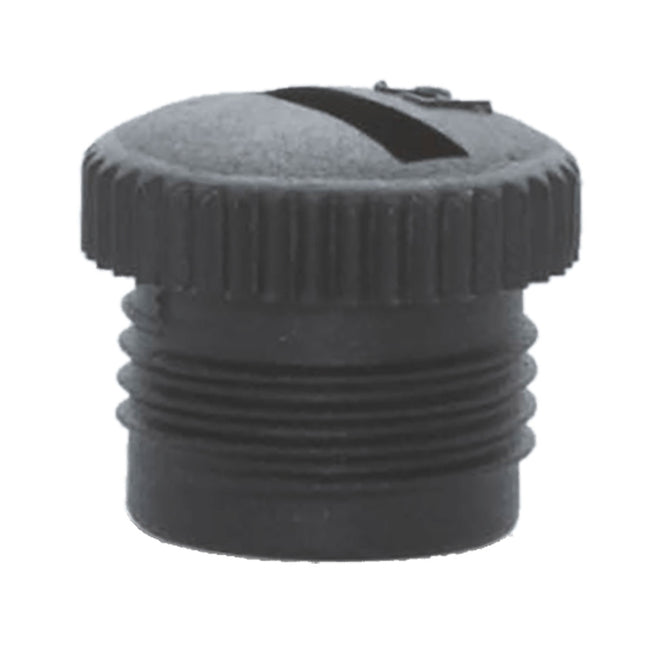

Protective Screw Cover for NMEA2000 Male Micro Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): N/A Connection Gender: Male Data Interface: NMEA 2000
