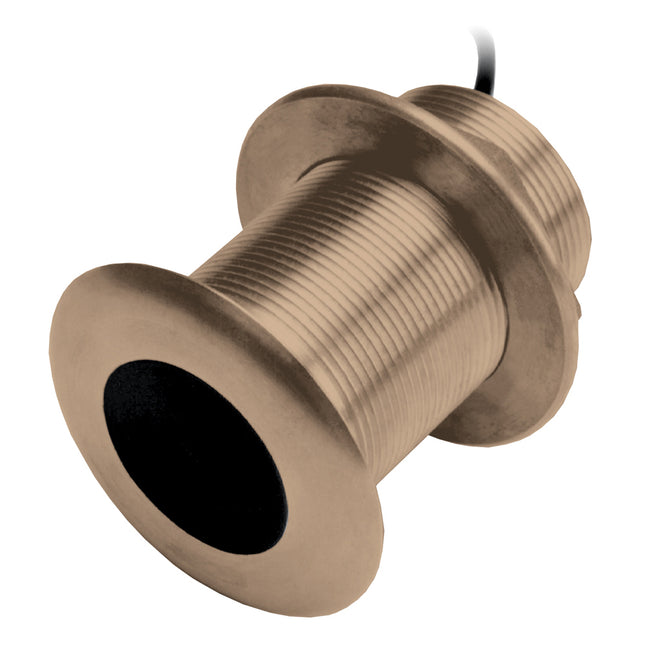

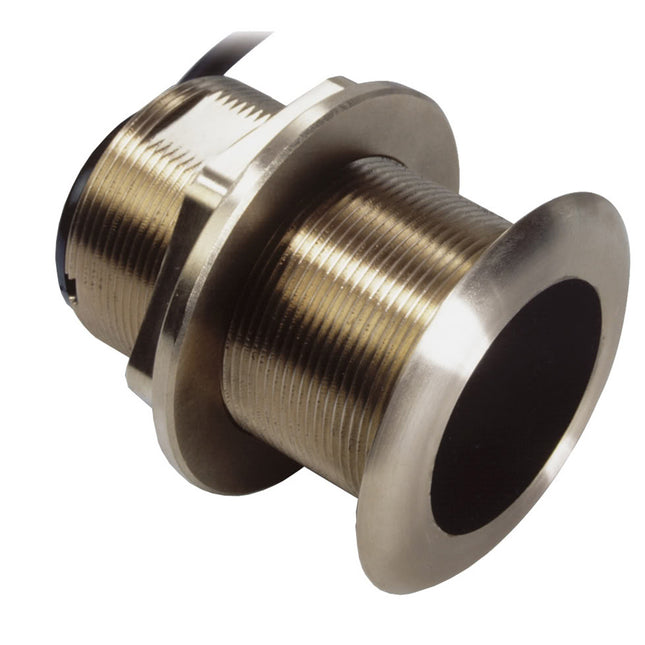

B60 Thru-Hull 12-Degree 9-Pin xSonic ConnectorB60 (12°) - Bronze 600 W Through-Hull 50/200 kHz Depth/Temperature Sonar Transducer. Owner's Manual (pdf)Brochure (pdf)

Read more less

B75H 20° Bronze Thru-Hull CHIRP xSonic 9-PinThe B75H is a bronze, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings. Features: CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings Easy To Install High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water Highly Accurate - Provides extremely accurate data 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull Plug & Play Connection - Easily connect to NSS, NSE, NSO or Lowrance Specifications:Pins: 9-Pin

Read more less

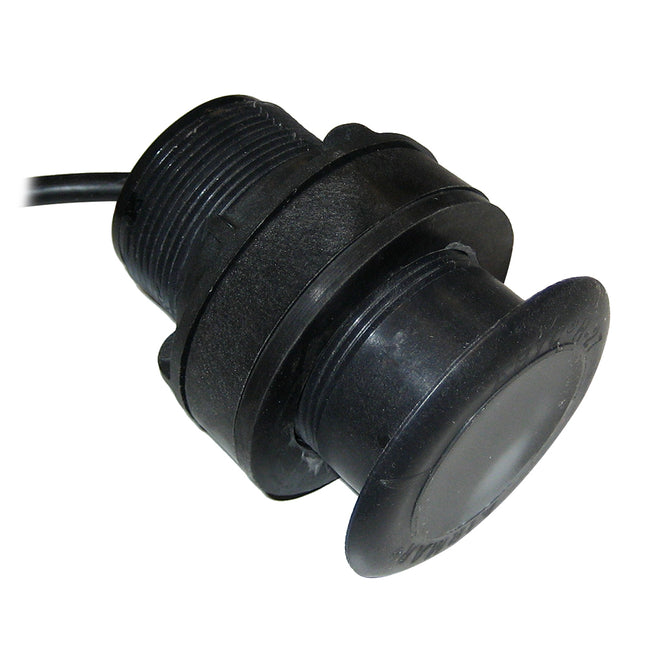

DT800 Plastic Depth Temp N2K 0°NMEA 2000 Depth/Temperature sensor with zero degrees (untilted) element. Includes a 51mm (2″) plastic flanged through-hull housing.The sensor uses standard PGNs and comes with Micro-C connectors enabling easy connection to an NMEA2000 backbone.This sensor does not have a speed sensor connection.Features: Plastic Through-hull housing 0-degree sensor 2m Micro-C cable (without speed connection) NMEA 2000

Read more less

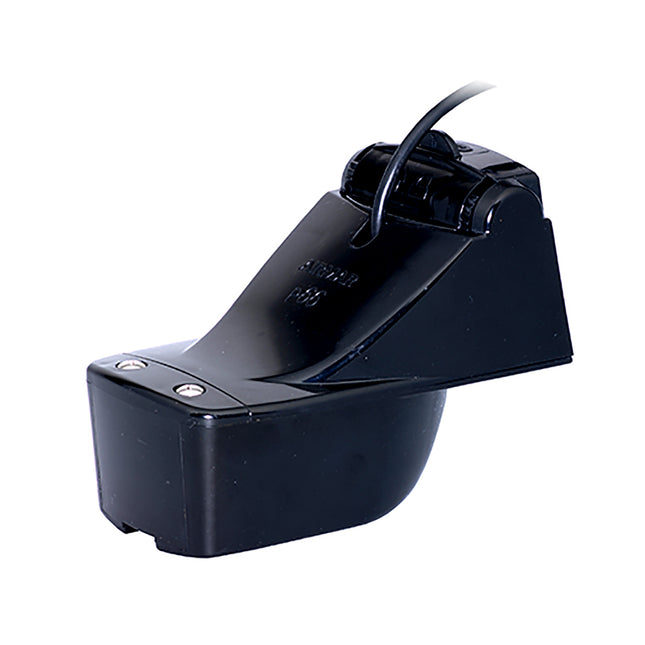

xSonic P66 Plastic Transom Mount Transducer 50/200kHz with Black 9-Pin ConnectorP66 Transom Mount Depth/Temp TransducerThe P66 features a 50/200 kHz, dual-frequency, single-ceramic element. This hydrodynamic housing with a rounded nose reduces the turbulence under the transducer's face for clear display images.

Read more less

xSonic SS175L Stainless Steel Thru-Hull Transducer - 20°The SS175L is a single-frequency LOW CHIRP Stainless Steel Thru-Hull Transducer offering exceptional detail and coverage in Deep Water.Features: Low CHIRP - 40-60 kHz with 32°- 21° beam for excellent fish targets Reach Depth ranges of up to 2,500' with Low CHIRP Fiberglass and wood hulls 10M Cable with 9-Pin XSONIC Connector Compatible with Lowrance HDS Carbon and Simrad NSS Evo3 Displays Specifications: Chirp: Low Cable Length (Feet): 10m Pins: 9 Mounting Style: Thru-Hull Box Dimensions: 8"H x 10"W x 12"L WT: 11.5 lbs UPC: 9420024161876

Read more less

xSonic R509LH-W Thru-Hull Wide-Beam CHIRP w/Fairing BlockGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers. A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & fast response water-temperature sensor CHIRPs across the following bandwidths: Low Frequency 28 to 60 kHz High Frequency 150 to 250 kHz 25 internal Broadband Ceramics Epoxy housing with stuffing tube and high-performace fairing Boat size: 12M (40’) Hull Type — Fiberglass, Wood, Metal Can retrofit to existing R209 install Exclusive Xducer ID® technology Specifications: Hull Deadrise: 0° to 25° Acoustic Window: Epoxy/urethane Weight: 20.8kg (46lb) Specifications: Temperature: Yes Mounting Style: Thru-Hull Chirp: Low/High Wide Box Dimensions: 14"H x 17"W x 28"L WT: 48.1 lbs UPC: 9420024161845 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

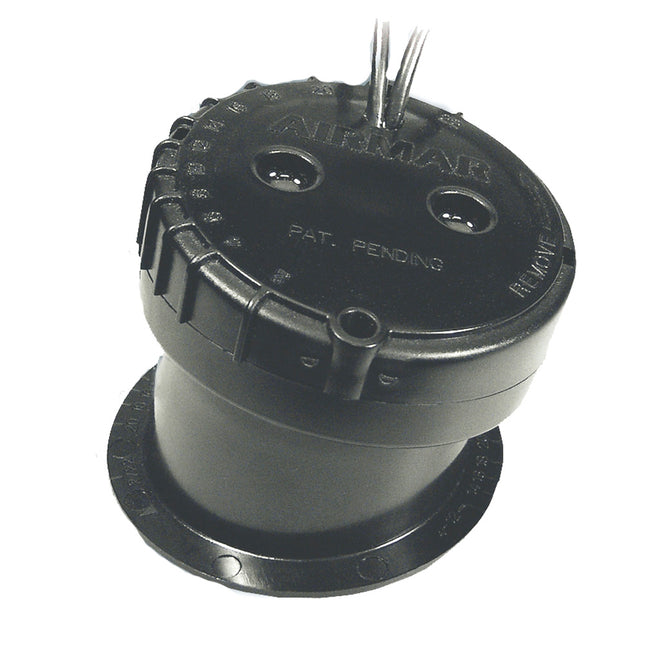

xSonic P79 Adjustable 200/50kHz Plastic In-Hull Transducer - 9-PinThis entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.The 9-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.Transducer kit comes with installation instructions*. Follow the instructions carefully to avoid damaging your boat.*Fiberglass should be no more than 5/8" thick*Not recommended for cored hulls

Read more less

xSonic  B150M 12° TH 9-Pin Connector with 10M CableAs CHIRP continues to redefine recreational fishing, AIRMAR has expanded the lineup of broadband transducers to satisfy the growing demand for this game changing technology. The B150M economical CHIRP transducers designed for offshore fishing and freshwater anglers. Operating at a frequency range of 95-155 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 2,500 feet*) along with ultra-clear target resolution.*Depths vary depending on target strength and sea conditionsA tilted element model in the CHIRP Thru-Hull product line, the B150M CHIRPS across the following bandwidth: M Model - Medium Frequency 95-155 kHzFeatures: Depth and water temperature sensor 300W Bronze Thru Hull 12° tilt Ideal for inshore or coastal fishing in shallow to medium depths Freshwater anglers will see fish holding close to structures and suspended fish Track bottom at higher boat speeds More coverage under your boat delivers wider archesand 26° to 17° beamwidths Cover the medium frequency range-CHIRPS from 95-155kHz to provide 60kHz of total bandwidth from one transducer Hull Type: Fiberglass, wood 1 internal ceramic

Read more less

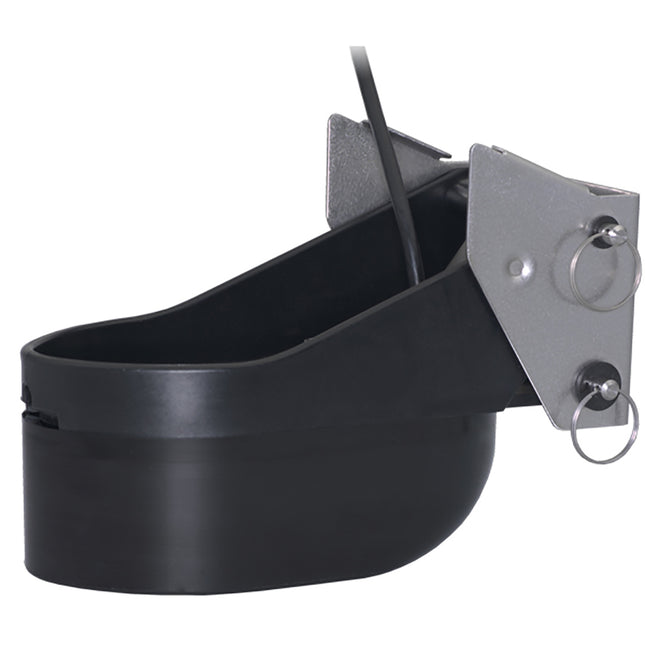

xSonic TM185HW Wide-Beam Chirp Tramsom Mount Transducer - 9-PinGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & temperature 150-250 kHz H frequency Urethane Housing 1 kW Wide 25° beam Weight: 0.45 kg (1.1 lb) Hull Deadrise: 2° to 20° Acoustic Window: Urethane Specifications: Chirp: High Wide Mounting Style: Transom Box Dimensions: 8"H x 11"W x 12"L WT: 8.15 lbs UPC: 9420024165911 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

xSonic SS75H Depth/Temperature Transducer 12° - 9-Pin - 600W - 10M CableThe SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.Features: CHIRP - CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings Easy To Install High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water Highly Accurate - Provides extremely accurate data. 12° Tilt - The 12° tilt is ideal for boats with a 8° to 15° hull deadrise. Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull. Plug & Play Connection - Easily connect to NSSevo3, Lowrance Specifications: Frequency: High CHIRP (130-210kHz) Power Rating: 600W Speed Sensor: No Temperature Sensor: Yes Mounting Style: Bronze Thru-Hull Elements: 1 Beamwidth @ -3dB: 15° to 9° Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Chirp: High Cable Length (Feet): 10m Pins: 9 Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs UPC: 9420024162675

Read more less

xSonic TM185M Transom Mount TransducerAs Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The TM185M, an economical Chirp transducer, is designed for offshore fishing and freshwater anglers. Operating at a frequency range of 85-135 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 1,500 feet*) along with ultra-clear target resolution.Designed for smaller boats up to 25’, the TM185M is available as a transom-mount transducer.Features: Depth & Temperature Chirp Technology 1 kW High-Performance Urethane Housing Exclusive Transducer ID® Weight: 0.45 kg (1.1 lb) Hull Deadrise: 2° to 20° Acoustic Window: Urethane Quick Guide (pdf)Owner's Manual (pdf)

Read more less

xSonic P319 Plastic Low Profile TH 50/200 9-Pin 600W Connector - 10M CableThe P319 is a compact, plastic, thru-hull, dual-frequency (50/200 kHz) sensor that offers depth and temperature data. Ideal for planing hull powerboats and sailboats.Depth/TemperatureRequires just one hole in the hull to receive data for both depth and temperatureDual FrequencyWorks at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep waterHighly AccurateProvides extremely accurate dataLow ProfileJust 5mm extends outside of the hullSpecifications: Frequency: 50/200 kHz Power Rating: 600W Speed Sensor: No Temperature Sensor: No Mounting Style: Plastic Thru-Hull Elements: 1 Beamwidth @ -3dB: 45 (50 kHz) 12 (200 kHz)

Read more less

xSonic SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M CableThe SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.Features: Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings Easy To Install Dual Frequency - Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water Highly Accurate - Provides extremely accurate data 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull Plug & Play Connection - Easily connect to NSSevo3, Lowrance HDS G3 Specifications: Pins: 9 Mounting Style: Thru-Hull Temperature: Yes Cable Length (Feet): 10m Box Dimensions: 4"H x 8"W x 10"L WT: 5 lbs UPC: 9420024161975

Read more less

SS175H-W/0 Stainless Steel Thru-Hull Transducer - 0° - 9-PinThe SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8M (25') in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.nnFeatures: n130-210 kHz High CHIRP with wide 25° beam for excellent fish targets  Up to 310M (1000') range with High CHIRPn 1 internal broadband ceramicn Thru-hull with stainless steel housingn Suitable for fiberglass and wood hullsn Ideal for sportfishing and commercial vessels up to 8M (25')n Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays Specifications: Pins: 9 Mounting Style: Thru-Hull Cable Length (Feet): 10m Box Dimensions: 8"H x 10"W x 11"L WT: 10.7 lbs UPC: 9420024161913

Read more less

xSonic SS175H-W/12 Stainless Steel Thru-Hull Transducer - 12° - 9-PinThe SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8M (25') in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths. Features: 130-210 kHz High CHIRP with wide 25° beam for excellent fish targets  Up to 310M (1000') range with High CHIRP 1 internal broadband ceramic Thru-hull with stainless steel housing Suitable for fiberglass and wood hulls Ideal for sportfishing and commercial vessels up to 8M (25') Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays Specifications: Pins: 9 Mounting Style: Thru-Hull Cable Length (Feet): 10m Box Dimensions: 8"H x 10"W x 12"L WT: 10 lbs UPC: 9420024161920

Read more less

xSonic TM150M Transom Mount Transducer - 9-Pin 10M CableAs CHIRP continues to re-define recreational fishing, AIRMAR has expanded the lineup of broadband transducers to satisfy the growing demand for this game changing technology. The TM150M economical CHIRP transducers designed for offshore fishing and freshwater anglers. Operating at a frequency range of 95-155 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 2,500 feet*) along with ultra-clear target resolution.*Depths vary depending on target strength and sea conditions This is a Transom Mount model in the CHIRP product line. The TM150M is an excellent choice for freshwater fishers, and CHIRPS across the following bandwidth: Medium Frequency 95-155 kHz. Designed for smaller boats up to 25'.  Features:  Depth and water temperature sensor 300W Plastic Housing Ideal for inshore or coastal fishing in shallow to medium depths Freshwater anglers will see fish holding close to structures and suspended fish Track bottom at higher boat speeds More coverage under your boat delivers wider archesand 26° to 17° beamwidths Cover the medium frequency range-CHIRPs from 95-155kHz to provide 60 kHz of total bandwidth from one transducer Hull Type: Fiberglass, wood or metal 1 internal ceramic Specifications: Temperature: Yes Speed Included: No Pins: 9 Cable Length (Feet): 10m Mounting Style: Transom Box Dimensions: 4"H x 8"W x 10"L WT: 2.8 lbs UPC: 9420024163344

Read more less

xSonic B150M Thru-Hull Transducer - 9-Pin 10M Cable - 0°As CHIRP continues to redefine recreational fishing, AIRMAR has expanded the lineup of broadband transducers to satisfy the growing demand for this game changing technology. The B150M economical CHIRP transducers designed for offshore fishing and freshwater anglers. Operating at a frequency range of 95-155 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 2,500 feet*) along with ultra-clear target resolution. *Depths vary depending on target strength and sea conditions A tilted element model in the CHIRP Thru-Hull product line, the B150M CHIRPS across the following bandwidth: M Model - Medium Frequency 95-155 kHz   Features: Depth and water temperature sensor 300W Bronze Thru Hull 0° tilt Ideal for inshore or coastal fishing in shallow to medium depths Freshwater anglers will see fish holding close to structures and suspended fish  Track bottom at higher boat speeds More coverage under your boat delivers wider archesand 26° to 17° beamwidths  Cover the medium frequency range-CHIRPs from 95-155kHz to provide 60 kHz of total bandwidth from one transducer Hull Type: Fiberglass, wood 1 internal ceramic Specifications: Temperature: Yes Speed Included: No Pins: 9 Cable Length (Feet): 10m Mounting Style: Thru-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 4 lbs UPC: 9420024162750

Read more less

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-PinFeatures: Black 9-Pin Connector Cable Length - 10M (33.0') SS175M - 1-Internal Broadband Ceramic Assembly Depth & fast-response water-temperature sensor Stainless Steel transducer housing Hull Type: Steel or aluminum Boat Size: Up to 11M (36’) Useable shaft length 71mm (2.80”) Medium-Frequency (M) Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency Brochure (pdf)

Read more less

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20° Element - 9-PinFeatures: Black 9-Pin Connector Cable Length - 10M (33.0') SS175M - 1-Internal Broadband Ceramic Assembly Depth & fast-response water-temperature sensor Stainless Steel transducer housing Hull Type: Steel or aluminum Boat Size: Up to 11M (36’) Useable shaft length 71mm (2.80”) Medium-Frequency (M) Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency Specifications: Mounting Style: Thru-Hull Cable Length (Feet): 10m Temperature: Yes Box Dimensions: 8"H x 10"W x 11"L WT: 10.8 lbs UPC: 9420024161906 Brochure (pdf)

Read more less

xSonic SS75M 20° Tilted Element TH Transducer - 600W - Stainless SteelThe SS75M is a Stainless Steel, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.Medium Frequency: CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.The 20° tilt is ideal for boats with a 16° to 24° hull deadrise. Specifications: Temperature: Yes Speed Included: No Pins: 9 Chirp: Medium Mounting Style: Thru-Hull Cable Length (Feet): 10m Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs UPC: 9420024162651

Read more less

xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin ConnectorSS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.*This Transducer is designed for smaller boats up to 36 feet (11 m).Features Frequencies: 130-210 kHz @ 25° constant beamwidth 16° - 25° Deadrise 300m+ Usable Depth 6m+ or large Boat size with Steel or Aluminum hulls Depth & Temperature CHIRP Technology High-Performance Stainless Steel Exclusive Transducer ID 9-Pin Connector, 10M Cable Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Cable Length (Feet): 10m Pins: 9 Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs UPC: 9420024161937

Read more less

Our P79 in-hull transducer easily adjusts to hull deadrise angles up to 22'. This ensures that the beam is vertically oriented to receive echos resulting in accurate depth readings. Unlike traditional "puck" type transducers, our P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance.Works with the Lowrance HDS Series and Simrad NSE Series Multifuction Display units.FeaturesDepth 50/200 kHz 600 W RMS Mid-performance Plastic 7 Pin Blue Connector Specifications: Temperature: No Speed Included: No Pins: 7 Mounting Style: In-Hull Box Dimensions: 2"H x 7"W x 8"L WT: 2.7 lbs UPC: 421945336052 Owner's Manual (pdf)Brochure (pdf)
