Seastar Seastar HF6007 ORB Fitting Kit with 25ft Hose
Domtic Seastar HF6007 ORB Fitting KitModel: HF6007What's in the Box: Tee Fitting, 1 End = -5 ORB, 1 end = 3/8" tube, center = 3/8" tube x 2 Connector fitting, -5ORB — 3/8" tube x 2 Connector fitting, 1/4" NPT — 3/8" tube x 3 Tube nut, 3/8" dia. X 6 Non-vented filler plug SeaStar nylon tube, 3/8" dia. 25ft Elbow, 3/8" tube (m) — -5 ORB x 2
$169.79
-
Seastar Seastar PRO PA1315-2 Power Assist Unit 12/24v 15' Harness
Dometic SeaStar PA1315-2 Power Assist ProModel: PA1315-2 Dramatically reduces steering effort Wall or Floor mount Easy to install Return to manual in failure mode Suitable for use with autopilots 12V or 24V operation Wiring harness included Specifically designed for high torque single engine outboard applications fitted with SeaStar Pro helms, such as performance bass boats.The SeaStar Power Assist unit can be installed on new SeaStar steering installations or as an easy retro-fit to existing systems.Suitable for most boat types, the SeaStar Power Assist uses an electronically controlled hydraulic pump to provide on-demand power steering. It is installed into the hydraulic steering circuit between the helm and steering cylinder. The Power Assist unit is powered from the boat’s battery and adjusts automatically to the input voltage (12V or 24V).The SeaStar Power Assist can be used on boats with multiple engines and rudders, multiple steering stations and autopilots.If power to the unit is interrupted for any reason, the steering system will automatically return to manual operation without any change to the number of lock-to-lock turns. In this case, the steering will of course be heavier than with the Power Assist activated.
$2,579.86
-

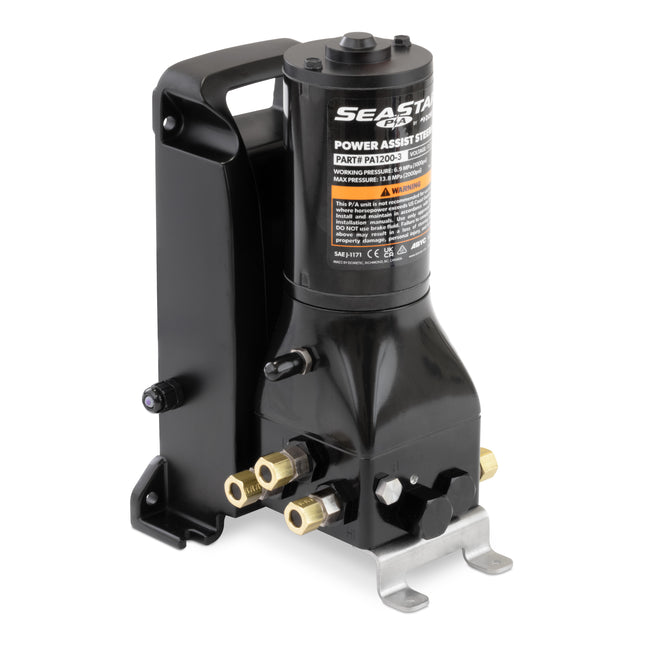

Seastar Seastar PA1200-2 Power Assist Unit 12/24v 15' Harness
Dometic Seastar PA1200-2 Power Assist Unit 12vModel: PA1200-2The marine industry is continually introducing heavier, more powerful outboard engines. The Dometic SeaStar Steering Power Assist lets you steer these bigger, faster boats with the same comfort and ease that you'd expect when driving a car. Recommended for any boat that is 200 hp and above.The Dometic SeaStar Power Assist Steering System is comprised of two circuits: a hand operated manual system, which is the control element, and a hydraulic power pump, which is the working element. The manual system consists of a helm pump with internal relief and check valves, and a built in reservoir. The power system is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder, resulting in much easier effort at the wheel.
$2,761.99
-
Seastar Seastar PA6020 Power Assist Autopilot Pump T2 12v
Seastar PA6020 Power Assist Autopilot Pump Model: PA6020 Autopilot ready — a single installation (i.e. no need to break into system for install of pump). Converts manual hydraulic steering to power steering. Dramatic reduction in steering wheel torque. Easy installation. OEM or Retrofit. Simple add on to an existing SeaStar manual system (from 1.4 — 2.4 SeaStar helm pumps) Compatible with power purge system. Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved. Replaces other 12 & 24 volt systems Converts manual hydraulic steering for dramatic reduction in steering wheel torque and at the same time provides a pump for an autopilot installation. The SeaStar Power Assist Autopilot pump is the standard power assist product with the addition of a Type 1 or Type 2 autopilot pump. The SeaStar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes (type 1 & type 2). Specifications Voltage 12vDC Fittings Compatible with standard SeaStar Hoses (HO51xx etc.) Oil Compatibility SeaStar Steering Fluid (MIL 5606) Autopilot Pump Sizes 60 in3/min (no load) Max Pressure 1000psi Typical Current Draw (Depending on application) 5 - 11 amps Pump cylinder capacity 12.5 in3 — 21 in3
$3,302.10
-
Seastar Seastar PA6010 Power Assist Autopilot Pump T1 12v
Seastar PA6010 Power Assist Autopilot Pump Model: PA6010 Autopilot ready — a single installation (i.e. no need to break into system for install of pump). Converts manual hydraulic steering to power steering. Dramatic reduction in steering wheel torque. Easy installation. OEM or Retrofit. Simple add on to an existing SeaStar manual system (from 1.4 — 2.4 SeaStar helm pumps) Compatible with power purge system. Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved. Replaces other 12 & 24 volt systems Converts manual hydraulic steering for dramatic reduction in steering wheel torque and at the same time provides a pump for an autopilot installation. The SeaStar Power Assist Autopilot pump is the standard power assist product with the addition of a Type 1 or Type 2 autopilot pump. The SeaStar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes (type 1 & type 2). Specifications Voltage 12vDC Fittings Compatible with standard SeaStar Hoses (HO51xx etc.) Oil Compatibility SeaStar Steering Fluid (MIL 5606) Autopilot Pump Sizes 60 in3/min (no load) Max Pressure 1000psi Typical Current Draw (Depending on application) 4 — 8 amps Pump cylinder capacity 4.9 in3 — 12.5 in3
$3,265.60
-
Seastar Seastar HF5501 Fitting Kit For Autopilots
Kit consists of following items: Item Qty Tee fitting, 1 end 3/8 tube male, 1 end 1/4" NPT male, center 3/8" tube male 2 Connector 3/8" tube male - -1/4" NPT male 4 Tube nut - 3/8" diameter 4 Non-vented filler plug 1 Seastar nylon tube 3/8" diameter 25 ft
$174.66
-
Seastar Seastar HA1205 Spa Adapter
Teleflex HA-1205 Stand Alone Autopilot SPA retrofit Kit Model: HA1205 All SeasStar Power Assists manufactured during or after August 2007 are compatible with this pump retrofit kit. To determin if your SeaStar Power Assist is compatible inspect the valve block face. It must have 3 tapped holes. If you have an older system the autopilot must be added separately to the steerign system and will require additional hoses. What's in the Box: 3 bolts 3 O-rings Loctite 242
$52.47
-
Seastar Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min
The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2). AUTOPILOT ? KEY FEATURES Long life DC Motor (i.e. long life brushes) Compact design Simplified installation Low power consumption ABYC, CE?s and J1171 compliant Superior corrosion resistance Quiet operation All mounting bracket displacement included Voltage 12 volt Fittings Compatible w/ Standard Seastar Hose - Thread 9/16" X 24 UNEF Wire Details Length 24" Gauge 12 awg Connector None - Bare Leads Oil Compatibility Seastar Steering Fluid (MIL 5606) Weight 4.9 lbs (2.2 kg) Pump Sizes Type 1: 60 in3/min (no-load) Type 2: 100 in3/min (no-load) Maximum Pressure 1000 psi Typical Current Draw 12V Type 1: 4 ? 8 amps (Depending on Application) 12V Type 2: 5 ? 11 amps Ram Capacity Type 1 4.9 in3 - 14 in3 Type 2 14 in3 - 21 in3
$728.80
-
Seastar Seastar AP1219 Type 1 12v Pump 60CU Inch/Min
The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2). AUTOPILOT ? KEY FEATURES Long life DC Motor (i.e. long life brushes) Compact design Simplified installation Low power consumption ABYC, CE?s and J1171 compliant Superior corrosion resistance Quiet operation All mounting bracket displacement included Voltage 12 volt Fittings Compatible w/ Standard Seastar Hose - Thread 9/16" X 24 UNEF Wire Details Length 24" Gauge 12 awg Connector None - Bare Leads Oil Compatibility Seastar Steering Fluid (MIL 5606) Weight 4.9 lbs (2.2 kg) Pump Sizes Type 1: 60 in3/min (no-load) Type 2: 100 in3/min (no-load) Maximum Pressure 1000 psi Typical Current Draw 12V Type 1: 4 ? 8 amps (Depending on Application) 12V Type 2: 5 ? 11 amps Ram Capacity Type 1 4.9 in3 - 14 in3 Type 2 14 in3 - 21 in3
$686.95
