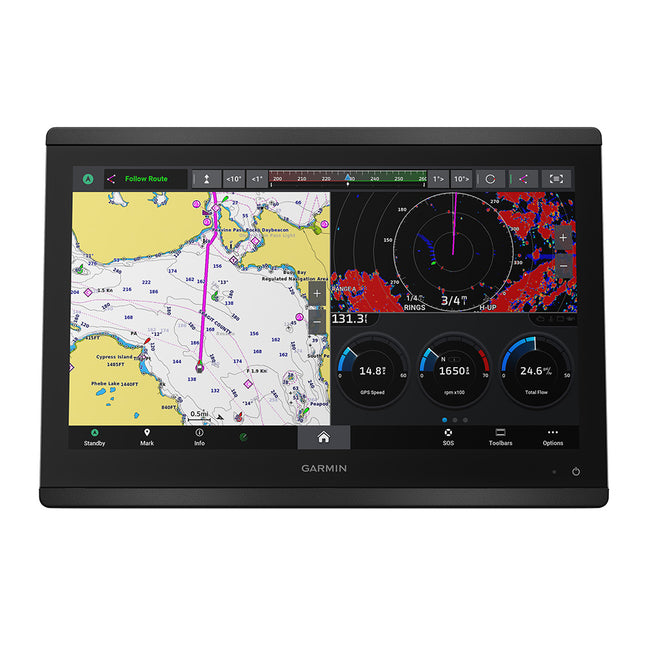

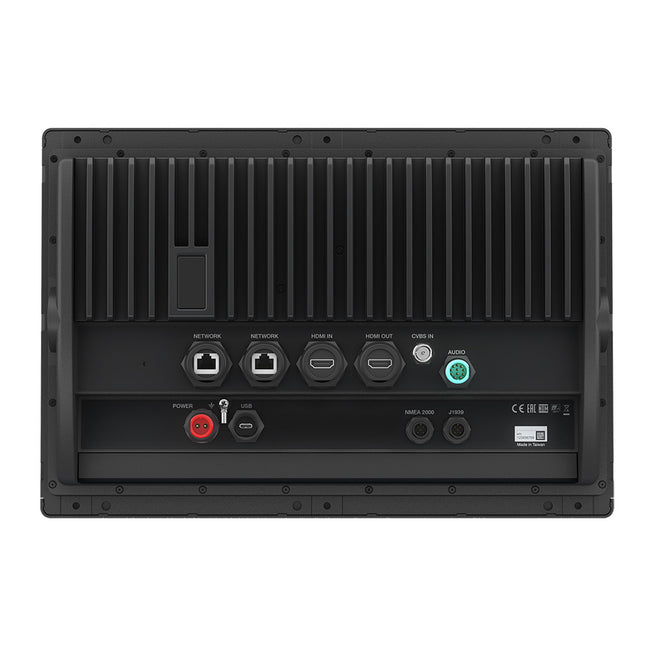

GPSMAP® 8616 Chartplotter GN+You’re a mariner who wants it all — a fast, high-performance network chartplotter with sonar, a large 16" IPS display, preloaded maps and charts, and moreThe GPSMAP®8616 chartplotter features a 16” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™coastal charts and inland mapping that feature Auto Guidance+™technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000®networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™features provide data, displays, and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury®engines by using the SmartCraft®Connect gateway.Features: Features a 16” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses  Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope™ System and the full line of live sonar products (transducers sold separately) Adds a stunning appearance with ability to install multiple displays either flat mounted edge-to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices  Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more.  Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and mapping cards What's In The Box? Chartplotter Power cable NMEA 2000 T-connector NMEA 2000 drop cable Flush mount kit Protective cover Trim piece snap covers Documentation GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Cartography Brand: Garmin Navionics+ Internal/External Antenna: Internal Screen Size: 16" Touchscreen: Yes Box Dimensions: 9"H x 14"W x 20"L WT: 14.1 lbs UPC: 753759285432 Owner's Manual (pdf)

Read more less

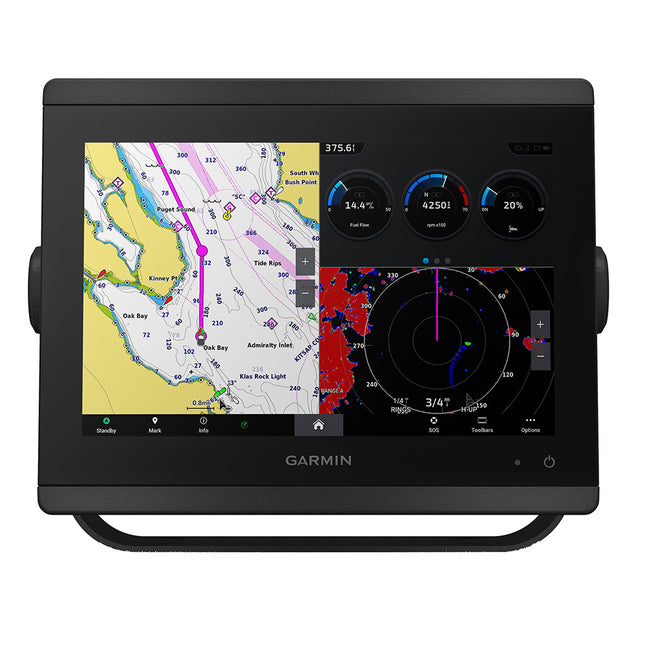

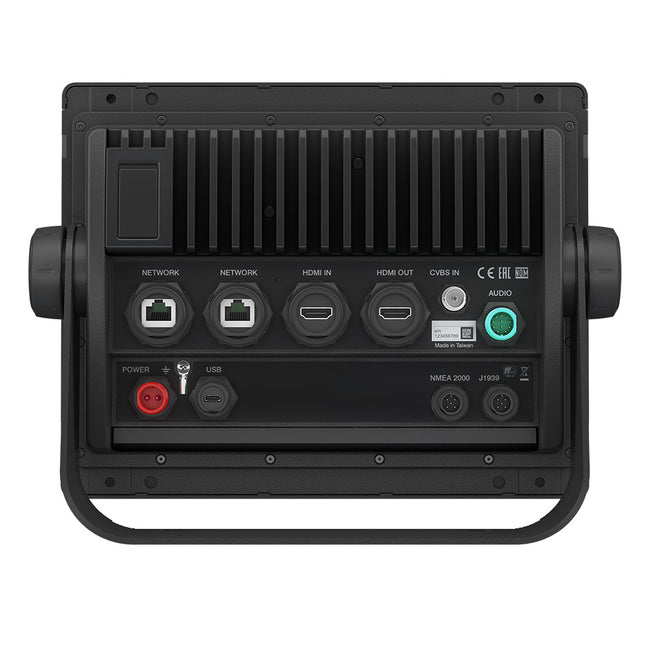

GPSMAP® 8610 Chartplotter GN+You’re a mariner who wants to handpick your sonar but still wants a fast, high-performance network chartplotter with built-in maps and charts, a large 10" IPS display, and moreThe GPSMAP® 8610 chartplotter features a 10” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. GPSMAP 8610 includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance to help you gain a competitive edge. Download the ActiveCaptain® smartphone app to your compatible smartphone or tablet to manage your marine experience — from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.Features: Features a 10” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses Adds a stunning appearance with the ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices  Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.  See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway  Compatible with your Panoptix™ PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and cartography cards What's In The Box? Chartplotter Power cable NMEA 2000 T-connector NMEA 2000 drop cable Bail mount with knobs 8610 and 8612 series only Flush mount kit Protective cover Trim piece snap covers Documentation GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Cartography Brand: Garmin Navionics+ Internal/External Antenna: Internal Screen Size: 10" Touchscreen: Yes Box Dimensions: 9"H x 12"W x 17"L WT: 11.8 lbs UPC: 753759285357 Owner's Manual (pdf)

Read more less

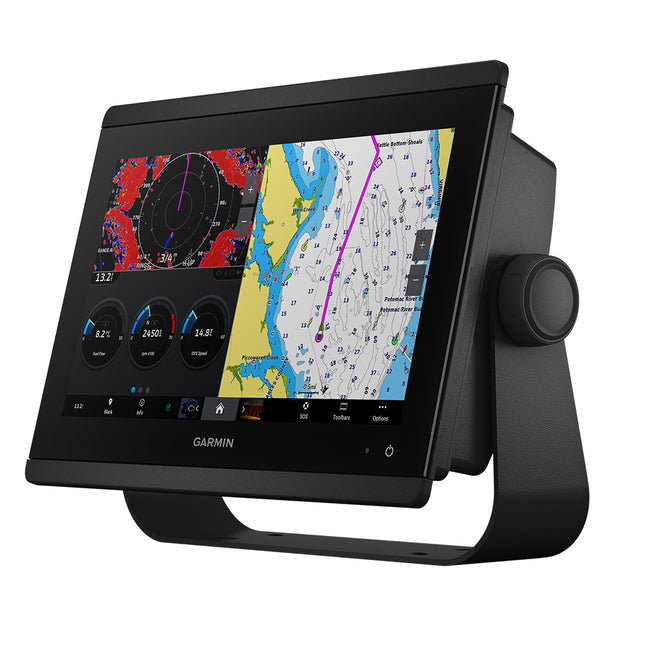

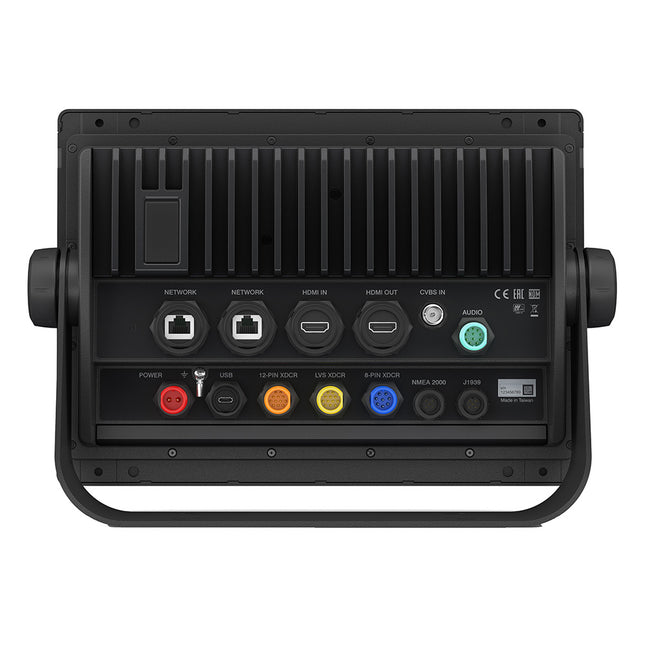

GPSMAP® 8612 Chartplotter GN+You’re a mariner who wants to handpick your sonar but still wants a fast, high-performance network chartplotter with built-in maps and charts, a large 12" IPS display, and more.The GPSMAP® 8612 chartplotter features a 12” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.Features: Features a 12” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses Adds a stunning appearance with the ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more For full control of your boat on your chartplotter screen, use the exclusive OneHelm™ feature to connect to many third-party devices  Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.  See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway  Compatible with your Panoptix™ PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and cartography accessory cards What's In The Box? Chartplotter Power cable NMEA 2000 T-connector NMEA 2000 drop cable Bail mount with knobs 8610 and 8612 series only Flush mount kit Protective cover Trim piece snap covers Documentation GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Cartography Brand: Garmin Navionics+ Internal/External Antenna: Internal Screen Size: 12" Touchscreen: Yes Box Dimensions: 9"H x 12"W x 17"L WT: 13.3 lbs UPC: 753759285395 Owner's Manual (pdf)

Read more less

Zeus® SR 12 12" MFD with C-MAP DISCOVER X for US/Canada - No SonarC-MAP® X-Gen charts deliver the cutting-edge of navigation. Explore the stunning DISCOVER® X charts, zooming in and out in an instant. Discover new spots with incredible local detail. And explore after dark with a dedicated night mode. An upgrade to the stunning REVEAL® X adds incredible shaded relief and satellite imagery to your arsenal.Revolutionary Safety FeaturesThe X-Gen charts also unlock a host of ground-breaking features, such as the revolutionary C-MAP® Safety Alerts – built to automatically alert boaters to hazards up ahead, from shallow waters to buoys.Ground-breaking Chart ManagementIn an industry first – the X-Chart Manager lets users manage C-MAP® chart updates and upgrades directly from the device, with the ability to choose custom areas for a near-instant download. And there are plenty of updates because X-Gen charts are always evolving, adding new details and features all the time.Superior IntegrationOur latest OS has integration at its core, with seamless networking across the entire boat. Connect to HALO® radars for superior safety and situational awareness. Unlock next-level performance with our Triton Edge and Hercules sailing processors. And bring the very best data to the helm with our famous wind sensors, which feed into our range of Triton and Nemesis® instruments.High-definition SolarMAX™ IPS touchscreen, viewable from all angles, even with polarised glassesFeatures: Separate modes for Cruising, Racing and Anchoring Award-winning sailing features like SailSteer™, LayLines, Routes and StartLine Compatible with C-MAP® DISCOVER® X and REVEAL® X charts C-MAP®-powered Safety Alerts Full integration with HALO® radars, B & G Sailing Processors, Autopilots, Triton2 and Nemesis® instruments, wind sensors, and more B & G App integration with 12 months premium subscription when registering a C-MAP® X Chart. Wi-Fi 5, Gigabit Ethernet & NMEA 2000® networking Support for up to four IP video cameras Set up Wizard to get you up and running quickly NMEA 0183 - No NMEA 2000 -  1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity -  No Video - Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras Ethernet  - 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) Charts Supported -  C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Dimensions (W x H x D) - Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″) Mounting Type - Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight - 2.8 kg (6.17 lb) Warranty Period - 2 Years Specifications: Cartography Brand: C-Map Reveal X Internal/External Antenna: Internal Screen Size: 12" Touchscreen: Yes Box Dimensions: 7"H x 14"W x 22"L WT: 13.2 lbs UPC: 9420064130047 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

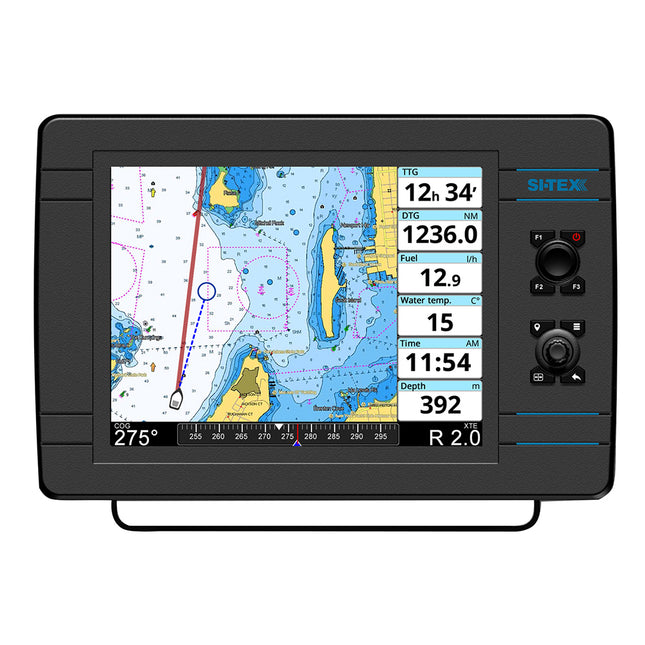

NavPro 1200 w/Wifi - Includes Internal GPS Receiver/Antenna12" Touch Screen GPS/Chart Plotter w/Wifi, Includes Polaris Chart Card, all Accessory Cables & Internal GPS Receiver/AntennaThese powerful MFDs give fishermen, sailors and cruisers everything they need to navigate, catch fish and safely enjoy their time on the water, Hybrid Touch Control lets boaters operate the system using the large touchscreen display or a combination of robust hard keys, four-directional pad or rotary knob. WI-FI connectivity makes it easy to manage important data and software updates, allow for multiple display options and remote control of NavPro Series MFDs using a smartphone or tablet.Features: Bright, high-resolution LCD displays Control the way you want, with advanced touchscreen or robust keys Offered with intergrated or Black Box CHIRP sonar Availabe in 46-65kHz, 100-140kHz or 160kHz-200kHz CHIRP Easy software updating over the Internet - no PC or app needed Mirror Control second display and remote control via NavPro app Automatic storage and synchronization of important data using Captain Cloud Backed by SI-TEX's 2 Year Warranty and U.S. based customer service Precision navigation, powerful CHIRP sonar options and advanced connectivity and control-what more could today's modern boater want?! Specifications: Cartography Brand: C-Map Screen Size: 12" Touchscreen: Yes Internal/External Antenna: Internal Box Dimensions: 6"H x 14"W x 17"L WT: 7 lbs UPC: 010407110905 Quick Guide (pdf)Brochure (pdf)

Read more less

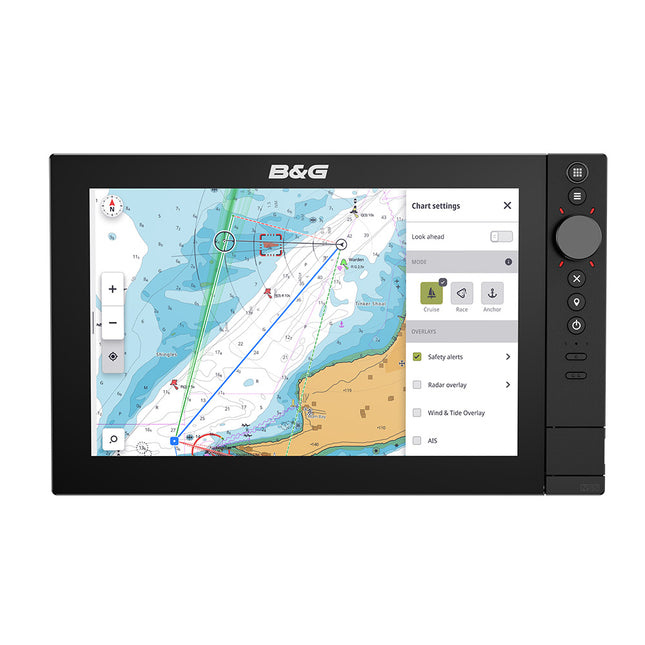

Zeus® SR 10 10" MFD with C-MAP DISCOVER X for US/Canada - No SonarElevate your instincts with the Zeus® SR chartplotter. Zeus SR features an 8-core processor and a redesigned interface for a smoother, faster sailing experience. See the award-winning sailing features as they were meant to be seen – uninterrupted by bezels or dead space. And explore C-MAP® DISCOVER® X and REVEAL® X charts like never before.Instant ResponseZeus® SR 12 12" MFD with C-MAP DISCOVER X for US/Canada - No SonarC-MAP® X-Gen charts deliver the cutting-edge of navigation. Explore the stunning DISCOVER® X charts, zooming in and out in an instant. Discover new spots with incredible local detail. And explore after dark with a dedicated night mode. An upgrade to the stunning REVEAL® X adds incredible shaded relief and satellite imagery to your arsenal.Revolutionary Safety FeaturesThe X-Gen charts also unlock a host of ground-breaking features, such as the revolutionary C-MAP® Safety Alerts – built to automatically alert boaters to hazards up ahead, from shallow waters to buoys.Ground-breaking Chart ManagementIn an industry first – the X-Chart Manager lets users manage C-MAP® chart updates and upgrades directly from the device, with the ability to choose custom areas for a near-instant download. And there are plenty of updates because X-Gen charts are always evolving, adding new details and features all the time.Superior IntegrationOur latest OS has integration at its core, with seamless networking across the entire boat. Connect to HALO® radars for superior safety and situational awareness. Unlock next-level performance with our Triton Edge and Hercules sailing processors. And bring the very best data to the helm with our famous wind sensors, which feed into our range of Triton and Nemesis® instruments.High-definition SolarMAX™ IPS touchscreen, viewable from all angles, even with polarised glassesFeatures: Separate modes for Cruising, Racing and Anchoring Award-winning sailing features like SailSteer™, LayLines, Routes and StartLine Compatible with C-MAP® DISCOVER® X and REVEAL® X charts C-MAP®-powered Safety Alerts Full integration with HALO® radars, B & G Sailing Processors, Autopilots, Triton2 and Nemesis® instruments, wind sensors, and more B & G® App integration with 12 months premium subscription when registering a C-MAP® X Chart. Wi-Fi 5, Gigabit Ethernet & NMEA 2000® networking Support for up to four IP video cameras Set up Wizard to get you up and running quickly NMEA 0183 - No NMEA 2000 -  1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity -  No Video - Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera Ethernet  - 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) Charts Supported -  C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Dimensions (W x H x D) - Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″) Mounting Type - Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight - 2.8 kg (6.17 lb) Warranty Period - 2 Years Specifications: Cartography Brand: C-Map Reveal X Internal/External Antenna: Internal Screen Size: 10" Touchscreen: Yes Box Dimensions: 7"H x 14"W x 21"L WT: 10.4 lbs UPC: 9420064130016 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

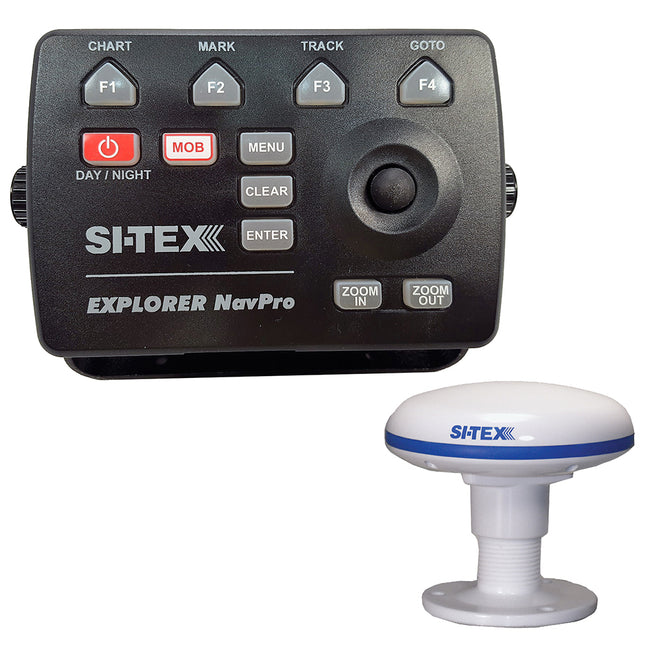

Explorer NavPro w/Wi-Fi & GPK-11 GPS Antenna Electronic Charting System Control UnitThe Explorer NavPro Multi-Function Navigation System turns almost any "off the shelf" PC monitor into a full-featured C-MAP electronic charting system. Couple this unique product to an existing onboard monitor or add just about any size CRT or flat panel display for a very convenient two piece charting system with unlimited mounting possibilities.Features: HDMI Video Output - replaces the original VGA Output of older models NMEA-2000 Network provides Engine Monitoring Capability & AIS Integration 2 NMEA-0183 Ports + GPS Smart Antenna Port Gigantic 4GB of Internal Mark and Track Memory Easy to use Operating System Extremely Fast Ultra Powerful Processor File Management System makes it very easy to save, edit and manage Mark, Track, and Route Memories Uses C-Map Max or C-Map 4D Software -  MicroSD Card format for Navigation Chart Data Optional RF Remote Control (#ENP-REMOTE) allows the unit to be operated from multiple locations Specifications: Internal/External Antenna: External Touchscreen: No Cartography Brand: C-Map Box Dimensions: 9"H x 13"W x 14"L WT: 3.9 lbs UPC: 010407110790 Brochure (pdf)

Read more less

NavNet TZtouchXL Black Box ChartplotterPowerful TechnologyExplore the future of navigation with the Black Box NavNet TZtouchXL TZTBBX and enhance the functionality and style of your helm. NavNet TZtouchXL delivers the ability to tailor the helm to meet the captain's exact needs, with magnetron or Solid-State Doppler Radars, high-powered Fish Finders, AIS, Autopilot, and Deep Water Multibeam Sonar options, and more!NavNet TZtouchXL delivers features like TZ MAPS with BathyVision, the most advanced and capable electronic charts in the world. The TZ Maps engine draws upon a worldwide database of high-resolution information to create crisp, clear navigation with a variety of color themes and fishing charts with fully editable color palettes. TZ Maps delivers a timeless navigation experience at any magnification. It sounds incredible, and it is - you have to see it to believe it!Effortless ControlYou asked for the simplest interface possible, and we were listening. We’ve delivered the most intuitive UI available, bar-none, and you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZtouchXL. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do because NavNet TZouchXL provides the easiest and most powerful MFD on the planet.See more with TZ MAPSWith TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Purchase incredibly wide chart areas directly from the MFD! Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. The purchase of any TZ MAPS chart unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet, providing you with a free home planning app that will transfer your points and routes directly to the TZtouchXL. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.Experience 'off-the-charts' bathymetric data with BathyVisionBathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.The Benchmark for RadarHowever you spend your time on the water, you need a Radar you can rely on to keep you safe. Whether you choose the time-tested X-Class magnetron option or NXT Solid-State Doppler models, Furuno Radar delivers power and clarity like you’ve never seen and provides the assurance that you’re navigating with the most reliable and feature-packed equipment on the planet. From the compact DRS2DNXT/DRS4DNXT domes to the high-power 200-watt DRS25ANXT open array, you’ll quickly become accustomed to the dynamic features that only Furuno provides, like Target Analyzer™ that alert you to potentially hazardous targets, Fast Target Tracking that displays a speed and course vector in seconds, best-in-the-business Bird Mode to track elusive flocks and even individual birds feeding on baitfish, and Rain Mode that can pick out and display in different colors the targets you need to see through even the nastiest of squalls. Plus, TZtouchXL introduces Radar features, like Risk Visualizer™ and AI Avoidance Route™, that help keep you safe on the water.Risk Visualizer™ and AI Avoidance Route™Risk Visualizer™ is a unique function of Furuno Radars that provides a visual representation of potential collision risks of approaching objects around the vessel. Unlike CPA/TCPA alarms which indicate only the risks visible on the ship’s current course, Risk Visualizer™ assesses all objects 360° around the vessel. Dynamic icons are automatically created for targets with the highest collision probability, ensuring the captain has the information needed to maintain safe distances when passing.The AI Avoidance Route™ feature available with TZ MAPS takes all the information provided by the Radar and instantly determines and provides a safe route around those hazards. Never lose waypoints, routes, or settings again with TZ CloudCreate your routes at home using TZ Navigator, a web browser*, or the TZ iBoat iOS App, then download them to your TZtouchXL MFD from the cloud. You can also backup all of the events on your MFD and retrieve them at home, because your data is synchronized automatically & securely. TZ Cloud saves all of your marks, routes, boundaries, photos, and catch data - with a free TimeZero account, all of your data can be backed up or retrieved with just a few taps. The purchase of any TZ MAPS chart directly from the MFD also unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet and TZ Pro navigation software, providing the only home planning solution you'll ever need. Built-In CHIRP Side-ScanFuruno’s CHIRP Side-Scan for NavNet TZtouchXL scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan reveals the shape of fish targets and fish-hoarding structure on each side of your vessel. CHIRP from 230kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options. CHIRP Side-Scan is built into the TZT10X/13X/16X and can be accessed by any TZtouchXL MFD on the network.A Dream Machine for Fishing FanaticsWe've raised the bar for sportfishing enthusiasts once again with an MFD series designed to cater to the needs of avid anglers. The NavNet TZtouchXL series includes all the features fishermen desire, including exclusive, never-before-seen features in recreational navigation devices. The TZT10X, TZT13X, and TZT16X feature a built-in 1kW TruEcho™ CHIRP or CW Fish Finder as well as built-in 230kHz or 455kHz CHIRP Side-Scan to show fish and fish-hoarding structure in great detail port to starboard, providing crucial insights for successful fishing trips. The TZT22X and TZT24X have full control across the NavNet network, and you can tailor the system with a wide array of high-powered Fish Finders for deep dropping.Deep Water Multibeam SonarNormal down-sounding Fish Finders have a beam angle of 40Ëš or less. But with the DFF3D Multibeam Sonar, you'll see a 120-degree swath, offering seafloor coverage up to 3X water depth. Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). The DFF3D's versatile operating modes give you a better understanding of fish targets than any normal Fish Finder can deliver. The 3D sounder history provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons - useful when selecting a fishing hot spot or assessing the seabed condition. Triple-Beam mode tells you not only the depth but also the direction (port/down/starboard) of fish targets. Cross Section displays the real-time sea column echo in a 120Ëš swath, and Side-Scan displays the shape and structure of targets both port and starboard. Total ControlLooking for an added element of control? The vertically-oriented MCU006 and horizontal MCU006H are capable of controlling any TZtouchXL MFD in the network. Both feature a comfortable RotoKey™ and ten dedicated dual-purpose buttons that operate different functions, including the ability to access the Edge Swiping functionality that makes the NavNet TZtouch series so easy to use.Specifications: Chart Type: 3D Data or C-Map or Raster or Vector or TZ MAPS Display Size: Supplied Separately Display Type: Supplied Separately Power Usage: 12-24 VDC This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

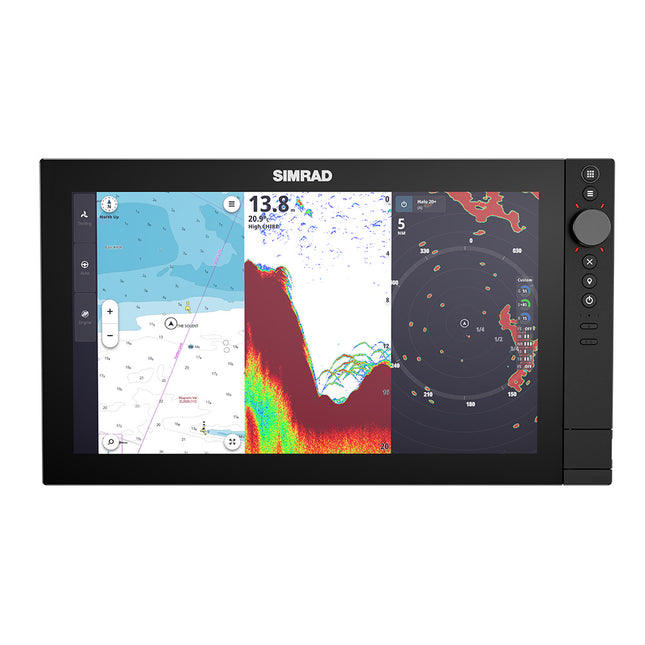

NSS4-16 16" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App Menu: Provides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power Button: Power your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1920 x 1080 Screen Brightness: >1200 nits Size and Type: 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 40 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Weather: SiriusXM via WM4 module (USA only) Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″) With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″) Mounting Type: Bracket mount (bracket optional). Rear mount (brackets supplied) Weight: 3.8 kg (8.38 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Internal/External Antenna: Internal Screen Size: 16" Touchscreen: Yes Box Dimensions: 7"H x 14"W x 25"L WT: 14.95 lbs UPC: 9420064135431 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

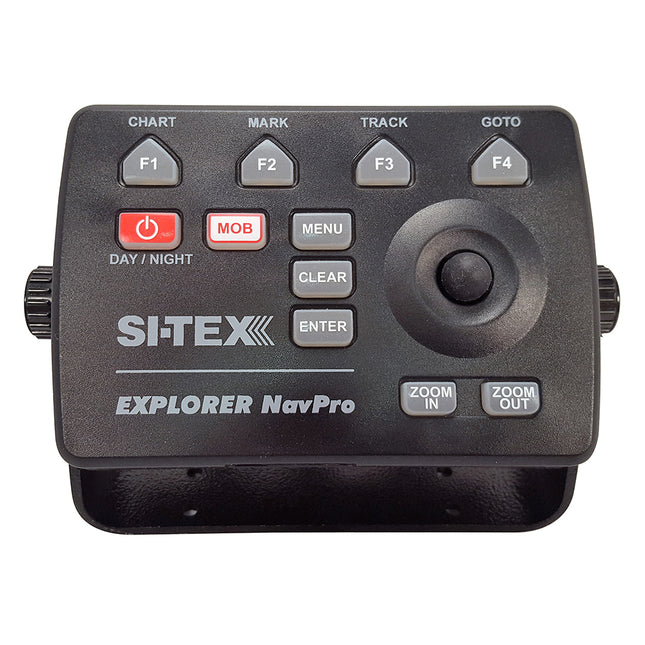

Explorer NavPro with Wi-Fi - No GPS AntennaElectronic Charting System Control UnitThe Explorer NavPro Multi-Function Navigation System turns almost any "off the shelf" PC monitor into a full-featured C-MAP electronic charting system. Couple this unique product to an existing onboard monitor or add just about any size CRT or flat panel display for a very convenient two piece charting system with unlimited mounting possibilities.Features: HDMI Video Output - replaces the original VGA Output of older models NMEA-2000 Network provides Engine Monitoring Capability & AIS Integration 2 NMEA-0183 Ports + GPS Smart Antenna Port Gigantic 4GB of Internal Mark and Track Memory Easy to use Operating System Extremely Fast Ultra Powerful Processor File Management System makes it very easy to save, edit and manage Mark, Track, and Route Memories Uses C-Map Max or C-Map 4D mini SD Card format for Navigation Chart Data Optional RF Remote Control, (#ENP-REMOTE) allows the unit to be operated from multiple locations Specifications: Cartography Brand: C-Map Touchscreen: No Box Dimensions: 5"H x 8"W x 12"L WT: 2.2 lbs UPC: 010407110806 Brochure (pdf)

Read more less

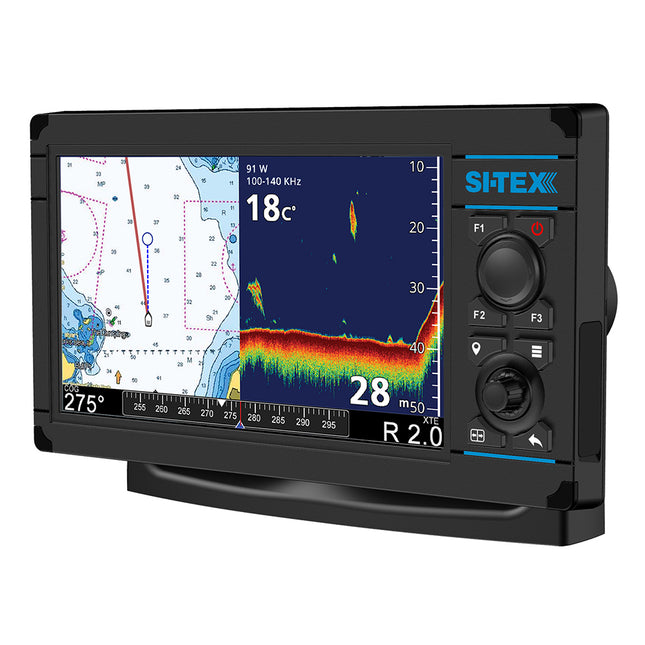

NavPro 900 w/Wifi - Includes Internal GPS Receiver/Antenna9" Touch Screen GPS/Chart Plotter w/Wifi, Includes Polaris Chart Card, all Accessory Cables & Internal GPS Receiver/AntennaThese powerful MFDs give fishermen, sailors and cruisers everything they need to navigate, catch fish and safely enjoy their time on the water, Hybrid Touch Control lets boaters operate the system using the large touchscreen display or a combination of robust hard keys, four-directional pad or rotary knob. WI-FI connectivity makes it easy to manage important data and software updates, allow for multiple display options and remote control of NavPro Series MFDs using a smartphone or tablet.Features: Bright, high-resolution LCD displays Control the way you want, with advanced touchscreen or robust keys Offered with integrated or Black Box CHIRP sonar Available in 46-65kHz, 100-140kHz or 160kHz-200kHz CHIRP Easy software updating over the Internet - no PC or app needed Mirror Control second display and remote control via NavPro app Automatic storage and synchronization of important data using Captain Cloud Backed by SI-TEX's 2 Year Warranty and U.S. based customer service Precision navigation, powerful CHIRP sonar options and advanced connectivity and control-what more could today's modern boater want?! Specifications: Internal/External Antenna: Internal Cartography Brand: C-Map Touchscreen: Yes Screen Size: 9" Box Dimensions: 5"H x 9"W x 14"L WT: 4.85 lbs UPC: 010407110868 Owner's Manual (pdf)Brochure (pdf)

Read more less

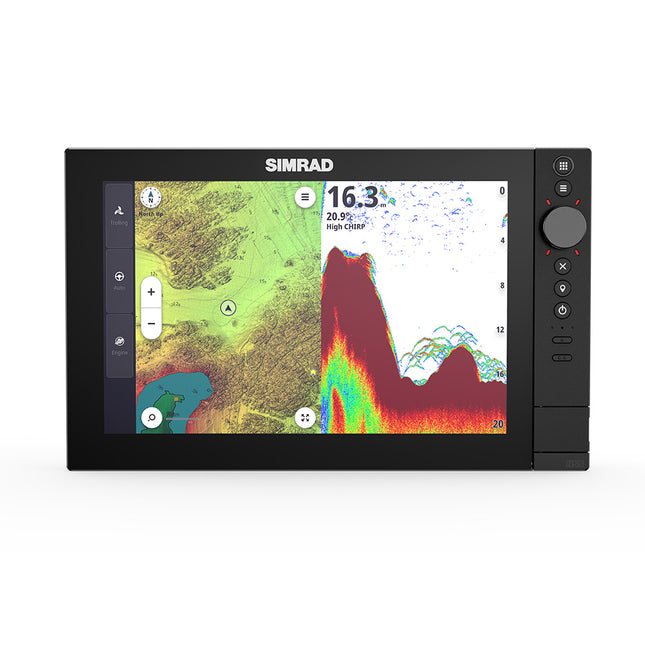

NSS4-12 12" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App MenuProvides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power ButtonPower your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 12" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 40 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Weather: SiriusXM via WM4 module (USA only) Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 2.8 kg (6.17 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Internal/External Antenna: Internal Screen Size: 12" Touchscreen: Yes Box Dimensions: 7"H x 14"W x 22"L WT: 13.3 lbs UPC: 9420064135424 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

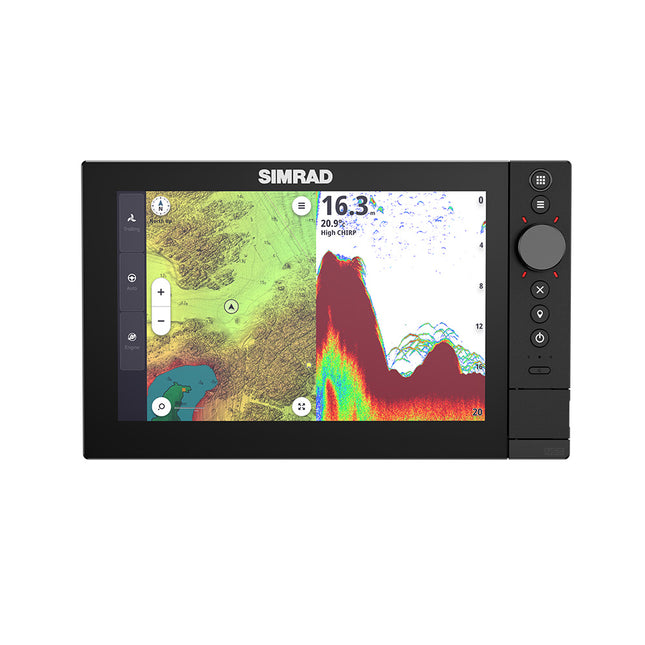

NSS4-10 10" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App MenuProvides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power Button: Power your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 28 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 1.8 kg (3.97 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Internal/External Antenna: Internal Screen Size: 10" Touchscreen: Yes Box Dimensions: 7"H x 14"W x 21"L WT: 10.4 lbs UPC: 9420064135417 Quick Guide (pdf)Owner's Manual (pdf)

Read more less
