5022 Panel Mount AGC/MDL Fuse Holder Replacement CapReplaces cap for 5021 Specifications: Fuse Type: AGC/MDL Type: Fuse Holders Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 632085050221

Read more less

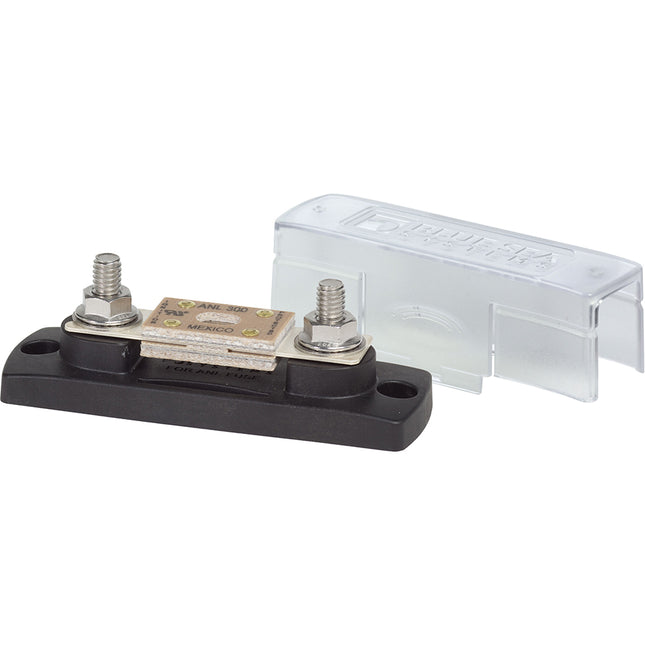

5005 ANL 35-300AMP Fuse Block with CoverFeatures: Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow access in any direction For use on systems up to 32V DC Large 5/16" - 18 studs accept 5/16" (M8) ring terminals, 14 AWG to 2/0 AWG wire WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 8"L WT: 0.4 lbs UPC: 632085050054

Read more less

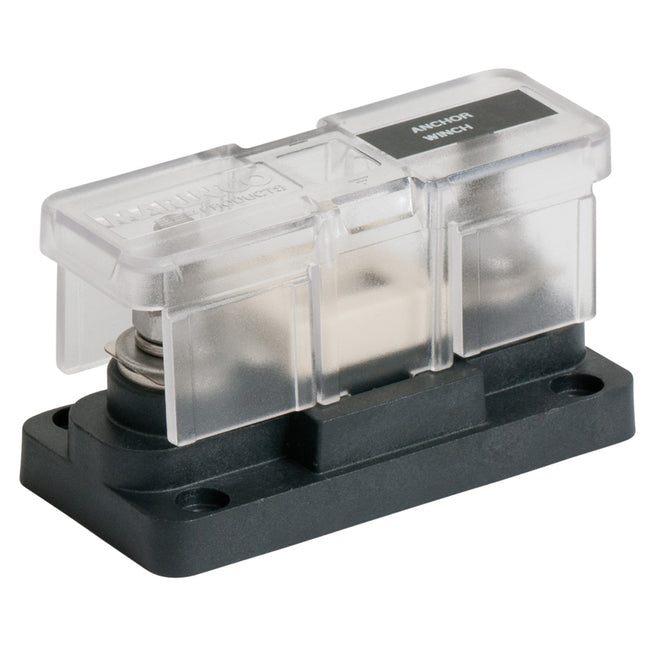

Fuse Holder ANL 300AProviding high-capacity fusing, fast response and very high interrupt ratings (ANL up to 6,000 Amps, Class-T up to 20,000 Amps), these fuse holders are ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. They also protect wiring from short circuits. Pro Installer fuse holders' durable construction allow fuses to run at maximum load. Radiused ends improve cable routing options ANL: for use with 5/16" (8mm) or 3/8" (10mm) ANL fuses WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs UPC: 843687006800 Brochure (pdf)

Read more less

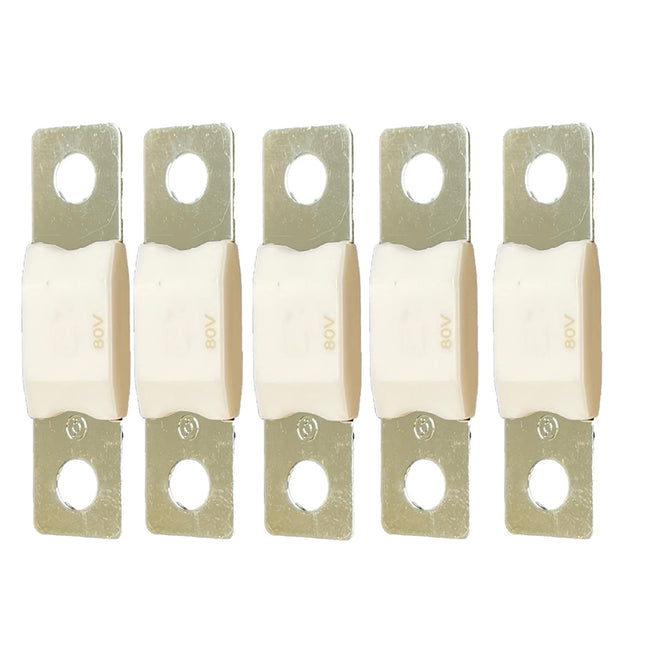

MEGA Fuse 100A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 80 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 100 AMP Max Voltage Rating: 80V

Read more less

5164ANL Fuse35A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 35a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051648

Read more less

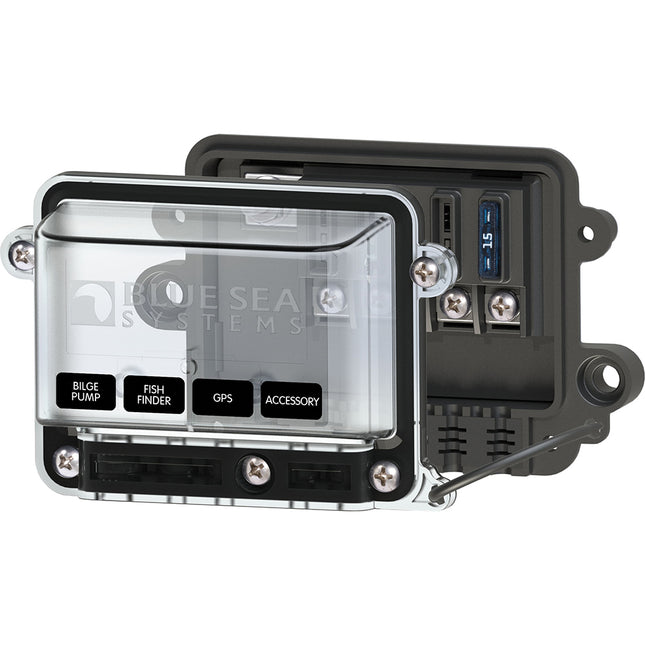

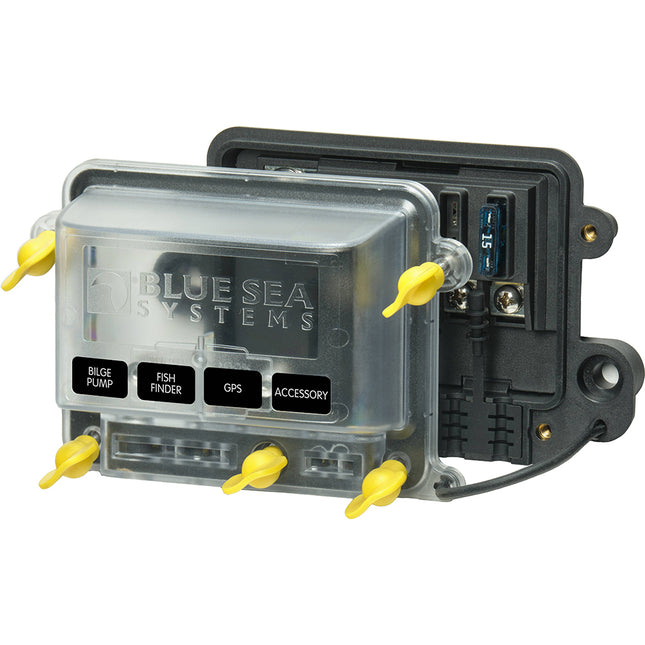

5056100 - Water Resistant ST-Blade Fuse Block with CoverThis Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.  Now with wing screws for toolless access.Features: Water-resistant design with a standard ring or spade-type terminals Allows for simple wiring with standard tools Accepts a wide range of wire sizes Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required Accepts ATO and ATC fast acting blade fuses Accepts ATO/ATC-Style Low Profile Circuit Breakers Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire 5056100 meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four write-on circuit labels Spare fuse and fastener storage in cover Wing screws designed for tool-free installation of cover to meet ABYC compliance Technical Specifications:Cover - yes Maximum Voltage - 32V DC Bus Material - Tin-plated Copper Mounting Holes - Accepts 1/4" (6mm) screws Terminal Screws - 4 x # 8-32 with captive star lock washer Wire Size - Input - (1) 8 AWG to 4 AWG  Wire Size - Load - (4) 16 AWG to 10 AWG  In the Box: 5056100 Busbar Instruction Manual *Sold as an Individual Quick Guide (pdf)

Read more less

6-Way Mega Fuse Holder with Busbar - 250ASix-way fuse holder for mega-style fuses with busbar (250A)Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Fuse Blocks Fuse Type: MEGA/AMG Amperage: 250a Box Dimensions: 2"H x 6"W x 8"L WT: 1.2 lbs UPC: 8719076051350 Quick Guide (pdf)Brochure (pdf)

Read more less

ATO/ATC Fuse HolderWatertight, extra heavy duty and weatherproof. For use with fuses up to 30 Amps. 12 gauge wire leads for easy hook-ups. Fuse not included.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Holders Box Dimensions: 2"H x 3"W x 7"L WT: 0.1 lbs UPC: 022697143488

Read more less

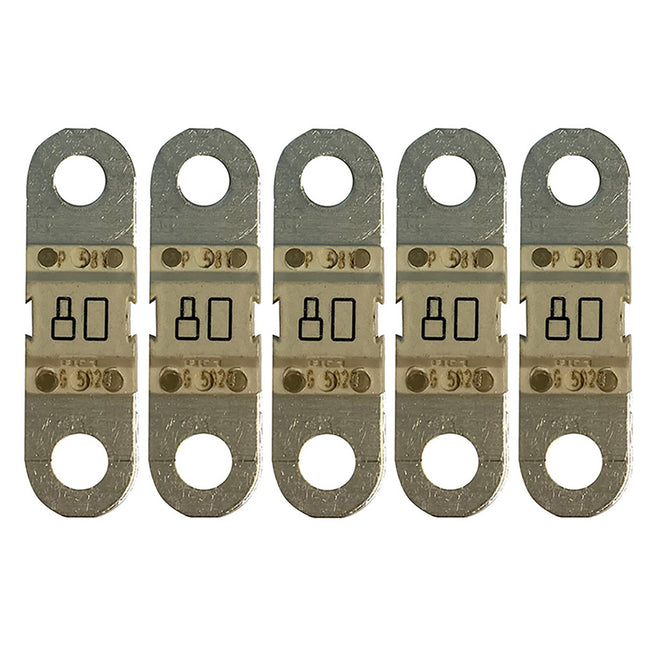

MIDI-Fuse 80A/58V M6 for 48V *Pack of 5Features: MIDI-Fuse Technology: Specifically engineered as a MIDI-Fuse, this product is tailored for automotive, marine, and renewable energy systems, offering a unique size and style compared to standard, mini, or maxi fuses Space-Saving Design: The Victron Energy MIDI-Fuse features a compact bolt-on design, ensuring it fits seamlessly into your application without sacrificing valuable space Corrosion Resistance: Crafted with excellence, our MIDI-Fuse provides superior corrosion resistance, ensuring it stays protected and performs reliably even in challenging environments Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

ATO/ATC Fuse Pack - 2 Amp - 25-PackFeatures: Fast-acting type fuses ideal for electronic devices Standard circuit protection device for automobiles and trucks Tin-plated connector blades for corrosion resistance Specifications: Amperage: 2 Amp Maximum Voltage: 32V DC Interrupt Capacity: 1000A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 632085523916

Read more less

5129ANL Fuse200A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 200a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051297

Read more less

SafetyHub 150 Fuse BlockThe SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates upt to ten fused circuits. It can be used for Main or Branch DC power distribution. Four 30A-200A MIDI/AMI fuses ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers Six 1A-30A ATO/ATC fuses ideal for low-amp circuits including bilge pumps, electronics, and lights Sealed cover protects fuses from the harsh marine environment: IP66 rating - protected against powerful water jets Negative bus provides common location for negative collection Circuit identification label with write-on capability Fuse puller easily removes ATO/ATC fuses Cover provides storage space for two spare ATO/ATC fuses and two spare MIDI/AMI fuses NYPATCH coated MIDI/AMI fuse screws resist loosening over time Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats Fuses sold separatelyWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 3"H x 9"W x 12"L WT: 2 lbs UPC: 632085077488 Brochure (pdf)

Read more less

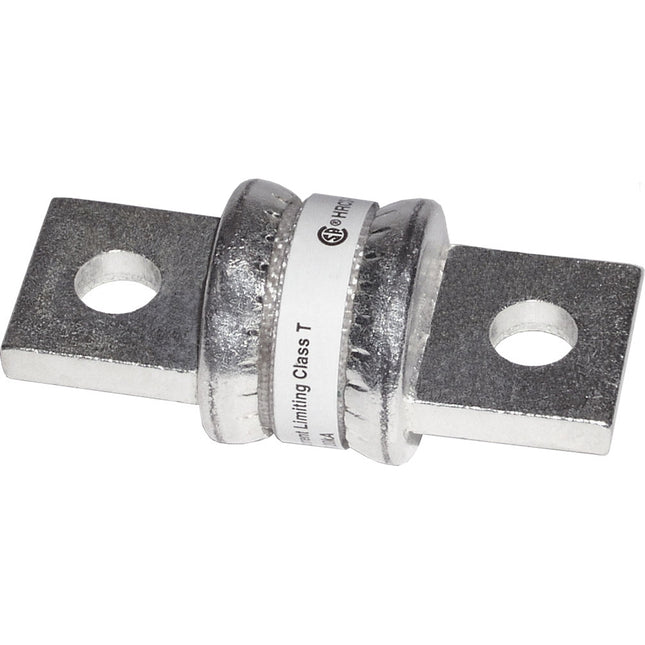

5113 125A Class T Fuse Features: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Fuses Fuse Type: Class T Amperage: 125a Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs UPC: 632085051136

Read more less

ATO/ATC Fuse Pack - 30 Amp - 25-PackFeatures: Fast-acting type fuses ideal for electronic devices Standard circuit protection device for automobiles and trucks Tin-plated connector blades for corrosion resistance Specifications: Amperage: 30 Amp Maximum Voltage: 32V DC Interrupt Capacity: 1000A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 632085524517

Read more less

Fuse Trip C20 - 250AStrip Fuse C20 - 250 amp Specifications: Amperage: 250a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 8717372228797 Quick Guide (pdf)

Read more less

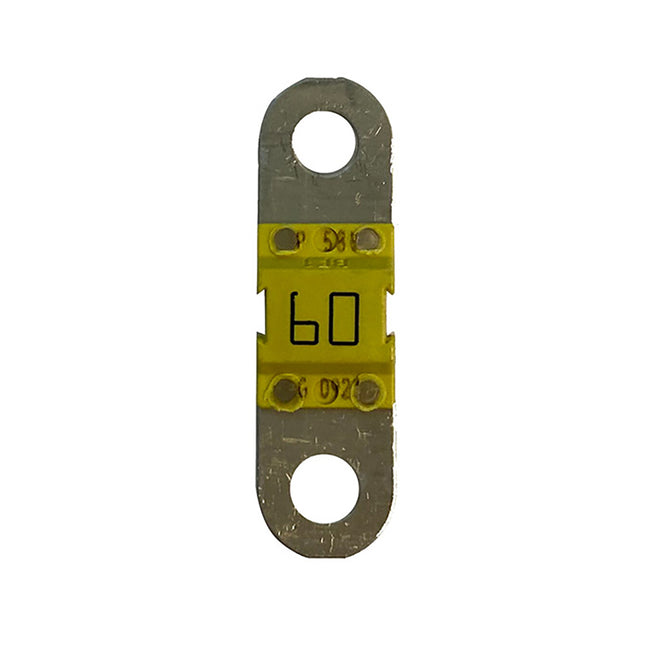

MIDI-Fuse 60A/58V for 48V Products (Package of 1)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses and are known to have low voltage drop and cold resistance. This particular package contains ONE Victron MIDI 60 amp fuse that’s designed for 48V products.Specifications: Max Current Rating: 60 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 70 mV Cold Resistance: 0.9 mΩ Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 60a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 0"H x 4"W x 7"L WT: 0.05 lbs UPC: 8719076036531 Quick Guide (pdf)Brochure (pdf)

Read more less

MIDI-Fuse 80A/32V (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses and are known to have low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 80 amp fuses.Specifications: Max Current Rating: 80 amps Max Voltage Rating: 32 volts Approximate Voltage Drop: 60 mV Cold Resistance: 0.55 mΩ Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 80a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 0"H x 4"W x 6"L WT: 0.5 lbs UPC: 8719076045946 Quick Guide (pdf)Brochure (pdf)

Read more less

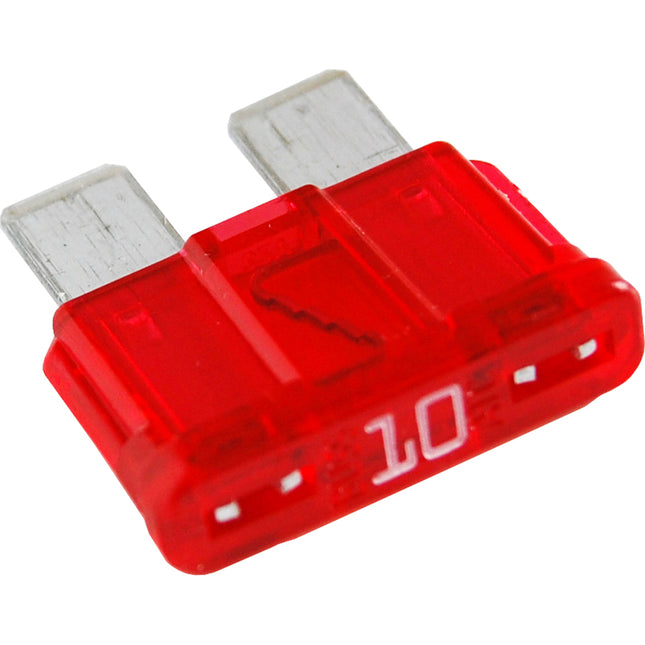

ATO/ATC Fuse Pack - 10 Amp - 25-PackFeatures: Fast-acting type fuses ideal for electronic devices Standard circuit protection device for automobiles and trucks Tin-plated connector blades for corrosion resistance Specifications: Amperage: 10 Amp Maximum Voltage: 32V DC Interrupt Capacity: 1000A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.2 lbs UPC: 632085524111

Read more less

ATO/ATC Fuse Pack - 7.5 Amp - 25-PackFeatures: Fast-acting type fuses ideal for electronic devices Standard circuit protection device for automobiles and trucks Tin-plated connector blades for corrosion resistance Specifications: Amperage: 7.5 Amp Maximum Voltage: 32V DC Interrupt Capacity: 1000A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 7.5a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 2"H x 2"W x 4"L WT: 0.1 lbs UPC: 632085524012

Read more less

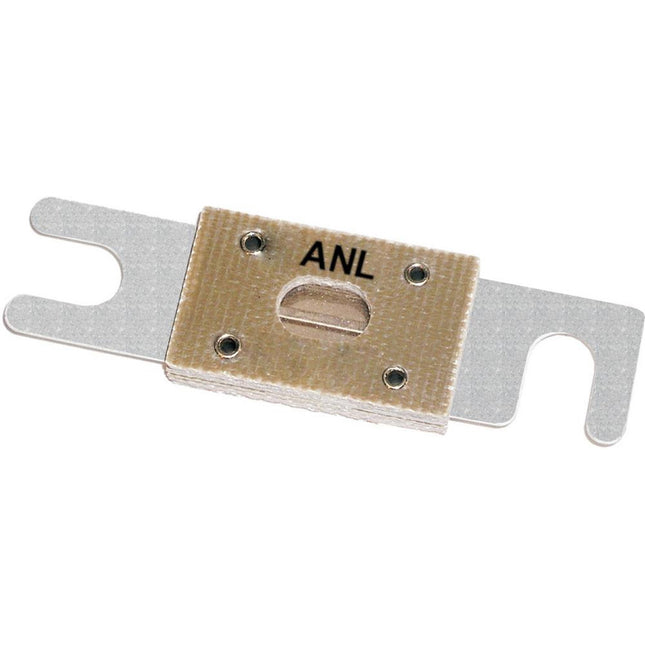

5131ANL Fuse250A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 250a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 632085051310

Read more less

5127ANL Fuse150A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 150a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051273

Read more less

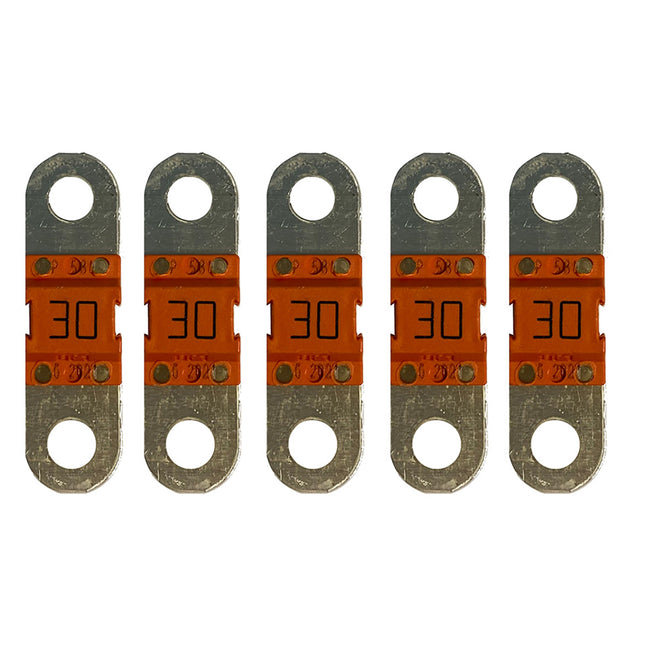

MIDI-Fuse 30A/58V-M6 (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses, which are known for their low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 30 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 65 mV Cold Resistance: 2 mΩ

Read more less

ATO/ATC Fuse Pack - 20 Amp - 25-PackFeatures: Fast-acting type fuses ideal for electronic devices Standard circuit protection device for automobiles and trucks Tin-plated connector blades for corrosion resistance Specifications: Amperage: 20 Amp Maximum Voltage: 32V DC Interrupt Capacity: 1000A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 632085524319

Read more less

5238ATO/ATC Fuse4A Fast-acting type fuse ideal for electronic devices Standard circuit protection device for automobiles and trucks Tin-plated connector blades for corrosion resistance Visible indication of blown condition Sold in packages of 2 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 4a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085052386

Read more less

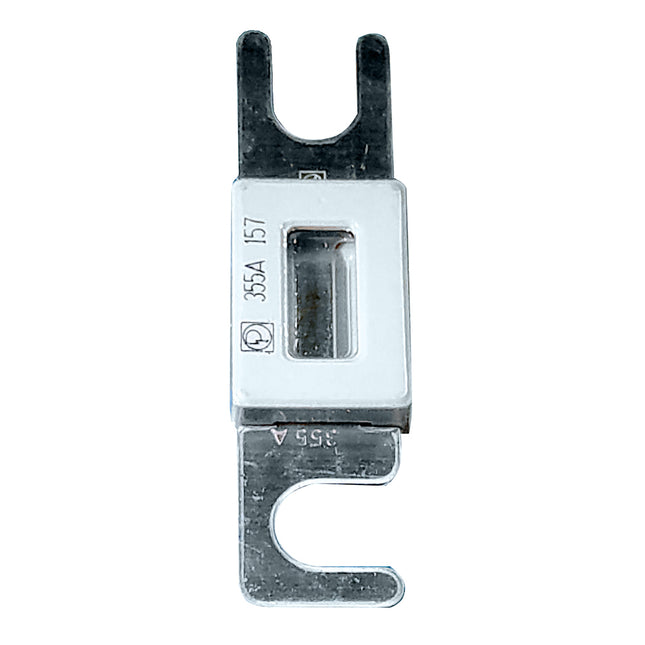

Fuse Strip C20 - 355 AmpFeatures: Fuse Strip C20 355 Amp Specifications: Amperage: 355a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 6"L WT: 0.06 lbs UPC: 8717372228827

Read more less

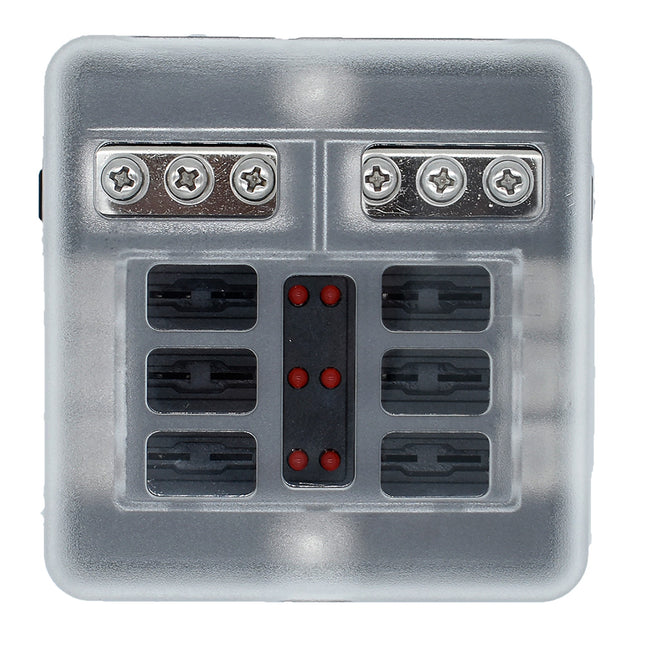

6 Position Fuse Block with LEDsThis 6-position led fuse block is built to simplify circuit protection and troubleshooting in 48V DC systems. Each circuit supports up to 30A, and an integrated LED indicator alerts you the moment a fuse blows—so you can identify and address issues at a glance.Designed for clean, centralized wiring in marine or mobile environments, this led fuse block handles up to 100A of input current through M5 threaded studs, with M4 output studs rated for 25A max per circuit. It’s compatible with 88 Series breakers.The housing is made from stainless steel, nickel-plated copper, and polycarbonate, ensuring long-term durability and corrosion resistance. Mounting is simple with 0.1695” holes, spaced 2.825” H x 2.725” W for the 6-position block.Whether you’re upgrading or building new, this LED fuse block delivers a clean, professional, and easy-to-maintain solution.Specifications: Max Voltage: 48V DC Input Current: 100A Breaker Type: 88 Series/BW 38 Series Input Terminal Rating: M5 Threaded Studs (100A max) Output Terminal Rating: M4 Threaded Studs (25A max) Material: Stainless Steel/Nickel-plated Copper/Polycarbonate Specifications: Amperage: 100 Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 10"L WT: 0.4 lbs UPC: 810196332249

Read more less

5133 ANL Fuse - 300AMPFeatures: Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 300a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051334

Read more less

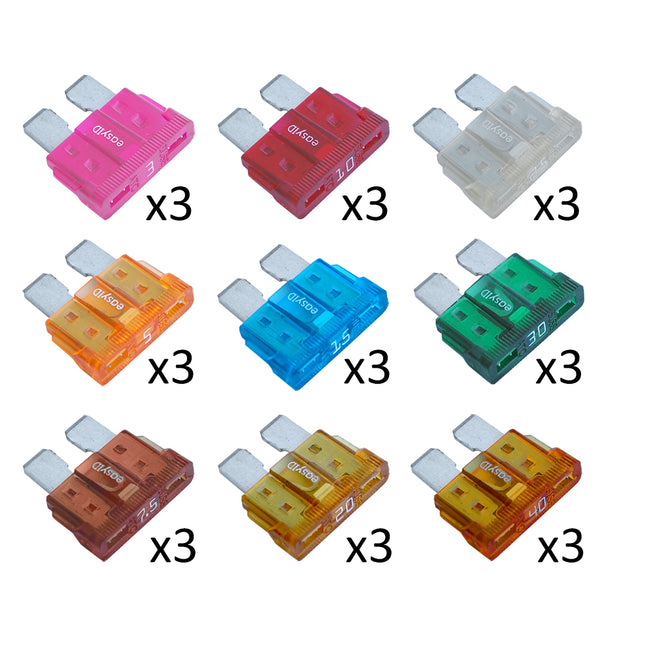

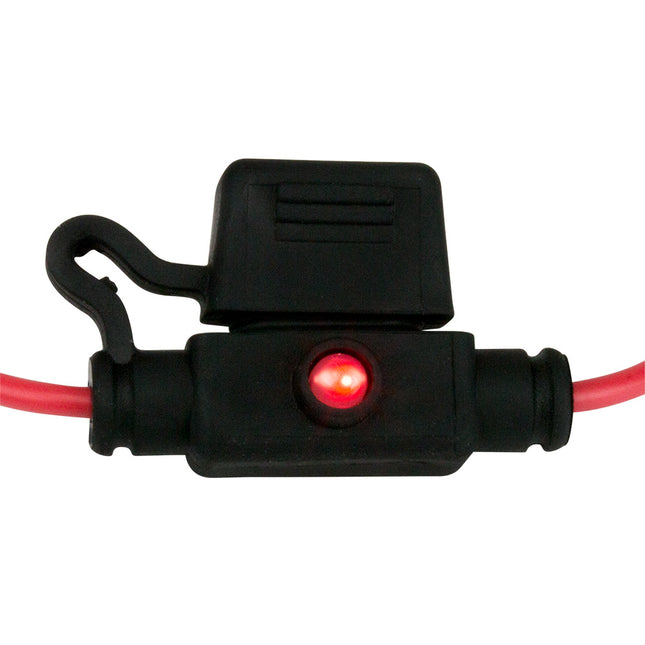

easyID Fuse 5 AmpeasyID™ illuminated ATC® blade fuses use Light Emitting Diode (LED) technology to show that a fuse has blown, making them easy to spot in fuse panels tucked up under dark dashboards. Replaces non illuminating ATO® or ATC® fuses Fast acting Two per retail package SpecificationsAmperage; 5AInterrupt Capacity: 1000A @ 32V DCBlade Material: tin-platedWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.02 lbs UPC: 632085052928 Brochure (pdf)

Read more less

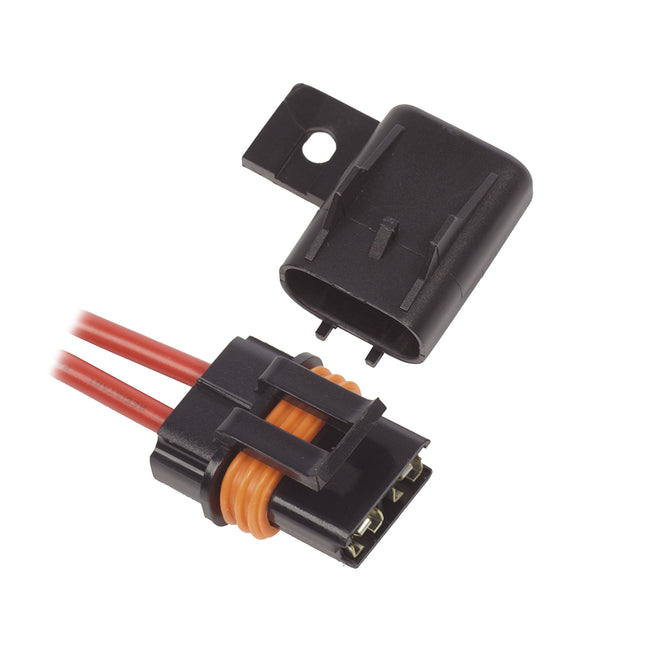

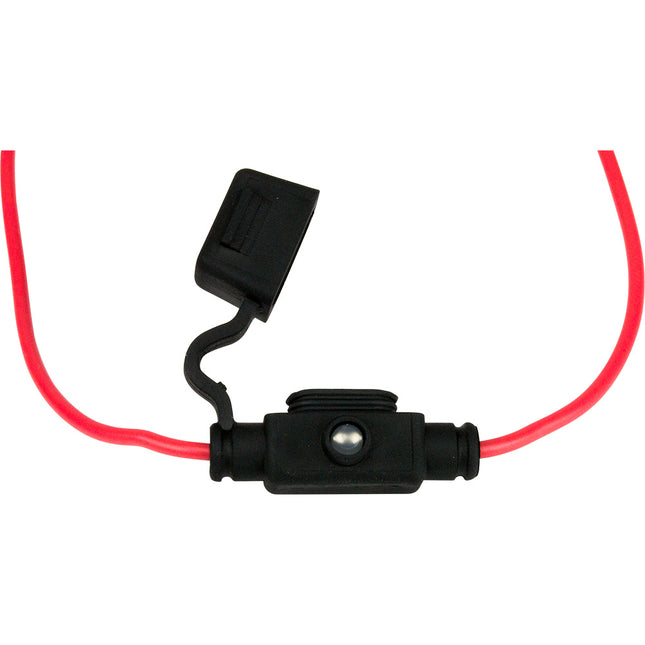

5065ATO/ATC Waterproof In-Line Fuse Holder supplied with 12 AWG pigtails 30A Maximum fuse amperage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Holders Box Dimensions: 1"H x 2"W x 5"L WT: 0.05 lbs UPC: 632085050658

Read more less

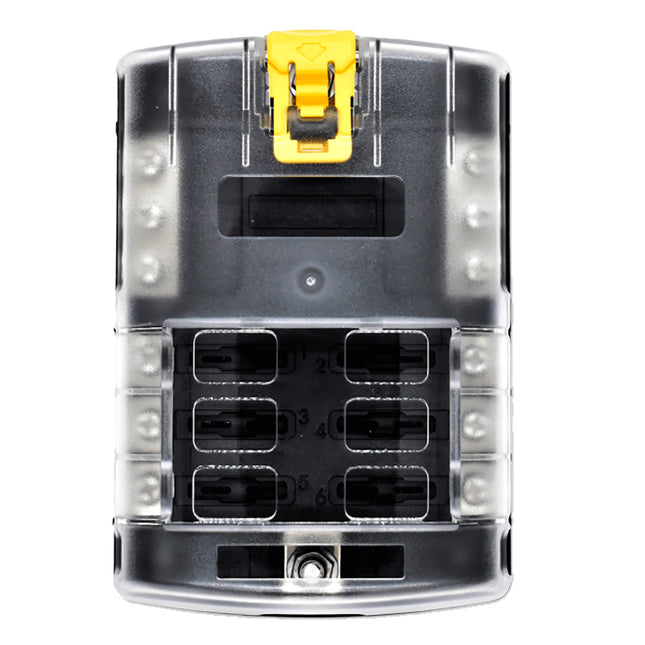

6 Position Fuse Block ATC with Yellow SlideThis 6 and 12-position marine fuse block offers a clean, organized solution for managing low-voltage electrical circuits in boats, RVs, and off-grid systems. Designed to centralize and protect up to 12 independent circuits, it provides dependable circuit separation for complex power layouts.Rated for 48V DC systems and up to 100A of input current, the block uses M5 threaded studs for the main input and M4 threaded studs for outputs, supporting up to 25A per circuit. It’s compatible with 88 Series breakers.Built with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this marine fuse block is made to withstand demanding environments. Mounting is straightforward with 0.1750” holes, spaced at 3.709” H x 2.331” W for the 6-position model and 5.285” H x 2.325” W for the 12-position version.Whether you’re building a new power system or upgrading an existing one, this fuse block delivers professional-grade performance and a tidy, serviceable layout.Specifications: Max Voltage: 48V DC Input Current: 100A Breaker Type: 88 Series/BW 38 Series Input Terminal Rating: M5 Threaded Studs (100A max) Output Terminal Rating: M4 Threaded Studs (25A max) Material: Stainless Steel/Nickel-plated Copper/Polycarbonate Installation: M5 main connecting studs Mounting Holes: 0.1750” Distance Between Mounting Holes: 6 Position: 3.709” H / 2.331” W 12 Position: 5.285” H / 2.325” W Specifications: Amperage: 100 Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 8"L WT: 0.5 lbs UPC: 810196332324

Read more less

MIDI-Fuse 60A/58V-M6 (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses and are known to have low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 60 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 70 mV Cold Resistance: 0,9 mΩ Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

5114 150A Class T Fuse Features: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Fuses Fuse Type: Class T Amperage: 150a Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs UPC: 632085051143

Read more less

5119 300AMP Class T FuseFeatures: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 300a Fuse Type: Class T Type: Fuses Box Dimensions: 3"H x 8"W x 9"L WT: 0.25 lbs UPC: 632085051198

Read more less

MEGA Fuse 250A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 80 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 250 AMP Max Voltage Rating: 80V

Read more less

MEGA Fuse 200A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 200 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 200 AMP Max Voltage Rating: 80V Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 200a Type: Fuses Box Dimensions: 0"H x 6"W x 6"L WT: 0.25 lbs UPC: 8719076061700

Read more less

Fuse Holder C100Fuse holder, type C100 including cover, suitable for fuses of 40 to 500 amp Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 1"H x 4"W x 6"L WT: 0.4 lbs UPC: 8717372228599 Quick Guide (pdf)

Read more less

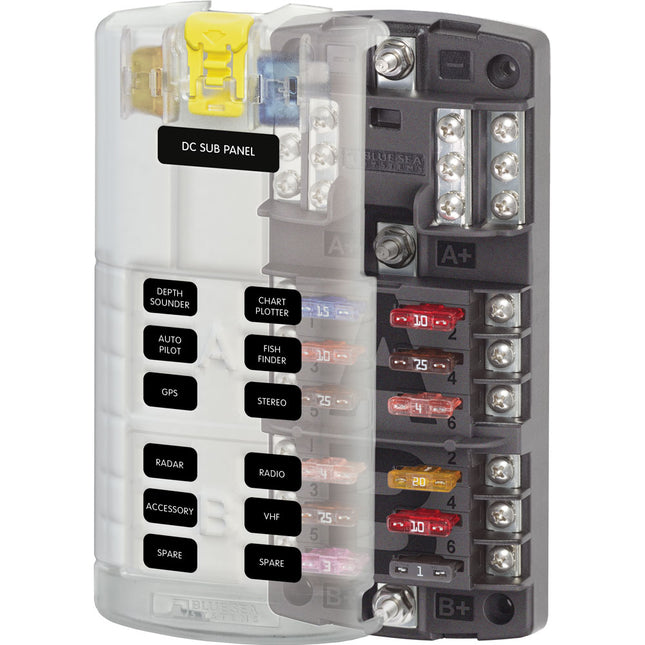

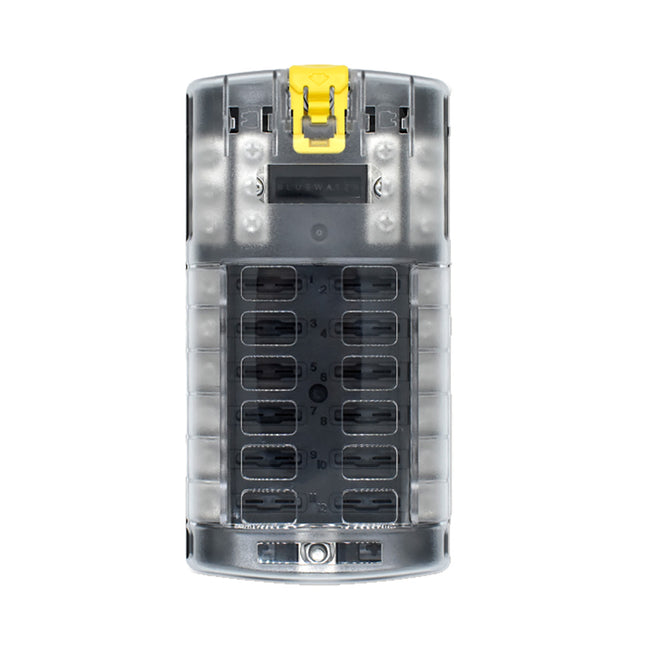

12 Position Fuse Block ATC with Yellow SlideThis 6 and 12-position marine fuse block offers a clean, organized solution for managing low-voltage electrical circuits in boats, RVs, and off-grid systems. Designed to centralize and protect up to 12 independent circuits, it provides dependable circuit separation for complex power layouts.Rated for 48V DC systems and up to 100A of input current, the block uses M5 threaded studs for the main input and M4 threaded studs for outputs, supporting up to 25A per circuit. It’s compatible with 88 Series breakers.Built with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this marine fuse block is made to withstand demanding environments. Mounting is straightforward with 0.1750” holes, spaced at 3.709” H x 2.331” W for the 6-position model and 5.285” H x 2.325” W for the 12-position version.Whether you’re building a new power system or upgrading an existing one, this fuse block delivers professional-grade performance and a tidy, serviceable layout.Specifications: Max Voltage: 48V DC Input Current: 100A Breaker Type: 88 Series/BW 38 Series Input Terminal Rating: M5 Threaded Studs (100A max) Output Terminal Rating: M4 Threaded Studs (25A max) Material: Stainless Steel/Nickel-plated Copper/Polycarbonate Installation: M5 main connecting studs Mounting Holes: 0.1750” Distance Between Mounting Holes: 6 Position: 3.709” H / 2.331” W 12 Position: 5.285” H / 2.325” W Specifications: Amperage: 200 Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 10"L WT: 0.65 lbs UPC: 810196332331

Read more less

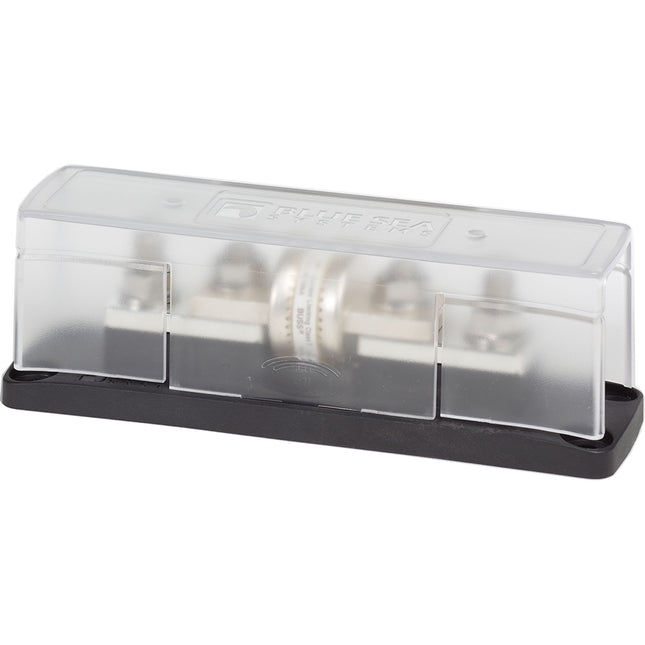

Class T Fuse Block with Insulating Cover - 225 to 400AAllows the use of Class T fuses for fast acting circuit protection of inverters and other electronics Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse Insulating cover satisfies ABYC/USCG insulation requirements Cover breakouts allow wire access in any direction Stud design ensures secure fuse mounting even with high heat Stainless steel studs provide resistance to corrosion and high torque One-piece stainless flange nuts ensure safe and secure connections UL 94-V0 base resists high heat Technical Specifications: Cable Size: Up to 4/0 AWG Ignition Protected: Yes Maximum Amperage: 320A Maximum Voltage: 160V DC Fuse Mounting Blocks: Tin-Plated Copper Terminal Stud Size: 5/16"-18 (M8) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 8"W x 8"L WT: 1.8 lbs UPC: 632085550219

Read more less

V8 Series 100 AMP Mini-ANL Fuse - 2 PackT-Spec high-current fuse protects your equipment and you in the event of an electrical short circuit.  Each of these heavy-duty fuses features a little window through which you can visually check the fuse's status.Features: Nickel plated Status window *Sold as a 2 PackWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ANL Mini Type: Fuses Box Dimensions: 0"H x 4"W x 5"L WT: 0.03 lbs UPC: 086429272280

Read more less

Modular Fuse Holder for MEGA FuseThe dovetail feature allows interlocking multiple fuse holders.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Fuse Type: MEGA/AMG Type: Fuse Holders Box Dimensions: 1"H x 2"W x 3"L WT: 0.3 lbs UPC: 8719076018124 Quick Guide (pdf)Brochure (pdf)

Read more less

Fuse MIDI/AMI 60A - PairFeatures: Compact fuse with 60A amperage Tin-plated copped for corrosion resistance Clear cover offers visible indication of blown fuses Color-coded for easy amperage identification Ignition protected to SAE J1171 when used with Blue Sea Systems SafetyHub family of products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 1"H x 2"W x 3"L WT: 0.05 lbs UPC: 632085052539 Brochure (pdf)

Read more less

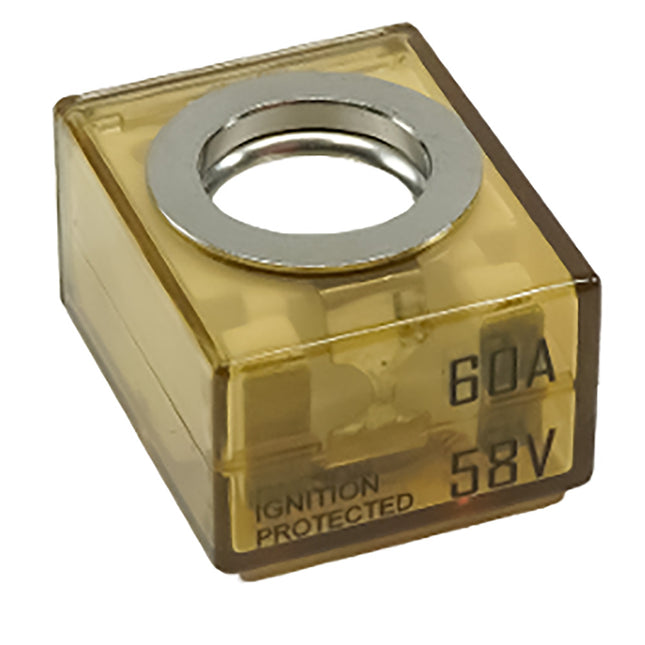

MRBF Terminal Fuse - 60 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 60 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 60a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879579

Read more less

Terminal FuseColor: GoldAmperage: 60A Interrupt Rating satisfies ABYC requirements for DC Main circuit protection on large battery banks Ignition protected-safe for installation aboard gasoline powered boats Clear window-visual indication of blown condition Must be used with terminal fuse block WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051785

Read more less

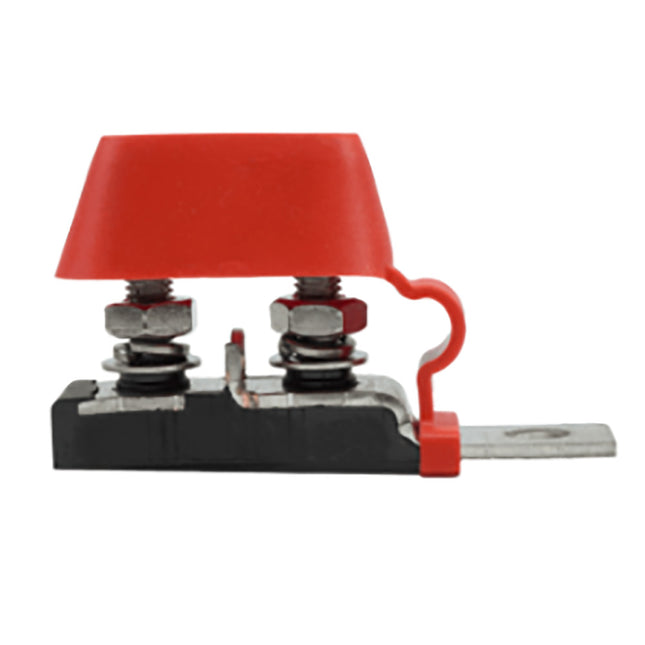

MRBF Dual Output Terminal Block - 30-300 AmpFeatures: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Ignition Protected When Used With Egis Mobile Electric MRBF Fuses safe for installation in closed compartments with potential explosive gases. Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  58 Vdc Rating: easily supports 12 to 48V nominal applications. 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 30-300A Stud Size: M8 (5/16") Mounting Hole Size: M10 (3/8") Interrupt Rating @ 48 Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 30-300 Fuse Type: Terminal Type: Fuse Blocks Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850053879531 Brochure (pdf)

Read more less

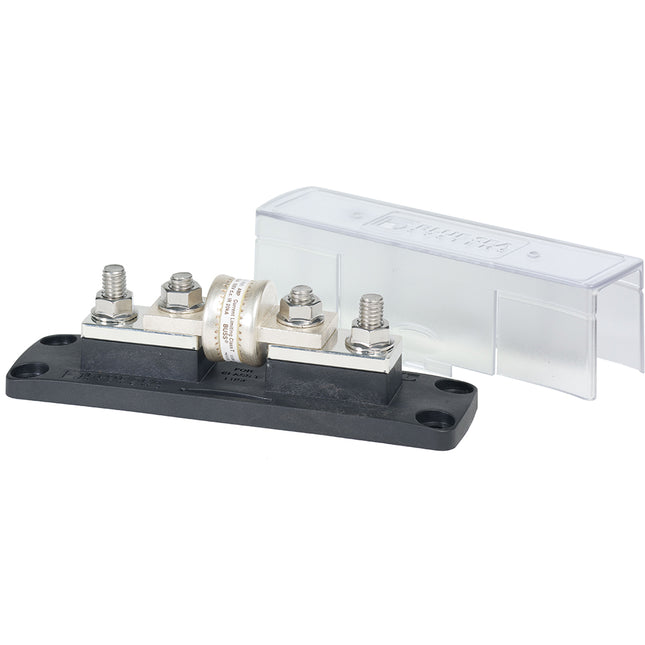

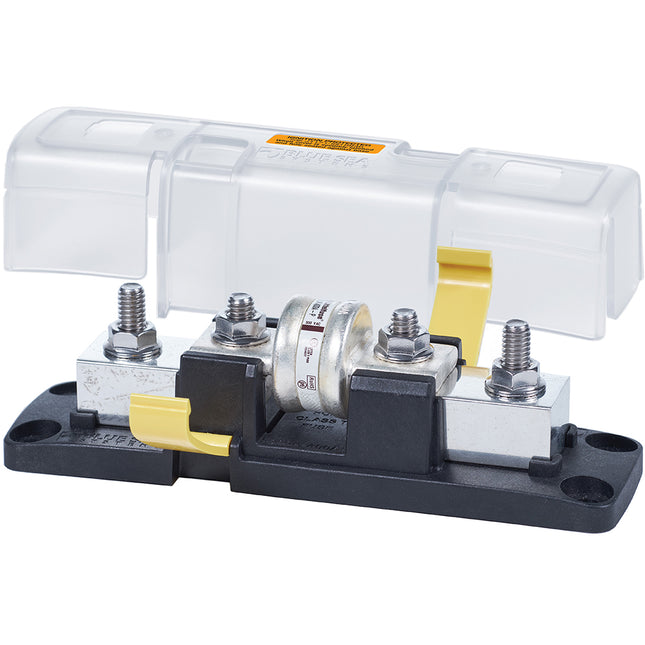

Class T Fuse Holder with 2 Additional Studs 225-400A Providing high-capacity fusing, fast response and very high interrupt ratings (ANL up to 6,000 Amps, Class-T up to 20,000 Amps), these fuse holders are ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. They also protect wiring from short circuits. Pro Installer fuse holders' durable construction allow fuses to run at maximum load. Radiused ends improve cable routing options Class-T: 225-400 Amp WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 2"H x 7"W x 8"L WT: 0.95 lbs UPC: 870216043500 Brochure (pdf)

Read more less

Lynx Distributor with M10 TerminalsThe Lynx Distributor contains a positive and a negative busbar. The positive busbar has four fuse-protected connections with fuse monitoring. The negative busbar has four connections and a ground connection. This model is part of the Lynx distribution and is a M10 busbar model. Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8.The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can.Features: 1000A model with M10 busbars The Lynx Distributor ships together with a 40cm RJ10 cable, which provides power to the Lynx Distributor and is also used to transmit data if connected to a Lynx Smart BMS The Lynx Distributor is designed to hold MEGA fuses If the Lynx Distributor is connected to a Lynx Smart BMS, it can be monitored and set up with the VictronConnect App Up to 4 connected Lynx distributors can be monitored with a GX device if connected to a Lynx Smart BMS The Lynx Distribution SystemThe Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.The Lynx Distribution System Consists of the Following PartsLynx Power InA positive and negative busbar with four batteries or DC equipment connections.Lynx DistributorA positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, is available in two versions.Lynx Shunt VE.CanA positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.Lynx Smart BMSFor use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

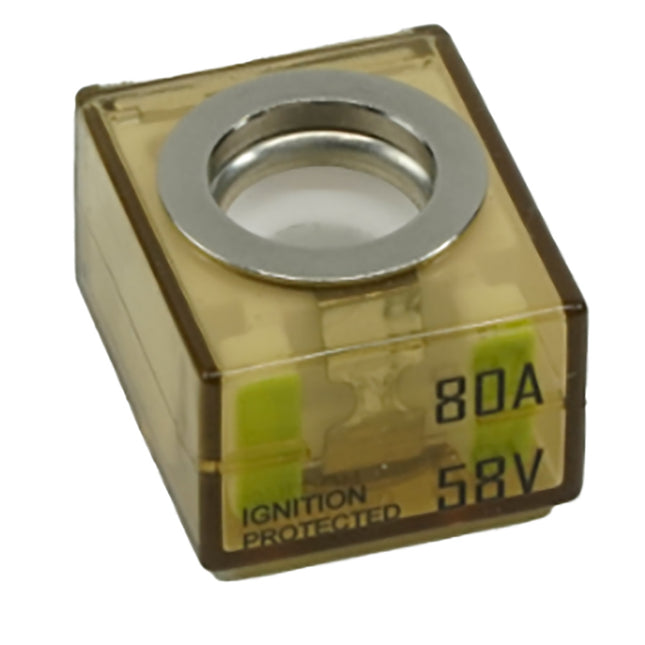

Terminal FuseColor: LimeAmperage: 80A Interrupt Rating satisfies ABYC requirements for DC Main circuit protection on large battery banks Ignition protected-safe for installation aboard gasoline powered boats Clear window-visual indication of blown condition Must be used with terminal fuse block WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 3"W x 4"L WT: 0.05 lbs UPC: 632085051815

Read more less

5135ANL Fuse350A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 350a Fuse Type: ANL Type: Fuses Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs UPC: 632085051358

Read more less
