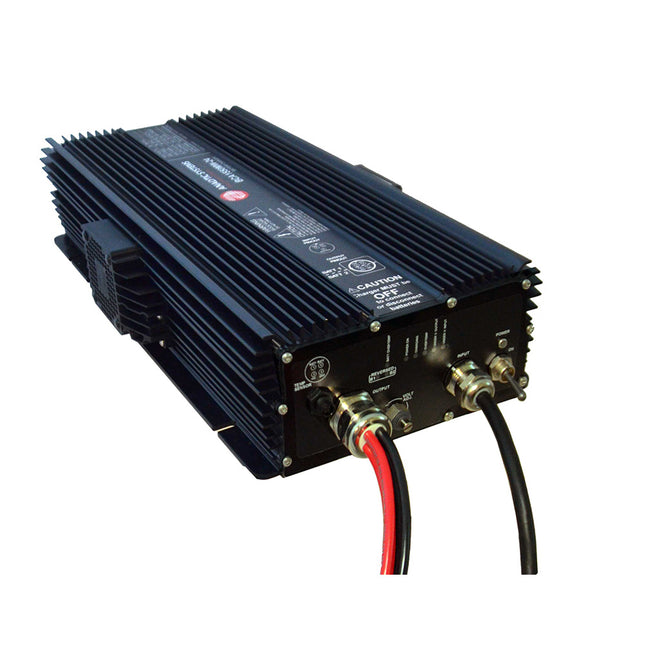

AC Charger 2-Bank, 60A, 24V Out, 110/220 In, IP66 Rated, Ruggedized & Wide TempThe BCA1550 Series battery charger provides up to 1000 watts of charging power to a one or two-bank battery system at 12, 24, 32, 36, 48, or 72 (Rail) VDC from an 85 – 264 VAC source.The BCA1550 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48, or 72 (Rail) VDC. The 1550 family provides up to 1500 watts of precision power (the 1050 family supplies up to 1000 watts). The 1550 and 1050 families are identical to their previous models (1505 and 1005, respectively) in form, fit, and function as a direct drop-in replacement.Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 – 264 VAC at 50 or 60Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input filtering reduces EMI to extremely low levels to prevent interference with nearby sensitive electronics. These units are constructed from heavy-duty extruded aluminum chassis and aluminum ventilated front and rear panels with thermostatically controlled cooling fans and all stainless steel fasteners for rugged duty. Reliability features include LED status indicators, input circuit breaker, thermal shutdown, current limiting, reverse polarity connection protection, and output short circuit shutdown with automatic recovery.Features: Power Factor Corrected AC Input Fast and accurate charging Can function as a power supply Visual indicators for operation and errors Five-year parts and labor warranty Specifications: Input Voltage (AC): 85-265 VAC Input Current (Max Amps): 36 A Output Voltage (DC): 36 VDC Nominal Output VDC: 36 VDC Charging Current: 36 A Number of Battery Banks: 2 IP Rating: IP66 Mounting: Panel Approvals: CSA, UL Net Weight: 12 lbs Gross Weight: 12 lbs Specifications: Charger Input - Voltage: 110/220v Charger Output - Amps: 36a Charger Output Voltage: 36v Charging Banks: 2 Portable: No Owner's Manual (pdf)

Read more less

AC Charger 2-Bank, 60A, 24V Out, 110/220 In, IP66 Rated, Ruggedized & Wide TempThe BCA1550 Series battery charger provides up to 1000 watts of charging power to a one or two-bank battery system at 12, 24, 32, 36, 48, or 72 (Rail) VDC from an 85 – 264 VAC source.The BCA1550 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48, or 72 (Rail) VDC. The 1550 family provides up to 1500 watts of precision power (the 1050 family supplies up to 1000 watts). The 1550 and 1050 families are identical to their previous models (1505 and 1005, respectively) in form, fit, and function as a direct drop-in replacement.Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 – 264 VAC at 50 or 60Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input filtering reduces EMI to extremely low levels to prevent interference with nearby sensitive electronics. These units are constructed from heavy-duty extruded aluminum chassis and aluminum ventilated front and rear panels with thermostatically controlled cooling fans and all stainless steel fasteners for rugged duty. Reliability features include LED status indicators, input circuit breaker, thermal shutdown, current limiting, reverse polarity connection protection, and output short circuit shutdown with automatic recovery.Features: Power Factor Corrected AC Input Fast and accurate charging Can function as a power supply Visual indicators for operation and errors Five-year parts and labor warranty Specifications: Input Voltage (AC): 85-265 VAC Input Current (Max Amps): 41 A Output Voltage (DC): 32 VDC Nominal Output VDC: 32 VDC Charging Current: 41 A Number of Battery Banks: 2 IP Rating: IP66 Mounting: Panel Approvals: CSA, UL Net Weight: 12 lbs Gross Weight: 12 lbs Specifications: Charger Input - Voltage: 110/220v Charger Output - Amps: 41a Charger Output Voltage: 32v Charging Banks: 2 Portable: No Owner's Manual (pdf)

Read more less

AC Charger 2-Bank, 60A, 24V Out, 110/220 In, IP66 Rated, Ruggedized & Wide TempThe BCA1550 Series battery charger provides up to 1000 watts of charging power to a one or two-bank battery system at 12, 24, 32, 36, 48, or 72 (Rail) VDC from an 85 – 264 VAC source.The BCA1550 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48, or 72 (Rail) VDC. The 1550 family provides up to 1500 watts of precision power (the 1050 family supplies up to 1000 watts). The 1550 and 1050 families are identical to their previous models (1505 and 1005, respectively) in form, fit, and function as a direct drop-in replacement.Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 – 264 VAC at 50 or 60Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input filtering reduces EMI to extremely low levels to prevent interference with nearby sensitive electronics. These units are constructed from heavy-duty extruded aluminum chassis and aluminum ventilated front and rear panels with thermostatically controlled cooling fans and all stainless steel fasteners for rugged duty. Reliability features include LED status indicators, input circuit breaker, thermal shutdown, current limiting, reverse polarity connection protection, and output short circuit shutdown with automatic recovery.Features: Power Factor Corrected AC Input Fast and accurate charging Can function as a power supply Visual indicators for operation and errors Five-year parts and labor warranty Specifications: Input Voltage (AC): 85-265 VAC Input Current (Max Amps): 60 A Output Voltage (DC): 24 VDC Nominal Output VDC: 24 VDC Charging Current: 60 A Number of Battery Banks: 2 IP Rating: IP66 Mounting: Panel Approvals: CSA, UL Net Weight: 12 lbs Gross Weight: 12 lbs Specifications: Charger Input - Voltage: 110/220v Charger Output - Amps: 60a Charger Output Voltage: 24v Charging Banks: 2 Portable: No Owner's Manual (pdf)

Read more less

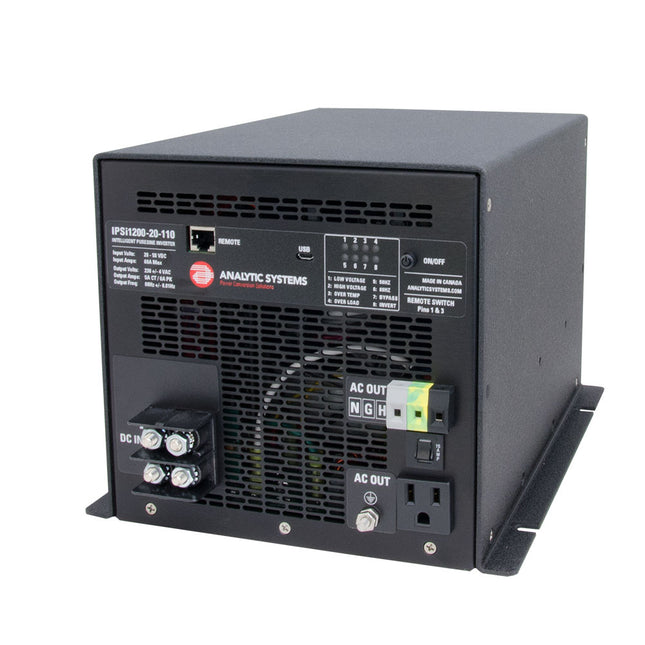

AC Intelligent Pure Sine Wave Inverter, 2400W, 20-40V In, 110V OutDigital Signal Processor controlled high power MosFet technology creates a low voltage Sine-Wave that is fed into a compact toroidal step-up transformer to create a very clean low EMI AC output. Using the free to download ‘Power Wizard’ software, the user can select output frequency, output voltage, output frequency and low voltage shutdown parameters from any laptop through the standard micro-usb interface. Safety features include current limiting, short circuit protection, inrush protection (during connection to the DC source), overtemperature de-rating and shutdown and low input voltage warning and shutdown. An Off-Line UPS options allows external AC to be routed through the inverter for high power UPS function if the external AC fails.Features: Programmable Low Voltage Shutdown Overload Protected Short Circuit Protected DSP Controlled Programmable Frequency Over Temperature Protected Hardwire AC Output Connection Programmable Output Voltage Three year parts and labor warranty

Read more less

AC Charger 2-Bank 55A 24V Out/110/220V InAC Chargers are available as two-stage or two and three-stage chargers capable of charging one or two banks of 12, 16, 24, 28, 32, 36, 48, 72V (rail) or other voltage battery banks, and are designed to quickly and accurately charge and condition batteries.

Read more less

AC Charger 1-Bank 100A 12V Out/110/220V InAC Chargers are available as two-stage or two and three-stage chargers capable of charging one or two banks of 12, 16, 24, 28, 32, 36, 48, 72V (rail) or other voltage battery banks, and are designed to quickly and accurately charge and condition batteries.

Read more less

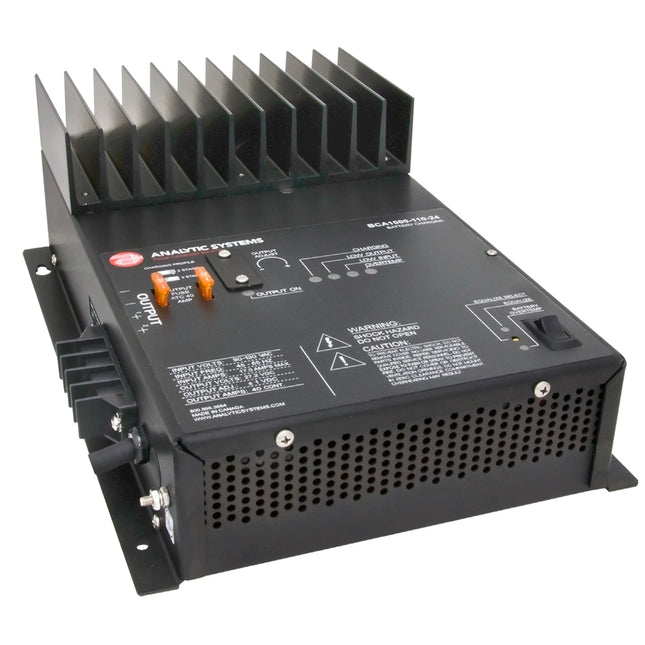

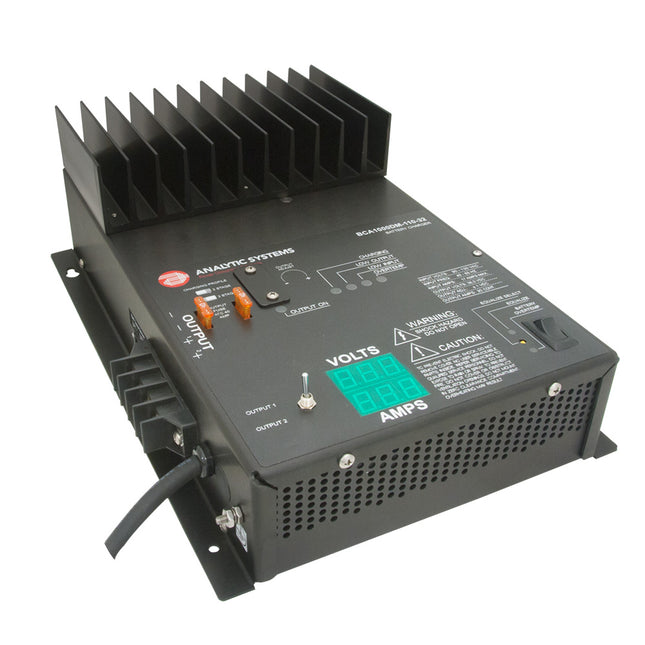

AC Charger 2-Bank 30A 32V Out/110V In with Digital Volt/Amp MeterThe traditional BCA1000 series chargers feature 1000 watts of precision charging power for 1 or 2 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110 or 220 volts AC at 50, 60 or 400 Hz.All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.Features: Two or three stage charging profiles Adjustable float voltage One or two bank charging (three bank optional) Temperature compensation Low EMI Manual equalization mode Three year warranty (parts & labor)

Read more less

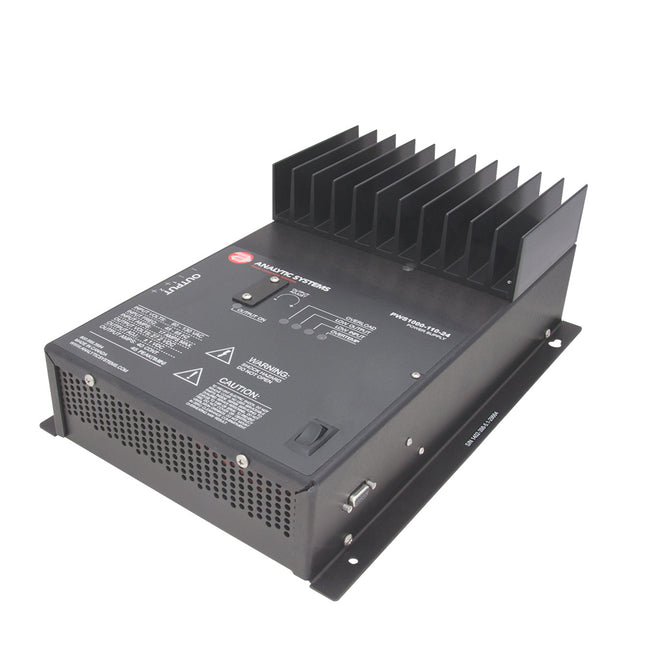

Power Supply 110AC to 24DC/40AThe PWS1000 Series of power supplies provides 12, 24 or 48 Volts DC at 1000 Watts of continuous power from a 110 or 220 Volt AC source.Analytic Systems’ power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.The newly updated single-board PWS1000 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input (Field Convertible) is available. The PWS1000 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.Features: Power sensitive electronics without interference Rugged and reliable to ensure years of safe and trouble free operation Adjustable output voltage Extremely rugged and well suited for marine and other demanding environments Ultra-quiet low EMI operation Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature Over-temperature shutdown Current limiting Short circuit protection Output overvoltage crowbar Dry contact output fail relay Remote control option Digital Volt/Ammeter option Custom output voltages available (8V to 55V) 19” Rackmount Available Parallel output diodes available Three year parts and labour warranty

Read more less

Power Supply 110AC to 12DC/70AThe PWS1000 Series of power supplies provides 12, 24 or 48 Volts DC at 1000 Watts of continuous power from a 110 or 220 Volt AC source.Analytic Systems’ power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.The newly updated single-board PWS1000 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input (Field Convertible) is available. The PWS1000 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.Features: Power sensitive electronics without interference Rugged and reliable to ensure years of safe and trouble free operation Adjustable output voltage Extremely rugged and well suited for marine and other demanding environments Ultra-quiet low EMI operation Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature Over-temperature shutdown Current limiting Short circuit protection Output overvoltage crowbar Dry contact output fail relay Remote control option Digital Volt/Ammeter option Custom output voltages available (8V to 55V) 19” Rackmount Available Parallel output diodes available Three year parts and labour warranty Specifications: Charger Input - Voltage: 110v Charger Output - Amps: 60-70a Charger Output Voltage: 12v Box Dimensions: 7"H x 12"W x 16"L WT: 12.3 lbs

Read more less

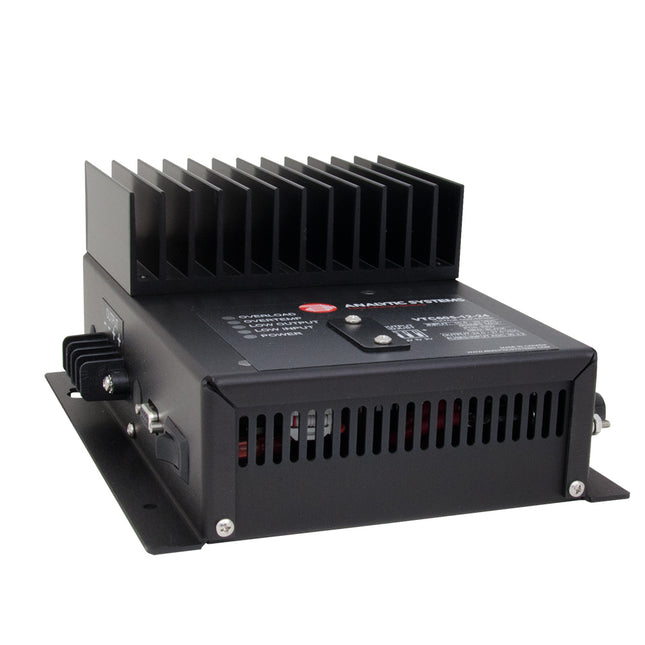

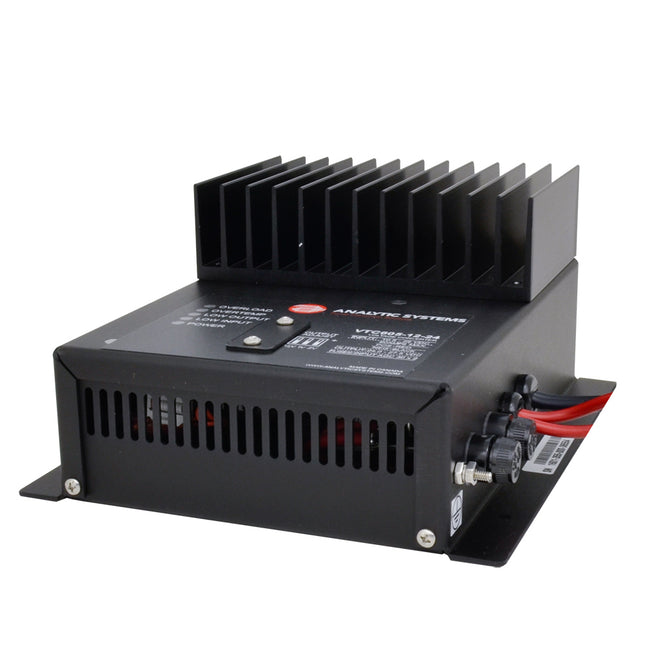

Non Iso DC/DC Converter 22A, 24V Out, 11-15V InStep up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 DC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system.Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, a dry contact alarm relay output and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage,the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include remote panel monitoring with On/Off control.Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12V and 24 VDC power systems in marine, automotive or aeronautical environments and more.Features: Ultra-quiet power sensitive electronics without interference Rugged and reliable to ensure years of safe and trouble free operation Power sensitive electronics without interference Simple operation Paralleling Diodes European ROHS Compliant (Lead Free Manufactured) Electric Fork Lift (Filtering and Surge Suppression) Open Frame (No chassis just heat sink bars) Safety Special Inspection (CSA/UL) Heavy duty ruggedization with wide temperature range Custom input/output available Three year parts and labour warranty Specifications: Charger Input - Voltage: 11-15 VDC Charger Output - Amps: 22 Amp Charger Output Voltage: 24v Box Dimensions: 7"H x 11"W x 12"L WT: 6.65 lbs

Read more less

Waterproof IP66 DC Converter 25/35A 12VDC Out/20-45VDC InThis single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation.Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and overload.Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit shutdown, a dry contact alarm relay output and output overvoltage crowbar. Optional features include a remote panel monitoring with On-Off control.Features: Ultra-quiet Power sensitive electronics without interference Rugged and reliable to ensure years of safe and trouble free operation Adjustable output voltage Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature Extremely rugged and well suited for marine and other demanding environments High tolerance for shock and vibration Ultra-quiet low EMI operation Current limiting protection Reverse input protection Output over-voltage crowbar Dry contact output fail relay Remote control option Wide Temperature operation Available Parallel output diodes available Conformal Coating and/or Harsh Environment Ruggedization available Three year parts and labour warranty

Read more less

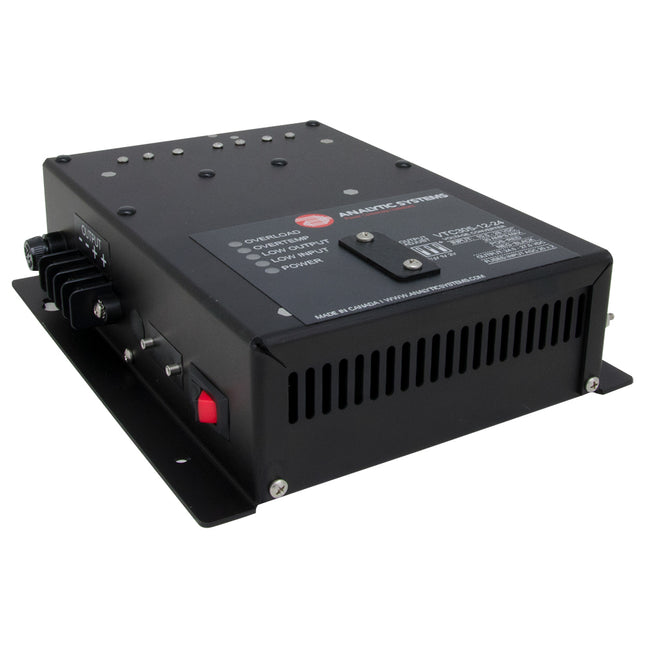

Non Isolated DC/DC Converter 27A - 12V Out - 11-15V InStep up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system. Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include a dry contact alarm relay output, and remote panel monitoring with On/Off control. Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12 and 24 VDC power systems in marine, automotive or aeronautical environments and more. Features: Ultra-quiet Rugged and reliable to ensure years of safe and trouble free operation Simple operation Current limiting protection Paralleling Diodes European ROHS Compliant (Lead Free Manufactured) Electric Fork Lift (Filtering and Surge Suppression) Open Frame (No chassis just heat sink bars) Safety Special Inspection (CSA/UL) Heavy duty ruggedization with wide temperature range Custom input/output available Three year parts and labour warranty Owner's Manual (pdf)Brochure (pdf)

Read more less

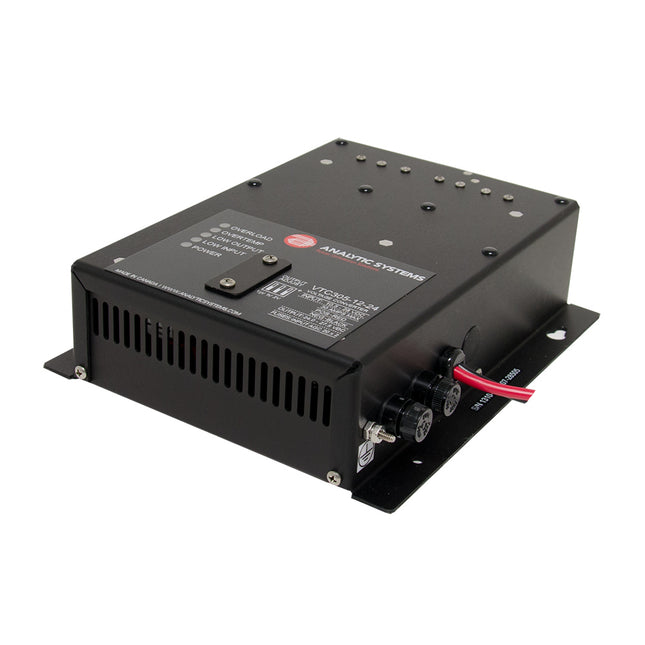

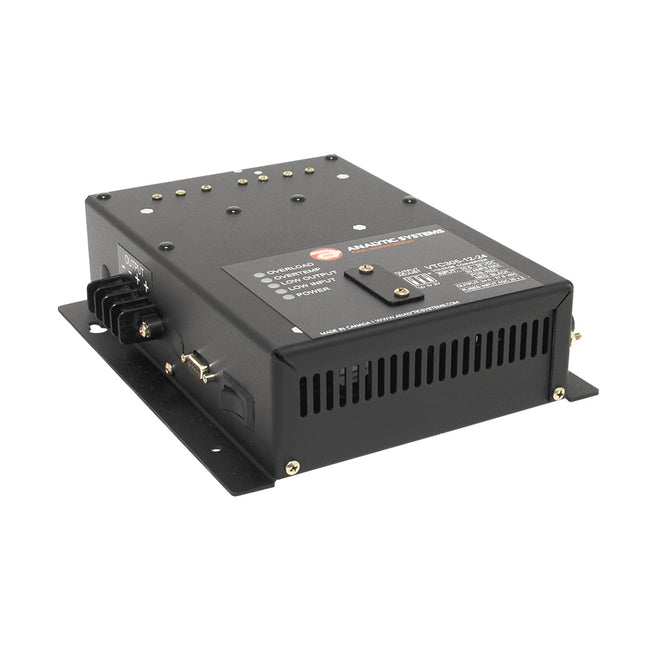

Non Iso DC/DC Converter 13A, 24V Out, 11-15V InStep up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system. Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include a dry contact alarm relay output, and remote panel monitoring with On/Off control. Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12 and 24 VDC power systems in marine, automotive or aeronautical environments and more. Features: Ultra-quiet Rugged and reliable to ensure years of safe and trouble free operation Simple operation Current limiting protection Paralleling Diodes European ROHS Compliant (Lead Free Manufactured) Electric Fork Lift (Filtering and Surge Suppression) Open Frame (No chassis just heat sink bars) Safety Special Inspection (CSA/UL) Heavy duty ruggedization with wide temperature range Custom input/output available Three year parts and labour warranty Specifications: Charger Input - Voltage: 11-15 VDC Charger Output - Amps: 13 Amp Charger Output Voltage: 24v Box Dimensions: 7"H x 11"W x 12"L WT: 4.85 lbs

Read more less

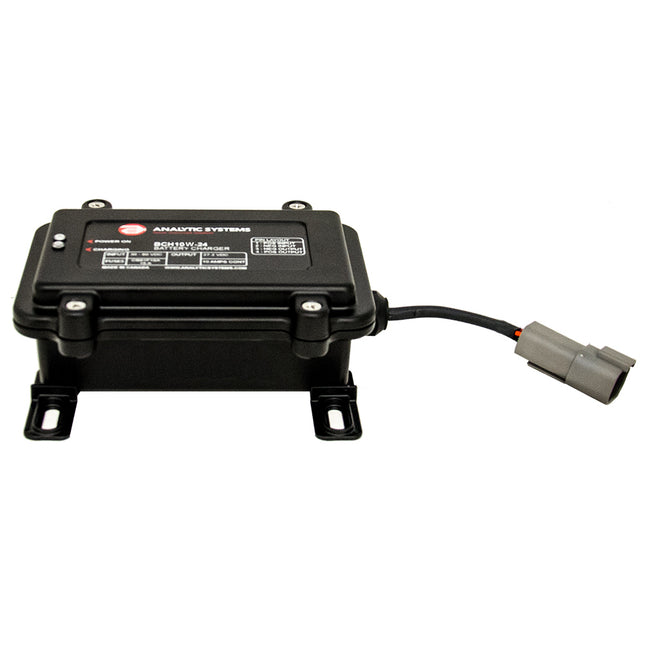

Waterproof IP66 DC Battery Charger 10A, 12V Out, 20-80V In, RuggedizedThe BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery.The standard BCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade BCH10MW features separate bayonet style MIL connectors for input and output.The all surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size.The BCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.The unit has reverse input protection, reverse battery connection protection, output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.Features: Watertight O-ring sealed and EMC gasketed enclosure ‘Output ON’ and “Charging” LED indicators Up to 80V input Compact size and easy mounting Deutsch DT04-4P connector on pigtail or MIL connectors Heavy duty ruggedization with wide temperature range Custom output voltages available Custom connector arrangements Input and output EMC filters Two year warranty (parts and labor) Specifications: Charger Input - Voltage: 20-80v Charger Output - Amps: 10a Charger Output Voltage: 12v Box Dimensions: 5"H x 8"W x 9"L WT: 2.1 lbs

Read more less

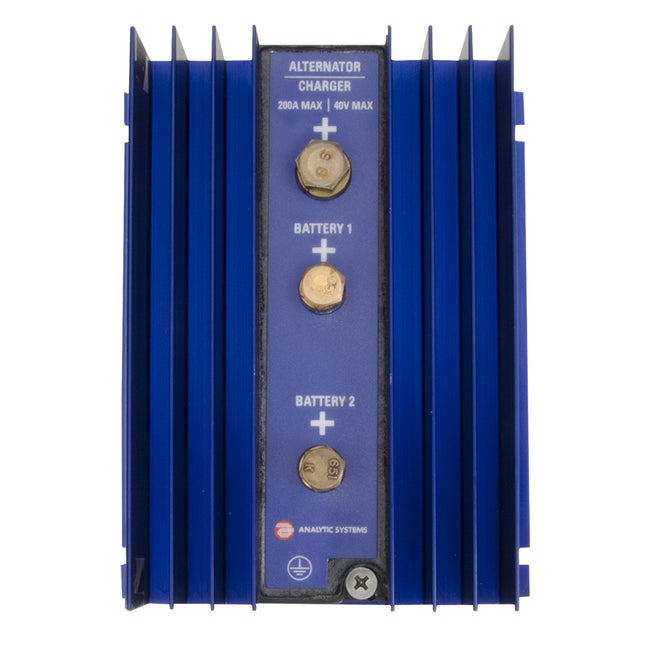

2-Bank Battery Isolator, 200A, 40VAnalytic Systems introduces the IBI (Ideal Battery Isolator) for 1, 2 and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electricalisolation between the battery banks or between a vehicle and trailer.Ideal Diode technology uses MosFet Transistors and control circuitry to replace the diode used in a traditional battery isolator and reduces the voltage drop across the isolator to a mere 160 millivolts at 200 Amps of charging current and essentially zero volts at low current, so all the power of the alternator is applied to the batteries ensuring a full recharge every time.While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger or as a pure diode between a vehicle and trailer or other remote load.Features: Waterproof Expoxy Sealed Construction Easy Connection Alternator/Charger post 5/16", Battery Post 1/4" Most Efficient use of Available Alternator Output Maximize Battery Performance Three year parts and labour warranty
