PowerHub 1800A Clean, Green, Backup Power SolutionThe Xantrex PowerHub is a combination of an inverter/charger module capable of delivering up to 1800 watts of household power. It is the first backup power solution to operate with solar and wind inputs. Power from a generator or the utility grid can also be used with the PowerHub system to recharge its batteries. The PowerHub provides an affordable, high-output, primary power solution for an off-grid cottage or cabin, as well as backup power for grid-connected homes when the power goes out. It is scalable up to 400 amp-hours of energy, allowing customers to build their system based on their power requirements.Features: Never worry about running out of power – renewable power sources, solar and wind, sustain the PowerHub’s battery charge indefinitely An excellent alternative to a generator – designed for indoor use, with no fuel, fumes or noise Add it to a grid-tie solar energy system for backup power Modified sine wave inverter/charger with battery box The battery box stores up to 200 amp-hours of battery power (single battery box included; batteries purchased separately) A second battery may be connected to double the battery capacity (additional battery box and batteries sold separately) Designed to include a generator as part of the system; generator power can pass through the unit to the AC outlets, and recharge the batteries Integrated transfer switch 40-amp three-stage charger Four AC outlets with hardwire option Two DC inputs for solar and/or wind connections Full-feature LED display for system monitoring WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Inverter Cont. Output Wattage: 1440w Charger Input - Voltage: 120v Charging Banks: 1 Charger Output - Amps: 40a AC Connection Type: GFCI Outlet DC Connection Type: Hardwire GFCI: Yes Outlet Qty: 2 Duplex GFCI Inverter Surge Rating: 2880w Inverter Input Voltage: 12v Inverter Output Voltage: 120v Waveform: Modified Sine Wave Charger Output Voltage: 12v Box Dimensions: 17"H x 19"W x 24"L WT: 66.45 lbs UPC: 715535114626

Read more less

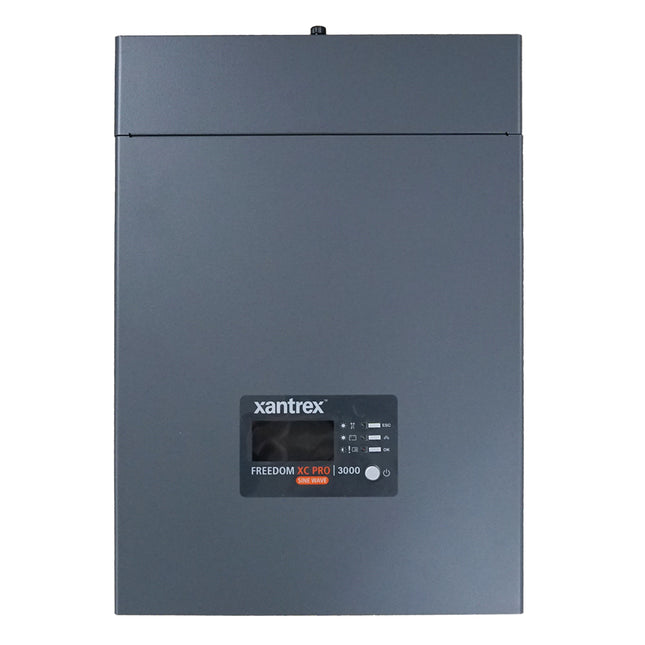

Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12VA true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02).The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably. Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting Easily configurable settings to charge any lithium ion battery

Read more less

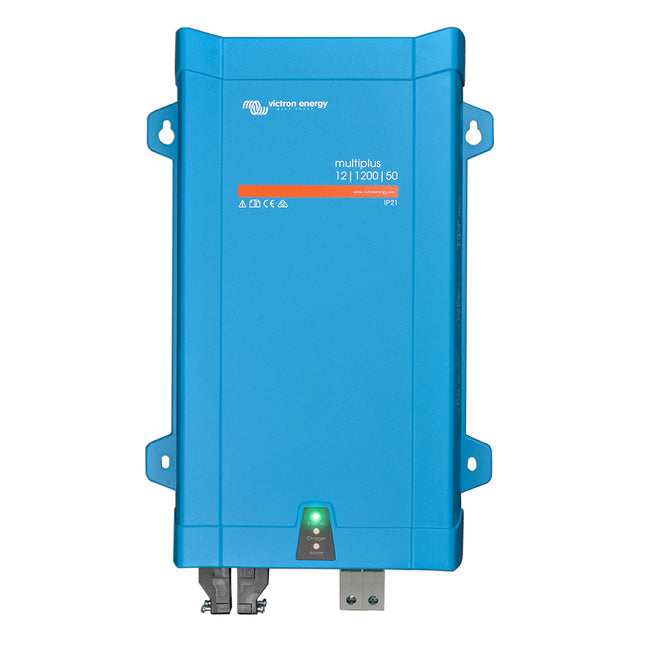

MultiPlus 12/1200 - 50-16 - 120V - VE. BusThe MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.Parallel Operation and Three-Phase CapabilityUp to six Multis can operate in parallel to achieve higher power output.  In addition to parallel connection, three units can be configured for three-phase output.  PowerControl - Dealing with Limited Generator, Shore Side or Grid PowerWith the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.  PowerAssist - Boosting the Capacity of Shore or Generator PowerThis feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load is reduced, the spare power is used to recharge the battery.  Four Stage Adaptive Charger and Dual-Bank Battery ChargingThe main output provides a powerful charge to the battery system using advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Charger datasheet and Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.  High Start-Up PowerIt is needed to start high-inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.  Search ModeWhen Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode, the Multi, when operating in inverter mode, is switched off in case of no load or very low load and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.Programmable RelayBy default, the programmable relay is set as an alarm relay, i.e. the relay will de-energize in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).  Remote On/Off/Charger OnThree pole connector.  On-Site System Configuring, Monitoring, and ControlAfter installation, the MultiPlus is ready to go. Some settings can be changed with DIP switches. 500/800/1200VA models: remote switch/battery charge voltage/inverter frequency/search mode. 1600/2000VA models:  battery charge voltage/search mode. For more settings use VE-Config or the VE. Bus Smart dongle.  Remote Configuring and MonitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on Victron's VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Specifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 16 Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V Output voltage: 120 VAC, ± 2%  Continuous Output Power at 25°C (VA): 1200 Continuous Output Power at 25°C (W): 1000 Continuous Output Power at 40°C (W): 900 Continuous Output Power at 65°C (W): 600 Peak Power (W): 2400 Maximum Efficiency (%): 93 Zero Load Power (W): 13 Zero Load Power in Search Mode (W): 4 Charger Specifications: AC Input voltage range 95 - 140 V AC Input Frequency range: 55-66Hz Charge Voltage Absorption (V DC): 14,4  Charge Voltage Float (V DC): 13,8  Storage Mode (V DC): 13,2 Charge Current House Battery (A): 50  Charge Current Starter Battery (A): 1 Battery Temperature Sensor: Yes General Specifications: Programmable Relay: Yes (1x) Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration  (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models) Remote On-Off: On/off/charger only DIP Switches: Yes Internal DC Fuse: 200A Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: 35 mm² AC-Connection: G-ST18i connector Weight: 8.2 kg (18.1 lbs) Dimensions (H x W x D): 406 x 250 x 100 mm / 15.98 x 9.84 x 3.94 in. Standards: Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3  Automotive Directive: ECE R10-5 Protection: Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Input voltage ripple too high Non-linear load, crest factor 3:1                                                                               Up to 25°C ambient                                                                                                                          Programmable relay which can be set for: general alarm, DC under voltage or generator start/stop        signal function. AC rating: 4 A at 120 V DC rating: 4 A up to 35 V, 1 A up to 60 V For parallel and three-phase operation an RJ45-splitter ASS030065510 is needed. Select remote behaviour, battery charge voltages and/or search mode Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

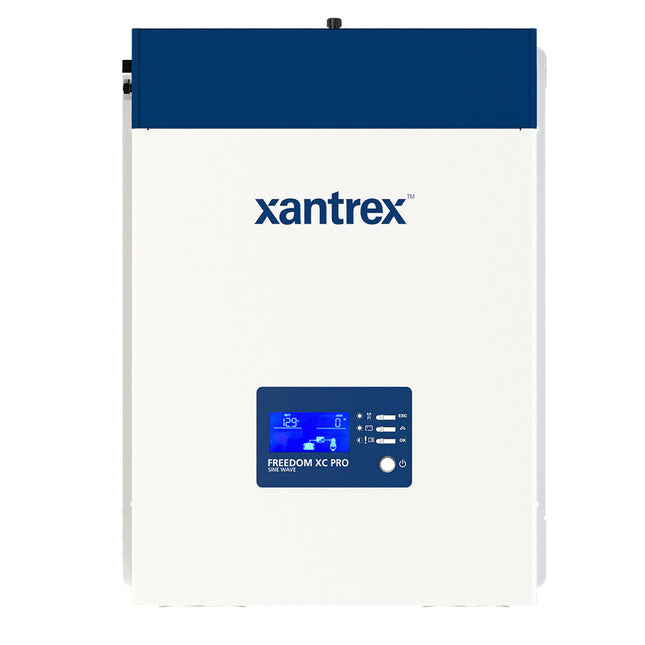

Freedom XC PRO Marine 2000W Inverter/Charger - 12VA true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). Seamless integration with Micro-C NMEA 2000 Connector.The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third-party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, lightweight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For the operation of sensitive and motor loads Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting Easily configurable settings to charge any lithium-ion battery This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Xantrex Freedom SW3012 Inverter/Charger815-301212V, 3000W - 120 Vac / 60 HzPowerful. Configurable. Versatile... The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models. Product DescriptionThe second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.NEW - PARALLEL AND SERIES STACKINGParallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output2 2 AC source must be split phase, requires Stacking Cable (part# 808-9005)ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.Product Features Pure sine wave output to operate sensitive electronics Advanced configuration options for customized applications Parallel and series stacking capability Built-in transfer switch automatically transfers between inverter power and incoming AC power Power factor corrected, multi-stage charger for fast, efficient charging Temperature compensated charging for a vareity of climate conditions Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3 Wide operating temperature range: -4°F to 140°F (-20°C to 60°C) Conformal coated circuit boards for humid environments Dual input / Dual output AC interface for 3000 W model Ability to charge batteries drained to extremely low voltage Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915) 3When used with the remote panel4Sold separatelyProtection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Integrated, resettable AC breakers WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output Voltage: 12v Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Outlet Qty: Optional Charging Banks: 1 Inverter Cont. Output Wattage: 3000w Charger Output - Amps: 150a Box Dimensions: 12"H x 18"W x 21"L WT: 69.4 lbs UPC: 008153012413 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Xantrex Freedon SW3024 Inverter/Charger815-302424V, 3000W - 120 Vac / 60 HzPowerful. Configurable. Versatile... The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models. Product DescriptionThe second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.NEW - PARALLEL AND SERIES STACKINGParallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output2 2 AC source must be split phase, requires Stacking Cable (part# 808-9005)ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.Product Features Pure sine wave output to operate sensitive electronics Advanced configuration options for customized applications Parallel and series stacking capability Built-in transfer switch automatically transfers between inverter power and incoming AC power Power factor corrected, multi-stage charger for fast, efficient charging Temperature compensated charging for a vareity of climate conditions Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3 Wide operating temperature range: -4°F to 140°F (-20°C to 60°C) Conformal coated circuit boards for humid environments Dual input / Dual output AC interface for 3000 W model Ability to charge batteries drained to extremely low voltage Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915) 3When used with the remote panel4Sold separatelyProtection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Integrated, resettable AC breakers WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 75a Charger Output Voltage: 24v Inverter Output Voltage: 120v Inverter Input Voltage: 24v Charger Input - Voltage: 120v Outlet Qty: Optional Inverter Cont. Output Wattage: 3000w Charging Banks: 1 Box Dimensions: 13"H x 18"W x 21"L WT: 69.3 lbs UPC: 687873007673 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

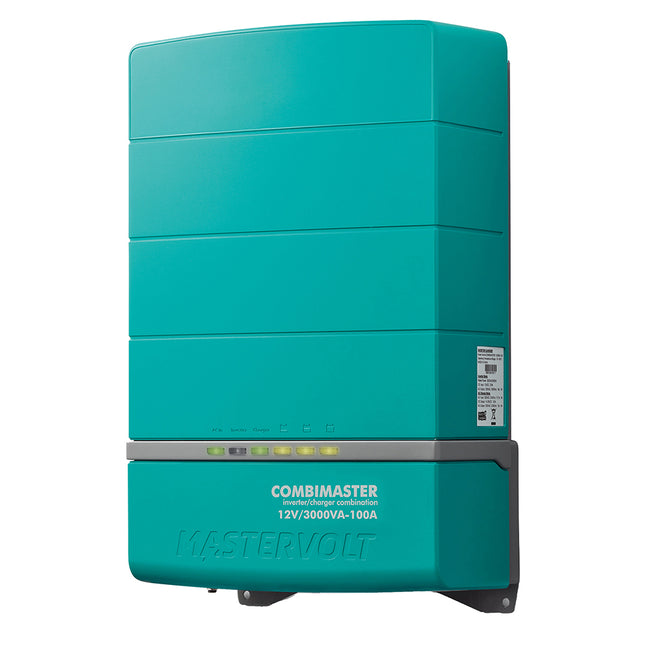

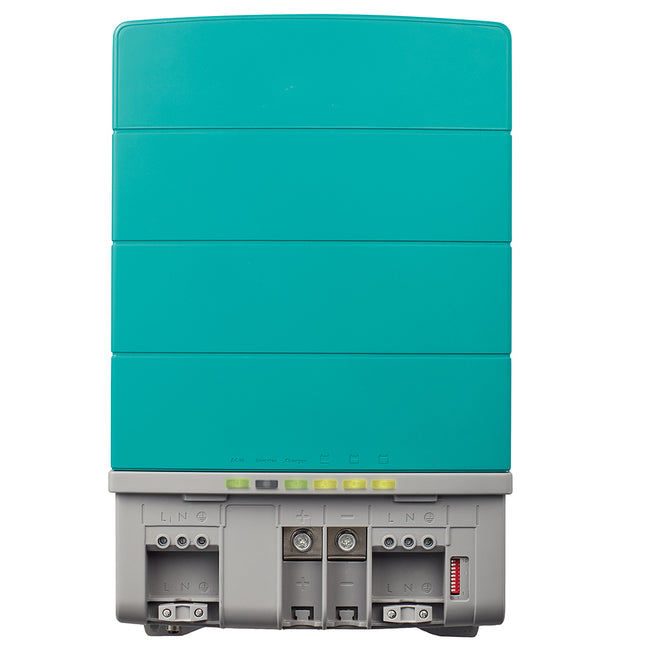

CombiMaster Inverter/Charger - 12/3500-200 Amp - 120VThe CombiMaster inverter/charger provides the most power and charging in the series. The 3500W version comes in 12V and can be paralleled stacked in a single system up to 10.5kW. The 24V models in 3500W and 5000W can create parallel stacked systems up 35kW. The 1500W version delivers 1500W of pure sine wave inverter power and 60 amps multi chemistry battery charging. The 1500W is the smallest form factor in the series. All models provide pure sine wave inverter power and over 60-200 amps multi-chemistry battery charging, plus the intelligent design is NMEA 2K and MasterBus compatible.Specifications: Nominal DC Voltage: 12V (10.2-16V) Continuous Power at 104° F: 3500W Peak Power 30 seconds: 5250W Surge Power 5 seconds: 7000W Parallel Stacking: Yes, Up to 3 Synchronize with Mains/Generator: Yes Output Waveform: Pure Sine

Read more less

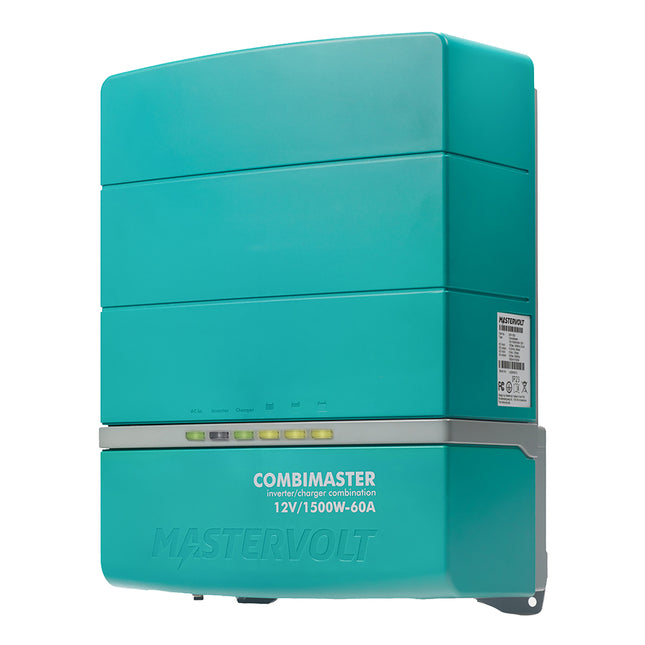

CombiMaster Inverter/Charger - 12/1500-60 Amp - 120VThe CombiMaster inverter/charger provides the most power and charging in the series. The 3500W version comes in 12V and can be paralleled stacked in a single system up to 10.5kW. The 24V models in 3500W and 5000W can create parallel stacked systems up 35kW. The 1500W version delivers 1500W of pure sine wave inverter power and 60 amps multi chemistry battery charging. The 1500W is the smallest form factor in the series. All models provide pure sine wave inverter power and over 60-200 amps multi-chemistry battery charging, plus the intelligent design is NMEA 2K and MasterBus compatible.Specifications: Nominal DC Voltage: 12V (10.2-16V) Continuous Power at 104° F: 1500W Peak Power 30 seconds: 2250W Surge Power 5 seconds: 3000W Parallel Stacking: No Synchronize with Mains/Generator: Yes Output Waveform: Pure Sine

Read more less

Freedom HF 1800Compact inverter/charger to power the comforts of home on your boat, RV, or truckWith modified sine wave output, Freedom HF 1800 inverter/charger is designed to run entertainment systems and small appliances in smaller boats, RV's and trucks. The Freedom HF inverter/charger is the smallest, lightest, and least expensive model in the Xantrex lineup.Freedom HF is designed for demanding marine and RV conditions. Temperature-controlled multistage charging ensures that your batteries are recharged safely and efficiently. Both models include an automatic transfer switch and a detachable digital remote control panel display that provides precise system information and can be mounted wherever you require the information.Product Features: Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment Removable digital display to provide system status Automatic three-stage battery charger Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included) Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power Protection Features: Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Ground-fault protection ETL listed for use in mobile RV and marine applications WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Outlet Qty: 1 Duplex GFCI Charging Banks: 1 Inverter Cont. Output Wattage: 1800w Charger Output Voltage: 12v Charger Output - Amps: 40a Box Dimensions: 6"H x 11"W x 20"L WT: 15.4 lbs UPC: 715535890421 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Xantrex Freedon SW2012 Inverter/Charger815-201212V, 2000W - 120 Vac / 60 HzPowerful. Configurable. Versatile... The Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models. Product DescriptionThe second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.PARALLEL AND SERIES STACKINGParallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output2 2 AC source must be split phase, requires Stacking Cable (part# 808-9005)ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.Product Features Pure sine wave output to operate sensitive electronics Advanced configuration options for customized applications Parallel and series stacking capability Built-in transfer switch automatically transfers between inverter power and incoming AC power Power factor corrected, multi-stage charger for fast, efficient charging Temperature compensated charging for a vareity of climate conditions Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3 Wide operating temperature range: -4°F to 140°F (-20°C to 60°C) Conformal coated circuit boards for humid environments Dual input / Dual output AC interface for 3000 W model Ability to charge batteries drained to extremely low voltage Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915) 3When used with the remote panel4Sold separatelyProtection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Integrated, resettable AC breakers WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 75a Charger Output Voltage: 12v Charging Banks: 1 Outlet Qty: Optional Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Inverter Cont. Output Wattage: 2000w Box Dimensions: 13"H x 18"W x 21"L WT: 61.7 lbs UPC: 715535917036 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

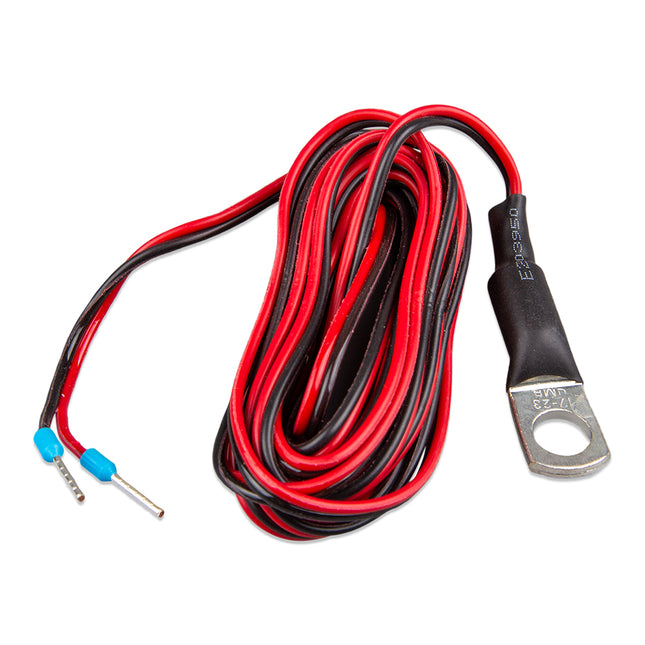

Temperature Sensor for Quattro, MultiPlus & GX DevicesA temperature sensor for MultiPlus or Quattro Inverter Charger and also GX Devices.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

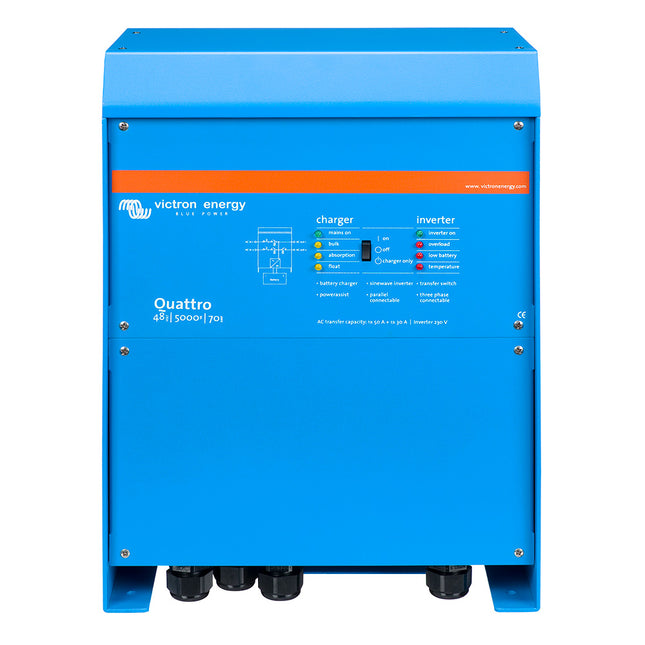

Quattro 48/5000/70 100/100 120V VE.Bus UL-ListedMultifunctionalSimilar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation.Two AC Inputs & Two AC OutputsThe Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.Unique PowerAssist FeatureThe Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.Virutually Unlimited Power Thanks to Parallel OperationUp to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.Remote Monitoring & ControlWhen coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

Freedom HF 1000Compact inverter/charger to power the comforts of home on your boat, RV, or truckWith modified sine wave output, Freedom HF 1000 inverter/charger is designed to run entertainment systems and small appliances in smaller boats, RV's and trucks. The Freedom XMIC inverter/charger is the smallest, lightest, and least expensive model in the Xantrex lineup.Freedom HF is designed for demanding marine and RV conditions. Temperature-controlled multistage charging ensures that your batteries are recharged safely and efficiently. Both models include an automatic transfer switch and a detachable digital remote control panel display that provides precise system information and can be mounted wherever you require the information.Product Features: Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment Removable digital display to provide system status Automatic three-stage battery charger Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included) Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power Protection Features: Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Ground-fault protection ETL listed for use in mobile RV and marine applications WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Outlet Qty: 1 Duplex GFCI Charging Banks: 1 Inverter Cont. Output Wattage: 1000w Charger Output Voltage: 12v Charger Output - Amps: 20a Box Dimensions: 6"H x 11"W x 18"L WT: 12.95 lbs UPC: 715535890414 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

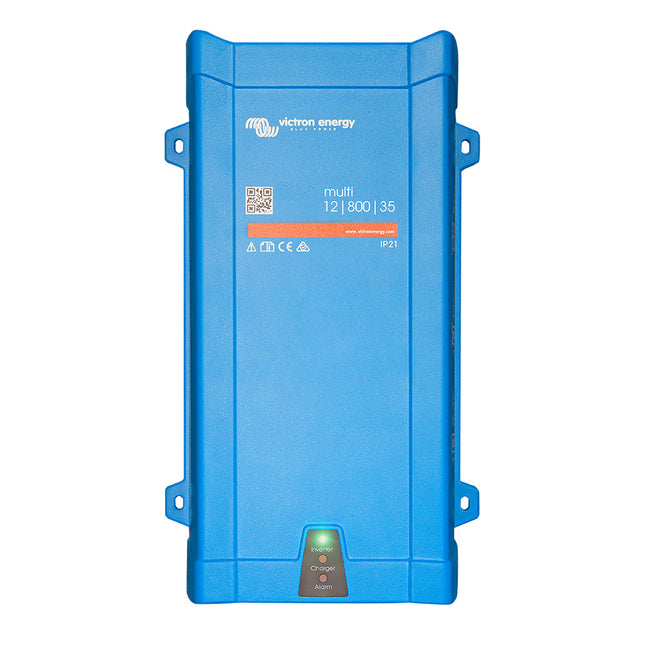

MultiPlus 12/800/35 16 120V VE.BusThe MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.Unique PowerAssist featureThe MultiPlus will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.Uninterrupted AC power (UPS function)In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.Virtually unlimited power thanks to parallel operationUp to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.Remote Monitoring and ControlWhen coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V2000 Watt pure sine wave inverter with 100 Amp built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panelThe Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Built-in 50A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator) Power Factor corrected Multi-Stage: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Specifications: Continuous Power: 2000 Watts Continuous Current: 16.7 Amps Surge Power: 4000 Watts Frequency: 60 (or 50) Hz (selectable) Output Voltage: 108, 110, 120 Volts AC (selectable) Input Voltage: 12 Volts DC nominal Safety: ETL listed to CSA 107.1, UL458 (UL458 Marine Supplement with optional drip shield, part number 808-1050) Dimensions: 15.4" x 10.8" x 4.9" Unit weight: 17.1 lbs 2 year warranty

Read more less

Freedom XC PRO Marine 3000W Inverter/Charger - 12VA true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). Seamless integration with Micro-C NMEA 2000 Connector.The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third-party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, lightweight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For the operation of sensitive and motor loads Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting Easily configurable settings to charge any lithium-ion battery This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

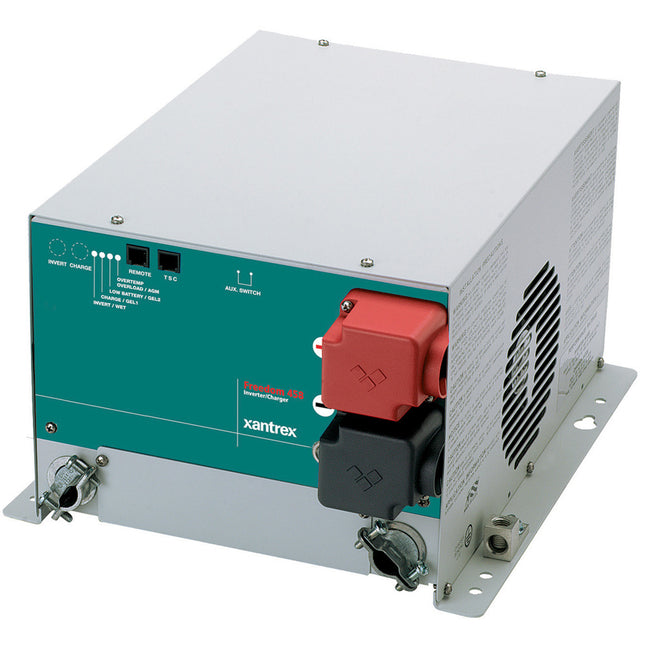

Freedom 458 Inverter/ChargerAC Power Inverter with High Surge Capability, 3-Stage ChargerWith filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion. For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.Product Features MSW AC power inverter with high surge capability Automatic 3-stage battery charger Temperature compensation with equalization stage provides optimal charging of deep cycle batteries Built-in transfer switch automatically transfers between inverter power and incoming AC power Power sharing prevents source AC input circuit breaker from tripping Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels Includes battery temperature sensor 30 month warranty Protection Features Over voltage and under voltage protection Over-temperature protection Overload protection Short circuit protection Electrical Specifications - Inverter Output power (continuous): 2000W Surge power (AC amps): 50A Output frequency regulation: 60Hz Inverter voltage regulation: 120V +/-5% true RMS Output wave form: Modified sine wave Efficiency (full load): 85% Peak efficiency: 92% No load current draw (idle mode): 0.12A AC output connections: Dual - 20/15 Circuit Breakers AC input connections: Single AC transfer switch: 30A Electrical Specifications - Charger Charge rate: 100A DC AC input voltage range: 90 130 VAC Battery voltage (nominal): 12 VDC Battery voltage range: 10.0 15.5 VDC Low battery cut-out: 10.0 VDC AC input (max. charge mode): 21A AC Bulk charge voltage: 14.3 VDC*** Float charge voltage: 13.4 VDC*** Equalize charge voltage: 16.3 VDC Charge control: 3-stage Battery type settings: Wet / Gel 1 / Gel 2 / AGM Equalization: Yes Temperature sensitive charging: Yes ***Default value varies with battery type and temperatureWARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Outlet Qty: None Charging Banks: 1 Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Inverter Cont. Output Wattage: 2000w Charger Output Voltage: 12v Charger Output - Amps: 100a Box Dimensions: 13"H x 15"W x 19"L WT: 55.7 lbs UPC: 647912106149 Owner's Manual (pdf)Brochure (pdf)

Read more less

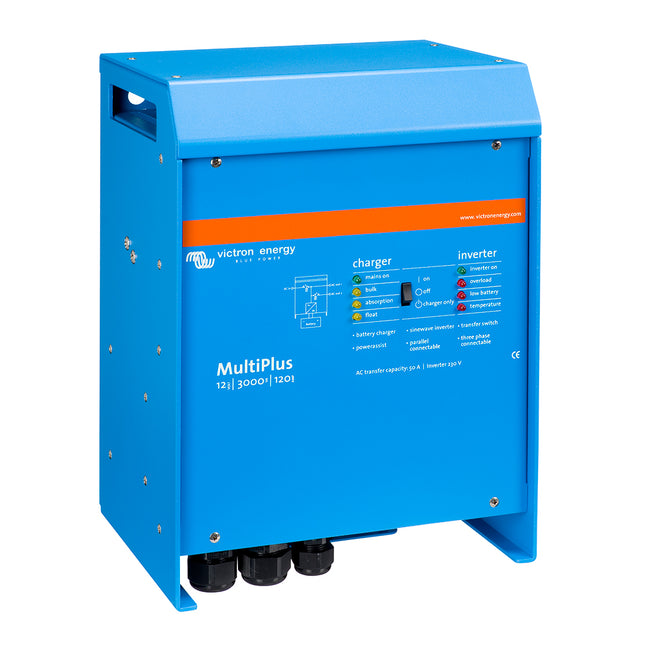

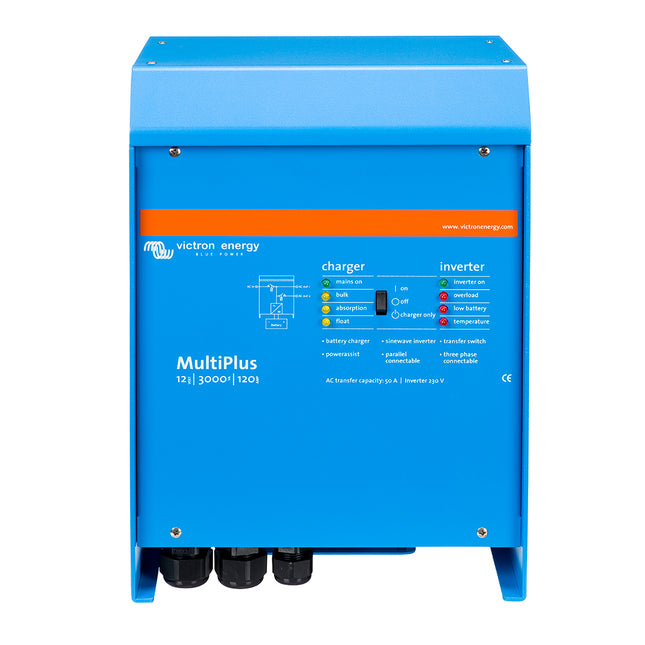

MultiPlus 12/3000 - 120-50 - 230V - VE.BusThe MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, and multiple system integration features.Two AC OutputsThe main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output (a second output is available on models rated at 3 kVA and more).Virtually Unlimited Power Thanks to Parallel OperationUp to 6 Multis can operate in parallel to achieve a higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 AMP charging capacity.Three Phase CapabilityIn addition to parallel connections, three units of the same model can be configured for three-phase output. But that’s not all up to 6 sets of three units can be connected in parallel for a 75 kW / 90 kVA inverter and more than 2000 Amp charging capacity.PowerControl - Dealing with Limited Generator, Shore Side or Grid PowerThe MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.PowerAssist - Boosting the capacity of shore or generator powerThis feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces the spare power is used to recharge the battery.Solar energy: AC Power is Available Even During a Grid FailureThe MultiPlus can be used in off-grid as well as grid-connected PV and other alternative energy systems. Loss of mains detection software is available.System Configuring: In the case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure Parallel and three-phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software Off-grid, grid-interactive, and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications) On-site Monitoring and ControlSeveral options are available: Battery Monitor, Multi Control Panel, Color control for GX or other GX devices, smartphone, tablet (Bluetooth Smart), laptop, or computer (USB or RS232).Remote Monitoring and ControlColor Control GX or other GX devices. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.Remote ConfiguringWhen connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed, and settings can be changed remotelySpecifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 16 or 50 Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V 19 – 33 V 38 – 66 V Output: Output voltage: 230 VAC, ± 2% / Frequency 50 Hz ± 0,1% Continuous Output Power at 25°C (VA): 3000 Continuous Output Power at 25°C (W): 2400 Continuous Output Power at 40°C (W): 2200 Continuous Output Power at 65°C (W): 1700 Peak Power (W): 6000 Maximum Efficiency (%): 93 / 94 / 95 Zero Load Power (W): 20 / 20 / 25 Zero Load Power in AES Mode (W): 15 / 15 / 20 Zero Load Power in Search Mode (W): 8 / 10 / 12  Charger Specifications: AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 – 65 Hz / Power factor: 1 Charge Voltage Absorption (V DC): 14,4 / 28,8 / 57,6 Charge Voltage Float (V DC): 13,8 / 27,6 / 55,2 Storage Mode (V DC): 13,2 / 26,4 / 52,8 Charge Current House Battery (A): 120 / 70 / 35 Charge Current Starter Battery (A): 4 (12 V and 24 V models only) Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: Yes (16A) Programmable Relay: Yes Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration General purpose com. Port: Yes Remote On-Off: Yes Common Characteristics: Operating temp. range: -40 to +65°C (fan-assisted cooling) / Humidity (non-condensing): max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: Four M8 bolts (2 plus and 2 minus connections) 230 V AC-Connection: Screw terminals 13mm^2 (6 AWG) M6 bolts Weight (kg): 18 Dimensions (hxwxd in mm): 362 x 258 x 218 Standards Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 Road Vehicles: 12V and 24V models: ECE R10-4 Anti-Islanding: See Victron's website Can be adjusted to 60 HZ. 120 V models available on request Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on the inverter output, input voltage ripple is too high Non-linear load, crest factor 3:1 Up to 25°C ambient Switches off when no external AC source is available Programmable Relay That Can, Among Other Things, Be Set for General Alarm Including DC Undervoltage or genset start/stop function / AC rating: 230 V/4A / DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC / A.o. to communicate with a lithium-ion battery BMS Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

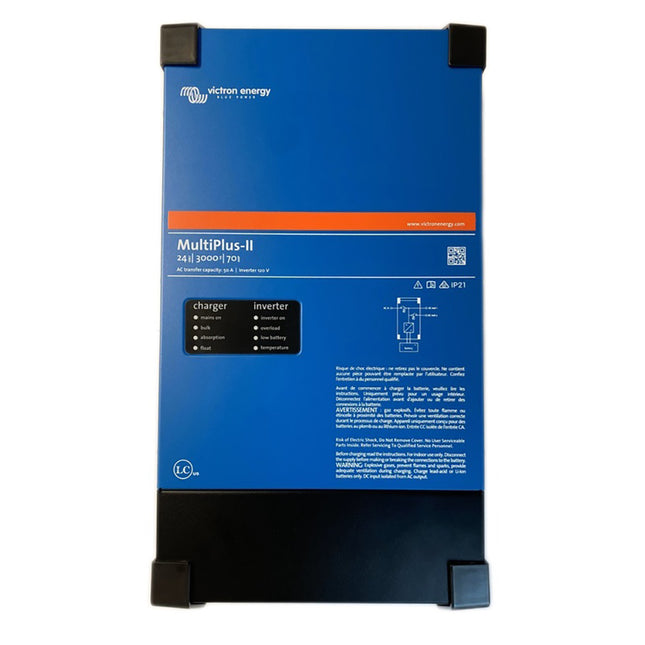

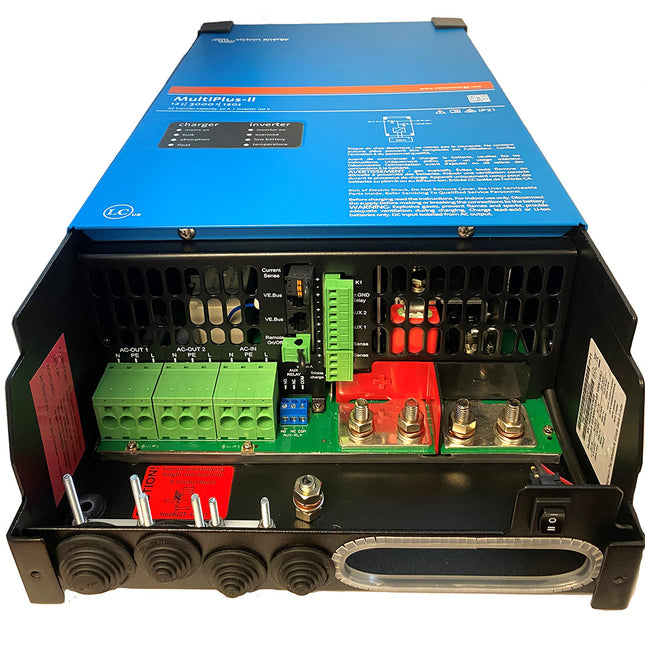

MultiPlus-II 24/3000 - 70-50 - 2x120V The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.PowerAssistThe MultiPlus-II will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.ESS: Energy Storage SystemsThe MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. Uninterrupted AC power (UPS function)In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.Remote Monitoring & ControlWhen coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"Note: for a short period of time this product was called MultiGrid-II.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDCThe new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off. The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV's and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.Multistage charging helps ensure that batteries are recharged quickly and efficiently. All models are equipped with a built-in automatic transfer switch and dual GFCI receptacle. Detachable digital remote control panel display provides precise system information and can be mounted at a convenient location for remote monitoring.Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.Product Features: Input Voltage: 12V AC Output: GFCI and/or Hardwire Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment Removable digital display pre-attached with 25' extension cable for remote system monitoring Ignition lockout feature helps to minimize battery drain Automatic three-stage battery charger Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included) Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power Protection Features: Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Ground-fault protection ETL certified to UL458 for use in mobile RV and commercial applications WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Input - Voltage: 120v Outlet Qty: 1 Duplex GFCI Charging Banks: 1 Inverter Output Voltage: 120v Inverter Input Voltage: 12v Inverter Cont. Output Wattage: 1000w Charger Output Voltage: 12v Charger Output - Amps: 55a Box Dimensions: 7"H x 11"W x 17"L WT: 12.7 lbs UPC: 715535610555 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Freedom 458 Inverter/Charger - 2000W120 Vac / 60 HzWith filtered modified sine wave output, the Freedom 458 inverter/charger has the ability to run electrical equipment, appliances and even sensitive electronics. Perfect for any RV, the temperature controlled multistage charging ensures that your batteries are recharged quickly, and safety features such as automatic shut down protects your expensive deep-cycle batteries from excessive depletion.AC Power Inverter with High Surge Capability, 3-Stage ChargerWith filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.Product Features: MSW AC power inverter with high surge capability Automatic 3-stage battery charger Temperature compensation with equalization stage provides optimal charging of deep cycle batteries Built-in transfer switch automatically transfers between inverter power and incoming AC power Power sharing prevents source AC input circuit breaker from tripping Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels Includes battery temperature sensor 30 month warranty Hardwired AC Output (Single In/Single Out) Protection Features: Over voltage and under voltage protection Over-temperature protection Overload protection Short circuit protection WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output Voltage: 12v Charger Output - Amps: 100a Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Inverter Cont. Output Wattage: 2000w Outlet Qty: None Charging Banks: 1 Box Dimensions: 12"H x 15"W x 19"L WT: 55 lbs UPC: 647912105630 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Cable for Smart BMS CL 12-100 to MultiPlus This cable will allow the MultiPlus 500VA – 1600VA, MultiPlus Compact 800VA – 2kVA and MultiPlus-II models to be used with BMS products that have no VE.Bus interface, such as the Smart BMS CL 12-100 and the small BMS. These MultiPlus models can be controlled from the Load/Charge Disconnect outputs and Load/Charger outputs respectively. The cable must be wired to the remote on/off connector of the MultiPlus models:  When used with the MultiPlus 500VA-1200VA models connect the black wire to the ON terminal and the red wire to the (+) terminal.  When used with the MultiPlus Compact 800VA-2kVA models connect the black wire to the middle terminal and the red wire to the right (IN) terminal.  When used with the MultiPlus-II models connect the black wire to the lower (-) terminal and the red wire to the upper (+) remote on-off terminal.  Both the Load/Charge Disconnect outputs of Smart BMS CL 12-100 and Load/Charger outputs of the small BMS must be in ‘High’ state in order for the MultiPlus to operate. After shutdown due to low battery voltage, run the alternator or use a battery charger on the primary side of the BMS to reset the system. The MultiPlus will then switch on and start charging (if connected to an AC power source).Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

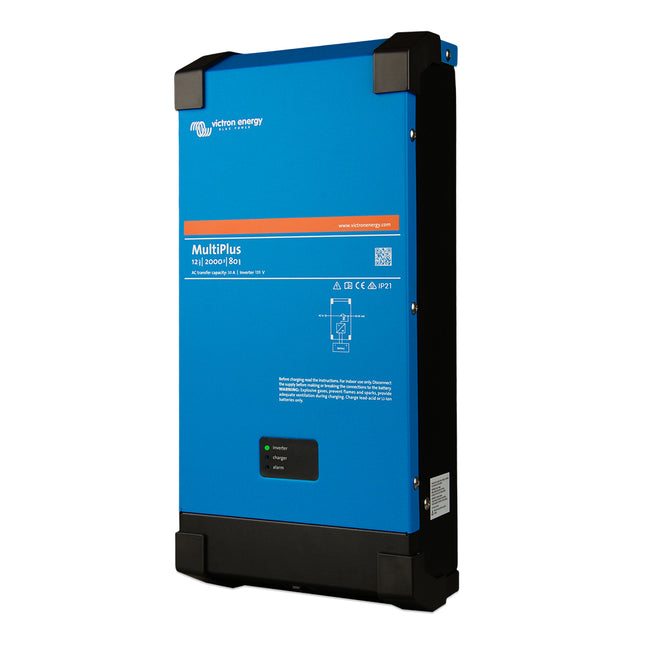

MultiPlus 12/2000 80-50 120V VE.Bus UL ListedThe MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.Unique PowerAssist FeatureThe MultiPlus will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.Uninterrupted AC Power (UPS function)In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.Virtually Unlimited Power Thanks to Parallel OperationUp to 6 Multis can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible. Please check our datasheets to see which models have parallel, three-phase, and split-phase capabilities.Remote Monitoring & ControlWhen coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto-starting a backup generator and more.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Freedom 458 Inverter/Charger - 2500W120 Vac / 60 HzWith filtered modified sine wave output, the Freedom 458 inverter/charger has the ability to run electrical equipment, appliances and even sensitive electronics. Perfect for any RV, the temperature controlled multistage charging ensures that your batteries are recharged quickly, and safety features such as automatic shut down protects your expensive deep-cycle batteries from excessive depletion.AC Power Inverter with High Surge Capability, 3-Stage ChargerWith filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.Product Features: MSW AC power inverter with high surge capability Automatic 3-stage battery charger Temperature compensation with equalization stage provides optimal charging of deep cycle batteries Built-in transfer switch automatically transfers between inverter power and incoming AC power Power sharing prevents source AC input circuit breaker from tripping Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels Includes battery temperature sensor 30 month warranty Hardwired AC Output (Dual In/Dual Out) Protection Features: Over voltage and under voltage protection Over-temperature protection Overload protection Short circuit protection WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 130a Charging Banks: 1 Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Outlet Qty: None Charger Output Voltage: 12v Inverter Cont. Output Wattage: 2500w Box Dimensions: 12"H x 15"W x 19"L WT: 61 lbs UPC: 647912105791 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

MultiPlus 24/2000 - 50-50 - 120V - VE.Bus UL Approved The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, and multiple system integration features.Two AC OutputsThe main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output (a second output is available on models rated at 3 kVA and more).Virtually Unlimited Power Thanks to Parallel OperationUp to six Multis can operate in parallel to achieve higher power output. Six 24/3000/70 units, for example, provide 15kW / 18kVA output power with 420 Amps of charging capacity.Three Phase CapabilityIn addition to parallel connections, three units can be configured for three-phase output. But that’s not all: with three strings of six parallel units, a 45 kW / 54 kVA three-phase inverter and 1260 A charger can be built.Split Phase OptionsTwo units can be stacked to provide 120-0-120 V, and additional units can be paralleled up to a total of 6 units per phase, to supply up to 30 kW / 36 kVA of split phase power.Alternatively, a split-phase AC source can be obtained by connecting Victron's autotransformer (see data sheet onwww.victronenergy.com) to a ‘European’ inverter programmed to supply 240 V / 60 Hz.Power Control - Dealing with Limited Generator, Shore Side or Grid PowerThe MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (nearly 20 A per 3 kVA MultiPlus at 120 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.Powerassist - Boosting the Capacity of Shore or Generator PowerThis feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.Four-Stage Adaptive Charger and Dual Bank Battery ChargingThe main output provides a powerful charge to the battery system by means of advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stagefor long periods of float charging. The adaptive charge process is described in more detail on the Phoenix Charger datasheet and on Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.System Configuring Has Never Been EasierAfter installation, the MultiPlus is ready to go. If settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Even parallel and 3-phase operations can be programmed with DIP switches: no computer is needed!Alternatively, VE.Net can be used instead of the DIP switches. And sophisticated software (VE.Bus Quick Configure and VE.Bus System Configurator) is available to configure several new, advanced features.Specifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 50 Parallel and 3-phase Operation: Yes Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V 19 – 33 V Output: Output voltage: 120 VAC, ± 2% / Frequency 60 Hz ± 0,1% Continuous Output Power at 25°C (VA): 2000 Continuous Output Power at 25°C (W): 1600 Continuous Output Power at 40°C (W): 1450 Continuous Output Power at 65°C (W): 1100 Peak Power (W): 4000 Maximum Efficiency (%): 92 / 94 Zero Load Power (W): 9 / 11 Zero Load Power in AES Mode (W): 7 / 8 Zero Load Power in Search Mode (W): 3 /4 Charger Specifications: AC Input: Input voltage range: 95-140 VAC / Input frequency: 45 – 65 Hz / Power factor: 1 Charge Voltage Absorption (V DC): 14,4 / 28,8 Charge Voltage Float (V DC): 13,8 / 27,6 Storage Mode (V DC): 13,2 / 26,4 Charge Current House Battery (A): 80 /50 Charge Current Starter Battery (A): 4 Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: N.A. Programmable Relay: Yes (1x) Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration General purpose com. Port: N.A. Remote On-Off: Yes Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: M8 bolts  120 V AC-Connection: Screw-terminal 6 AWG (13 mm2) Weight: 13 kg / 25 lbs. Dimensions (hxwxd in mm): 520 x 255 x 125 mm / 20.5 x 10.0 x 5.0 in. Standards Safety: UL 458, EN-IEC 60335-1, EN-IEC 60335-2-29 Emission, Immunity: EN-IEC 61000-3-2/3-3/, EN-IEC 61000-6-1/6-2/6-3 Can be adjusted to 50 HZ Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 150 VAC on the inverter output, input voltage ripple is too high Non-linear load, crest factor 3:1 Up to 75°F ambient Switches off when no external AC source is available Programmable Relay That Can, Among Other Things, Be Set for General Alarm Including DC Undervoltage or genset start/stop function / AC rating: 120 V/4A / DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC / A.o. to communicate with a lithium-ion battery BMS Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
