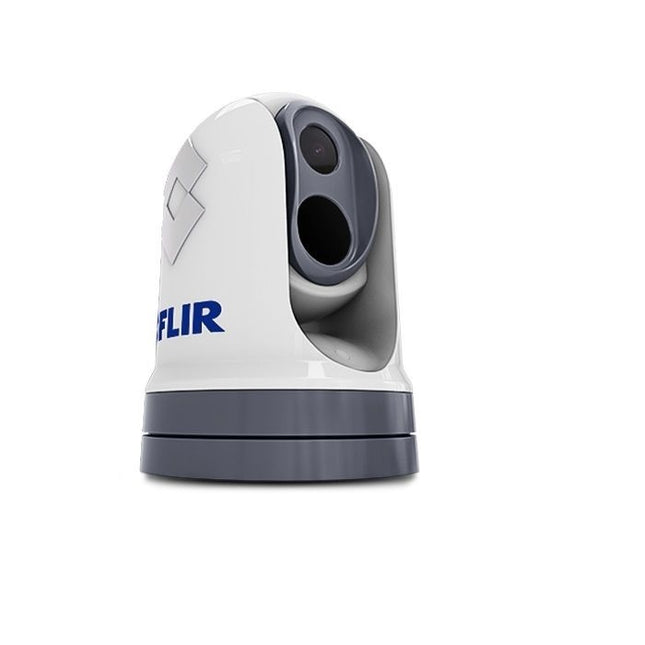

FLIR M364C Dual PayloadThermal Camera No JCU 640 x 480 18D HFoVModel: M364CFeaturing a high definition low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals, commercial mariners, and serious recreational boaters.Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Specifications General Detector Type 640 x 512 VOx Microbolometer Field of View 24° x 18° Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt Pan/Tilt Yes Color Camera E-Zoom - Color 12x Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Daylight Imaging Zoom 30x Optical Zoom Detector Type - Daylight 1/2.8" Exmor R CMOS Field of View - Daylight Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV Focal Length - Daylight 129 mm to 4.3 mm Lines of Resolution - Daylight High Definition up to 1080/30p Minimum Illumination - Daylight 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13°F to +131°F (-25°C to +55°C) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30°F to +158°F (-30°C to +70°C) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 18mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M364C LR Camera Camera base seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft. Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs 2 x self-adhesive decals (for ball-down mounting only) Documentation pac

Read more less

FLIR M364C Dual PayloadThermal Camera No JCU 640 x 480 24D HFoVModel: M364CFeaturing a high definition low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals, commercial mariners, and serious recreational boaters.Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Specifications General Detector Type 640 x 512 VOx Microbolometer Field of View 24° x 18° Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt Pan/Tilt Yes Color Camera E-Zoom - Color 12x Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Daylight Imaging Zoom 30x Optical Zoom Detector Type - Daylight 1/2.8" Exmor R CMOS Field of View - Daylight Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV Focal Length - Daylight 129 mm to 4.3 mm Lines of Resolution - Daylight High Definition up to 1080/30p Minimum Illumination - Daylight 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13°F to +131°F (-25°C to +55°C) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30°F to +158°F (-30°C to +70°C) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 18mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M364C Camera unit Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3 x camera xings: nuts, dome nuts, spring and at washers, threaded studs 2 x self-adhesive decals (for ball-down mounting only) Documentation pack

Read more less

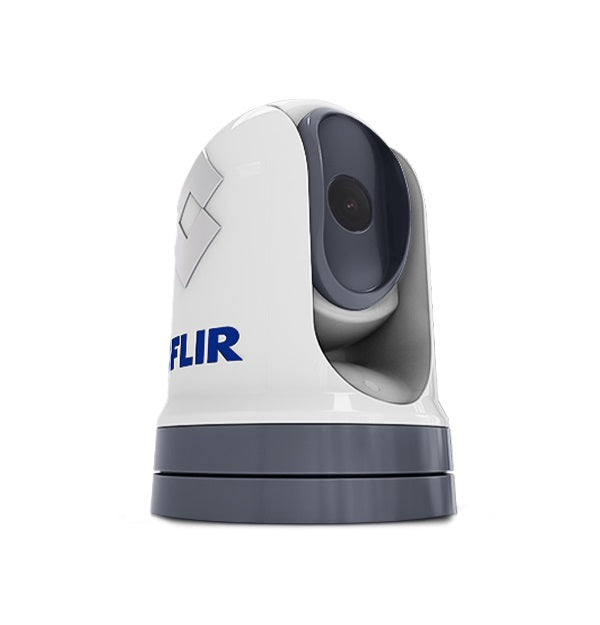

FLIR M364 SinglePayloadThermal Camera No JCU 640 x 480 24D HFoVModel: M364Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.Thermal imaging offers vision in complete darkness, glare, and light fog.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Exceptional connectivity with navigation and security systems.Specifications General Detector Type 640 x 512 VOx Microbolometer Field of View 24° x 18° Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt Pan/Tilt Yes Connections & Communications Analog Video Output NTSC Analog Video Connector Types BNC Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13°F to +131°F (-25°C to +55°C) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30°F to +158°F (-30°C to +70°C) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 18mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M364 Camera Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs

Read more less

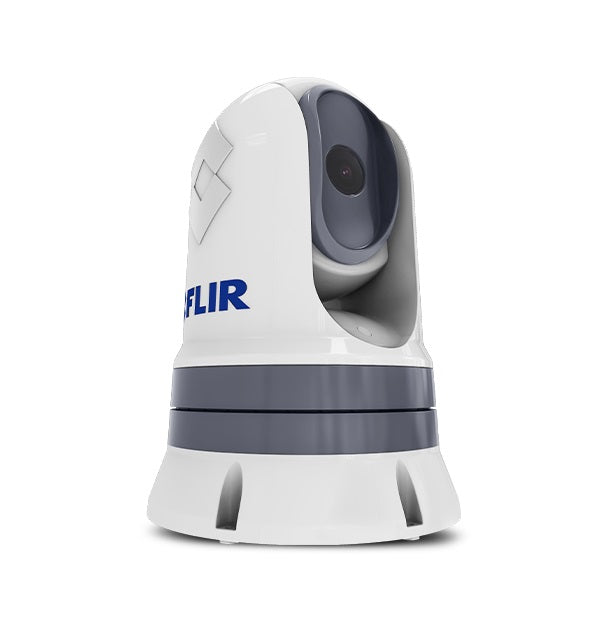

FLIR M332 Single Payload Thermal Camera No JCU 320 x 256 24D HFoVModel: M332Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.Thermal imaging offers vision in complete darkness, glare, and light fog.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Exceptional connectivity with navigation and security systems.Specifications General Detector Type 320 x 256 VOx Microbolometer Field of View 24° x 18° Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360° Continuous Pan, ± 90° Tilt Pan/Tilt Yes Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13°F to +131°F (-25°C to +55°C) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30°F to +158°F (-30°C to +70°C) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 9.1mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M332 Camera Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 9. 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs

Read more less

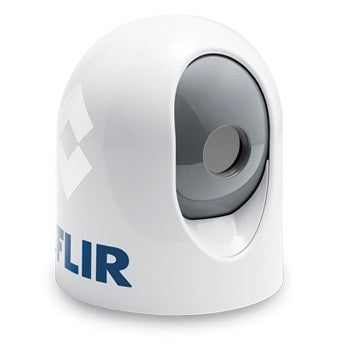

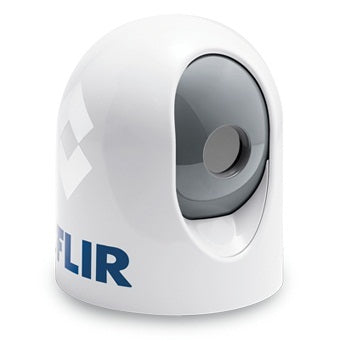

FLIR MD625 Compact Fixed View Marine Thermal Camerawith JCUModel: 43200101300 DISPLAYS HEAT, NOT LIGHT: The MD625's 640 x 480 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare. SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting. ETHERNET-ENABLED: The MD625 is Ethernet-enabled for simple integration into your vessel's existing electronics. The MD-Series is an affordable, compact fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.Specifications Power Consumption 4.8 W nominal; 12.5 W max Automatic Window Defrost Standard at Power-Up EMI EMI Lightning Protection Standard Operating Temperature Range -25°C to +55°C Salt Mist IEC60945 Shock 15 g vertical, 9 g horizontal Storage Temperature Range -40°C to +85°C Vibration IEC 60945; MIL-STD-810E Water Ingress IPx6 Wind 100 knot (115.2 mph) Dimensions 6" dia. 7" ht. What's in the Box: Single payload camera with 320 x 240 pixel microbolometer 25 foot analog video cable (308-0164-25) 25 foot shielded Ethernet cable (308-0163-25) Weather proof Ethernet coupler (4115028) PoE Injector (4113746) Mounting Hardware Operator's Manual, Installation Guide Joystick Control Unit P/N 500-0395-00

Read more less

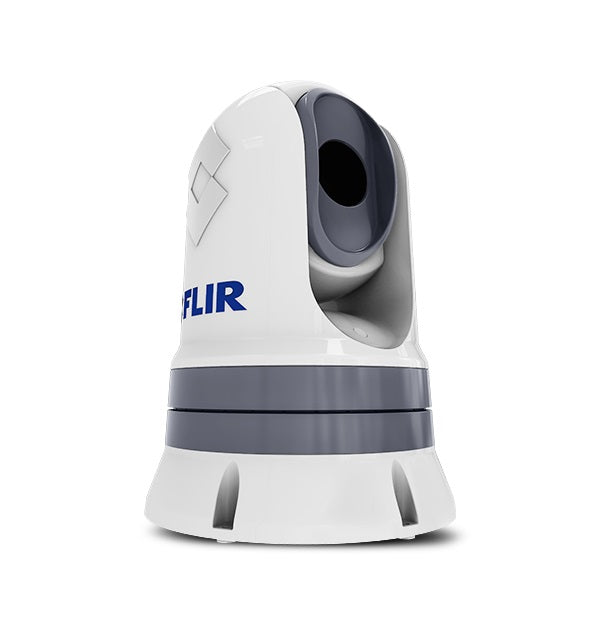

FLIR M300C Single Payload HD Camera No JCUModel: M300CCombining a high-performance visible marine camera with long-range optical zoom capability, the M300C offers positive target identification for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization provides steady imaging in rough sea conditions and allows the M300C to monitor targets or hazards over long distances continuously. Exceptional low light performance from the M300C gives captains enhanced awareness once the sun dips below the horizon.Low light HD visible imaging sensor and long-range zoom offer enhanced target identificationTwo-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Exceptional connectivity with navigation and security systems.Specifications General HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt Pan/Tilt Yes Color Camera E-Zoom - Color 12x Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Daylight Imaging Zoom 30x Optical Zoom Detector Type - Daylight 1/2.8" Exmor R CMOS Field of View - Daylight Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV Focal Length - Daylight 129 mm to 4.3 mm Lines of Resolution - Daylight High Definition up to 1080/30p Minimum Illumination - Daylight 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13°F to +131°F (-25°C to +55°C) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30°F to +158°F (-30°C to +70°C) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X What's in the Box: M300C Camera Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs

Read more less

MD-Series This affordable, fixed-mount thermal night vision system helps with steering around obstacles, collision avoidance and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series display can be mounted separately on your dashboard, or the feed can be integrated into an existing display to save space. Key Features Available in 320 x 240 ( MD324 ) and 640 x 480 (MD625) resolutions 2x e-zoom standard; 4x e-zoom included on MD-625 Ethernet-enabled for simple integration into your current electronics Slim profile (7" high and only three pounds) makes for an unobtrusive mount Specifications Model Number MD-324 MD-625 Thermal Imaging Specifications Detector Type 320 240 VOx Microbolometer 640 480 VOx Microbolometer FOV 24 x 18 (NTSC) 25° 20° (NTSC) Focal Length 19 mm 25 mm E-zoom 2 2 , 4 Image Processing FLIR Proprietary Digital Detail Enhancement System Specifications Size 6" dia. 7" ht. Weight ~ 3 lbs Pan/Tilt Coverage Pan: 30° per key, Tilt: +34°, -27° locked in at installation Video Output NTSC or PAL, 30 Hz or <9Hz Connector Types F-type BNC with BNC-to-RCA adapter included for video out Power Requirements PoE injector required per IEEE 802.3af Power Consumption 4.8 W nominal; 12.5 W max Environmental Operating Temperature Range -25°C to +55°C Storage Temperature Range -40°C to +85°C Automatic Window Defrost Standard at Power-Up Sand/Dust Mil-Std-810E Water Ingress IPx6 Shock 15 g vertical, 9 g horizontal Vibration IEC 60945; MIL-STD-810E Lightening Protection Standard Salt Mist IEC60945 Wind 100 knot (115.2 mph) EMI IEC 60945 Other Standard Package Camera Head with ~5"of Cable, Analog Video, and Ethernet (PoE powered device); Operator Manual CD Warranty 2 year Optional Accessories Joystick Control Unit; Low Smoke, Zero Halogen Ethernet Cables; Standard Cat 5e Ethernet Cables iOS App Use a single application to control all of your FLIR Thermal imaging, night vision, and infrared cameras from your iPad or iPhone. The app allows for intuitive control with natural gestures, featuring: Automatic discovery and configuration Quick browsing of your cameras with a single finger scroll gesture Night/thermal/TV signal switch with a single touch of a button Video recording and snapshot capturing Note: At least one properly configured Nexus-enabled sensor device by FLIR is needed for this app to work. This application does not make us of your iPhone, iPad, or iPod camera. Ways to control the MD Series Zoom, scene, color, etc.: Use Joystick Control unit for M-Series #500-0395-00 (Includes Joystick Control Unit with weather cover, and mounting hardware) If you have a WiFi network set up you can use the Free FLIR app. Certain Raymarine C and E displays via Ethernet. In the box: Single payload camera with 320 x 240 pixel microbolometer 25 foot analog video cable (308-0164-25) 25 foot shielded Ethernet cable (308-0163-25) Weather proof Ethernet coupler (4115028) PoE Injector (4113746) Mounting Hardware Operator's Manual, Installation Guide on CD Joystick Control Unit p/n 500-0395-00

Read more less

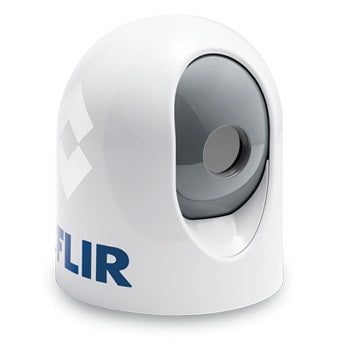

FLIR MD324 Compact Fixed View Marine Thermal CameraModel: 43200100100 DISPLAYS HEAT, NOT LIGHT: The MD324's 320 240 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare. SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting. SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting. 2 Year Warranty The MD-Series is an affordable, compact, fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.Specifications Power Consumption 4.8 W nominal; 12.5 W max Automatic Window Defrost Standard at Power-Up EMI IEC 60945 Lightning Protection Standard Operating Temperature Range -25°C to +55°C Salt Mist IEC60945 Shock 15 g vertical, 9 g horizontal Storage Temperature Range -40°C to +85°C Vibration IEC 60945; MIL-STD-810E Water Ingress IPx6 Wind 100 knot (115.2 mph) Dimensions 6" dia. 7" ht. What's in the Box: Single payload camera with 320 x 240 pixel microbolometer 25 foot analog video cable (308-0164-25) 25 foot shielded Ethernet cable (308-0163-25) Weather proof Ethernet coupler (4115028) PoE Injector (4113746) Mounting Hardware Operator's Manual, Installation Guide on CD

Read more less

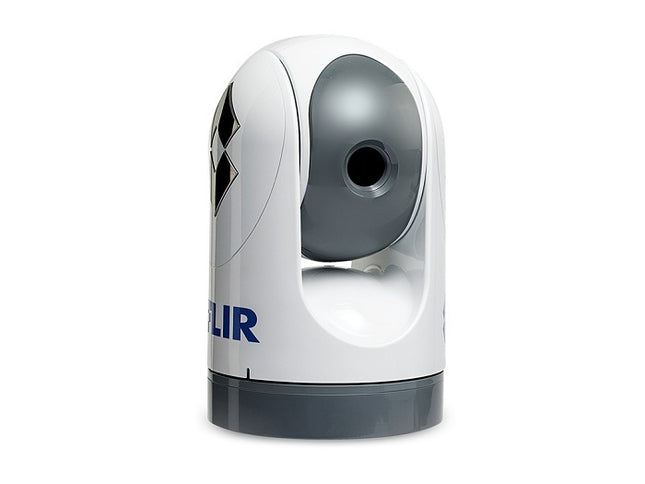

FLIR M-324S 320 x 240 Thermal Camera with JCUModel: 432-0003-66-00 Advanced features improve situational awareness Detects other vessels, small craft, floating objects, and hazards—day or night—through darkness, glare, dust and light fog Display on any marine monitor, or integrate M-Series thermal imaging right on your marine multifunction display alongside charting and radar Simple joystick control of pan, tilt and zoom. Optional advanced touchscreen control from select marine multifunction displays Integrates seamlessly with existing electronics including select multifunction displays from Raymarine, Furuno, Garmin, and Simrad Slew-to-Cue target tracking from compatible radar, AIS and chart systems Composite video output for easy connection to MFDs and monitors Engineered especially for harsh marine environments Color symbology on-screen gives instant access to system status, position, and configuration 360° Continuous Pan, +/-90° Tilt with joystick control Gyro-stabilization - Now standard across the entire M-Series line Latest Generation Thermal Detector - For sharper details and better image quality The M-Series pan/tilt re-defines maritime multi-sensor system design, drawing on FLIR’s 25 years of experience in building combat-proven airborne and maritime thermal imagers for militarys, coast guards, and governmental agencies around the world. With up to 320 x 240 thermal imaging, M-Series cameras let you see more — and see farther — than ever before. Even in the dead of night.The M-Series creates thermal images with tremendous detail for such an affordable night vision system. You will see more—and see farther—even in the dead of night. And M-Series cameras also feature detailed, color on-screen symbology for instant access to system status, position, and configuration. Resolution (320 x 240 324 Series or 640 x 480 625 Series pixels) is model dependent.Specifications Main Thermal Camera Detector Type 320 240 VOx Microbolometer Video Refresh Rate 30Hz NTSC Field of view 24° 18° Focal Length 19mm Focus Fixed 12ft (3.6m) to infinity Continuous E-Zoom 2x Image Processing FLIR Proprietary Digital Detail Enhancement MAIN VISIBLE CAMERA Detector Type N/A Lines of Resolution N/A Minimum Illumination N/A Optical Zoom N/A E-Zoom N/A SYSTEM SPECIFICATIONS Video Tracking No Firefighter Mode No Pan/Tilt Adjustment Range 360° Continuous Pan, +/-90° Tilt Analog Video Output 30 Hz NTSC Analog Video Connector Types F-type BNC with BNC-to-RCA adapter included for video out Network Video Output No HD-SDI Lossless Video Output No Power Requirements 12-24 V DC Power Consumption 25 W nominal; 50 W max ENVIRONMENTAL Operating Temperature Range -13°F to +131°F (-25°C to +55°C) Storage Temperature Range -40°F to +185°F (-40°C to +85°C) Automatic Window Defrost Standard at Power-Up Sand/Dust Ingress Mil-Std-810E Water Ingress IPX 6 (heavy seas, powerful jets of water) Shock 15g vertical, 9g horizontal Vibration IEC 60945; MIL-STD-810E Lightning Protection Standard Salt Mist IEC60945 Wind 100 knot (115.2 mph) EMI IEC 60945 PHYSICAL Weight ~ 9 lbs (4 kg) Size 7" (177.8 mm) dia. 11.2" (284.4 mm) ht. RANGE PERFORMANCE Person in the Water 1,500ft (457m) Small Vessel 4,200ft (1,280m) What's in the Box: 324S Thermal Camera JCU with weather cover Weather proof Ethernet coupler 25' Ethernet cable Mounting hardware Users guide

Read more less

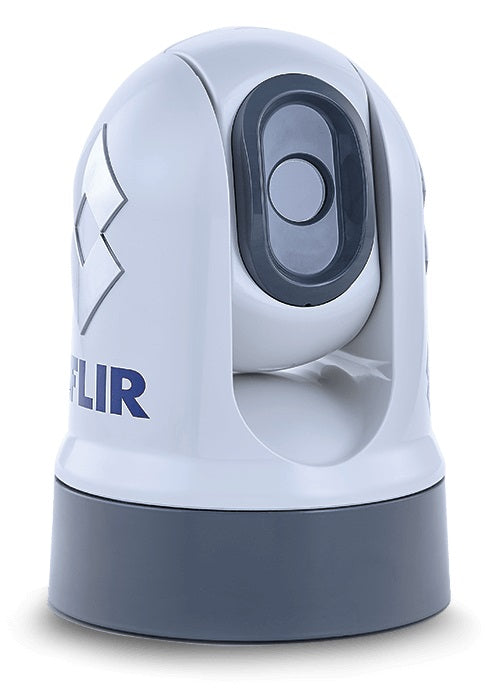

FLIR M232 Thermal IP Camera (320 x 240, 9Hz) with Pan, Tilt and electronic zoomModel: E70354 Thermal Resolution - 320 240 resolution for clear, detailed images Ethernet-Enabled - Ethernet-enabled for simple integration with your other electronics Zoom - 2 e-Zoom for extended range performance Tilt - M100 with adjustable tilt The FLIR M200 marine thermal camera is FLIRs smallest and most affordable pan and tilt marine thermal night vision camera. Using FLIRs latest generation Boson(TM) thermal core, the M200 lets boaters see at night in 320 x 240 thermal resolution and also features 2x digital zoom. When the M200 is combined with a Raymarine Axiom MFD, FLIR’s new ClearCruise™ intelligent thermal analytics technology offer boaters an entirely new level of awareness and safety. The M200 also use IP video technology and simplifies installation by eliminating extra video signal cables. The M200 offers features 2X digital zoom capability.The M200 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day. The M200 also helps boaters find people in the water faster than using spotlights and radar alone.M200 features full 320x240 resolution for optimal horizon-to-horizon viewing, and 2X digital zoom for long-range performance.The combination of the M200’s small, lightweight design and IP video connectivity make it a snap to install and integrate with multiple MFDs.Combine M200 with a Raymarine Axiom MFD and take advantage of ClearCruise™ intelligent thermal analytics. ClearCruise™ provides audible and visual alerts when "non-water" objects such as boats, obstacles, or navigation markers are identified in the scene.Specifications Main Thermal Camera Detector type 320 240 VOx Microbolometer Video refresh rate 9 Hz Field of view 24° 18° E-zoom 2x Image Processing FLIR Proprietary Digital Detail Enhancement System Specifications Pan/Tilt Range Pan: 360° (continuos), Tilt: +110°, -90° Image Processing FLIR Propriety Digital Detail Enhancement™ Video Output H264 IP Video stream Power Requirements 12 or 24 VDC Power Consumption 15 W (typical) 18 W (max) Environmental Operating Temperature Range -13°F to +131°F (-25°C to +55°C) Storage Temperature Range -30°F to +158°F (-30°C to +70°C) Relative Humidity 93% max Vibration IEC 60945; MIL-STD-810E Salt Mist ASTM B117 Wind 100 mph (161 kph) EMI IEC 60945 Rating IP67 Drop Test Rating 1m drop (in packaging) Physical Weight 6.0 lb (2.7 kg) w/o top-down riser 6.6 lb (3.0 kg) w/ top-down riser Size 6.34" (dia. @ base) x 9.03" (ht.) 161.1 (dia.) x 229.3 (ht.) mm Range Performance Person in the Water ~1,500 ft (457 m) Small Vessel ~0.67 nm (1.3 km) What's in the Box: Thermal camera Thermal camera base-seal Fasterns x 3 2 x Self-adhesive decals (for ball-down mounting only) *RayNet-to-RJ45 adapter cable (100 mm) *Right-angled RayNet-to-RayNet cable (10 m) Right-angled 3-pin power cable (10 m) Top-down riser kit (includes riser, riser base seal, and riser mounting template Documentation pack *The supplied right-angled RayNet and Power cables are suitable for mounting on surfaces up to 25.4 mm (1.0 inch) thick. When mounting on thicker surfaces, you may need to use RayNet and Power cables with straight connectors (available separately).

Read more less

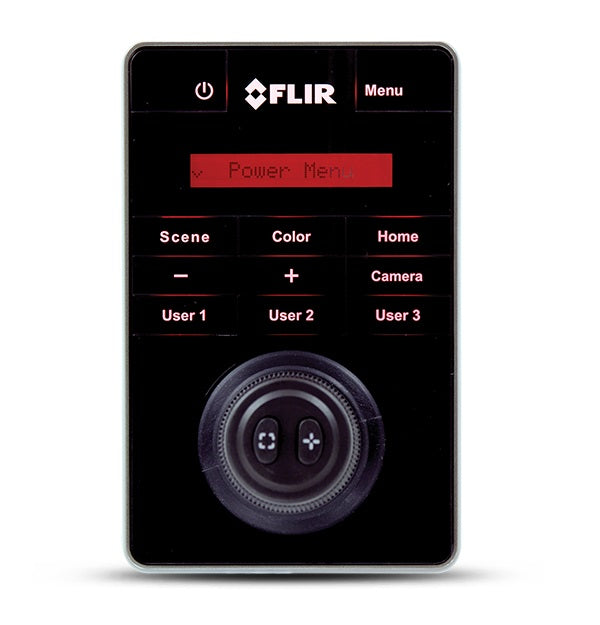

FLIR JCU2 Joystick PoEModel: JCU—2The joystick is the primary control for the M400 & M400XR. It is used to wake the system or put it in standby, operate the pan and tilt movement, zoom the camera, control cameras modes and features, and configure system settings by means of OSD menus.

Read more less

FLIR JCU2 JoystickModel: JCU—2The joystick is the primary control for the M400 & M400XR. It is used to wake the system or put it in standby, operate the pan and tilt movement, zoom the camera, control cameras modes and features, and configure system settings by means of OSD menus.

Read more less

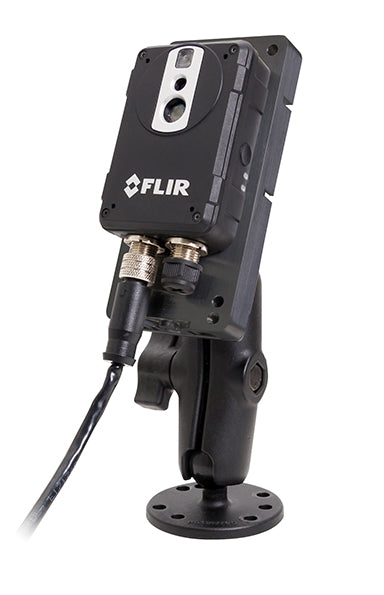

FLIR AX8 Thermal Monitoring CameraModel: E70321UPC: 723193799109 State-of-the-art thermal monitoring of engines and onboard machinery Powered by Lepton, FLIR’s most advanced micro thermal camera Exclusive Multi-Spectral Dynamic Imaging (MSX®) for easy-to-understand thermal imagery. Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds Evaluate ongoing temperature trends Help avoid costly repairs and unwanted breakdowns View thermal, visible, and MSX video imagery on Raymarine LightHouse II™ MFDs Continuous thermal monitoring with audible and visual alarms across the Raymarine network Connect up to eight AX8 cameras using Ethernet View and record thermal video and snapshots from any Raymarine display on the network Easy setup and alarm programming with a PC and web browser Gain an entirely new view of your vessel’s mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR’s exclusive MSX® imaging blends visible and thermal images for more detailed imagery that is easier to understand.Specifications IMAGING & OPTICAL DATA IR Resolution 80x60 pixels Thermal Sensitivity / NETD <0.10°C @ +30°C (+86°F) / 100mK Field of View (FOV) 48° x 37° Focus Fixed DETECTOR DATA Detector Type Focal Plane Array (FPA) Uncooled Microbolometer Spectral Range 7.3-13µm VISUAL CAMERA Built-in Digtal Camera 640x480 Digital Camera FOV Adapts to the IR lens Sensitivity Minimum 10 Lux without illuminator MEASUREMENT Object Temperature Range -10°C to +150°C (14°F to 302°F) Accuracy +/-2°C (+/-3.6°F) or +/-2% of reading (+10 to +100C@+10 to +35amb) MEASUREMENT ANALYSIS Spotmeter 6 Area 6 Boxes with max. / min. / average Automatic Hot / Cold Detection Max / Min temperature value and position shown within box Measurement Presets Yes Atmospheric Transmission Correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity Optics Transmission Correction Automatic, based on signals from internal sensors Emissivity Corrections Variable from 0.01 to 1.0 Reflected Apparent Temperature Correction Automatic, based on input of reflected temperature External Optics / Windows Correction Automatic, based on input of optics / window transmission and temperature Measurement Corrections Global Object Parameters ALARM Alarm Functions Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set Alarm Output Digital Out, store image, file sending (ftp), email (smtp), notification SET-UP Color Palettes Color palettes (BW, BW inv, Iron, Rain) Set-up Commands Data / Time, Temperature °C/°F Web Interface Yes STORAGE OF IMAGES Storage Media Built-in memory for internal storage Image Storage Mode IR, Visual, MSX File Formats Jpeg + FFF ETHERNET Ethernet Control, result and image Ethernet Type 100 Mbps Ethernet Standard IEEE 802.3 Ethernet Connector Type M12 8-pin X-coded Ethernet Video Streaming Yes Ethernet Power Power over Ehternet, PoE IEEE 802.3as class 0 Ethernet Protocols Ehternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) MARINE ELECTRONICS INTERFACE Multifunction Displays Network compatible with Raymarine LightHouse II multifunction displays IMAGE STREAMING Image Streaming Formats Motion JPEG, MPEG, H.264 Image Streaming Resolution 640x480 Image Modes Thermal, Visual, MSX (IR-image with enhanced detail presentation) Automatic Image Adjustment Continuous POWER SYSTEM (POE Injector) External Power Operations 12/24VDC, 2W continuously / 3.1W absolute max External Power Connector Screw Connection (12V/0V/Chassis) Voltage Allowed Range 9-36VDC ENVIRONMENT DATA Operating Temperature Range 0°C to +50°C (32°F to +122°F) Storage Temperature Range —40°C to +70°C (—40°F to +158°F) IEC 68-2-1 and IEC 68-2-2 Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles Encapsulation IP67 (IEC 60529) What's in the Box: Infrared camera with lens Pinted documentation User documentation CD-ROM Cooling/mounting plate POE injector Camera PoE Cable Raymarine RayNet Ethernet cable

Read more less

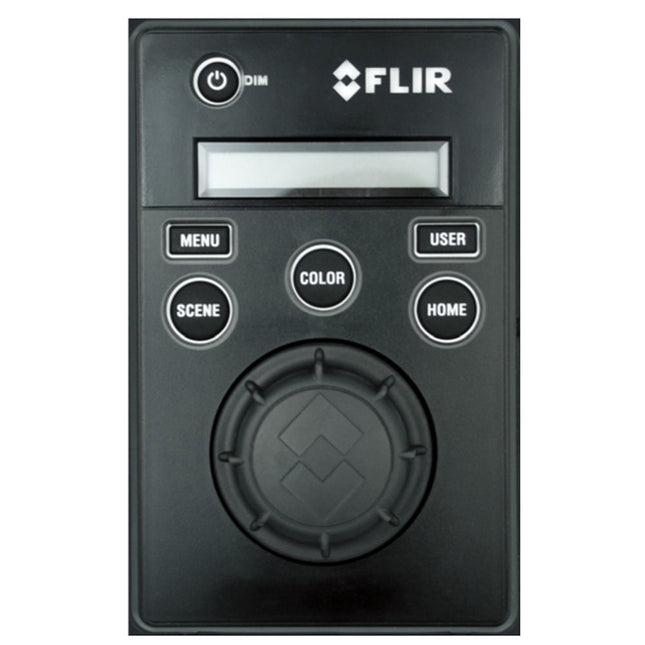

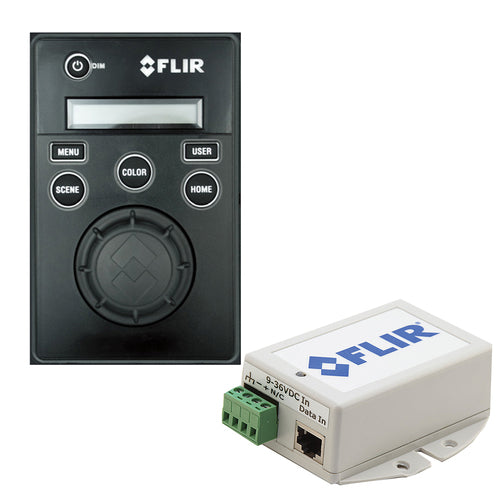

FLIR JCU1 Joystick PoEModel: JCU—1 Heated LCD screen - Instantly displays system status User-programmable "hot key" for commonly used functions Scene selection allows the operator to optimize the system's performance for specific situations - Night Running, Day Running, Night Docking, and Man Overboard User-selectable color palettes change the video display mode for easier viewing based on operator preference User-programmable Home button allows the operator to point the pan/tilt camera to pre-defined positions with the push of a button Precision proportional pointing control is provided through a custom, sealed, 8-way iDrive style control knob Backlit for easy nighttime readability; the sealed buttons are easy to see and provide positive tactile feedback The controller is fully sealed for survival in a maritime environment, and meets IPx6 standards Install as many control stations around your vessel as you want, thanks to the system's easy Ethernet connectivity The M-Series controller is simple to use, provides precise system control, and lets users access all of the important camera functions with push-button controls.FLIR's 12V Power Over Ethernet Injector is a key component in connecting your FLIR maritime thermal imaging camera to an Ethernet-equipped Joystick Control Unit.

Read more less

Flir JCU-1 Joystick Control UnitModel: 500039500 Heated LCD screen - Instantly displays system status Scene selection allows the operator to optimize the system's performance for specific situations - Night Running, Day Running, Night Docking, and Man Overboard User-selectable color palettes change the video display mode for easier viewing based on operator preference User-programmable Home button allows the operator to point the pan/tilt camera to pre-defined positions with the push of a button Precision proportional pointing control is provided through a custom, sealed, 8-way iDrive style control knob Backlit for easy nighttime readability; the sealed buttons are easy to see and provide positive tactile feedback The controller is fully sealed for survival in a maritime environment, and meets IPx6 standards Install as many control stations around your vessel as you want, thanks to the system's easy Ethernet connectivity The M-Series controller is simple to use, provides precise system control, and lets users access all of the important camera functions with push-button controls.Control Unit Requires FLIR 4113746 12v PoE Injector

Read more less

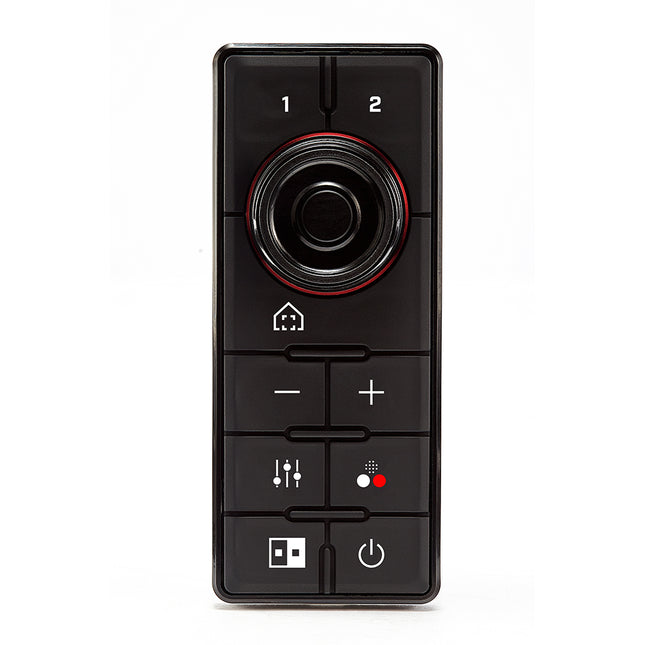

FLIR JCU3 Compact Control Unit for M132/232Model: A80510FLIR’s JCU-3 Joystick Controller works with select Thermal Camera Systems to allow full access to the camera’s pan, tilt, zoom and menu settings. The JCU-3 features 9 buttons plus a rotary controller and joystick trackpad in a compact housing the fits just about anywhere. The JCU-3 can be mounted either horizontally or vertically using either of the 2 supplied key faces.The JCU-3 is rugged and waterproof for mounting in the pilothouse or on-deck. It can be surface or flush mounted to your helm, console or bulkhead. Multiple JCU-3 controllers can be installed to allow control of a single camera from several different locations onboard.The JCU-3’s keypad and rotary knob are backlit for easy viewing at night. The JCU-3 can bepowered over Ethernet from the vessel’s onboard network, or connected directly to a 12V DC power source and interfaced to the camera with an Ethernet connection. The JCU-3 is compatible with FLIR M100, M200, M400, M-Series, MD-Series as well as Raymarine T200, T300and T400 camera systems.Specifications Weight 1.00 LBS What's in the Box: JCU3 Power cable Network Cable Mounting Hardware

Read more less

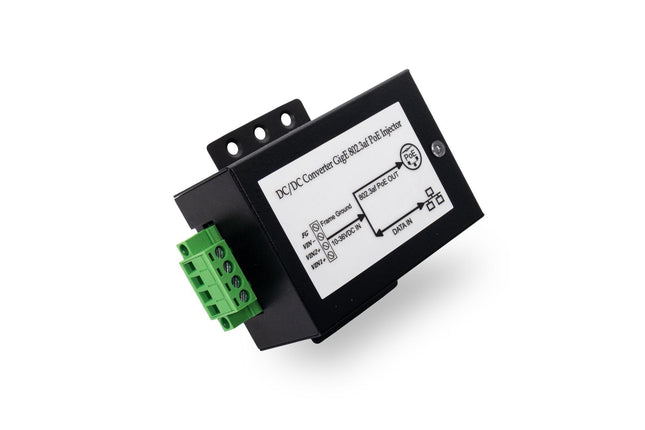

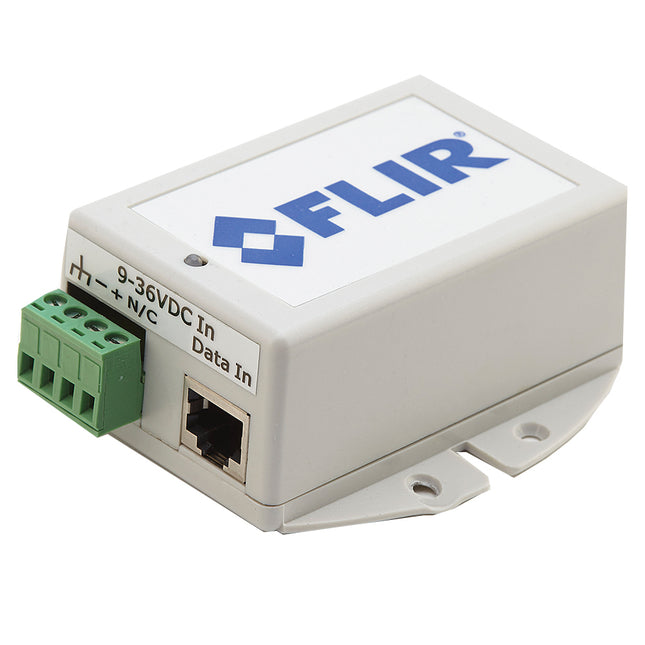

FLIR's 12V Power Over Ethernet Injector is a key component in connecting your FLIR maritime thermal imaging camera to an Ethernet-equipped Joystick Control Unit.
