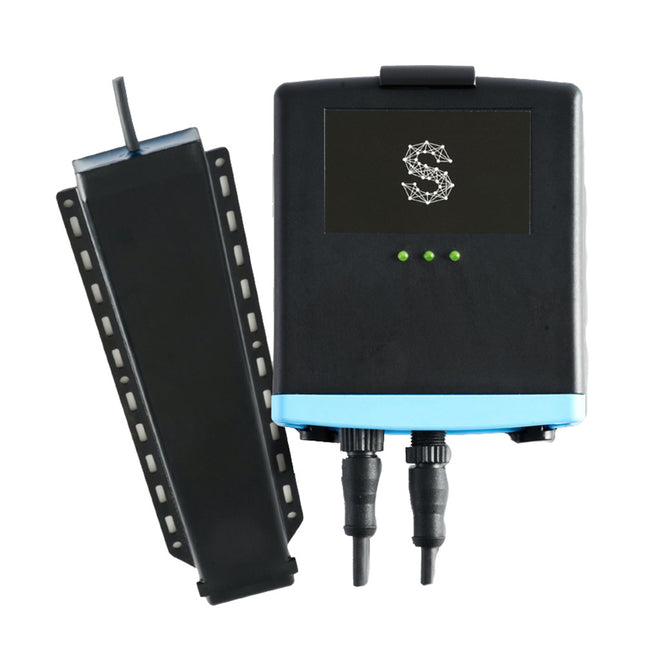

Sensar Marine Boat Monitor with Bilge SentryModel: BMBS700 The Boat Monitor is Always On With the Bilge Sentry, you always can see what's happening in your bilge. Cables Made for Maritime Use Keep Track of Your Boat at All Times Simple Installation The Boat Monitor is the system's brain - where data from your boat is continually collected, and sent to your app.The system runs on an internal battery with 40 days of power and charges itself every time your boat batteries are being charged. In other words, it is completely maintenance-free and will monitor your boat for years without having to remove it to charge.Bilge Sentry gives you an exact measurement of water level between 0 and 6 inches. The app shows you the current water level, and data on when the boat began taking in water and how quickly it is filling up.In addition, it measures the temperature in the bilge so that you can ensure that your boat isn't exposed to harmful frost and icing.The cable-set connects directly into up to two battery banks and your bilge pump.Our cables were developed specifically to be able to function in harsh maritime conditions and will always deliver data back to the Boat Monitor - regardless of the moisture in the motor room.The position and movement features are tracked by sensors inside of the Boat Monitor device itself. The app shows you the current position of your boat at all times.GeoFence and Triplog features will automatically be updated, so that you always know when your boat is underway, where your boat is, and where it has been.We've designed the installation process so that you can easily do it yourself with the help of a pair of pliers.With your device, you will recieve enough industrial tape to mount the entire system in cases where you don't want to use screws in your boat.With your device, you will recieve enough industrial tape to mount the entire system in cases where you don't want to use screws in your boat.Specifications Internal Battery 40 days of power, Charges automatically when boat batteries charge Mobile Coverage 4G Internal Antenna Boat Batteries Connections for two battery banks GPS Internal antenna Position Tech Multi-GNSS-reciever Bilge Pump Notifies every time the bilge pump is running Warning water level 4 in. Alarm water level 5.5 in. What's in the Box: Boat Monitor Bilge Sentry with 5ft cable Battery and Bilge Pump Cable 6ft Mounting bracket Information card Quick connection T-splice cable Double sided tape x 4 Cleaning wipes x 2 Cable Ties x 4 Mounting screws x8

Read more less

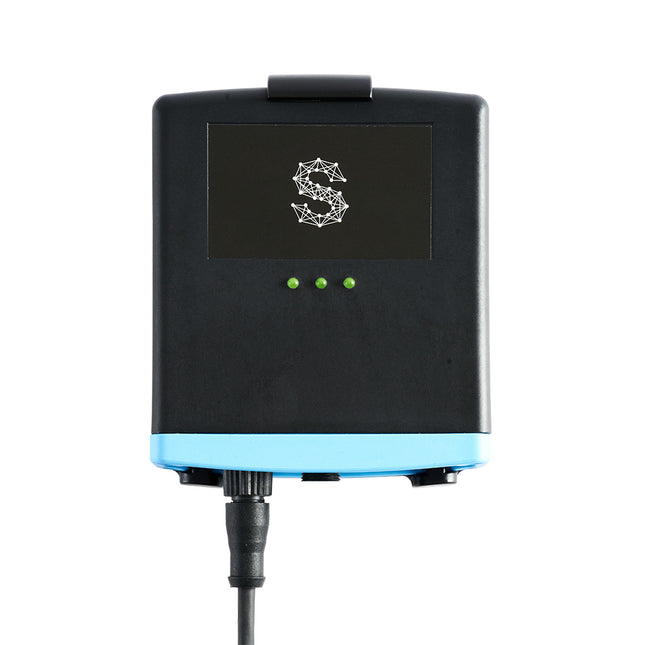

Boat Monitor Package without Bilge SentryKnow your boat is OK when you are away!With Sensar Marine installed, you can check on your boat anytime from your cellphone. Data is continuously uploaded to the cloud and SMS alerts are sent instantly if a problem occurs. The Boat Monitor will run 24/7 /365 - without depleting your boat batteries.Sensar's Monitor Package without Bilge Sentry is a simplified Boat Monitor package, designed specifically for pontoon boats and boaters who do not require bilge water depth measurement.The Sensar Marine Boat Monitor provides around-the-clock protection by delivering continuous “black box” monitoring of your vessel’s location, battery status across two banks, impact detection, and bilge pump functionality. An automatic geofence is established around the boat, sending SMS alerts for any movement, low battery levels, or bilge pump activity.What sets Sensar Marine apart is the Boat Monitor’s maintenance-free design, with no parasitic draw on the boat’s batteries. Waterproof to IPx7 standards and built in Norway, it comes with a five-year warranty and is ready to endure harsh conditions, providing reliable performance in any weather, anywhere in the world.The Boat Monitor can be easily accessed through a user-friendly iOS or Android app, which allows boat owners to view historical data, track trip logs, and monitor key metrics such as speed and g-force. The device also records and displays detailed journey logs on a map. The package (SKU BM700, 3.5” x 5.5” x 6”, 30 oz) comes fully equipped with all the components needed for fast and easy installation, right out of the box.Features: Voltage (12 or 24V) - Your two battery banks will be monitored and you will be warned when they go to critically low levels. It supports lithium too! GeoFence - Notifies you if your boat moves from where you left it. This fully automatic function activates after the boat has been still for over 15 minutes. Triplog - Log all your trips automatically - no need to press record. Detailed data is captured with speed, course, impact, time, and location. GPS Position & Sharing - The integrated GPS antenna gives you real-time information about your boat's position and the ability to quickly send it by text to friends or in case of an emergency. Impact - See if your boat is in rough seas or has experienced an impact. An integrated accelerometer measures G-force. Bilge Pump - Track your pump activity. You'll be alerted anytime the bilge pump operates. Quick Guide (pdf)

Read more less

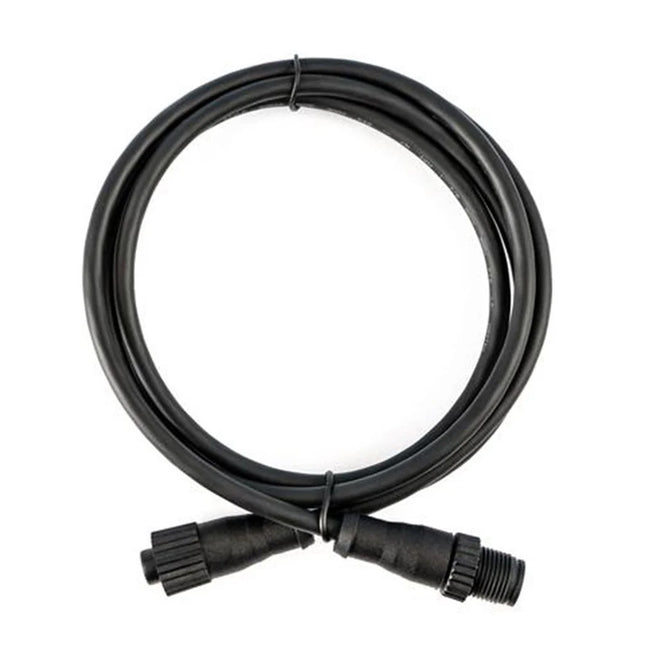

Bilge Sentry Extension Cable - 6MExtension for the Water ModuleThe water module comes with a 1.5-meter cable connected directly to the sensor. If that cable cannot reach the bilge, then users will need this extension cable.This extension cable has 5 pins and is 6 meters in length. The system supports extension with up to two extension cables (12m max).Specifications:Length: 6 meters Specifications: Type: Cables Box Dimensions: 1"H x 5"W x 9"L WT: 0.6 lbs UPC: 7090051250083

Read more less

Boat Monitor with Bilge SentryThe Boat Monitor is the system's brain - where data from the boat is continually collected and sent to the app.The system runs on an internal battery with 40 days of power and charges itself every time a boat's batteries are being charged. In other words, it is completely maintenance-free and will monitor the boat for years without removing it to charge.Features: The boat monitor can monitor up to 2 batteries and bilge pump activity Provides position of boat utilizing all available satellites Geofence which alerts boaters if the boat leaves a specific area (fully automatic function) Visualize the current trip and see the history of previous voyages The unit has an integrated accelerometer that displays G-force (measurement area: 0g to 8g) Cables Made for Maritime UseThe cable set connects directly to up to two battery banks and the bilge pump.Sensar's cables were developed specifically to be able to function in harsh maritime conditions. They will always deliver data back to the boat monitor, regardless of the moisture in the motor room.Keep Track of the Boat at All TimesAutomatic GPS features give users peace of mind.The boat monitor has sensors that track position and movement, which allows the app to show users the current position of the boat at all times.GeoFence and Triplog features will automatically be updated so that boaters always know when the boat is underway, where the boat is, and where it has been.Simple InstallationNo screws, no metal components, no problem.Sensar designed the installation process so boaters can easily do it themselves with the help of a pair of pliers. With the device, users will receive enough industrial tape to mount the entire system in cases where they don't want to use screws in the boat. Additionally, Sensar has chosen plastic components across the system to avoid eventual sources of rust in the boat.In the Box: Boat monitor Battery/bilge pump cable (6 ft.) Bilge Sentry (cable 5 ft.) Mounting bracket Information card (ID and connection code) Quick connection T-splice cable Double-sided tape (4 pcs.) Cleaning wipes (2 pcs.) Specifications: Size (H x W x D): 112.5 x 97 x 35.5 mm Weight: 276.5 grams Internal Battery: 40 days of power (charges automatically when boat batteries charge) Mobile Coverage: 4G Internal Antenna Boat Batteries: Connections for two battery banks, support 12V and 24V batteries, warning voltage: 12.2V, and alarm voltage: 11.8V Bilge Pump: Notifies every time the bilge pump is running Bilge Water Level: Measures between 0 and 6 inches, warning water level: 4 in., and alarm water level: 5.5 in. Bilge Temperature: Measures between -4°F and 140°C, warning temperature: 34°F, and alarm temperature: 28°F GPS: Internal antenna Position Tech: Multi-GNSS-receiver Mounting Bracket: Height: 83 mm, width: 90 mm, and depth: 28 mm Attachment for Bracket and Bilge Sentry: 3M Industrial Tape and 28 mm screws Brochure (pdf)

Read more less
