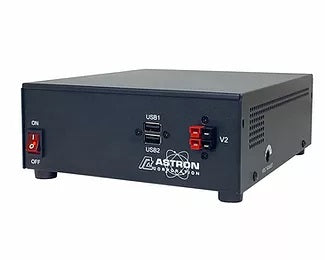

Astron SS-30-AP Switchign Desktop Power SupplyModel: SS30-APThe SS-30 model supports currents up to 25A avg and peak up to 30A ICS (*) peak max. It is ideally suited for use with 12/13.8 VDC communications equipment. Switching technology >82% efficient meets individual power loading requirements. Included is special filter circuitry especially suited for all communications frequencies and HF.Several protection features are built-in. Included are output current limiting, overvoltage protection, internal fuse protection, and over temperature shutdown.Integration is seamless with standard 12/13.8 VDC equipment. Front panel 'Anderson Power Pole'; terminals and rear panel screw-wire terminals are heavy duty. Connectors are easy accessible which ensures safe and reliable installation.Specifications Input voltage 120 to 230 VAC, 50/60Hz (Nominal Automatic Wide-Range selected) Output voltage 13.8 VDC (User manual adjustable ± 1 V) 2 USB ports: 5.2V, 1.5A per port Output current 30A peak current - ICS Intermittent Communication Service 25 Amp Max Continuous Temperature 0 to +50 C Operating, —20 to +85 C Storage 120 C max over-temperature setting Humidity 5 to 90% RH Operating, 5 to 95% RH Storage (Non-condensing) Dimensions 2 5/8 in H x 7 in W x 8 1/4in D

Read more less

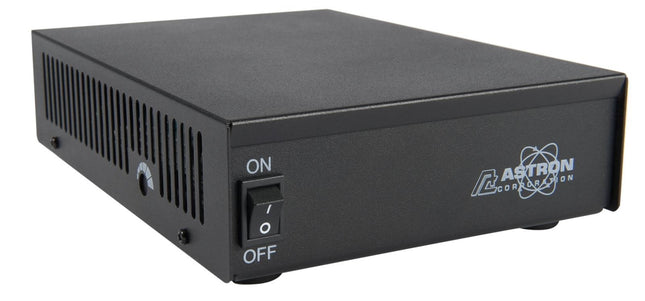

Small switching power supply, 7 amps continuous duty, 10 amps intermittent duty

Read more less
