Push Button Reset Only Screw Terminal Circuit Breaker - 20 AmpsFeatures: Branch circuit breakers (can also be used for 24-hour circuit protection) Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking Specifications: Amperage: 20A Maximum Voltage: 32V DC Mounting: Panel Mount 3/8-27 UNS Circuit Breaker Type: Thermal trip, manual push-button reset only Terminal Type: #8 Screw Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V Minimum Operating Temperature: -10° C Maximum Operating Temperature: 60° C Screw Terminal Torque: 6 in-lb (0.68 Nm) Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085021344

Read more less

A-Series Toggle Double PolePN: 7232Poles: 2Color: BlackAmperage: 10AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs UPC: 632085072322

Read more less

60A Panel Mount Mini Circuit BreakerThis 60A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 60 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 3,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 60a Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850053879388 Quick Guide (pdf)

Read more less

Push Button Reset Only Screw Terminal Circuit Breaker - 10 AmpsFeatures: Branch circuit breakers (can also be used for 24-hour circuit protection) Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking Specifications: Amperage: 10A Maximum Voltage: 32V DC Mounting: Panel Mount 3/8-27 UNS Circuit Breaker Type: Thermal trip, manual push-button reset only Terminal Type: #8 Screw Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V Minimum Operating Temperature: -10° C Maximum Operating Temperature: 60° C Screw Terminal Torque: 6 in-lb (0.68 Nm) Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 1"H x 3"W x 4"L WT: 0.3 lbs UPC: 632085021320

Read more less

60A Surface Mount 87 Series Circuit BreakerThis 60A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation   High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 60 Max Voltage: 48 Cycling Endurance: 2,000 Interrupt Current @14 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP66 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Reinforced Mounting Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 60a Box Dimensions: 3"H x 3"W x 5"L WT: 0.6 lbs UPC: 850035199329 Quick Guide (pdf)

Read more less

Push Button Reset Only Screw Terminal Circuit Breaker - 30 AmpsFeatures: Branch circuit breakers (can also be used for 24-hour circuit protection) Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking Specifications: Amperage: 30A Maximum Voltage: 32V DC Mounting: Panel Mount 3/8-27 UNS Circuit Breaker Type: Thermal trip, manual push-button reset only Terminal Type: #8 Screw Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V Minimum Operating Temperature: -10° C Maximum Operating Temperature: 60° C Screw Terminal Torque: 6 in-lb (0.68 Nm) Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085021368

Read more less

285-Series Thermal Circuit Breaker Surface Mount, 70A Drop-in replacement for 185-series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 70a Box Dimensions: 2"H x 4"W x 8"L WT: 0.3 lbs UPC: 632085171858 Brochure (pdf)

Read more less

250A Surface Mount 87 Series Circuit BreakerThis 250A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66-sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc  High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 250 Max Voltage: 48 Cycling Endurance: 2,000 Interrupt Current @14 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP66 Focal FeaturesON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Reinforced Mounting Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 250a Box Dimensions: 3"H x 3"W x 5"L WT: 0.6 lbs UPC: 850035199411 Quick Guide (pdf)

Read more less

150A Surface Mount 87 Series Circuit BreakerThis 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation   High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical/Manual Switching Endurance delivers 2,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 150 Max Voltage: 48 Cycling Endurance: 2,000 Interrupt Current @14 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP66 Focal FeaturesON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Reinforced Mounting Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 150a Box Dimensions: 3"H x 3"W x 4"L WT: 0.6 lbs UPC: 850035199374 Quick Guide (pdf)

Read more less

30A Panel Mount Mini Circuit BreakerThis 30A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 30 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 4,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 30a Box Dimensions: 2"H x 4"W x 4"L WT: 0.28 lbs UPC: 850053879357 Quick Guide (pdf)

Read more less

C-Series ELCI Circuit Breaker - Double Pole 240V AC 50AFeatures: Trips on short circuits, overloads, or leakage to ground Front panel mount—installed in a power distribution panel Specifications: Amperage: 50A Actuator Style: Flat Rocker  Poles: 2 Ignition Protected: Yes Maximum Voltage: 120V AC per pole & 240V AC per pole Circuit Breaker Type: Magnetic Hydraulic (trip free) Interrupt Capacity: 5000A Minimum Operating Temperature: -35° C Maximum Operating Temperature: 66° C Leakage Trip Amps: 30mA Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Weight: 1.20 lb. (0.54 kg) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 5"H x 5"W x 6"L WT: 1.2 lbs UPC: 632085030933 Quick Guide (pdf)

Read more less

20A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 20a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879289

Read more less

25A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 25a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879296

Read more less

Push Button Reset Only Screw Terminal Circuit Breaker - 3 AmpsFeatures: Branch circuit breakers (can also be used for 24-hour circuit protection) Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking Specifications: Amperage: 3A Maximum Voltage: 32V DC Mounting: Panel Mount 3/8-27 UNS Circuit Breaker Type: Thermal trip, manual push-button reset only Terminal Type: #8 Screw Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V Minimum Operating Temperature: -10° C Maximum Operating Temperature: 60° C Screw Terminal Torque: 6 in-lb (0.68 Nm) Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 3a Box Dimensions: 1"H x 3"W x 4"L WT: 0.08 lbs UPC: 632085021290

Read more less

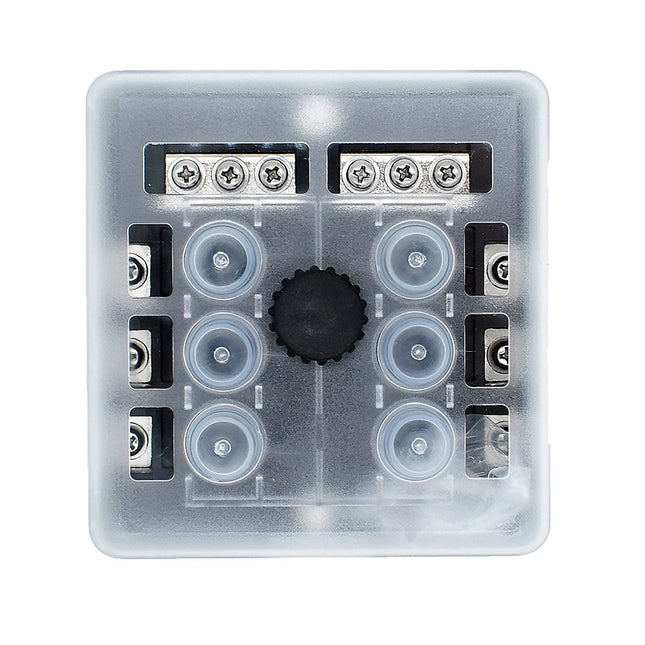

ST CLB Circuit Breaker Block - 6 Position w/Negative BusFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 6Maximum Amperage: 100A (per block) 32A (per circuit)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutNegative Bus: YesSource: Common SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 5.63"(143 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 0.75lb (0.34 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100/32a Box Dimensions: 3"H x 4"W x 11"L WT: 0.92 lbs UPC: 632085050528 Brochure (pdf)

Read more less

285-Series Circuit Breaker Panel Mount - 60A Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 2"H x 5"W x 8"L WT: 0.3 lbs UPC: 632085170844 Brochure (pdf)

Read more less

7208 AC /DC Single Pole Magnetic World Circuit Breaker - 15AMPThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.Features: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 632085072087

Read more less

40A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 40a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879319

Read more less

C-Series ELCI Main Circuit Breaker - 120/240V AC 50AFeatures: Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection Meets UL 1500 external ignition protection requirements Trips on short circuit, overload, or leakage to ground Front panel mount—installed in a power distribution panel Specifications: Amperage: 50A Actuator Style: Flat Rocker Poles: 3 Ignition Protected: Yes Max Voltage: 120VAC per pole/240VAC per pole Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 5000A Minimum Operating Temperature: -35 degrees C Max Operating Temperature: 66 degrees C Leakage Trip Amps: 30mA WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

A-Series Raised Rocker Circuit Breaker - Double Pole - 50AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage: 50A AC / 50A DC Actuator Style: Raised Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 5"L WT: 0.36 lbs UPC: 632085075774

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount40 Amp Circuit BreakerPN:  7138Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 2"H x 5"W x 8"L WT: 0.6 lbs UPC: 632085171384

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 30AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 30A AC / 30A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085075453

Read more less

Single Pole Small Case 2" Slot Reset Rocker Circuit BreakerPN:   7433Amperage:   50 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 632085074333

Read more less

Single Pole Small Case 2" Slot Reset Rocker Circuit Breaker - 10 AmpPN:   7427Amperage:   10 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 1"H x 3"W x 5"L WT: 0.19 lbs UPC: 632085074272

Read more less

40A Push Button Circuit Breaker - Reset OnlyFeatures: Weatherproof Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 32 Vdc Rating easily supports 12 and 24 Vdc applications. Meets ABYC E-11 Interrupt Requirements High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition-protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance is ideal for marine and vehicle electrical systems. Trip-Free Design cannot be forced during a fault condition. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 40a Box Dimensions: 3"H x 5"W x 6"L WT: 0.25 lbs UPC: 850053879203 Brochure (pdf)

Read more less

10A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 10a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879265

Read more less

3A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 3a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879234

Read more less

30A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 30a Box Dimensions: 3"H x 5"W x 6"L WT: 0.33 lbs UPC: 850035199015 Brochure (pdf)

Read more less

30A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 30a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879302

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 15AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 15a Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs UPC: 850074331100 Brochure (pdf)

Read more less

5A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 5a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879241

Read more less

15A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 20a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879272

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 20AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 20a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.35 lbs UPC: 850067590903 Brochure (pdf)

Read more less

100A Surface Mount Circuit Breaker - 285 SeriesThis 100A Egis circuit breaker protects electrical circuits from short-circuit events and overcurrent loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 VDC) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 100 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features: ON/OFF High Visibility Controls - Sealed against dust and moisture penetration. High temperature rating for all installation locations. Integrated Terminal Insulators - Protect against inadvertent shorts from positive terminals to adjacent grounded surfaces. Stainless Steel Hardware / Serrated Flange Nuts - Corrosion and vibration resistance for harsh environment applications. Proudly Made in the USA - Made in the USA with high-quality components. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 100a Box Dimensions: 3"H x 3"W x 5"L WT: 0.2 lbs UPC: 850035199176 Quick Guide (pdf)

Read more less

2139Amperage: 20AFeatures: Weatherproof Can be used as Main, Branch, or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 2"H x 3"W x 7"L WT: 0.2 lbs UPC: 632085021399

Read more less

Single Pole Small Case 2" Slot Reset Rocker Circuit BreakerPN:   7429Amperage:   20 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 1"H x 2"W x 3"L WT: 0.15 lbs UPC: 632085074296

Read more less

C-Series Toggle Single PolePN: 7355Poles: 1Color: WhiteAmperage: 30AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 4"L WT: 0.28 lbs UPC: 632085073558

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount80 Amp Circuit BreakerPN:  7142Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 3"H x 5"W x 8"L WT: 0.56 lbs UPC: 632085171421

Read more less

Heavy Duty CB Module, 80A705 Contour Circuit Breaker HD allows switchable protection for heavy duty circuits like Windlasses or Davit winches utilizing Bussmann Heavy Duty thermal circuit breakers. Allows switchable protection for heavy duty circuits like windlasses or davit winches Modular sizing with contour lock molding allows easy grouping WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 3"H x 4"W x 9"L WT: 0.6 lbs UPC: 870216010038

Read more less

Single Pole Small Case 2" Flat Rocker Circuit BreakerPN:   7407Amperage:   40 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 1"H x 3"W x 4"L WT: 0.18 lbs UPC: 632085074074

Read more less

7050Push Button Thermal with Quick Connect Terminals3A Ideal for 24-hour circuit protection Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels Push to reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasonline powered boats With male quick connect terminals WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 3a Box Dimensions: 1"H x 2"W x 3"L WT: 0.2 lbs UPC: 632085070502

Read more less

C-Series TogglePN: 7254Poles: 2Color: WhiteAmperage: 60AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 4"H x 4"W x 5"L WT: 0.7 lbs UPC: 632085072544

Read more less

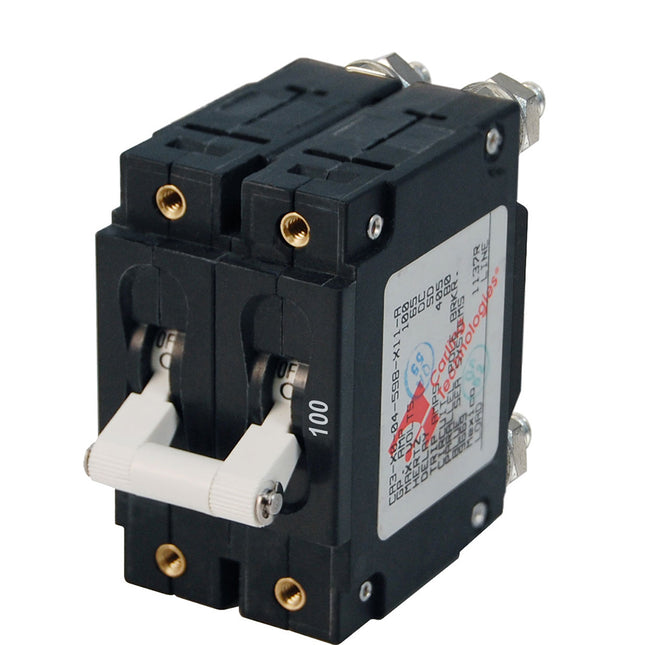

C-Series TogglePN: 7258Poles: 2Color: WhiteAmperage: 100AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 4"H x 5"W x 5"L WT: 0.63 lbs UPC: 632085072582

Read more less

C-Series TogglePN: 7256Poles: 2Color: WhiteAmperage: 80AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 4"H x 5"W x 5"L WT: 0.65 lbs UPC: 632085072568

Read more less

285-Series Circuit Breaker Panel Mount - 80A Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs UPC: 632085070861 Brochure (pdf)

Read more less

Single Pole Small Case 2" Flat Rocker Circuit BreakerPN:   7400Amperage:   5 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Box Dimensions: 1"H x 2"W x 3"L WT: 0.35 lbs UPC: 632085074005

Read more less

A-Series Toggle Double PolePN: 7241Poles: 2Color: BlackAmperage: 50AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs UPC: 632085072414

Read more less

60A Circuit BreakerUse this 60A circuit breaker when installing a Force® trolling motor.Compatible Devices: Force® Kraken trolling motor Force® trolling motor Specifications: Amperage: 60a Box Dimensions: 1"H x 2"W x 3"L WT: 0.15 lbs UPC: 753759246495

Read more less
