40mm Carbo Air Cheek BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)220 kg Maximum working load (lb)485 lb

Read more less

Series 20 Ball Bearing Block - Double - 2-Axis Shackle HeadFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Two-Way head can be fixed at 0° or 90° Applications: Dinghy control lines Dinghy vangs Cunninghams Traveller controls Materials: Stainless steel ball bearings UV Stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 20mm(3/4")Max. Rope Ø: 6mm(1/4")PinØ: 4mm(5/32")M.W.L.: 350kg(770lbs)B. L.: 700kg(1,540lbs)Weight: 42g(1.5oz)

Read more less

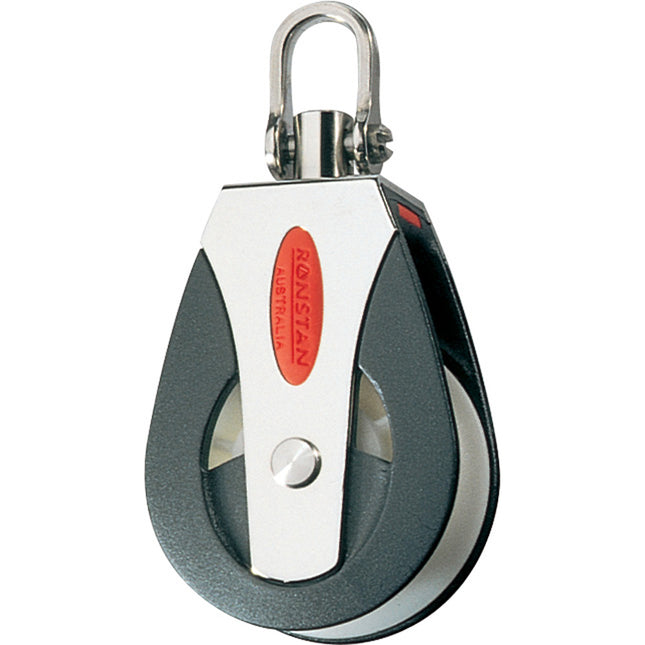

Series 50 All Purpose Block - Single - Universal HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as requiredFeatures: Exceptionally high working loads Low maintenance, long service life Self lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications:Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10M(33')Materials: Nylatron® sheave Grade 316 stainless steel load strap and head fitting Impact and U.V. resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 50mm(2")Max. Rope Ø: 12mm(1/2")Max. Pin Ø: 5mm(3/16")M.W.L.: 750kg(1,650lbs)B. L.: 1,500kg(3,310lbs)Weight: 118g(4.1oz)

Read more less

40mm Twing BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to our popular Harken Big Boat blocks, these small, compact blocks have very high working loads for safe, easy trimming.Features: Opening side plate - Easy to rig and remove from sheet Spring biased to open when unlatched - One-handed operation Roller at pivot base - Use 1:1 or 2:1 up-down control Carbo Air® block construction - High strength for durability and lightweight for maximum float in light air Uses: Dinghies, sport boats, and small keelboats Spinnaker sheet and guy control Code zero sheet up-down control Specifications: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Length (mm): 89 mm Length (in): 3-1/2 in Weight (g): 86 g Weight (oz): 3 oz Maximum line Ø (mm): 12 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 275 kg Maximum working load (lb): 606 lb Breaking load (kg): 825 kg Breaking load (lb): 1818 lb Owner's Manual (pdf)

Read more less

29mm Single Bullet BlockLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 29mm (1-1/8") Maximum Line: 8mm (5/16") Maximum Working Load: 136kg (300lb)

Read more less

60mm Single Aluminum Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1100 kg Maximum working load (lb): 2425 lb

Read more less

40mm Carbo Air Fiddle Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken® Black Magic® line, these small, compact blocks have very high working loads for safe, easy trimming. The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.Specifications: Sheave: 40mm / 1-9/16in Length: 115mm / 4-1/2in Weight: 51g / 1.8oz Shackle pin: 4mm / 5/32in Maximum line: 10mm / 3/8in Maximum working load: 220kg / 485lb Breaking load: 735kg / 1620lb

Read more less

29mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in Length: 66mm / 2-5/8in Weight: 26g / .9oz Shackle pin: 4mm / 5/32in Maximum line: 8mm / 5/16in Maximum working load: 150kg / 330lb Breaking load: 454kg / 1000lb

Read more less

57mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 57mm / 2-1/4in Length: 110mm / 4-5/16in Weight: 87g / 3.1oz Shackle pin: 5mm / 3/16in Maximum line: 10mm / 3/8in Maximum working load: 359kg / 792lb Breaking load: 1079kg / 2380lb

Read more less

16mm Double BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 43mm / 1-11/16in. Weight: 27g / .94oz Maximum line: 5mm / 7/32in Maximum working load: 204kg/ 450lb Breaking load: 544kg / 1200lb

Read more less

16mm BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 10g / .33oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

Clamp-On Furling Line Stanchion Lead Block - 1" Ball BearingDelrin™ ball bearing sheave allows for quick and easy furling line adjustment. Stainless steel cage and strap ensure durability. Specifications: Stanchions 1" (25mm) in diameter 1-7/16" (37mm) Sheave Diameter Maximum 1/2" (12mm) line size Safe Working Load = 1000 lbs (450kg)

Read more less

Series 5 Flat Base Cheek Block - Stainless Steel CheeksSeries 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area. Specifications: Sheave Diameter 2" (51 mm) Max. Line 7/16" (11 mm) Length 3-5/8" (92 mm) Width 2-7/32" (57 mm) Height 7/8" (22 mm) Fasteners (4) #10 - RH (5 mm) C/C 3" (76 mm) SWL 1750 lbs. (795 kg) Weight 6.9 oz. (196 g) Max Line 7/16" (11mm)

Read more less

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. Specifications: Track Size 1-1/4" x 3/16" (32 mm x 5 mm) Max. Boat Length 33' (10 m) Max. Boat Weight 12000 lbs. (5455 kg) Max. Sail Area 520 sq. ft. (48 m2) Sheave Diameter 2-3/8" (60 mm) Max Line 1/2" (12 mm) Length 4" (102 mm) Width 1-9/16" (39 mm) Height 4-15/16" (126 mm) Bearing Height 2-3/8" (67 mm) SWL 2250 lbs. (1020 kg) Weight 14 oz. (397 g)

Read more less

Series 40 All Purpose Block - Single - Universal HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. stabilized Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø: 40mm(1-9/16")Max. Rope Ø: 10mm(7/16")Pin Ø: 5mm(3/16")M.W.L.: 400kg(880lbs)B. L.: 1,000kg(2,200lbs)Weight: 71g(2.5oz)

Read more less

Series 40 Ball Bearing Block - Single - Universal HeadSheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Low friction Acetal or Torlon® bearing system Lightweight Cheek cut-outs for easy bearing maintenance Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. Stabilized Acetal sheaves Acetal ball bearings Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø: 40mm(1-9/16")Max. Rope Ø: 10mm(7/16")Pin Ø: 5mm(3/16")M.W.L.: 350kg(770lbs)B. L.: 1,000kg(2,200lbs)Weight: 70g(2.5oz)

Read more less

Series 20 Ball Bearing Orbit Block - Single - Dyneema Lashing - Becket OptionThe incredible Series 20 Orbit Block™ is capable of loads up to 250kg (550lb) while weighing a mere 9 grams. It's so light that it needs to be lashed down!Features: Integrated stainless steel hub to accept lashing attachment and through-sheave becket Suits up to 4mm(5/32") lashing Includes 750mm (30") x 1.7mm(1/16") diam lashing Applications:Control lines on dinghies and catamarans to 5M(16')Materials: Sheave: High compression strength carbon acetal Ball bearings: stainless steel Frame/Cheeks: Nylon Brochure (pdf)

Read more less

Size 3 45mm Plain Bearing Pulley Block Cheek BlockThe size 3 Barton plain bearing blocks have a 45mm (1 3/4" sheave size 3 block range that incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fiber glass-filled nylon and Acetal sheaves to maximize their strength while keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Features:Suitable for up to 10mm (3/8") rope Quick Guide (pdf)

Read more less

Series 20 Ball Bearing Block - SingleFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Applications: Dinghy control lines Dinghy Vangs Cunninghams Traveller controls Materials: U.V. Stabilized Acetal sheaves Stainless steel ball bearings Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 20mm(3/4")Max. Rope Ø: 6mm(1/4")Pin Ø: 3mm(1/8")M.W.L.: 250kg(550lbs)B. L.: 550kg(1,210lbs)Weight: 20g(0.7oz)

Read more less

72mm HTX Block - SingleYears of design and manufacturing experience coupled with collaboration with boat builders, designers, and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high-quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters. Features: Strong aluminum side cheeks Central plain bearing for efficiency at high loads Side thrust Delrin ball bearings Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism Technical Specifications: Working Load Limit - 4405lb Weight - 15.6oz Maximum Line Size - .55" (14mm) *Sold as an Individual Owner's Manual (pdf)

Read more less

Single Ball Bearing BlockSingle block with aluminum cheeks and ball bearing sheave. Delrin™ ball bearing sheave ensures low-friction operation. Swivel head may be locked in place to avoid twist. Specifications: Sheave Diameter 2" (51mm) Thickness 15/16" (24mm) Width 2 1/8" (54mm) Length 4 13/32" (112mm) SWL 1500 lbs. (680kg) Weight 5oz. (142g) Max Line 7/16" (11mm)

Read more less

40mm/29mm Carbo Traveler BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 8 mm Maximum line Ø (in): 5/16 in Maximum working load (kg): 150 kg Maximum working load (lb): 330 lb

Read more less

16mm Triple BlockThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 46mm / 1-13/16in. Weight: 41g / 1.44oz Maximum line: 5mm / 7/32in Maximum working load: 318kg/ 700lb Breaking load: 544kg / 1200lb

Read more less

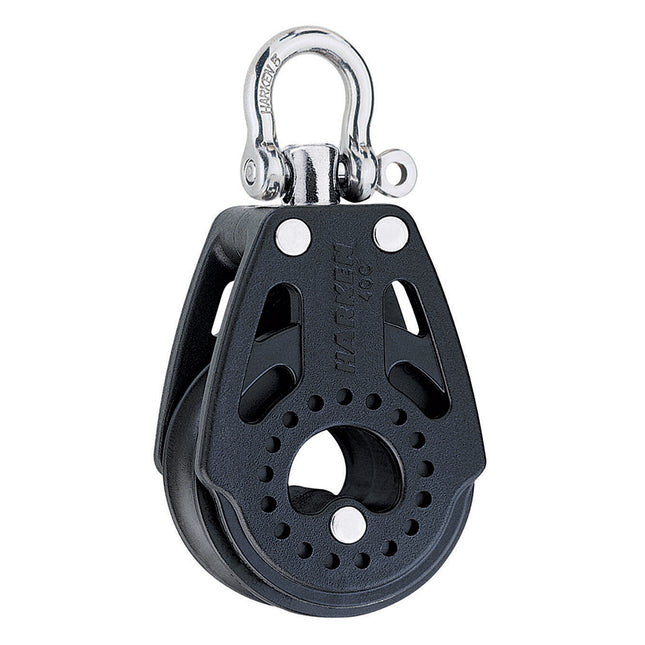

40mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 40mm / 1-9/ 16in Length: 86mm / 3-3/8in Weight: 44g / 1.6oz Shackle pin: 4mm / 5/32in Maximum line: 10mm / 3/8in Maximum working load: 220kg / 485lb Breaking load: 735kg / 1620lb

Read more less

22mm Fiddle Micro Block with V-Jam & BecketLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 102mm / 4in. Weight: 57g / 2oz. Shackle pin: 5mm / 3/16in. Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

40mm Double Sheave Fishing BlockLow-friction Carbo Air blocks are lightweight, strong, and reliable. These compact blocks have very high working loads and smooth operation to simplify the positioning and retrieval of teaser lines. Specifications: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lbs

Read more less

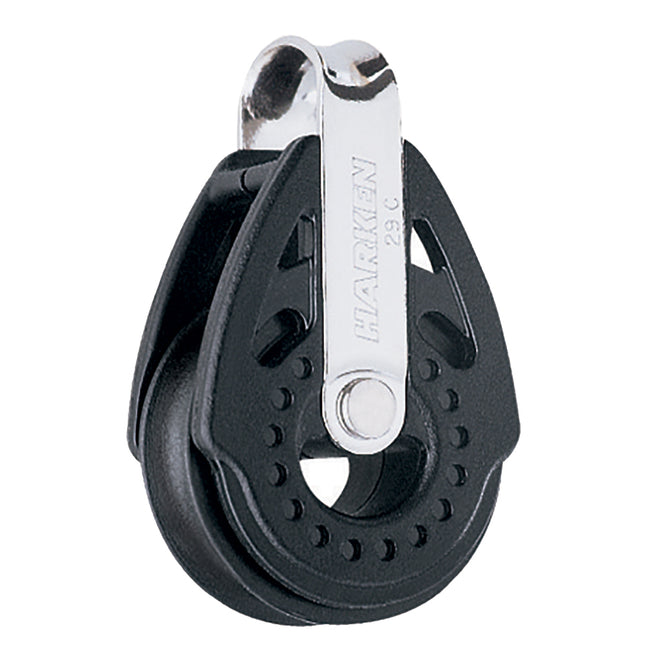

29mm Carbo Air BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in Length: 49mm / 1-15/16in Weight: 23g / .8oz Shackle pin: 4mm / 5/32in Maximum line: 8mm / 5/16in Maximum working load: 150kg / 330lb Breaking load: 454kg / 1000lb

Read more less

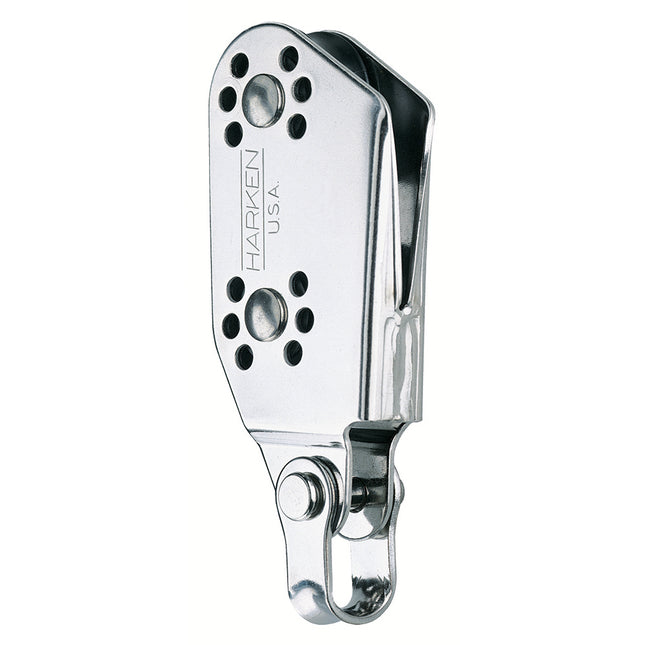

22mm Fiddle Micro Block with V-JamLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 89mm / 3-1/2in. Weight: 57g / 2oz. Shackle pin: 5mm/ 3/16in Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

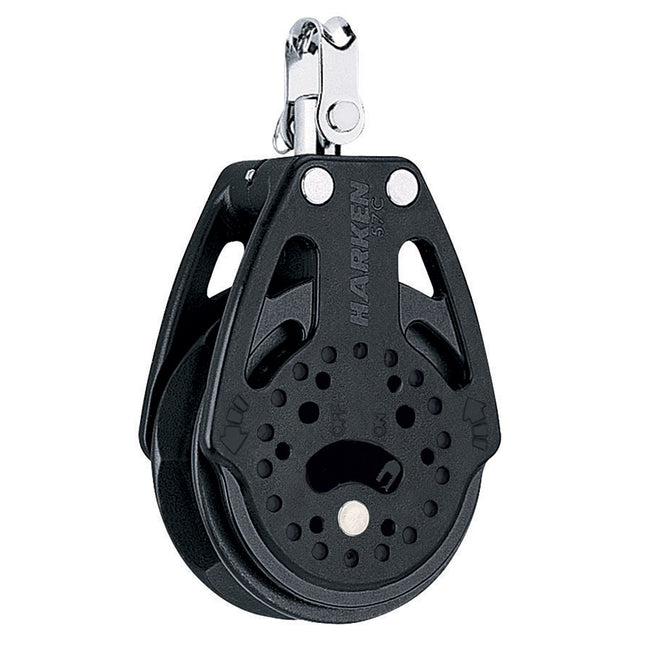

57mm Carbo Single Ratchet Block with SwivelCarbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.Features: On/off switch operates from both sides Standard grip: medium/light air; 10:1 holding power Sheave Ø (mm): 57 mm Sheave Ø (in): 2-1/4 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 227 kg Maximum working load (lb): 500 lb

Read more less

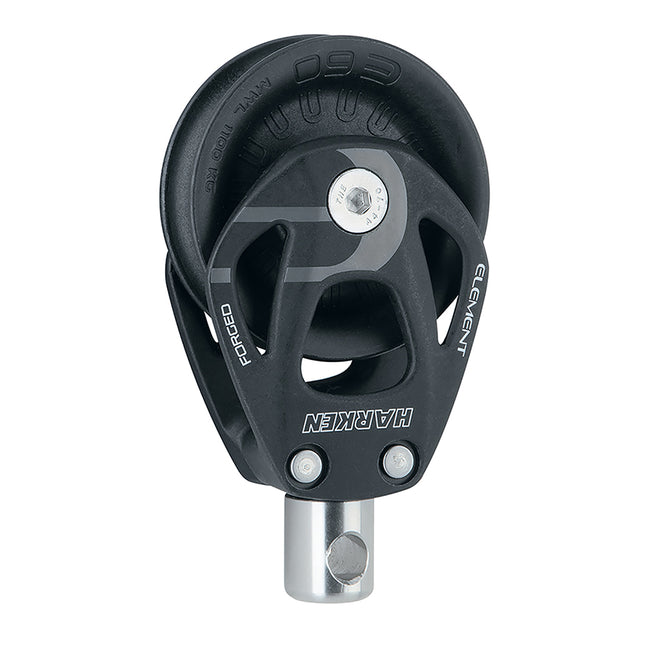

60mm Single Element Block Mastbase with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 60mm (2-3/8" Max Line: 14mm (9/16") Max Working Load: 1100kg (2425lbs)

Read more less

40mm Carbo Single Ratchet Block with SwivelCarbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. 2608, 2609, and 2614 have on/off switches. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 136 kg Maximum working load (lb): 300 lb

Read more less

29mm Single Bullet Block with BecketLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 29mm (1-1/8") Maximum Line: 8mm (5/16") Maximum Working Load: 136kg (300lb)

Read more less

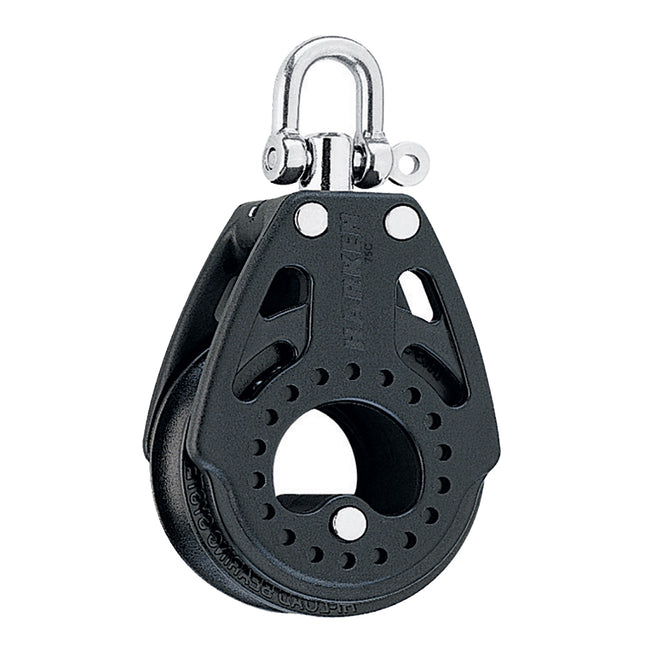

75mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 75mm / 2-15/16in Length: 137mm / 5-3/8in Weight: 195g / 6.9oz Shackle pin: 6mm / 1/4in Maximum line: 14mm / 9/16in Maximum working load: 550kg / 1213lb Breaking load: 1650kg / 3638lb

Read more less

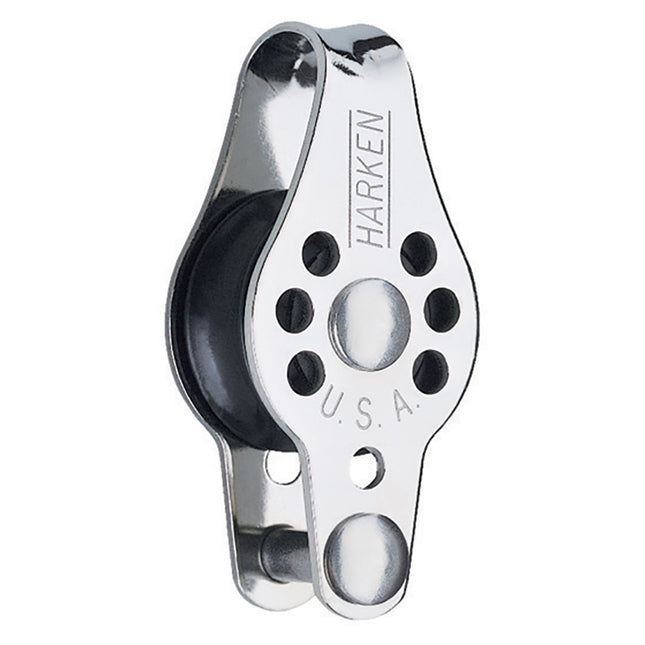

22mm Micro Block with BecketLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 21g / .75oz. Maximum line: 6mm / 1/4in. Maximum working load: 91kg / 200lb Breaking load: 544kg/ 1200 lb

Read more less

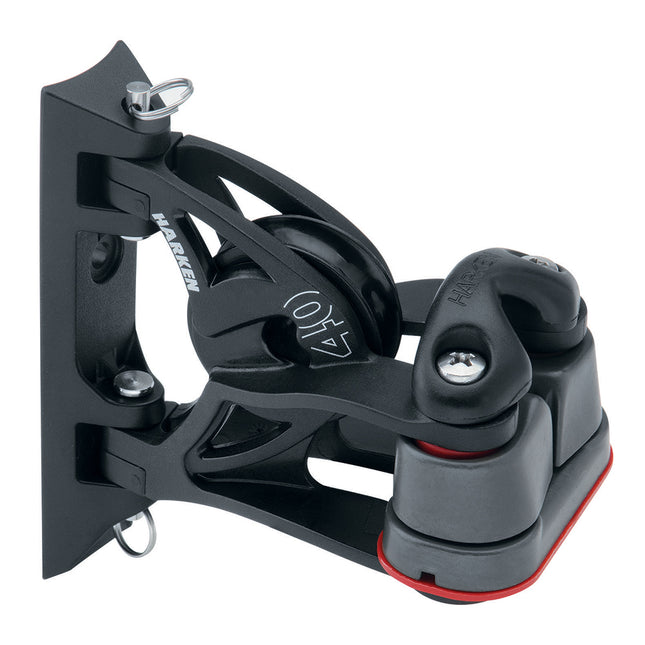

40mm Pivoting Lead Block - Carbo-Cam® CleatHigh-strength pivoting lead blocks with cams are used for halyard controls on larger keelboats and as “headknockers” on dinghies and beachcats for sheeting directly from the boom. Hole spacing and rivet size are the same as Classic models, making upgrades easy. Cam reverses for either up or down cleating.Can be used as becket block.Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)91 kg Maximum working load (lb)200 lb

Read more less

40mm Carbo Air Block with Cam Cleat & BecketLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)6 mm Maximum line Ø (in)1/4 in Maximum working load (kg)136 kg Maximum working load (lb)300 lb

Read more less

22mm Micro Block with SwivelLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 60mm / 2-3/8in. Weight: 28g / 1oz. Shackle pin: 4mm / 5/32in, Maximum line: 6mm / 1/4in. Maximum working load: 91kg / 200lb Breaking load: 544kg/ 1200 lb

Read more less

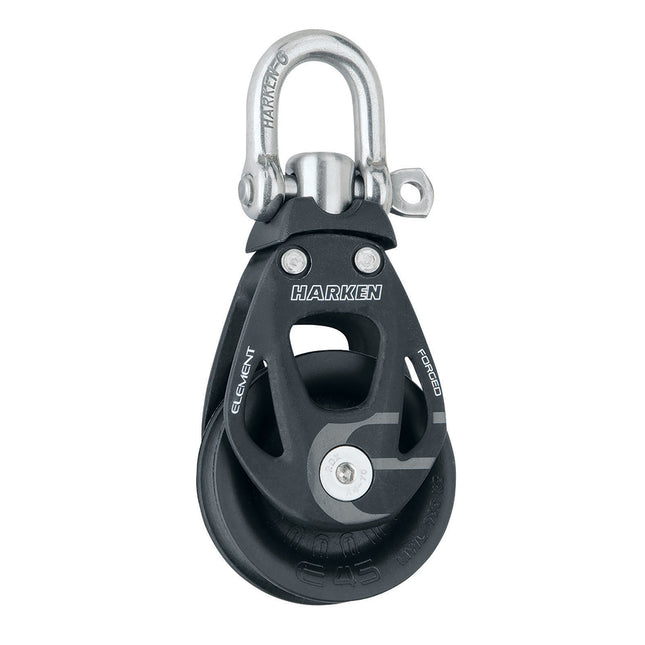

45mm Single Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 121mm / 4-3/4in Weight: 115g / 4oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 700kg / 1543lb Breaking load: 1400kg / 3086lb

Read more less

16mm Triple Block with BecketThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 57mm / 2-1/4in. Weight: 43g / 1.5oz Maximum line: 5mm / 7/32in Maximum working load: 318kg/ 700lb Breaking load: 544kg / 1200lb

Read more less

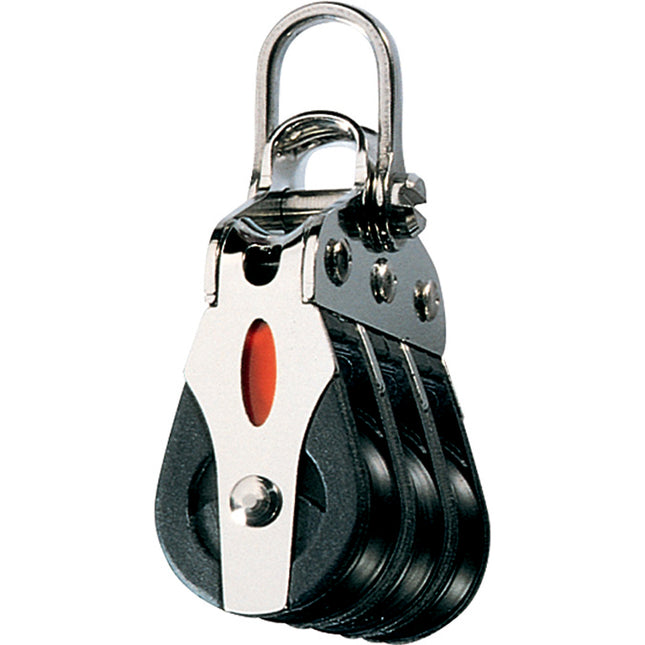

Series 20 Ball Bearing Block - Triple - 2-Axis Shackle HeadFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Two-Way head can be fixed at 0° or 90° Applications: Dinghy control lines Dinghy vangs Cunninghams Traveller controls Materials: Stainless steel ball bearings UV Stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 20mm(3/4")Max. Rope Ø: 6mm(1/4")PinØ: 4mm(5/32")M.W.L.: 400kg(880lbs)B. L.: 850kg(1,870lbs)Weight: 62g(2.2oz)

Read more less

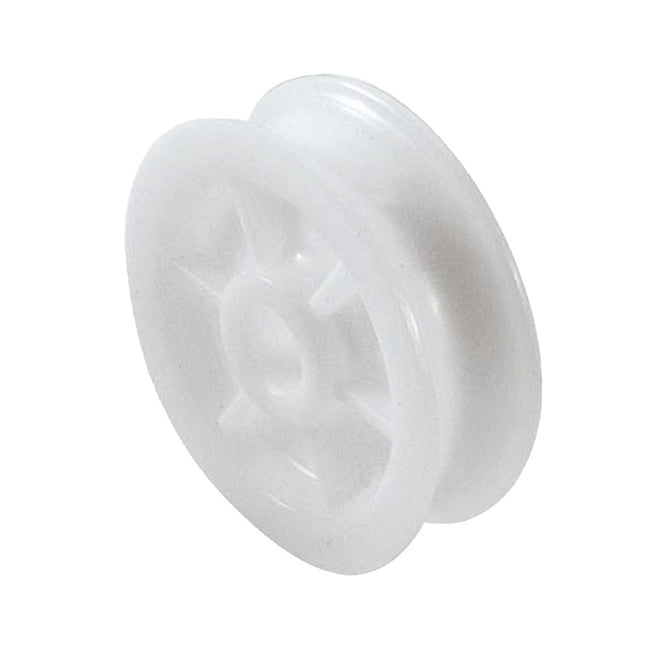

Series 40 Orbit BB SheaveBall Bearing versions incorporate the 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.Specifications: Sheave Captive BB Width: 15.5mm/5/8" Sheave Diameter: 40mm/1-9/16" Maximum Rope: 10mm/3/8" M.W.L.: 400kg/880lbs Weight: 30g/1.1oz

Read more less

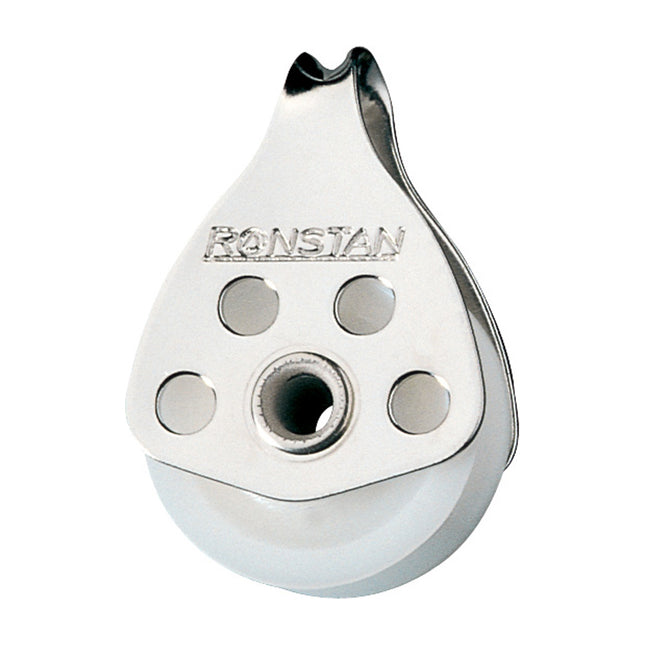

Series 30 Block - Single - Loop TopFeatures: Maintenance free Economical Lightweight durable construction Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: UV Stabilized Acetal sheave Grade 316 stainless steel cheeks Specifications:Sheave Ø:29mm(1-1/8")Max. Rope Ø:8mm(5/16")M.W.L.:300kg(660lbs)B. L.:600kg(1,320lbs)Weight:20g(0.7oz)

Read more less

Series 30 Ball Bearing Orbit Block™ - Single - Becket - Lashing HeadBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket RF35101 accepts RF1850S shackle in both orientations to create a conventional loop top block Self-lubricating Nylatron® sheave and full contact bearing for high dynamic loads Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:=Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 600kg(1,320lbs)Weight: 22g(0.8oz) Quick Guide (pdf)

Read more less

60mm HTX Block - SingleYears of design and manufacturing experience coupled with collaboration with boat builders, designers, and sailors have resulted in the Lewmar HTX Hardware Range.  Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high-quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters. Features: Strong aluminum side cheeks Central plain bearing for efficiency at high loads Side thrust Delrin ball bearings Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism Technical Specifications: Working Load Limit - 2422lb Weight - 7.5oz Maximum Line Size - .5" (12mm) *Sold as an Individual Owner's Manual (pdf)

Read more less

Series 30 Ball Bearing Orbit Block™ - Single - Becket - Swivel Shackle HeadBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket Low friction 2-stage ball bearing system provides consistent performance over the full working load range Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 600kg(1,320lbs)Weight: 32g(1.1oz) Quick Guide (pdf)

Read more less

Series 40 All Purpose Block - Single - Stand UpAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Mount with 2 x 5mm (3/16") fasteners (not supplied) Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. stabilized Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø: 40mm(1-9/16")Max. Rope Ø: 10mm(7/16")M.W.L.: 400kg(880lbs)B. L.: 800kg(1,760lbs)Weight: 72g(2.5oz)

Read more less

72mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 2420lb Weight - 6.69oz Maximum Line Size - .47" (12mm) *Sold as an Individual

Read more less

Single Aluminum Block - 51mm SheaveSingle block with anodized aluminum cheeks. Delrin™ sheave ensures smooth operation with high safe working load. Swivel head may be locked in place to avoid twist. Specifications: Sheave Dia. 2" (51mm) Thickness 15/16" (24mm) Width 2 1/8" (54mm) Length 4 13/32" (112mm) SWL 1750 lbs. (795kg) Weight 5oz. (142g) Max. Line size 7/16" (11mm)

Read more less
