Orion-TR Smart 12/12-30A (360W) Isolated DC-DC Charger or Power SupplyThe Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.Bluetooth Smart Enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product Fully programmable Battery charge algorithm (configurable) or fixed output.  Smart Alternator Compatibility: engine running detection mechanism Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged For lithium batteries, the absorption time is fixed; the default is 2 hours Alternatively, a fixed output voltage can be chosen Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).Remote On/OffA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.High Temperature ProtectedThe output current will reduce at high ambient temperatures.IP43 ProtectionWhen installed with the screw terminals oriented downward.Screw TerminalsNo special tools are needed for installation. Input fuse (not replaceable) *Input fuse (not replaceable) Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 40 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 87 % No Load Input Current (2): < 80 mA  Standby Current: Less than 1A Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth  Galvanic Isolation: 200 VDC between input, output, and case  Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)  Humidity: Max. 95 % non-condensing  DC Connection: Screw terminals  Maximum Cable Cross-Section: 16 mm²  AWG6  Weight: 1,8 kg (3 lb)  Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)  Protection Category IP43 (electronic components), IP22 (connection area)  Safety Standards: EN 60950 Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Output - Amps: 30a Charger Input - Voltage: 12v Portable: No Charging Banks: 1 Charger Output Voltage: 12v Box Dimensions: 4"H x 6"W x 9"L WT: 4.45 lbs UPC: 8719076047698 Quick Guide (pdf)

Read more less

XD Series Single 500 Amp Heavy Duty Battery Switch/Mechanical ContactorFeatures: Silver Alloy Contact Points support high ampere/full voltage switching capability versus legacy rotary style switches. Expandable: Integrate the 8700 XD Battery Disconnect easily with XD Series FLEX/ACR/LVD relays via using optional 8790 Link and 8791 Cross Link Busbars bars for easy integration with other Single, Dual or Triple Circuit XD relays. Terminal Stud Protection: Included protective cover with convenient label recesses ensures no accidental shorts occur and allows for easy identification of circuits long term. Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.  Intuitive Manual Control: Bright yellow knob and intuitively easy-to-read on/off label simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state. Ignition Protected: Safe for installation in gasoline-powered boats and other combustible install environments. Sealed IP67 Construction keeps moisture out and the integrated Gore-Tex pressure regulation vent increases its ability to operate reliably for long-term harsh environment operation.  Compact Case Design allows for easy surface mount or rear panel installs and rectangular shape (narrower than competing products) keeps finding a mounting location easy. Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Terminal Stud Size (mm): M10 Voltage Range (VDC): 8-36 Ingress Protection: IP67/IP6K 9K Contact Materials: Silver Alloy Focal Features:High Visibility KnobForce each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Stainless HardwareCorrosion is no issue with quality stainless steel studs and self locking flanged nuts.Smaller FootprintXD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.Integrated VentHigh quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Brochure (pdf)

Read more less

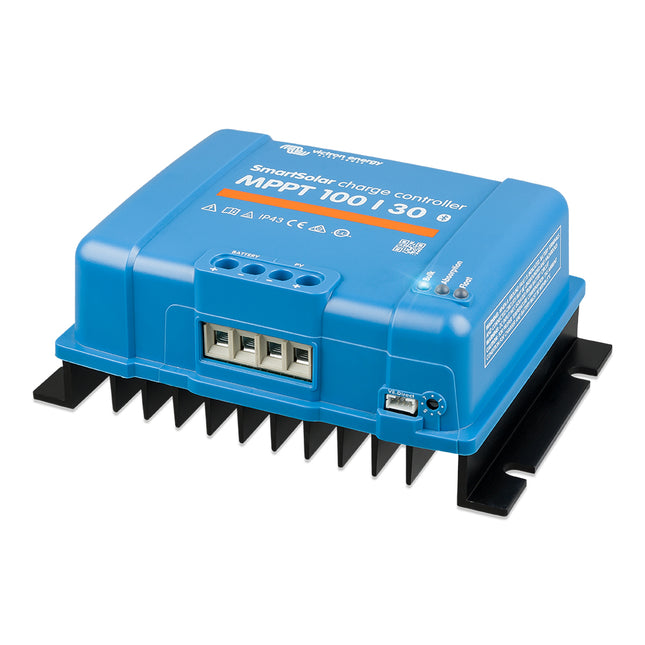

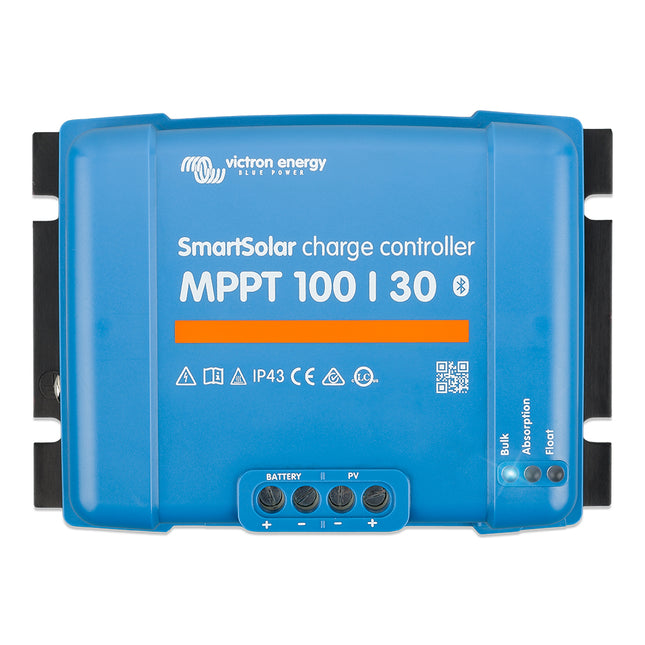

SmartSolar MPPT Charge Controller - 100V - 30AMPFeatures: Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.  VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices  Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.  Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.  Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.  Programmable battery charge algorithm See the software section on our website for details  Day/night timing and light dimming option See the software section on our website for details  Internal temperature sensor Compensates absorption and float charge voltage for temperature.  Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 18-100v Charger Output - Amps: 30a Charger Output Voltage: 12v/24v Charging Banks: 1 Portable: No Box Dimensions: 4"H x 5"W x 8"L WT: 3.1 lbs UPC: 8719076040170 Quick Guide (pdf)Brochure (pdf)

Read more less

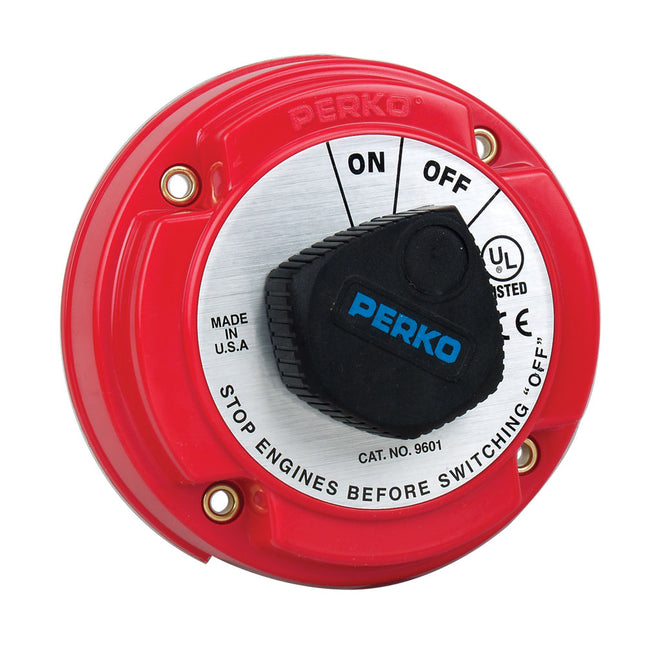

Medium Duty Battery Selector Switch - 250A ContinuousFeatures: For use with 6 to 32 Volt Marine Electrical Systems Capacity - 250 AMPS Continuous, 360 AMPS Intermittent When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running Specs: Diameter: 5-1/4" Depth: 2-5/8"

Read more less

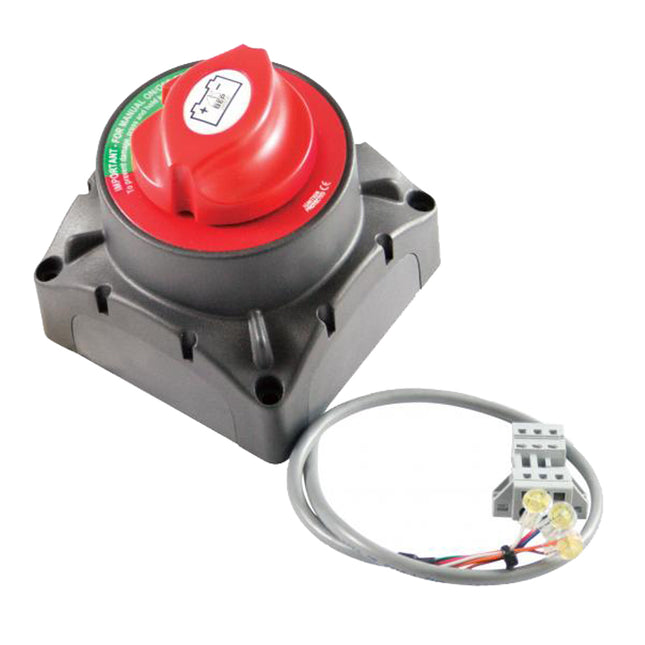

Remote Operated Battery Switch w/Optical Sensor 500A 12/24VThe MD range of battery switches allow you to install the battery switch very close to the battery, to remotely manage the increased electrical loads found on today's boats. This reduces cable lengths and sizes, providing significant savings in expense and weight of copper battery cable. They are ideal for remote isolation of bow and stern thrusters. The 720-MDO has been enhanced to offer easy standard installation, or advanced options capable of switching different voltage circuits from the main supply (for example: a 48 volt bow thruster with a 24 volt house supply). The optical sensor uses the same easy connection for standard installation and gives you the ability to control different voltage circuits such as 36 or 48 volts. It can be used to switch positive or negative lines and the main contacts can be isolated from the control circuit allowing operation via another battery source. This optical sensor also has low stand-by current draw (<5mA). Remote operation Battery switch can be mounted alongside battery, reducing cable lengths and cable sizes. (Large cost and weight saving in copper cables) Reduced installation labor due to shorter battery cable runs Manual override option to meet CE/ABYC requirements LED status identification for remote control switch Same capacities/specifications and mounting options as standard BEP battery switches Uses interchangeable labeling system (Item # 713 or 715) Specifications:LxWxH: 4" x 4" x 4.33"Rating (A DC) Cont: 500Rating (A DC) Inter: 700Rating (A DC) Crank: 2500Voltage (V DC): 9.5-32Function: On/OffStud Size: 2x (1/2"/12mm)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

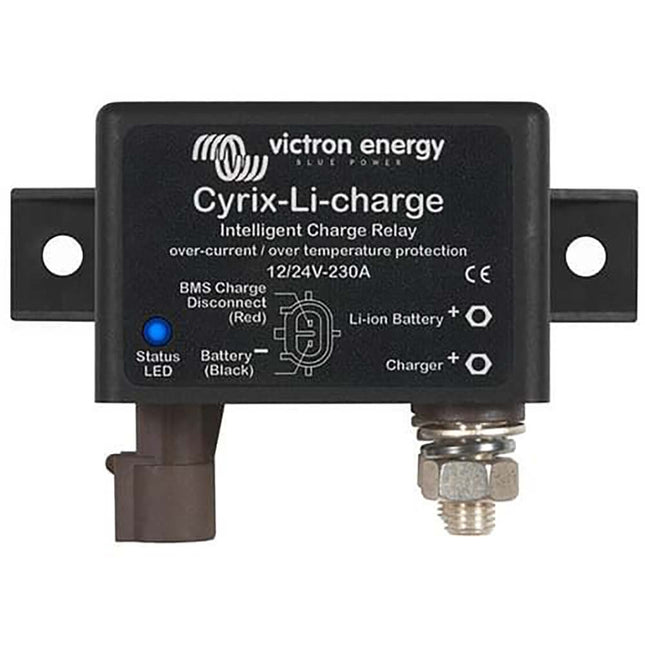

CYRIX-LI-CHARGE 12/24-120A Intelligent Charge Relay Cyrix LI ChargeThe Cyrix Battery Combiner is a microprocessor-controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged) and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

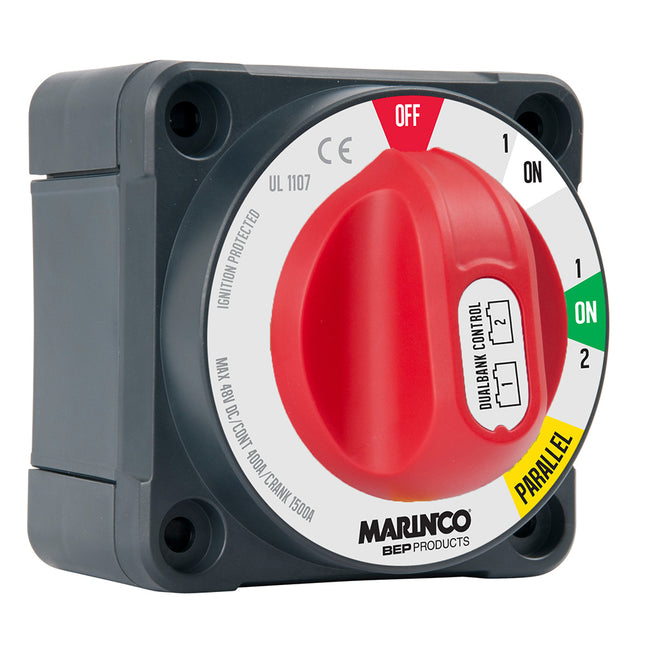

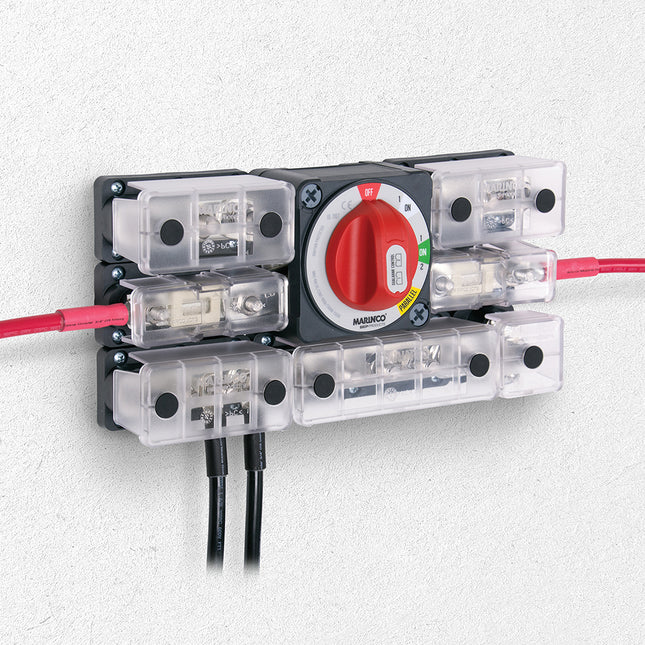

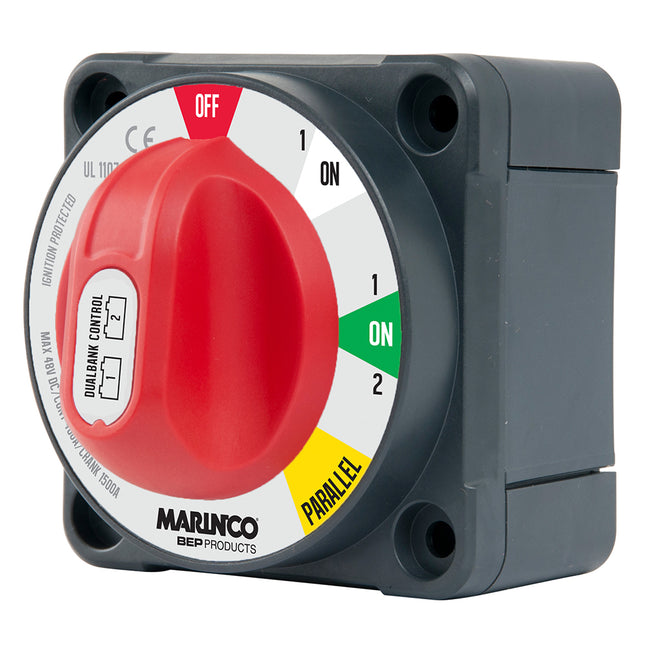

Pro Installer 400A Dual Bank Control Switch - MC10Another addition to our multi award winning Pro Installer EZ Mount range, the innovative Dual Bank Control switch is like 3 switches in one, House, Start, and Emergency Parallel. Offering easy intuitive control for the boater, the Dual Bank Control switch features a unique isolated-On position which allows use of house loads and VHF radio if the engine needs to be electrically isolated, or allows the engine to be isolated during servicing while still providing power to house loads (for lighting, stereo, fridge etc). For boats or vehicles with single Engine and House battery bank, Dual Bank Control allows the use of optimized battery banks for their respective loads; an appropriately sized deep cycle bank for House loads, and thin plate starting batteries for the Engine. Further, sensitive electronics are isolated from starter motor induced voltage spikes because House and Engine loads are separated during normal operation, unlike Selector battery switches. As easy as 1, 2, 3, these revolutionary EZ Mount battery switches allow you to wire from the front for the easiest surface mounting. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Tested to UL1107 ignition protection, CE Tinned copper 10mm (3/8 inch) studs Stainless steel washers and nuts Fiber reinforced plastics 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking (cable size to achieve ratings 120mm}, 4/0, smaller cable size will reduce the Amp rating) Waterproof to IP67 Same interconnection height as Pro Installer Removable knob allows isolation during servicing 3 removable side plates for protection Industry standard 3.85 x 3.85 inch footprint For surface mounting only Each Pro Installer battery switch is fully tested for pressure sealing, rotation force and electrically load tested SpecificationsMounting: Surface, Rear or FrontVoltage: 48v DC (for 12-48v systems, both banks must be same voltage)Rating: 400 Cont / 600 Inter / 1500 CrankDims: 3.85" x 3.85" x 3.62"Operation: 1, 1/2, Parallel, OffStud: 4x 10 mm (3.8")WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Lockable: No Positions: 1-1/2-Parallel-Off Continuous Amperage: 400a Box Dimensions: 4"H x 7"W x 8"L WT: 1.2 lbs UPC: 843687007807 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Remote Operated Battery Switch, 275A ContThe MD range of battery switches allow you to install the battery switch very close to the battery, to remotely manage the increased electrical loads found on today's boats. This reduces cable lengths and sizes, providing significant savings in expense and weight of copper battery cable. They are ideal for remote isolation of bow and stern thrusters. Remote operation Battery switch can be mounted alongside battery, reducing cable lengths and cable sizes. (Large cost and weight saving in copper cables) Reduced installation labor due to shorter battery cable runs Manual override option to meet CE/ABYC requirements Power Draw with switch off: 12mA LED status identification for remote control switch Same capacities/specifications and mounting options as standard BEP battery switches Uses interchangeable labeling system (Item # 713 or 715) SpecificationsLxWxH: 2.7" x 2.7" x 4"Rating (A DC) Cont: 275Rating (A DC) Inter: 455Rating (A DC) Crank: 1250Voltage (V DC): 9.5-32Function: On/OffStud Size: 2x (3.8"/10mm)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

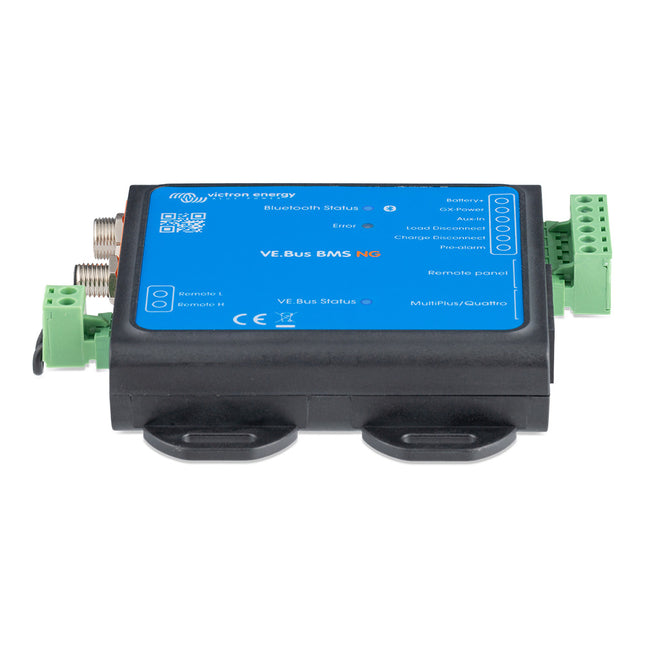

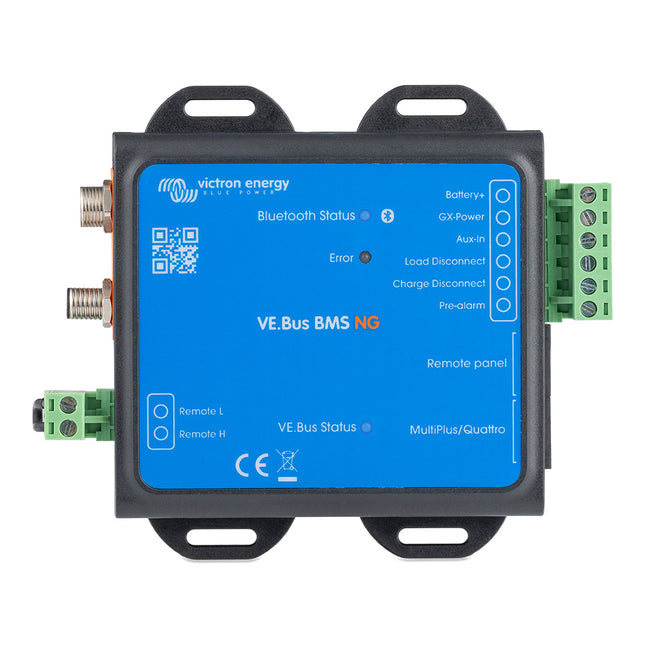

VE.Bus BMS NGThe VE.Bus BMS NG is an all-in-one Battery Management System (BMS) for Victron Lithium NG batteries (not compatible with Lithium Battery Smart batteries), designed for systems with Victron inverters or inverter/chargers using VE.Bus communication. It monitors and protects the batteries against overvoltage and under-voltage of any individual cell, and also against over-temperature or under-temperature conditions.With built-in Bluetooth, it connects directly to all lithium NG batteries in the system for central monitoring via VictronConnect. It also receives current and state of charge data directly from the batteries, so there’s no need for a separate SmartShunt.The lithium NG batteries can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems. A maximum of 50 batteries can be used in 12V or 24V banks, and 25 batteries in 48V banks, enabling up to 192 kWh (12V), 384 kWh (24V), and 128 kWh (48V) of storage. Multiple Lynx Smart BMS units can be paralleled to expand capacity and ensure redundancy.Features: Bluetooth Smart: The VE.Bus BMS NG includes Bluetooth Smart for wireless configuration, monitoring, and firmware updates via the VictronConnect App. Instant Readout shows key data such as SoC, battery temperature, warnings, and alarms directly in the device list, without needing to connect. Load disconnect output: Controls the remote on/off input of a BatteryProtect, inverter, DC-DC converter, or other loads with remote on/off functionality to prevent deep discharge. Charge disconnect output: Controls the remote on/off port of chargers such as the Smart IP43 Charger, a Cyrix-Li-Charge relay, a Cyrix-Li-ct Battery Combiner, or a BatteryProtect, to prevent overvoltage. Pre-alarm output: Provides early warning for low battery voltage before disconnecting loads. Can drive a relay, LED, or buzzer. Remote on/off control: Allows external control of both load and charge disconnect outputs. LED indicators: Includes a blue LED for Bluetooth status and a red LED for warnings and errors. Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

L Solenoid Switch - 12-24VDC - 250AFeatures: Hermetically sealed contacts / vaporproof Ignition protected - safe for installation aboard gasoline powered boats Activated by an ON-OFF switch mounted anywhere Integrated coil control minimizes heating and amperage draw 450 Amp Class Designed for 12 or 24 Volt systems Ignition protected -- safe for installation aboard gasoline-powered boats Activated by a low amperage ON-OFF switch mounted anywhere Specifications: Control Circuit Connection: 20 AWG Tinned Wire Nominal Voltage: 12V DC / 24V DC Coil Function: Normally Open Mounting: #10 Operating Amperage Current: 3.6A when changing state Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V Terminal Stud Torque: 90 in-lb (10.17 Nm) Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size Cranking Rating 30 sec: 1,000A / 1000A DC Contact Form: SPST-NO Input Voltage: 9-36V DC Inrush Rating: 0.25 sec (10 repeats): 2000A Switching Cycles: 1,000,000 Terminal Stud: Serrated Flange Nut Terminal Stud Length: 0.66" (16.76mm) Terminal Stud Size: 5/16" (M8) Weight: 1.00lb (0.45 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Continuous Amperage: 450a Box Dimensions: 3"H x 4"W x 7"L WT: 1 lbs UPC: 632085090128 Owner's Manual (pdf)

Read more less

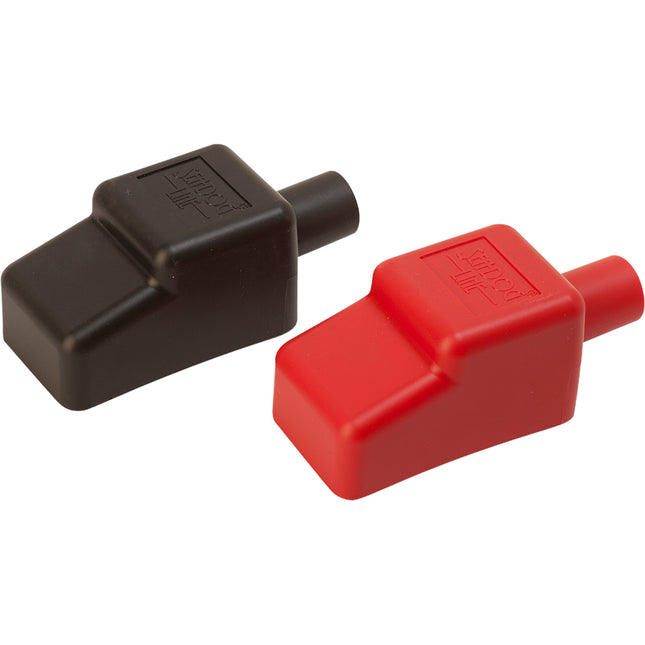

Battery Terminal Covers - Red/Back - 1/2" These Battery Terminal Covers are designed to insulate integral marine wing nut terminals protecting battery cables from corrosion and shorting. Constructed of injection molded PVC. These covers satisfy USCG and ABYC requirements for the prevention of accidental grounding of battery terminals. Color coded to avoid polarity misidentification. Will fit most marine batteries as well as automotive batteries using add on marine terminals. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Battery Terminal Covers - Red/Black - 5/8" These Battery Terminal Covers are designed to insulate integral marine wing nut terminals protecting battery cables from corrosion and shorting. Constructed of injection molded PVC. These covers satisfy USCG and ABYC requirements for the prevention of accidental grounding of battery terminals. Color coded to avoid polarity misidentification. Will fit most marine batteries as well as automotive batteries using add on marine terminals. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

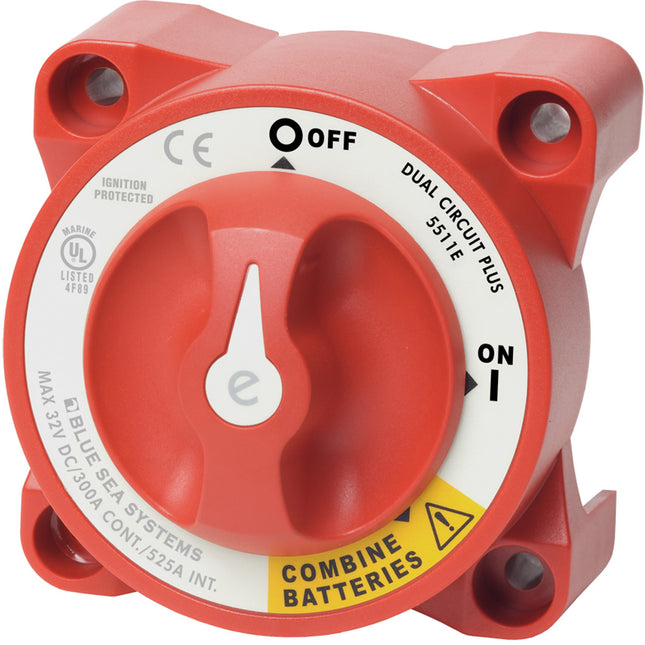

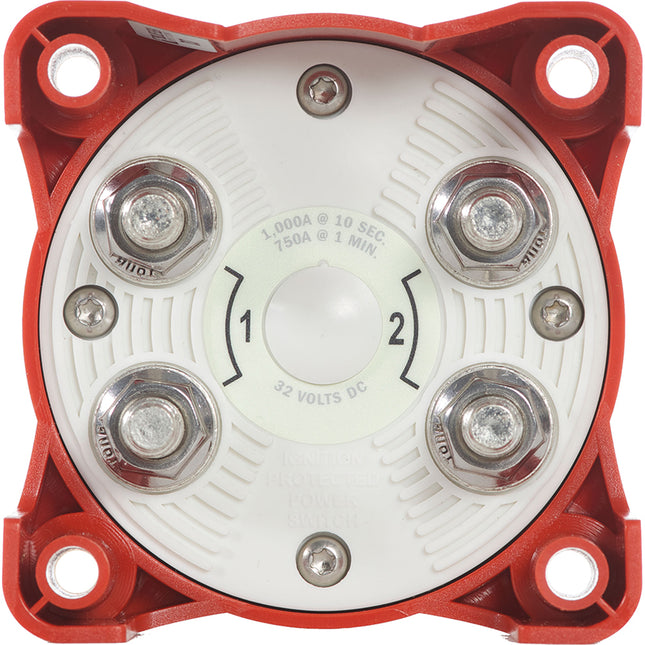

5511eDual Circuit Plus Battery Switch CE Marked Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Meets American Boat and Yacht Council (ABYC) requirements for battery switches 3/8" - 16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 1 AFD: No Continuous Amperage: 600a Box Dimensions: 3"H x 6"W x 9"L WT: 1.2 lbs UPC: 632085551155 Owner's Manual (pdf)Brochure (pdf)

Read more less

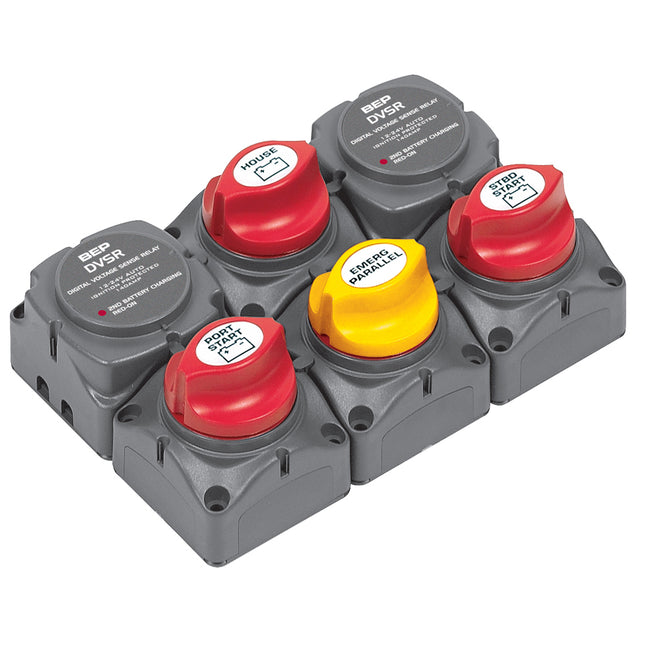

Battery Distribution Cluster f/Twin Outboard Engine w/Three Battery Banks The 717-140A-DVSR is designed for twin engine installations. It allows the port engine to charge both the port start battery and the house battery when the port VSR is engaged. It also allows the starboard engine to charge both the starboard start battery and the house battery when the starboard VSR is engaged. This gives you a combined charge from two engines into the house battery until the voltage regulators on both engines control the charge. It also allows you to charge the house battery if steaming on one engine.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

DC Power Connector - PlugBattery Tender® Black DC Power Connector L-Shape Plug - an onboard connector for DC to DC connections. Perfect for battery connections to trolling motors, navigational electronics, or any marine DC accessory. Unique screw and lock device provides a positive connection that avoids vibration and water incursion.Features: Includes L-Shape Plug ONLY.  Please refer to part number 027-0004-KIT for the DC Power Connector.  Designed for 12V through 48V two-wire DC applications. Color: Black Dimensions: Depth: 3.1"- Height: 1.9"- Width: 2.3" Warranty: 2 Year

Read more less

DC Power Connector - ReceptacleBattery Tender® Black Power Connector Receptacle is an onboard receptacle for DC to DC connections. Designed for 12V through 48V two-wire DC applications. The unique silver-plated solid copper alloy electrical contacts and high-impact UV-protected glass-reinforced thermoplastic housing with a lock device provide a positive connection that avoids vibration and water incursion. Come with all stainless-steel hardware. Perfect for battery connections to trolling motors, navigational electronics, or any DC accessory.

Read more less

701 Contour Battery Master SwitchLabel Set (12 Labels) for non-standard labeling.

Read more less

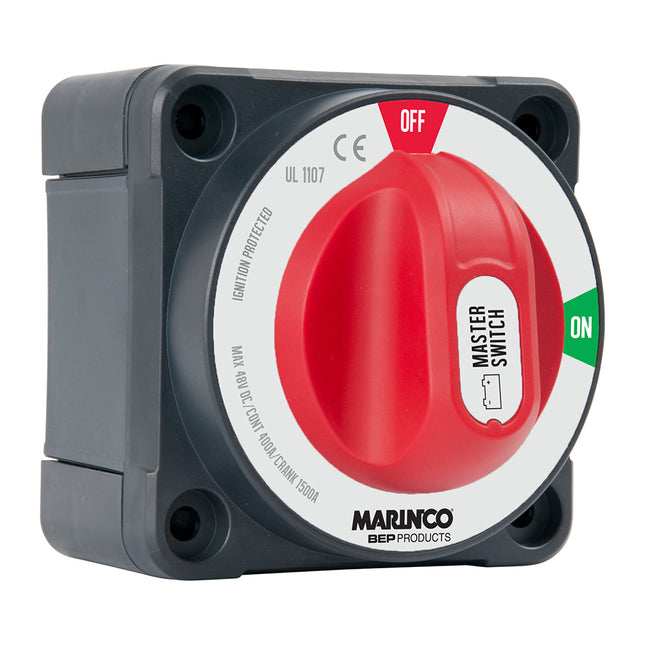

Pro Installer 400A EZ-Mount On/Off Battery Switch - MC10As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front. Never has installation been so easy and cabling so accessible. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. The outstanding performance and features of this powerful new generation battery switch appeal to both the installer and end user. All ratings, footprints and features of the EZ-Mount switch match the high quality of our standard switches.Features: Tested to UL1107 ignition protection, CE Tinned copper 10mm (3/8") studs Stainless steel washers/nuts Fiber reinforced plastics 400A Continuous / 600A 5 mins Intermittent / 1500A 10 secs Cranking Waterproof to IP66 Same interconnection height as Pro Installer Removable knob allows isolation during servicing 3 removable sideplates for protection Industry standard 3.85" x 3.85" footprint SpecificationsMounting: Surface OnlyVoltage: 48v DC (for 12-48v systems)Rating: 400 Cont / 600 Inter / 1500 CrankDims: 3.85" x 3.85" x 3.62"Operation: On/OffStud: 2x 10 mm (3.8")WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

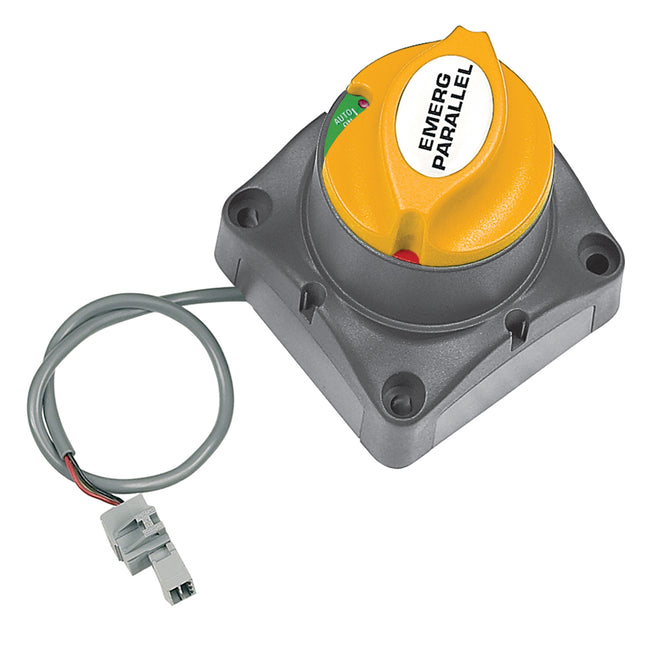

Emergency Parallel Switch - 12/24V - 275A This Motorized Switch offers remotely activated, high current, emergency parallel connection suitable for emergency starting of large engines (up to 2500A for 10 seconds).  The emergency parallel functionality is conveniently operated via a momentary button on the dash, which when activated, will parallel the batteries for 10 minutes.  Once the 10 minutes has passed, the switch turns off, removing the risk of start batteries becoming flattened following a parallel switch being inadvertently left on.  Designed and constructed for the harsh marine environment, utilizing tinned copper conductors, stainless steel nuts, and high temperature, fiber reinforced plastics to ensure longevity.  The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted. Features: 12/24 volt operation (both battery banks must be same voltage) Manual override option 10 minute remotely activated emergency parallel function (no voltage sensitive function) Technical Specifications: Volts - 12/24V Rating - 275A Dimensions (L x W x H) - 2.7" x 2.7" x 4" In the Box: Parallel Switch  Instruction manual *Sold as an Individual WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Lockable: No Positions: 2 Continuous Amperage: 275 Box Dimensions: 3"H x 3"W x 4"L WT: 0.8 lbs UPC: 843687000655

Read more less

Heavy Duty Battery SwitchesIgnition ProtectedFor use with 6, 12, 24 and 32 volt marine electrical systemsCapacity - Rated 450 AMPS continuous,1200 AMPS intermittent (15 seconds on, 5 minutes off)Heavy Duty Battery Disconnect Switchw/ Alternator Field Disconnect Specifications: AFD: Yes Lockable: No Continuous Amperage: 450a Box Dimensions: 4"H x 7"W x 8"L WT: 2.25 lbs UPC: 085226047862 Quick Guide (pdf)

Read more less

2145Pole/Throw: SPDTAction: (ON) OFF (ON)Features:Vibration, shock, thermoshock, moisture and salt spray resistantWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Throw/Pole: SPDT Box Dimensions: 1"H x 2"W x 3"L WT: 0.1 lbs UPC: 632085021450

Read more less

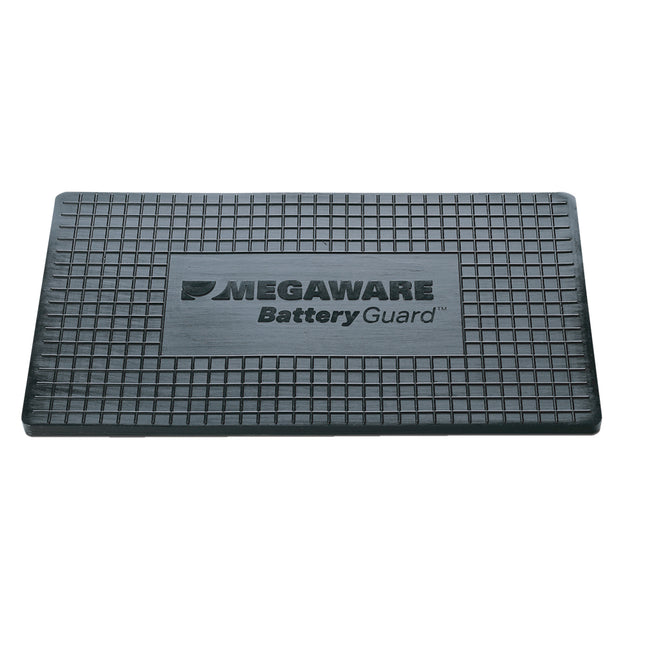

BatteryGuard™Prolong the lifeof your battery. Maximize your battery's performace. Excessive shock and vibration are two of the leading causes for battery failure. Megaware BatteryGuard™ sits under your battery and absorbs the gravity shock caused by excessive vibration and up and down bounce.Features: Reduces up to 80% of the G-shock caused by excessive shock and vibration Protect against premature battery failure Fits up to Group 31 batteries Fits virtually any size battery Great for boats, automobiles, ATVs, Trailers or anywhere shock and vibration can damage a battery Can easily be trimmed to custom shapes or sizes Save money by protecting your battery investment Quick Guide (pdf)Brochure (pdf)

Read more less

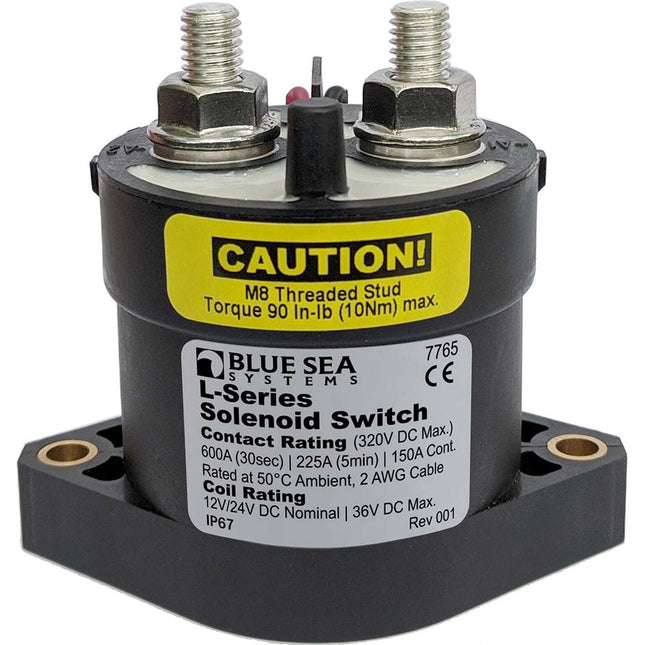

7765 L-Series Solenoid Switch - 150A - 12/24V DCIdeal for switching DC subpanels, thrusters, windlass, inverters, and other medium-amp DC loads.Features: Continuous duty, SPST - Normally Open Hermetically sealed contacts Activated by a remote ON-OFF switch 8230 (sold separately) Coil control circuit minimizes heating and amperage draw

Read more less

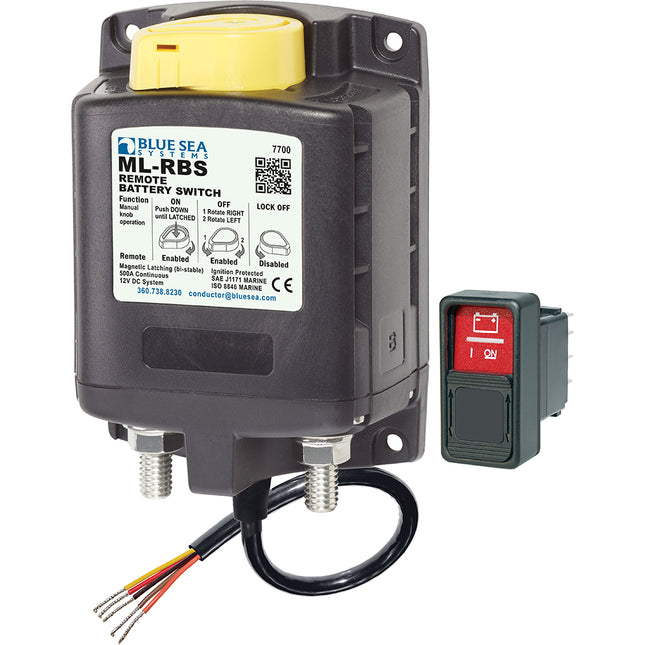

7700 Includes ML-Series Remote Control Contura Switch 2145 Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch Silver alloy contacts provides high reliability for switching live loads 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit identification WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)Brochure (pdf)

Read more less

Horizontal Battery Distribution Cluster f/Single Engine w/Two Battery BanksThe 716-H-140A-DVSR is an ideal replacement for a battery selector switch. Just remove the selector switch and connect the existing wires to a 716 cluster, no extra wires are required for a fully automatic battery management system. To be used in a single outboard dual battery bank system or in a single alternator inboard engine dual battery bank system. No more flat start batteries Electronics protection from harmful engine start spikes The 716 cluster is for use on charging systems up to 150A The 716 cluster replaces battery isolator systems Two battery banks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

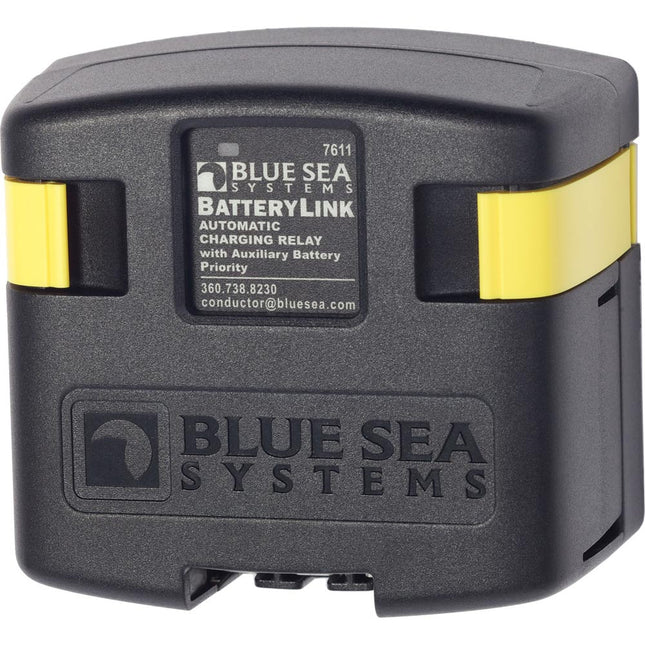

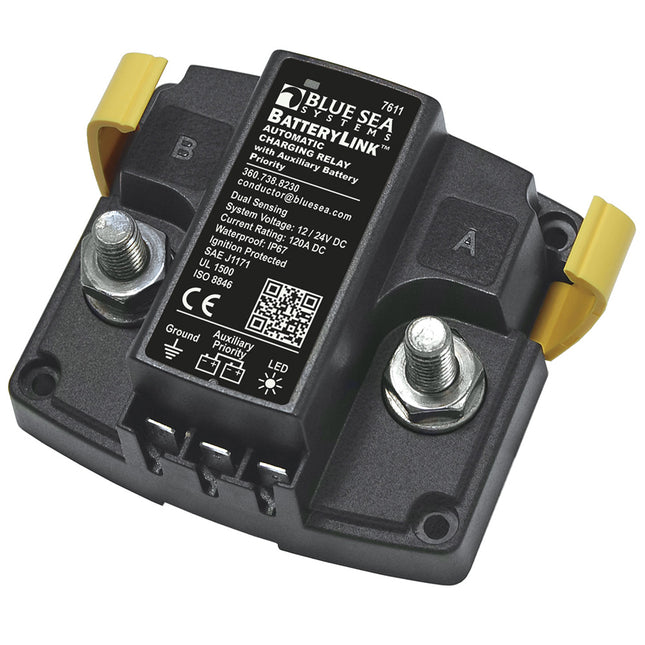

7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery ChargingFeatures: 120 Amp continuous rating 12/24V DC auto ranging voltage input Senses charging on two battery banks Side and bottom knockouts for cable connections Clip-on cover insulates terminal connections 7/8" (22 mm) stud length to accept multiple cable terminals Integrated LED indicates ACR status 1/4" x .032" male quick connect terminals for ground and optional features Specifications: Intermittent Rating: 5 min.: 210 Amps Continuous Rating: 120 Amps Nominal Voltage: 12/24 Volts DC WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Continuous Amperage: 120a Box Dimensions: 4"H x 7"W x 9"L WT: 1.25 lbs UPC: 632085076115 Owner's Manual (pdf)

Read more less

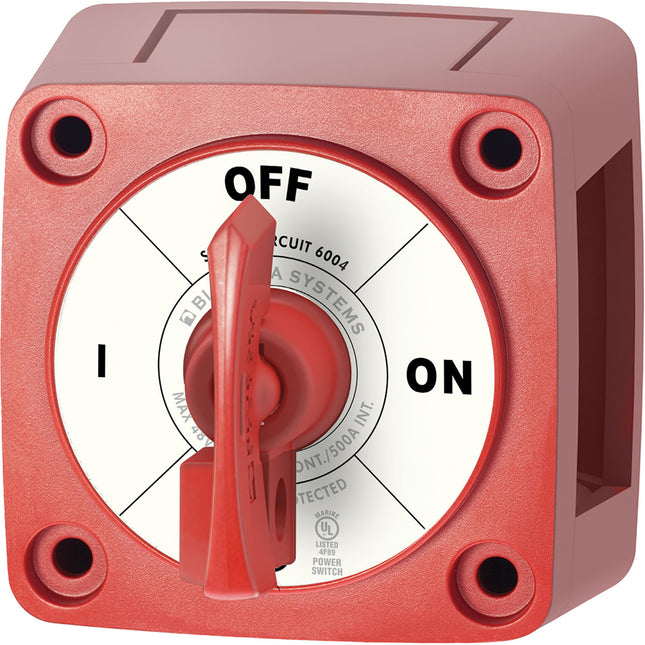

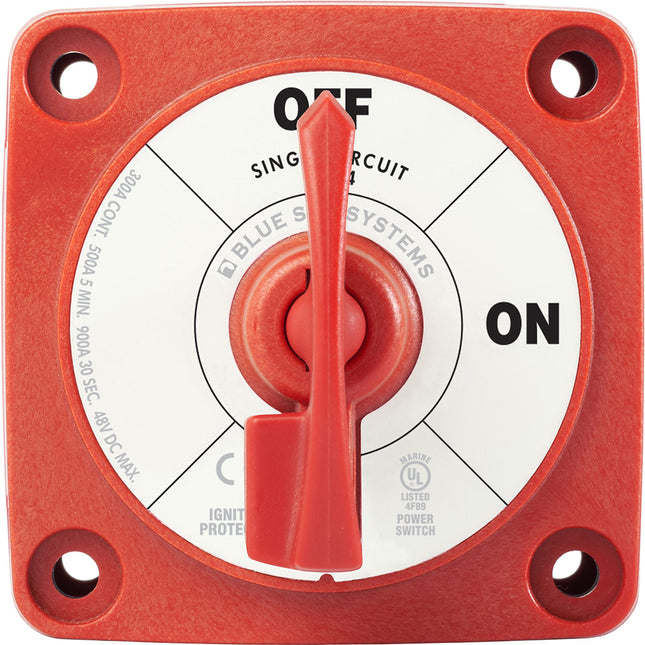

Single Circuit ON-OFF with Locking Key - Red300 Amps continuous rating for outboards and small gasoline or diesel engines Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept 3/8" (M10) ring terminals 7/8" (22 mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time One-piece stainless flange nuts ensure safe and secure connections Isolating cover protects rear contacts Breakout tabs allow wire access in any direction Specifications: Switch Type: Single Circuit ON-OFF Color: Red Maximum Voltage: 48V DC Continuous Rating: 300A Intermittent Rating: 500A Cranking Rating 30 sec: 900A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

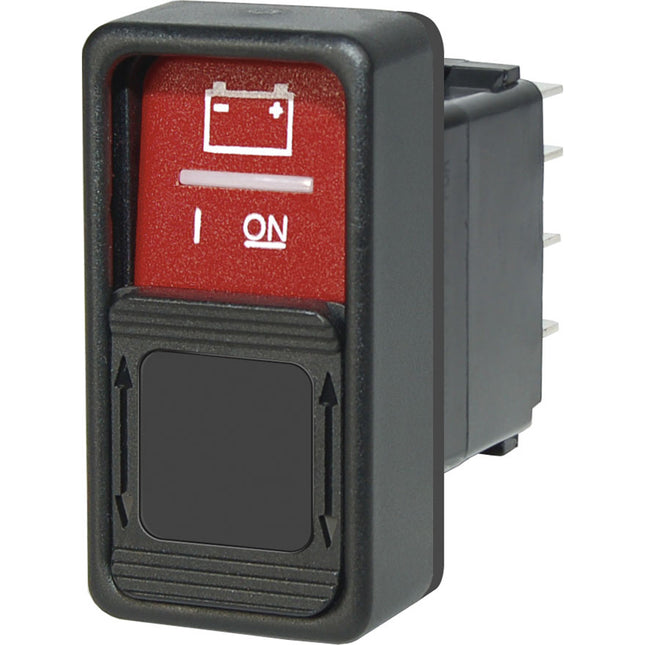

2155 - Remote Control Contura Switch  with Lockout Slide Vibration, shock, thermoschock, moisture and salt spray resistant Lockout slide reduces the risk of accidental switching Certifications: Meets UL 1500 and ISO 8846 external ignition protection requirements IP67 - Temporary immersion for 30 minutes Technical Specifications: Amperage Maximum Operating - 20A @ 12V DC and 15A @ 24V DC Amperage Operating Current - 18mA Pole/Throw - SPDT Lighting - LED rated for a 1/2 life of 100,000 hours Mounting Hole (H x W) - 1.45" x .83" (36.83" x 21.08") *Sold as an IndividualWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

9001e e-Series Battery Switch Selector Features: Make-before-break contact design allows switching between battery banks without power interruption CE Marked Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Meets American Boat and Yacht Council (ABYC) requirements for battery switches 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 2 AFD: No Lockable: No Box Dimensions: 3"H x 6"W x 9"L WT: 3.2 lbs UPC: 632085090012 Owner's Manual (pdf)Brochure (pdf)

Read more less

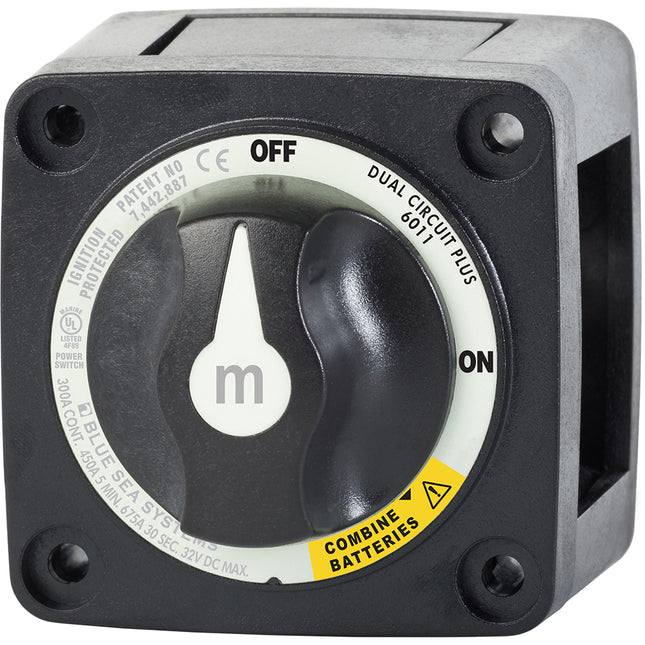

m-Series Mini Dual Circuit Plus Battery Switch - BlackSimultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.Switch Type: tDual Circuit PlusColor:tBlackSwitch Positions:t3Battery Combine:tYesAlternator Field Disconnect: tNoMaximum Voltage:t32V DCContinuous Rating :t300AIntermittent Rating :t450A (5 min)Cranking Rating 10 sec: t1000ACranking Rating 1 min: t650ABattery Inputs:t2Cable Clearance For 4/0 AWG Cables:t1.12in (28.45 mm)Cable Size to Meet Ratings:t4/0 AWG (120mm²)Mounting Holes: tAccept #10 ScrewTerminal Stud Size:t3/8"-16 (M10)Terminal Stud Torque:t120 in-lb (13.56 Nm)Weight:t0.80lb (0.36 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Positions: 3 Continuous Amperage: 300a Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs UPC: 632085601126 Owner's Manual (pdf)

Read more less

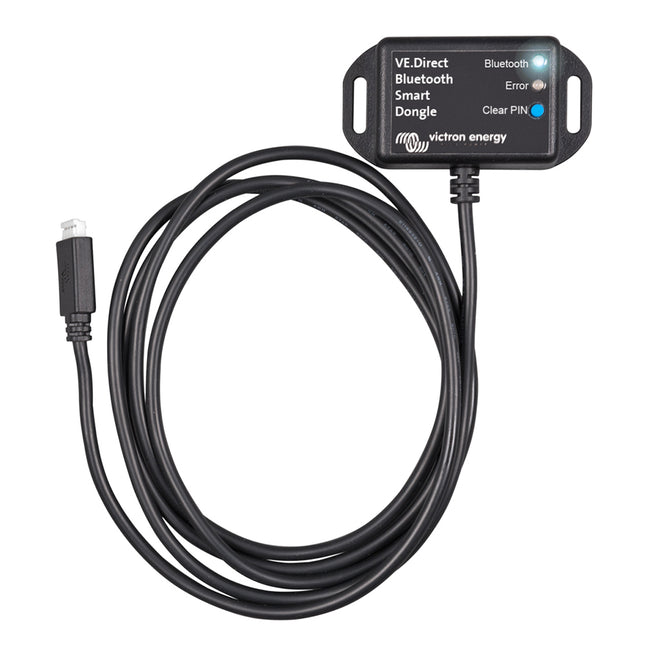

VE. Direct Bluetooth Smart DongleUsing the VE.Direct to Bluetooth Smart dongle you can display your BMV or MPPT information on iOS and Android devices, using the VictronConnect app. View information wirelessly such as battery status and solar panel power, plus other useful data. The dongle is able to read data from all products with a VE.Direct port, such as the BMV-70x series battery monitors, Phoenix Inverters with VE.Direct port, MPPT Solar Charge Controllers.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

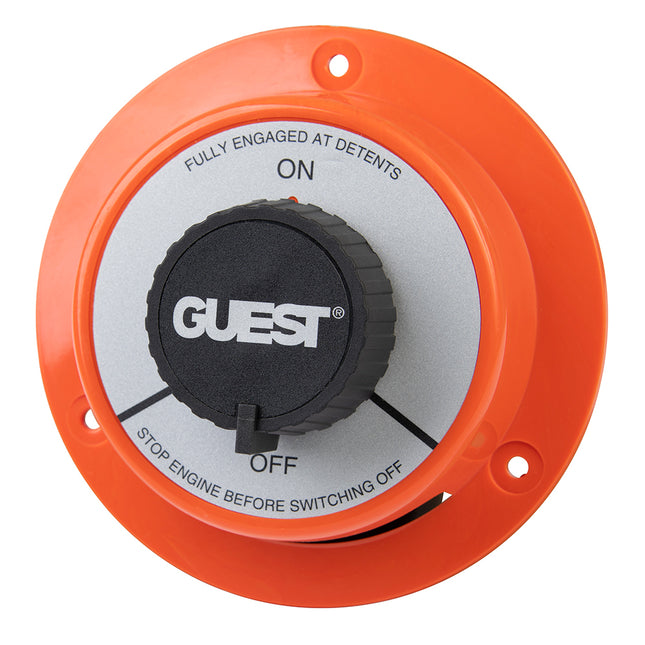

Battery On/Off Switch without AFD This battery switch can be used on 6, 12, 24 or 36V systems.Features: Polycarbonate case Surface mount Cable Lug Size: 3/8" Dimensions: 5.50" x 2.63" WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

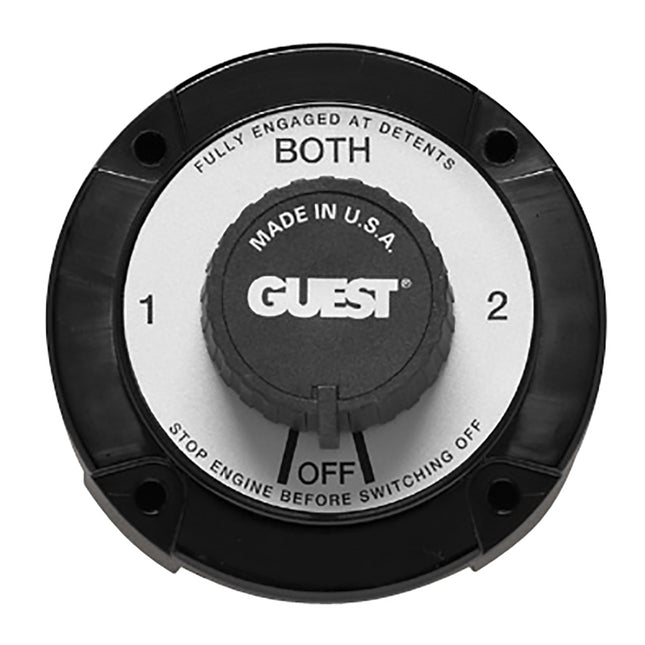

Battery Selector SwitchPart No. 2111AFeatures New ergonomically styled turn knob provides easy On/Off switching Updated color scheme and graphics make it easier to determine switch status Longer stud lengths for improved assembly and easier cable routing Built with heavy-duty copper sweep contacts to ensure positive circuit control Rugged internal components protected by a tough, impact resistant polycarbonate housing that is impervious to the elements One year warranty WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

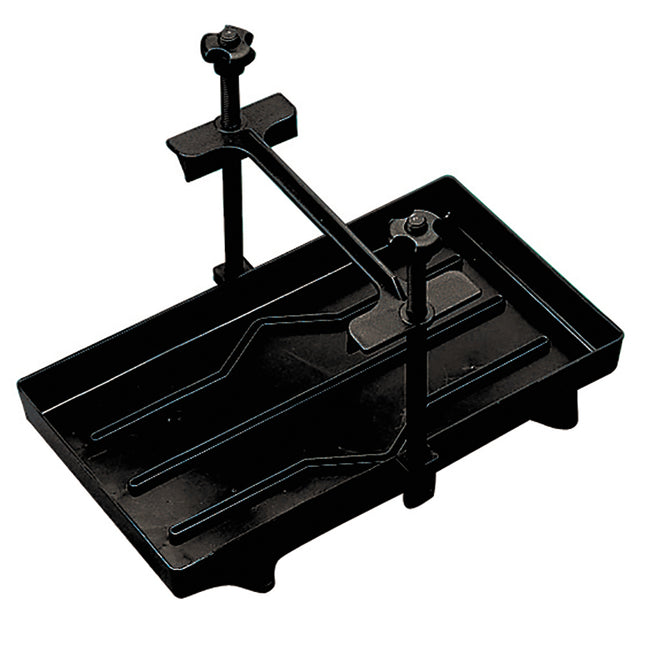

Battery Tray with Clamp for 24 Series Batteries Heavy duty Battery Tray for size #24 batteries. Includes screw down clamp and four 1/4"x1" PH screws with washers. Injection molded polypropylene construction.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Mini Contour Battery Disconnect Switch - 275A ContinuousThis switch offers a number of unique features, the highlight being the Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob can be removed by switching to an counterclockwise 45 degree position. This control knob also features an interchangeable labeling system allowing a full range of applications (Item # 713 or 715). Three removable side plates provide access of up to 1/0 cables. The rear cover insulating the rear terminals against any short circuits. This ensures that the switch meets ABYC requirements. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100°C (212°F) above the ambient temperature. The continuous and intermittent ratings are tested at 110% of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.Features: Can be either surface or recess mounted by cutting a 2.1" (52 mm) hole Available with house knob (OEM # 701B-HB) or with chassis knob (OEM # 701B-CH) Tin-plated copper studs and nuts Ignition-protected WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

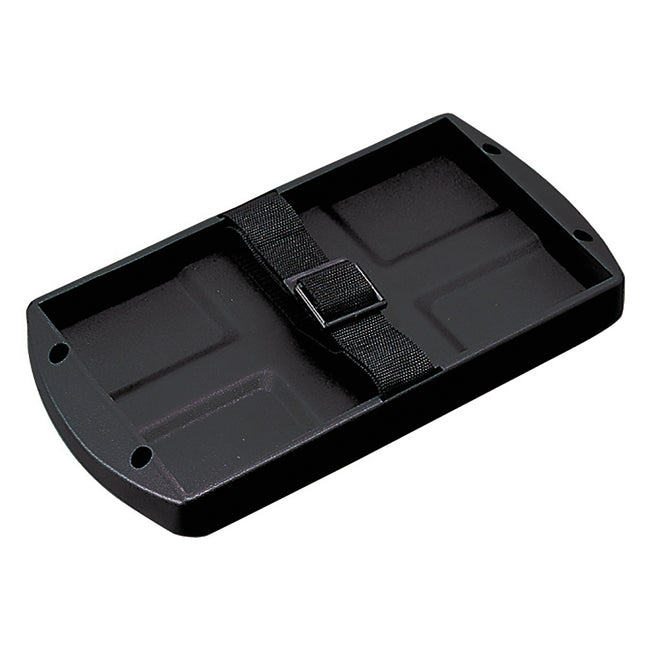

Battery Tray with Straps for 24 Series Batteries Heavy duty Battery Tray with Strap for size #24 batteries. Includes hold down strap with a quick release buckle and four 1/4"x1" PH screws with washers. Injection molded polypropylene construction.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Battery Tray with Straps for 27 Series Batteries Heavy duty Battery Tray with Strap for size #27 batteries. Includes hold down strap with a quick release buckle and four 1/4"x1" PH screws with washers. Injection molded polypropylene construction.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

DC Power Connector - Plug & ReceptacleBattery Tender® Black Power Connect Trolling Motor D/C Connector is an onboard connector for DC to DC connections. Perfect for battery connections to trolling motors, navigational electronics, or any DC accessory. The unique screw and lock device provides a positive connection that avoids vibration and water incursion.More Power, Less WeightUpgrade your marine vehicle’s power supply and electrical flow with the Battery Tender® DC Power Connector for trolling motors, navigational electronics, and other DC accessories. Weighing just over 7 ounces, our small 2-pin connector is rated at 80 amps of continuous service, allowing for a more powerful power source without weighing you down. Built to Last Engineered with only the best materials, we have the utmost confidence in our trolling motor plug's ability to handle the rigors of the water. We’ve even included a 5-year warranty that covers material and workmanship defects for your peace of mind. The internal and external hardware feature corrosion-resistant stainless steel with silver-plated copper contacts to last longer and be trusted to get the job done time and time again. Features: Easy configuration  For 12, 24, 36, and 48 Volts Applications:Receptacle, plug, gasket, and cable cover screws (2)Specifications: Voltage Rating: 0-48VDC (UL), 0-48VDC (CSA) Current Rating Amperes (with a 6-AWG wire connection): 80 amps (UL), 40 amps (CSA) Volts: DC only Housing Flammability: UL94HB Class (3) (4) Connector Weight: 0.45 lbs Connector Dimensions (inch): 2" X 3.25" X 3.5" Total Kit Weight: 0.05 lbs Receptacle Connector Dimensions (inch): 1.5" X 3" X 1" Quick Guide (pdf)

Read more less

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/ 8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desiredSpecificationsControl Circuit Connection:Tinned WireNominal Voltage:12V DCCoil Function: Auto releasing Mounting:t#10Amperage Operating Current:8mA when OFF/13mA when ONAmperage Operating Current when changing state:t<7A (40 ms)Control Circuit Voltage:t10.1 to 16.5V DCContinuous Rating: 500AIntermittent Rating: t700A (5 min)Cranking Rating: 10 sec 2500ACranking Rating: 1 min 1100AMinimum Operating Temperature:t-10° CMaximum Operating Temperature:t50° CCable Size to Meet Ratings:t2x (4/0)Live Current Switching:t300A @ 12V DC 10,000 CyclesMaster Control Switch Capability:tYesMechanical Endurance:t100,000 CyclesSwitching Cycles:t100,000Terminal Ring Diameter Clearance:t1.18" (29.97mm)Terminal Stud Length:t0.875" (22.23mm)Terminal Stud Size:t3/8-16 (M10)Terminal Stud Torque:t140 in-lb (15.82 Nm)Weight:t1.75lb (0.79 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Lockable: Yes Continuous Amperage: 500a Box Dimensions: 3"H x 7"W x 12"L WT: 2.1 lbs UPC: 632085077129 Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart 12/12-18A (220W) Isolated DC-DC Charger or Power SupplyThe Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.Bluetooth Smart Enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product Fully programmable Battery charge algorithm (configurable) or fixed output.  Smart Alternator Compatibility: engine running detection mechanism Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged For lithium batteries, the absorption time is fixed; the default is 2 hours Alternatively, a fixed output voltage can be chosen Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).Remote On/OffA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.High Temperature ProtectedThe output current will reduce at high ambient temperatures.IP43 ProtectionWhen installed with the screw terminals oriented downward.Screw TerminalsNo special tools are needed for installation. Input fuse (not replaceable) *Input fuse (not replaceable) Specifications: Input Voltage Range: 8-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 18 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 25 A Short Circuit Output Current: 40 A Cont. Output Power at 25 Degrees C: 280 W Cont. Output Power at 40 Degrees C: 220 W Efficiency: 87 % No Load Input Current (2): < 80 mA  Standby Current: Less than 1A Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth  Galvanic Isolation: 200 VDC between input, output, and case  Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)  Humidity: Max. 95 % non-condensing  DC Connection: Screw terminals  Maximum Cable Cross-Section: 16 mm²  AWG6  Weight: 1,8 kg (3 lb)  Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)  Protection Category IP43 (electronic components), IP22 (connection area)  Safety Standards: EN 60950 Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charging Banks: 1 Charger Output Voltage: 12v Charger Output - Amps: 18a Charger Input - Voltage: 12v Box Dimensions: 4"H x 6"W x 9"L WT: 2.95 lbs UPC: 8719076046066 Quick Guide (pdf)Brochure (pdf)

Read more less

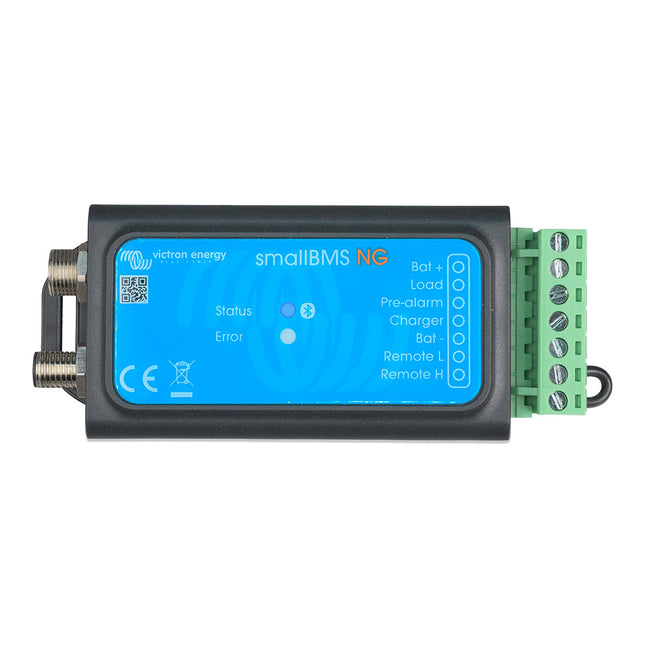

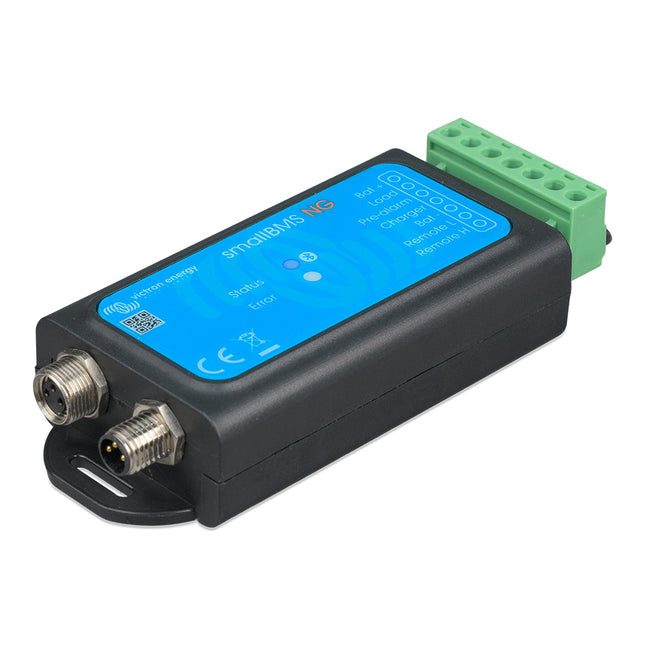

SmallBMS NGThe SmallBMS NG is an all-in-one Battery Management System (BMS) designed for Victron Lithium NG batteries (not compatible with lithium smart batteries). It monitors and protects the batteries by managing charge and load disconnects and providing pre-alarms for low battery voltage.The SmallBMS NG is a straightforward and cost-effective alternative to the VE.Bus BMS NG for applications that don’t require integration with Victron inverter/chargers. It provides essential lithium battery protection without the added complexity of VE.Bus communication is therefore not suitable for use with VE.Bus inverter/chargers such as MultiPlus and Quattro.With built-in Bluetooth, it connects directly to all lithium NG batteries in the system for central monitoring via VictronConnect. It also receives current and state of charge data directly from the batteries, so there’s no need for a separate SmartShunt.The lithium NG batteries can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems. A maximum of 50 batteries can be used in 12V or 24V banks, and 25 batteries in 48V banks, enabling up to 192 kWh (12V), 384 kWh (24V), and 128 kWh (48V) of storage. Multiple Lynx Smart BMS units can be paralleled to expand capacity and ensure redundancy.Features: Load disconnect output: Controls the remote on/off input of a BatteryProtect, inverter, DC-DC converter, or other loads with remote on/off functionality to prevent deep discharge. Charge disconnect output: Controls the remote on/off port of chargers such as the Smart IP43 Charger, a Cyrix-Li-Charge relay, a Cyrix-Li-ct Battery Combiner, or a BatteryProtect, to prevent overvoltage. Pre-alarm output: Provides early warning for low battery voltage before disconnecting loads. Can drive a relay, LED, or buzzer. Remote on/off control: Allows external control of both load and charge disconnect outputs. LED indicators: Includes a blue LED for Bluetooth status and a red LED for warnings and errors. Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

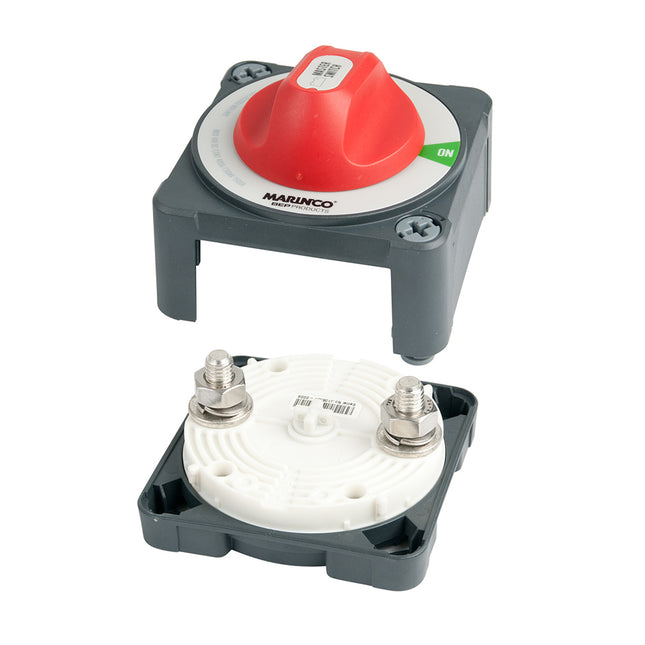

Pro Installer 400A Double Pole Battery Switch - MC10A powerful new generation battery switch with outstanding performance and features for both the installer and end user. Three mounting options: surface, rear panel, and front panel mounting, plus optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. Same industry standard mounting with On/Off operation. Used where positive and negative supplies must be isolated at the same time. SAFETY NOTE: BEP does not recommend this for switching house and start battery systems at the same time, for safety reasons. You may need to isolate your engine battery in an emergency, but not your house battery which typically powers the communicationsSpecificationsMounting: Surface, Rear or FrontVoltage: 48v DC (for 12-48v systems)Rating: 400 Cont / 600 Inter / 1500 CrankDims: 3.85" x 3.85" x 3.62"Operation: On/OffStud: 4x 10 mm (3.8")WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Lockable: No Positions: On/Off Continuous Amperage: 400a Box Dimensions: 4"H x 7"W x 8"L WT: 1.2 lbs UPC: 843687007746 Owner's Manual (pdf)Brochure (pdf)

Read more less

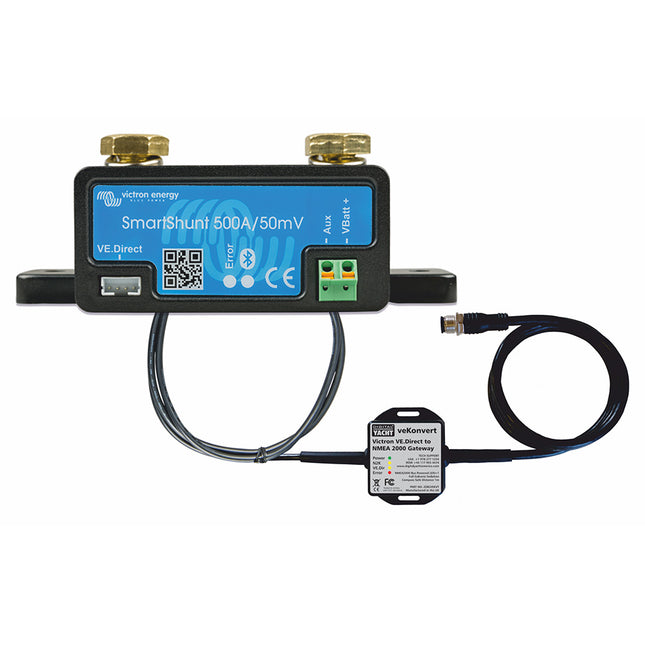

BM100 Battery Monitoring SolutionThe BM100 is a complete system comprising SmartShunt and the veKonvert NMEA 2000 interface. It is part of Digital Yacht’s iSeaSense range of NMEA 2000 boat instruments. With this solution, your multi-function display becomes a sophisticated battery and energy management system.FeaturesDigital Yacht’s BM100 battery monitoring system allows highly accurate DC voltage, current, and capacity measurements, enabling reliable monitoring of your boat’s battery and electrical system.Core to the system is the SmartShunt. It measures battery voltage and current. Based on these measurements, it intelligently calculates the battery’s state of charge and the time to depletion for the remaining charge. It also keeps track of historical data, such as the deepest discharge and average discharge current, as well as the number of charge and discharge cycles. The smart shunt can also monitor the voltage of a 2nd battery, typically dedicated to engine starting.The product is a collaboration between Victron Energy and Digital Yacht. The system utilizes Victron’s proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.The BM100 is part of a wider group of products now introduced by Digital Yacht that bring NMEA 2000 connectivity to Victron systems using the VE.Direct interface.Victron solar panel controllers (MPPTs) and battery monitors can now also interconnect to NMEA 2000 via the veKonvert interface.Monitoring the battery with the BM100 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. There’s also an optional battery temperature sensor available.The BM100 can also integrate with Digital Yacht’s other NMEA 2000 and wireless instruments, which offer hybrid NMEA 2000 and wireless display options.NMEA 2000 InterfaceThe system features an NMEA 2000 interface, so your navigation multi-function display or plotter can display all key parameters. Modern MFDs from leading manufacturers such as Garmin, Raymarine, Furuno, and Navico allow electrical battery data to be displayed via their NMEA 2000 interface. Alarms and alerts for low capacity and voltage can also be enabled.Bluetooth InterfaceThe BM100 also has a standalone wireless Bluetooth interface, so your mobile phone or iPad can connect and display current, voltage, capacity, additional historical data, state of charge information, and time to go based on remaining battery capacity.Specifications: BM100 solution comes as a complete package with SmartShunt and the veKonvert NMEA 2000 interface Bluetooth interface for setup and detailed analysis, including charge/discharge cycles, state of charge, remaining capacity, and historical data Use your phone/tablet and your NMEA 2000 devices for battery monitoring and management 500A SmartShunt included for the main battery system Monitor the voltage of a separate (eg starter) battery Universal NMEA 2000 gateway for Victron’s popular range of smart battery monitors/SmartShunt using the VE.Direct interface (see compatibility list in the FAQ tab) Enables electrical and battery monitoring and management on compatible multi-function displays (Raymarine, Garmin, Navico, Furuno, etc) Provides battery voltage, charge/discharge current, state of charge, and time to depletion based on a sophisticated algorithm Easy installation, plug ‘n play connectivity, and self-powering from the NMEA 2000 bus Supports alerts generated by the SmartShunt Supports multiple SmartShunts for multi-battery systems Also compatible with other VE.Direct products such as solar MPPT controllers Vekonvert Is Compatible with the Following Victron Products:BMV -700, BMV -702, BMV -700H, BMV-712 Smart, BMV-710H Smart, BMV-712 Smart Rev2, SmartShunt 500A/50mV, SmartShunt 1000A/50mV, SmartShunt 2000A/50mV, and All MPPT Charge ControllersNOTE: veKonvert is not compatible with Victron Chargers and Inverters. It should also not be plugged into the VE.Direct interfaces of any Victron "Consumers" such as Multiplus, Quattro, Cerbo, etc.

Read more less

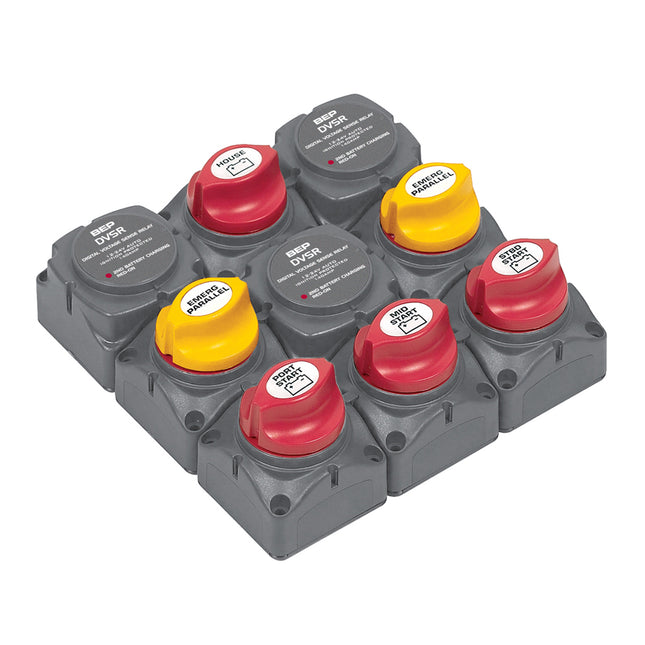

Battery Distribution Cluster f/Triple Outboard Engine w/Four Battery BanksBattery Dist Cluster Triple EngineThe 719-140A-DVSR was designed through popular demand for our 717-140A-DVSR cluster. This system is designed for triple outboard installations. Once again using multiple VSR's off each start battery giving combined charge from all 3 outboards into the house battery via VSR's.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

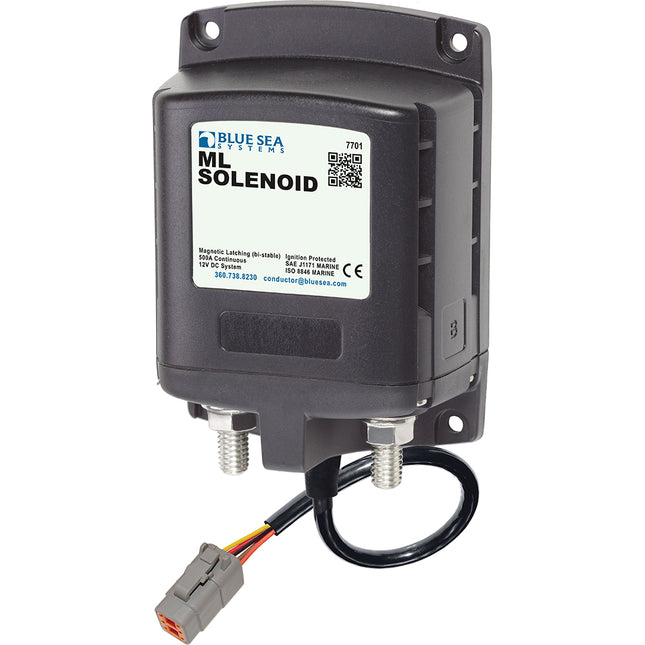

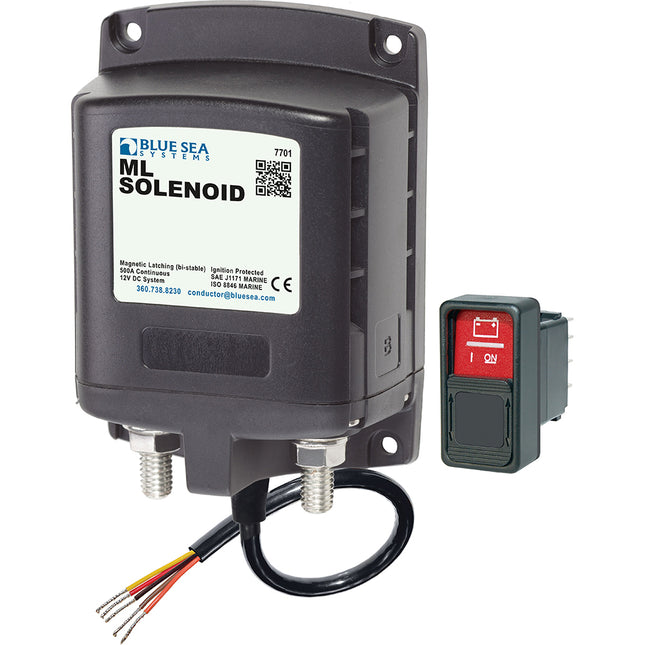

7701Manual Control: NoCoil Voltage: 12V DC 500 Ampere continuous rating for use as a remote battery switch for inboard gasoline or diesel engines, reducing long cable runs Magnetic latch only draws current when changing state of switch, drawing no current in "ON" or "OFF" state Silver alloy contacts provides high reliability for switching live loads Optional manual switch provides an added level of safety allowing control with or without power, and offering lockout capability for servicing 3/8" copper studs, using Blue Sea Systems superior one piece technology, suitable for 300 Amperes continuous rating and large cable connections WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)Brochure (pdf)

Read more less

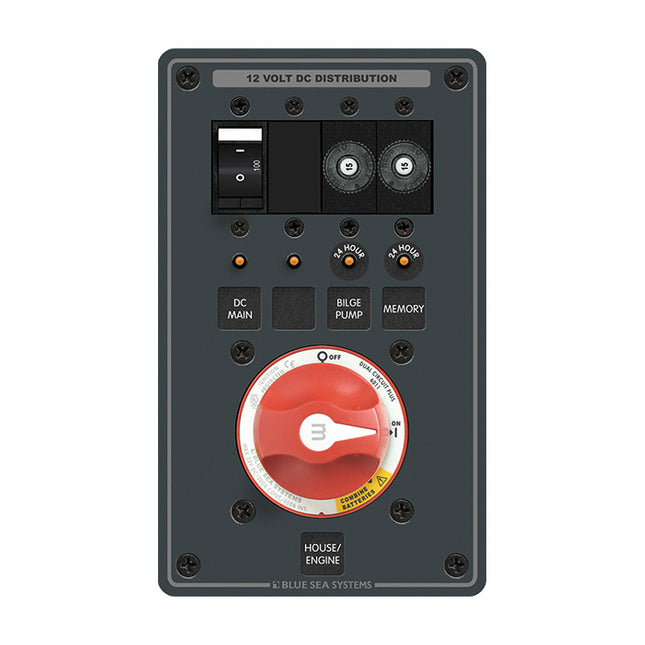

m-Series Dual Circuit Plus PN 6011(1) 100A C-Series Flat Rocker Circuit Breaker(2) 15A Push Button Thermal Circuit Breakers Designed for twin engine configurations Provides 24 hour circuit protection Provides main DC circuit protection in addition to high ampere load protection Protects electronics from sags and spikes caused by engine cranking Allows emergency cross connect between isolated battery banks Isolates the Engine circuit from the House circuit Simplifies battery switch operation Allows independent battery discharge Addition of an Automatic Charging Relay automates charging both batteries Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

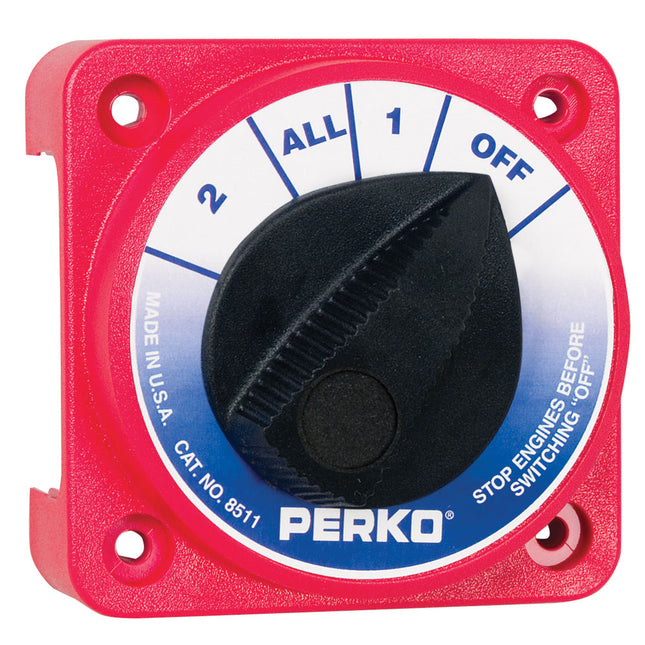

Compact Battery Selector & Main Disconnect Switches Polycarbonate Body with Brass Terminals Ignition Protected For use with 6 to 32 Volt Marine Electrical Systems Capacity - 315 AMPS Continuous, 450 AMPS 5 Mins. Intermittent Terminal Stud Size: 3/8" Width: 4" Height: 4" Depth: 3" Specifications: AFD: No Lockable: No Positions: 2 Box Dimensions: 3"H x 5"W x 8"L WT: 0.95 lbs UPC: 085226369230 Quick Guide (pdf)

Read more less

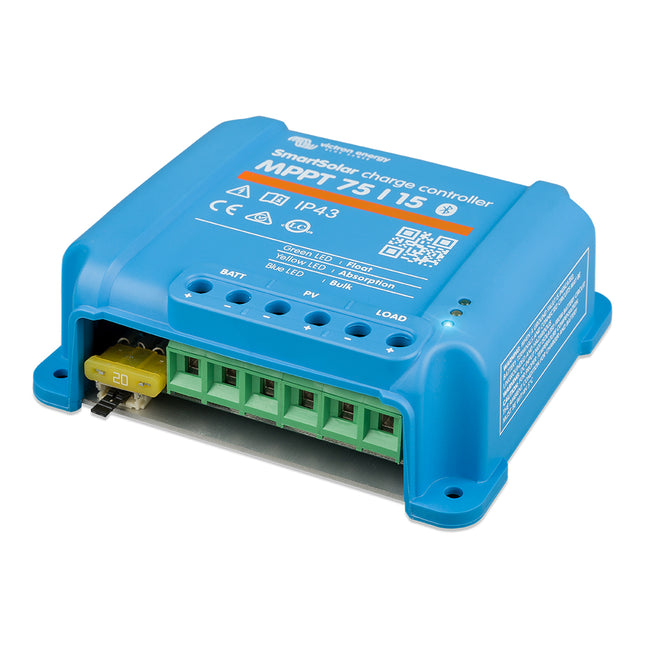

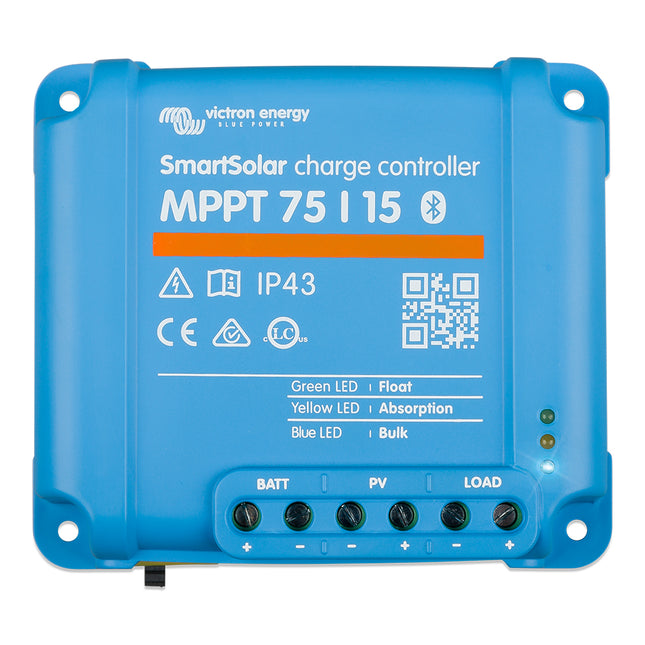

SmartSolar MPPT Charge Controller - 75V - 15AMPFeatures: Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.  VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices  Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.  Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.  Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.  Programmable battery charge algorithm See the software section on our website for details  Day/night timing and light dimming option See the software section on our website for details  Internal temperature sensor Compensates absorption and float charge voltage for temperature.  Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 18-75v Charger Output - Amps: 15a Charger Output Voltage: 12v/24v Charging Banks: 1 Portable: No Box Dimensions: 2"H x 6"W x 6"L WT: 1.35 lbs UPC: 8719076040804 Quick Guide (pdf)Brochure (pdf)

Read more less
