XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer with Temp f/HELIX® 7/8 MEGA SI Transom Mount, MEGA Down Imaging, 455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature. Compatible with: HELIX 7 CHIRP MEGA SI GPS G3/G4, HELIX 7 CHIRP MEGA SI GPS G3N/G4N. Features: Compatible with: HELIX 7 CHIRP MSI GPS G3, HELIX 7 CHIRP MSI GPS G3N, HELIX 7 CHIRP MSI GPS G4, HELIX 7 CHIRP MSI GPS G4N Cable Length:  20 Feet Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m) Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 7 Mounting Style: Transom Speed Included: No Imaging: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 20' Box Dimensions: 4"H x 8"W x 9"L WT: 1.45 lbs UPC: 082324053498 Owner's Manual (pdf)

Read more less

Dual-Beam Transducer with Transom/Trolling Motor Mount for echo™ Series FishfindersWant to use your echo series fishfinder in more than one vessel? A second transducer can make the process a lot easier. It comes with all of the hardware you need to mount on your transom or trolling motor. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Temperature: Yes Pins: 4 Cable Length (Feet): 30' Chirp: No Imaging: Standard Mounting Style: Transom Box Dimensions: 3"H x 7"W x 7"L WT: 1.15 lbs UPC: 753759974183 Owner's Manual (pdf)

Read more less

XM 9 20 MSI T MEGA Transom Mount TransducerMEGA SI, MEGA DI, DualBeam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, temperature built-in. For HELIX MEGA Side Imaging units only. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Mounting Style: Transom Imaging: Standard/Down/Side Box Dimensions: 6"H x 8"W x 10"L WT: 2.8 lbs UPC: 082324050275 Owner's Manual (pdf)

Read more less

HST-DFSBLTransom-mount, dual frequency skimmer with built-in temperature sensor.Works with: LCX-110C, LCX-111C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LMS-335C DF, LMS-337C DF, LMS-339C DF iGPS, LMS-480, X105C DF, X107C DF, X126DF, X136DF, X59DF Specifications: Chirp: No Mounting Style: Transom Imaging: Standard/Down Cable Length (Feet): 20' Temperature: Yes Speed Included: No Pins: 7 Box Dimensions: 4"H x 8"W x 10"L WT: 2.3 lbs UPC: 421945240922

Read more less

B265LM Bronze Thru-Hull Mount Transducer with Depth & TemperatureGarmin's best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail.This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices:GSD™ 26 CHIRP Professional Sonar ModuleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: Bare Wires Mounting Style: Thru-Hull Imaging: Standard Chirp: Low/Medium Cable Length (Feet): 39' Speed Included: No Temperature: Yes Box Dimensions: 7"H x 18"W x 26"L WT: 24.2 lbs UPC: 753759972141

Read more less

P79 NMEA 2000 In-Hull 235 kHzThe P79 in-hull transducer easily adjusts to hull deadrise angles up to 22 °. This ensures that the beam is vertically oriented to receive echos, resulting in accurate depth readings. Unlike traditional "puck" type transducers, our P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance. The unique adjustable-angle design ensures the beam is vertically oriented for maximum echo returns and the best possible performance. Because the transducer is mounted inside the hull, it is the perfect solution for rigid inflatable boats (RIBS) and racing sailboats. Features: Adjusts to hull deadrise angles up to 22° No holes to drill Depth Only Frequency: 235 kHz Cone: 11° Recommended for solid fiberglass hulls Epoxies to aluminum hulls under 0.38 mm (0.150”) thick Recommended for planing-hull power boats, trailered boats, rigid inflatable boats No hull protrusions 6M (20’) NMEA 2000® cable & connector This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: In-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 2 lbs UPC: 801769002515

Read more less

XNT-9-28-TTransom Mount TransducerMount on the transom (back of the boat)Available on many models, the impact release feature pivots transducer out of the way if struck by an object.Single/Dual Beam 28/16°200/455kHzWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 7 Mounting Style: Transom Imaging: Standard Chirp: No Cable Length (Feet): 20' Temperature: Yes Speed Included: No Box Dimensions: 4"H x 7"W x 9"L WT: 1 lbs UPC: 082324036545 Owner's Manual (pdf)

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imaging: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

Airmar P319 200/50kHz Plastic Thru-hull Transducer (8-pin)010-10194-21This plastic thru-hull mount transducer performs well at high speeds.An excellent choice for fiberglass and metal hulls, this 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Do not use on wood hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 4"H x 8"W x 10"L WT: 2.7 lbs UPC: 753759971809 Owner's Manual (pdf)Brochure (pdf)

Read more less

DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12° Tilt - NMEA 2000 - 6M CableAirmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6'). Available in fixed 0°, 12°, or 20° tilt, the DT800 is perfect for power and sailboat applications. It is sold with a choice of rugged housings— plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will provide accurate readings at high speeds.Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.Smart™ Sensor Features Broadband ceramic available with 0°, 12° and 20° tilt options Enhanced depth performance Maximum Depth Range: 180M (594’) Minimum range 0.5M (1.6’) Urethane face provides better sensitivity Excellent high-speed performance Fixed 12° tilt for 8° to 15° deadrise NMEA 2000 output 100 W RMS power Frequency: 235 kHz Cone: 12° All models have depth and temperature 235 kHz eliminates interference with fishfinders Retractable insert provides ease of serviceability Usable Shaft Length: 57mm (2.25”) 6M(19.8”) NMEA 2000® devicenet cable and connector 51mm (2”) housing Blanking plug included Accommodates maximum hull thicknesses 54 mm (2 1/8”) Accommodates minimum hull thicknesses 6.3 mm (0.25”) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

P79 Plastic In-Hull Transducer, 600w (10-Pin) 600 Watts 50/200 kHz 45/15 degree Beam Angles Plastic In-Hull Mount for Shoot-Through Applications 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: No Speed Included: No Mounting Style: In-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 2.6 lbs UPC: 611679220240 Owner's Manual (pdf)Brochure (pdf)

Read more less

Eagle TripleShot Transom Mount TransducerThree Technologies, One TransducerHave the best chance of finding fish with underwater views to the side and below the boat, all in one transducer. TripleShot HD Transducer features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structures from SideScan and DownScan Imaging™ for complete visibility to the side and below the boat.  Unlock FishReveal™  Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.   Exclusive to Lowrance Eagle® TripleShot HD Transducer is exclusive to Lowrance Eagle, Lowrance’s most accessible and easy-to-use fishfinder yet. Specifications: Cable Length (Feet): 20' Chirp: High Imagining: Down/Side Mounting Style: Transom Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 8"W x 12"L WT: 2.2 lbs UPC: 9420064135523

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadriseFeatures:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology Fixed 20° tilted version for 16° to 24° hull deadrise Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 30' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.9 lbs UPC: 801769018141

Read more less

TM275LHW Transom Mount CHIRP Transducer with Temp - 12-Pin Connector for TZT3The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the transom mounted TM275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the TM275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.The TM275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.Features: Plastic Transom Mount CHIRP Transducer with Temp Low Freq: 42-65 kHz High Freq: 150-250 kHz This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Active Imaging 2-in-1 TransducerActive Imaging Transducers Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range Active Imaging transducers accomplish this by better directing the SideScan beams which increases resolution and improves range performance Active Imaging is available in two models The Active Imaging stand alone transducer lets the user combine the new Active Imaging transducer with a separate CHIRP transducer for dual transducer installs. Active Imaging operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz) Active imaging Technology Active Imaging utilizes the latest techniques in sonar signal generation Active Imaging transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive Active Imaging transducers include separate sonar elements for SideScan transmit and receive Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance Key Features: Active Imaging sonar offers no compromise high resolution detail to users 800kHz operation covers many use cases and ranges. With 800kHz range and resolution capabilities users do not need to choose between seeing in High detail or seeing far High resolution IPS screens of NSS evo3 and HDS Live show the full image, allowing the user to see the entire underwater environment Active Imaging transducers do not require any modules or extra hardware for use with next-generation displays Environmental Operating temperature: -15°C to +55°C (+5°F to +131°F) Storage temperature: -30°C to +70°C (-22°F to +158°F) Physical Cable length:   7.6 m (25 ft) Mounting options: Transom, flush step, and jackplate mounting Connector: 9 pin Transducer Output: SideScan imaging, DownScan imaging and temperature Frequency: 455 kHz and 800 kHz Max depth: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHz Operating speed: DownScan and SideScan: 9 knots (10 mph) Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Down/Side Chirp: No Cable Length (Feet): 25' Box Dimensions: 4"H x 10"W x 13"L WT: 3.6 lbs UPC: 9420024172780

Read more less

xSonic TM185M Transom Mount TransducerAs Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The TM185M, an economical Chirp transducer, is designed for offshore fishing and freshwater anglers. Operating at a frequency range of 85-135 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 1,500 feet*) along with ultra-clear target resolution.Designed for smaller boats up to 25’, the TM185M is available as a transom-mount transducer.Features: Depth & Temperature Chirp Technology 1 kW High-Performance Urethane Housing Exclusive Transducer ID® Weight: 0.45 kg (1.1 lb) Hull Deadrise: 2° to 20° Acoustic Window: Urethane Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Standard Cable Length (Feet): 33' Chirp: Medium Box Dimensions: 8"H x 10"W x 11"L WT: 8.2 lbs UPC: 9420024165928 Quick Guide (pdf)

Read more less

SplitShot Skimmer Transom Mount TransducerSplitShot 2-in-1 Sonar with High CHIRP and DownScan Imaging™SplitShot 2-in-1 sonar makes it easier to stay on the fish, delivering the best traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat. Specifications: Pins: 8 Temperature: Yes Mounting Style: Transom Imagining: Standard/Down Chirp: High Wide Cable Length (Feet): 20' Speed Included: No Box Dimensions: 3"H x 5"W x 10"L WT: 0.85 lbs UPC: 9420024166291

Read more less

GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü - 455/800kHz, 500W, 8-PinGT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü (455/800 kHz) element has a power rating of 500 W.GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Transom Chirp: High Wide Cable Length (Feet): 20' Imaging: Standard/Down Box Dimensions: 3"H x 7"W x 8"L WT: 2 lbs UPC: 753759148584

Read more less

GST™ 43 Thru-Hull Speed/Temperature Transducer w/GST™ 10 BundleThe GST 43 is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43).Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000® network, and the information can be displayed on a compatible Garmin chartplotter or instrument display.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Mounting Style: Thru-Hull Chirp: No Box Dimensions: 5"H x 6"W x 8"L WT: 2.8 lbs UPC: 753759139889

Read more less

DST820 Bronze Thru Hull - NMEA 2000 - 235kHzThe DST820 Smart Multisensor is the next evolution of Airmar’s industry-leading technology, replacing the DST810 and introducing PSTI compliance for enhanced onboard network security.With its secure QR-code setup, connecting your DST820 has never been easier—or safer. Simply scan the QR code and enter a one-time security password on your mobile device to protect your sensor on the network.Featuring Airmar’s high-performance Gen2 paddlewheel, the DST820 delivers unmatched speed-through-water accuracy— providing precise start-up data below 0.3 knots, linear accuracy from 0.6 knots, and stable, reliable readings all the way up to 45 knots.Whether you’re a day sailor, weekend cruiser, or tactical racer, accurate speed-through-water (STW) data helps you fine-tune sail trim and rig balance for maximum performance. For racers, precise STW readings enable accurate velocity made good (VMG) and target speed calculations, ensuring every tactical decision is data-driven.Together, the DST820 and Airmar’s CAST™ app make speed calibration simpler than ever. The free CAST app provides powerful calibration tools—once only available through costly PC-based software—now instantly accessible from your smartphone or tablet. Choose from basic or advanced calibration options to suit your needs.Beyond speed, the DST820 measures depth and water temperature, and provides a 5.7 Hz (5× per second) speed output with improved resolution. Its integrated attitude sensor delivers heel and trim data, enabling heel-compensated speed calibration across multiple heel angles and speed ranges—fast, intuitive, and completely independent of onboard instruments.With depth tracking from 0.5 m (1.6 ft) to 100 m (328 ft), the DST820 also provides reliable depth data to help ensure you never run aground.The result: industry-leading speed accuracy, wireless calibration convenience, and next-generation security—all in one powerful, compact sensor.Features: The DST820 is fully compliant with UK PSTI security standards, ensuring that the connection between DST820 and a mobile device is secure. The industry’s best speed paddlewheel – DST820 features the Gen2 paddlewheel for industry-leading speed performance from 0.3 knots to 45 knots. Smoother Speed – 5.7 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making when every second counts. Integrated Attitude Sensor – For heel and trim, and used in advanced speed calibration. DST820 secure Bluetooth® connectivity to Airmar’s CAST app provides the ability to: Calibrate the DST820 in a simple, intuitive way from your mobile device. Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range. Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software. Specifications: Functions: Depth, Speed, Temperature, Attitude Mounting Style: Low Profile Thru-Hull Power Rating: 80 W Protocol Output: NMEA 2000® Housing: Bronze Max Deadrise Angle: 22° Hull Material: Fiberglass or metal Hole Size: 51 mm (2") Retractable housing: Yes Acoustic Window: Urethane Attitude Sensor: Yes Bluetooth Capable: YES Bluetooth BLE Cable-Length: 6 m (20') NMEA 2000® cable Certifications: CE Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing Conventional Beam: 10°x44° Data Rate: Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second Max Deadrise: Up to 22° Max Depth: 0.5 m (1.6') to 100 m (330') Minimum Depth: 0.5 m (1.6') NMEA 2000 LEN: 2 Pulses: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile Retrofits: Fits most Airmar 2" housings Speed Range: Up to 45 knots Temperature Accuracy: ±0.5°C (±1.8°F) Tilted Element: No Usable Shaft Length: 121 mm (4.75") Voltage: 9 to 16 VDC Water Temperature: -10° to 40°C (14° to 104°F)

Read more less

B175L Bronze 12 Degree Thru-Hull 1kW - Requires Mix & Match CableAirmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Features: Requires Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 40 to 60 kHz 32° to 21° beamwidth Maximum depth of 762 m (2500') Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175L) for use with all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Low Frequency: 40-60 kHz Low Frequency Beamwidth: 32°-21° Max Deadrise: Up to 24° Max Depth: 762 m (2500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

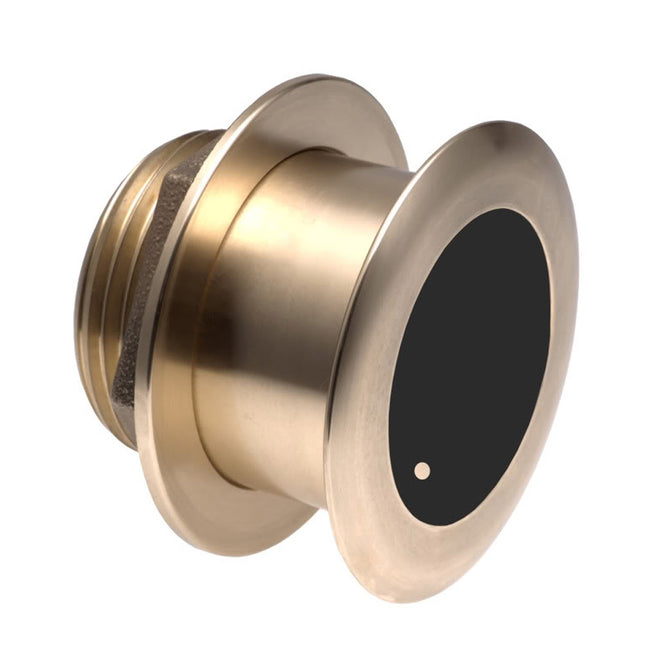

B175H Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175H) for use in all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B75M Bronze Chirp Thru Hull 12° Tilt - 600WRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 70 kHz of total bandwidth in just one installation, saving customers time and money.Features: Depth & fast-response water-temperature sensor Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 12° tilted version, 600W 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: Medium Mounting Style: Thru-Hull Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs UPC: 801769001785

Read more less

B175H Bronze Thru Hull 20° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 20° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs UPC: 801769001921

Read more less

DST820-PV-N2 PSTI Plastic Thru-Hull with Bluetooth 235kHzThe DST820 Smart Multisensor is the next evolution of Airmar’s industry-leading technology, replacing the DST810 and introducing PSTI compliance for enhanced onboard network security.With its secure QR-code setup, connecting your DST820 has never been easier—or safer. Simply scan the QR code and enter a one-time security password on your mobile device to protect your sensor on the network.Featuring Airmar’s high-performance Gen2 paddlewheel, the DST820 delivers unmatched speed-through-water accuracy— providing precise start-up data below 0.3 knots, linear accuracy from 0.6 knots, and stable, reliable readings all the way up to 45 knots.Whether you’re a day sailor, weekend cruiser, or tactical racer, accurate speed-through-water (STW) data helps you fine-tune sail trim and rig balance for maximum performance. For racers, precise STW readings enable accurate velocity made good (VMG) and target speed calculations, ensuring every tactical decision is data-driven.Together, the DST820 and Airmar’s CAST™ app make speed calibration simpler than ever. The free CAST app provides powerful calibration tools—once only available through costly PC-based software—now instantly accessible from your smartphone or tablet. Choose from basic or advanced calibration options to suit your needs.Beyond speed, the DST820 measures depth and water temperature, and provides a 5.7 Hz (5× per second) speed output with improved resolution. Its integrated attitude sensor delivers heel and trim data, enabling heel-compensated speed calibration across multiple heel angles and speed ranges—fast, intuitive, and completely independent of onboard instruments.With depth tracking from 0.5 m (1.6 ft) to 100 m (328 ft), the DST820 also provides reliable depth data to help ensure you never run aground.The result: industry-leading speed accuracy, wireless calibration convenience, and next-generation security—all in one powerful, compact sensor.Features: The DST820 is fully compliant with UK PSTI security standards, ensuring that the connection between DST820 and a mobile device is secure. The industry’s best speed paddlewheel – DST820 features the Gen2 paddlewheel for industry-leading speed performance from 0.3 knots to 45 knots. Smoother Speed – 5.7 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making when every second counts. Integrated Attitude Sensor – For heel and trim, and used in advanced speed calibration. DST820 secure Bluetooth® connectivity to Airmar’s CAST app provides the ability to: Calibrate the DST820 in a simple, intuitive way from your mobile device. Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range. Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

9-Pin High Speed Skimmer Transducer 83/200 kHz9-Pin High Speed Skimmer M/H PK ASY: 83/200 kHz transom-mount skimmer depth/temp - Black 9 pin connector.Features: Transom Transducer High Speed Skimmer 83/200kHz with Temp 9-Pin Connector Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Standard Chirp: Medium/High Cable Length (Feet): 20' Box Dimensions: 3"H x 4"W x 10"L WT: 1.35 lbs UPC: 9420024177464

Read more less

B175M Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

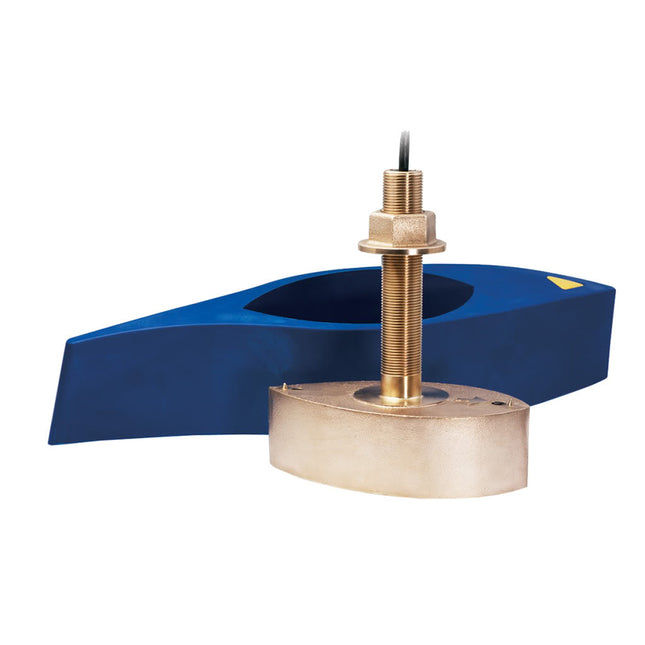

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).Features: Garmin 12-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1KW of power for great deep-water performance from the low frequency Low frequency: 42 to 65 kHz 25° to 16° beamwidth Maximum depth of 914 m (3000') High frequency: 150 to 250 kHz 25° constant beamwidth Maximum depth of 152 m (500') 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper water column Bronze housing with High-performance Fairing for optimal performance at higher speeds Also available as transom (TM275LHW) and pocket (PM275LHW) mounts Patented Xducer ID® technology Specifications Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 10 m (33') Common Use: Fishing, Commercial Fishing Connector: Garmin 12-Pin Country of Origin: USA Cross Reference: 010-12183-20 Deadrise Range: Up to 28° with fairing Display Connector: 12G Frequency Band: Low-High Wide High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Low Frequency: 42-65 kHz Low Frequency Beamwidth: 25°-16° Material: Bronze Max Deadrise: Up to 20° with fairing Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500') Mix and Match Series: 12-Pin Chirp Sensor Connector: MMC Single or Dual Frequency: CHIRP-Ready Dual-Band Tilted Element: No Weight: 7.3 kg (16 lbs.) Power Rating: 1 kW Max Deadrise Angle: 20° Functions: Depth, Temperature Hull Material: Fiberglass or wood Mounting Style: Thru-Hull with Fairing Max Vessel LOA: 8 m (25') and above Hole Size: 30 mm (1-3/16") Usable Shaft Length: 121 mm (4.75") This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B117 50/200kHz 600W Mix & Match 0° DeadriseAirmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.Features: Depth only or depth and fast-response water-temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Right-angle cable exit saves space and protects the transducer if stepped on The included rubber washer allows tightening of the hull nut to irregular hull surfaces Low-profile, bronze housing has minimal drag Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 12° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 51 mm (2") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Best performance through 7°. Accommodates up to 12° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Low Profile Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Weight: 0.9 kg (2 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs UPC: 801769000238

Read more less

CM599LH 1-3kW Pocket Mounted Transducer - No ConnectorHaving the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.Features: Depth and fast-response water-temperature sensing 2 to 3 kW of power for exceptional deep-water performance Low frequency: 28 to 60 kHz 23° to 9° port-starboard beamwidth 11° to 5° fore-aft beamwidth Maximum depth to 3048 m (10000') High frequency: 130 to 210 kHz 8° to 4° beamwidth Maximum depth to 457 m (1500') 112 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200  kHz plus everything else in the bandwidth Resin housing with curved-edge design for wet-box installation Can be installed in a cavity or welded tank Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts Patented Xducer ID® technology Specifications: Frequency Band: Low-High Functions: Depth, Temperature Material: Urethane Mounting Style: Tank, Cavity, Pocket/Keel Mount Connector: Bare Wire Display Connector: 0 Hull Material: Fiberglass or metal Max Vessel LOA: 8 m (25') and above High Frequency: 130-210 kHz Common Use: Fishing, Commercial Fishing Max Deadrise Angle: Any Tilted Element: No Low Frequency Beamwidth: 11°x23°-5°x9° Low Frequency: 28-60 kHz High Frequency Beamwidth: 8°-4° Max Deadrise: Accommodates any deadrise angle based on custom installation Power Rating: 2-3 kW Single or Dual Frequency: CHIRP-Ready Dual-Band Country of Origin: USA Cable-Length: 15 m (49') Weight: 14.2 kg (31.2 lb.) Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500') This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

Low/High Frequency - In-Hull Chirp Transducer without ConnectorRely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000') with 5 to 10 times greater detail and resolution so precise it_s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 112 kHz of total bandwidth in just one installation, saving customers time and money.As the ELITE model in the Chirp In-Hull product line, the R599 LH Chirps across the following bandwidths:LH Model - Low Frequency 28-60 kHz/High Frequency 130-210 kHzFeatures: Depth only Low-CHIRPS from 28 kHz to 60 kHz 23° to 9° beamwidth High-CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth 112 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 28, 38, 50, and 200 kHz plus everything else in the bandwidth Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking) Epoxy transducer housing Hull Type: Solid fiberglass only Specifications: Hull Deadrise: 0° to 22° Acoustic Window: Epoxy/urethane All mounting hardware provided, including tank Weight: 19.7 kg (43.4 lb) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: No Speed Included: No Mounting Style: In-Hull Chirp: Low/High Imaging: Standard Box Dimensions: 14"H x 17"W x 28"L WT: 56.4 lbs UPC: 801769001570

Read more less

B175M Bronze Thru Hull 0° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth 0° tilted version, 1KW 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 801769001877

Read more less

B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer Requires Mix & Match CableAirmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300') Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Cable-Length: 9 m (30') Common Use: Fishing Max Depth: 400 m (1300') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Power Rating: 1 kW Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

B175MW Med Ultra Wide 20°, 1KW Chirp Thru-Hull Transducer with 8-Pin Connector for Garmin Airmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 8 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 8-Pin Country of Origin: USA Display Connector: 8G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin175MW Med Ultra Wide 20 Degree, 1KW Chirp Thru-hull Transducer with 12 Pin Connector for Garmin Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 12 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 12-Pin Country of Origin: USA Display Connector: 12G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20° Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20° Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS Connector: 5-Pin NMEA 2000 Features: Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart 235 kHz frequency prevents mutual interference with other echo sounders on vessel Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing Specifications: Mount: Thru-hull Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise) Housing Material: Plastic Connector: 5-pin NMEA 2000® Cable Length: 20 ft. Frequency: 235 kHz Cone: 12° Power: 100 Watts RMS Depth Sensor Range: 1.6 - 594 ft. Acoustic Window Material: Urethane Compatible Hull Materials: Fiberglass or metal Hole Diameter for Installation: 2" Dimensions: 4.92" H x 2.94" OD This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B275C-LHW Bronze Thru-Hull - Low & High Wide FrequencyRequires Mix & Match CableGet more coverage under the boat with Airmar's wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers.A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display. We've got you covered!Features: Depth & Temperature 42-65 kHz L Frequency 150-250 kHz H Frequency Bronze 1 kW Wide 25° Beam This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Low/High Wide Box Dimensions: 7"H x 18"W x 25"L WT: 24.1 lbs UPC: 801769001952 Quick Guide (pdf)

Read more less

P66 Transom Mount Transducer f/Humminbird #9 Connector UnitsFeatures: Depth and temperature in one housing Plastic kick-up bracket Accommodates transom angles between 2° and 20° Recessed waterflow channel protects paddlewheel Transducer can be removed from bracket without the use of tools for easy service and storage Boat Size: Up to 12M (40') Frequency: 50/200 kHz Beamwidth: 50 kHz-45°, 200 kHz-11° RMS Power: 600W 10M Cable Fits: All 800, 900 & 1100 Series except 967 3DThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Transom Imaging: Standard Chirp: No Cable Length (Feet): 32' Temperature: Yes Speed Included: Yes Pins: 7 Box Dimensions: 4"H x 8"W x 11"L WT: 2.1 lbs

Read more less

Airmar P79 Adjustable 200/50kHz Plastic In-hull Transducer (8-pin)010-10327-20This entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.Transducer kit comes with installation instructions*. Follow the instructions carefully to avoid damaging your boat.*Fiberglass should be no more than 5/8" thick. Not recommended for cored hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 8 Mounting Style: In-Hull Imaging: Standard Chirp: No Cable Length (Feet): 25' Temperature: No Speed Included: No Box Dimensions: 5"H x 7"W x 9"L WT: 2.7 lbs UPC: 801769000153 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT17M-THF SS Mid Band Chirp Transducer - 0° - 1kW - 8-PinDesigned for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.Features: See maximum depth performance to 2,400’ in freshwater Access CHIRP sonar frequency range from 80–165 kHz Search with beamwidths of 9–18 degrees Count on fast-response water temperature sensing The thru-hull design offers flush installation with a 0-degree tilt Auto-ID enables simple plug-and-play operation Midband Chirp Traditional SonarThis 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.In the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation Specifications: Transducer Frequency: Medium band CHIRP (80-165 kHz) Transducer Power: 1 kW Transducer Beamwidth: 9°-18° Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater RapidReturn™ Sonar Compatible: Yes     Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of PINs: 8-pin Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° Housing Material: Stainless steel Specifications: Cable Length (Feet): 50' Chirp: Medium Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 13"L WT: 11 lbs UPC: 753759338459

Read more less

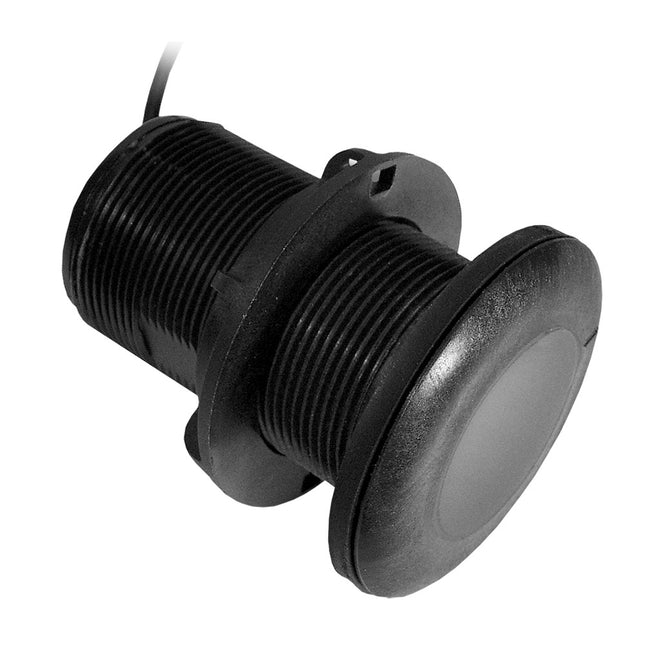

Tilted Element™ Thru-HullMinimize Your DragThe P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.Applications Cruising powerboats and sailboats Sailboats Features Depth only or Depth and temperature Fixed 12° tilted versions for 8° to 15° hull deadrise Right angle cable exit offers low headroom and protection when transducer is stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Housings are ABYC H-27 compliant Optional temperature sensor Plastic housing Boat Size: Up to 9M (30') WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 30' Temperature: Yes Box Dimensions: 4"H x 6"W x 8"L WT: 2.1 lbs UPC: 801769000764 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

GT15M-IH Plastic, In-Hull, Mid-Band CHIRP Transducer - 85-165kHz, 600W, 8-PinGT15M-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It can be used with a hull deadrise angle between 0 and 25 degrees and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.The 8-pin transducer with 4 plastic tanks features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: No Speed Included: No Pins: 8 Mounting Style: In-Hull Cable Length (Feet): 20' Chirp: Medium Imaging: Standard Box Dimensions: 7"H x 7"W x 7"L WT: 1.8 lbs UPC: 753759148577

Read more less

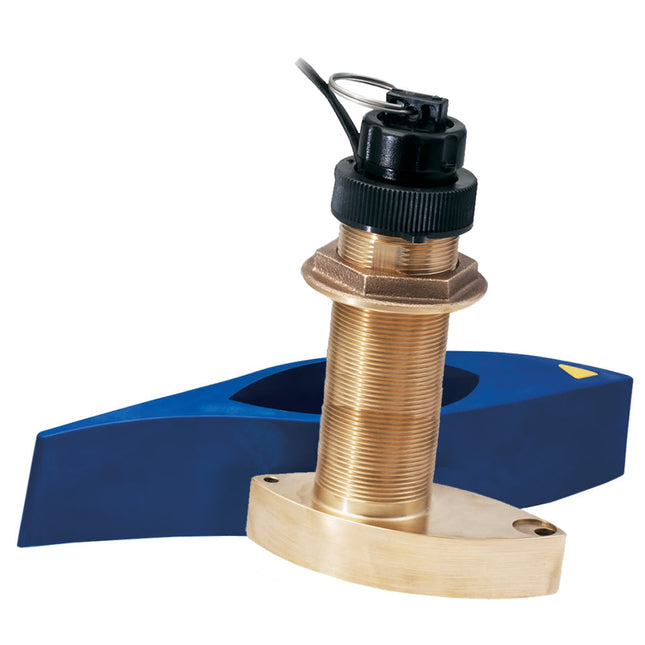

Airmar B744VL 200/50kHz Bronze Long Stem Thru-hull Transducer (8-pin)010-10193-22Our bronze, thru-hull mount long stem transducer provides depth, speed and temperature data. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-28° deadrise angle.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 3"H x 12"W x 16"L WT: 8.9 lbs UPC: 753759971793 Owner's Manual (pdf)Brochure (pdf)

Read more less

Trolling Motor TransducerTrolling Motor Mount Transducers are designed to mount on to the body of most trolling motors. A low profile shape reduces drag in the water and minimizes interference with weeds. Trolling Motor Transducers are often used in conjunction with the standard Transom Mount Transducer and connected by a switch to allow the fishfinder to display information from either the transom or the trolling motor. Some Transom Mount Transducers can be converted to Trolling Motor Mount by purchasing a Trolling Motor Adapter.Description: Trolling Motor Transducer with Temperature Sensor, Hydrodynamic, dual beam, 20 and 60 degree cone angles, 200/83 kHz. Includes 15' cable, trolling motor mounting hardware.For Use With: Piranha 5, Legend ID40, Matrix 15, Matrix 17, Matrix 25, Matrix 17, Matrix 55, Matrix 65, Matrix 67, FF515, FF535, FF565WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 15' Mounting Style: Trolling Motor Imaging: Standard Chirp: No Temperature: Yes Speed Included: No Box Dimensions: 2"H x 7"W x 9"L WT: 1 lbs UPC: 082324501920 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Active Imaging HD™ 3-in-1 FishReveal TransducerStep up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the most precise images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easy.*requires S3100 sonar module for Fish Reveal SideScanFeatures: High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure Lowrance CHIRP with superb clarity and target separation FishReveal™ with new SideScan* view as well as DownScan Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 kHz frequencies Smart transducer design boosts signal clarity Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS. *requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO Specifications: Cable Length (Feet): 25' Chirp: Medium/High Imagining: Standard/Down/Side Mounting Style: Transom Pins: 9 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 10"W x 14"L WT: 4.35 lbs UPC: 9420064130344

Read more less

GT15M-THF 0 Degree 600W SS Thru-Hull TransducerDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.Midband Chirp Traditional SonarThis 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.Fits Various Hull TypesConfigurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.Specifications: Transducer Frequency: Medium band chirp (85-165 Khz) Transducer Power: 600 W Transducer Beam Width: 24-16 degrees Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater Transducer Cable Length: 50 ft. Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-Pin Transducer Supported Deadrise/Transom Angles: 0 degrees support hull deadrise angles from 0 degrees to 7 degrees Housing Material: Stainless steel In the Box: GT15M-THF transducer Jam nut Washer Thread isolator Hull isolator Documentation Specifications: Cable Length (Feet): 50' Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 7"H x 8"W x 11"L WT: 7 lbs UPC: 753759319922

Read more less

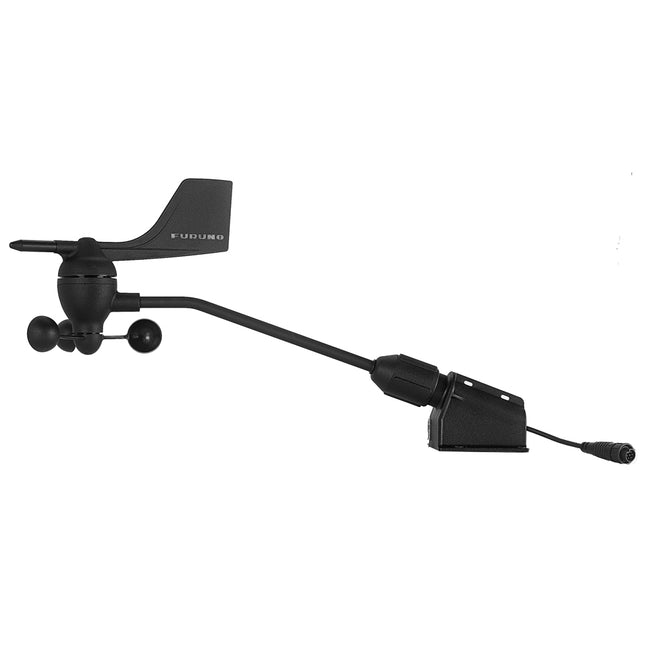

Wind Transducer with 30M CableElegant, Accurate & AffordableThe FI5001 is an analog Wind Transducer for use with the FI50 and FI70 series of instrument displays. It is capable of detecting wind angle accuracy of better than ±10° and wind speed accuracy of better than ±5% (20 kt). The FI5001 has a power requirements of less than 40 mA on a 12VDC system.Important Note: The FI5001 Sensor does not come with a cable as standard, while the FI5001/30M comes with a 30 meter cable. Available 30 meter and 50 meter cable kits include a junction box.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

GT24UHD-TM Ultra High-Definition Scanning Sonar All-In-One TransducerAll-In-One Transducer One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts Ultra-clear View of What’s BelowThe GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.Ultra PerformanceUltra High-Definition scanning sonar shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü scanning sonar. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combosWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Transom Imagining: Standard/Down Cable Length (Feet): 20' Box Dimensions: 2"H x 9"W x 9"L WT: 0.4 lbs UPC: 753759225360

Read more less
