Navigator Bulkhead Front CoverProtective front cover for Navigator bulkhead mount.For: BN-202Approx. Shipping Weight: 1 lb (454g) Specifications: Mounting Style: Bulkhead Box Dimensions: 4"H x 9"W x 10"L WT: 0.2 lbs UPC: 010342350107

Read more less

HSC100 High Performance Fluxgate SensorAccurate compass heading data remains a fundamental parameter for marine navigation and the HSC100 uses fluxgate technology to deliver heading data for on board systems. Typical applications include enabling course up and true motion type displays on chart plotters, radar overlay onto electronic charts and stabilisation of radars when used for MARPA/ARPA target tracking. Integrated instrument systems can also benefit from having compass information to calculate real time tidal set and drift when interfaced with a log and GPS.Features: High speed (10Hz) NMEA electronic fluxgate compass sensor Ideal for use with radar overlay and MARPA target tracking systems Industry standard NMEA 0183 HDG output Gimbaled to 45 degrees 12/24V DC operation with minimal power consumption Waterproof to IPx7 and suitable for external mounting on steel hulled vessels Automatic calibration routine and manual compass offset feature Additional AD10 heading output for interface with Furuno systems LED status indicator 15m interconnect cable Most low cost heading sensors only output data at 1Hz (once per second) but the HSC100 outputs at 10Hz which is required for MARPA target tracking and accurate radar overlays.The HSC100 is waterproof so it can be mounted externally on steel hulled vessels. It also features an automatic calibration routine to compensate for the effects of nearby magnetic influences. This involves turning the boat through 1.5 circles at a constant angular velocity whilst in calibration mode. Once completed, typical accuracies are within 0.5 degrees

Read more less

Kayaker Tie DownDesigned for Mounting the Ritchie Kayaker XP-99 (compass not supplied)Features: No Drilling, No Holes in Deck Flexible Pad and Foam Ring Easily Conforms to Deck Shape Won't Scratch Finishes Attaches with Bungee Cord and Clips (included)

Read more less

Navigator CompassFeatures: 4 1/2″ (115 mm) Open Face Dial with Large Numerals Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 cm) Mounting Hole Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on 12v Green LED lighting Standard Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield 45 Degree Lubber Lines High Temperature Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2 lbs 10oz (1.19kg)Notes:Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Backlight: Yes Lubber Lines: Yes Read: Rear Mounting Style: Flush Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs UPC: 010342150004 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

MSC 10 Marine Satellite CompassKNOW EXACTLY WHERE YOU'RE HEADEDGet reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.Features: Accuracy comes easy when you’ve got a multi-band GNSS receiver on board. Faster updates. More detailed tracking. Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too. If other onboard systems need a heading sensor, we’ve got you covered. MULTI-BAND GNSS AND MULTI-CONSTELLATIONThe multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.BOAT HEAVE AND MOREGet reliable, accurate boat heave, pitch, and roll information — even in rough waters.BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.ACCURATE HEADING DATAMultiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.PRIMARY SENSOR ACROSS MULTIPLE SYSTEMSYou can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.NMEA 2000® NETWORK COMPATIBLEGet heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.EASY TO INSTALLThis compact device is simple to install and easily integrates into your Garmin marine ecosystem.10 HZ UPDATE RATEGet better, more detailed tracking information, thanks to the 10 Hz position update rate.BACKUP HEADING SENSORIn the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.What's In The Box? MSC-10 Marine Satellite Compass Pole mount Mounting hardware NMEA 2000® backbone/drop cable (6 meters) NMEA 2000 T-connector Documentation 1 Supported when available2 < 1 meter CEP, < 3 meters 95%3 Magnetometer calibration required for backup magnetic heading support

Read more less

NMEA0183 GNSS SAT Compass with 49' Cable & Pole MountExperience superior navigation from the accurate heading and positioning performance available with the V200 SAT Compass. The multi-GNSS V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30cm (11.8") RMS accuracy via the optional Atlas GNSS global correction service. The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35cm (13.7") in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.Features: Uses all known Satellite Systems GPS, GLONASS, Galileo, BeiDou, QZSS 30cm (11.8") RMS world-wide positioning accuracy with Atlas correction subscription  0.75 degree heading accuracy in an amazingly small form factor Excellent in-band and out-of-band interference rejection Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites Provides heading, positioning, heave, roll and pitch Specifications: Output Type: NMEA 0183 Mounting Style: Surface Lubber Lines: No Backlight: No Box Dimensions: 9"H x 9"W x 15"L WT: 8.65 lbs UPC: 010407520568 Brochure (pdf)

Read more less

SCX20 Satellite CompassUtilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX20 sets a new standard for reliable and accurate heading for all of your marine electronics. The four antennas ensure reliable heading performance, even under the most challenging of conditions. The unprecedented quad antenna design of the SCX20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information, even when line of sight is limited to only a single satellite. They greatly enhance the performance of onboard equipment such as Radar, Fish Finders, Sonar, and Autopilots.Features: Outputs accurate Time, Position, Heading, COG/SOG, ROT (10 degrees/second), Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data Unprecedented heading accuracy for Radars, Sonars, and Navigation 1.0 degree heading accuracy, 0.02 knot speed accuracy Extremely compact with easy and flexible installation for reduced susceptibility to multi-path interference This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

SC33 Compact Dome Satellite Compass, NMEA2000 (0.4° Heading Accuracy) with 6M CableSleek, Fast & AccurateThe SC33 Satellite Compass provides highly accurate attitude information for navigation equipment such as Radar, Plotter, Autopilot, Fish Finder and Sonar. With its compact GNSS antenna and built-in processor, it can be used for a wide variety of applications on any type of vessel. This all-in-one system delivers incredibly accurate heading and roll & pitch information as well as heaving information, GPS position, SOG (Speed Over Ground), COG (Course Over Ground) and ROT (Rate Of Turn) data.Employing a two-antenna system with a 3-axis gyro and acceleration sensors, the SC33 enables high-speed response capability. Advanced digital signal processing techniques compute accurate heading based on sensor data. NMEA2000 interface is standard for simple installation, while the optional interface unit IF-NMEASC is available for conventional NMEA0183, AD10 and contact closure.The GNSS antenna and advanced parallel signal processing allows the SC33 to achieve more precise Pitch, Roll and Heading measurement than conventional models, providing enhanced performance for all of your connected equipment. Its Micro-C pigtail NMEA2000 cable provides flexibility to run cables in challenging areas.Revolutionary 2-Antenna & Rate Sensor SystemIn order to calculate roll & pitch data, a satellite compass requires two vectors. The SC33 employs a dual GNSS antenna system that calculates a single vector while a 3-axis rate gyro and acceleration sensors add the 2nd vector. This configuration enables the SC33 to calculate highly accurate roll and pitch data without using a third sensor.Features: Highly Accurate Two Antenna Satellite Compass & Rate Sensor System More resistant to multi-path, shock & vibration, compared to previous models Improved time to first fix (TTFF) = 60 seconds (typical) NMEA2000 Certified Interface/NMEA0183 Interface with IF-NMEASC (Optional) Accuracy: ±0.4° RMS (Heading/Roll/Pitch) Position Accuracy: 5.0M (GPS); 3.0M (GPS + SBAS) Integrated Rate Sensors provide Pitch, Roll and Heave Compensation 6 Meter Micro-C Male/Female NMEA2000 Drop Cable (Standard Supply) Pigtail cable w/NMEA2000 connector for convenient connection to drop cable Tri-axis speed & direction via PGN 130578 & "Heartbeat" PGN output SC33 menu access with NavPilot 300 & TZtouch2 (with impending software update) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

SCX21 Satellite CompassUtilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX21 sets a new standard for reliable and accurate heading for all of your marine electronics. The four antennas ensure reliable heading performance, even under the most challenging of conditions. The unprecedented quad antenna design of the SCX21 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information, even when line of sight is limited to only a single satellite. They greatly enhance the performance of onboard equipment such as Radar, Fish Finders, Sonar, and Autopilots.Features: Outputs accurate Time, Position, Heading, COG/SOG, ROT (10 degrees/second), Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data Unprecedented heading accuracy for Radars, Sonars, and Navigation 1.0 degree heading accuracy, 0.02 knot speed accuracy Extremely compact with easy & flexible installation for reduced susceptibility to multi-path interference This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

RitchieAngler CompassFeatures: 2 3/4″ (70 mm) Direct-Reading Dial Easily Adjustable Bracket Mount with Thumbscrews No-Glare Gray Finish with High-Visibility Blue Dial Distinctive RitchieAngler graphics Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Internal Green Night Lighting Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield DirectiveForce Magnets 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb (454 g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.Some custom built OEM models may have different lighting.  Specifications: Read: Front Lubber Lines: Yes Backlight: Yes Mounting Style: Bracket Box Dimensions: 3"H x 6"W x 9"L WT: 0.8 lbs UPC: 010342160119 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Helmsman Steel Boat CompassFeatures: 3 3/4″(95 mm) Open Face Dial Special Reinforced Bracket with Quadrantal Correctors Built-in Standard Compensators and Booster Magnets on Base Hardened Steel Pivot and Sapphire Jewel Movement 45 Degree Lubber Lines Exclusive Built-in Green NiteVu Lighting Movable Sun Shield 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 6 lbs (2.72 kg)Notes:Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Read: Rear Mounting Style: Bracket Lubber Lines: Yes Backlight: Yes Box Dimensions: 7"H x 7"W x 8"L WT: 5 lbs UPC: 010342138651 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

SteadyCast™ Heading SensorKnow where you're actually casting. SteadyCast heading sensor is a simple, easy-to-install solution that provides fast calibration and premium heading accuracy. It aligns your boat bow to its actual orientation so you know where you are casting according to your chartplotter screen.Features: Ensures bow orientation on your chartplotter matches your heading Heading accuracy of plus or minus 3 degrees Easy NMEA 2000® plug-and-play interface Simple 2-step calibration process 9-axis MEMS technology allows installation in any orientation located away from magnetic interference Accurate Heading Even at Low SpeedIts heading output rate at 10 Hz and accuracy of plus or minus 3 degrees ensures your chart orientation and boat heading line match up with reality, even at trolling speeds or when dead in the water.Effective in Rough WatersYou can also be confident your heading information will remain accurate, even in rough water.Easy Installation, Fast CalibrationSteadyCast heading sensor installs easily with NMEA 2000® plug-and-play interface and a simple 2-step precision calibration process for compatible Garmin chartplotters. Basic calibration for displays other than Garmin is also supported. Its 9-axis MEMS technology allows installation in any orientation located away from magnetic interference, and it's built to withstand bilge environments.In The Box: SteadyCast heading sensor with integrated NMEA 2000® drop cable (6 ft) NMEA 2000® T-connector Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Output Frequency (mHz): 10Hz Box Dimensions: 4"H x 6"W x 7"L WT: 0.6 lbs UPC: 753759173838

Read more less

Helmsman Combidial CompassFeatures: 3 3/4″ (95 mm) Open Face Dial or CombiDial Adjustable and Removable with Bracket and Thumbscrews Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield 45 Degree Lubber lines High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs (907g)Notes:Comes standard with 12V lighting. 24 & 32V lighting options are available. Some custom built OEM models may have different lighting. Specifications: Read: Both Mounting Style: Bracket Lubber Lines: Yes Backlight: Yes Box Dimensions: 7"H x 8"W x 8"L WT: 2.45 lbs UPC: 010342138613 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

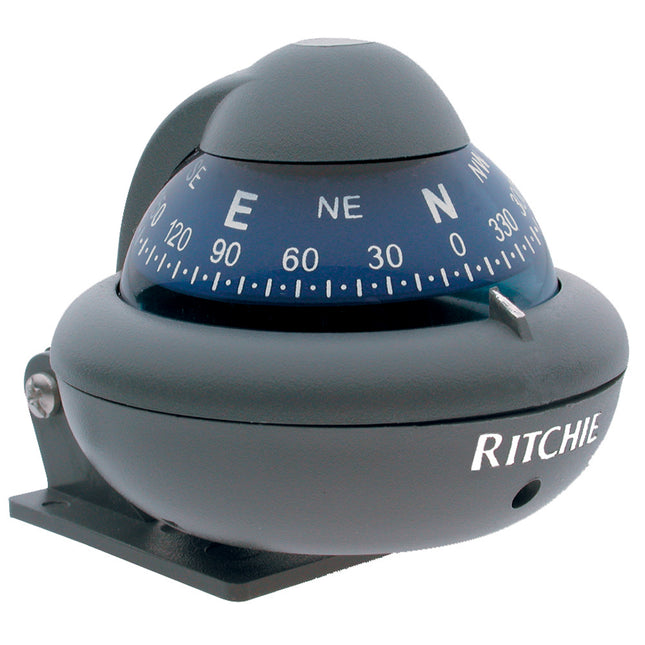

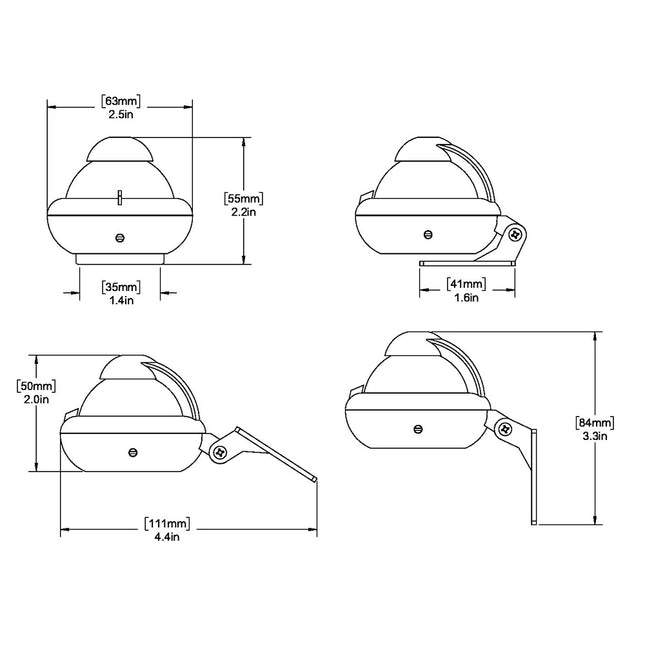

RitchieSport CompassFeatures: 2″ (51 mm) Direct-Reading, High Visibility Dials Two-Sided, Self-Adhesive Mounting Pads Included Reversible Bracket allows a mounting range of over 300 degrees from overhead, through angled and vertical mounts to horizontal surfaces These mounting position options and your choice of mounting hardware permit mounting on everything from windshield or supporting frame structures, to slanted dashboards and consoles, to almost any flat, angled or vertical surface Internal Green Night Lighting High Temp Composite Construction for Extended Operating Range Hardened Steel Pivot and Sapphire Jewel Movement Built-in Compensators Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 5 oz. (142g)Notes:Comes standard with 12v Green LED lighting.For all X-10's built between 1991 and 1999 use the part number RS-0004 XSP for replacement lighting. Specifications: Backlight: Yes Lubber Lines: Yes Mounting Style: Bracket Read: Front Box Dimensions: 3"H x 4"W x 5"L WT: 0.25 lbs UPC: 010342170620 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) Open Face Dial Adjustable and Removable with Bracket and Thumbscrews Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield 45 Degree Lubber Lines High Temperature Composite Construction for Extended Operating Range Custom Fitted Protective Covers Available 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb 8oz (680g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.Uses 2 sets of lights. Specifications: Read: Rear Lubber Lines: Yes Backlight: Yes Mounting Style: Bracket Box Dimensions: 6"H x 6"W x 6"L WT: 1.7 lbs UPC: 010342140104 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

RitchieAngler CompassFeatures: 2 3/4″ (70 mm) Direct-Reading Dial Surface Mount with Push-Button Removal for Quick Storage and Security No-Glare Gray Finish with High-Visibility Blue Dial Distinctive RitchieAngler graphics Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Internal Green Night Lighting Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield DirectiveForce Magnets 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb (454 g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.Some custom built OEM models may have different lighting. Specifications: Read: Front Mounting Style: Surface Backlight: Yes Lubber Lines: Yes Box Dimensions: 6"H x 6"W x 6"L WT: 0.8 lbs UPC: 010342160423 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

RitchieSport CompassFeatures: 2″ (51 mm) Direct-Reading, High Visibility Dials Two-Sided, Self-Adhesive Mounting Pads Included Reversible Bracket allows a mounting range of over 300 degrees from overhead, through angled and vertical mounts to horizontal surfaces These mounting position options and your choice of mounting hardware permit mounting on everything from windshield or supporting frame structures, to slanted dashboards and consoles, to almost any flat, angled or vertical surface Internal Green Night Lighting High Temp Composite Construction for Extended Operating Range Hardened Steel Pivot and Sapphire Jewel Movement Built-in Compensators Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 5 oz. (142g)Notes:Comes standard with 12v Green LED lighting.For all X-10's built between 1991 and 1999 use the part number RS-0004 XSP for replacement lighting. Specifications: Backlight: Yes Lubber Lines: Yes Mounting Style: Bracket Read: Front Box Dimensions: 3"H x 4"W x 5"L WT: 0.25 lbs UPC: 010342170613 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Explorer CompassFeatures: 2 3/4″ (70 mm) Easy to Read Direct Reading Dial Adjustable and Removable with Bracket and Thumbscrews Internal Green Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb (454g)Notes:All compasses come standard with 12v lighting. 24v lighting option is available. Some custom built OEM models may have different lighting.  Specifications: Read: Front Lubber Lines: Yes Backlight: Yes Mounting Style: Bracket Box Dimensions: 5"H x 6"W x 6"L WT: 0.9 lbs UPC: 010342160515 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Navigator CompassFeatures: 4 1/2″ (115 mm) PowerDamp Open Face Dial with Large Numerals Ideal for both Power and Sailboats Fits all Popular Sailboat Steering Pedestals Easily Installed Stainless Housing selections: Brushed stainless, powder-coated black, or powder-coated white 12v Green LED lighting Standard Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield 45 Degree Lubber Lines High Temperature Construction for Extended Operating Range Weather Shield available. Model No. WS-P 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 3lbs 10oz (1.65 kg)Notes:12v lighting standard - 24 & 32v lighting options are available. Specifications: Mounting Style: Binnacle Lubber Lines: Yes Read: Rear Backlight: Yes Box Dimensions: 7"H x 8"W x 8"L WT: 3.6 lbs UPC: 010342150219 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Supersport™ CompassDeveloped for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.Features: 3 3/4″ (96 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals Easily Installed, Fits 4″ (10.16 cm) Mounting Hole Built-in Compensators to Easily Adjust for Deviation Built-in 12v Green LED lighting in Movable Sun Shield 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs. (907g)Notes: 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Mounting Style: Flush Lubber Lines: Yes Backlight: Yes Read: Rear Box Dimensions: 5"H x 8"W x 9"L WT: 2.1 lbs UPC: 010342138309 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Navigator CompassFeatures: 4 1/2″ (115 mm) PowerDamp Open Face Dial with Large Numerals Ideal for both Power and Sailboats Fits all Popular Sailboat Steering Pedestals Easily Installed Stainless Housing selections: Brushed stainless, powder-coated black, or powder-coated white 12v Green LED lighting Standard Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield 45 Degree Lubber Lines High Temperature Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 3 lbs 10 oz (1.65 kg)Notes:12v lighting standard - 24 & 32v lighting options are available. Specifications: Mounting Style: Binnacle Lubber Lines: Yes Read: Rear Backlight: Yes Box Dimensions: 7"H x 8"W x 8"L WT: 3.7 lbs UPC: 010342150097 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

PG700 Integrated Heading Sensor, NMEA2000The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.Features: Angular velocity sensor and magnetic bearing sensor incorporated Automatic determination of installation site suitability L-shaped mounting base for mounting on bulkhead Output of magnetic bearing data to FURUNO CAN bus device This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Kayaker CompassFeatures: Course Minder Movable Bezel with Heading Memory Indicator Remembers the Way 2 3/4″ (70 mm) Direct-Reading Dial Low Mounted Height Surface Mount Easily Installed  Extended Temperature Operating Range with Composite Construction & Diaphragm Exclusive DirectiveForce Magnets Hardened Steel Pivot and Sapphire Jewel Movement No Wiring or Power Needed Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1 lb. (454g)Notes:Kayaker Tie Down mount available. Part number K-TD.2 Specifications: Backlight: No Lubber Lines: Yes Mounting Style: Surface Read: Front Box Dimensions: 7"H x 7"W x 8"L WT: 0.85 lbs UPC: 010342140678 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Explorer CompassFeatures: 2 3/4″ (70 mm) Easy to Read Direct Reading Dial Compact Low-Profile Design Quick Push-Button Removal of Compass Module for Storage and Security Choice of Colors Internal Green Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1 lb. (454g) Notes:Comes standard with 12 volt lighting. 6 & 24 volt lighting options are available.Some custom built OEM models may have different lighting.  Specifications: Read: Front Mounting Style: Surface Lubber Lines: Yes Backlight: Yes Box Dimensions: 4"H x 6"W x 9"L WT: 0.7 lbs UPC: 010342160508 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NMEA2000 GNSS SAT Compass with Pole Mount (No Cable Included)Experience superior navigation from the accurate heading and positioning performance available with the V200 SAT Compass. The multi-GNSS V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30cm (11.8") RMS accuracy via the optional Atlas GNSS global correction service. The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35cm (13.7") in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.Features: Uses all known Satellite Systems GPS, GLONASS, Galileo, BeiDou, QZSS 30cm (11.8") RMS world-wide positioning accuracy with Atlas correction subscription  0.75 degree heading accuracy in an amazingly small form factor Excellent in-band and out-of-band interference rejection Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites Provides heading, positioning, heave, roll and pitch Specifications: Output Type: NMEA 2000 Mounting Style: Surface Lubber Lines: No Backlight: No Box Dimensions: 9"H x 9"W x 15"L WT: 5.1 lbs UPC: 010407520575 Brochure (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) PowerDamp Flat Dial Easily Installed into a 3 1/2″ hole Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on 45 & 90 Degree Lubber Lines High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1.5lbs (680g)Notes: For RU-90s with Optional Lighting Kit installed, use Protective Cover part# V-80-C. Specifications: Read: Rear Mounting Style: Flush Lubber Lines: Yes Backlight: No Box Dimensions: 6"H x 6"W x 6"L WT: 1.3 lbs UPC: 010342140012 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Ritchie GM-5-C 5" GlobeMaster Binnacle Mount Compass Cover - WhiteProtective cover for Globemaster binnacle models.For: SP-5B, SP-5C, D-515, and D-515-EPApprox. Shipping Weight: 1lb (454g)

Read more less

X-23WW RitchieSport Compass - Dash Mount - White/BlackFeatures: 2″ (51 mm) Direct Reading Dial Easily Installed, Fits Standard 2 1/16″ (5.50 cm) Instrument Hole The View Adjusts up to 30 degrees Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Exclusive Built-in Green NiteVu Lighting High-Temperature Composite Construction for Extended Operating Range DirectiveForce Magnets Exclusive 5-Year Ritchie Warranty Specifications:Approx. Shipping Weight: 5oz (142g)Notes: X-23 Compasses do not have Built-in Compensators. Comes standard with 12V lighting Some custom-built OEM models may have different lighting Specifications: Backlight: Yes Lubber Lines: Yes Mounting Style: Dash Read: Front Box Dimensions: 3"H x 4"W x 5"L WT: 0.55 lbs UPC: 010342121240

Read more less

Explorer CompassFeatures: 2 3/4″(70 mm) Direct Reading Dial Easily Installed, Fits 3″ Instrument Hole. Bezels Styled to Match Popular Gauge Packages 12v Night Illumination Viewing is adjustable to 30 degrees Choice of Traditional Black or Designer White Colors Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Built-in Compensators to Easily Adjust for Deviation Hi-Temperature Construction 100% Repairable Exclusive 5-Year Warranty Approx. Shipping Weight: 1lb (454g)Notes:All compasses come standard with 12v lighting. 24v lighting option is available. Some custom built OEM models may have different lighting. Specifications: Read: Front Mounting Style: Dash Backlight: Yes Lubber Lines: Yes Box Dimensions: 5"H x 6"W x 6"L WT: 0.8 lbs UPC: 010342160614 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Ritchie NC-20 Navigator Bulkhead Mount Compass Cover - WhiteBack cover for Navigator Bulkhead mount.For: BN-202Approx. Shipping Weight: 1lb (454g)

Read more less

Voyager CompassFeatures: 3″ (76 mm) CombiDamp Dial Compact Low-Profile Design Built-in Green Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1 lb. 3 oz. (539g)Notes: Uses 2 sets of lights.Comes standard with 12 volt lighting. 24 & 32 volt lighting options are available. Some custom built OEM models may have different lighting. Specifications: Read: Both Mounting Style: Surface Backlight: Yes Lubber Lines: Yes Box Dimensions: 5"H x 6"W x 6"L WT: 1.2 lbs UPC: 010342140333 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Supersport™ CompassesDeveloped for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.Features: 5" (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole Built-in Compensators to Easily Adjust for deviation Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions 12v Green LED lighting Standard 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 5lbs 12oz (2.6kg)Notes:12v lighting standard - 24 & 32v lighting options are available. Specifications: Read: Rear Mounting Style: Flush Backlight: Yes Lubber Lines: Yes Box Dimensions: 9"H x 9"W x 10"L WT: 5.7 lbs UPC: 010342050410 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Ritchie B-81-WM Voyager Bracket Mount Compass - Wheelmark Approved f/Lifeboat & Rescue Boat UseThe Wheelmark approval is for Lifeboat and Rescue boat compasses. These compasses are also suitable for sailboats, power boats and motor sailing vessels.Features: Wheelmark Certification 3" CombiDamp Dial 12V Green LED Lighting Adjustable and Removable with Bracket and Thumbscrews Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty The WM suffix signifies type approval and compliance with the Navigation requirements of Marine Equipment Directive (MED) 95/98/EC and the last modification by Directive 2011/75/EU. Specifications: Read: Both Mounting Style: Bracket Lubber Lines: Yes Backlight: Yes Box Dimensions: 5"H x 7"W x 9"L WT: 1.35 lbs UPC: 010342140760 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

SuperSport CompassDeveloped for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.Features: 5" (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole Built-in Compensators to Easily Adjust for deviation Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions 12v Green LED lighting Standard 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 5 lbs 12 oz (2.6 kg) Notes:12v lighting standard – 24 & 32v lighting options are available. Specifications: Mounting Style: Flush Lubber Lines: Yes Backlight: Yes Read: Rear Box Dimensions: 9"H x 10"W x 11"L WT: 5.8 lbs UPC: 010342050182 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Navigator CompassFeatures: 4 1/2″ (115 mm) Ritchie CombiDial and Built-in Inclinometer When mounting this Compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so. Easily Installed, Fits 5.75″ (146 mm) Mounting Hole Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Fiberglass Reinforced Bowl 45 degree Lubber Lines Exclusive Built-in 12v Amber LED Lighting Built-in Compensators to Easily Adjust for Deviation 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)Notes:12v lighting standard - 24 & 32v lighting options are available. Specifications: Mounting Style: Bulkhead Lubber Lines: Yes Read: Both Backlight: Yes Box Dimensions: 7"H x 7"W x 8"L WT: 2.8 lbs UPC: 010342150301 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Helmsman CompassFeatures: 3 3/4″ (95 mm) Open Face Dial or CombiDial Easily Installed, Fits 4″ (102 mm) Mounting Hole Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield 45 Degree Lubber Lines High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs (907g)Notes: Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Mounting Style: Flush Read: Both Lubber Lines: Yes Backlight: Yes Box Dimensions: 7"H x 7"W x 7"L WT: 2.05 lbs UPC: 010342138279 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Supersport™ CompassDeveloped for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.Features: 4 1/2″ (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 mm) Mounting Hole Built-in Compensators to Easily Adjust for Deviation Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions 12v Green LED lighting standard 45 Degree Lubber Lines 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs 10oz (1.19kg)Notes: Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Lubber Lines: Yes Backlight: Yes Read: Rear Mounting Style: Flush Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs UPC: 010342150011 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Explorer CompassFeatures: 2 3/4″ (70 mm) Easy to Read Direct Reading Dial Easily Installed, Fits 3.75″ (9.53 cm) Mounting Hole Internal Green Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb (454g)Notes: Comes standard with 12v lighting. 6 & 24v lighting options are available.Some custom built OEM models may have different lighting. Specifications: Read: Front Lubber Lines: Yes Backlight: Yes Mounting Style: Flush Box Dimensions: 5"H x 5"W x 9"L WT: 0.9 lbs UPC: 010342160034 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Navigator CompassFeatures: 4 1/2″ (115 mm) CombiDial with Large Numerals Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (131 mm) Mounting Hole 12v Green LED lighting Movable Sun Shield 45 Degree Lubber Lines Built-in Compensators to Easily Adjust for Deviation High Temperature Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2 lbs 10 oz (1.19 kg)Notes:12v lighting standard - 24 & 32v lighting options are available. Specifications: Read: Both Mounting Style: Flush Backlight: Yes Lubber Lines: Yes Box Dimensions: 7"H x 8"W x 8"L WT: 3 lbs UPC: 010342150295 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) CombiDial Adjustable and Removable with Bracket and Thumbscrews Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range Custom Fitted Protective Covers Available 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb 8oz (680g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.Uses 2 sets of lights. Specifications: Read: Both Mounting Style: Bracket Backlight: Yes Lubber Lines: Yes Box Dimensions: 6"H x 6"W x 6"L WT: 1.4 lbs UPC: 010342141101 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Ritchie N-203-C Compass Cover f/Navigator & SuperSport Compasses - WhiteProtective cover for Navigator and SuperSport compasses.For: DNP-200, DNB-200, DNW-200, FN-201, FNW-201, FN-203, FNW-203, SS-2000, and SS-2000WApprox. Shipping Weight: 1lb (454g)

Read more less

SportAbout Hand Bearing Compass Features: Easy to Read 2″ (51 mm) Direct-Reading Dial Hardened Steel Pivot and Sapphire Jewel Movement Built-in Roller Diaphragm for Extended Temperature Operating Range International Safety Yellow Case Silicon Impact Resistant Case with Neck Lanyard Compact Size for Easy Handling and Storage QuickSight V-Notch and Lubber Line for Easy Heading Alignment Non-Electric Chem Sticks Provide 18 Hours of Night Lighting Holder Available in Black or White. Ideal for Deck Mounting SportAbout Compasses on Small Boats Specifications: Read: Front Backlight: No Lubber Lines: Yes Box Dimensions: 3"H x 5"W x 7"L WT: 0.3 lbs UPC: 010342170088 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

X-23BU RitchieSport Compass - Dash Mount - Black/BlueFeatures: 2″ (51 mm) Direct Reading Dial Easily Installed, Fits Standard 2 1/16″ (5.50 cm) Instrument Hole The View Adjusts up to 30 degrees Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Exclusive Built-in Green NiteVu Lighting High-Temperature Composite Construction for Extended Operating Range DirectiveForce Magnets Exclusive 5-Year Ritchie Warranty Specifications:Approx. Shipping Weight: 5oz (142g)Notes: X-23 Compasses do not have Built-in Compensators. It comes standard with 12V lighting Some custom-built OEM models may have different lighting. Specifications: Backlight: Yes Lubber Lines: Yes Mounting Style: Dash Read: Front Box Dimensions: 3"H x 4"W x 5"L WT: 0.55 lbs UPC: 010342171214

Read more less

Helmsman CompassFeatures: 3 3/4″ (95 mm) Open Face Dial or CombiDial Easily Installed, Fits 4″ (102 mm) Mounting Hole Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield 45 Degree Lubber Lines High Temperature Composite Construction for Extended Operating Range Adapter Rings Available. Sold separately. 6″ (153 mm) 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs (907g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available. Specifications: Read: Rear Lubber Lines: Yes Backlight: Yes Mounting Style: Flush Box Dimensions: 5"H x 6"W x 9"L WT: 2.1 lbs UPC: 010342138255 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) CombiDamp Dial Easily Installed Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb 8oz (680g)Notes:Uses 2 sets of lights.Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Read: Both Lubber Lines: Yes Backlight: Yes Mounting Style: Flush Box Dimensions: 6"H x 6"W x 6"L WT: 1.3 lbs UPC: 010342140074 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Ritchie H-741-C Helmsman & SuperSport Compass Cover - 2004 to Present - WhiteProtective cover for Helmsman and SuperSport compasses.For Compass Models:HB-740, HB-741, HB-845, HF-742, HF-742W, HF-743, HF-743W, HD-744, HD-745, SS-1002, and SS-1002WApprox. Shipping Weight: 1lb (454g)

Read more less

X-23BB RitchieSport Compass - Dash Mount - Black/BlackFeatures: 2" (5.08cm) Direct Reading Dial Easily Installed, Fits Standard 2-1/16" (5.50 cm) Instrument Hole View Adusts up to 30 degrees Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Exclusive Built-in Green NiteVu Lighting High-Temperature Composite Construction for Extended Operating Range DirectiveForce Magnets Exclusive 5-Year Ritchie Warranty Specifications:Approx. Shipping Weight: 5oz (142g)Notes: X-23 Compasses do not have Built-in Compensators. Comes standard with 12V lighting Some custom-built OEM models may have different lighting. Contact Ritchie for replacement lighting Specifications: Backlight: Yes Lubber Lines: Yes Mounting Style: Dash Read: Front Box Dimensions: 3"H x 4"W x 5"L WT: 0.5 lbs UPC: 010342171276

Read more less

HF-743W - Helmsman Features: 3 3/4″ (95 mm) Open Face Dial or CombiDial Easily Installed, Fits 4″ (102 mm) Mounting Hole Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield 45 Degree Lubber Lines High Temperature Composite Construction for Extended Operating Range Adapter Rings Available. Sold separately. 6″ (153 mm) 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs (907g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.Some custom built OEM models may have different lighting. Specifications: Read: Both Lubber Lines: Yes Backlight: Yes Mounting Style: Flush Box Dimensions: 7"H x 8"W x 8"L WT: 2.1 lbs UPC: 010342138286 Quick Guide (pdf)Owner's Manual (pdf)

Read more less
