Triple XD - NMEA 2000 - Relay/ACR/Relay with Knobs - 12 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2.8 lbs UPC: 850067590187

Read more less

Triple XD Flex Relay with KnobsSet of three programmable relays designed for use in 12 or 24 VDC lithium battery systems. Typically the two outer devices would be set up as remote on-off switches and the middle one would be set up as an Automatic Charge Relay. The relay settings are programmable and the list of available options is optimized for lithium batteries.

Read more less

XD Series Triple Flex 2 Relay/VSR/Relay with Knobs - 12 P DTApplications/Problems This Solves Replaces three individual high-amp relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 3-4 Battery Systems that require 2 or 3 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.

Read more less

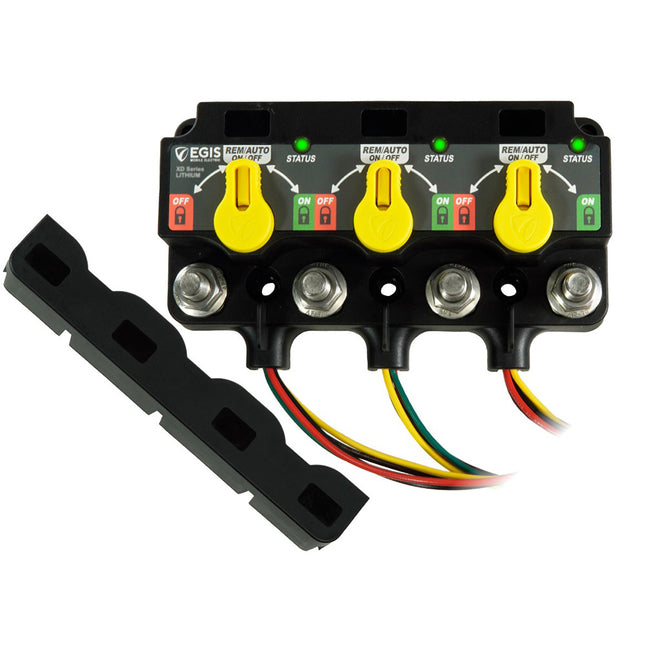

XD Series Triple Flex 2 Relay-ACR-Relay with Knobs & Tinned WiresThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via simple dip switches allows each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

XD Series Triple Flex 2 Relay-ACR-Relay with Knobs & 3X DTM ConnectorThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has 3x DTM connectors) 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

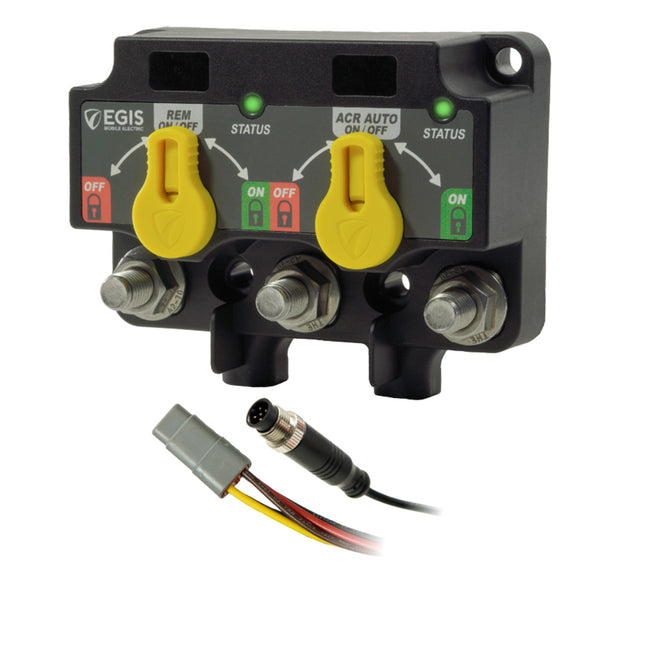

Dual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850067590194

Read more less

Dual XD - NMEA 2000 - ACR/ACR with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850067590231

Read more less

Dual XD - NMEA 2000 - Relay/Relay with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850067590224

Read more less

Dual XD Flex 2 - Relay/Relay with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850035199534

Read more less

Dual XD Flex 2 - Relay - ACR with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850035199626

Read more less

PDM 14 Circuit + Ground 175A 12V with Kill SwitchDesigned for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch.  This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay.  Expandable up to 31 fused outputs with RT or CT fuse blocks.Features: For 12-volt systems, the allowed voltage range is 8-18 VDC Total continuous output limit: 175 amps Three load groups with a continuous output of 75-115 amps Optional time  delay 0-10 hrs Optional low voltage protection 11-12.2 volts Offload current draw 1.3 mA Quick Guide (pdf)

Read more less

XD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch with Knobs & DTM ConnectorThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replace common multi-battery mechanical switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has a DTM connector) 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

Single XD - NMEA 2000 - ACR with Knobs - 4 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs UPC: 850067590217

Read more less

XD Series Dual Flex 2 (ACR-Mech Only) with Knobs - Flying WiresFeatures Replaces Two Individual High Amp Relays with One Compact Module reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:LED Status DisplayEasy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED3-Position Manual OverrideForce each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Stainless HardwareCorrosion is no issue with quality stainless steel studs and self locking flanged nuts.ProgrammableVia dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.Smaller FootprintXD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.Integrated VentHigh quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Brochure (pdf)

Read more less

XD Series Single Flex 2 ACR-Relay with Knobs - DTM ConnThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

XD Series Single Flex 2 ACR-Relay - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

XD Series Single Flex 2 Relay-ACR with Knobs - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

Contactor 250A, 12/24VThis 250A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads.Applications: Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion. High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond. Features: Ignition is protected and safe for installation in closed compartments with potential explosive gases High Electrical Switching Endurance delivers 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc) Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware. 4 Year Industry Leading Warranty   Specifications: Continuous Current (Amps): 250/500 Operation Control Voltage: 9-36 VDC Ingress Protection: IP67/IP69K Ignition Protection: ISO-8846 / UL 1500 Electrical Endurance Rating (Cycles): 1,000,000 Minimum Operate Temp. (Deg C): -40 C Max Operate Temp. (Deg C): 85 Focal Features:Sealed EnclosureHermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.18-8 Stainless Steel Self-Locking HardwareResists corrosion and ensures long-term connection reliability with premium hardware.High Interrupt CapabilitySafely able to open in a locked starter situation up to 1,500 A @14 Vdc.Easy MountingReinforced mounting holes provide secure installation and easy attachment for the installer.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

XD Series Single Flex 2 Relay-ACR - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

Automatic Charging Relay Plus - 160A - 24VThis 160A Egis automatic charging relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell Features: Ultra-low power draw compared to typical ACRs (7-10 mA) vs. the 7610 ACR @ 1.3 mA will not deplete batteries even after extended electrical system downtime. Simple and robust installation - integrated sealed plug eliminates corrosion; includes Deutsch/Amphenol DTM connector harness Start to assist input option to ensure maximum cranking amps are available by allowing manually connecting batteries via a remote switch Bullet-proof construction - sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere; Integrated thermal overload shutdown protection Additional low-amp output can be used to report device status remotely or drive a secondary relay for charge to a battery bank without a charge source (see examples) Specifications: Continuous Current Amps: 160 Voltage Range (VDC): 16 – 36 Off-State Current Draw (mA): 1.3 Interrupt Current (Amps): 240 AC Closing Voltage Range (VDC): 25.8-27.2 AC Opening Voltage Range (VDC): 24.2-25.6 Focal Features:Top Side Dip SwitchesAccessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware100% non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O ConnectorSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.Connection OptionsComes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads). Easy Integration with RT Fuse Blocks (24 HR Circuits)Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series fuse blocks. LED DiagnosticsIndicates pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

Programmable Automatic Charging Relay (ACR) 160A, 12VThis 160A Egis charging relay is automatic and programable. The relay eliminates dead start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications: Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance. Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell. Features: Ultra-Low Power Draw Compared to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime. Simple and robust installation - The integrated sealed plug eliminates corrosion and includes a Deutsch/Amphenol DTM connector harness Start Assist input option to ensure maximum cranking amps are available by allowing the manual connection of batteries via a remote switch. Bullet-proof construction - Sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection. Additional low-amp output can be used to report device status remotely or drive a secondary relay for charging a battery bank without a charge source (see example) Specifications: Continuous Current (Amps): 160 Voltage Range: 8-18 VDC Off-State Current Draw mA: 1.3 Interrupt Current (Amps): 240 ACR Closing Voltage (VDC): 12.9-13.6 ACR Opening Voltage (VDC): 12.1-12.8 Focal Features:Top Side Dip SwitchesAccessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O ConnectorSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.Connection OptionsComes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads).Easy Integration with RT Fuse Blocks (24 HR Circuits)Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series Fuse Blocks.LED DiagnosticsProvides an indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Lockable: Yes Box Dimensions: 3"H x 4"W x 8"L WT: 0.85 lbs UPC: 850035199633 Quick Guide (pdf)

Read more less

Battery Switch - Heavy Duty-Series 600A - Off/OnSurface and panel mounting variations allow for flexible installations.Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high-temperature materials.Ignition Protected safe for installation in closed compartments with potential explosive gases.Features: Robust Construction IP66 Waterproof 32V - Voltage Rating  600A Continuous Current Ignition Protected Specifications: Continuous Amperage: 600 Box Dimensions: 4"H x 4"W x 7"L WT: 1.3 lbs UPC: 850067590590

Read more less

PT2 - Time Delay Relay 30A  - 12VPrevents dead batteries from add-on equipment, maximizing operational readiness and saving maintenance costs.Delivers power to equipment after engine off or at the end of shift (video downloads), automatically timing off and optionally if battery voltage is low.Protects sensitive on-board electronics via under-voltage and over-voltage shutdown. Specifications: Type: Electric Box Dimensions: 2"H x 5"W x 6"L WT: 0.3 lbs UPC: 850035199916 Brochure (pdf)
