NMEA 2000® Backbone/Drop CableExtend your NMEA 2000® backbone with Garmin's 13' (4M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 4m Box Dimensions: 1"H x 5"W x 6"L WT: 0.4 lbs UPC: 753759978198

Read more less

PRO NMEA 0183 MultiplexerEight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.Features: 8 OPTO-isolated NMEA 0183 inputs 6 ISO-Drive NMEA 0183 outputs Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output) 0183 streaming via Ethernet Alarm output (N/O and N/C contacts) Designed for 12- and 24-Volt supply Isolation to battery supply Configurable input and output baud rates for rate conversion Data combining from any input to any output 2 independent Autoswitch virtual inputs with priority Advanced sentence-based filtering / routing Diagnostic LEDs on all inputs and outputs Alarm, mode and Bi-colour Status LED’s 2-part pluggable connector system supports both screw and screwless terminals DIN rail or Panel mountable Advanced statistics are available via a Web Browser Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates makes the device future-proof Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohm Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG) Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 540g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications Compass Safe Distance - 175mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs UPC: 5060998710584 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

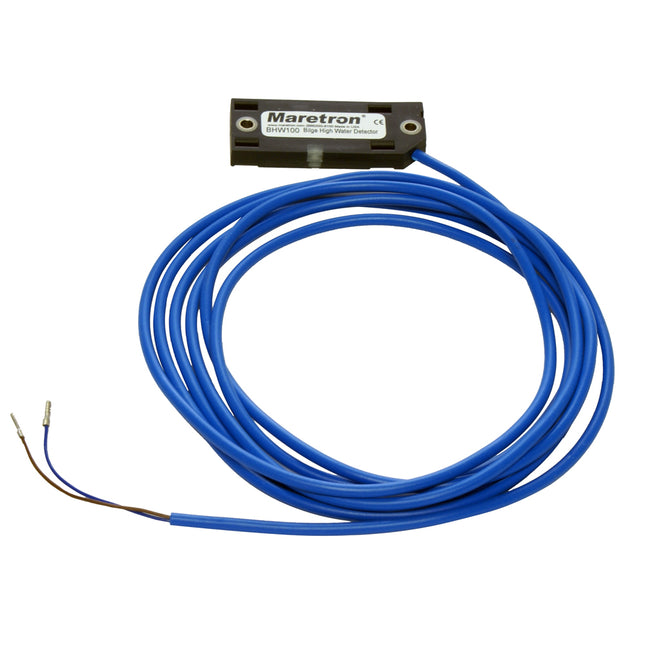

Bilge High Water DetectorPart #: BHW100Used with SIM100 Switch Indicator Module to detect high bilge water.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

IPG100 (Internet Protocol Gateway) lets you connect Maretron black boxes (MBB100's), Maretron touch screens (DSM800's), PC's, Mac's, tablets, or smartphones to an NMEA 2000 network so you can monitor and control your vessel using Maretron's N2KViewr software. The conventional way of viewing NMEA 2000 information is with a display on the vessel that is directly connected to an NMEA 2000 network, but with the IPG100, you are not limited to direct connected displays. With the IPG100, you can use any device running N2KViewr software to monitor and control your vessel from onboard or ashore.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Transom Mount Speed SensorTransom-mount paddle wheel 3.1 m (10ft) cable with Micro-C connector.Features Replaces EP-70 Outputs speed through water Transom-mount paddle wheel Ideal for slow, trolling speeds, where GPS is not as accurate Share paddle wheel speed to any networked display, unlike sonar based paddlewheel sensors Specifications: Connection Gender: Male Data Interface: NMEA 2000 Cable Length (Meters): 3.1m Box Dimensions: 3"H x 5"W x 10"L WT: 0.7 lbs UPC: 9420024129876

Read more less

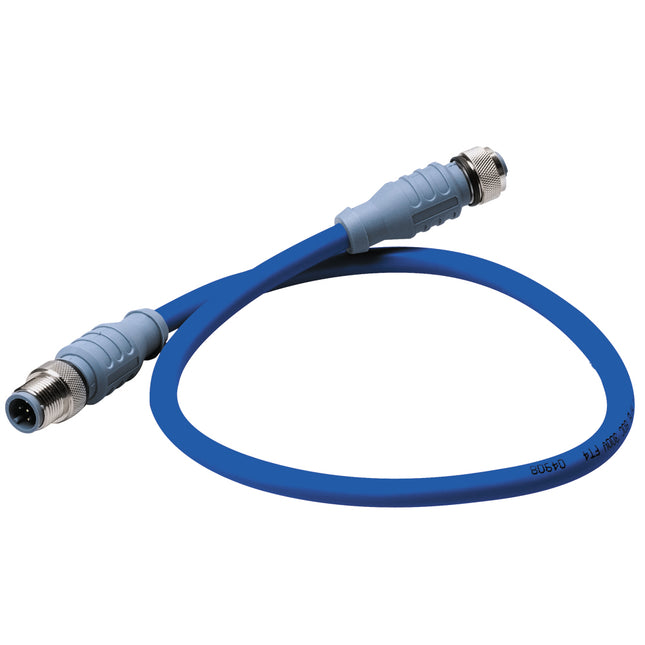

Maretron Mid Double-Ended Cordset - 0.5 M BlueMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.5m Box Dimensions: 1"H x 5"W x 6"L WT: 0.2 lbs UPC: 873804001890

Read more less

Micro Double-Ended Cordset - 2 Meter Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59 Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m Box Dimensions: 1"H x 7"W x 7"L WT: 0.35 lbs UPC: 873804001524

Read more less

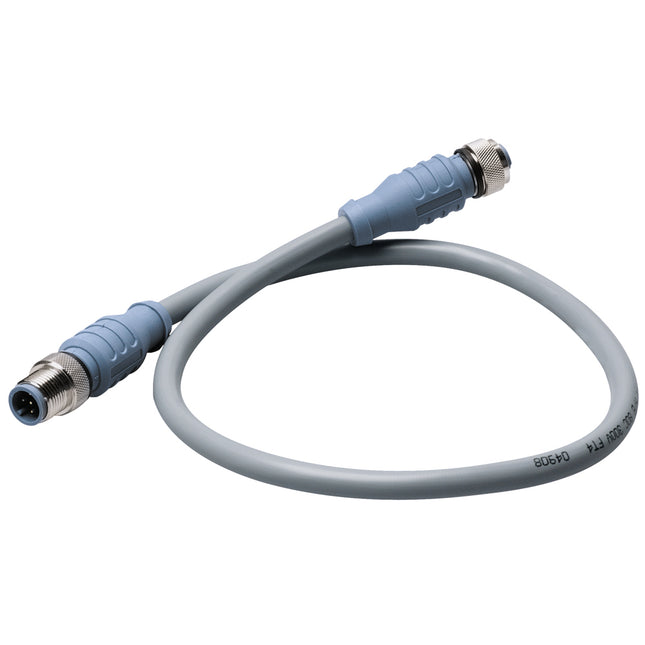

Micro Double-Ended Cordset - 0.5MMechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59" Electrical Current Rating: 4.0 Amps Voltage Rating: 250 V Cable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 5"W x 7"L WT: 0.13 lbs UPC: 873804001500

Read more less

SPL2000 AIS-VHF Antenna SplitterThe SPL2000 allows the boat's VHF antenna to be used for both an AIS and VHF simultaneously. It uses ZeroLoss technology and is suitable for use with AIS Class B transponder systems as well as AIS receivers. It's also designed as a failsafe device with automatic priority given to the connected VHF. It is supplied with a BNC-BNC patch cable for the AIS and a PL259-PL259 cable for the VHF. It also features a AM/FM wired output for an on board stereo receiver. Identical in size to the AIT2000, it makes the perfect complimentary splitter device for Digital Yacht's range of AIS products.

Read more less

OneFix Precision L1/L5 GNSS SystemFeatures: Transform any nav system with the ultimate and affordable positioning solution L1/L5 hi-precision GNSS receiver with QuadNav positioning GPS, Galileo, Beidou, and NavIC compatibility with optional Glonass sensor.  Gives sub 1m accuracy and fast 10Hz updates Advanced anti-spoofing algorithms and resistance to interference Multiple outputs:  NMEA 2000, NMEA 0183, wireless, SD card (for voyage recording,) and timing pulse Integrated web interface with satellite analytics plus nav, event & tracking features Supplied with high-performance dual band external antenna and 10 cable

Read more less

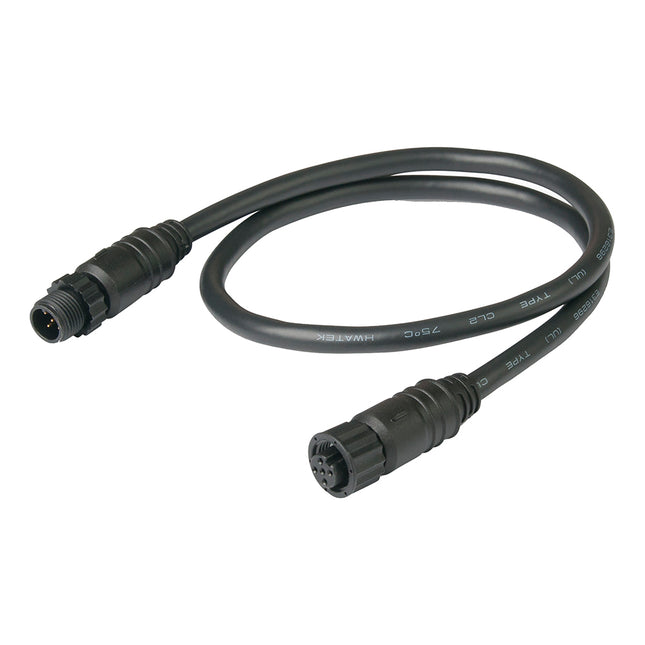

NMEA 2000 Drop Cable - 0.5MAncor's NMEA 2000 Approved Drop Cables offer connection between an NMEA 2000 device and tee connector. The black couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The drop cables are smaller in diameter and more flexible than backbone cables for easy connection to NMEA 2000 devices. The drop cables are available in four lengths from 0.5 meter (1.6 feet) to 5 meters (16.4 feet) to cover a wide variety of applications.Features: Color coded for easy installation and component identification Super flexible 22 AWG power conductors for ease of installation and wire routing NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 0.5m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs UPC: 091887988406 Brochure (pdf)

Read more less

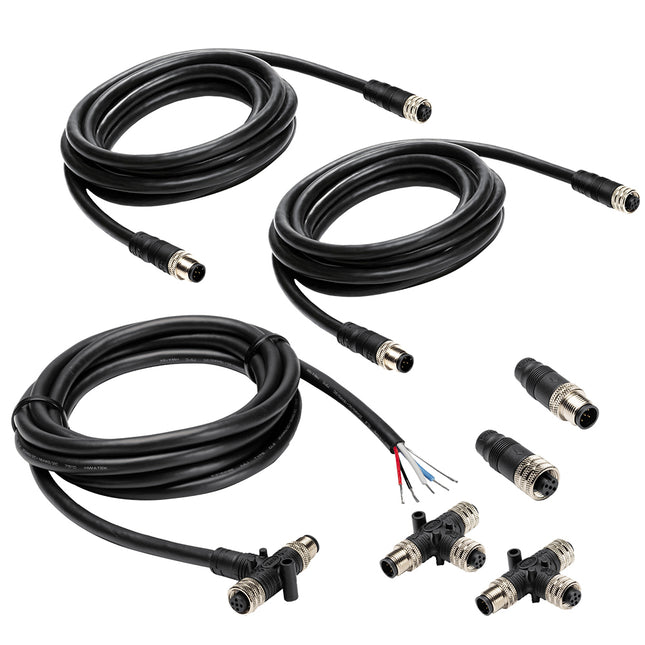

NMEA 2000® 4-Port Backbone KitGarmin's 4-port kit includes essential items needed to build a basic NMEA 2000 network backbone. The kit includes an NMEA 2000 4-port T-connector, backbone/drop cable (2M), power cable (2M), and male and female terminator connectors.

Read more less

PRO NMEA 0183 Multiplexer/NMEA 2000 GatewayInterconnectivity, reimagined!The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2KFeatures: Auto-switching between inputs to allow for a primary, secondary, tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web based UI, no need to manually enter and edit strings of text. RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations. Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network. Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. NMEA 2000 data streaming over Ethernet. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments. Type-approved (RINA). NMEA 0183 Ethernet streaming NMEA 2000 Ethernet streaming NMEA 2000 output via M12 5x Configurable Opto-isolated NMEA 0183 inputs. 2x Configurable ISO-Drive isolated NMEA 0183 outputs. 1x Bi-directional, configurable, isolated serial port. Automatic baud rate matching on inputs. Advanced data filtering / routing. Free firmware updates making the device future-proof. Diagnostic LEDs on all inputs and outputs. Bi-colour status LED. Panel mountable. Stainless Steel housing for added durability Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates make the device future-proof Type Approved (RINA) Technical Specifications:Power Supply Input supply voltage - 9 to 35 V DC Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input protection - Continuous reverse polarity, transient overvoltage and ESD protection Power indicator - LED, Blue – indicates unit is functioning correctly Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes with data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes with data rate) Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 115200 bps Output voltage drive - >= 2.1V (differential) into 100 ohm Output current drive - 20 mA max. Output protection - Short circuit and ESD Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host interface - 10/100BaseT, automatic polarity detection Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Connector - RJ45 Indicators - Green – Link, Yellow – 100 Mbps NMEA 2000 Port Compatibility - NMEA 2000 Certification Pending Speed / baud rate - 250 kbps Connectivity - M12 male (A-coded) connector Isolation NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V Ethernet Port - 2kv for 60s NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V Mechanical Housing Material - 316 Stainless Steel Dimensions - 139mm (W) x 98mm (H) x 26mm (D) Weight - 360g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 Compass Safe Distance - 300mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years when registered This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs UPC: 5060998710751 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 to WiFi GatewayThe W2K-2 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger and Actisense-i diagnostic tools.Transfer data from an NMEA 2000 backbone to any device (e.g, laptop, tablet, or smartphone) connected to the W2K-2 via Wi-Fi and additionally convert this data to NMEA 0183 using Actisense’s renowned conversion engine. Actisense-i is a suite of diagnostic tools and a health checker for your network.Fully compatible with the industry’s most popular apps.The W2K-2 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences, thus allowing a wide variety of vessel data (e.g., position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with NMEA 0183 compatible software applications running on connected devices.All the data received (or a selected subset) can be logged to an internal micro SD card for later downloading to use for analyzing the voyage. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing your voyage details. Data can be stored on any micro SD card (up to 128GB), giving weeks or more of storage for all onboard NMEA data.The W2K-2 has adopted the latest WPA3 standards for password protection. Whilst most wireless gateways still use WPA2, WPA3 adds an extra layer of security.Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boat’s electronics network, including voltage issues, and the working status of all devices attached to the network. Actisense-i has been designed to save installers and boaters time and ultimately, money, by giving them confidence in their electronics onboard.The W2K-2 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs, an internal antenna, enhanced password security, full certification, and all packaged in an extremely rugged IP67 case.Features: Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi) Supports both TCP and UDP, streams data using up to three separate data servers Data protocols are selectable to be compatible with a huge range of navigation software and apps Voyage data recording (install SD card up to 128GB) Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status Works as an access point and a client simultaneously Remote Firmware Upgradability Low power- 2 LEN (100 mA) Supports 802.11 b/g/h (up to 150Mbps) Automatically measures and reports the NMEA 2000 bus voltage User Manual embedded on the device, easily accessible via browser Each device has a unique default SSID and Password for enhanced security Actisense-i diagnostic tools Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger Enables the use of mobile devices and laptops without the hassle of a physical connection Allows compatibility with a wide range of NMEA 2000 & NMEA 0183 applications Ruggedized IP67 casing suitable for wet and harsh environments Works out of the box – just install your choice of SD card for logging data An integrated antenna has less chance of physical damage Quick and easy to install Technical Specifications:Power Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC     Supply Current (NMEA 2000 Port) - 70mA (avg.) @ 12V DC, 100mA (avg.) @ 9V DC Load Equivalent Number (LEN) - 2     Supply protection - Continuous reverse polarity protection and transient overvoltage protection to 40V Wi-Fi Radio Compatibility - IEEE 802.11 b/g/n     Speed - 802.11n up to 150Mbps     Frequency Band - 2.4GHz 2.5GHz     Max Output power - 20 dBm     Antenna - Integrated internal antenna     Range (Open space) - 30 meters     Security - WPA_PSK,  WPA2_PSK,  WPA_WPA2_PSK Configuration IP support - Supports TCP and UDP broadcast     Data servers - Three separate data servers     Data protocols - NMEA 0183 & Five proprietary     Security - SSID and Password configurable (Unique defaults per device) Diagnostics Power LED - Blue     NMEA 2000 Tx LED - Orange     NMEA 2000 Rx LED - Green     Status LED - Yellow     Micro SD card - Not supplied – customer to install as required. Mechanical  Housing Material (body) - Polycarbonate     Housing Material (endcaps) - PBT     NMEA 2000 Connector - M12 Male (A polarized) connector molded into the case     NMEA 2000 Connector Material - Nickel-plated brass     Weight - 80g     Dimensions - 106mm (L) x 73mm (W) x 24mm (H) Environmental Environmental Protection - IP67     Operating Temperature - -20°C to +55°C     Storage Temperature - -40°C to +85°C     Recommended Humidity - 0 – 93% RH Approvals and CertificationsGuarantee - 5 yearsThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 4"W x 8"L WT: 0.4 lbs UPC: 5060998710829 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - MalePanel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 6"L WT: 0.05 lbs UPC: 5060998710164 Owner's Manual (pdf)Brochure (pdf)

Read more less

0183 to N2K Gateway with PC Interface, USB ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data conversion…The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.Features: View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard. View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway. Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183). Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1. Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs. Vital NMEA 2000 diagnostic tool Fully isolated to prevent dangerous ground loops Up to 230,400 baud data transfer rate Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set Supports Fast Heading at 10Hz Multiple diagnostic LEDs Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided Configure and flash-update Actisense products on the bus Upgrade NMEA 0183 equipment to NMEA 2000 Allow NMEA 0183 devices to receive vital NMEA 2000 data Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together Reliable, renowned bi-directional conversion engine Supports a wide range of conversions including AIS Easily configurable using Actisense Toolkit Technical SpecificationsPower Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 62mA @ 9V DC Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) USB Port Compatibility - USB 1.1, 2.0 and 3.0 Speed / Baud Rate - 4800 to 230400 Baud Connectivity - Male type A plug moulded onto cable Cable Length - 1.8m Isolation NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V Mechanical Housing Material Body - Flame retardant Polycarbonate Housing Material End Caps - Flame retardant PBT Weight - 113g Approvals and Certifications NMEA 2000 - NMEA 2000 Certified NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements RoHS and REACH - Compliant Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7 Environmental Protection    IP67 Operating Temperature    -25°C to +70°C Storage Temperature    -30°C to +70°C Recommended Humidity    0 to 93% RH @ 40°C Guarantee    3 years, extended to 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 6"L WT: 0.5 lbs UPC: 5060998710560 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

N2K Micro 4 Way T-PieceThe 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Features: NMEA 2000 Approved RoHS Compliant Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60V DC Mechanical Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, Black Housing - TPU, flame retardant to UL94V-0, Halogen Free Internal Housing Shield - Copper Foil Weight - 105g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs UPC: 5060998710010 Brochure (pdf)

Read more less

Micro Bulk Cable Single Piece - 100M SpoolMicro bulk cable is primarily used as drop cable, but it can also be used as the trunk line depending on network power requirements. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths.Features: Single Piece 100M Spool Length Trunk of drop cable for use with Micro Connectors Used with field attachable connectors to build exact length cables at the job site Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 100m Box Dimensions: 12"H x 12"W x 12"L WT: 17.6 lbs UPC: 087380400309

Read more less

NMEA 2000 Four Way Tee ConnectorAncor's NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs UPC: 091887982299 Brochure (pdf)

Read more less

NMEA 2000 Male TerminatorAncor's NMEA 2000 Approved Terminators allow for proper termination of an NMEA 2000 network. The yellow couplers connect to the corresponding Ancor tees, creating a simplified, color coded network installation. One male and one female terminator is required for each NMEA 2000 network.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887982312 Brochure (pdf)

Read more less

NMEA 2000 Female TerminatorAncor's NMEA 2000 Approved Terminators allow for proper termination of an NMEA 2000 network. The yellow couplers connect to the corresponding Ancor tees, creating a simplified, color coded network installation. One male and one female terminator is required for each NMEA 2000 network.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 3"W x 5"L WT: 0.5 lbs UPC: 091887982305 Brochure (pdf)

Read more less

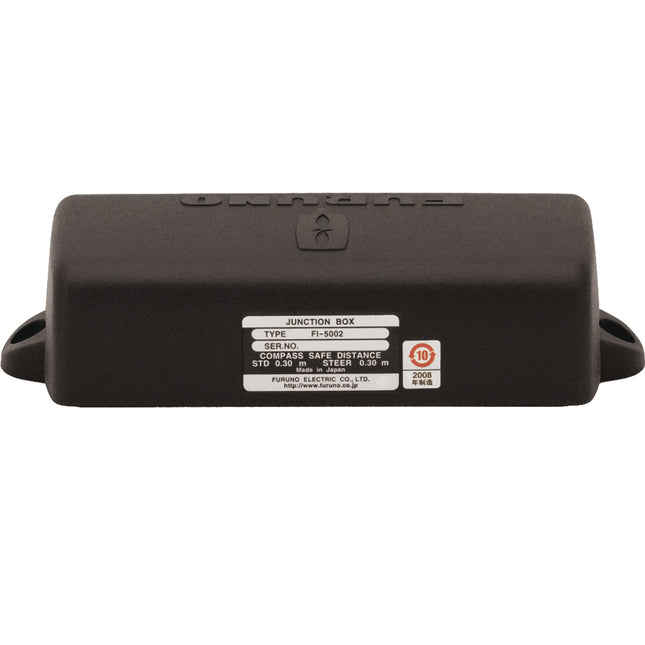

FI5002 NMEA2000 Junction BoxThe FI5002 is an NMEA2000 Certified, 6-Port Junction Box for use with for use with any NMEA2000 network. The FI5002 features 2 NMEA2000 backbone ports, as well as 6 NMEA2000 ports. It will support up to 2A or 40 (LEN) on a 12VDC network.The FI5002 will also support 24VDC networks. Features 2 NMEA2000 backbone ports 6 NMEA2000 ports Less than 2A power requirement on a 12VDC system WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 7"W x 9"L WT: 1.2 lbs UPC: 611679314697 Quick Guide (pdf)

Read more less

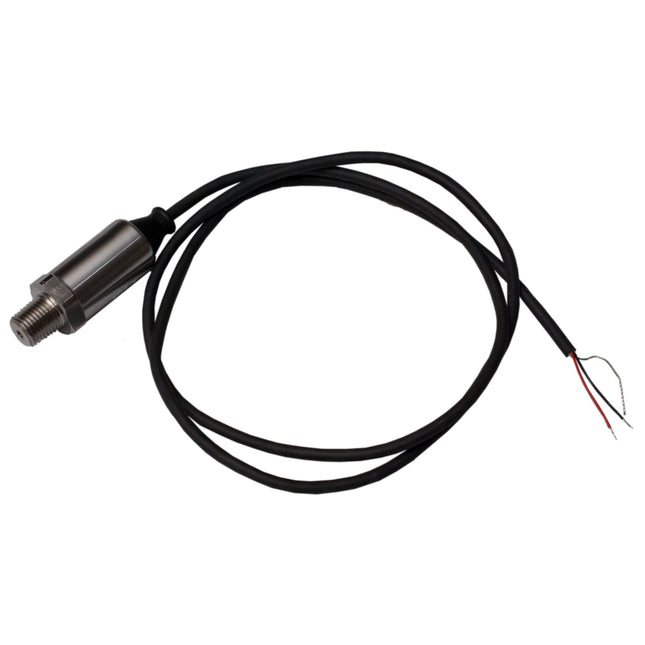

Pressure Transducer 0 to 3 PSI - for the FPM100 Fluid Pressure MonitorWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

NMEA 2000 Field Serviceable Connector - MaleFor termination of bare NMEA cable. Securely terminate bulk cable or replace a broken end.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887982350

Read more less

NMEA 2000 field installable connector - femaleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 753759078379

Read more less

NMEA 2000® Backbone/Drop Cable - 18' (6M) - *Case of 8*Extend your NMEA 2000® backbone with Garmin's 1' (0.3M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 6m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 4"W x 5"L WT: 7.12 lbs

Read more less

NMEA 0183 with Audio CableNetwork your compatible GPSMAP® chartplotter with this NMEA 0183 data communication cable. Includes bare wires and an RCA connector for audio connection to any stereo setup, including FUSION. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 0183 Box Dimensions: 1"H x 5"W x 5"L WT: 0.4 lbs UPC: 753759218690

Read more less

Mini Field-Attachable ConnectorsField-attachable connections allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cables for error-free field installationColor-coded screw terminators make for error-free field installation Rugged housing material designed to withstand harsh marine environments Specifications: Connection Gender: Female NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 873804002279

Read more less

Yamaha Engine Interface CableYamaha engine interface cable 4.5 m (15 ft) and T-connectorConnects to Yamaha engines without Yamaha CommandLink Plus system. 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250. 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300. Outputs:Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350RPMAlternatorVoltageEngine HoursEngine TemperatureFuel PressureFuel RateOil PressureTrim*Water Pressure*Digital trim must be connected by a Yamaha dealer.*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.Works with: NMEA 2000 Compliant Units Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 4.5m Box Dimensions: 2"H x 4"W x 10"L WT: 0.45 lbs UPC: 042194529820

Read more less

Like the straight Micro/Mid Field-attachable connectors, the 90 degree field attachable connectors allow you to make field conections to bulk cable. The 90 degree connectors are particularly well suited for tight spaces like the back of displays where there is limited space for a straight connector. Useful in tight spaces or where sharp corners need to be made Waterproof rated to IP67 Specifications: Connection Gender: Female Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804001708

Read more less

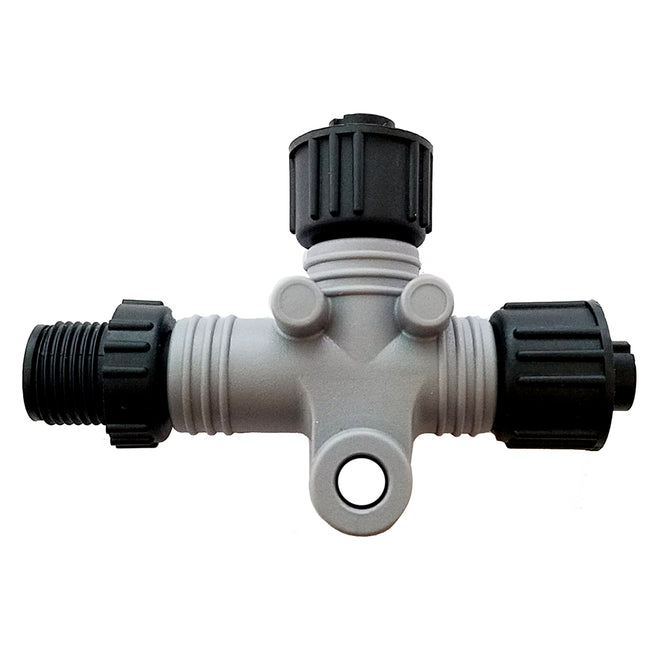

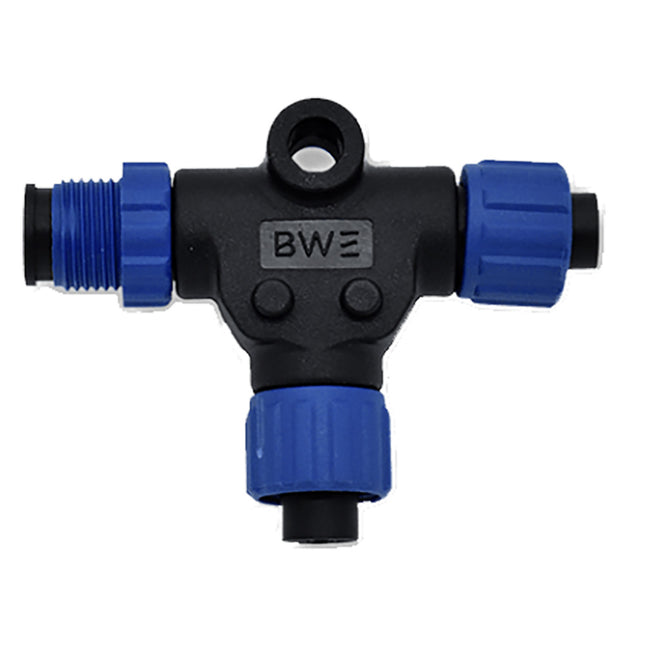

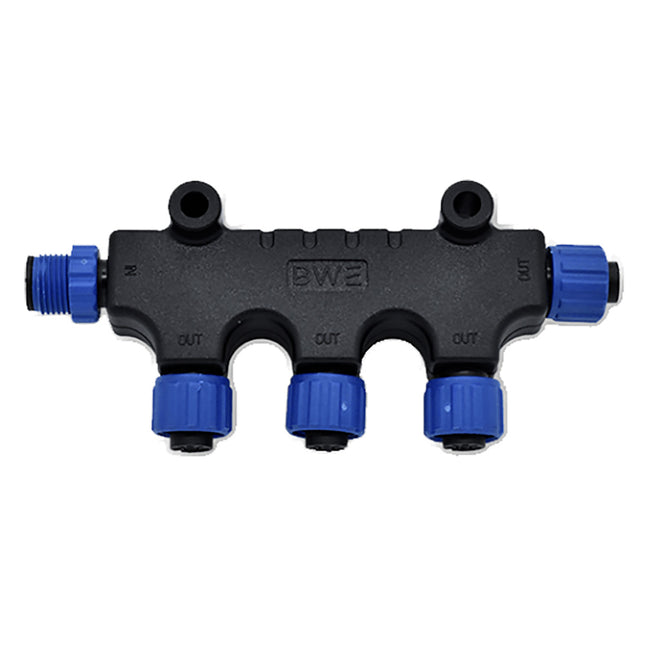

NMEA 2000 3-Way T-ConnectorOur NMEA 2000 T-Connector makes it easy to expand your marine electronics network by providing secure connection points between backbone cables and connected devices. Built to NMEA 2000 standards, each NMEA T-connector features rugged, waterproof 5-pin connectors for reliable data transmission in harsh marine environments.These t-connectors give you flexible installation options for both small and complex NMEA 2000 networks. Whether you’re adding a single display, integrating multiple sensors, or connecting additional power feeds, these compact, durable t-connectors help keep wiring organized, improve accessibility, and ensure your network remains dependable and efficient over time. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 4"W x 7"L WT: 0.15 lbs UPC: 810196330368

Read more less

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge. Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly Screw connector for positive connnection Termination resistors are used to terminate both ends of the trunk line Specifications: NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.15 lbs UPC: 786788831370

Read more less

NMEA 2000 in-line terminatorWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 2"W x 2"L WT: 0.1 lbs UPC: 753759078430

Read more less

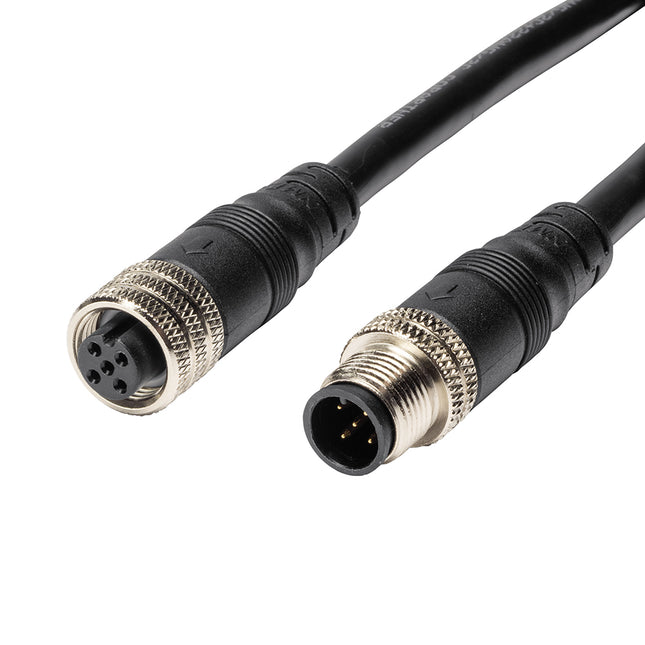

NMEA 2000 3M Drop CableThis Digital Yacht cable is a 3m (9ft) NMEA 2000 drop cable made of metal connectors for maximum reliability. The drop cable allows users to expand the NMEA 2000 to whatever size is needed.*Digital Yacht “Drop Cables” can also be used as backbone cables and are easily connected to make any length of backbone cable required. Also, the total length of all drop cables must be less than 76m.Features: 3m (9ft) NMEA 2000 Drop Cable Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating IP68 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 6"W x 8"L WT: 0.4 lbs UPC: 703791696345 Quick Guide (pdf)

Read more less

NMEA 2000 Cable & T Connector Connection Kit for Siren 3 ProOptimize the connectivity of your Connected Boat® system, allowing you to monitor engine data, water, fuel and waste tanks, and more! The NMEA 2000 Connection Kit includes a 2-meter connection cable and a 3-Way Connection "T" – everything you'll need to hook up to the NMEA 2000 data system 'backbone'. *Compatible with the Siren 3 Pro Only

Read more less

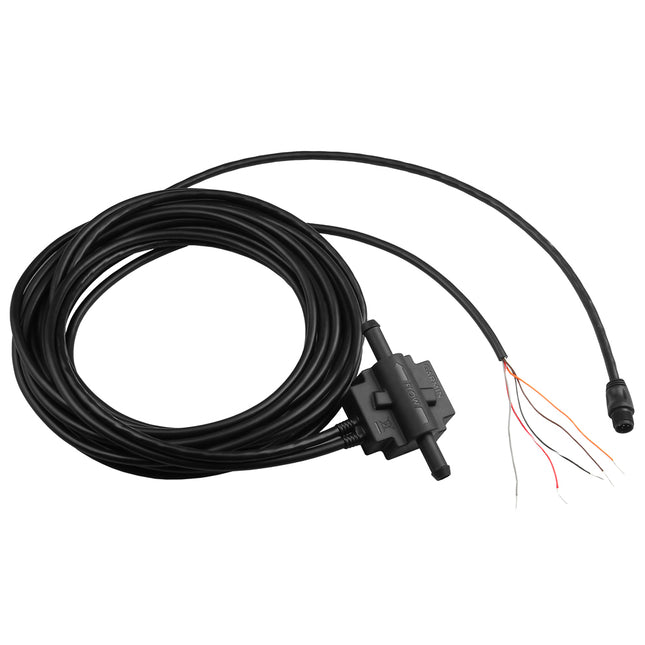

Fuel Flow Sensor - 25-500 LPH/6.6-132 GPHFeatures: Operating Temperature: -40°C to 80°C (-40°F to 176°F) Storage Temperature: -65°C to 170°C (-85°F to 338°F) Port Size: 1/4" NPT Female Cable Length: 1M (3.28 ft) Maximum Viscosity: 1000 cPs Pressure: 68.95 Bar (1000 PSI) Strainer Size: 200 Mesh (If not already installed after fuel filter) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified CableThe A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.Now with improved strain relief!The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.Technical Specifications:Electrical Rated Current - 4A (each feed) Rated Voltage - 60VDC Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass Filled), Black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.7mm ±0.254mm Cable Length - 3M Wire Length - 100mm (7mm stripped) Wire Jacket - PVC Wires - 18 AWG (stripped and tinned) Drain - 18 AWG (34-strand tinned copper) Shield - Al-mylar Weight - 290g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Cable Length (Meters): 3m NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs UPC: 5060998710140 Owner's Manual (pdf)Brochure (pdf)

Read more less

USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 And RS232The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network.The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.It provides a far safer connection when compared to standard USB to serial converters.Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from ground loops.The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.The USG-2 is the safest way to connect a boat’s data network to an on-board PC.Features: NMEA 0183, RS422 & RS232 compatible ISO-Drive™ technology Pluggable screwless connector with locking latch & strain relief Encapsulated electronics High retention USB socket Diagnostic & power LEDs Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit Pluggable screwless connector Inputs & outputs protected against over voltage, ESD & short circuits Simple installation Protects PC from damage Eliminates ground loops Technical Specifications:Power Supply (USB) Power Source - Bus powered Maximum Bus Current - 50mA NMEA 0183 Port – Talker & Listener     Number of Listener/Input Ports - One isolated NMEA 0183 Listener Number of Talker/Output ports - One isolated NMEA 0183 Talker Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Galvanic Isolation - NMEA 0183 Talker and Listener Isolation Speed/ Baud Rate - 4800 to 230400 bps / baud Connectivity - Pluggable screwless connector with locking latch and integrated push-button. Utilizes cage clamp for 12 to 24 AWG wires (both solid and stranded) Talker output voltage drive - >2.0V (differential) into 100Ω Talker output current drive - 20mA max. Talker output protection - Short circuit and ESD Listener input voltage tolerance - -15V to +15V continuous Listener input protection - Current limited, overdrive protection to 40V DC and ESD protection USB Port     Compatibility - USB 1.1, 2.0 and 3.0 Speed/ Baud Rate - 300 to 230400 Baud Connectivity - High retention type-B receptacle (supplied cable includes a custom USB Type-B sealing plug) Withdrawal Force - 1.5Kg Drivers (Latest OS) - Windows XP, Vista, 7, 8, 10,11 & MAC OS X supplied on CD & Actisense website Mechanical Materials - Housing – ABS (PA-765), flame retardant to UL94 V-0, PCB encapsulant – polyurethane, flame retardant to UL94 V-0, Pluggable screwless connector – PPA-GF with CrNi spring and tin plated Ecu contacts Mounting - Bulkhead mount (s/s self tapping screws included) or optional DIN rail mount kit available Weight - Main body 65g, USB cable 70g USB cable length - 2.0m shielded USB Type-A to Type-B cable including custom USB Type-B sealing plug Approval & Certifications     EMC - EN 60945 (sections 9 & 10) Environmental protection - IP67 (Encapsulated electronics) Operating temperature - -25°C to +70°C Storage temperature - -40°C to +85°C Relative Humidity (RH) - 0 to 93% RH Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs UPC: 5060998710485 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-4M NMEA2000 Micro Cable Assembly - 4MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  287g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 4m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 5"W x 6"L WT: 0.65 lbs UPC: 5060998710256 Owner's Manual (pdf)Brochure (pdf)

Read more less

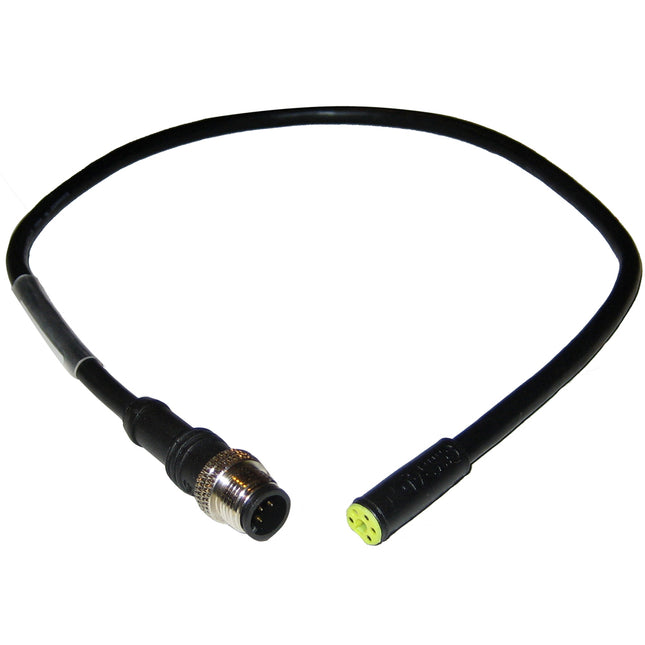

SeaTalkNG to NMEA2000 Adapter CableAdapter cable to convert SeaTalkNG data to NMEA2000.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 6"W x 7"L WT: 0.2 lbs UPC: 5060998710621

Read more less

NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine GatewayShare engine information on the NMEA 2000 bus.The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.Features: Enables analogue signals to be converted to NMEA 2000 messages Convert signals from up to two engines (that share a common ground) with a single EMU-1 6 gauge / parameter inputs 4 alarm inputs 2 additional auxiliary inputs 2 Tacho inputs Customized IP65 case Diagnostic LED’s Wide power compatibility of 9 to 35VDC No need to change an existing engine Easy installation Easy to configure to suit the connected engine Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000® Optional DIN rail mounting kit available Total engine hours are logged by the monitoring of engine Tach (RPM) input Technical Specifications:Power Supply Supply Voltage - 9 to 35VDC Supply Current - Typically < 25mA @ 12VDC Supply Protection - Continuous reverse polarity protection and load dump protection (meets SAE J1113) Supply Connector - Pluggable 2-way screw terminal, 3.5mm pitch Supply Voltage (NMEA 2000 Port) - 9 to 29VDC Supply Current (NMEA 2000 Port) - < 20mA @ 12VDC from NMEA 2000 bus Load Equivalent Number (LEN) - 1 Supply Protection (NMEA 2000 Port) - Continuous reverse polarity protection and overvoltage protection to 40V NMEA 2000 Port – In/Out Compatibility - Fully NMEA 2000 certified Galvanic Isolation - 2500V input to ground, 1500V output to ground using ISO-Drive Speed / Baud Rate - 250kbps NMEA 2000 Connector - M12 male (A coded) connector Gauge Inputs Voltage Range - 0 to 35VDC Input Impedance - > 50kΩ Sender Feed - 0, 4 or 18mA Accuracy - <= 2% Input Connector - Pluggable 6-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Alarm Inputs Voltage Range - 0 to 37VDC Input Impedance - > 50kΩ Threshold Voltage - Configurable, default is 5V Alarm Polarity - Configurable, default is alarm on low input Accuracy - <= 2% Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Tacho Inputs Voltage Range - ±3 to ±60V Input Impedance - > 100kΩ to ground Input Pulse Range - 4 to 50,000Hz Accuracy - <= 1% Sender Compatibility - Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender Threshold - Automatically adjusts to signal level Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Can withstand an ignition pulse to ±500V Engine LogEngine Hours - 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memoryMechanical Housing Material - Polycarbonate Protective Lid Material - Polycarbonate Sealing Materials - Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent Dimensions - 127mm (L) x 112mm (W) x 48mm (H) Weight - 250g Mounting - 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request Approvals and Certifications EMC - EN 60945 (sections 9 & 10) Environmental Protection - IP66 (PCB housing) Operating Temperature - -20°C to +55°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 – 93% RH Guarantee - 3 years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 3"H x 6"W x 9"L WT: 1 lbs UPC: 5060998710331 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 2000® Backbone/Drop Cables (Right Angle) - 1'Extend your NMEA 2000 backbone with our 1 foot (0.3 m) or 6 foot (1.82 m) right angle backbone cable.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.3m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 6"L WT: 0.3 lbs UPC: 753759138264

Read more less

GPS160 TriNav Sensor with NMEA 0183 OutputThe GPS160, a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies.TriNav technology allows all three systems to be simultaneously utilized for navigation. The device can also be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etcThe GPS160 is available with a NMEA 0183 output (4800, 38400 and 115200 baud programmable) and a USB variant for PC, MAC and Linux. For NMEA 2000 systems, a bundle is available with iKonvert allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables.The GPS160 also support an external MOB switch or device. When activated, it creates a “synthesized” AIS SART MOB message on the NMEA output which can be interfaced with a local plotter for MOB identification.The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to compute the best possible fix accuracy and reliability.Galileo is the global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.Features: 72 channel GPS, Glonassand Galileo GNSS positioning receiver Typically sub 1m accuracy thanks to TriNav technology –combines all satellite data for optimum accuracy Can be configured as dedicated GPS, Glonass or Galileo only device Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection Available in NMEA 0183, NMEA 2000 (with iKonvert interface)and wireless (with WLN10SM) variants GPS160USB also available with USB connection for PC/MAC User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches Multiple formats of NMEA data output including datum information –user configurable through internal DIP switches Up to 18Hz update rate (user selectable) Ultra low (<20mA) power consumption at 12V DC Input for MOB switch/system –when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST) Puck installation or fits 3rd party industry standard 1” x 14 TPI threaded mount Specifications: Data Interface: NMEA 0183 Box Dimensions: 4"H x 7"W x 10"L WT: 1.2 lbs UPC: 703791696031 Brochure (pdf)

Read more less

NavLink 2 “NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed to make NMEA 2000 navigation data available for apps on smartphones, tablets, iPads and PCs.” Features:NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed so that NMEA 2000 navigation data can be made available for apps on smartphones, tablets, iPads and PCs. Installation takes seconds as a result of direction connection to the NMEA 2000 back bone and self-powered from the data network.Once installed, it creates a local WiFi network for devices to connect or can be programmed to join an existing wireless network if one is already installed.  This is ideal for devices like the Furuno wireless radar which require operation through their own dedicated network but require NMEA 2000 data integration for charting apps.NavLink 2 now works with the popular Navionics Boating App for Apple iOS and Android. Therefore allowing display of GPS and AIS data on your Navionics charts. Specifications: NMEA 2000 to WiFi server Self powered from NMEA 2000 bus – fits in seconds Supports TCP/IP and UDP connection modes Provides AIS, navigation and instrument data to apps Compatible with all popular apps like iNavX, TimeZero, Weather 4D, Navionics, SailGrib, NavLink, iSailor, SeaPilot, AquaMap etc Up to 7 connected devices Compatible with Windows, Linux, MAC OS, iOS and Android Easy web interface for programming Password protected Can act as dedicated wireless server or rather can connect to an existing wireless network Diagnostic data display mode and LED status lights Internal hi gain WiFi antenna Super-fast 230KBs operation Optional raw data mode for developers and likewise advanced users Supplied with NMEA 2000 cable

Read more less

Micro Field-Attachable ConnectorField-attachable connectors allows you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.Color-coded screw terminals make for error-free field installation Rugged housing material designed to withstand harsh marine environments Specifications: Connection Gender: Female NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804001685

Read more less

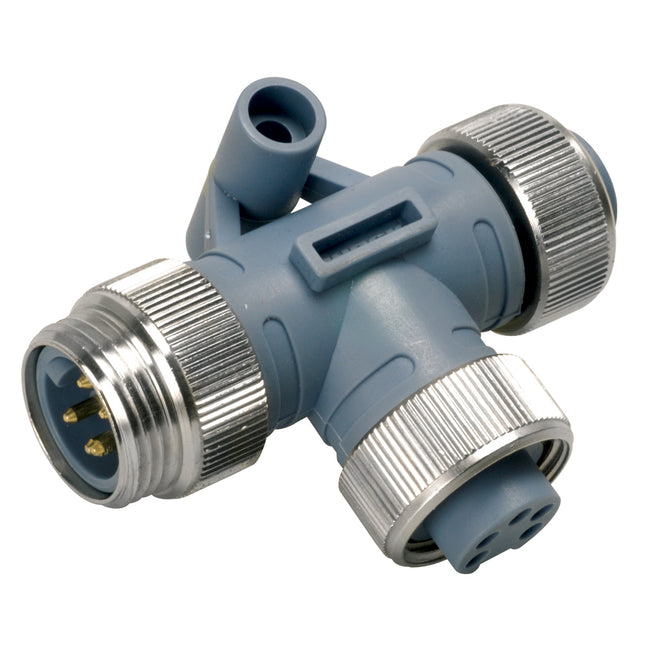

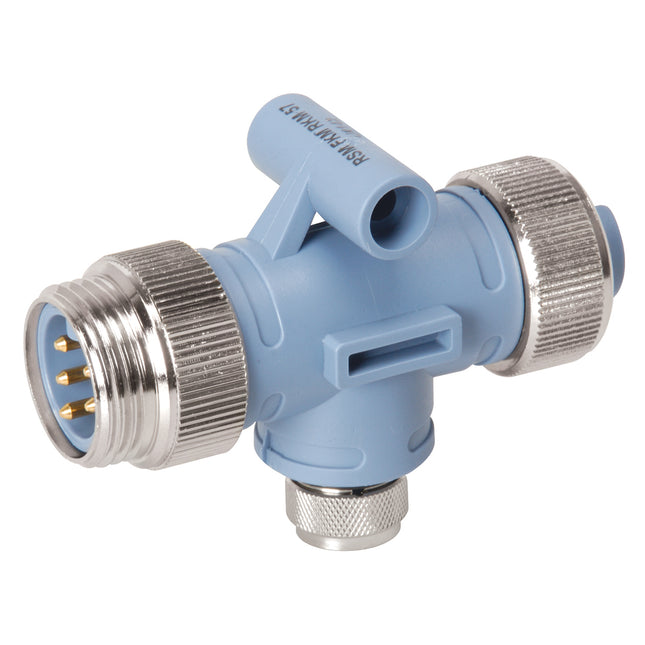

Mini/Micro TeeA Tee is used to tap into the trunk line for adding a drop connection. A Mini/Micro Tee has Mini connectors for the trunk lines and a Micro connector for the drop line.Gold contacts for greatest reliability Keyed connectors for error-free connectionsMini Male (left)Micro Female (bottom)Micro Female (right) Specifications: NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 2"W x 3"L WT: 0.2 lbs UPC: 873804002316

Read more less

Micro Field-Attachable ConnectorField-attachable connectors allows you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.Color-coded screw terminals make for error-free field installation Rugged housing material designed to withstand harsh marine environments Specifications: Connection Gender: Male NMEA 2000 Connectors: Field Connectors Box Dimensions: 2"H x 2"W x 2"L WT: 0.5 lbs UPC: 873804001692

Read more less

The TLM150 is used to sense levels of gasoline tanks using ultrasonic technology and transmit the gasoline levels over the NMEA 2000 network. This allows you to observe gasoline tank levels anywhere on the vessel where there is an NMEA 2000 compatible display such as the Maretron DSM250. The TLM150 is capable of sensing gasoline tanks up to 24" in depth. Unlike most tank senders that only work with rectangular tanks, the TLM150 can be calibrated for irregular tank shapes so you can know the true level of your tanks. It is desigend to operate within the harsh demands of the marine environment.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)
