Wichard Marine Wichard Webbing Snap Shackle - 3-1/8" [02374]
Web Snap Shackle - 3-1/8"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel. Its flat design allows attaching a webbing Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possible to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2110 / (kg) 960 Breaking load: (lb) 4400 / (kg) 2000 Weight: (lb) 0.187 / (g) 85 Dimensions: A: (inch) 5/8" / (mm) 16 B: (inch) 1 3/16" / (mm) 30 Length: (inch) 3 5/32" / (mm) 80 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$135.85 $115.47
-
Wichard Marine Wichard Captive Pin D Shackle - Diameter 4mm - 5/32" [01401]
Captive Pin D Shackle - Diameter 4mm - 5/32"Features: Captive pin "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Standard applications of shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 440 Breaking load (lb) 2200 Weight (lb) 0.02 Dimensions (see 2nd image): A (inch) 33/64" B (inch) 5/16" C (inch) 13/64" D (inch) 23/64" D diameter (inch) 5/32" E (inch) 5/32" F (inch) 15/16" G (inch) 55/64"
$22.25 $18.91
-
Wichard Marine Wichard Self-Locking D Shackle - Diameter 4mm - 5/32" [01201]
Self-Locking D Shackle - Diameter 4mm - 5/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 300 Breaking load (lb) 1540 Weight (lb) 0.015 Dimensions (see 2nd image) A (inch) 33/64" B (inch) 5/16" C (inch) 5/32" D (inch) 5/16" D diameter (inch) 5/32" E (inch) 1/8" F (inch) 29/32" G (inch) 25/32"
$14.35 $12.20
-
Wichard Marine Wichard 2-3/4" Snap Shackle w/Fixed Eye - 70mm [02472]
2-3/4" Snap Shackle with Fixed Eye - 70mmFeatures: HR Forged snap shackle (Grade 17.4 ph stainless steel) with fixed eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications with fixed eye Use for applications where the free rotation is not required
$110.40 $93.84
-
Wichard Marine Wichard HR Bow Shackle - 10mm Pin Diameter [11245]
HR Bow Shackle - 10mm Pin DiameterFeatures: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 5820 / (kg) 2640 WLL: (lb) 2640 / (kg) 1200 Breaking load: (lb) 13220 / (kg) 6000 Weight: (lb) 0.3 / (g) 136 Dimensions: A: (inch) 1 27/32" / (mm) 47 B: (inch) 55/64" / (mm) 22 C: (inch) 25/64" / (mm) 10 D: (inch) 25/32" / (mm) 20 D diameter: (inch) 15/32" / (mm) 12 E: (inch) 23/64" / (mm) 9 M: (inch) 2 3/64" / (mm) 52 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$130.00 $110.50
-
Wichard Marine Wichard Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32" [01306]
Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced Specifications: Materials: 316 stainless steel grade Working load: (lb) 4580 / (kg) 2080 WLL: (lb) 2640 / (kg) 1200 Breaking load: (lb) 13220 / (kg) 6000 Weight: (lb) 0.412 / (g) 187 Dimensions: A: (inch) 1 17/32" / (mm) 39 B: (inch) 15/16" / (mm) 24 C: (inch) 15/32" / (mm) 12 D: (inch) 15/16" / (mm) 24 D diameter: (inch) 15/32" / (mm) 12 E: (inch) 25/64" / (mm) 10 F: (inch) 2 7/8" / (mm) 73 G: (inch) 1 59/64" / (mm) 49 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$127.65 $108.50
-
Wichard Marine Wichard Safety Snap Hook - 35mm [02479]
Safety Snap Hook - 35mmFeatures: Grade 316L forged snap hook Various applications on board Oustanding working and breaking loads Modern design Applications:Various uses onboard: fastening applications
$22.45 $19.08
-
Wichard Marine Wichard Self-Locking Bow Shackle - Diameter 6mm - 1/4" [01243]
Self-Locking Bow Shackle - Diameter 6mm - 1/4"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 660 Breaking load (lb) 3300 Weight (lb) 0.066 Dimensions (see 2nd image): A (inch) 1-7/64" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" M (inch) 1-17/64"
$24.85 $21.12
-
Wichard Marine Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16" [01414]
Captive Pin Long D Shackle - Diameter 8mm - 5/16"Features: Captive pin long "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Standard applications of shackle requiring more length Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1580 Breaking load (lb) 7930 Weight (lb) 0.203 Dimensions (see 2nd image): A (inch) 2-7/16" B (inch) 5/8" C (inch) 23/64" D (inch) 43/64" D diameter (inch) 5/16" E (inch) 5/16" F (inch) 3-15/64" G (inch) 1-11/16"
$67.05 $56.99
-

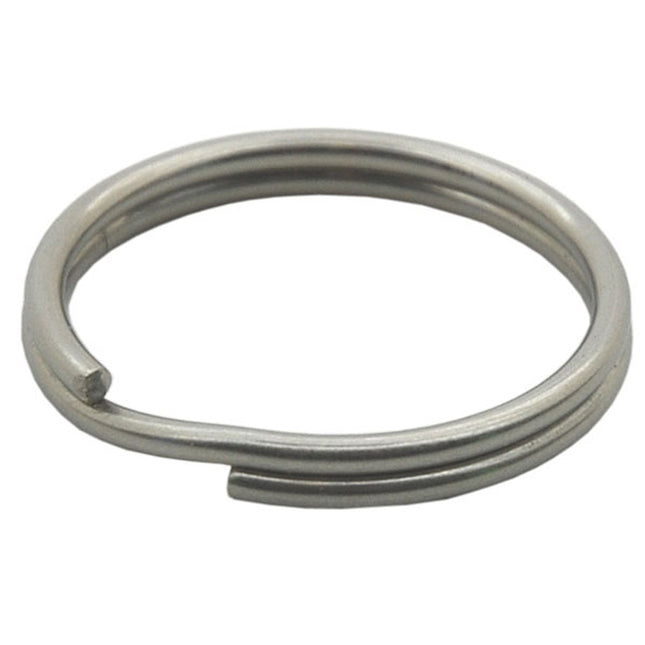

Ronstan Ronstan Split Cotter Ring - 18.8mm (3/4") ID [RF687]
Split Cotter Ring - 18.8mm(3/4") IDSuits clevis pins RF260 - RF274Grade 316 Stainless Steel
$1.53 $1.00
-
Ronstan Ronstan Split Cotter Ring - 25mm (1") ID [RF688]
Split Cotter Ring - 25mm(1") IDSuits clevis pins RF267 - RF278Grade 316 Stainless Steel
$2.70 $1.77
-
Wichard Marine Wichard 2-3/4" Snap Shackle w/Swivel Eye - 80mm [02473]
2-3/4" Snap Shackle with Swivel Eye - 80mmFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye The large eye allows attaching several ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation)
$95.45 $81.13
-
Harken Harken 4mm Shallow Bow Shackle [2131]
4mm Shallow Bow ShackleForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.Specifications: Shackle pin: 4mm / 5/32in Weight: 8.5g / 0.3oz Maximum working load: 367kg / 810lb Breaking load: 735kg / 1620lb
$10.50 $8.95
-
Wichard Marine Wichard HR Bow Shackle - 14mm Diameter - 35/64" [11240]
HR Bow Shackle - 14mm Diameter - 35/64"Features: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11280 / (kg) 5120 WLL: (lb) 5290 / (kg) 2400 Breaking load: (lb) 26450 / (kg) 12000 Weight: (lb) 0.802 / (g) 364 Dimensions: A: (inch) 2 31/64" / (mm) 63 B: (inch) 1 7/64" / (mm) 28 C: (inch) 35/64" / (mm) 14 D: (inch) 1 7/64" / (mm) 28 D diameter: (inch) 35/64" / (mm) 14 E: (inch) 33/64" / (mm) 13 M: (inch) 2 53/64" / (mm) 72 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$389.00 $330.65
-
Wichard Marine Wichard HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64" [02676]
HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 5290 / (kg) 2400 Breaking load: (lb) 9250 / (kg) 4200 Weight: (lb) 0.514 / (g) 233 Dimensions: A: (inch) 63/64" / (mm) 25 B: (inch) 5/8" / (mm) 16 Length: (inch) 4 21/64" / (mm) 110 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$262.00 $222.70
-
Lewmar Lewmar 50mm Synchro Snap Shackle [29925040]
50mm Synchro Snap ShackleLewmar Synchro Snap Shackles easily converts a non-snap shackle to a snap shackle with precision and highly engineered integrity. Make your existing blocks even more versatile by swapping out the standard shackle for a Lewmar Synchro snap shackle.Features: Adds quick-release capabilities Superior corrosion resistance Ring pull release Technical Specifications: Material - 316 stainless steel Working Load - 990lb Breaking Load - 1980lb Pin Diameter - 1/8" *Sold as an Individual
$57.95 $40.99
-
Lewmar Lewmar 72mm Synchro Snap Shackle [29927240]
72mm Synchro Snap ShackleLewmar Synchro Snap Shackles easily converts a non-snap shackle to a snap shackle with precision and highly engineered integrity. Make your existing blocks even more versatile by swapping out the standard shackle for a Lewmar Synchro snap shackle.Features: Adds quick-release capabilities Superior corrosion resistance Ring pull release Technical Specifications: Material - 316 stainless steel Working Load - 2420lb Breaking Load - 4840lb Pin Diameter - 1/4" *Sold as an Individual
$78.95 $52.99
-
Wichard Marine Wichard HR Safety Snap Hook - 100mm Length - 3-15/16" [02382]
HR Safety Snap Hook - 100mm Length - 3-15/16"Features: HR 17.4 PH stainless steel grade forged snap hook Various applications on board Outstanding working and breaking loads Modern design Applications:Various uses on board: fastening applicationsSpecifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb)3700 / (kg) 1680 Breaking load: (lb) 8810 / (kg) 4000 Weight: (lb) 0.368 / (g) 167 Dimensions: A: (inch) 43/64" / (mm) 17 B: (inch) 35/64" / (mm) 14 Length: (inch) 3 15/16" / (mm) 100 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$115.65 $98.30
-
Wichard Marine Wichard Self-Locking Large Opening Shackle - 10mm Diameter - 13/32" [01265]
Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"Features: Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: For applications where a large opening shackle is requiredSpecifications: Materials: 316 stainless steel grade Working load: (lb) 2820 / (kg) 1280 WLL: (lb) 1760 / (kg) 800 Breaking load: (lb) 8810 / (kg) 4000 Weight: (lb) 0.28 / (kg) 4000 Dimensions: A: (inch) 2 53/64" / (mm) 72 B: (inch) 1 37/64" / (mm) 40 C; (inch) 25/64" / (mm) 10 D: (inch) 53/64" / (mm) 21 D diameter: (inch) 25/64" / (mm) 10 E: (inch) 25/64" / (mm) 10 G: (inch) 2 51/64" / (mm) 71 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$99.45 $84.53
-
Wichard Marine Wichard 3-1/2" Snap Shackle w/Swivel Eye [02475]
3-1/2" Snap Shackle with Swivel EyeFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye The large eye allows attaching several ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation)
$112.15 $95.33
-
Wichard Marine Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3/16" [01222]
Self-Locking Twisted Shackle - Diameter 5mm - 3/16"Features: Self-locking twisted shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Perfect for application where a 90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Specifications: Materials 316 stainless steel grade Working load (lb) 1050 Breaking load (lb) 2420 Weight (lb) 0.035 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 25/64" C (inch) 13/64" D (inch) 25/64" D diameter (inch) 13/64" E (inch) 5/32" F (inch) 1-1/2" H (inch) 1-1/32"
$25.15 $21.38
-
Wichard Marine Wichard 2" Snap Shackle w/Fixed Eye - 50mm [02471]
2" Snap Shackle with Fixed Eye - 50mmFeatures: HR Forged snap shackle (Grade 17.4 ph stainless steel) with fixed eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications with fixed eye Use for applications where the free rotation is not required
$73.40 $62.39
-
Harken Harken 5mm Shallow Bow Shackle [2132]
5mm Shallow Bow ShackleForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.Specifications: Shackle pin: 5mm / 3/16in Weight: 14.5g / 0.51oz Maximum working load: 540kg / 1190lb Breaking load: 1080kg / 2380lb
$14.30 $12.95
-
Wichard Marine Wichard MXLEvo 12 - Soft Block - 12mm Rope Size - 15/32" [21105]
MXLEvo 12 - Soft Block - 12mm Rope Size - 15/32" Features: MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market Heavy load applications: The MXLEvo is designed to use heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc. Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 12 is: twice as robust, half the weight, a lighter rope with a stronger breaking load A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is extremely reliable and requires no maintenance Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily adaptable to your deck and to whatever anchoring point or chain plate alignment you choose Applications: Mast foot block Halyard block Barber hauler Purchase Tackle Sheet return Mainsail outhaul Snatch block (in that case it is recommended to use an 8 mm rope size) Specifications: Materials: Duplex stainless steel grade S78 Dyneema Rope size: (inch) 15/32" / (mm) 12 Dimensions: Length: (inch) 1 37/64" / (mm) 40 Width: (inch) 2 1/8" / (mm) 54 Thickness: (inch) 1 3/8" / (mm) 35 Loop diameter: (inch) 13/64" / (mm) 5 Loop length: (inch) 8 21/32" / (mm) 220 Working load: (lb) 3520 / (kg) 1600 Breaking load: (lb) 8370 / (kg) 3800 Weight: (lb) 0.198 / (g) 90 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$127.75 $108.59
-
Wichard Marine Wichard HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64" [02495]
HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye Allows to splice the halyard directly onto the snap shackle (without using a thimble) Avoids the wear of the ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard) Applications: Snap shackle applications Allows to splice the halyard Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280 Breaking load: (lb) 5290 / (kg) 2400 Dimensions: A: (inch) 53/64" / (mm) 110 B: (inch) 35/64" / (mm) 21 Length: (inch) 4 21/64" / (mm) 14 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$135.85 $115.47
-
Wichard Marine Wichard HR Bow Shackle - 12mm Pin Diameter [11246]
HR Bow Shackle - 12mm Pin DiameterFeatures: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 7930 / (kg) 3600 WLL: (lb) 4400 / (kg) 2000 Breaking load: (lb) 22040 / (kg) 10000 Weight: (lb) 0.494 / (g) 224 Dimensions: A: (inch) 2 11/64" / (mm) 55 B: (inch) 15/16" / (mm) 24 C: (inch) 15/32" / (mm) 12 D: (inch) 15/16" / (mm) 24 D diameter: (inch) 35/64" / (mm) 14 E: (inch) 25/64" / (mm) 10 M: (inch) 2 31/64" / (mm) 63 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) Quick Guide (pdf)
$210.65 $179.05
-
Wichard Marine Wichard HR Bow Shackle - 24mm Diameter - 15/16" [11249]
HR Bow Shackle - 24mm Diameter - 15/16"Features: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 28210 / (kg) 12800 WLL: (lb) 15430 / (kg) 7000 Breaking load: (lb) 77160 / (kg) 35000 Weight: (lb) 3.761 / (kg) 1.706 Dimensions: A: (inch) 4 1/4" / (mm) 108 B: (inch) 1 57/64" / (mm) 48 C: (inch) 15/16" / (mm) 24 D: (inch) 1 27/32" / (mm) 47 D diameter: (inch) 15/16" / (mm) 24 E: (inch) 25/32" / (mm) 20 M: (inch) 4 41/64" / (mm) 118 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$1,053.00 $895.05
-
Wichard Marine Wichard MXLEvo 10 - Soft Block - 10mm Rope Size - 13/32" [21104]
MXLEvo 10 - Soft Block - 10mm Rope Size - 13/32"Features: MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market Heavy load applications: The MXLEvo is designed to use heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc. Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 10 is: twice as robust, half the weight, a lighter rope with a stronger breaking load A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is extremely reliable and requires no maintenance Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily adaptable to your deck and to whatever anchoring point or chain plate alignment you choose Applications: Mast foot block Halyard block Barber hauler Purchase Tackle Sheet return Mainsail outhaul Snatch block (in that case it is recommended to use an 8 mm rope size) Specifications: Materials: Duplex stainless steel grade S78 Dyneema Rope size: (inch) 13/32" / (mm) 10 Dimensions: Length: (inch) 1 3/16" / (mm) 30 Width: (inch) 1 37/64" / (mm) 40 Thickness: (inch) 1 1/32" / (mm) 26 Loop diameter: (inch) 5/32" / (mm) 4 Loop length: (inch) 6 11/16" / (mm) 170 Working load: (lb) 1760 / (kg) 800 Breaking load: (lb) 4400 / (kg) 2000 Weight: (lb) 0.088 / (g) 40 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$102.20 $86.87
-
Wichard Marine Wichard Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4" [01343]
Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"Features: Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) Applications: Ideal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 1320 / (kg) 600 WLL: (lb) 660 / (kg) 300 Breaking load: (lb) 3300 / (kg) 1500 Weight: (lb) 0.064 / (g) 29 Dimensions: A: (inch) 1 1/16" / (mm) 27 B: (inch) 15/32" / (mm) 12 C: (inch) 15/64" / (mm) 6 D: (inch) 15/32" / (mm) 12 D diameter: (inch) 15/64" / (mm) 6 E: (inch) 13/64" / (mm) 5 F: (inch) 3/64" / (mm) 1 M: (inch) 1 17/64" / (mm) 32 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$38.95 $33.11
-
Wichard Marine Wichard Self-Locking D Shackle - Diameter 8mm - 5/16" [01204]
Self-Locking D Shackle - Diameter 8mm - 5/16"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.121 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" F (inch) 1-49/64" G (inch) 1-39/64"
$33.75 $28.69
-
Wichard Marine Wichard Safety Snap Hook - 75mm [02481]
Safety Snap Hook - 75mmFeatures: Grade 316L forged snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses onboard: fastening applications
$50.65 $43.05
-
Wichard Marine Wichard HR D Shackle - 16mm Diameter - 5/8" [11208]
HR D Shackle - 16mm Diameter - 5/8"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 14990 / (kg) 6800 WLL: (lb) 8370 / (kg) 3800 Breaking load: (lb) 41880 / (kg) 19000 Weight: (lb) 1.023 / (g) 464 Dimensions: A: (inch) 2 13/64" / (mm) 56 B: (inch) 1 17/64" / (mm) 32 D diameter: (inch) 5/8" / (mm) 16 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$372.90 $316.97
-
Wichard Marine Wichard Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16" [01394]
Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"Features: Thimble shackle with allen head pin forged in grade 316L stainless steel Allows to spliced a rope without adding and additional thimble With the captive pin, no risk to lose the pin Outstanding working and breaking loads Applications: Mainsheet halyards Max rope size: 12 mm Specifications: Materials: 316 stainless steel grade Working load: (lb) 2200 / (kg) 1000 Breaking load: (lb) 6610 / (kg) 3000 Weight: (lb) 0.168 / (g) 76 Dimensions: A: (inch) 1 39/64" / (mm) 41 B: (inch) 5/8" / (mm) 16 C: (inch) 5/16" / (mm) 8 D: (inch) 5/8" / (mm) 16 D diameter: (inch) 5/16" / (mm) 8 E: (inch) 9/32" / (mm) 7 F: (inch) 2 63/64" / (mm) 76 G: (inch) 1 19/64" / (mm) 33 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$102.85 $87.42
-

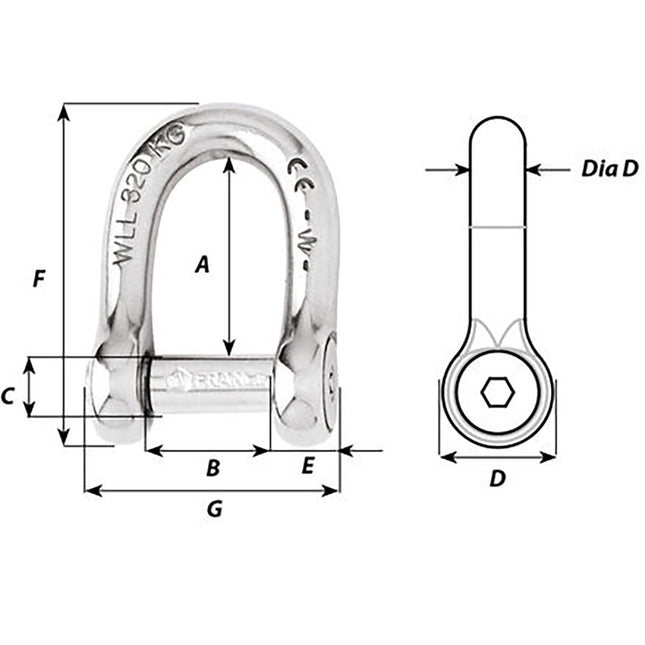

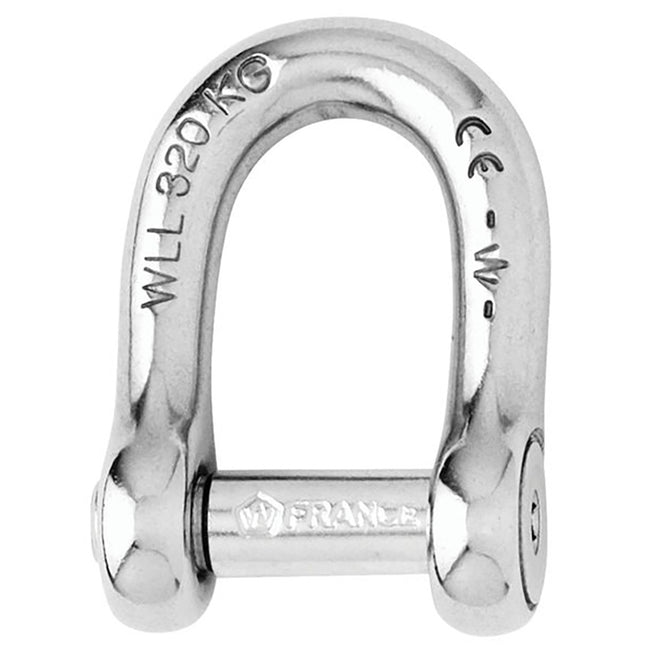

Wichard Marine Wichard Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16" [01304]
Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16"Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chain and anchor On the halyard, avoids to damage the sails To be used when the clutter is reduced Specifications: Materials: 316 stainless steel grade Working load: (lb) 2110 / (kg) 960 WLL: (lb) 1190 / (kg) 540 Breaking load: (lb) 5950 / (kg) 2700 Weight: (lb) 0.117 / (g) 53 Dimensions: A: (inch) 1 1/32" / (mm) 26 B: (inch)5/8" / (mm) 16 C: (inch) 5/16" / (mm) 8 D: (inch) 5/8" / (mm) 16 D diameter: (inch) 5/16" / (mm) 8 E: (inch) 9/32" / (mm) 7 F: (inch) 1 13/16" / (mm) 46 G: (inch) 1 19/64" / (mm) 33 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$47.50 $40.38
-

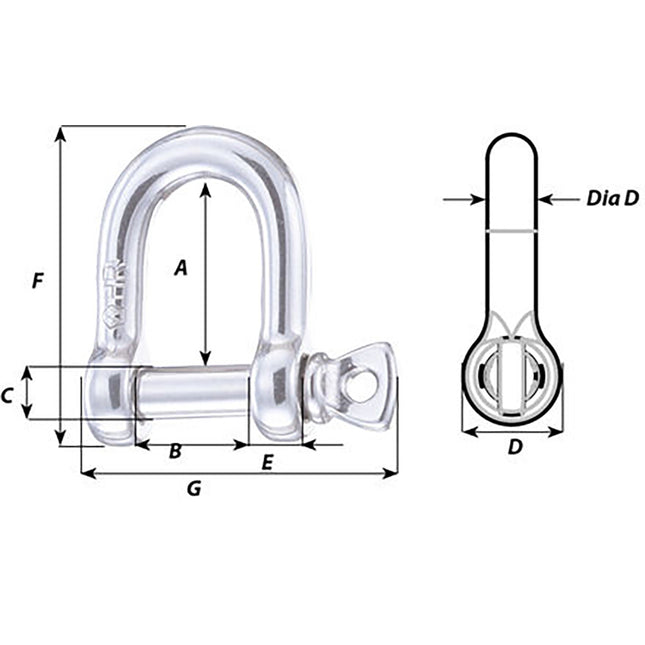

Wichard Marine Wichard HR D Shackle - 14mm Diameter - 35/64" [11207]
HR D Shackle - 14mm Diameter - 35/64"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11280 / (kg) 5120 WLL: (lb) 5290 / (kg) 2400 Breaking load: (lb) 26450 / (kg) 12000 Weight: (lb) 0.67 / (g) 304 Dimensions: A: (inch) 1 59/64" / (mm) 49 B: (inch) 1 7/64" / (mm) 28 D diameter: (inch) 35/64" / (mm) 14 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$324.15 $275.53
-

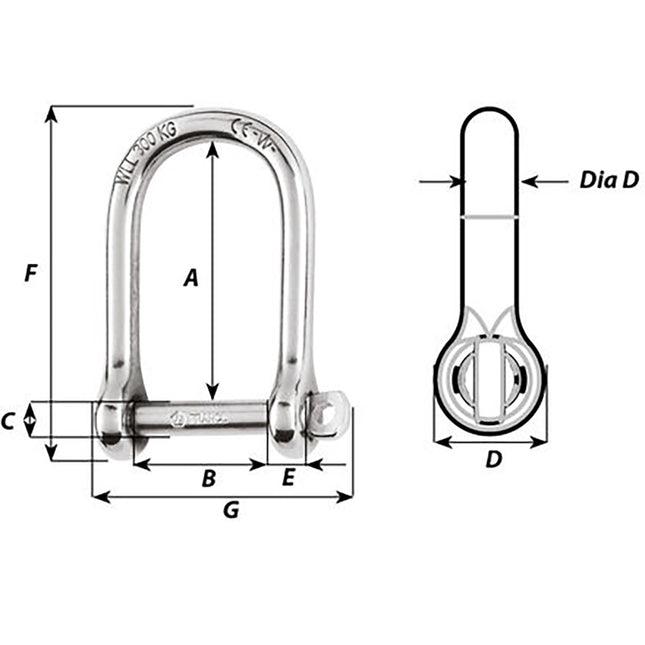

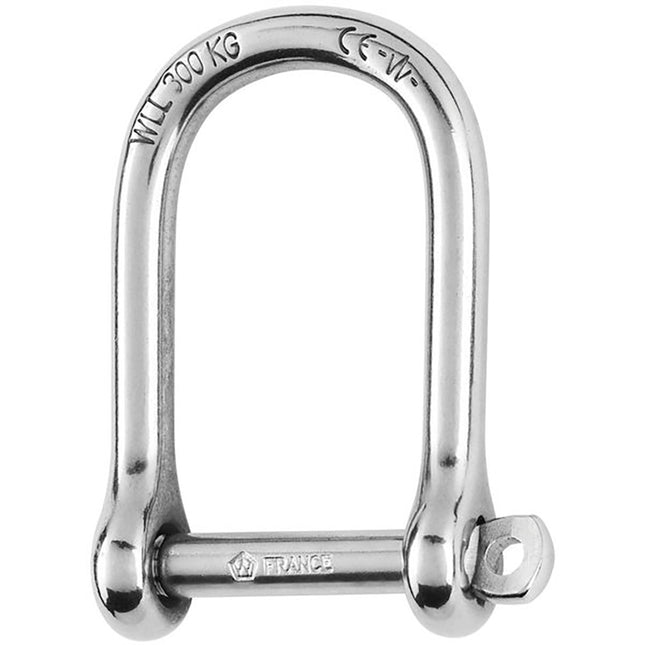

Wichard Marine Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16" [01264]
Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"Features: Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications:For applications where a large opening shackle is requiredSpecifications: Materials: 316 stainless steel grade Working load: (lb) 1780 / (kg) 810 WLL: (lb) 1190 / (kg) 540 Breaking load: (lb) 5950 / (kg) 2700 Weight: (lb) 0.148 / (g) 67 Dimensions: A: (inch) 2 1/4" / (mm) 57 B: (inch) 1 17/64" / (mm) 32 C: (inch) 5/16" / (mm) 8 D: (inch) 43/64" / (mm) 17 D diameter: (inch) 5/16" / (mm) 8 E: (inch) 5/16" / (mm) 8 F: (inch) 3 1/32" / (mm) 77 G: (inch) 2 1/4" / (mm) 57 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$62.55 $53.17
-
Wichard Marine Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8" [02677]
HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 7050 / (kg) 3200 Breaking load: (lb) 13880 / (kg) 6300 Weight: (lb) 0.818 / (g) 371 Dimensions: A: (inch) 1 3/16" / (mm) 30 B: (inch) 25/32" / (mm) 20 Length: (inch) 5 1/8" / (mm) 130 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$406.35 $345.40
-
Wichard Marine Wichard MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16" [21106]
MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"Features: MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any type of anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market Heavy load applications: The MXLEvo is designed to be used with heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc. Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 16 is: twice as robust, half the weight, a 35% lighter rope with a stronger breaking load A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is highly reliable and requires no maintenance Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily flexible to your deck and to whatever anchoring point or chain plate alignment you choose Applications: Mast foot block Halyard block Barber hauler Purchase Tackle Sheet return Mainsail outhaul Snatch block (in that case it is recommended to use an 8 mm rope size) Specifications: Materials: Duplex stainless steel grade S78 Dyneema Rope size: (inch) 11/16" / (mm) 16 Dimensions: Length: (inch) 1 27/32" / (mm) 47 Width: (inch) 2 23/64" / (mm) 60 Thickness: (inch) 1 39/64" / (mm) 41 Loop diameter: (inch) 15/64" / (mm) 6 Loop length: (inch) 10 5/8" / (mm) 270 Working load: (lb) 5510 / (kg) 2500 Breaking load: (lb) 11020 / (kg) 5000 Weight: (lb) 0.309 / (g) 140 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$204.40 $173.74
-
Wichard Marine Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter [91434]
HR Key Pin Shackle With Bar - 8mm Pin DiameterFeatures: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Perfect product for halyards or applications requiring to opening/closing the shackle often Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2110 / (kg) 960 Breaking load: (lb) 7710 / (kg) 3500 Weight: (lb) 0.271 / (g) 123 Dimensions: A: (inch) 2 21/64" / (mm) 59 B: (inch) 53/64" / (mm) 21 C: (inch) 5/16" / (mm) 8 D: (inch) 43/64" / (mm) 17 E: (inch) 15/64" / (mm) 6 F: (inch) 3 7/64" / (mm) 79 G: (inch) 1 57/64" / (mm) 48 L: (inch) 25/32" / (mm) 20 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$121.80 $103.53
-
Wichard Marine Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" [02778]
HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11460 / (kg) 5200 Breaking load: (lb) 17630 / (kg) 8000 Weight: (lb)1.362 / (g) 618 Dimensions: A: (inch) 1 11/32" / (mm) 34 B: (inch) 1 39/64" / (mm) 41 Length: (inch) 6 19/64" / (mm) 160 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$720.70 $612.60
-
Wichard Marine Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16" [01344]
Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"Features: Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal for linking chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 2110 / (kg) 960 WLL: (lb) 1190 / (kg) 540 Breaking load: (lb) 5950 / (kg) 2700 Weight: (lb) 0.148 / (g) 67 Dimensions: A: (inch) 1 29/64" / (mm) 37 B: (inch) 5/8" / (mm) 16 C: (inch) 5/16" / (mm) 8 D: (inch) 5/8" / (mm) 16 D diameter: (inch) 5/16" / (mm) 8 E: (inch) 9/32" / (mm) 7 F: (inch) 63/64" / (mm) 25 M: (inch) 1 37/64" / (mm) 40 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$55.35 $47.05
-
Wichard Marine Wichard Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32" [01305]
Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal for linking chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced Specifications: Materials: 316 stainless steel grade Working load: (lb) 3170 / (kg) 1440 WLL: (lb) 1890 / (kg) 860 Breaking load: (lb) 9470 / (kg) 4300 Weight: (lb) 0.218 / (g) 99 Dimensions: A: (inch) 1 19/64" / (mm) 33 B: (inch) 25/32" / (mm) 20 C: (inch) 25/64" / (mm) 10 D: (inch) 3/4" / (mm) 19 D diameter: (inch) 25/64" / (mm) 10 E: (inch) 23/64" / (mm) 9 F: (inch) 2 1/4" / (mm) 57 G: (inch) 1 39/64" / (mm) 41 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$77.00 $65.45
-
Wichard Marine Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [01395]
Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"Features: Thimble shackle with allen head pin forged in grade 316L stainless steel Allows a rope to be spliced without adding and additional thimble With the captive pin, no risk to lose the pin Outstanding working and breaking loads Applications: Mainsheet halyards Max rope size: 16 mm Specifications: Materials: 316 stainless steel grade Working load: (lb) 3350 / (kg) 1520 Breaking load: (lb) 11020 / (kg) 5000 Weight: (lb) 0.313 / (g) 142 Dimensions: A: (inch) 2 1/64" / (mm) 51 B: (inch) 25/32" / (mm) 20 C: (inch) 25/64" / (mm) 10 D: (inch) 25/32" / (mm) 20 D diameter: (inch) 25/64" / (mm) 10 E: (inch) 5/16" / (mm) 8 F: (inch) 3 25/32" / (mm) 96 G: (inch) 1 39/64" / (mm) 41 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$158.30 $134.56
-
Wichard Marine Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32" [01346]
Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"Features: Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 4580 / (kg) 2080 WLL: (lb) 2640 / (kg) 1200 Breaking load: (lb) 13220 / (kg) 6000 Weight: (lb) 0.489 / (g) 222 Dimensions: A: (inch) 2 11/64" / (mm) 55 B: (inch) 1 1/16" / (mm) 27 C: (inch) 15/32" / (mm) 12 D: (inch)15/16" / (mm) 24 D diameter: (inch) 15/32" / (mm) 12 E: (inch) 25/64" / (mm) 10 F: (inch) 1 1/2" / (mm) 38 M: (inch) 2 31/64" / (mm) 63 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$135.20 $114.92
-
Wichard Marine Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8" [01247]
Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"Features: Bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Part # 01247 is not self-locking Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials: 316 stainless steel grade Working load: (lb) 7050 / (kg) 3200 WLL: (lb) 4400 / (kg) 2000 Breaking load: (lb) 22040 / (kg) 10000 Weight: (lb) 1.19 / (g) 540 Dimensions: A: (inch) 2 3/4" / (mm) 70 B: (inch) 1 17/64" / (mm) 32 C: (inch) 35/64" / (mm) 14 D: (inch) 1 17/64" / (mm) 14 D diameter: (inch) 5/8" / (mm) 16 E: (inch) 19/32" / (mm) 15 M: (inch) 3 11/32" / (mm) 85 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$260.15 $221.13
-
Wichard Marine Wichard Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter - 13/32" [01345]
Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter - 13/32"Features: Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chain and anchor On the halyard, avoids to damage the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 3170 / (kg) 1440 WLL: (lb) 1890 / (kg) 860 Breaking load: (lb) 9470 / (kg) 4300 Weight: (lb) 0.293 / (g) 133 Dimensions: A: (inch) 1 27/32" / (mm) 47 B: (inch) 25/32" / (mm) 20 C: (inch) 25/64" / (mm) 10 D: (inch) 25/32" / (mm) 20 D diameter: (inch) 25/64" / (mm) 10 E: (inch) 23/64" / (mm) 9 F: (inch) 1 17/64" / (mm) 32 M: (inch) 2 3/64" / (mm) 52 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$84.30 $71.66
-
Wichard Marine Wichard Self-Locking D Shackle - 12mm Diameter - 15/32" [01206]
Self-Locking D Shackle - 12mm Diameter - 15/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Standard applications of the shackle Attachment applications: blocks, head Specifications: Materials: 316 stainless steel grade Working load: (lb) 4580 / (kg) 2080 WLL: (lb) 2640 / 1200 (kg) Breaking load: (lb) 13220 / (kg) 6000 Weight: (lb) 0.425 / (g) 193 Dimensions: A: (inch) 1-21/32" / (mm) 42 B: (inch) 1-1/16" / (mm) 27 C: (inch) 15/32" / (mm) 12 D: (inch) 15/16" / (mm) 24 D diameter: (inch) 15/32" / (mm) 12 E: (inch) 7/16" / (mm) 11 F: (inch) 2-7/8" / (mm) 73 G: (inch) 2-7/16" / (mm) 62 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
$94.10 $79.99
-
Wichard Marine Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [02777]
HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 6170 / (kg) 2800 Breaking load: (lb) 13880 / (kg) 6300 Weight: (lb) 0.873 / (g) 396 Dimensions: A: (inch) 1 3/16" / (mm) 30 B: (inch) 1 25/64" / (mm) 35.5 Length: (inch) 5 45/64" / (mm) 145 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
$432.45 $367.58
You have seen 48 out of 185 products
