2105 MaxiBus 250AMP Common BusBars 12 x #10 Terminal ScrewsBusbars are used to consolidate multiple wires or feed multiple circuits.Features: Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact Raised bus provides easy access to multiple wires on a single screw or stud UL 94-V0 rated base material resists high heat Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

360 Panel - M2 Monitor Panel Blank1 x 1 360 Panel System module mounts any M2 Monitor and matches existing 360 panelsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

ST Blade Compact Fuse Blocks - 8 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block Accepts ATO® and ATC® fast acting blade fuses Single side entry wiring Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Small format standard and custom labels available Specifications Circuits:8 Maximum Amperage: 100A per block / 30A per circuit Maximum Voltage:32V DC Mounting: #8 Screw (M4) Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 3"W x 9"L WT: 0.5 lbs UPC: 632085050467

Read more less

easyID Fuse KitATC® Fuses Illuminate When BlowneasyID™ illuminated ATC® blade fuses use Light Emitting Diode (LED) technology to show that a fuse has blown, making them easy to spot in fuse panels tucked up under dark dashboards.Features: Replaces non illuminating ATO® or ATC® fuses Fast acting Fuses Included: 3A 5A 7.5A 10A 15A 20A 25A 30A 40A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: Assorted Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 1"H x 5"W x 7"L WT: 0.2 lbs UPC: 632085052904 Quick Guide (pdf)

Read more less

WeatherDeck® 12V DC Waterproof Switch Panel - 4 Position Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Weatherproof: WaterproofPositions: 4Nominal Voltage: 12V DC/24V DCCircuit Protection: NoneMaximum Amperage: 15A @ 12V DC (per circuit)Panel Cumulative Rating: 45AMaterial: Reinforced PolycarbonateHeight: 4.30"(109.22 mm)Width : 3.88"(98.55 mm)Depth: 2.50"(63.5 mm)Weight: 0.90lb (0.41 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof AC/DC: DC Max Breaker Quantity: 4 Voltage: 12/24v Box Dimensions: 4"H x 6"W x 7"L WT: 0.7 lbs UPC: 632085043056 Owner's Manual (pdf)

Read more less

C-Series Toggle Single PolePN: 7250IPoles: 1Color: RedAmperage: 100AFeatures: Ignition Protected Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 2"H x 3"W x 4"L WT: 0.5 lbs UPC: 632085725006 Owner's Manual (pdf)

Read more less

C-Series Toggle Single PolePN: 7355Poles: 1Color: WhiteAmperage: 30AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 2"W x 4"L WT: 0.9 lbs UPC: 632085073558

Read more less

C-Series Toggle Single PolePN: 7354Poles: 1Color: WhiteAmperage: 25AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 25a Box Dimensions: 2"H x 3"W x 4"L WT: 0.8 lbs UPC: 632085073541

Read more less

C-Series Toggle Single PolePN: 7353Poles: 1Color: WhiteAmperage: 20AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085073534

Read more less

C-Series Toggle Single PolePN: 7352Poles: 1Color: WhiteAmperage: 15AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 1"H x 2"W x 3"L WT: 0.5 lbs UPC: 632085073527

Read more less

C-Series Toggle Single PolePN: 7351Poles: 1Color: WhiteAmperage: 10AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085073510

Read more less

C-Series Toggle Single PolePN: 7350Poles: 1Color: WhiteAmperage: 5AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs UPC: 632085073503

Read more less

C-Series Toggle Single PolePN: 7250Poles: 1Color: WhiteAmperage: 100AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 3"H x 3"W x 5"L WT: 0.6 lbs UPC: 632085072506

Read more less

C-Series Toggle Single PolePN: 7248Poles: 1Color: WhiteAmperage: 80AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085072483

Read more less

C-Series Toggle Single PolePN: 7246Poles: 1Color: WhiteAmperage: 60AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085072469

Read more less

C-Series Toggle Single PolePN: 7244Poles: 1Color: WhiteAmperage: 50AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs UPC: 632085072445

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 50AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage: 50A AC / 50A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085074173

Read more less

A-Series Raised Rocker Circuit Breaker - Double Pole - 50AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage: 50A AC / 50A DC Actuator Style: Raised Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 5"L WT: 0.35 lbs UPC: 632085075774

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 40AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage : 40A AC / 40A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085074166

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 32AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage : 32A AC / 32A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32a Box Dimensions: 2"H x 3"W x 3"L WT: 1 lbs UPC: 632085074159

Read more less

A-Series Raised Rocker Circuit Breaker - Double Pole - 32AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during a fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage: 32A AC / 32A DC Actuator Style: Raised Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32a Box Dimensions: 2"H x 3"W x 5"L WT: 0.35 lbs UPC: 632085075750

Read more less

A-Series Raised Rocker Circuit Breaker - Double Pole - 30AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage: 30A AC / 30A DC Actuator Style: Raised Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 4"W x 5"L WT: 0.35 lbs UPC: 632085075743

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 20AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage : 20A AC / 20A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 2"H x 2"W x 4"L WT: 0.5 lbs UPC: 632085074135

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 16AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage : 16A AC / 16A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 16a Box Dimensions: 2"H x 3"W x 5"L WT: 0.35 lbs UPC: 632085074128

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 15AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage : 15A AC / 15A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085074111

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 10AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage : 10A AC / 10A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 2"H x 3"W x 4"L WT: 0.4 lbs UPC: 632085074104

Read more less

5161ANL Fuse600A Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 600a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051617

Read more less

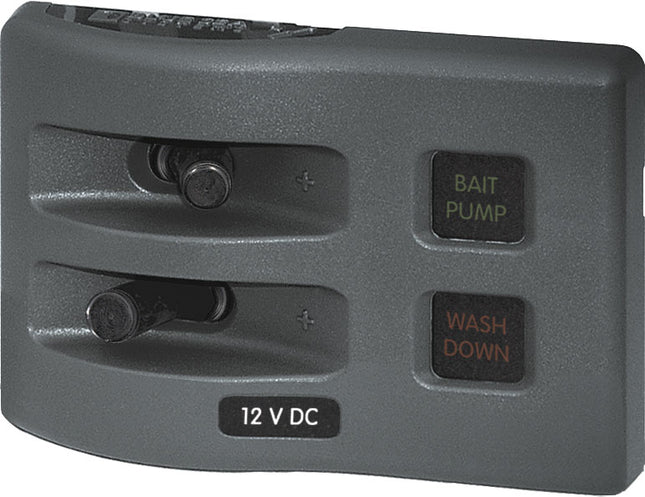

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 2 PositionsModel: 4302-BSS Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 - protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting circuit for remote switching and dimming Available in 2, 4, 6, and 8 circuit models Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. SpecificationsWeatherproofWaterproof Positions 2 Nominal Voltage 12vDC Circuit Protection Fuse Maximum Amperage 15A @ 12V DC (per circuit) Panel Cumulative Rating 30A Backlit Label Bicolored LED Backlighting Amperage 10mA /Illuminated Circuit Backlighting Voltage 12V DC Material Reinforced Polycarbonate Dimensions H x W x D 2.6in x 3.88in x 2.50in

Read more less

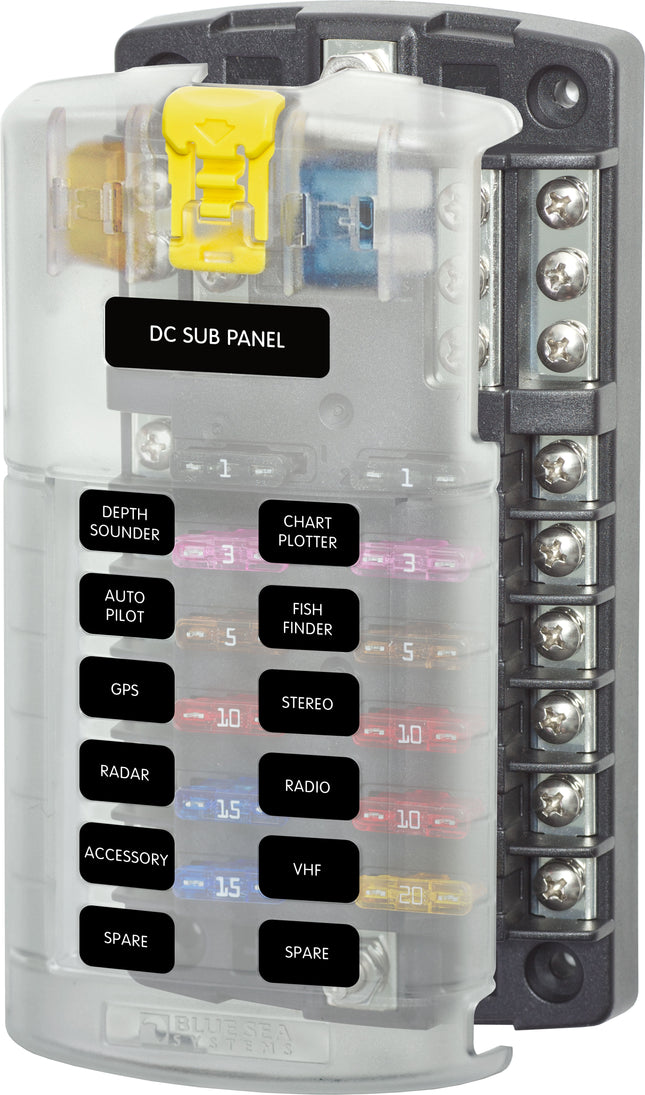

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus and CoverModel: 5026 Positive distribution bus with #10-32 stud Can be used for 24-hour circuits Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems Small Format Labels for circuit identification Fuse blocks with covers include 20 write-on circuit labels Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Accepts ATO(R) and ATC(R) fast acting blade fuses Fuses sold separately The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don't require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.SpecificationsCircuits12 Maximum Amperage 100A per block

Read more less

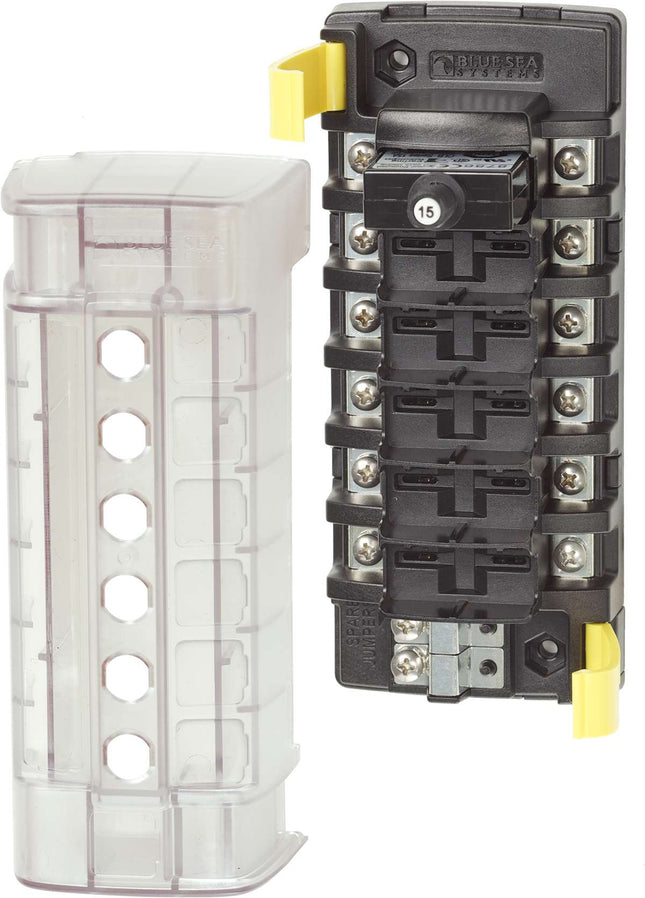

Blue Sea ST CLB Circuit Breaker Block - 6 Independent CircuitsModel: 5050-BSS Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Accepts square labels The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.The ST CLB Circuit Breaker Block offers flexible resettable circuit protection for 6 circuits in a surface mount block that is easy to mount in a dry and protected location. A natural companion for waterproof switching is the new WD Switch Only Panel, that will keep circuits protected from spray and offer integrated switch guards to reduce the risk of accidental switching.SpecificationsCircuits6 Maximum Amperage 32A (per circuit)40A (per jumped circuit group) Maximum Voltage 32V DC Source Independent Source Mounting Centers 5.63in (143 mm)

Read more less

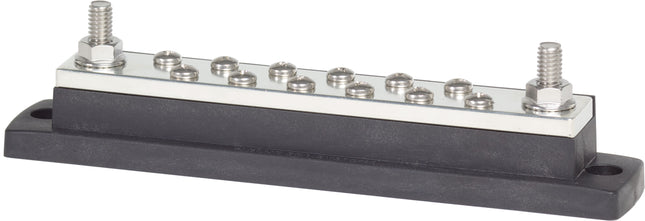

Blue Sea MaxiBus 250A BusBar - Two 5/16-18 Studs and Twelve #10-24 ScrewsModel: 2105-BSS Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact Raised bus provides easy access to multiple wires on a single screw or stud UL 94-V0 rated base material resists high heat Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces Busbars are used to consolidate multiple wires or feed multiple circuitsSpecificationsMaximum Voltage300V AC

Read more less

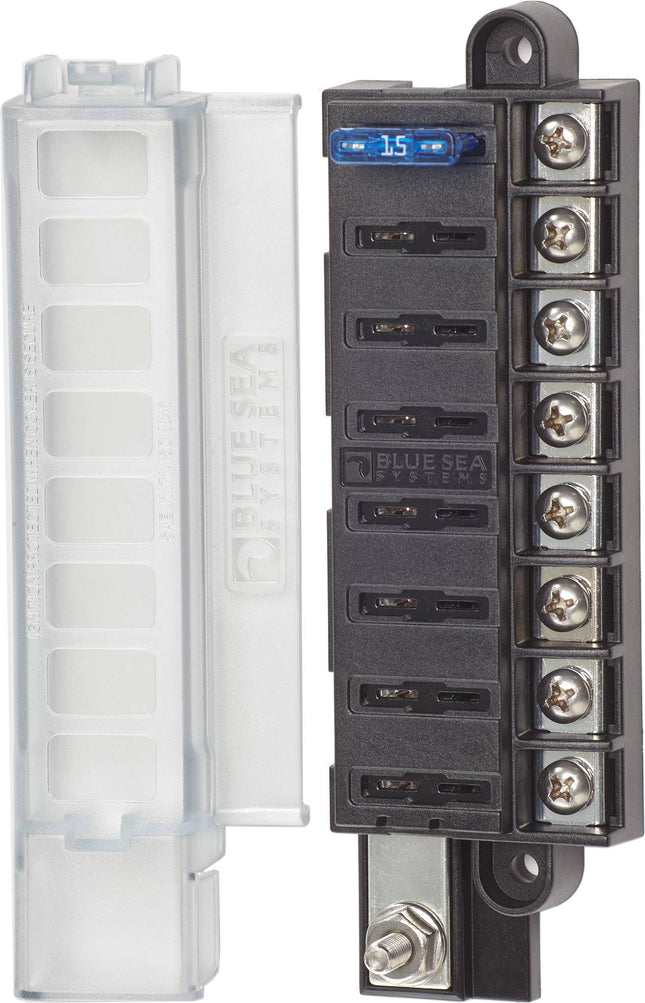

Blue Sea Systems ST Blade Compact Fuse Blocks - 8 CircuitsModel: 5046-BSS Ignition protected when cover is secure -meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Single side design allows wire entry from one side to minimize footprint Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Includes 8 write-on circuit labels Fuses sold separately SpecificationsCircuits8 Maximum Amperage 100A per block 30A per circuit Maximum Voltage 32V DC Mounting #8 Screw (M4) Terminal Stud Torque 24 in-lb (2.71 Nm) Screw Terminal Torque 18 in-lb (2.03 Nm) Screw Terminal Type #8-32 Scews with captive star lock washer Terminal Stud Size #10-32

Read more less

1739 Mini OLED Tank Meter - YellowMonitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen.Features: Compact size enables mounting in any convenient location Reverse polarity protected Mounts in a common 1-1/8 in hole Color: Yellow Meter: Tank Meter Nominal Voltage: 12V DC/24V DC Resolution: 5% Input Voltage: 8V-36V DC Operating Current: 17mA Switching Cycles: 10,000 Weight: 0.30lb (0.14 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Mini OLED DC VoltmeterMonitors DC voltage on a bright, waterproof, daylight readable OLED screen Compact size enables mounting in any convenient location IP66 waterproof Reverse polarity protected Mounts in a common 1-1/8 in hole Specifications Meter: Voltage Nominal Voltage:12V/24V DC Resolution: 0.01DC Input Voltage Range: 8-36V DC Operating Current: 15mA Voltage Accuracy:±1.0% WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

e-Series Selector 3 Position Battery Switch with AFDAFD: YesBattery Combiner: NoFeatures: Make-before-break contact design allows switching between battery banks without power interruption CE Marked Ignition protected-safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Meets American Boat and Yacht Council (ABYC) requirements for battery switches 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: Yes Positions: 3 Box Dimensions: 3"H x 7"W x 9"L WT: 1.15 lbs UPC: 632085110017 Brochure (pdf)

Read more less

5503 Cover included Accepts 5/16" (M8) ring terminals For use on systems up to 32 Volts DC Swing out design allows replacement of the fuse without removing fasteners Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact UL 94-V0 base resists high heat Insert molded studs ensure secure fuse mounting Insulating cover satisfies ABYC/USCG requirements Cover breakouts allow wire access in any direction Fuse sold separately WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Fuse Block Class T 225-400 AMPPart #: 5502Features: Maximum Voltage: 160 Volts DC Maximum Amperage: 400 Amperes DC Maximum Torque: 190 in-lb (21.47 Nm) max. Terminal Stud Size: 3/8"-16 (M10) Mounting Holes: Accept 1/4" (M6) Screw Maximum Cable Size 4/0 AWG Fuse Mounting Blocks: Tin-Plated Copper Class T Fuses Available: 110-400 Amperes DC  Fuse Sold Sepereatly WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 8"W x 9"L WT: 1.1 lbs UPC: 632085055028

Read more less

5163ANL Fuse750A Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 750a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051631

Read more less

A-Series Toggle Double PolePN: 7349Poles: 2Color: BlackAmperage: 32AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32a Box Dimensions: 1"H x 1"W x 3"L WT: 0.2 lbs UPC: 632085073497

Read more less

A-Series Toggle Double PolePN: 7348Poles: 2Color: BlackAmperage: 16AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 16a Box Dimensions: 2"H x 2"W x 4"L WT: 0.3 lbs UPC: 632085073480

Read more less

A-Series Toggle Double PolePN: 7295Poles: 2Color: WhiteAmperage: 32AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32a Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 632085072957

Read more less

A-Series Toggle Double PolePN: 7294Poles: 2Color: WhiteAmperage: 16AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 16a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085072940

Read more less

A-Series Toggle Double PolePN: 7239Poles: 2Color: BlackAmperage: 40AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085072391

Read more less

7234 A-Series Double Pole Toggle - 15A - Black Features: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085072346

Read more less

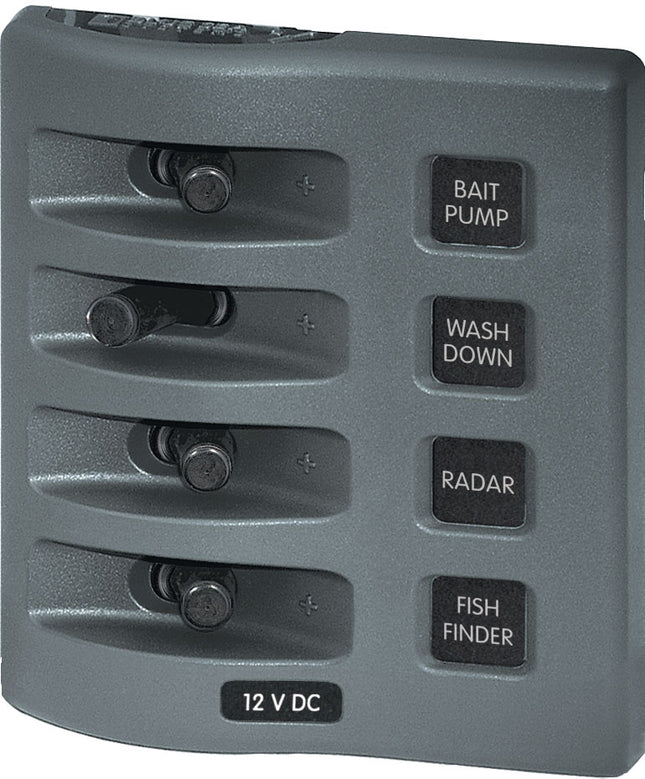

Blue Sea Systems WeatherDeck(R) 12V DC Waterproof Switch Panel - 4 PositionModel: 4305-BSS Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 - protected against immersion up to 1 meter for 30 minutes UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck(R) Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck(R) Switch Panel has all the rugged features of the proven WeatherDeck(R) Panel family however does not have the added cost of backlighting and circuit protection.SpecificationsWeatherproofWaterproof Positions 4 Nominal Voltage 12V DC 24V DC Circuit Protection None Maximum Amperage 15A @ 12V DC (per circuit) Panel Cumulative Rating 45A Height 4.30in (109.22 mm) Width 3.88in (98.55 mm) Depth 2.50in (63.5 mm) Material Reinforced Polycarbonate What's in the Box: Panel 4138 - Boot x 4 4150 - Toggle Switch x 4 Label kit

Read more less

1733200 Mini OLED Voltmeter - BlueMonitors DC voltage on a bright, waterproof, daylight readable OLED screen. Features: Reverse polarity protectedMounts in a common 1-1/8" (29mm) hole Color: Blue Meter: Voltage Nominal Voltage: 12V DC/24V DC Resolution: 0.1 DC Cut Out Dimensions: 1-1/8" (28.58 mm) Input Voltage Range: 8V-36V DC Operating Current: 15mA Switching Cycles: 10,000 Weight: 0.20lb (0.09 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
