101 Actuator- 24 Volt- 2-1/4  Stroke with Mounting HardwareThe 101 Actuator is used in all Standard, Edge Mount and Standard Performance kits. 2.25 stroke. Overall length (tip to top) is 12.5 inches.  Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.Specifications: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system. Stronger top cap and mounting clevis design Improved pressure-tight torx screws Integrated wiper seal at actuator base Molded-in brass thrust bearing design Thicker and stronger motor housing wall Improved O-Ring design for more consistent seal Over-molded cable providing a stronger tighter seal Upper mounting bracket with gland seal Features: Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics Lenco's tough, high-torque actuator motor easily pushes 500 pounds. Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion. 24 Volt 5/16" mounting hardware 6 foot cable WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Actuator Upper Bracket Replacement upper bracket for the actuator. Attaches to standard actuator upper cover boss with the bolt. *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

ATLAS FingerFlex Blinker Trim Control for Hydraulic Helms - Dual Control SwitchUPDATED DESIGN: FingerFlex "Blinker Style" Steering Wheel Trim SwitchT-H Marine offers the answer to convenient trim control for hydraulic helms - FingerFlex. Simple and easy to install, this unit can be added to any boat with only a moderate amount of difficulty.FingerFlex incorporates "Positive Clicking" technology that provides a positive touch and feel so, unlike similar systems, you know when your trim is operating and that's important when you really need it!FingerFlex can be installed on the right or left side of the bezel or both for dual controls. It can also be used to control hydraulic jack plates in addition to tilt and trim systems. Versions are also available to fit most mechanical steering systems.Features: The Ultimate in Trim Control for Hydraulic Helms Positive clicking technology for positive touch Operates engine trim and/or jack plates Fits hydraulic, cable, and tilt steering Easy installation Specifications: "Blinker" style switches allow quick and easy trim control Available in single or dual configurations

Read more less

Solenoid Valve - Green - 24VReplacement Solenoid Valve for use with Bennett's Hydraulic Power UnitSolenoid valves direct the flow of fluid to the actuators.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

24 x 12 Standard Trim Plane AssemblyBennett trim planes are made of high-quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Actuator Lower HingeWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

30x12 Trim Plane AssemblyBennett trim planes are made of high quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

18 x 9 Standard Trim Plane AssemblyBennett trim planes are made of high-quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

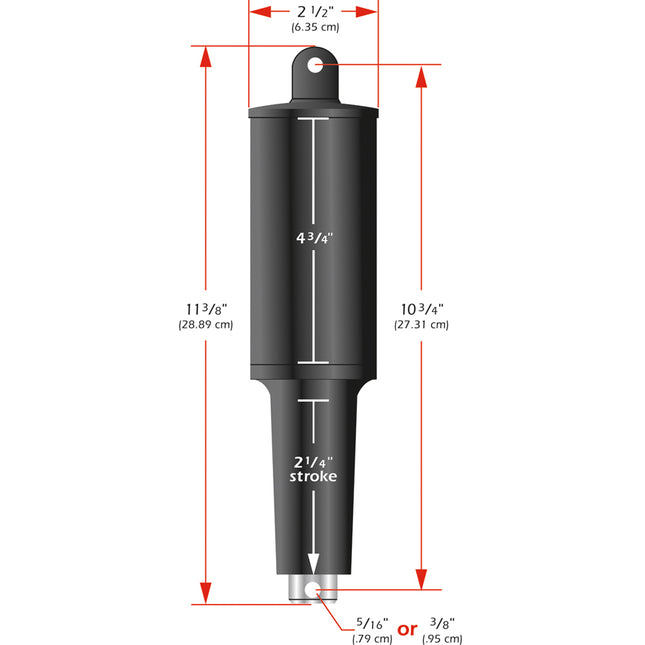

101 XD Actuator- 12 Volt- 2-1/4  Stroke with Mounting HardwareThe 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8 inches.   Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.Specifications: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system. Stronger top cap and mounting clevis design Improved pressure-tight torx screws Integrated wiper seal at actuator base Molded-in brass thrust bearing design Thicker and stronger motor housing wall Improved O-Ring design for more consistent seal Over-molded cable providing a stronger tighter seal Upper mounting bracket with gland seal Features: Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics Lenco's tough, high-torque actuator motor easily pushes 500 pounds. Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion. 12 Volt 5/16" upper and 3/8" lower mounting hardware 6 foot cable WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

36 x 9 Standard Trim Plane AssemblyBennett trim planes are made of high-quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate, and hinge for one side of the boat. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Rocker Switch Control for BOLTThis control is ergonomically designed, water-resistant and provides a positive "click" when the trim tabs are engaged. Its lock-out feature prevents user from pressing down on opposite directions at the same time. The control is easy to install, fitting into any existing Bennett 2 +-inch Rocker Switch hole. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

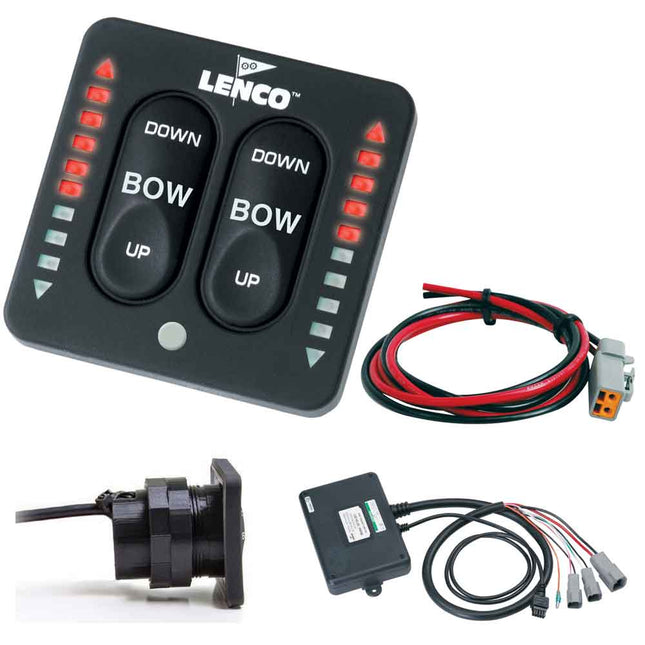

Replacement LED Key Pad f/15270-001 & 15271-001Replacement LED Tactile Switch Key PadWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Actuator Extension Harness - 7' - 16 Awg 7' Deutsch-Connected Extension 16 Awg Abyc Compliant WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Actuator Extension Harness - 32' - 12 Awg 32' Deutsch-Connected Extension 12 Awg Abyc Compliant WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

BOLT Short Electric ActuatorBennett actuators are built to last, maintenance-free, and backed by Bennett’s legendary support. The Short Electric Actuator features an adjustable upper hinge, and measures 11 3/4″ with a 2.25″ stroke.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

BOLT Actuator UH SpacerBennett Trim Tabs BOLT Actuator UH SpacerWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Solenoid Valve - Red - 24VReplacement Solenoid Valve for use with Bennett's Hydraulic Power UnitSolenoid valves direct the flow of fluid to the actuators.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Edgemount 12" x 9" Single - 12 Gauge Replacement Blade Gauge:12 Anode: No Back Plate: No WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Joystick LED Trim Tab ControlLectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.Features: Single “Joystick” control NMEA 2000 compatible LED display of each trim tab position Microprocessor-based trim tab control with LED tab position indicators NMEA 2000 compatible with JLC-NMEA adapter Move both tabs up or down simultaneously with a single motion Dual station ready – just add a second JLC-11 and JR-* cable (sold separately) Automatic return to last tab position if the ignition key is turned off and back on again Completely sealed, completely waterproof, and will not deteriorate in sunlight Automatic tab retraction and calibration with key or accessory switch off Easy upgrade from any of our Lectrotab controls No external power module required LED tab position indicators dim automatically in darkness and brighten in sunlight Single or Dual Actuator per tab Operates on 12 or 24 VDC systems Specifications: Display Color: Black Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab Overall Width: 3.0"/77mm Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm) Mounting Hole Cutout (Diameter): 2.625"/66.7mm DC Voltage: 12/24 Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs Fuse Size Aux. (Must Connect): 1 to 2 AMPs This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

ATP Bridge DisplayBennett Marine continues to lead the way as the largest manufacturer of durable hydraulic and electric trim tab systems for a variety of boat styles and sizes. More than 50 years in business, millions of trim tabs sold, and unmatched customer loyalty and satisfaction, we can proudly say that we’ve learned how to make extremely reliable products that outperform the competition. That’s why most of the best boat builders in the world use Bennett systems as standard equipment. Features: AutoTrim Pro Helm Display Style: Bridge Can only be used with hydraulic systems WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

BOLT Actuator Wire Harness Extension - 10'10' Extension for BOLT ActuatorWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

102 Series Standard Actuator - 12V - 4-1/4" Stroke w/HardwareThe 102 Actuator is used with Trolling Tab systems sold prior to 2000 and OEM applications. 4.25 stroke. Overall length (tip to tip) is 14 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.Specifications: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system. Stronger top cap and mounting clevis design Improved pressure-tight torx screws Integrated wiper seal at actuator base Molded-in brass thrust bearing design Thicker and stronger motor housing wall Improved O-Ring design for more consistent seal Over-molded cable providing a stronger tighter seal Upper mounting bracket with gland seal Features: Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics Lenco's tough, high-torque actuator motor easily pushes 500 pounds. Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion. 12 Volt 5/16" mounting hardware 6 foot cable WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Standard 12" x 12" Single - 12 Gauge Replacement Blade Gauge:12 Anode: No Back Plate: No WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Hydraulic Power Unit 12V with Deutch ConnectorA compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs. It employs two solenoid valves to direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place. Strength to lower and hold even the largest tabs in place. The Lexan cover provides water resistance to the electrohydraulic unit, and the translucent reservoir allows fluid check at a glance.The mounting bracket is sold separately (# H1179). HPU measures 4″ x 7 1/2″ x 5 1/2″. Uses automatic transmission fluid. Includes pump, solenoid valves, reservoir, and cover. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Hydraulic Tubing - 30'Hydraulic tubing with 30' coilThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Flybridge Kit f/Standard Key Pad f/All-In-One Integrated Tactile Switch - 10'Second station Standard Key Pad connecting to the NEW (ALL-IN-ONE) Integrated Tactile Switch Kit (part# 15169-001). Add a second station key pad to your NEW Integrated Tactile Switch by plugging into the existing harness.Kits Include Harness length 10' Second station key pad 3 Year Warranty Replacement parts are available and are sold separately. Specifications System Type:Single Actuator Compliance:CE Certified WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Sensor Wire Extension with Deutsch Connector - 25'This sensor wire extension is 25 feet.Features:Deutsch connectorWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Trim Tab Hydraulic HardwareH1170AIncludes: Two 3" brass pipe nipples Two brass female elbows Two tube bending clips Six #14 x 1-1/2" full threaded screws Four 1/4-20 x 3/4" machine screws One mounting bracket with four #10 x 1" full-threaded screws Two nuts with ferrules. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

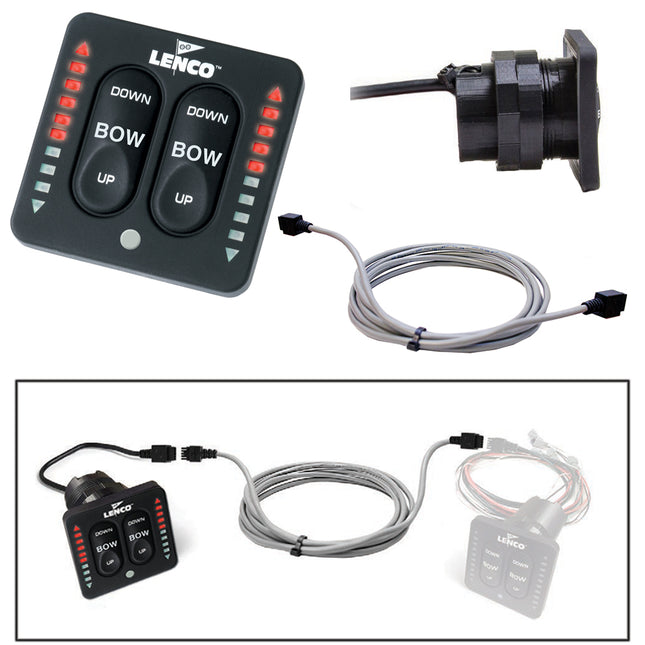

Flybridge Kit f/ LED Indicator Key Pad f/All-In-One Integrated Tactile Switch - 10'Add a second station key pad to your new Integrated Tactile Switch by plugging into the existing harness.Includes LED Indicator Key Pad & Desired Shielded Length Wire HarnessWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

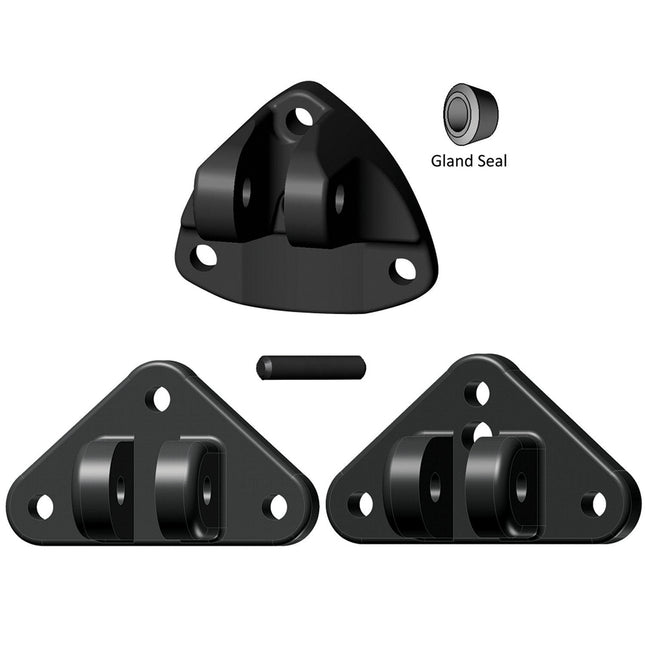

Universal Actuator Mounting Bracket Replacement KitFor use on 1 actuatorUniversal Actuator Mounting Bracket replacement kit (for 1 actuator)Includes: 15085-001: Upper Mounting Bracket With Gland Seal - Vandar - (3 Screw, 1 Wire) 50015-001D: Standard Upper Mounting Bracket - Vandar - (3 Screw, 1 Wire) (Thru 2007) 50014-001D: Standard Lower Mounting Bracket (3 Bolt) - Vandar Hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

24 x 9 Standard Trim Plane AssemblyBennett trim planes are made of high-quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

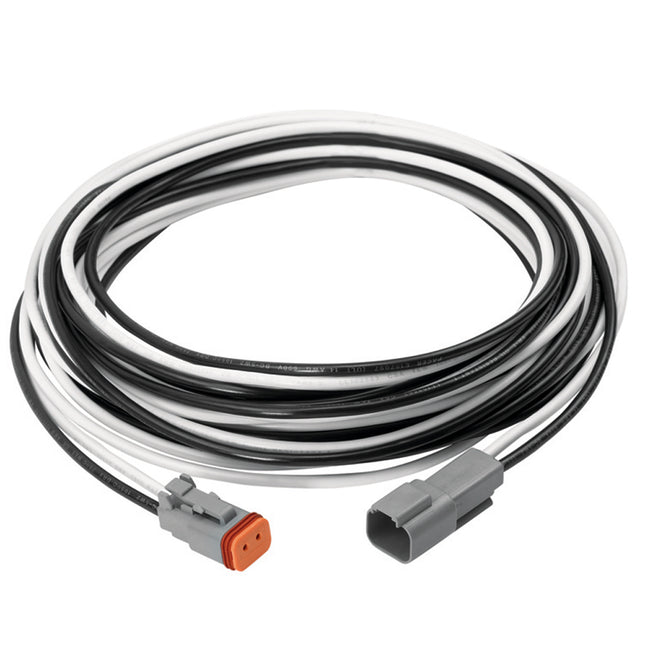

Actuator Extension Harness - 20' - 14 Awg 20' Deutsch-Connected Extension 14 Awg Abyc Compliant WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Actuator Lower Bracket with Pin Replacement of lower bracket with pin for the actuator.  Attaches to lower ram on actuator with a pin.*Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Solenoid valves direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

One Box Indication Unit for Hydraulic SystemAn attractive and user-friendly, stand-alone helm control without the need for an external control unit. The functionality and “brains” of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad. Reduce bow rise, plane faster, and correct listing.Features: Convenient “All Up” and “All Down” buttons Trim tab position LEDs always show you where your tabs are Auto tab retraction (tabs retract up when the ignition is powered off) Easy-to-install single lock nut design Backed by Bennett’s outstanding customer support This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less
