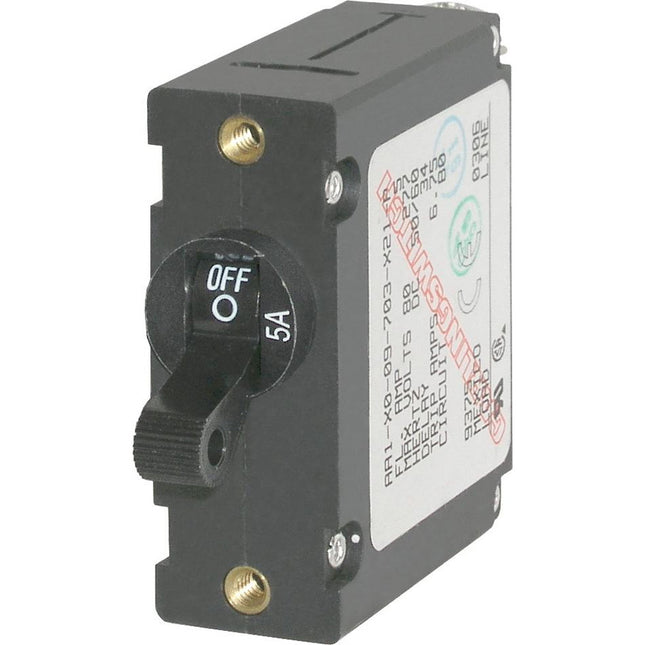

AC / DC Single Pole Magnetic World Circuit BreakerThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.PN:   7200Color:   BlackAmperage:   5 AmpDelay:   StandardFeatures: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 277 Volts AC / 65 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 632085072001

Read more less

5028ST Blade Fuse Block w/ Cover6 Circuit w/out Negative Bus Clear insulating cover with label recesses accept Small Format Labels Cover Satisfies ABYC/USCG requirements for insulation Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses 20 write-on circuit labels included WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

7A Push Button Panel Mount Circuit Breaker - Spade TerminalFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Includes Knurled Nut & Palnut for easy and clean panel mount Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 7a Box Dimensions: 2"H x 4"W x 4"L WT: 0.12 lbs UPC: 850053879258

Read more less

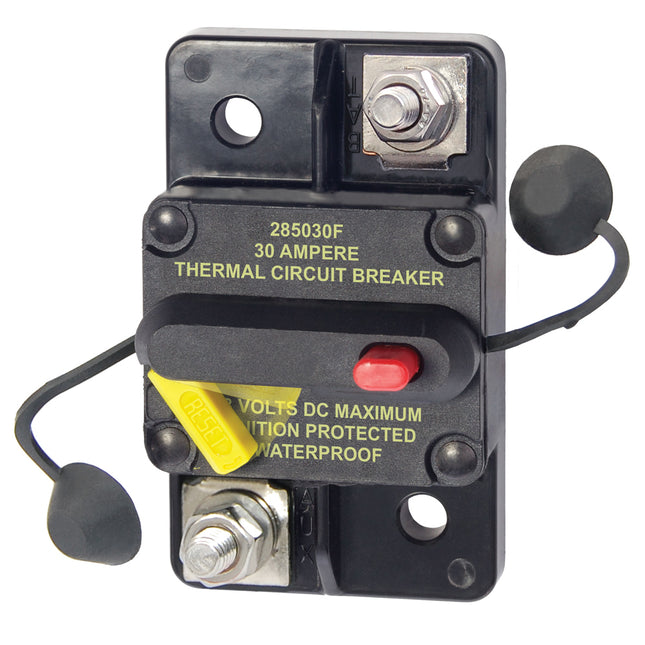

30A Surface Mount Circuit Breaker - 285 SeriesThis 30A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems, regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 30 Max Voltage: 48 Cycling Endurance: 100 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features: ON/OFF High Visibility Controls Sealed against dust and moisture penetration. The high-temperature rating for all installation locations. Integrated Terminal Insulators Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistance for harsh environment applications. Proudly Made in the USA Made in the USA of high-quality components WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 30a Box Dimensions: 3"H x 3"W x 5"L WT: 0.4 lbs UPC: 850035199114 Quick Guide (pdf)

Read more less

7445 UL-489 Circuit Breaker - 50A Flat RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).Specifications: Amperage: 50A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 80V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type:  #10-32 Screw Tin-Plated Brass  Interrupt Capacity: 10000A Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs UPC: 632085074456

Read more less

7059Push Button Thermal with Quick Connect Terminals30A Ideal for 24-hour circuit protection Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels Push to reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasonline powered boats With male quick connect terminals WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085070595

Read more less

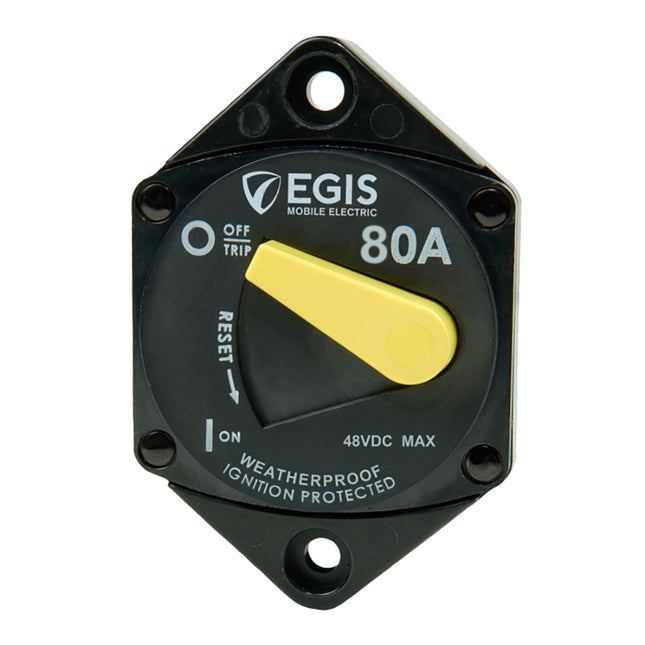

80A Circuit Breaker - 87 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 80a Box Dimensions: 3"H x 5"W x 6"L WT: 0.47 lbs UPC: 850053879067 Brochure (pdf)

Read more less

300A Circuit Breaker - 87 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. Meets New ABYC E-11 Interrupt Requirements High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware and self-locking terminal nuts. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 300a Box Dimensions: 3"H x 5"W x 6"L WT: 0.6 lbs UPC: 850074331865 Brochure (pdf)

Read more less

ST CLB Circuit Breaker Block - 12 Position w/Negative BusFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 12Maximum Amperage: 100A (per block) 32A (per circuit)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutNegative Bus: YesSource: Common SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 10.13"(257.3 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 1.50lb (0.68 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100/32a Box Dimensions: 3"H x 5"W x 15"L WT: 1.5 lbs UPC: 632085050542 Brochure (pdf)

Read more less

7157 Short Stop Circuit Breaker - 50A Corrosion Resistant Material IP 64 Water Resistant Boot Push to Reset Only Interrupt Capacity: 2,500A @ 28VDC Red insulating boot included in retail package Specifications Amperage: 50A DC Maximum Voltage: 28V DC Interrupt Capacity: 2500A @ 28V DC Minimum Operating Temperature: -10º C Maximum Operating Temperature: 60º C Screw Terminal Torque: 24 in-lb (2.71 Nm) Terminal Stud: #10-32" WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 7"L WT: 0.1 lbs UPC: 632085071578

Read more less

285-Series Thermal Circuit Breaker Surface Mount, 100A Drop-in replacement for 185-series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 3"H x 5"W x 7"L WT: 0.35 lbs UPC: 632085171872 Brochure (pdf)

Read more less

285-Series Thermal Circuit Breaker Surface Mount, 60A Drop-in replacement for 185-series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085171841 Brochure (pdf)

Read more less

AC / DC Single Pole Magnetic World Circuit BreakerThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.PN:   7220Color:   BlackAmperage:   30 AmpDelay:   StandardFeatures: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 277 Volts AC / 65 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 1"H x 3"W x 5"L WT: 0.17 lbs UPC: 632085072209

Read more less

5025 ST Blade Fuse Block with Cover - 6 Circuit with Negative Bus Features: Clear insulating cover with label recesses accept Small Format Labels Cover Satisfies ABYC/USCG requirements for insulation Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses 20 write-on circuit labels included WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

285-Series Thermal Circuit Breaker Surface Mount, 80A Drop-in replacement for 185-series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085171865 Brochure (pdf)

Read more less

7458 UL-489 Circuit Breaker - 30A Flat RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).Specifications: Amperage: 30A AC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type:  #10-32 Screw Tin-Plated Brass  Interrupt Capacity: 5000A Specifications: Amperage: 30a Box Dimensions: 2"H x 4"W x 5"L WT: 0.55 lbs UPC: 632085074586

Read more less

7214 AC/DC Single Pole Magnetic World Circuit Breaker - 20AMPThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.Color: WhiteAmperage: 20 AmpDelay: StandardFeatures: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 1"H x 3"W x 4"L WT: 0.16 lbs UPC: 632085072148

Read more less

Thermal AC/DC Circuit Breaker - 20 AmpThermal AC/DC Circuit Breakers are designed to protect an electrical circuit from damage caused by excess current. Vibration and shock resistant these push-to-reset circuit breakers are an economical alternative to magnetic breakers. Unlike sacrificial fuses they have the advantage of being resettable after tripping. Panel mounted compact design. Constructed of molded Bakelite with quick connect, terminal style, stamped brass contacts. Optional Thermal Breaker Boot (420839) provides additional protection in wet environments. 5-30A @ 125-250VAC. 32VDC.Features: Panel Depth: 3/16" Amps: 20 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 1"H x 4"W x 6"L WT: 0.1 lbs UPC: 035514420488

Read more less

7446 UL-489 Circuit Breaker - 100A Flat RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).Specifications: Amperage: 100A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 80V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type:  #10-32 Screw Tin-Plated Brass  Interrupt Capacity: 10000A Specifications: Amperage: 100a Box Dimensions: 2"H x 3"W x 4"L WT: 0.29 lbs UPC: 632085074463

Read more less

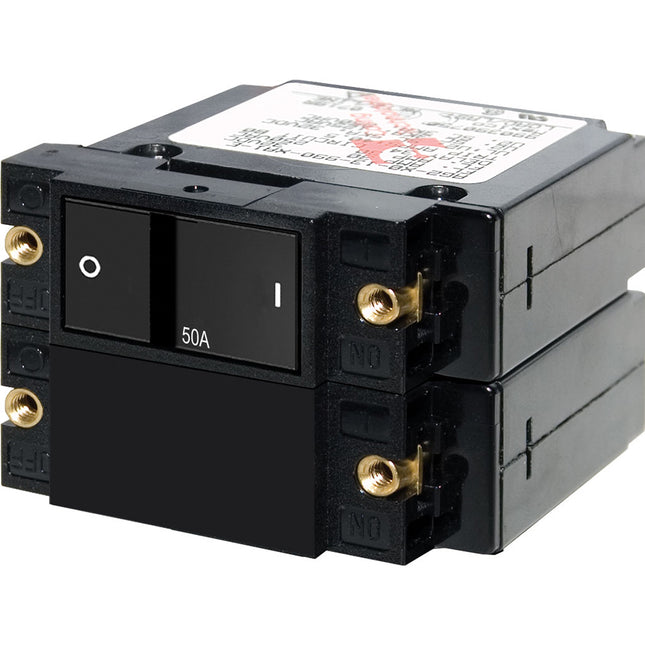

A-Series Flat Rocker Circuit Breaker - Double Pole - 50AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage: 50A AC / 50A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 4"L WT: 0.35 lbs UPC: 632085074173

Read more less

Single Pole Small Case 2" Flat Rocker Circuit BreakerPN:   7403Amperage:   15 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 1"H x 3"W x 5"L WT: 0.18 lbs UPC: 632085074036

Read more less

7222 AC/DC Single Pole Magnetic World Circuit Breaker - 30AMPThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.Color: WhiteAmperage: 30 AmpDelay: StandardFeatures: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 1"H x 3"W x 4"L WT: 0.16 lbs UPC: 632085072223

Read more less

7234 A-Series Double Pole Toggle - 15A - Black Features: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 4"L WT: 0.33 lbs UPC: 632085072346

Read more less

187-Series Circuit Breaker - Surface Mount 200A Combines switching and circuit protection into a single device* Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accecpt heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 200a Box Dimensions: 2"H x 5"W x 9"L WT: 0.6 lbs UPC: 632085171490

Read more less

285-Series Thermal Circuit Breaker Surface Mount, 25A Drop-in replacement for 185-series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 25a Box Dimensions: 2"H x 5"W x 8"L WT: 0.45 lbs UPC: 632085171803 Brochure (pdf)

Read more less

Single Pole Small Case 2" Flat Rocker Circuit BreakerPN:   7405Amperage:   25 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 25a Box Dimensions: 1"H x 3"W x 5"L WT: 0.19 lbs UPC: 632085074050

Read more less

3A Push Button Panel Mount Circuit Breaker - Screw TerminalsFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Harsh Environment Design with stainless steel hardware, self-locking screws, and optional sealing boot. Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 3a Box Dimensions: 2"H x 4"W x 4"L WT: 0.13 lbs UPC: 850053879142

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 30AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 30a Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331148 Brochure (pdf)

Read more less

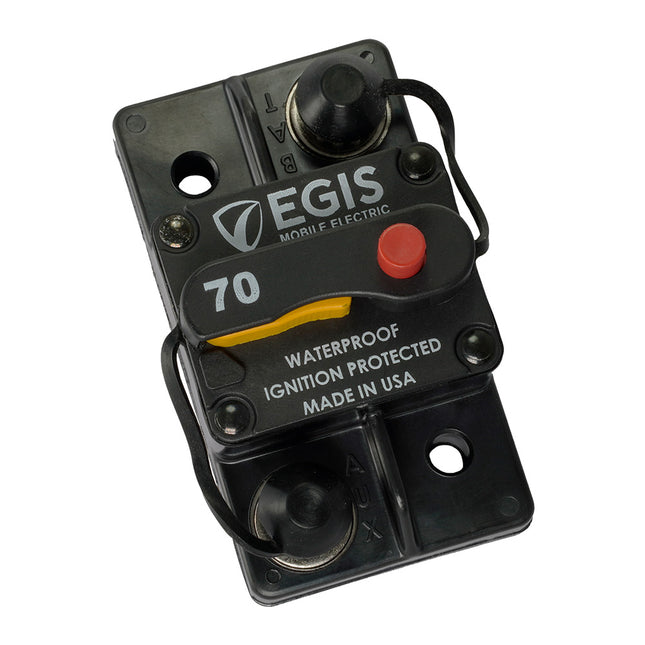

70A Circuit Breaker - 85 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 70a Box Dimensions: 3"H x 5"W x 6"L WT: 0.4 lbs UPC: 850035199152 Brochure (pdf)

Read more less

80A Surface Mount Circuit Breaker - 285 SeriesThis 80A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 80 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 80a Box Dimensions: 3"H x 3"W x 5"L WT: 0.35 lbs UPC: 850035199169 Quick Guide (pdf)

Read more less

AC / DC Single Pole Magnetic World Circuit BreakerThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.PN:   7299Color:   WhiteAmperage:   8 AmpDelay:   StandardFeatures: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 277 Volts AC / 65 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 8a Box Dimensions: 1"H x 3"W x 4"L WT: 0.17 lbs UPC: 632085072995

Read more less

5A Push Button Panel Mount Circuit Breaker - Screw TerminalsFeatures: Push-To-Reset allows for easy identification of a tripped breaker as well as an easy reset of the breaker to the on position. Harsh Environment Design with stainless steel hardware, self-locking screws, and optional sealing boot. Ignition-protected safe for installation in closed compartments with potential explosive gases. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 5a Box Dimensions: 2"H x 4"W x 4"L WT: 0.13 lbs UPC: 850053879159

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 100AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 100A AC / 100A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085075491

Read more less

187 - Series Thermal Circuit Breakers - Panel Mount25 Amp Circuit BreakerPN:  7035Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Self-trimming case eliminates the need for mounting panels or trim bezels Round case permits easy installation with standard sized hole saw Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 25a Box Dimensions: 4"H x 5"W x 7"L WT: 0.5 lbs UPC: 632085070359

Read more less

7042 187-Series Circuit Breaker - Panel Mount 80AFeatures: Combines switching and circuit protection into a single device* Precise, single-lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Ample Clearance around terminal studs accepts heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition-protected - Safe for installation aboard gasoline powered boats Specifications: Amperage: 80A Maximum Voltage: 48V DC Mounting: Panel Mount Circuit Breaker Type: Thermally responsive Bi-metal blade Terminal Stud Torque: 75 in-lb (8.47 Nm) Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Case Material: Thermoset Polyester Circuit Breaker Class: Type III - switchable/manual reset - trip-free Mounting Hole: Accept #10 (M5) Screw Terminal Stud Size: 5/16" - 18 Weight: 0.5lb (0.23 kg) Weight: 0.50lb (0.23 kg) * Do not use as a switch where high inrush currents are expected.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 2"H x 5"W x 8"L WT: 0.5 lbs UPC: 632085170424

Read more less

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 40AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 40a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850067590972 Brochure (pdf)

Read more less

40A Panel Mount Mini Circuit BreakerThis 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 40 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 4,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 40a Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850053879364 Quick Guide (pdf)

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 10AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 10a Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331094 Brochure (pdf)

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 30AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 30a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.35 lbs UPC: 850067590910 Brochure (pdf)

Read more less

C-Series TogglePN: 7365Poles: 2Color: WhiteAmperage: 30AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips Trip Free design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 4"H x 5"W x 5"L WT: 0.7 lbs UPC: 632085073657

Read more less

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30AFeatures: Trips on short circuit, overload, or leakage to ground Front panel mount—installed in a power distribution panel Specifications: Amperage: 30A Color: White Actuator Style: Toggle Poles: 2 Ignition Protected: Yes Max Voltage: 240VAC/120VAC per pole Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 5000A Minimum Operating Temperature: -35 degrees C Max Operating Temperature: 65 degrees C Leakage Trip Amps: 30mA WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

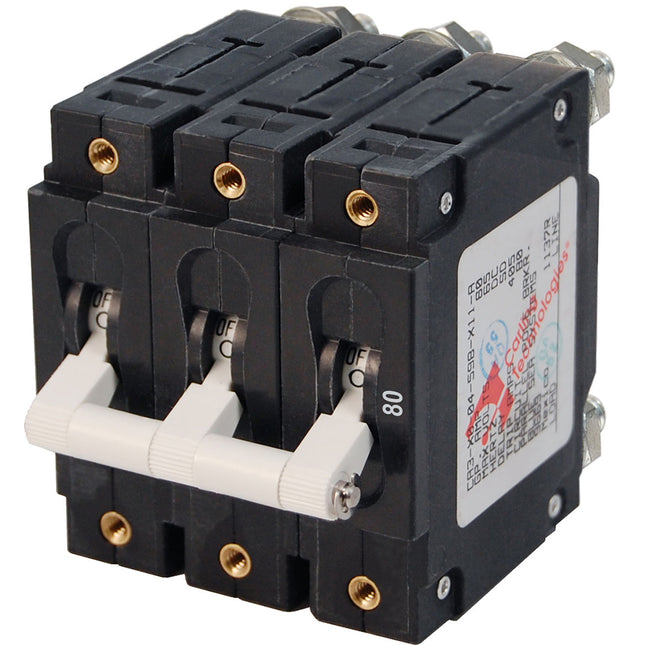

C-Series TogglePN: 7289Poles: 3Color: WhiteAmperage: 80AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 4"H x 5"W x 5"L WT: 0.95 lbs UPC: 632085072896

Read more less

ST CLB Circuit Breaker Block - 6 PositionFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 6Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutSource: Independent SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 5.63"(143 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 0.75lb (0.34 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32/40a Box Dimensions: 3"H x 5"W x 11"L WT: 0.8 lbs UPC: 632085050504 Brochure (pdf)

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount120 Amp Circuit BreakerPN:  7146Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 120a Box Dimensions: 2"H x 4"W x 5"L WT: 0.5 lbs UPC: 632085071462

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount30 Amp Circuit BreakerPN:  7136Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 3"H x 4"W x 6"L WT: 0.4 lbs UPC: 632085171360

Read more less

20A Yellow Short Stop Circuit BreakerFeatures: Compact Surface Mount Circuit Breaker supports low and medium-amperage circuits with resettable circuit protection. 28 Max Vdc Rating easily supports 12V and 24V systems. Weather Resistant Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  Ignition-protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance is ideal for marine and vehicle electrical systems. The optional Protective Cover protects from inadvertent shorts from circuit breaker studs to other positive studs or ground points. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 20a Box Dimensions: 2"H x 4"W x 4"L WT: 0.11 lbs UPC: 850053879890

Read more less

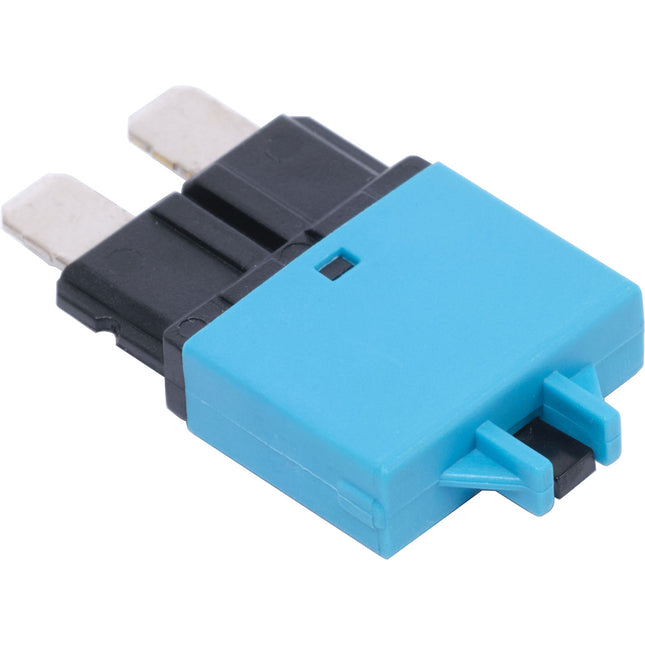

7065 ATO/ATC-Style Low Profile Circuit Breaker - 2-Pack - 15 Amp Use a manually resettable circuit breaker instead of an ATO or ATC fuse.Features: Drop in replacement for ATO and ATC blade style fuses Manual push button reset complies with ABYC circuit protection requirements Compatible with Water-Resistant ST-Blade Fuse Block with cover secured Compatible with all other ST-Blade Fuse blocks without cover Amperage: 15 Amp Color: Blue Maximum Voltage: 28V DC Circuit Breaker Type: Thermal Trip, Manual Reset Interrupt Capacity: 2000A @ 28V DC Minimum Operating Temperature: -30° C Maximum Operating Temperature: 77° C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 1"H x 2"W x 4"L WT: 0.5 lbs UPC: 632085070656

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount25 Amp Circuit BreakerPN:  7135Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 25a Box Dimensions: 3"H x 5"W x 8"L WT: 0.56 lbs UPC: 632085071356

Read more less
