Garmin Reactor™ 40 Kicker Autopilot Without GHC™ 20 Autopilot DisplayModel: 010-00705-95 Specially designed for boats with small gasoline outboard motors up to 20 horsepower Helps maintain heading hold and route to keep you on course — even against wind, waves or heavy current Includes convenient floating handheld remote control with a bright, sunlight-readable display Easily fine-tune autopilot throttle setting with the touch of a button to quickly drop to idle speed when netting a fish Easy to install and integrate with included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000® network-compatible GPS system Whether you’re going for salmon, trout, walleye or some other species or just taking your sailboat out of the marina, your Reactor 40 kicker autopilot can help you maintain heading hold and route to keep you on course — even against wind, waves or heavy current.The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. Quickly and easily fine-tune your autopilot throttle setting with the touch of a button, and quickly drop to idle speed when netting a fish or coming up to a mooring. Enjoy easy integration with our GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000 network-compatible GPS system for a seamless onboard setup.Specifications ECU-14 Dimensions 6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm) Supply voltage range 10 to 32 volts Operating temperature range -20° to 70° C Typical power consumption 1 to 2 amps average depending on weather conditions Water rating IPX7 Throttle Actuator Dimensions 6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm) Operating temperature range 0° to 70° C Water rating IPX6 Steering Actuator Dimensions Motor side Extends 4" (10.3 cm) from end of tilt tube Motor 2.5" (6.2 cm) diameter Overall length Closed 17.5" (44.5 cm); Extended 25.3" (64.4 cm) Steering Acuator General Operating temperature range -20° to 70° C Water rating IPX7 Reactor Remote Physical dimensions (W x H x D) 6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm) Weight 3.8 oz (109 g) without batteries Display type Sunlight-visible, transflective memory-in-pixel (MIP) Display size 1.2" (3.0 cm) diameter Display resolution 240 x 240 pixels Power 2 x AA batteries (sold separately) What's in the Box: Autopilot Remote CCU (Course computer unit) ECU (Electronic control unit) ECU power cable ECU to CCU interconnect cable Steering actuator Throttle actuator Documentation

Read more less

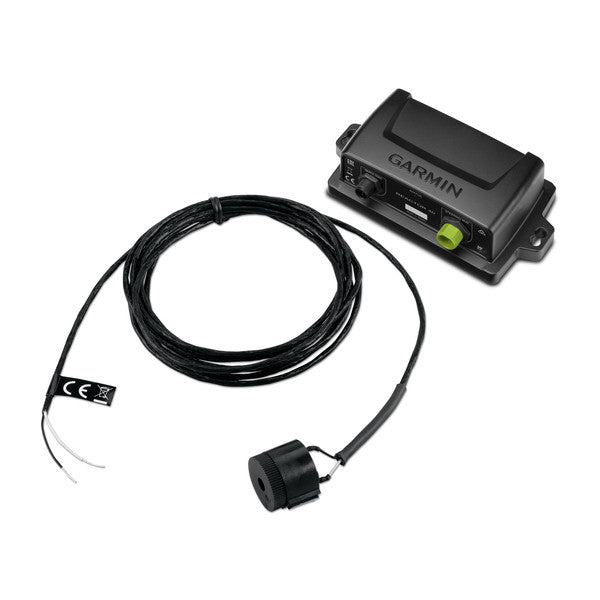

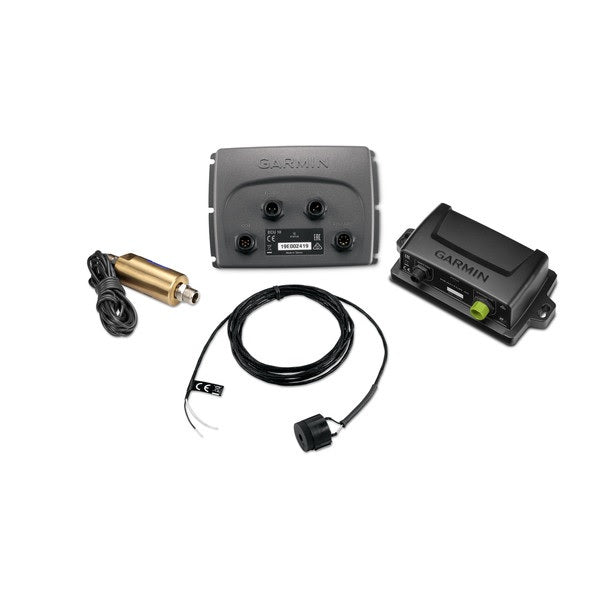

Garmin Reactor™ 40 Steer-by-wire Standard Corepack Without GHC ControlModel: 010-00705-90 Solid-state 9-axis Attitude Heading Reference System (AHRS) Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride Minimal commissioning and calibration Reactor 40 for steer-by-wire provides robust autopilot capabilities for SeaStar Optimus systems, Yanmar Marine ZT 370 stern drive electronic power steering systems and ZF 2800 Pod drives.With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more; simply pick the autopilot that’s compatible with your existing steering system.With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.All autopilots require commissioning and calibration — all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.Combined with Garmins compatible networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts (sold separately), you gain optional features such as Auto Guidance*, which automatically steers GPS paths.*Auto Guidance is for planning purposes only and does not replace safe navigation operations.Specifications CCU Specifications Dimensions 3 19/32 in. diameter (91.4 mm) Temperature range From 5°F to 131°F (from -15°C to 55°C) Case material Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length 9.5 ft. (3 m) NMEA 2000 power input 9-16V NMEA 2000 LEN 3 (150 mA) What's in the Box: Reactor 40 CCU (Course Computer Unit) CCU cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors and terminators Male and female terminators Documentation

Read more less

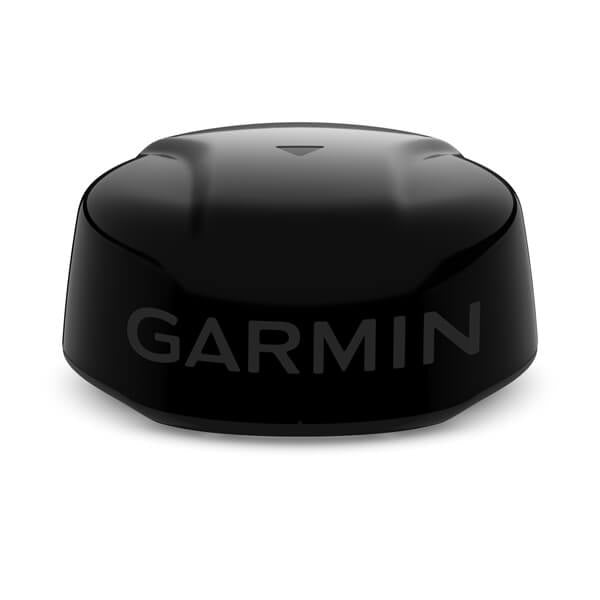

Garmin GMR Fantom™ 18x, BlackModel: 010-02584-10 GMR Fantom brings the power. Fifty watts of it, actually. See targets clearly, and adjust their sizes as needed. With power save mode, you get to choose when to use full power and when to pull back. Every second of power usage counts. Cut back even more by choosing your active times down to the second. MotionScope™ technology shows targets in color as they move toward you or away. Tailor your 50-watt solid-state dome radar to your boat with a white or black option — both with a range from 20’ to 48 nautical miles, even in fog or rain, and up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed.High-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true color imagery enhances target separation.MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don’t.Boaters and sailors can specify transmit times down to the seconds instead of minutes, allowing for reduced power consumption.These radars don’t have any complex user settings to deal with, so they’re easy to install and start using.Adjust on-screen target resolution for better separation based on your surroundings.Adjust on-screen target resolution for better separation based on your surroundings.See a historical "trail" on the screen to help you quickly and easily identify moving targets and potential collision threats.The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.This feature automatically adjusts to your surroundings for optimal performance in all conditions.Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.Set the safety zone and receive an alarm when an object enters the zone.Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.Specifications General DIMENSION 20" x 9.8" (50.8 cm x 24.8 cm) WEIGHT 14.0 lbs WATERPROOF IPX7 ANTENNA LENGTH 17" (43.18 cm) ROTATION SPEED (RPM) Up to 60 rpm, depending on settings BEAM WIDTH 5.2° horizontal, 25° vertical 5.2° horizontal, 25° vertical 48 nm MINIMUM RANGE 6 meters RADAR TYPE Radome Electrical Features POWER INPUT 10-32 V DC POWER CONSUMPTION 4 W MAX POWER CONSUMPTION TRANSMITTING, POWER SAVE 24 W MAX POWER CONSUMPTION TRANSMITTING, NORMAL MODE 33 W TRANSITION POWER 50 W Radar Features DUAL RANGE SUPPORT Yes RADAR OVERLAY SUPPORT Yes DUAL RADAR Yes AUTOBIRD Yes DYNAMIC AUTO GAIN Dynamic MARPA TARGET TRACK Yes (Requires Heading Sensor, Sold Separately) ECHO TRAIL Yes MOTIONSCOPE Yes TARGET SIZE Yes SCAN Yes What's in the Box: GMR Fantom 18x - Black Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Installation instructions Mounting hardware kit and template

Read more less

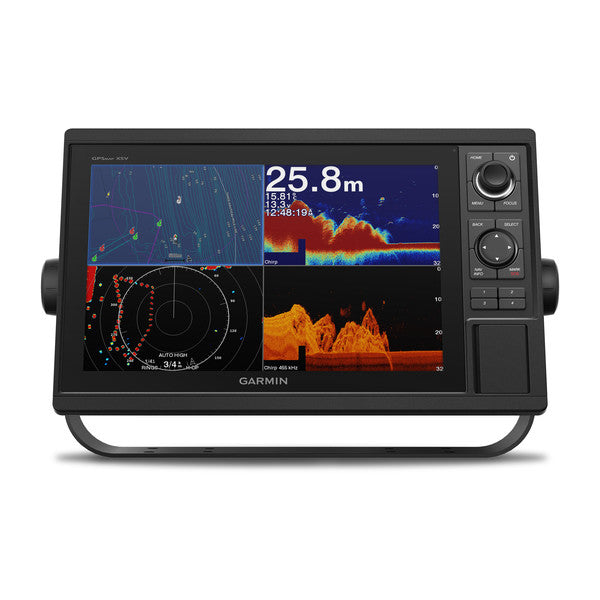

Garmin GPSMAP® 1222xsv 12-inch Chartplotter/Sonar Combo Is All-in-1 SolutionModel: 010-01741-02UPC: 753759168346 12-inch color display with keypad interface and multifunction control knob High-sensitivity internal 10 Hz GPS and GLONASS receiver Built-in single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ support (transducers sold separately) Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support Experience an advanced all-in-1 solution with our 12-inch GPSMAP 1222xsv keyed combo. It has built-in support for Garmin CHIRP sonar, CHIRP ClearVü, CHIRP SideVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.Specifications Performance and Physical Dimensions 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm) Display size 10.3" x 6.4" (26.2 x 16.3 cm) Display resolution 1280 x 800 Display type WXGA display Weight 5.2 lbs Water rating IPX7 Antenna Internal or external over NMEA 2000 NMEA 2000® compatible Yes NMEA 0183 compatible Yes SiriusXM™ Weather & Radio compatible Yes Power consumption Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A Mounting options Bail or flush Maps and Memory Preloaded maps None Accepts data card 2 SD™ cards Waypoints 5,000 Routes 100 Track log 50,000 points; 50 saved tracks Chartplotter Features Garmin Radar compatible Yes Garmin Sonar compatible Yes (with external black box, sold separately) Wireless remote compatible Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Tide tables Yes Garmin Meteor Audio System compatible Yes Supports Fusion Lync compatible marine radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes BlueChart® Mobile (planning) compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Connections Transducer 1 - 12 pin NMEA 0183 input ports 1 NMEA 0183 output ports 1 Video input ports 1 BNC Video output ports None Wireless connectivity Yes Garmin Marine Network™ ports 2 Sonar Features and Specifications CHIRP sonar technology Yes (Built-in) ClearVü Yes with CHIRP (built-in) SideVü Yes with CHIRP (built-in) Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Frequencies supported Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü/SideVü (260/455/800 kHz) (dependent on transducer) Transmit power 1 kW traditional; 1 kW CHIRP Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) Bottom lock (shows return from the bottom up) Yes Water temperature log and graph Yes Sonar recording Yes Sonar history rewind Yes What's in the Box: GPSMAP 1222xsv chartplotter Power/data cable NMEA 2000 T-connector NMEA 2000 drop cable (2 m) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable

Read more less

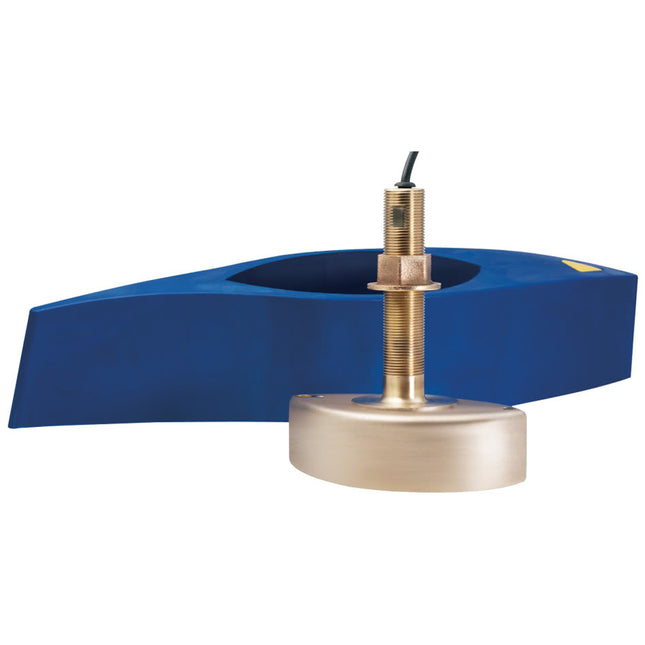

B265LM Bronze Thru-Hull Mount Transducer with Depth & TemperatureGarmin's best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail.This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices:GSD™ 26 CHIRP Professional Sonar ModuleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: Bare Wires Mounting Style: Thru-Hull Imagining: Standard Chirp: Low/Medium Cable Length (Feet): 39' Speed Included: No Temperature: Yes Box Dimensions: 7"H x 18"W x 26"L WT: 24.2 lbs UPC: 753759972141

Read more less

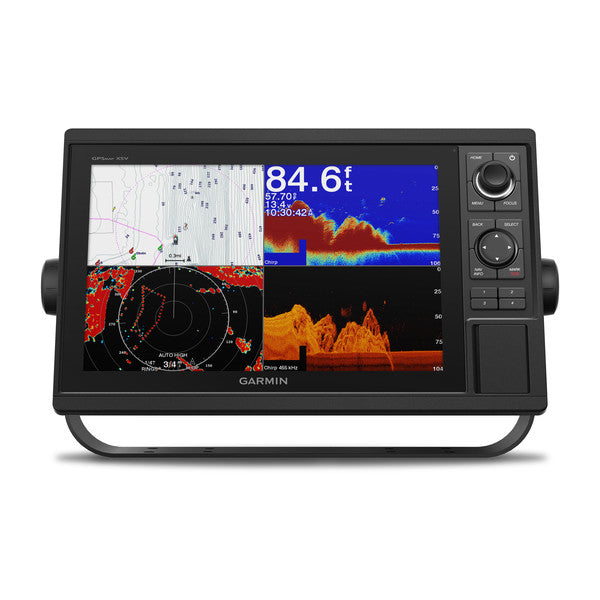

Garmin GPSMAP® 1242xsv 12-inch Chartplotter/Sonar Combo Is All-in-1 Solution with Garmin Navionics+ coastal and inland water charts for the U.S. and CanadaModel: 010-01741-50UPC: 753759175511 Large, bright 12" screen with keypad interface and multifunction control knob Supports all-seeing live sonar, which includes LiveScope™ sonar (transducers sold separately) Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Built-in wireless capabilities for Garmin mobile apps See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors Includes Quickdraw Contours map drawing software Built-in Garmin SailAssist™ features include laylines, race features, set and drift, wind data and more Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and remote controls (sold separately) Experience an advanced all-in-one solution with our 12" GPSMAP® 1242xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars. The combo also supports Panoptix™ and LiveScope™ sonar products, including the LiveScope™ Plus System and a wide range of other transducers (sold separately). Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® smatrphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there’s NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls (sold separately). Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin Connect™ online network. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.Specifications Performance and Physical Dimensions 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm) Display size 10.3" x 6.4" (26.2 x 16.3 cm) Display resolution 1280 x 800 Display type WXGA display Weight 5.2 lbs Water rating IPX7 Power consumption Max power usage at 10 Vdc: 34.8 W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 10 Hz high-sensitivity Garmin Marine Network™ ports 2 Preloaded maps Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Accepts data cards 2 SD™ cards Waypoints 5,000 Routes 100 Track log 50,000 points; 50 saved tracks Tide tables Yes Garmin Radar compatible Yes Garmin Sonar compatible Yes (built-in) Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Garmin Meteor™ Audio System compatible Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Transmit power 1 kW traditional; 1 kW CHIRP CHIRP sonar technology Yes (Built-in) ClearVü Yes with CHIRP (built-in) SideVü Yes with CHIRP (built-in) Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) Bottom lock (shows return from the bottom up) Yes Water temperature log and graph Yes Sonar recording Yes Sonar history rewind Yes NMEA 2000® compatible Yes Transducer pin numbers 12 NMEA 0183 input ports 1 NMEA 0183 output ports 1 Video input ports 1 BNC Video output ports None Wireless connectivity Yes What's in the Box: GPSMAP 1242xsv chartplotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Power/data cable NMEA 2000 T-connector NMEA 2000 drop cable (2 m) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable

Read more less

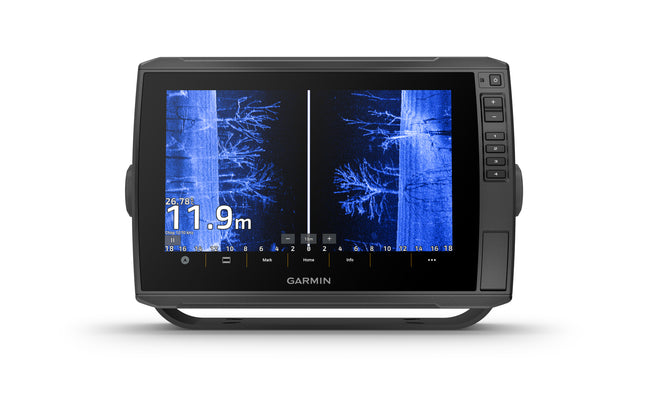

Garmin ECHOMAP™ Ultra 2 102sv 10" Chartplotters without TransducerModel: 010-02879-00 SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.LiveScope™ System sonar transducer sold separately Via one-to-one unit wireless connection only LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) WEIGHT 4.0 lbs (1.8 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.3 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 34 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 102sv Power/data cable Bail mount with quick release cradle Protective sun cover 8-pin transducer to 12-pin sounder adapter cable Hardware Documentation

Read more less

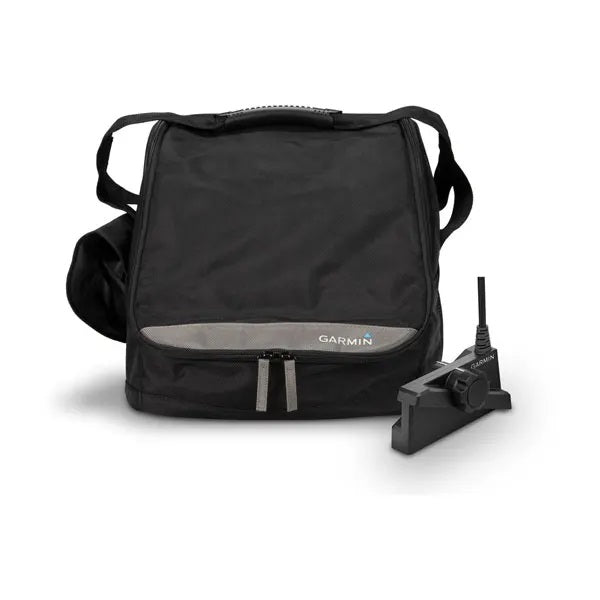

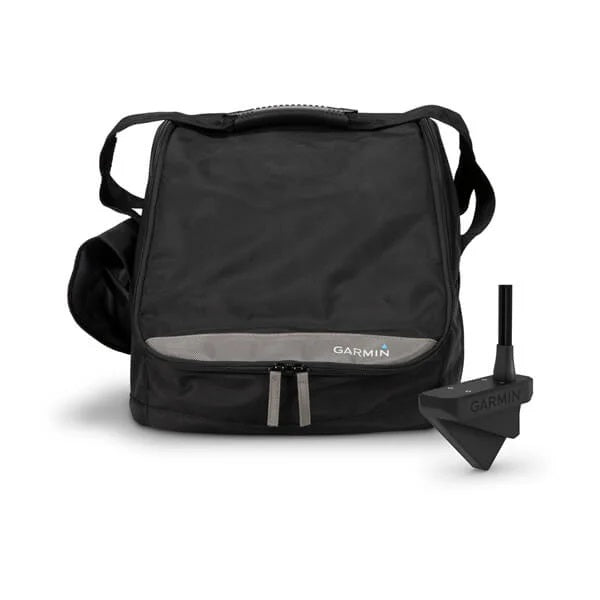

Garmin Panoptix™ LiveScope Ice Fishing KitModel: 010-12676-50 Hit your limit with the power of Panoptix™ sonar. Just add your ECHOMAP or GPSMAP unit and water. Only drill where there’s fish when you use LiveScope™ Forward sonar. Keep an eye on your jig and what it attracts with LiveScope™ Down sonar. Everything goes where you go. All accessories fit in the rugged, portable carrying case. Adapt your fishing technique with the Panoptix LiveScope transducer with live, real-time scanning sonar that lets you see up to 200’ in any direction.LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.The rugged, portable carrying case fits your ECHOMAP or GPSMAP 7" and 9" units plus all the included parts, so you can easily transport it from hole to hole and season to season.Kit accessories include a swivel pole mount for the Panoptix™ transducer, foam float and cable grommet, 12Ah battery, charger, power cable and transducer adapter cable.What's in the Box: Panoptix™ LiveScope System Panoptix ice fishing mount Power cable Documentation Bag with handle Rechargeable battery Battery charger

Read more less

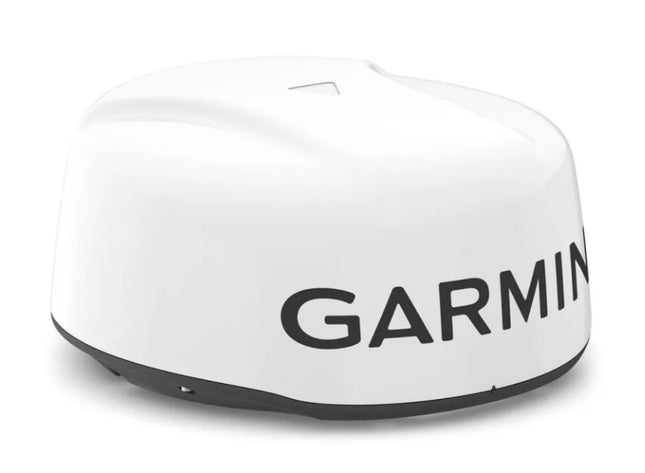

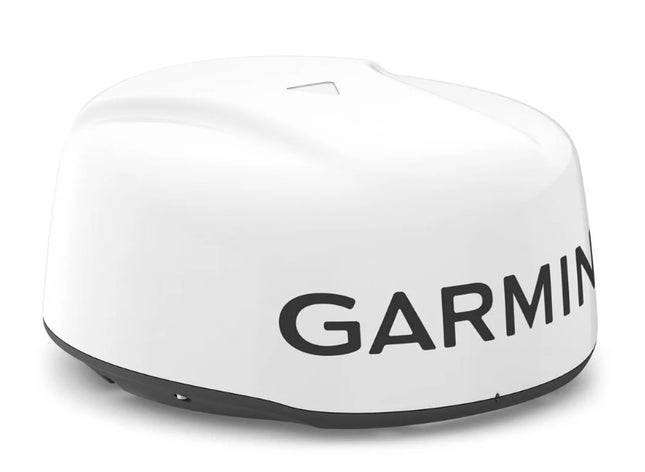

Garmin GMR™ 18 xHD3 18" 4kw Radar DomeModel: 010-02841-00 18" 4-kW magnetron dome radars feature long ranges and improved target detection on your compatible chartplotter Scan averaging, a first for Garmin magnetron radar, helps filter out sea clutter and interference, providing boaters with enhanced detection of consistent targets Pulse expansion and angular target size processing optimize on-screen object shapes at all range scales Rotation speed of up to 60 rpm improves the redraw rate for faster target updates on your MFD The radar’s true echo trails feature displays a historical "trail" of boats on the water, removing relative motion influence to help users quickly identify moving targets Auto bird gain and the bird mode preset feature help users locate flocks of birds at the water’s surface — where there are often fish to be found below MARPA technology tracks selected targets, helping users keep track of other vessels and avoid collisions (requires heading sensor, sold separately) Radar overlay displays radar images over maps on your compatible chartplotter (requires heading sensor, sold separately) The reliable dome drive motor offers low-noise operation Radar detection range extends from 20 meters up to 48 nautical miles" See more of what’s out there, and gain extra peace of mind with the GMR™ xHD3 series dome radars. Combining high-definition imaging with our latest platform technology, these robust 4-kW magnetron radars offer new levels of confidence, clarity and performance for boaters who want to venture out on the water. Scan averaging, a first for Garmin magnetron radar, results in reduced sea clutter and interference on the display. Plus, other advanced features include true echo trails, auto bird gain, improved target-size processing and more. Delivering crisp, high-resolution picture quality and up to a 48-nautical mile detection range, these radars easily connect to your compatible Garmin chartplotter or MFD through the Garmin Marine Network.What's in the Box: GMR 18 xHD3 dome radar Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Mounting hardware kit and template Installation instructions

Read more less

B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-PinGarmin's best performing 1 kW thru-hull transducer, this mount performs well in deep water and has exceptional bottom and water column detail.This transducer has a depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees; and a 0 to 20 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Temperature: Yes Speed Included: No Imagining: Standard Chirp: Low/High Cable Length (Feet): 39' Pins: 12 Box Dimensions: 7"H x 19"W x 26"L WT: 24.2 lbs UPC: 753759142414

Read more less

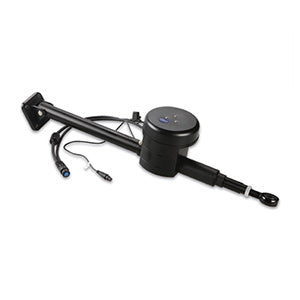

The Class A Drive Unit works with the GHP 12 Marine Autopilot System to control your sailboat's steering system. This device is designed for use with larger sailboats with up to 28,500 lbs (12,927 kg) of displacement. Drive Unit Type: Hydraulic linearStroke Length: 12" (303 mm) Maximum Thrust: 800 lb (400 kg) Dimensions (centered), WxHxD: 32.3" x 6.5" x 6.1" (820 x 165 x 155 mm) Supply Voltage: 10V to 30V Average Clutch Current at 12V: 0.5 Amps Average Motor Current at 12V: 1-2 Amps Operating Temperature: -15° C to 60° C (5° F to 140° F)

Read more less

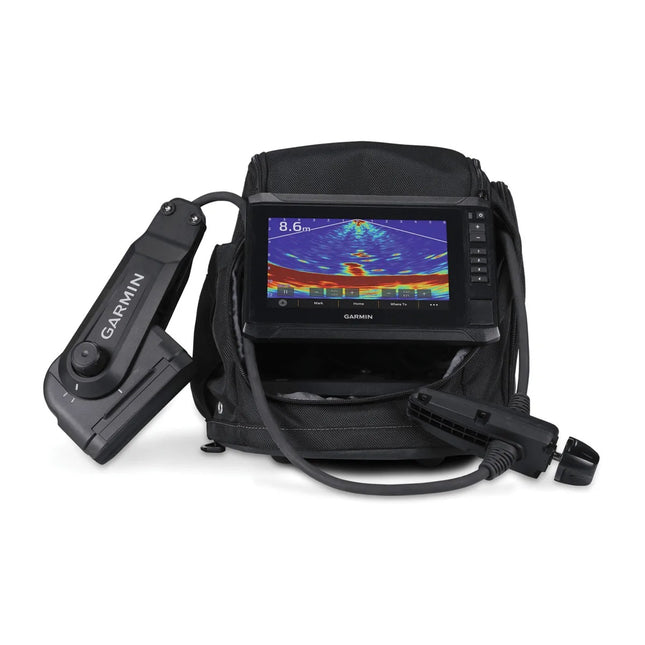

Garmin ECHOMAP UHD2 75sv Panoptix™ PS22-IF Ice Fishing BundleModel: 010-02686-30 ECHOMAP™ UHD2 7" TOUCHSCREEN WITH KEYED ASSIST PANOPTIX SONAR WITH TWO MODES POLE MOUNT-FREE DESIGN CANADA INLAND AND COASTAL CARTOGRAPHY GLOVE-FRIENDLY PORTABLE BAG The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.The bundle includes a 7" ECHOMAP UHD2 chartplotter with touchscreen, keyed assist and two types of sonar: LiveVü™ Forward and LiveVü™ Down modes.The Panoptix PS22-IF transducer doesn’t require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.Easily create custom pages that combine sonar and mapping on your display.Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.Specifications General Dimension 10.5" 9.5" 10.5" (26.7 22.9 26.7 cm) Weight 12.2 lbs (5.5 kg) Water rating IPX7 Touchscreen Yes Display Type WVGA, TN Display Size 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm) Display resolution 800 x 480 pixels Input Touchscreen with Keyed Assist Maps & Memory Accepts Data Cards 1 microSD™ card; 32 GB maximum size Waypoints 5000 Track points 50,000 Tracks 50 saved tracks Navigation Routes 100 Ice Fishing Details Battery type, size SLA, 7Ah Bag size Small Included transducer PS22-IF Transducer holding feature Pole-free transducer rotation system Sensors GPS Yes GLONASS Yes Galileo Yes BeiDou Yes Has built-in receiver Yes Receiver 10 hz NMEA 2000 Compatible Yes Supports WAAS Yes Supports multi-band, multi-constellation GPS Yes Built-in Maps Canada inland and coastal charts Built-in Auto Guidance+ yes (downloadable via ActiveCaptain app) Garmin Navionics+ Inland & Coastal yes (see Additional) Garmin Navionics+ (Inland) yes (see Additional) Optional Map Support Garmin Navionics+™ Yes Garmin Navionics Vision+™ Yes TOPO 100K Yes Standard Mapping Yes Garmin Quickdraw Contours Yes Chartplotter Features ActiveCaptain® compatible Yes Electrical Features Power Input 9 to 18 Vdc Sonar Features Displays sonar yes Power output 500 W Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) ClearVü built-in 260/455/800/1000/1200 kHz SideVü built-in 260/455/800/1000/1200 kHz Panoptix™ sonar yes LiveScope yes Connections NMEA 2000® ports yes Garmin Marine Network Ports 1 12-pin transducer ports 1 BLUETOOTH® pairing yes ANT+ (Connectivity) yes Garmin Wi-Fi network (local connection) yes What's in the Box: ECHOMAP UHD2 75sv touchscreen with keyed assist chartplotter Canada inland and coastal charts Panoptix PS22-IF transducer Transducer rotator Transducer bracket PS22-IF removable lens Rechargeable battery Charger Small bag, base and handle Power cable Foam float Hardware Documentation

Read more less

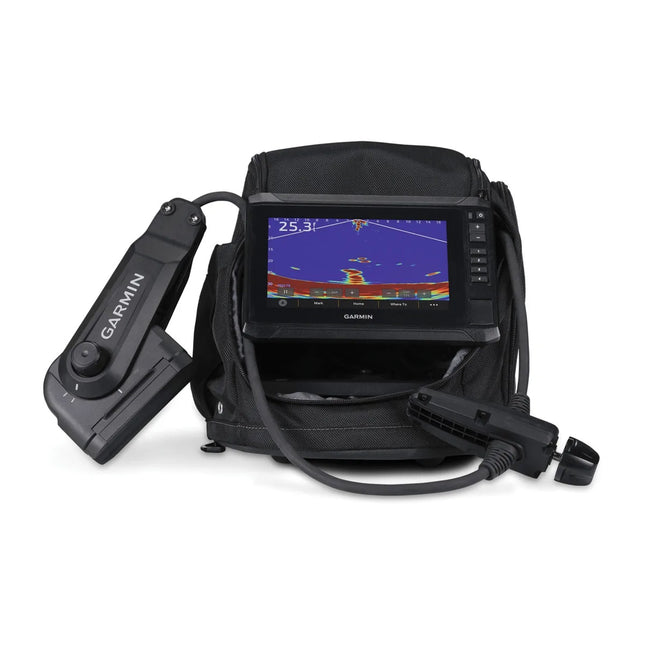

Garmin ECHOMAP UHD2 73sv Panoptix™ PS22-IF Ice Fishing BundleModel: 010-02684-30 ECHOMAP™ UHD2 7" TOUCHSCREEN WITH KEYED ASSIST PANOPTIX SONAR WITH TWO MODES POLE MOUNT-FREE DESIGN GARMIN NAVIONICS+™ U.S. INLAND MAPPING ON 23,000+ LAKES GLOVE-FRIENDLY PORTABLE BAG The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.The bundle includes a 7" ECHOMAP UHD2 chartplotter with touchscreen, keyed assist and two types of sonar: LiveVü™ Forward and LiveVü™ Down modes.The Panoptix PS22-IF transducer doesn’t require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.Get exceptional detail on more than 23,000 U.S. lakes with an included 1-year subscription to access daily map updates.Easily create custom pages that combine sonar and mapping on your display.Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.Specifications General Dimension 10.5" 9.5" 10.5" (26.7 22.9 26.7 cm) Weight 12.2 lbs (5.5 kg) Water rating IPX7 Touchscreen Yes Display Type WVGA, TN Display Size 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm) Display resolution 800 x 480 pixels Input Touchscreen with Keyed Assist Maps & Memory Accepts Data Cards 1 microSD™ card; 32 GB maximum size Waypoints 5000 Track points 50,000 Tracks 50 saved tracks Navigation Routes 100 Ice Fishing Details Battery type, size SLA, 7Ah Bag size Small Included transducer PS22-IF Transducer holding feature Pole-free transducer rotation system Sensors GPS Yes GLONASS Yes Galileo Yes BeiDou Yes Has built-in receiver Yes Receiver 10 hz NMEA 2000 Compatible Yes Supports WAAS Yes Supports multi-band, multi-constellation GPS Yes Built-in Maps Mapping: Garmin Navionics+ for U.S. inland Built-in Auto Guidance+ yes (downloadable via ActiveCaptain app) Garmin Navionics+ Inland & Coastal yes (see Additional) Garmin Navionics+ (Inland) yes (see Additional) Optional Map Support Garmin Navionics+™ Yes Garmin Navionics Vision+™ Yes TOPO 100K Yes Standard Mapping Yes Garmin Quickdraw Contours Yes Chartplotter Features ActiveCaptain® compatible Yes Electrical Features Power Input 9 to 18 Vdc Sonar Features Displays sonar yes Power output 500 W Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) ClearVü built-in 260/455/800/1000/1200 kHz SideVü built-in 260/455/800/1000/1200 kHz Panoptix™ sonar yes LiveScope yes Connections NMEA 2000® ports yes Garmin Marine Network Ports 1 12-pin transducer ports 1 BLUETOOTH® pairing yes ANT+ (Connectivity) yes Garmin Wi-Fi network (local connection) yes What's in the Box: ECHOMAP UHD2 73sv with keyed assist chartplotter Mapping: Garmin Navionics+ for U.S. inland Panoptix PS22-IF transducer Transducer rotator Transducer bracket PS22-IF removable lens Rechargeable battery Charger Small bag, base and handle Power cable Foam float Hardware Documentation

Read more less

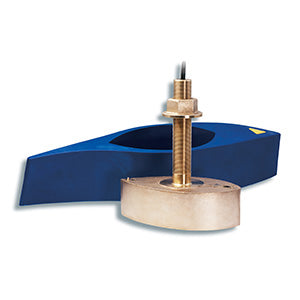

Garmin Bronze Thru-hull Mount Transducer with Depth & Temperature (12-pin) Airmar B265LH 42 to 65 kHz and 130 to 210 kHz Model: 010-12379-20 UPC: 753759142414 Depth & Temperature Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° port-starboard beamwidth High—CHIRPS from 130 kHz to 210 kHz 10° to 6° beamwidth Thru-Hull CHIRP Technology Bronze 1kW Imagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna—60 kHz, Squid—133 kHz, and Cod—175 kHz. Now imagine tuning your fishfinder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fi sh separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6° beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, CHIRP Broadband Transducer Technology. What's in the Box: Bronze Thru hull Fairing block Installation instructions

Read more less

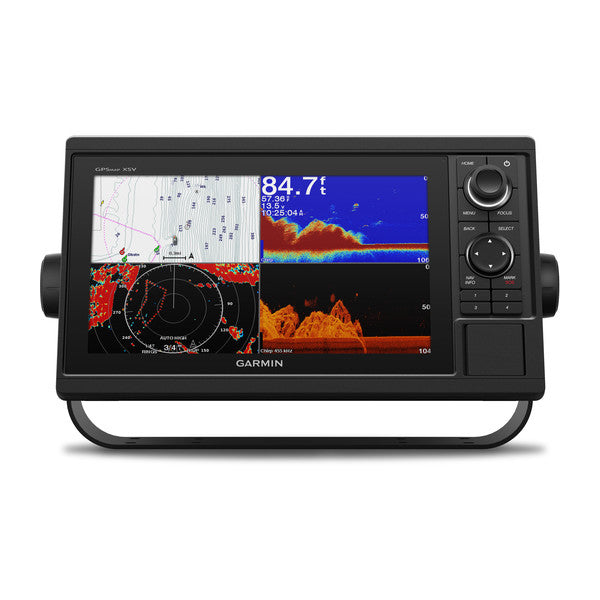

Garmin GPSMAP® 1042xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 Solution with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada and GT52-TM transducerModel: 010-01740-60 Large, bright 10" screen with keypad interface and multifunction control knob Includes GT52-TM transducer for Garmin CHIRP sonar and CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars Supports Panoptix™ and LiveScope™ sonar products (transducers sold separately) Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology Auto Guidance+ is for planning purposes only and does not replace safe navigation operations; plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Built-in wireless capabilities for Garmin mobile apps See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors Includes Quickdraw Contours map drawing software Built-in Garmin SailAssist™ features include laylines, race features, set and drift, wind data and more Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and remote controls (sold separately) Experience an advanced all-in-one solution with our 10" GPSMAP® 1042xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. A GT52-TM transducer is included for Garmin CHIRP sonar along with CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars. There’s also support for Panoptix™ and LiveScope™ sonar products and a wide range of other transducers (sold separately). Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin Connect™ online network. Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there’s NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and remote controls (sold separately). See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.Specifications Performance and Physical Dimensions 12.5" x 7.3" x 2.7" (318 x 185 x 69 cm) Display size 8.8" x 4.9" (224 x 125 cm) Display resolution 1024 x 600 Display type WSVGA display Weight 4.1lbs Water rating IPX7 Antenna Internal or external over NMEA 2000 NMEA 2000® compatible Yes NMEA 0183 compatible Yes SiriusXM™ Weather & Radio compatible Yes Power consumption Max power usage at 10 Vdc: 32.4 W Typical current draw at 12 Vdc: 1.9 A Max current draw at 12 Vdc: 2.7 A Mounting options Bail or flush Maps and Memory Preloaded maps Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Accepts data card 2 SD™ cards Waypoints 5,000 Routes 100 Track log 50,000 points; 50 saved tracks Chartplotter Features Garmin Radar compatible Yes Garmin Sonar compatible Yes (with external black box, sold separately) Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Tide tables Yes Garmin Meteor Audio System compatible Yes Supports Fusion Lync compatible marine radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes BlueChart® Mobile (planning) compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Connections NMEA 0183 input ports 1 NMEA 0183 output ports 1 Video input ports 1 BNC Video output ports None Wireless connectivity Yes Garmin Marine Network™ ports 2 Sonar Features and Specifications CHIRP sonar technology Yes (Built-in) ClearVü Yes with CHIRP (built-in) SideVü Yes with CHIRP (built-in) Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Frequencies supported Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü/SideVü (260/455/800 kHz) (dependent on transducer) Transmit power 1 kW traditional; 1 kW CHIRP Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) Bottom lock (shows return from the bottom up) Yes Water temperature log and graph Yes Sonar recording Yes Sonar history rewind Yes Transducer port 12-pin What's in the Box: GPSMAP 1042xsv chartplotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Power/data cable NMEA 2000 T-connector NMEA 2000 drop cable (2 m) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation GT52-TM transducer

Read more less

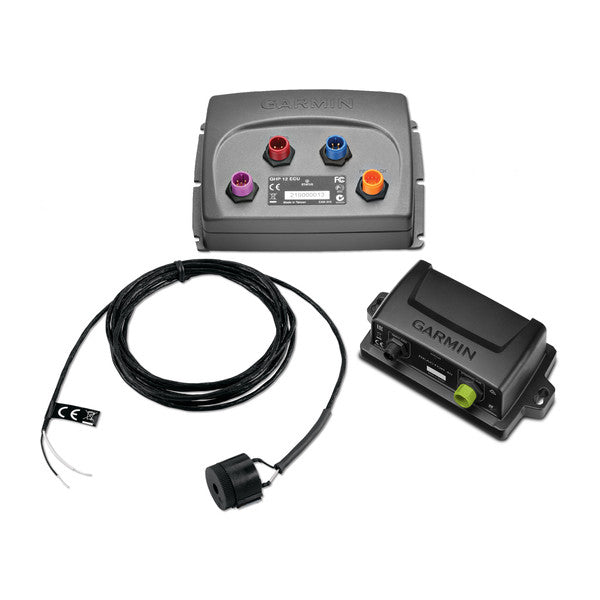

Garmiin Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack Without GHC ControlModel: 010-00705-48 Solid-state 9-axis Attitude Heading Reference System (AHRS) Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride Minimal commissioning and calibration Supports heading hold, wind hold, step turns and tack/jibe modes With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more; simply pick the autopilot that’s compatible with your existing steering system. If you don’t see a compatible Reactor 40, you’ll find the Reactor 40 mechanical/retrofit/solenoid is compatible with a wide variety of steering systems, whether hydraulic, cable drive, mechanical and solenoid. Just pair GRF™ 10 with your drive system already on board.The Reactor 40 mechanical/retrofit/solenoid autopilot corepack is ideal for sailboats and powerboats with direct or cable-actuated steering systems. This Reactor 40 below-deck autopilot system gives captains that "extra set of hands" they need so you can safely attend to your sails, lines, winches and radios, without worry. With its solid-state 9-axis AHRS, Reactor 40 mounts anywhere, in any orientation and requires minimal commissioning.With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.All autopilots require commissioning and calibration — all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.Combined with a compatible Garmin networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts (sold separately), you gain optional features such as Auto Guidance , which automatically steers GPS paths.On hydraulic installations, the Reactor 40 mechanical/retrofit/solenoid autopilot corepack can add optional patented Shadow Drive technology. This gives you the security of knowing you maintain control, even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.Reactor 40 is available with 3 linear drives (sold separately) capable of driving many different steering systems on most midsize to large vessels (depending on the particular installation). All Garmin linear drives include built in rudder feedback sensing. Class A Drive Unit — up to 28,500 lbs of displacement Class B Compact Drive Unit — up to 48,400 lbs of displacement Class B Drive Unit — up to 79,000 lbs of displacementAdd an optional GRF 10 rudder feedback sensor, and you can further enhance the performance of your Reactor 40 autopilot.1Auto Guidance is for planning purposes only and does not replace safe navigation operations.Specifications CCU dimensions 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm) ECU dimensions 6.6 " x 4.6 " x 2.1 " (16.8 x 11.7 x 5.3 cm) Supply voltage 10 V to 30 V Operating temperature -15° C to 60 C° (5° F to 140° F) Maximum sustained motor current 15A Maximum instantaneous motor current 40A Maximum clutch current 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit) What's in the Box: Reactor 40 CCU (Course Computer Unit) Documentation ECU (Electronic Control Unit) ECU power cable Interconnect cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 T-connectors Male and female terminators

Read more less

Airmar B175Lw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imagining: Standard Chirp: Low Cable Length (Feet): 39' Pins: 8 Box Dimensions: 8"H x 10"W x 12"L WT: 12 lbs UPC: 753759995737 Owner's Manual (pdf)Brochure (pdf)

Read more less

Garmin 6' Fantom Antenna - BlackModel: 010-01366-106' Array only for Fantom open array radars.,Garmin 6' Fantom Antenna - BlackModel: 010-01366-106' Array only for Fantom open array radars.

Read more less

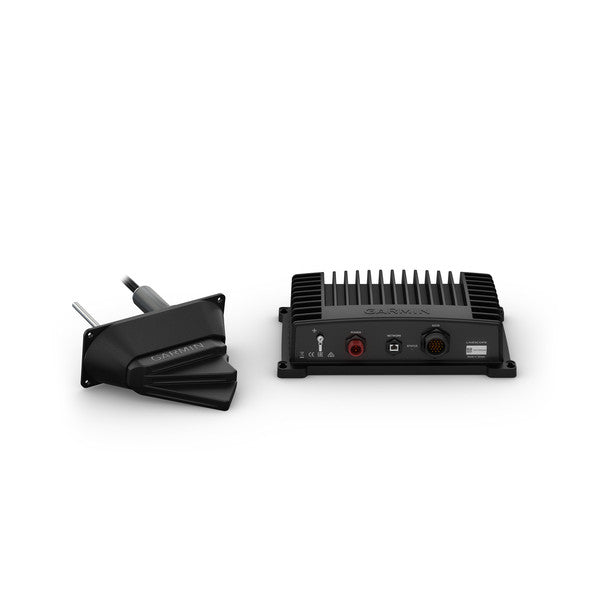

Garmin Panoptix LiveScope™ System With Thru-hull MountModel: 010-02233-00 See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary See incredibly sharp real-time scanning sonar images up to 200’ around your boat Attitude Heading Reference System stabilizes sonar view on chartplotter screen, even in rough conditions Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter . Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat. Compatible with GPSMAP® 8400/8600 series MFDs, GPSMAP 7400/7600, 1002/1202, GPSMAP 1202/1202xsv Touch and 702/902 series chartplotters and ECHOMAP™ Plus 70cv/70sv and 90sv chartplotter/sonar combo seriesSpecifications Physical dimensions GLS 10 sonar black box 9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm) LVS32-TH transducer without fairing block 9.6" x 1.8" x 5.4" (24.4 x 4.6 x 13.7 cm) LVS32-TH transducer with fairing block 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm)LVS32-TH transducer with fairing block: 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm) General Water rating IPX7 Garmin Marine Network™ ports 1 (small connector) Temperature range -15 C to 70 C Sonar Features & Specifications Frequencies supported 530 - 1,100 kHz Transmit power 500 W Maximum depth Forward: 200’ (61.0 m) Electrical Power input 10-32 V Power usage 21 W typical, 58 W max Fuse 7.5 A Other Beamwidth 20° x 135° Transducer cable length 20 ft. Transducer number of pins 21 What's in the Box: LiveScope GLS 10 sonar black box Panoptix LVS32 transducer Thru-hull mount hardware Power cable 2 meter Garmin marine network cable, small connector Network adapter cable Mounting hardware Documentation

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 20° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 16 to 24° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 39' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 753759123550

Read more less

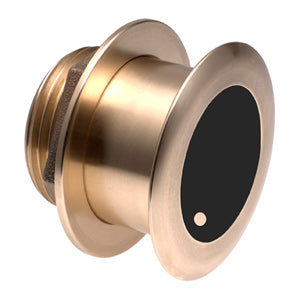

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 12° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 8 to 15° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Cable Length (Feet): 39' Chirp: High Wide Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 753759123543

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 0° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 0 to 7° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 8 Mounting Style: Thru-Hull Chirp: High Wide Cable Length (Feet): 39' Imagining: Standard Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs UPC: 753759123536

Read more less

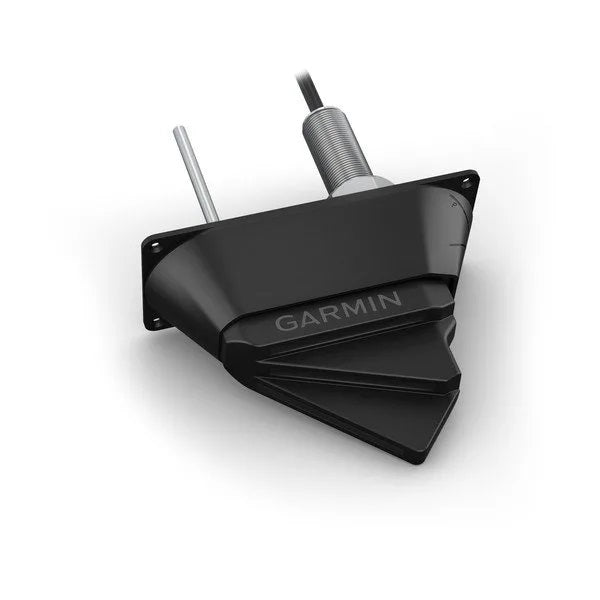

Garmin Panoptix™ LVS32-TH Transducer Thru-hull MountModel: 010-12928-01This transducer is part of the Pantopix LiveScope system and requires the GLS 10 sonar black box to function. This thru-hull version transducer features LiveScope Forward to see detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming up to 200’ around your boat in real-time, even when your boat is stationary. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions.Specifications TRANSDUCER FREQUENCY 530 - 1,100 kHz TRANSDUCER POWER 500w TRANSDUCER BEAMWIDTH 20° x 135° TRANSDUCER MAXIMUM DEPTH Forward: 200’ (61.0 m) TRANSDUCER CABLE LENGTH 20 ft. TRANSDUCER DEPTH/SPEED/TEMPERATURE Depth TRANSDUCER NUMBER OF PINS 21 What's in the Box: Panoptix LVS32-TH transducer Thru-hull mounting hardware Mounting hardware Documentation

Read more less

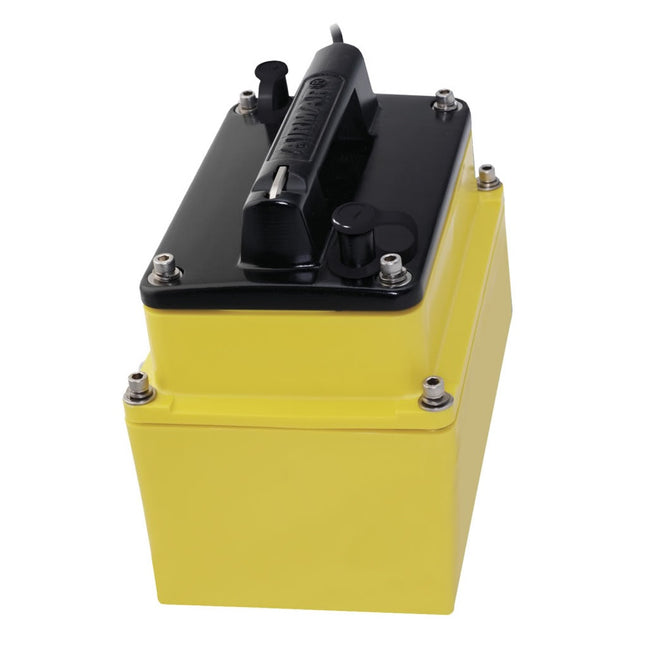

Airmar M265C-LH Low High CHIRP In-Hull Transducer with Garmin 12-PinModel: 010-12380-20 Depth only 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000') High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000') 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Plastic transducer housing and mounting tank Patented Xducer ID® technology We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.Specifications Cable-Length 10 m (33') Connector Garmin 12-Pin Deadrise Range 0° to 22° Frequency Band Low-High Housing Material Plastic Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Max Deadrise Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull Max Depth Low frequency- 914 m (3000'), High frequency- 304 m (1000') Mounting Style In-Hull Single or Dual Frequency CHIRP-Ready Dual-Band High Frequency 130-210 kHz High Frequency Beamwidth 10°-6°

Read more less

Freq. Khz Power Beam Width (°) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 40-60 1KW 16-25 3000 Depth,Temp 8 16-24° Deadrise

Read more less

Freq. Khz Power Beam Width (°) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 40-60 1KW 16-25 3000 Depth,Temp 8 8-15° Deadrise

Read more less

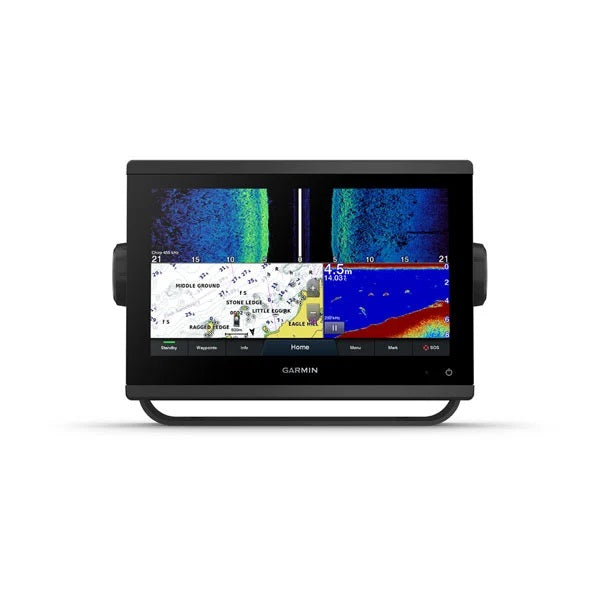

Garmin GPSMAP® 923xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide BasemapModel: 010-02366-02 Easily integrate with more engines. Connect to compatible third-party devices with OneHelm™ digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts for the best in Garmin navigation. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere2. With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9" plotter in a wider range of dash configurations.New higher-resolution 9" IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more4.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Specifications General PHYSICAL DIMENSIONS 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) DISPLAY SIZE 7.8" x 4.4"; 9.0" diagonal DISPLAY RESOLUTION 1280 x 720 pixels DISPLAY TYPE WXGA display WEIGHT 3.6 lbs (1.6 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail, flush or flat RECEIVER 10 Hz high-sensitivity GARMIN MARINE NETWORK™ PORTS 1 TRANSMIT POWER 1 kW traditional; 1 kW CHIRP Maps & Memory PRELOADED MAPS worldwide basemap ACCEPTS DATA CARDS 2 microSD™ cards (back of unit) WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN RADAR COMPATIBLE Yes GARMIN SONAR COMPATIBLE Yes (built-in) GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GSD™ BLACK BOX SONAR SUPPORT Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE Yes WIRELESS REMOTE COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 12-pin (orange) NMEA 0183 INPUT PORTS 1 (Differential) NMEA 0183 OUTPUT PORTS 1 (Differential) VIDEO INPUT PORTS 1 BNC WIRELESS CONNECTIVITY Yes J1939 COMPATIBLE Yes What's in the Box: GPSMAP 923xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable

Read more less

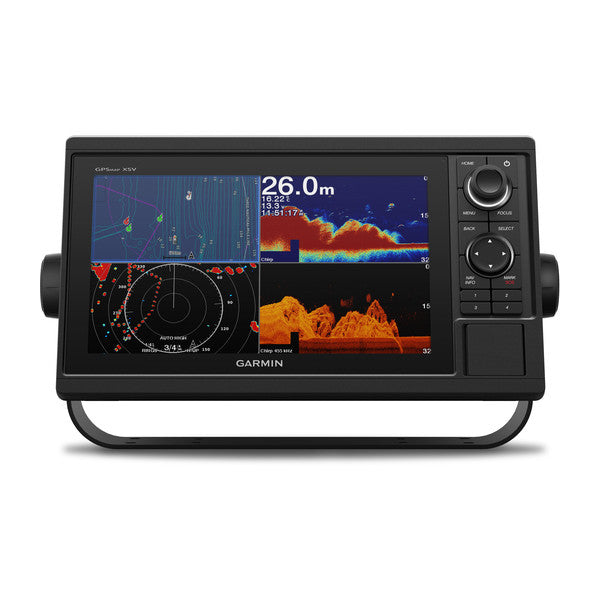

Garmin GPSMAP® 1022xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 SolutionModel: 010-01740-02UPC: 753759168315 10-inch color display with keypad interface and multifunction control knob High-sensitivity internal 10 Hz GPS and GLONASS receiver Built-in single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ support (transducers sold separately) Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support Supports optional BlueChart® g3 Vision® premium charts Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1022xsv keyed combo. comes with or without a transducer for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.Specifications Performance and Physical Dimensions 12.5" x 7.3" x 2.7" (318 x 185 x 69 cm) Display size 8.8" x 4.9" (224 x 125 cm) Display resolution 1024 x 600 Display type WSVGA display Weight 4.1lbs Water rating IPX7 Power consumption Max power usage at 10 Vdc: 32.4 W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 10 Hz high-sensitivity Garmin Marine Network™ ports 2 Preloaded maps None Accepts data cards 2 SD™ cards Waypoints 5,000 Routes 100 Track log 50,000 points; 50 saved tracks Tide tables Yes Garmin Radar compatible Yes Garmin Sonar compatible Yes (built-in) Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Garmin Meteor™ Audio System compatible Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Transmit power 1 kW traditional; 1 kW CHIRP CHIRP sonar technology Yes (Built-in) ClearVü Yes with CHIRP (built-in) SideVü Yes with CHIRP (built-in) Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) Bottom lock (shows return from the bottom up) Yes Water temperature log and graph Yes Sonar recording Yes Sonar history rewind Yes NMEA 2000® compatible Yes Transducer pin numbers 12 NMEA 0183 input ports 1 NMEA 0183 output ports 1 Video input ports 1 BNC Video output ports None Wireless connectivity Yes What's in the Box: GPSMAP 1022xsv chartplotter Power/data cable NMEA 2000 T-connector NMEA 2000 drop cable (2 m) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable

Read more less

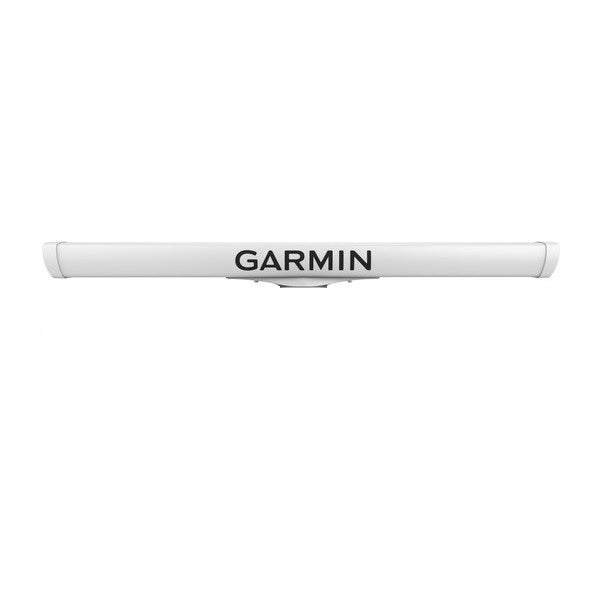

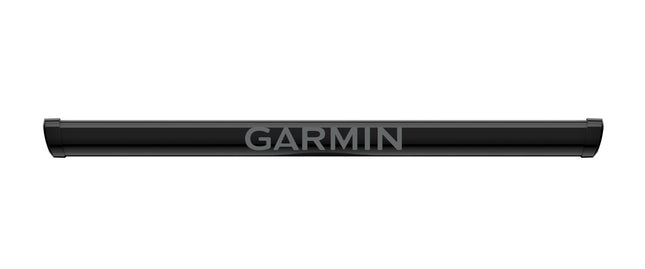

Garmin 6FT GMR Fantom Antenna OnlyModel: 010-01366-00 6ft Antenna Replacement Works with Garmin Fantom Pedestal 40W, GMR Fantom 4 & 6 The Garmin 010-01366-00 is replacement GMR fantom series 6ft antenna

Read more less

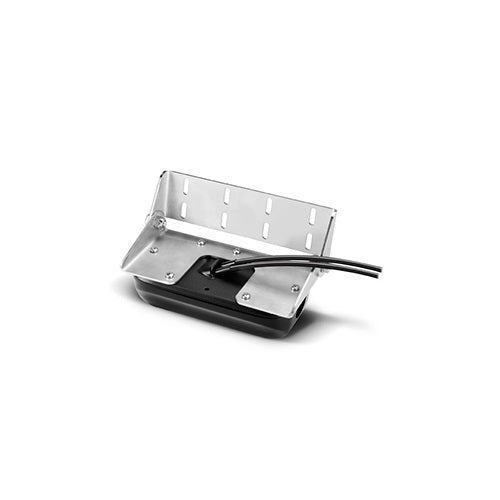

Garmin Panoptix PS30 Down Looking TransducerModel: 010-01284-00UPC: 753759132392With the Panoptix Down transducer, you can actually see fish and bait swimming around under your boat — in real time; even while stationary. You get 3 remarkable views: LiveVü Down, RealVü 3-D Down and RealVü 3-D Historical.LIVEVü DOWN Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure.,b>REALVü 3-D DOWN Allows your boat to be stationary and still see things in 3-D around your boat. It shows history of only 1 sweep.REALVü 3-D HISTORICAL Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom of the surface and all of the fish in between.All-seeing is Believing Garmin is the first to bring Panoptix sonar imaging to your boat. Panoptix all-seeing sonar is unlike anything you’ve ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You can also see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Transducer transom mounting kit included.Specifications Mounting options Transom Frequency 417kHz Maximum range 300' Input Voltage 10-35Vdc Input Draw <0.8 A @ 12 Vdc What's in the Box: PS30 down looking transducer (integrated 30 ft network cable, 15 ft power cable) Transom mount Split ring RJ45 connector Documentation
