NSX™ 3012 Radar Bundle - HALO20+ Radar Dome & Active Imaging™ 3-in-1 TransducerNSX™ 3012 12" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when needed. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™.See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your Fingertips.Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to Manage.Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Active Imaging™ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging™, plus support for 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support, and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support HALO20+ 20" Radar with 10M CableSee Far And Near With One Compact DomePerfect for wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid, and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far-away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at the either selected range, while beam sharpening provides enhanced separation between small or distant targets.The Best View To Avoid CollisionHALO20+ radar does a full 360-degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast-moving targets. Built-in VelocityTrack™ Doppler TechnologyVelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with color-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness, and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets and no limit to the number of targets on screen at one time.Ready Whenever You AreHALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.Easy-to-Use RadarHarbor, offshore, weather, and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.Features: 36 nm range from a compact 20-inch dome Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation sees both far and near Ultra-fast 60 RPM operation at ranges up to 1.5 nm VelocityTrack™ Doppler technology to avoid collision Easy operation with harbor, offshore, weather, and custom modes MARPA target tracking (up to 10 targets, 20 in dual range) Ready instantly from standby Low power consumption Included: 20" dome 10m cable (000-14548-001) Ethernet Adapter Cable (000-14552-001) Specifications: Array Size (Inches): 20" Cartography Brand: C-Map Included Transducer: 000-14489-001 Range - Max (Miles): 36nm Screen Size: 12" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 22"H x 24"W x 26"L WT: 42.45 lbs UPC: 9420064112036 Brochure (pdf)

Read more less

15M Power Cable for DRS4WThe 15M Power Cable is specifically for Furuno's DRS4W.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

HALO24 Radar Dome with Doppler TechnologyHALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.See Near and Far with One Compact Dome Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.The Ultimate View for Collision AvoidanceHALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundingsVelocityTrack™ Doppler Technology Built-InVelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.Key Features: 48 nm range from a compact 24" dome Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation sees both near and far Ultra-fast 60 RPM operation at ranges up to 2nm VelocityTrack™ Doppler technology for collision avoidance Easy operation with harbour, offshore, weather, and bird modes MARPA target tracking (up to 10 targets, 20 in dual range). Ready instantly from standby Lightweight, low profile dome design, with integrated LED lights 5m Radar Cable Specifications:Environmental Operating Temperature: -25° to +55°C (-13° to +130°F) Relative humidity: +35° C (95° F), 95% RH Waterproof: IPX6 Max relative wind velocity: 51 m/sec (100 Knots) Complience: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002 Power & Dimensions Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems) Reverse polarity protection: Yes Minimum startup voltage: 10.75 V DC Transmitter source (pre-heating time): No magnetron – Instant On Physical Outside dimensions: Ø Diameter 610 mm (24”), Height 225 mm (8.9”) Scanner weight (no cable): 6.75kg (14.9 lbs) Radar and Antenna Parameters Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km) Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent) Transmitter frequency: X-band - 9.4 to 9.5 Ghz Transmitter source (warm-up time): No Magnetron – all solid state. Instant On™ Plane of polarization: Horizontal Polarization Transmitter peak power output: 25W Minimum range: 6M (19.7') Sweep repetition frequency: 700-2400 Hz (mode dependent) Pulse length: 0.04 - 64 usec Sweep bandwidth: 48 MHz max Horizontal beam width (Tx and Rx antenna): 3.9° nominal (-3 dB width) Target Seperation Control: OFF: 3.9°+/-10% (-3 dB width nominal), LOW: 3.4°+/-10% (-3 dB width nominal), MED: 2.5°+/-10% (-3 dB width nominal), HIGH: 2.0°+/-10% (-3 dB width nominal) Vertical beam width (Tx and Rx antenna): 22° (-3B width nominal) Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°) Noise figure: Less than 5 dB nominal Communications/Cabling Protocol: Ethernet 100 Base T Maximum inter connecting cable length: 30M (98.5') – available as option, use NEP-2 for longer cable runs Specifications: Range - Max (Miles): 48nm Power - Output: 25W Array Size (Inches): 24" Box Dimensions: 11"H x 28"W x 30"L WT: 26.75 lbs UPC: 9420024173831

Read more less

FR-10 Color LCD Marine Radar Display - 10"The FR-10 10.4" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™, and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.Compatible with Furuno’s powerful antenna line-upThe FR-10 is compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size, and antenna type and size based on what you want to accomplish, you can build the Radar that best meets your needs. Compatible DRS antennas:Radome type: Model DRS2D-NXT Model DRS4D-NXT Model DRS4DL+Open Array type: Model DRS6A-NXT Model DRS12A-NXT Model DRS25A-NXT Model DRS6A X-Class Model DRS12A X-Class Model DRS25A X-Class Risk Visualizer™ Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.Fast Target Tracking™Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector. Target Analyzer™Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.Echo AverageEcho Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.Specifications: Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas) Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT) Display Unit: 10.4-inch color LCD Display Mode: Head-up, Course-up, North-up, True motion, Stern-up Other Mode/Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts Power Supply/Consumption Current: FR-10: 12-24 VDC: 1.1-0.6 A This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

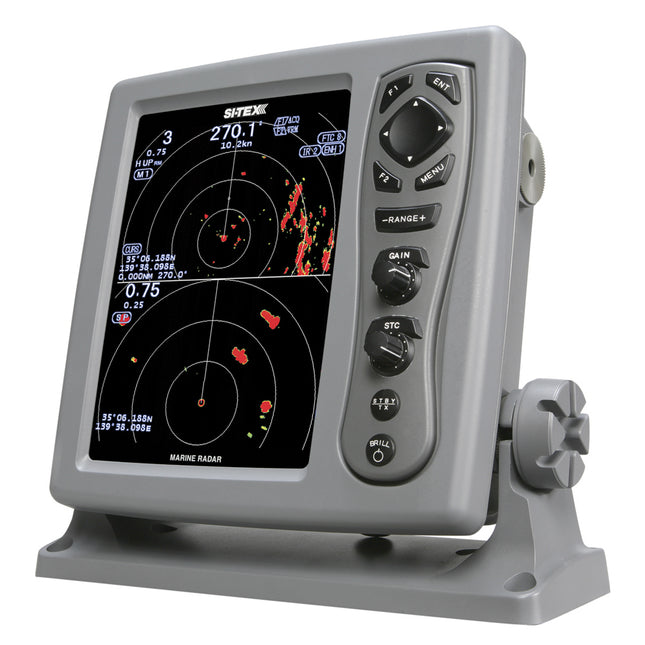

8.5" Color LCD Radar with 4kW Output - 1/16-36nm Range - 25" RadomeSI-TEX's T-941 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.Features: It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets Radome: 4kW, 36NM, 25" Display Brilliant 8.4" color LCD daylight viewable display 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing True-color radar feature displays echoes in different colors depending on signal strength The real-time presentation offers smooth movement as bearing changes The T-941 has two-speed antenna rotation for tracking of quick-moving, close-in targets: 48 RPM 24 RPM (Requires 24 Volt DC input) Selectable range scales from 1/16 NM Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use RGB output for connecting (2) optional external monitors Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC Built-in flush mounting system makes installation easy All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneouslyMonitor a nearby buoy and a far off island at the same time True Trail function clearly identifies moving targets from stationary targets The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving Accepts CCD camera input, to display split-screen Radar and CameraAllows you to monitor important areas of your vessel while shill keeping watch of your surroundings Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected. Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitterThis information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention Specifications:Antenna Unit: Scanner 25" Radome Peak Power Output 4kW Output Frequency 9410 + 30MHz Beam Width: Horizontal 3.9° Vertical 25° Rotation 24 or 48 rpm (48 rpm; 24V DC or more Pulse Width .08, 0.15, 0.3, 0.5, 1 use IF Frequency 60 MHz Range Accuracy Better than 8m Min. Detecting Distance: Within 25m Display Unit: Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels) Off Centering Max 66% Display Modes Heads up, North up*, Course up* WPT up**, True motion* Indication System PPI, PPI/PPI, PPI/NAV Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48) Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12 Bearing Accuracy Better than + 1° Video Level 8 colors Distant Unit (VRM unit) NM, SM, KM Alarms Entry or Breakaway (In and Out) Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input AIS Interface Option (100 targets) ATA Option (Auto/Manual, 50 targets) Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE Output Data Format TTM, TLL Power Requirements 10.8 - 31.2 Volt DC Power Consumption 55 Watt Water Protection Display: IPX 5 Antenna CFR 46 IPX What's In The Box? Display Unit MRD-103 with hardcover Connecting Cable 242J158055A -10 M with 2 connectors DC Power Cable CW265-2M 2m CCD Camera Cable CW-405-0.3M Operation manual, Quick reference Fuse (8A) Specifications: Array Size (Inches): 25" Power - Output: 4kW Range - Max (Miles): 36nm Box Dimensions: 9"H x 11"W x 14"L WT: 46.25 lbs

Read more less
