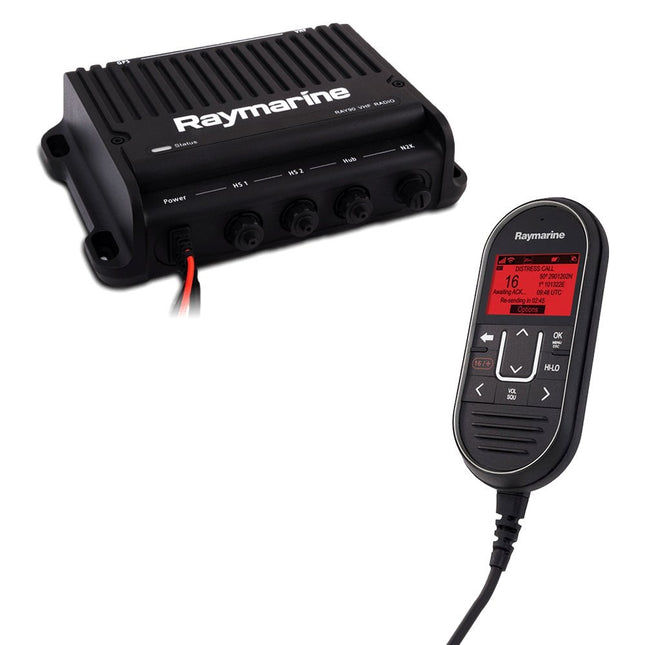

Raymarine RAY91 Modular Dual-Station VHF Radio with AISModel: E70493 Black box, dual-station capable VHF radio Built-in Automatic Identification System (AIS) Class B Receiver NEW - Optional Wireless handset and active speaker available Wired handset and passive speaker included Expandable to 2 RayMic handsets Built-in loudhailer and fog signal generator Optional external GPS receiver and Class D Digital Selective Calling Simple NMEA2000 and NMEA0183 Networking The Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.The Ray91 is also equipped with an integrated Automatic Identification System (AIS) receiver. Us the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs. AIS equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information.Ray91 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel's MMSI number during setup and you're ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Use Ray91's position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterways.Ray91's built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Ray91's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.SpecificationsWater IntegrityComplies with IPX6 & IPX7 Complies with EN60945 Operating Temperature Range -25 degC to 55 degC Storage Temperature Range -25 degC to 70 degC Humidity up to 95% Electrical Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101) Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected Operating Voltage Range 9V DC to 16V DC Current Consumption Less than 6A at High Power (13.6V) Standby: 600 mA Receive: 2 Amps Transmitter Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Frequency Stability + / - 1.5 ppm Channel Spacing 12.5 kHz Power Output High Power = 25 Watt, Low Power = 1 Watt Spurious emmission Better than -36 dBm at 25W (Less than 0.25 μW) Maximum Deviation +/- 5kHz Antenna port impedance 50 ohms typical Receiver Receiver Type Double Conversion Super Heterodyne Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD Hum & Noise Better than -40 dB Audio Distortion Less than 10% Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD Typical Local -110 dBm (0.7uV)@12 dB SINAD Typical Adjacent Channel Selectivity More than 70 dB Spurious Response Rejection More than 70 dB Inter Modulation Rejection More than 70 dB GPS Number of channels 72 Cold Start 29s Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition) GNSS Compatibility GPS GLONASS *BeiDou SBAS Compatibility WAAS EGNOS MSAS Special Features Active jamming and interference reduction Operating frequencies GPS L1 C/A GLONASS L10F Beidou B1 Signal Acquisition Automatic Almanac Update Automatic Geodetic Datum WGS-84 (alternatives available through Raymarine MFD) Refresh Rate 20 Hz (20 times per second concurrent GNSS) Positional Accuracy Without SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the time AIS Class type Receive Only Dimensions 2.48 H x 9.25 in W x 6.3 in W What's in the Box: Ray91 VHF DSC Radio (including fitted power and data cable) Raymic handset cradle Raymic handset Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio) Passive speaker Passive speaker mounting gasket Passive speaker mounting screws x 4 Documentation VHF radio mounting screws x 4 Handset cradle mounting screws x 4 DeviceNet to SeaTalkng(R) adaptor "

Read more less

CP370 Digital Sonar ModuleHigh-Performance Sonar Module for Offshore & Coastal FishingDigital Sonar ModuleThe CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulse™ digital sonar processing.The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.Sharper, Clutter Free TargetsSpend less time looking for fish and more time fishing Smarter target intensity controls reveal bait and game fish with exceptional clarity Enhanced digital filtering reveals fish targets through the entire water column Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display Go DeeperNext generation ClearPulse™ sonar Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m) High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing Accurate Bottom TrackingImproved bottom tracking Track the bottom in extreme conditions with advance ClearPulse™ signal processing Improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons Features: Recommended for Coastal Fishing Sonar Type: Digital Power: 600W/1000W depending on transducer Frequency & Channels: Fixed frequency 50kHz and 200kHz channels Depth Range: 5000 ft. (1,500m) Features ClearPulse™ automatic noise filtering and auto sensitivity control Standard Zoom IPX6 waterproof 12/24VDC 30.6W Maximum

Read more less

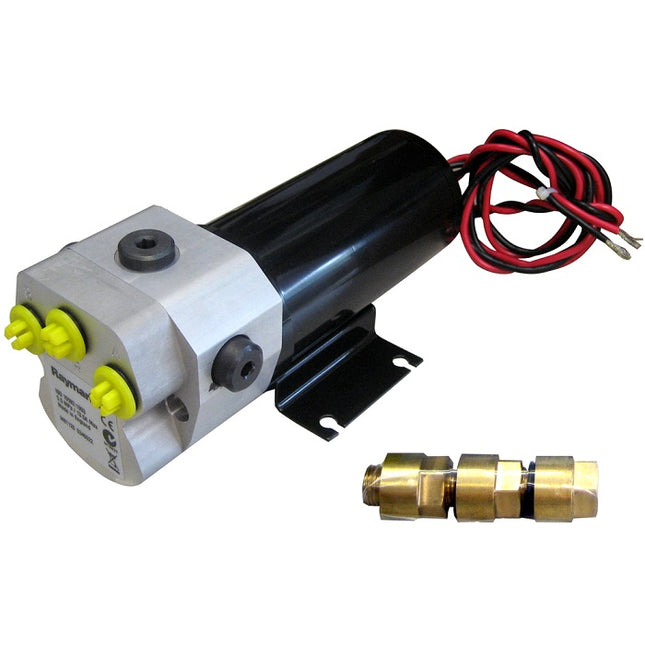

Type 1 Pump 12voltReversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepackCorepack Used S1 or S1GRam Capacity 4.9in - 10.5in (80CC-172CC)Maximum Stall Pressure at 12V 750psi (50bar) (no load) 67in/min (1000cc/min)Corepack Used S2 or S2GRam Capacity 4.9in - 14in (80cc - 230cc)Maximum StallPressure at 12V 750psi (50bar)Peak Flow Rate(no load) 67in/min (1000CC/min) Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 5"W x 10"L WT: 5.6 lbs UPC: 023193811208 Owner's Manual (pdf)

Read more less

RealVision 3D™ All-In-One Bronze Thru-Hull Transducer - 0° - 8M CableRaymarine’s RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The lowprofile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV- 200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.What’s in the Box? RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions Specifications: Temperature: Yes Speed Included: No Pins: 25 Mounting Style: Thru-Hull Imaging: Standard/Down/Side Chirp: High Cable Length (Feet): 26' Box Dimensions: 7"H x 14"W x 17"L WT: 10.6 lbs UPC: 723193816530

Read more less

i50 SeaTalkng Instruments - Tridata with Thru-Hull TransducerThe i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.For the ultimate in flexibility, the i50 Instruments support SeaTalkng CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.The ultra-sleek design of the i50 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument has a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i50 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.i50 Tridata Instrument The i50 Tridata is a convenient 3-line instrument that combines the Speed and Depth Instruments functions into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium or as a depth and speed repeater solution for other locations on the boat. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Use a primary display or as a repeater of i50 depth and speed instruments Built-in depth and speed transducer connections M78713-PZ Nylon Depth Transducer with 45ft cable E70673 ST900/P120 S/T Thru Hull - 13.7m Cable The i50 Tridata's 3-line LCD can show current depth, current speed, distance log, trip log, and water temperature. Additional display modes include maximum speed, average speed, and VMG to windward. Tridats have a count-up timer and 2 race start timers for racers. Tridata's robust alarm functions include a shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm.Features: Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems. Large, crisp LCDs with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70, and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Read more less

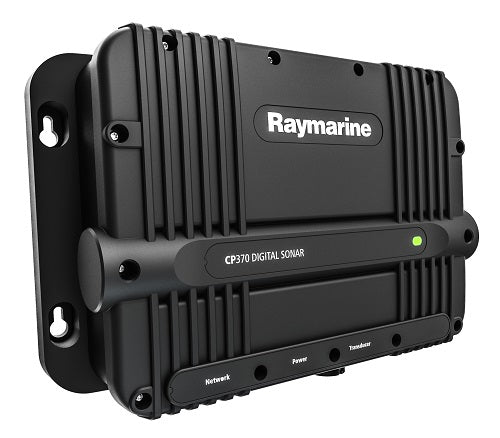

Raymarine CP370 Digital Sonar Module Model: E70297 UPC: 723193792995 Sharper Fish Targets Enhanced Automatic Sensitivity Control Better Noise Reduction Enhanced Bottom Tracking ClearPulseTM automatic noise filtering and auto sensitivity control Standard Zoom Digital Sonar Module The CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulseTM digital sonar processing. The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing. ClearPulseTM signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar. Sharper, Clutter Free Targets Spend less time looking for fish and more time fishing Smarter target intensity controls reveal bait and game fish with exceptional clarity Enhanced digital filtering reveals fish targets through the entire water column Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display. Go Deeper Next generation ClearPulseTM sonar Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m) High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing Accurate Bottom Tracking New and improved bottom tracking Track the bottom in extreme conditions with advanced ClearPulseTM signal processing New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons. SpecificationsRecommended forCoastal fishing Sonar type Digital Power 600W / 1000W Depending on transducer Frequency & Channels Fixed frequency 50KHz and 200KHz channels Depth range 5000 feet Waterproofing standard IPX6 Compatibility aSeries, cSeries, eSeries, gS Series, C-Widescreen, E-Classic, E-Widescreen Connections Power connection, Network connection (RayNet connector) 10/100 Mb/s, Transducer connection Input Voltage 12/24 V DC Input Draw 30.6 watts max Dimensions 11.79 in W x 7.9"D x 3.3 in H What's in the Box: CP370 Module 1.5m power cord #8 screws qty 4 2m Raynet Female to Female network cable Documentation pack

Read more less

Reversing hydraulic pump for use with steering systems equipped with 4.9-14 cubic inch (80cc - 230cc) hydraulic steering rams.

Read more less

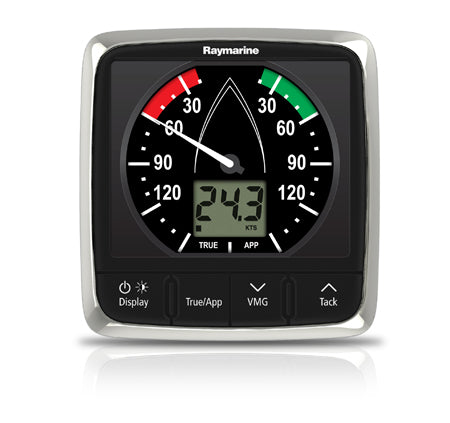

Raymarine i60 Instrument Displays Stylish displays for sailboaters! The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats. Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design. Features Large analogue dials Red backlighting for improved visibility SeaTalk and SeaTalkng interfaces NMEA2000 (compatible) interface Built-in transducer interface 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation Large controls for ease of use at sea Low power consumption Multiple data source support eliminates potential data conflicts Front mounted design for simple installation Raymarine i60 Instrument Displays Raymarine i60 Wind Instrument Display Analogue and digital data Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data) Raymarine i60 Close Hauled Wind Instrument Display Magnified 20 deg - 60 deg display The perfect instrument when a single degree can make all the difference i60 Wind i60 Close Haul Wind E70061 E70062 12V DC Operating Voltage Range 10 - 16V DC Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected Operating Temperature Range -20 degC to +55 degC Storage Temperature -30 degC to +70 degC Relative Humidity up to 93% Waterproofing Standard IPX6 Connections 2 x SeaTalkng and transducers Conformance Europe 2004/108/EC

Read more less

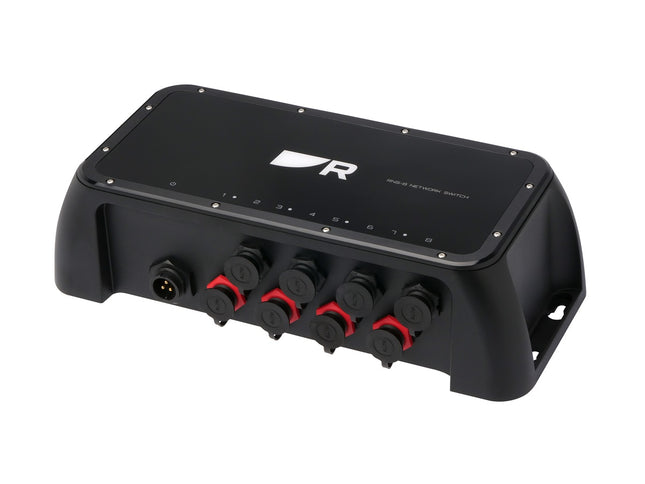

Raymarine RNS-8 8-Port Gigabit Network SwitchModel: A80732 8 RayNet Ethernet gigabit ports for fast and reliable connectivity 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes Rugged IPX6/IPX7 construction Reliable, waterproof RayNet connector Ethernet cable ports Designed for simple bulkhead mounting LED power and network port status indicators Unmanaged- simply plug and play with Raymarine devices. Remote diagnostics and performance monitoring via web browser For extended networks, up to 8 RNS-8 switches can be daisy-chained together The RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.SpecificationsNominal supply voltage12 or 24 V dc Operating voltage range 9 to 32 V dc Power Consumption 160 W (Maximum) @ 12 V dc Connectivity 3-pin male connector common with RNS-5 (1.5m power cable included) ENVIRONMENTAL SPECIFICATION Operating temperature range -25 degC (-13 degF) to + 55 degC (131 degF) Storage temperature range -30 degC (-22 degF) to + 70 degC (158 degF) Humidity up to 93% @ 40 degC (104 degF) Water ingress protection IPx6 and IPX7 PHYSICAL SPECIFICATION Dimensions (l x h x d) Length: 287.63 mm (11.32 in).Height: 125.5 mm (4.94 in). Depth: 78 mm (3.07 in). Weight 0.96 Kg (2.12 lbs) NETWORKING Protocols RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable Connection Speed 1 Gigabit Number of Ports 8 x10 pin RayNet Connector' POE (Power over Ethernet) Yes. 4 POE ports support (lower, red nuts) PoE Classes 0 to 4, with 30 W maximum power available for each port

Read more less

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer InstallThe B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel. Specifications: Beam: 24 to 16 Degrees Medium-Frequency  Deadrise Angle: 16 to 24 Degree  Frequency: 80-130 kHz Medium Frequency CHIRP  Material: Bronze Maximum Depth: 900' Sonar: CHIRP Sonar, Depth and Temperature Type: Thru-Hull Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Temperature: Yes Speed Included: No Box Dimensions: 5"H x 8"W x 12"L WT: 6.6 lbs UPC: 723193706190

Read more less

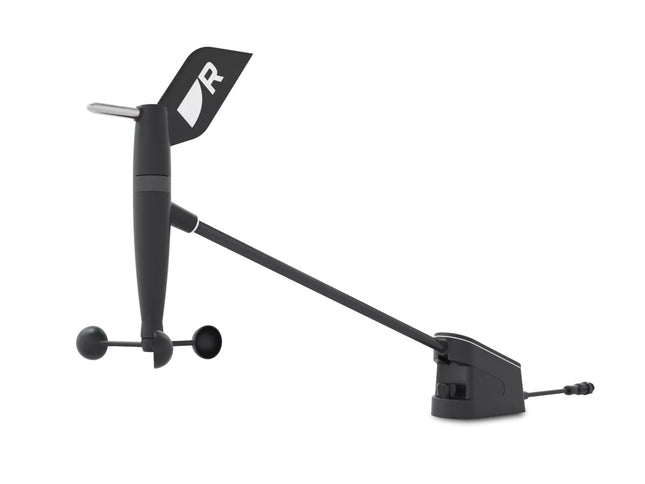

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M CableThe RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.Install & Go!Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up. Finely TunedThrough rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.Sail SmarterTrusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.Specifications:Length     Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in) Width     Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in) Height     Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in) Power Nominal supply voltage: 12 V dc (via SeaTalk NG) Operating voltage range: 9 V to 16 V dc Power Consumption: < 100 mW Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1 Environmental Operating temperature range: -25°C to +55°C (-13°F to +131°F) Storage temperature range: -30°C to +70°C (-22°F to +158°F) Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3 Wind: 115 mph (185 kph) Vibration: EN 60945:2002 (exposed) What's In The Box? No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer) No.7 x 3/4" self tapping screws x 2 (for mounting the gateway) 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) Mast cable, 30 m (98.43 ft) reel Documentation Wind transducer Smart wind-wired gateway SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)

Read more less

Ray90 Modular Dual-Station VHF Black Box Radio SystemRaymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Features: Black box, multi-station capable VHF radio Wired handset and passive speaker included Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Position TrackingUse Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.LoudhailerRay90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Waterproof & RuggedizedRay90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.Expand Your SystemThe Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water. Specifications: NMEA 2000: Yes Built-In GPS: No AIS: No Hailer: Yes Remote Mic Capable: Yes Scrambler Capable: No Color: Black Intercom Capability: Yes Listen-Back: No Box Dimensions: 9"H x 11"W x 11"L WT: 8.2 lbs UPC: 723193823187

Read more less

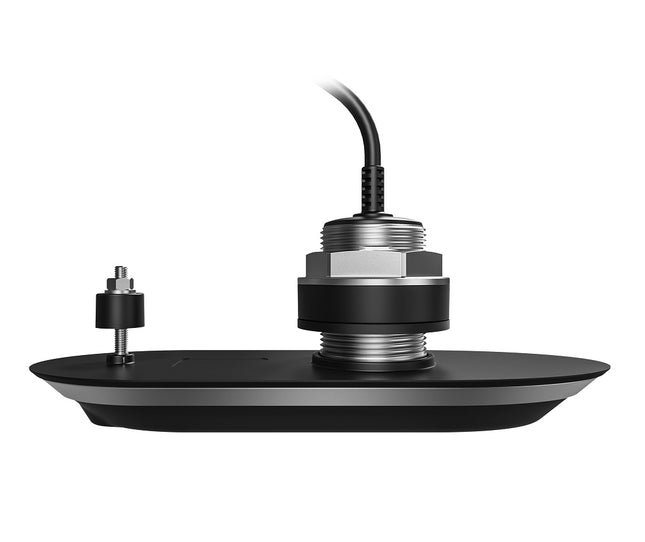

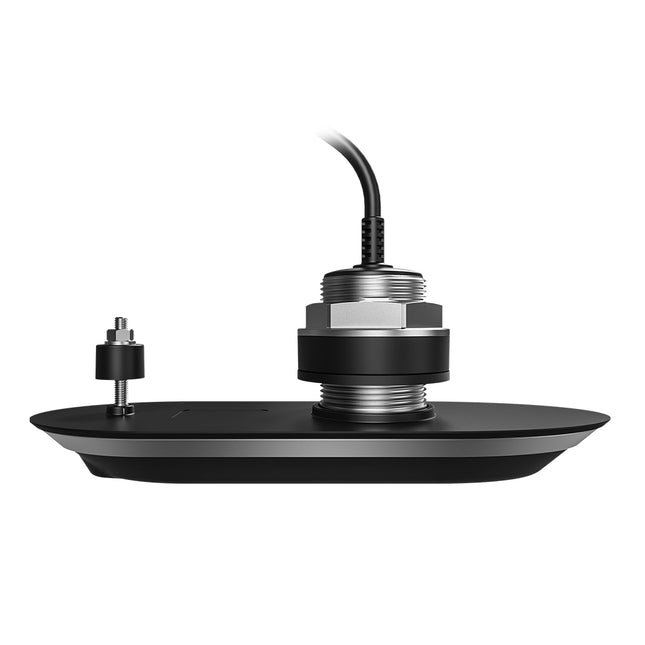

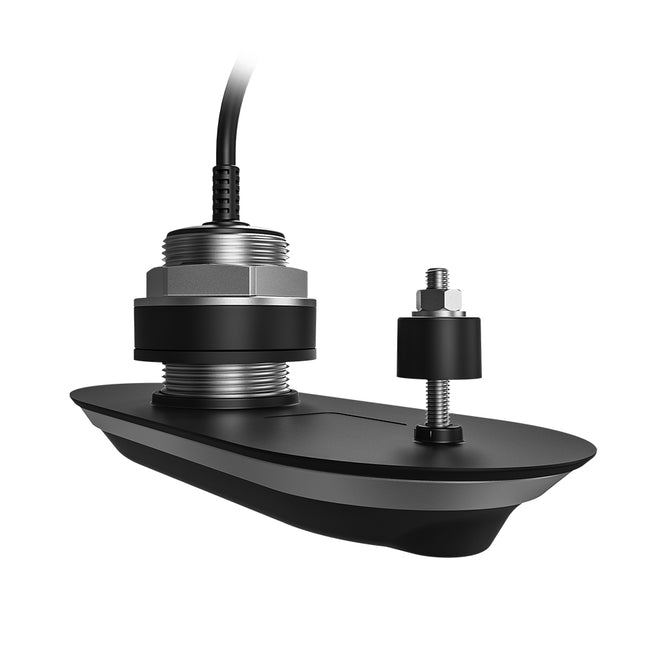

Model: A80615Raymarine's RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-400 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, conical CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-400 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-400 features a rugged stainless steel through hull body suitable for fiberglass, wood or metal hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 works even works great on trailered boats and with no fairing block to cut, installation is a breeze.What's in the Box: RV-400 stainless steel all-in-one through hull transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Transducer locknut Installation instructions

Read more less

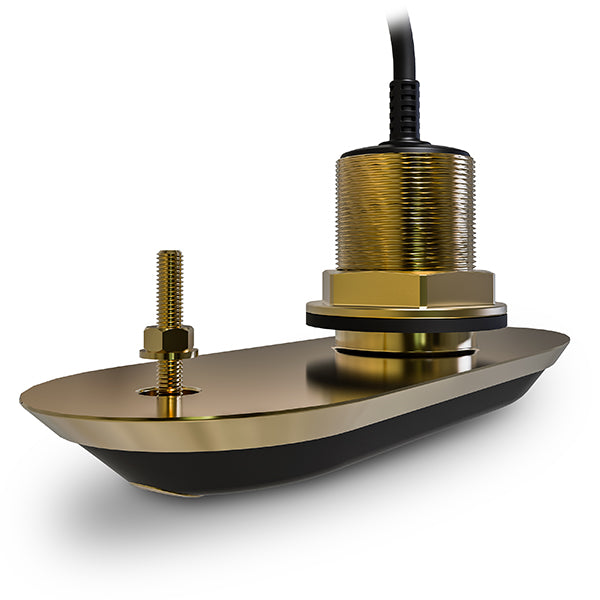

Raymarine RV-200 Bronze All-In-One Through Hull Transducer (with 0 deg deadrise compensation) Model: A80465 Raymarine's RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze. What's in the Box: RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions

Read more less

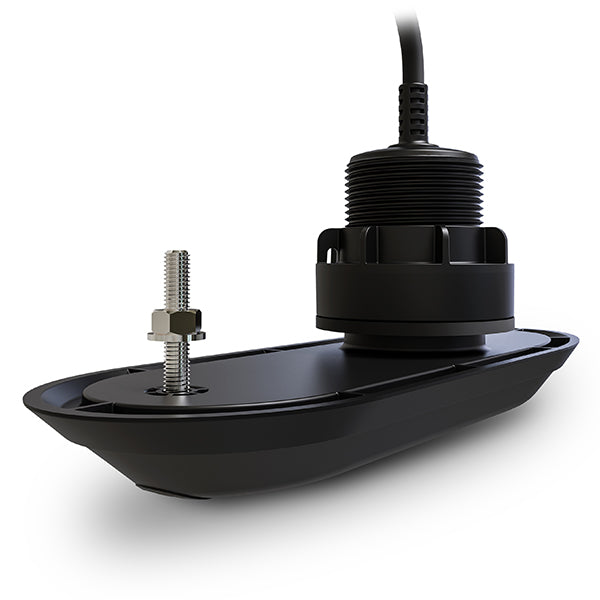

Raymarine RV-300 Plastic All-In-One 0 deg Through Hull Transducer (with 0 deg deadrise compensation) Model: A80470 Raymarine's RV-300 Plastic All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-300 features a rugged plastic through hull body suitable for fiberglass, steel or aluminum hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze. What's in the Box: RV-300 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions

Read more less

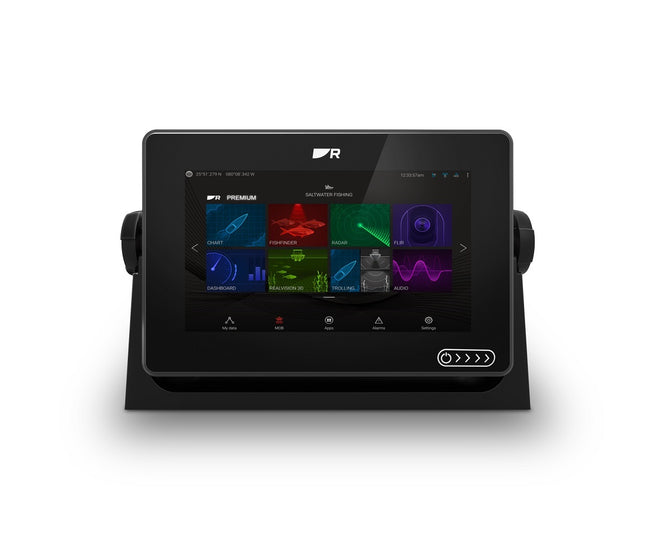

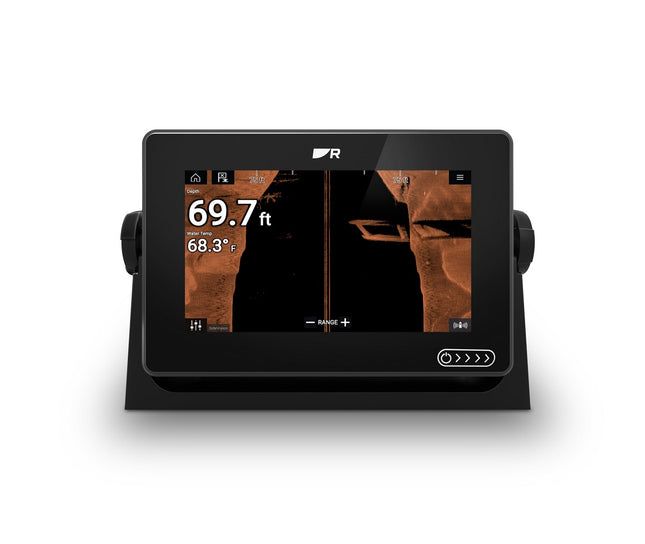

Raymarine Axiom+ 7 7 Muilti-Function Display with Lighthouse North America ChartModel: E70634-00-102Fluid and fast chart redraw of LightHouse

Read more less

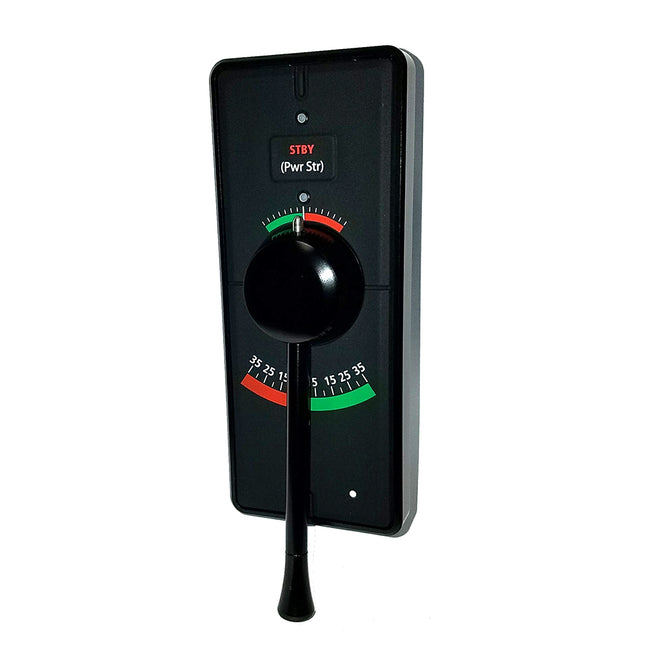

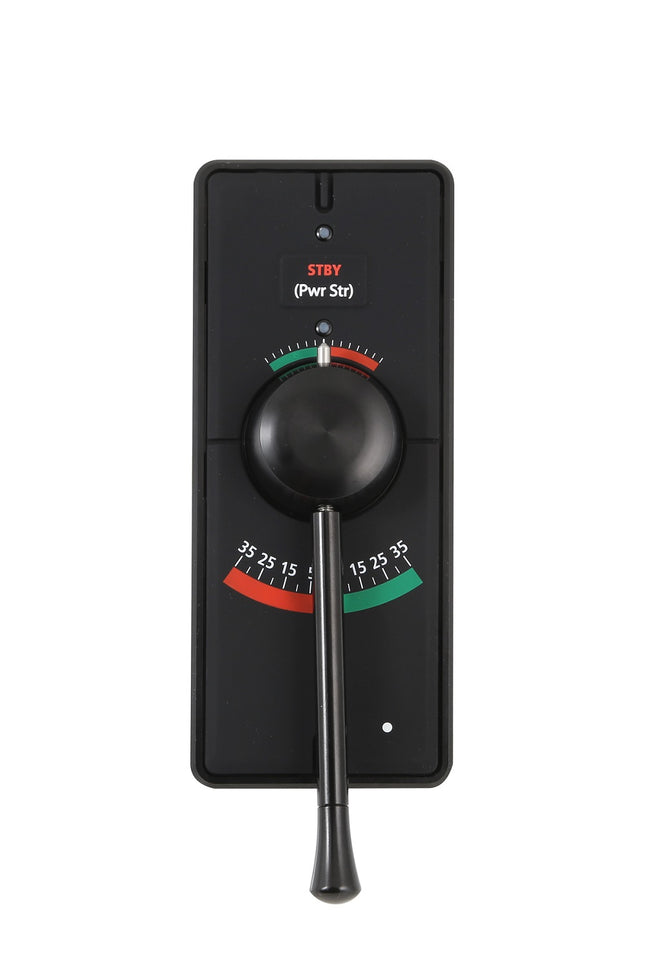

Raymarine A80532 Follow OnSteer LeverModel: A80532

Read more less

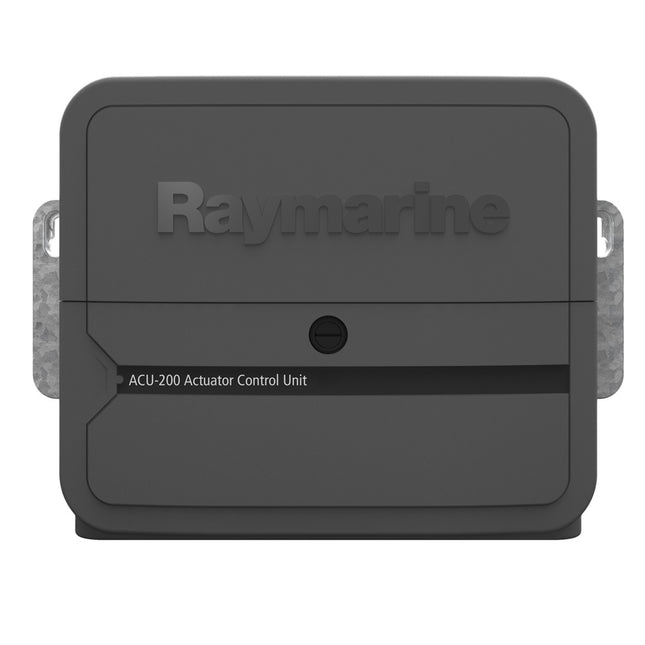

Raymarine Evolution ACU Specifications Model ACU-100 ACU-200 ACU-300 ACU-400 E70098 E70099 E70139 E70100 Drive Current Output Maximum continuous 7 A at supply voltage Maximum continuous 15 A at supply voltage Maximum continuous 5 A at supply voltage Maximum continuous 30 A at supply voltage Drive Clutch Output No clutch connection Up to 2.0 A continuous, selectable between 12 /24 V No clutch connection Up to 4 A continuous at 12 V on 12 V systems, Up to 4 A continuous at 24 V on 24 V systems, Up to 4 A continuous at 12 V on 24 V systems Connections Rudder reference sensor Power Drive motor Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch Ground Rudder reference sensor Sleep switch Power Solenoid drive out / return Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch 723193767962 Ground Digital Input / Output (DIO) Nominal supply voltage 12 V 12 V or 24 V Operating voltage range 10.8 V to 15.6 V dc 10.8 V to 31.2 V dc Power consumption (standby) - main power supply 300 mA (12V) 300 mA (12/24 V) Power consumption (standby) - SeaTalkng power supply No power supply to SeaTalkng&nbs p; 20 mA (12V) SeaTalkng LEN (Load Equivalency Number) 1 SeaTalkng Power out No power supply to SeaTalkng 3 A at 12 V (fuse protected at 3 A) Data connections SeaTalkng Installation environment Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF) Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity: max 93% Waterproof rating Connector panel: IPX2 Drive electronics: IPX6 Drip resistant Dimensions (W x H x D) 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in) 285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in) Weight 0.6 kg (1.32 lbs) 2.2kg (4.84 lbs) Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2

Read more less

Raymarine Axiom+ 7 7" Muilti-Function DisplayModel: E70634 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 7.0 inch High Density IPS Display Resolution 1024 x 600 (WSVGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,500 nits Viewing Angle 85° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 7.92 x 5.24 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 7.34 Watts. RV Sonar version 9.84 Watts Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) None Sonar Connections NA Sonar Depth NA External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)

Read more less

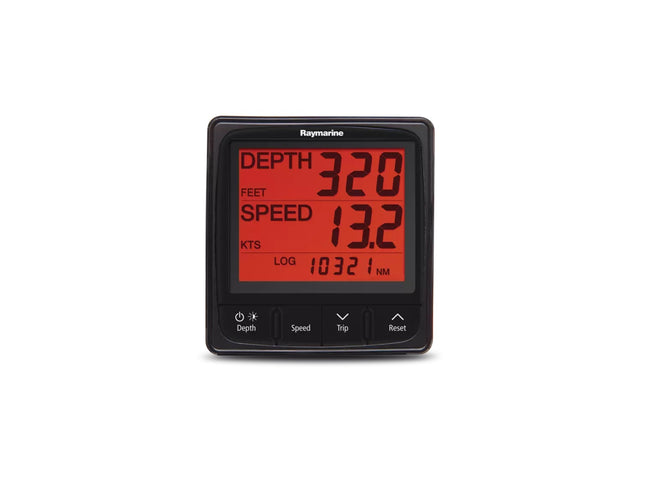

Raymarine i50 Tridata with ST900/P120 & P319 Thru-Hull TransducersModel: T70582 3-line viewing of Depth, Speed, and Log/Temperature data Red backlighting enhances night visibility SeaTalkNG, NMEA2000 and SeaTalk network compatible Built-in depth and speed/temperature transducer interface Compact footprint Low power consumption Surface mount or optional trunnion mount kit The i50 Tridata Display neatly combines depth and speed on an easy-to-read 3-line display. Trip and log data, surface sea temperature and speed over ground are also easily at your finger tips.Combining both speed and depth data, the i50 Tridata instrument display is a multifunctional solution for displaying depth, speed, log, and water temperature information. The i50 Tridata display combines the features of its Depth and Speed siblings into a single, powerful, space-saving instrument. Tridata' s 3-line display is simple to read at a distance, with oversized readouts for critical depth and speed values. Its high-contrast LCD, large digits, and red backlighting combine to deliver superior visibility under all conditions. i50 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. i50 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability.All i50 instruments are designed to fully integrate with Raymarine's autopilots and other navigation equipment, including the i60. Each i50 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. i50 instruments are SeaTalkNG network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.SpecificationsDimensionsWidth: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in) Connections 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections ENVIRONMENTAL Relative humidity Max. 93% Waterproof rating IPx6 Storage temperature -30 degC to +70 degC (-22 degF to 158 degF) Operating temperature -20 degC to +55 degC (-13 degF to 131 degF) POWER Current (typical / max) 45-65 mA (display only) / 200 mA maximum (transducer connected) Nominal supply voltage 12 V dc Operating voltage range 10 V dc to 16 V dc Power consumption < 1 W typical (display only), 2.4 W maximum (transducer connected) LEN (NMEA 2000 Load Equivalency Number) 4 What's in the Box: i50 Instrument display Suncover (to match i70s, p70s, p70Rs, eS Series) Front bezel (to match i70s, p70s, p70Rs, eS Series) Gasket Suncover (to match a, c, e Series) Front bezel (to match a, c, e Series) 400mm (15.7 in) SeaTalkng spur cable SeaTalkng blanking plug Fixing screws x4 Documentation

Read more less

Raymarine RAY90 Modular VHF RadioModel: E70492 Black box, multi-station capable VHF radio NEW - Optional Wireless handset and active speaker available Wired handset and passive speaker included Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Raymarine's fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel's MMSI number during setup and you're ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Use Ray90's position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.Ray90's built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Ray90's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.SpecificationsWater IntegrityComplies with IPX6 & IPX7 Complies with EN60945 Operating Temperature Range -25 degC to 55 degC Storage Temperature Range -25 degC to 70 degC Humidity up to 95% Electrical Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101) Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected Operating Voltage Range 9V DC to 16V DC Current Consumption Less than 6A at High Power (13.6V) Standby: 600 mA Receive: 2 Amps Transmitter Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Frequency Stability + / - 1.5 ppm Channel Spacing 12.5 kHz Power Output High Power = 25 Watt, Low Power = 1 Watt Spurious emmission Better than -36 dBm at 25W (Less than 0.25 μW) Maximum Deviation +/- 5kHz Antenna port impedance 50 ohms typical Receiver Receiver Type Double Conversion Super Heterodyne Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD Hum & Noise Better than -40 dB Audio Distortion Less than 10% Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD Typical Local -110 dBm (0.7uV)@12 dB SINAD Typical Adjacent Channel Selectivity More than 70 dB Spurious Response Rejection More than 70 dB Inter Modulation Rejection More than 70 dB GPS Number of channels 72 Cold Start 29s Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition) GNSS Compatibility GPS GLONASS *BeiDou SBAS Compatibility WAAS EGNOS MSAS Special Features Active jamming and interference reduction Operating frequencies GPS L1 C/A GLONASS L10F Beidou B1 Signal Acquisition Automatic Almanac Update Automatic Geodetic Datum WGS-84 (alternatives available through Raymarine MFD) Refresh Rate 20 Hz (20 times per second concurrent GNSS) Positional Accuracy Without SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the time Dimensions 2.48 H x 9.25 in W x 6.3 in W What's in the Box: Ray90 VHF DSC Radio (including fitted power and data cable) Raymic handset cradle Raymic handset Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio) Passive speaker Passive speaker mounting gasket Passive speaker mounting screws x 4 Documentation VHF radio mounting screws x 4 Handset cradle mounting screws x 4 DeviceNet to SeaTalkng(R) adaptor "

Read more less

Raymarine RSW Wired, Smart Wind transducer with 30m CableModel: E70670 Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up. Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent. Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter. The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.SpecificationsLengthWind transducer (including cable): 657.762 mm (25.90 in) Width Wind transducer: 46.96 mm (1.85 in) Height Wind transducer: 305.86 mm (12.04 in) Power Nominal supply voltage 12 V dc (via SeaTalk NG) Operating voltage range 9 V to 16 V dc Power Consumption < 100 mW Fuse rating Ensure that the SeaTalk NG backbone is protected by a 5 A fuse NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1 Environmental Operating temperature range -25 degC to +55 degC (-13 degF to +131 degF) Storage temperature range -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity Masthead: 100% Waterproof rating Wind transducer: IPx6/IPx7 Wind 115 mph (185 kph) Vibration EN 60945:2002 (exposed) What's in the Box: No.10 x 3/4 self tapping screws x 4 (for mounting the wind transducer) No.7 x 3/4 in self tapping screws x 2 (for mounting the gateway) 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) Mast cable

Read more less

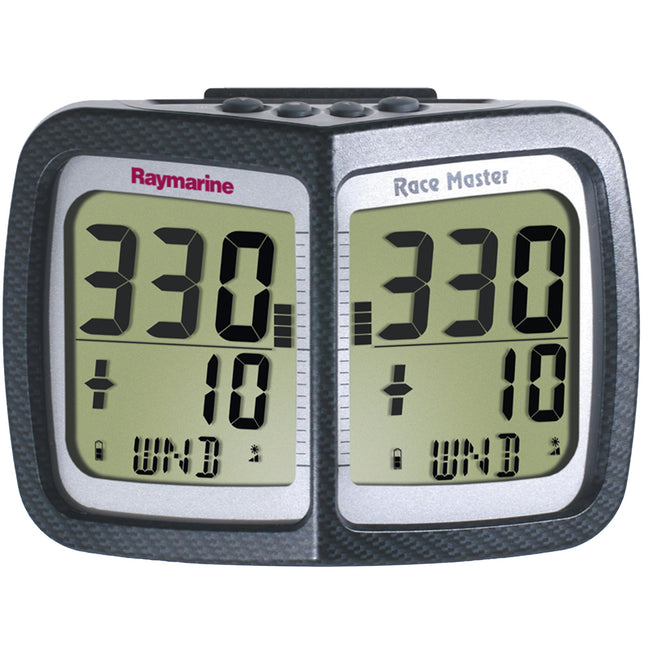

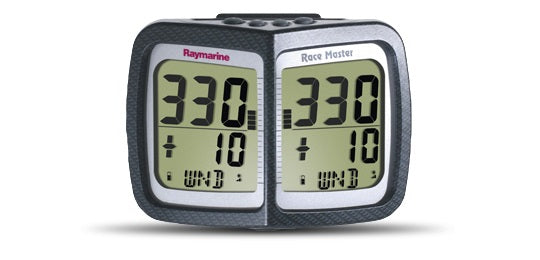

Raymarine T070 Race MasterModel: T070You need instant access to accurate data and displays that are absolutely reliable. Raymarine Wireless instruments display all the data you'll need and there are no wires running through your hull or down your mast.Besides giving you versatility, Raymarine Wireless displays are unique. They are wireless, solar powered and use Micronet technology.A typical installation can be done in just a few hours, with your rig in place and your boat still in the water. And there's no need for holes in the bulkhead or wires down the mast.Raymarine Wireless displays are solar powered with integrated lithium batteries that power the unit for life. Power consumption is so efficient that units can run autonomously for up to 300 hours.The elimination of wires in the mast not only reduces spar weight but also lowers the boat's centre of gravity, giving significant and immediate performance advantage.Using clip-in cradles, your display can be placed anywhere on your boat, allowing you to view the information where and when you need it.All Raymarine Wireless products are sealed for life and completely waterproof (submersible to 10m). This also means no condensation.The ultimate tactical race compass and wind shift indicator. Its two-tier display shows your heading, how far you're above or below the mean course, and how much you're being headed or lifted. It will enable you to quickly and easily establish the favoured end of the start line, and will help you sail the shortest distance to the windward mark.Downwind, you can see how far off dead downwind you are and when you should gybe for optimal VMG.

Read more less

Ray73 VHF Radio with AIS ReceiverRaymarine’s Ray73 radiois communications central for your boat with built-in VHF, AIS andpublic-address capabilities.  Built on our full-sized marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore.    Ray73 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver.  Simply program your boat’s MMSI number into the Ray73 and immediately benefit from the enhanced calling and safety features of DSC.  The Ray73 supports both NMEA2000 and legacy NMEA0183 networking which enables it to connect with other onboard electronics.  Ray63 also supports the connectionof an optional remotespeaker (A80542) to provide audio at a second location.Ray73 also comes with a built-in loudhailer output.  Add the optional hailing horn (M95435) and use your Ray73 tocommunicate with crewmembers on deck, on the dock, or on another boat.  The Ray73 can also generate manual or automatic fog signals with built-intone and gong sounds that comply with all international regulations.Ray73 also supports dual control stationswith the addition of the optional RayMic second station kit.  With an oversized LCD and simple controls, the RayMic is a compact all-in-one handset that fits easily on any secondary helm, tower or navigation station.  Use RayMic for station-to-station intercom capability too. Ray73 was designed to comply with the latest international regulations and includes a connection point for an optional GPS/GNSS antenna system.  The optional antenna improves the GPS reception when the radio is mountedbelow deck, inan enclosed pilothouse, or inside a metal enclosure.  Features: Full-sized marine VHF with Digital Selective Calling Built-in Automatic Identification System (AIS) receiver Loudhailer output for public address and fog signaling Optional RayMic second station kit for full remote control Built-in GPS/GNSS receiver withan optionalexternal antenna connection Comaptible with Raymarine wireless hub and wireless handset Surface and trunnion mount kits included Complements the style and design of Axiom multifunction displays Specifications: AIS: Yes Built-In GPS: Yes Hailer: Yes NMEA 2000: Yes Remote Mic Capable: Yes Scrambler Capable: No Box Dimensions: 7"H x 9"W x 10"L WT: 6.1 lbs UPC: 723193826485 Owner's Manual (pdf)Brochure (pdf)

Read more less

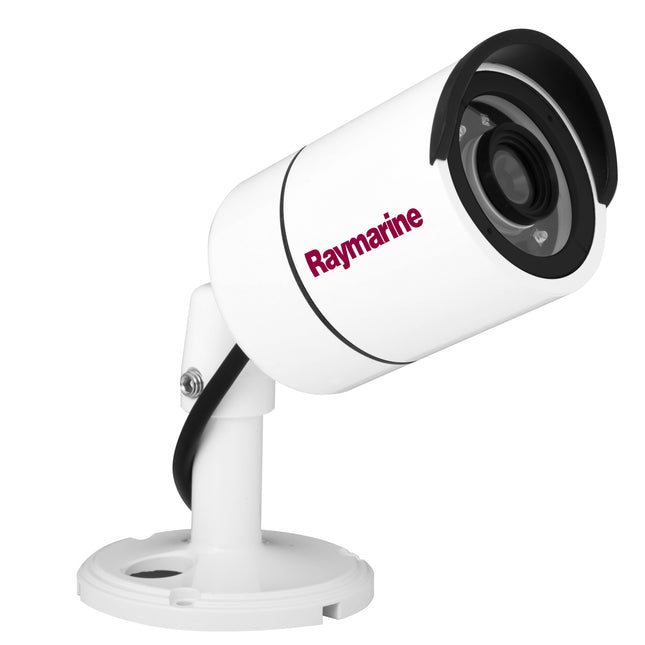

Raymarine CAM210 Day and Night IP Bullet Camera Model: E70346 UPC: 723193813263 Plug and play integration with Raymarine MFD's running Lighthouse II or later Power over Ethernet (PoE) or direct 12v DC power supply High bright IR LEDs for operation in total darkness Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke) Intelligent IR technology for clear video images at night in all conditions Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat. SpecificationsCPU32-bit ARM9 RISC CPU up to 432MHz Flash/SDRAM 128MB / 128MB Camera Image sensor 2.0 Megapixel 1/2.8 SONY progressive scan CMOS(Exmor)

Read more less

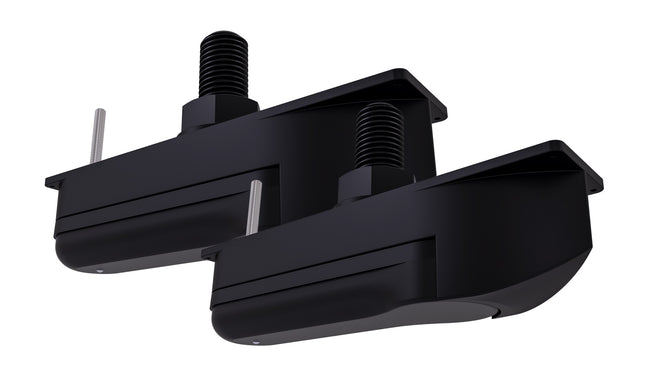

Raymarine HV-300THP HyperVisioThru-Hull Transducer PairModel: T70448

Read more less

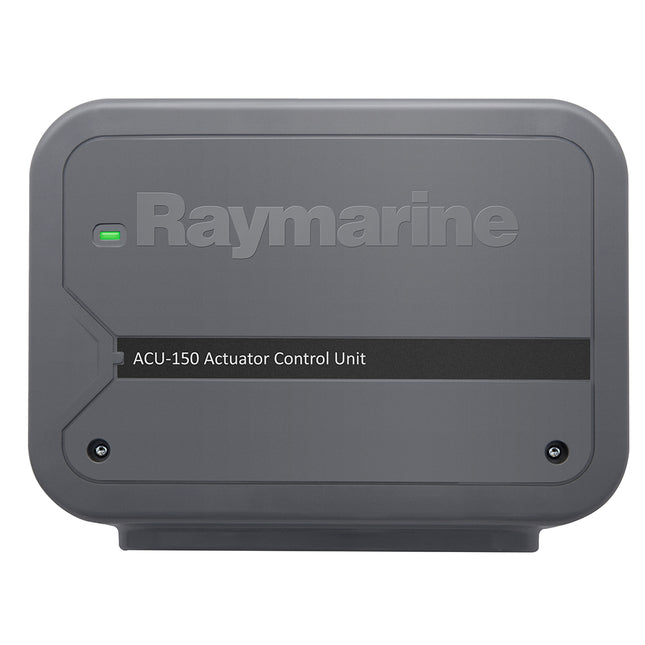

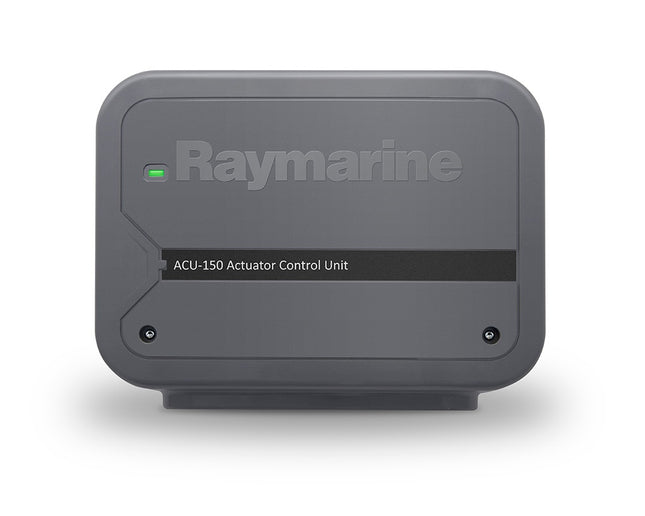

Raymarine ACU150 Actuator Control Unit Model: E70430 The Raymarine ACU-150 is a component of the EvolutionTM Autopilot system and is designed to provide power and control to a Raymarine Type-1 Hydraulic Drive Unit (M81120.) The ACU-150 connects to the SeaTalkng network for communication with its other peripherals. It also has connections for an optional Rudder Reference Unit (sold separately.) The ACU-150 works on 12-volt DC systems only.

Read more less

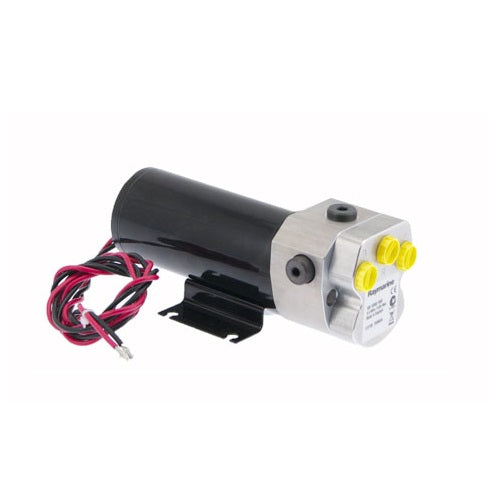

Raymarine Type 0.5 hydraulic 12V Model: E12139 UPC: 091975000751 Use this pump to as a replacement for the EV100 Powerpilot Type 0.5 suitable for Volvo D4/D6 Sterndrive applications. SpecificationsRam Capacity50cc-150cc3.1cui - 9cui Maximum stall pressure at 12v 50bar (750psi) peak flow rate (no load) 1000cc/min (67in3/min) ACU used ACU-100 Input Voltage 12v

Read more less

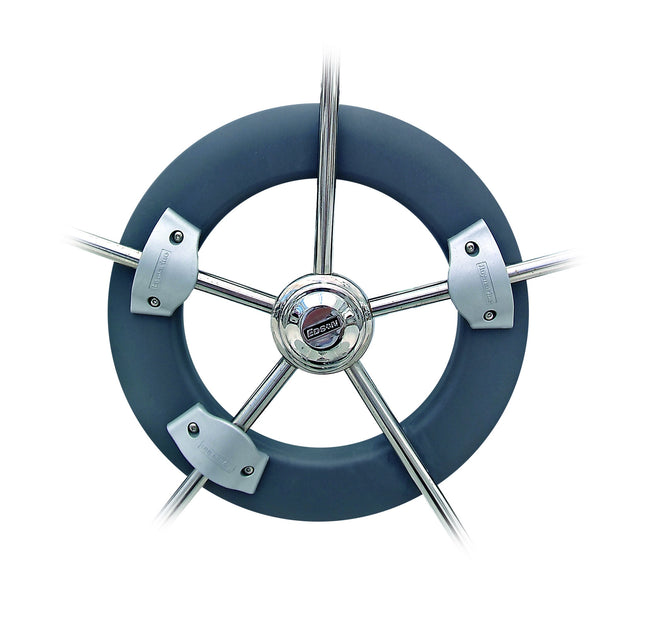

Replacement wheel drive unit for ST4000+ and newer versions of Raymarine's wheel pilot systems. The fully enclosed wheel-drive fits most types of wheel and makes for a simple installation and superb autopilot performance. Maximum recommended laded boat displacement is 16,500lbs

Read more less

Model E70096: EV-1 Nominal supply voltage 12 V (powered by SeaTalkng system) Operating voltage range 10.8 V to 15.6 V dc Power consumption (taken from SeaTalkng system) 30 mA SeaTalkng LEN(Load Equivalency Number) 1 Sensors 3-axis digital accelerometer 3-axis digital compass 3-axis gyro digital angular rate sensor Data connections SeaTalkng NMEA 2000 DeviceNet (EV-2 only) Installation environmental Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF) Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity: max 93% Waterprrof rating: IPX 6 Dimensions Diameter: 140 mm (5.5 in) Depth (including mounting enclosure): 35 mm (1.4 in) Depth (including wall bracket): 95 mm (3.8 in) Weight 0.29 kg (0.64 lbs) EMC compliance Europe: 2004/108/EC Australia and New Zealand
