Series 7 Stand Up Ball Bearing Swivel Block - 2-3/8" 60mmSingle stand up ball bearing block. Stand up spring keeps block upright when not in use. Stainless steel base spreads load out and may be used with 97-49 backing plate. (sold separately) Delrin(tm) ball bearing sheave provides a low-friction high strength sheave. Sheave Dia. 2-2/8" (60 mm), Max Line 1/2" (13 mm), Dia. includes urethane base 3-3/8" (86 mm), Height 4-25/32" (120 mm), H2 2-15/32" (63 mm), Fastener Size (4),1/4" RH (6 mm), C/C 1-11/16" (43 mm), SWL 1700 lbs (771kg), Weight Alum. 11.7 oz (332 g).

Read more less

Stand-Up Swivel with Aluminum CheeksDelrin™ sheave ensures smooth operation and high safe working load. Specifications: Sheave Dia. 2" (51 mm) Max Line 7/16" (11 mm) Diameter includes urethane base 2-7/8" (73 mm) Height 4-1/32" (103 mm) H2 2-3/32" (54 mm) Fastener Size (4), #10 RH (5 mm) C/C 1-12/31" (36 mm) SWL 1750 lbs. (790 kg) Weight Alum. 7.0 oz. (198 g) #97-48 BACKING PLATE SOLD SEPARATELY

Read more less

Series 40 Ball Bearing Block - Triple - Swivel HeadFeatures: Low friction Acetal or Torlon® bearing system Lightweight Cheek cut-outs for easy bearing maintenance Features a swivel shackle head for full 360° rotation Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft) Materials: Acetal ball bearings UV stabilised Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

Midrange Single BlockMidrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load. Features:  Sheave: 76mm/3" Maximum Line: 14mm/9/16" Max Working Load: 1270kg/2800lbs

Read more less

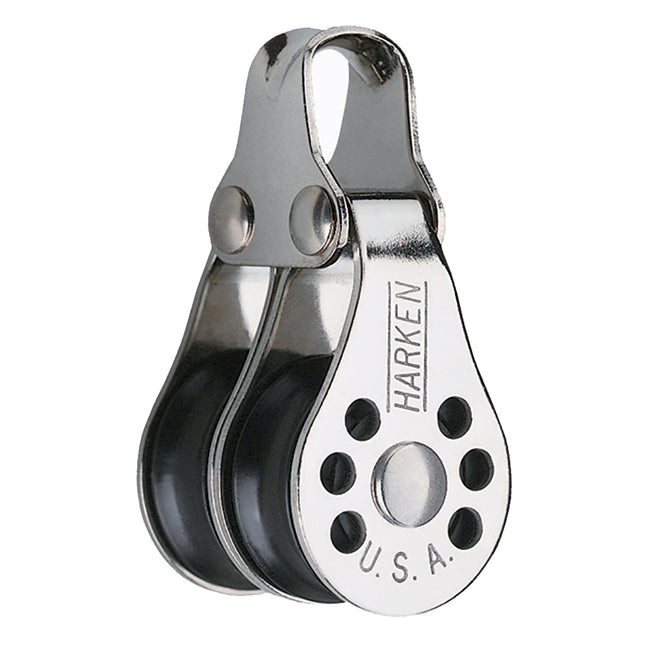

22mm Double Micro BlockLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 43g / 1.5oz. Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

Series 20 Ball Bearing Block - Double - 2-Axis Shackle HeadFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Two-Way head can be fixed at 0° or 90° Applications: Dinghy control lines Dinghy vangs Cunninghams Traveller controls Materials: Stainless steel ball bearings UV Stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 20mm(3/4")Max. Rope Ø: 6mm(1/4")PinØ: 4mm(5/32")M.W.L.: 350kg(770lbs)B. L.: 700kg(1,540lbs)Weight: 42g(1.5oz)

Read more less

Series 40 All Purpose Block - Double Block - Full Swivel HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Head swivels freely.Features: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Slotted pin shackle eliminates fouled lines Two way head post Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. stabilized Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Specifications: Sheave Ø: 40mm(1-9/16") Max. Rope Ø: 10mm(7/16") Pin Ø: 5mm(3/16") M.W.L.: 600kg(1,320lbs) B. L.: 1,200kg(2,650lbs) Weight: 135g(4.8oz)

Read more less

Series 75 Core Block™ - SingleCore Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Universal BearingDynamic and high static load performanceThe Ronstan Universal Bearing incorporates our proven 2-stage bearing systemStage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.Alloy Cheek PlatesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.Universal headThe head assembly incorporates a brass bearing washer to provide smooth 360™ rotation of the post and shackle. A set screw arrangement allows the head to be locked at 0™ or 90™.Shackles are high quality forged grade 316 stainless steel.Features: Class leading performance and sleek, contemporary styling Excellent dynamic and high static load performance Less than half the friction of the nearest competitor Universal head with full 3-axis articulation Head posts can be locked at 0 or 90 degrees, by using a 2.5mm Hex/Allen Key Central hub hole can be used as a becket take-off or tie-up point Applications: Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 14M (46') Various control line applications on larger yachts Materials: Sheave: U.V. stabilized Acetal Cheek body: Aluminium Alloy Ball Bearings: High compression strength carbon black Acetal Shackle, head post & hub: Grade 316 stainless steel Specifications:Sheave Ø: 75mm(3")Max. Rope Ø: 14mm(9/16")Pin Ø: 8mm(5/16")M.W.L.: 1,500kg(3,300lbs)B. L.: 3,000kg(6,600lbs)Weight: 354g(12.5oz)

Read more less

Series 7 Flat Base/Aluminum Cheek/Delrin SheaveDelrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area. Specifications: Sheave Dia. 2-3/8" (60 mm) Max. Line 1/2" (13 mm) Length 4-3/8" (111 mm) Width  2-3/4" (70 mm) Height 1" (25 mm) Fasteners (4) 1/4" RH (6 mm) C/C 3-5/8" (92 mm) C/C (wide end) 2" (51mm) C/C (narrow end) 1-9/16" SWL 2250 lbs. (1020 kg) Weight Alum. 9.6 oz. (272 g)

Read more less

Size 2 Single Swivel BlockA strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft. Size 2 - Single Swivel Block.

Read more less

Size 2 Single Upright BlockPlain Bearing BlocksBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 35mm x 12mm Max rope diameter: 8mm Safe working load: 370kg / 815lbs Breaking load: 740kg / 1630lbs Length: 80mm Weight: 73g

Read more less

8mm Snap Close Shackle - 5 Pack Simply push the shackle together, but once it's snapped shut, it won't come undone again.Specifications: Material: Nylon Package Size: 5 included

Read more less

60mm Triple Aluminum Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1650 kg Maximum working load (lb): 3638 lb

Read more less

60mm Triple Aluminum Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1650 kg Maximum working load (lb): 3638 lb

Read more less

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. Specifications: Track Size 1-1/4" x 3/16" (32 mm x 5 mm) Max. Boat Length 33' (10 m) Max. Boat Weight 12000 lbs. (5455 kg) Max. Sail Area 520 sq. ft. (48 m2) Sheave Diameter 2-3/8" (60 mm) Max Line 1/2" (12 mm) Length 4" (102 mm) Width 1-9/16" (39 mm) Height 4-15/16" (126 mm) Bearing Height 2-3/8" (67 mm) SWL 2250 lbs. (1020 kg) Weight 14 oz. (397 g)

Read more less

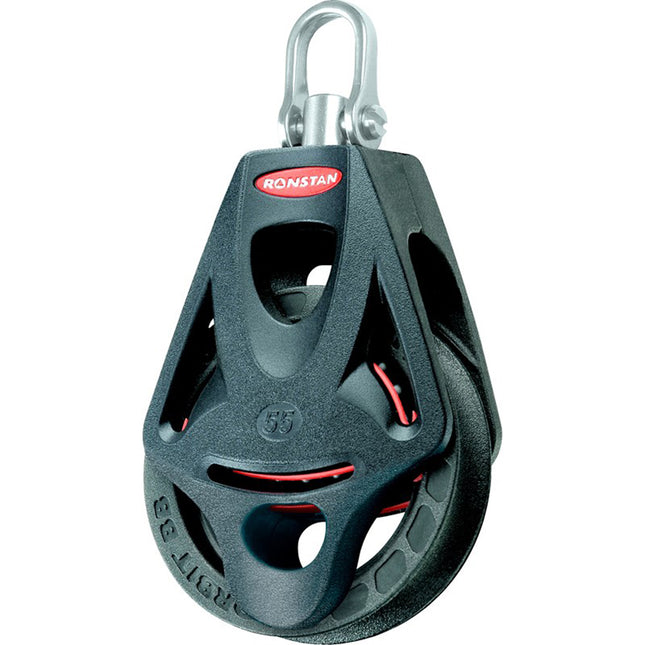

Series 55 Ball Bearing Orbit Block™ - Single - Becket - Swivel HeadLightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world's lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimises the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block. Highest Working Load In Its ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximises load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range. The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modelled to be stress optimised. The Dyneema® Link is produced from FSE Robline SK75 fiber, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point.Features: Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating Swivel shackle head for unlimited block rotation Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points Ultra low profile integrated becket Applications: Mainsheet systems on dinghies, sportsboats and small keelboats to 9M(30') Spinnaker sheets on dinghies, sportsboats and small keel boats to 9M(30') Halyard, Vang and Backstay application on boats to 8M(26') Control line applications on larger yachts Ideal use for mainsheet systems and spinnaker sheets on dinghies, sportsboats and small keel boats to 9M(30') Also ideal with halyard, vang and backstay applications on boats to 8M(26') Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks) Control line applications on larger yachts Materials: Ball bearings - High compression strength carbon black Acetal Stage 2 bearing - Carbon fiber reinforced, PTFE impregnated Nylon Frame/Cheeks - Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregmented SK75 Dyneema® Sheave: Carbon fiber reinforced, PTFE impregnated Nylon Head fitting: Grade 316 stainless steel. Specifications:Sheave Ø: 55mm(2-5/32")Max. Rope Ø: 10mm(3/8")M.W.L.: 500kg(1,100lbs)B. L.: 1,000kg(2,200lbs)Weight: 88g(3.1oz)

Read more less

Tufnol Snatch Block for Wire & Fibreoptic CablesThe Barton wire snatch block has been developed specifically as a low maintenance static free block. The Tufnol sheave means that static cannot build up in the block and cause electrical discharge. Tufnol is a bearing-grade material so it gives a low-friction surface for the wire to run on and minimizes the number of moving components, giving it reliability and durability. The cheeks are made from marine grade 316 stainless steel as is the pin and retaining nuts. This block is ideal for commercial applications in the toughest of environments.Specifications: Safe Working Load: 350kg (770lbs) Break Load: 1500kg (3300lbs) Max Rope/Wire size: 10mm (3/8”) Weight: 78grms (2.8oz) Length: 190nn (7 ½”) Width: 115mm (4 ½”) Thickness (Maximum): 53mm (2 1/16”) Fibreoptic & Wire BendingFibreoptic cables and wire ropes require a minimum bend radius to stop failures. This block is suitable for both fibreoptics and wires up to 10mm in diameter. The large sheave means that the bend radius of the wire is not compromised and provides an additional engineered safety factor to prologue the life of wire if continual movement around the same section of wire is required. Brochure (pdf)

Read more less

Stanchion Ratchet BlockControlling the Power in Furling lines! This Stanchion Ratchet Block is ideal for removing some of the loadings for the crew when furling in the jib. The ratchet means that the sheave can be locked in place in one direction offering a friction brake against the pull of the sail. It is quick and simple to fit onto a standard 25mm (1”) guard rail stanchion. Adjustment is easy with the stainless steel clamping ring which allows mounting of the block at any angle.The Barton ball-bearing Ratchet Block is designed to be used online up to 10mm (3/8”). The block is a high-performance 55mm (2 3/16”) ratchet block and features a stainless-steel lever that locks the swivel head if desired.Designed with ball bearings for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12-faced aluminum sheave is anodized in gunmetal silver.Specifications: Length: 120mm/4-3/4" Maximum Line: 10mm/3/8" Width: 55mm/2-3/16" Tube Size: 25mm/1" Brochure (pdf)

Read more less

Size 2 Double Stanchion Lead BlockBarton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.   The unit will fully rotate about the swivel head to match your pulling angle. Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Double Sheave Size - 1-3/8" (35mm) Maximum Rope Diameter -  5/16" (8mm) Safe Working Load - 815 lb (370 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual Quick Guide (pdf)Brochure (pdf)

Read more less

40mm Carbo Air Triple Swivel BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)660 kg Maximum working load (lb)1455 lb Quick Guide (pdf)

Read more less

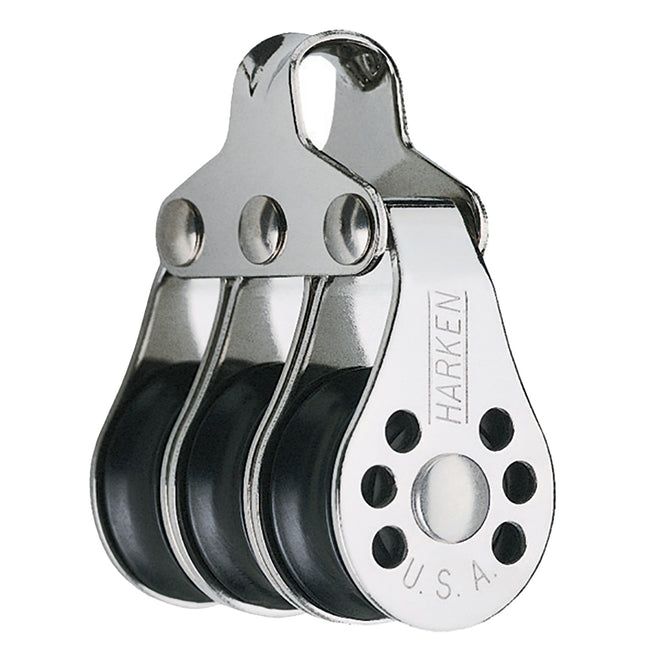

22mm Triple Micro BlockLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 57g / 2oz. Maximum line: 6mm / 1/4in. Maximum working load: 227kg / 550lb Breaking load: 544kg/ 1200 lb

Read more less

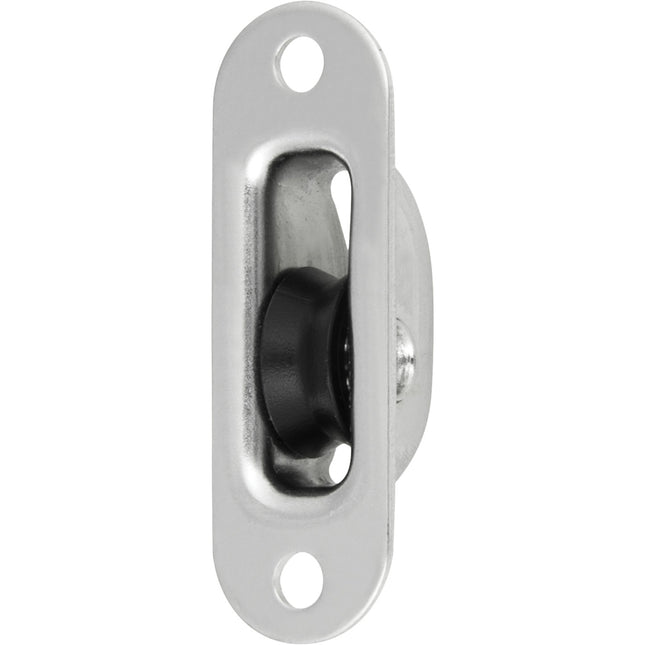

Series 15 Ball Bearing Utility Block - Exit BlockFeatures: Smallest and lightest ball bearing block available Precision molded acetal sheave running on stainless steel ball bearings provide high performance & low friction Single loop head blocks include an O-ring to separate running line from head lashing or fixing Features a flush rivet to minimize cutout and facilitate installation. Featuring a formed single piece housing for maximum strength and minimal rope wear.Applications: Dinghy control lines Vangs, cunninghams and tweakers Shock cord tensioning systems Materials: BB sheaves: UV stabilized acetal Ball bearings: Stainless steel Cheeks: Grade 316 stainless steel

Read more less

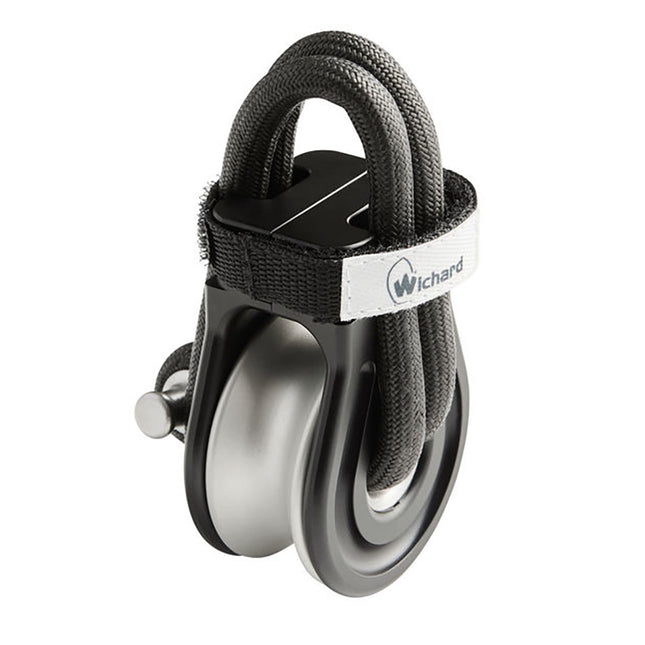

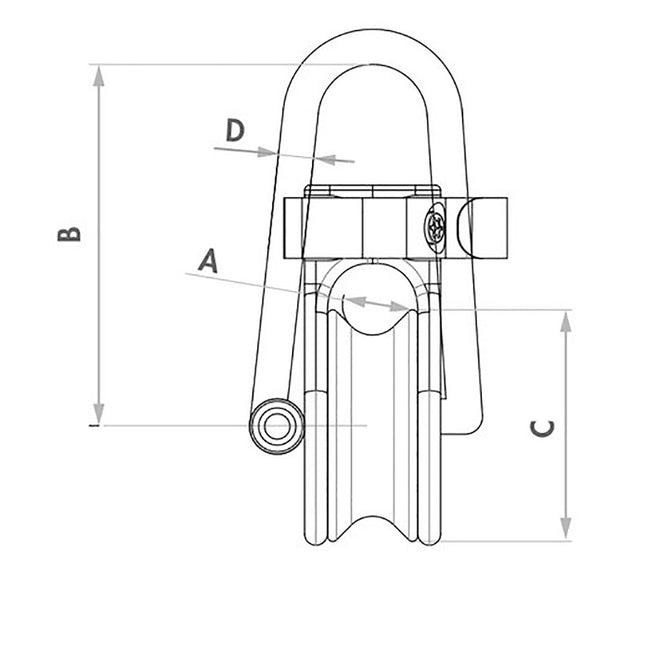

Soft Snatch Block - 12mm Rope SizeAvailable in 4 models, the collection of soft snatch blocks will quickly become an essential piece of kit: flying sail furling, Furler terminals, rigging deviation, and barber-haulers.Made from anodized aluminum, these are both lightweight and robust. The Dyneema loop ensures easy installation. They are easy to open and close too, thanks to the Velcro strip.Applications: Terminals for flying sail furlers 2/1 mainsail halyard Rigging deviation Barber-hauler Specifications: Materials -Anodized aluminum - Dyneema loop  Rope size -12mm Loop diameter - 6mm Working load (lb) 6610 Breaking load (lb) 13220 Weight (lb) 0.311 Dimensions: A (inch) 15/32" B (inch) 2 33/64" C (inch) 1 13/16" D diameter (inch) 15/64"

Read more less

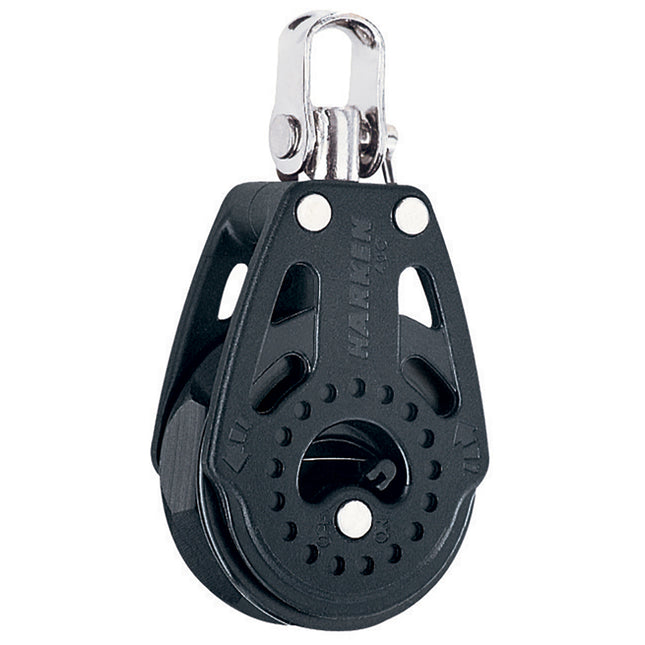

40mm Carbo Single Ratchet Block with SwivelCarbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. 2608, 2609, and 2614 have on/off switches. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 136 kg Maximum working load (lb): 300 lb

Read more less

60mm Single Aluminum Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1100 kg Maximum working load (lb): 2425 lb

Read more less

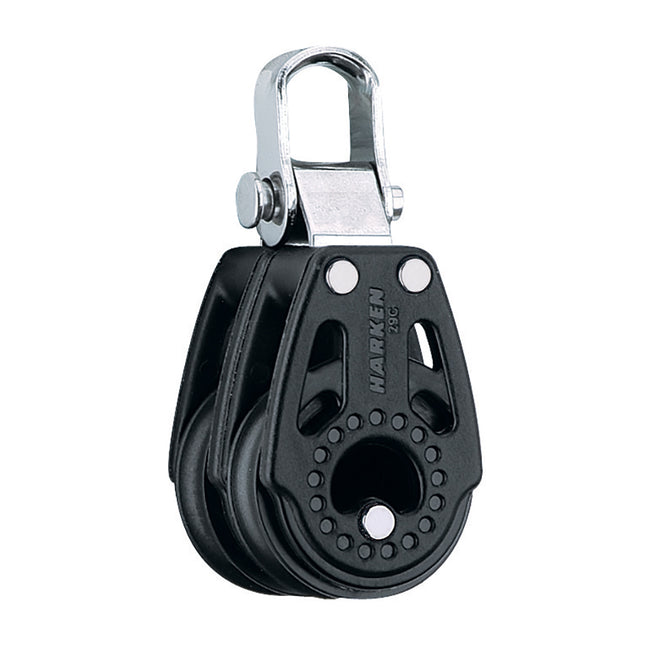

29mm Double Carbo Air BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in. Length: 54mm / 2-1/8in. Weight: 34g / 1.2oz Maximum line: 8mm / 5/16in Maximum working load: 299kg/ 660lb Breaking load: 737kg / 1625lb

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Block SwivelThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope. Quick Guide (pdf)

Read more less

Size 6 64mm Plain Bearing Pulley Single Block Fixed EyeThe Size 6 Barton blocks are designed as our high-load cruiser block range and are of rugged construction. It features high-grade injection molded side plates, with all load-carrying components from 316-grade stainless steel. Side plates are through-bolted and riveted for added strength and security. This good-looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball-bearing mainsheet traveler system.The 64mm sheave Size 6 high load cruiser block range is of rugged construction, featuring high-grade injection molded side plates, with all load-carrying components from 316-grade stainless steel. Side plates are through-bolted and riveted for added strength and security. This good looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball bearing mainsheet traveller system.Designed around a 64mm (2 1/2") sheave and to work with 14mm (9/16") ropes.

Read more less

Size 5 54mm Plain Bearing Pulley Block Reverse ShackleThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope. Quick Guide (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Block Fixed EyeThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 1 to 2mm 7/16" rope. Quick Guide (pdf)

Read more less

Size 7 70mm Plain Bearing Pulley Block Single SwivelThe size 7 Barton high-load cruising block range is engineered for superior strength and performance and offers both plain and ball-bearing sheave assemblies. The range features high-grade glass fiber nylon reinforced molded side plates with an internal 316 stainless steel frame that is through-bolted and riveted for added strength and durability. This well-designed and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 70mm sheave Size 7 high load cruising block range is engineered for superior strength and performance and offers both plain and ball-bearing sheave assemblies. The range features high-grade glass fiber nylon reinforced molded side plates with an internal 316 stainless steel frame that is through-bolted and riveted for added strength and durability. This well designed and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Built with 70mm (2 13/16") sheaves and designed for a maximum rope size of 14mm – 9/16" rope.

Read more less

Spring Loaded/Lined Slide/Aluminum for 1" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. Specifications: Track Size 1" x 1/8" (25 mm x 3 mm) Max. Boat Length- 27' (8m) Max. Boat Weight- 5000 lbs. (2270 kgs) Sail Area- 315 sq. ft (29 m2) Sheave Diameter 2" (51 mm) Max Line 7/16" (11 mm) Length 3" (76 mm) Width 1-1/4" (31 mm) Height 4-5/32" (105 mm) Bearing Height 2-7/32" (56 mm) SWL 1750 lbs. (795 kg) Weight 7.0 oz. (198 g)

Read more less

Size 3 45mm Plain Bearing Pulley Block Double with SwivelThe size 3 Barton plain bearing blocks have a 45mm (1 3/4" sheave size 3 block range that incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fiberglass filled nylon and Acetal sheaves to maximize their strength while keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope. Quick Guide (pdf)

Read more less

Size 0 20mm Plain Bearing Pulley Block Double Fixed EyeThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 0 20mm Plain Bearing Pulley Block Single SwivelThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. Designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats, and smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 0 20mm Plain Bearing Pulley Block Stand Up BlockThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats, and smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 0 20mm Plain Bearing Pulley Block Single Fixed Eye & BecketThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. Designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats, and smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 0 20mm Plain Bearing Pulley Block Single Swivel without ShackleThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 3 45mm Plain Bearing Pulley Block Single With Fixed EyeThe size 3 Barton plain bearing blocks have a 45mm (1 3/4" sheave size 3 block range that incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fiberglass filled nylon and Acetal sheaves to maximize their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope. Quick Guide (pdf)

Read more less

Size 0 20mm Plain Bearing Pulley Block Single Swivel & BecketThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 1 Single Swivel Block with BecketWith the unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter center boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.Specifications: Sheave size: 20mm x 8mm Max rope diameter: 5mm Safe working load: 275kg / 606lbs Breaking load: 550kg / 1210lbs Length: 39.1mm Weight: 13g

Read more less

40mm Twing BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to our popular Harken Big Boat blocks, these small, compact blocks have very high working loads for safe, easy trimming.Features: Opening side plate - Easy to rig and remove from sheet Spring biased to open when unlatched - One-handed operation Roller at pivot base - Use 1:1 or 2:1 up-down control Carbo Air® block construction - High strength for durability and lightweight for maximum float in light air Uses: Dinghies, sport boats, and small keelboats Spinnaker sheet and guy control Code zero sheet up-down control Specifications: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Length (mm): 89 mm Length (in): 3-1/2 in Weight (g): 86 g Weight (oz): 3 oz Maximum line Ø (mm): 12 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 275 kg Maximum working load (lb): 606 lb Breaking load (kg): 825 kg Breaking load (lb): 1818 lb Owner's Manual (pdf)

Read more less

57mm Carbo Quad Block - SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to our popular Harken Big Boat blocks, these small, compact blocks have very high working loads for safe, easy trimming.Features: Sheave Ø (mm) 57 mm Sheave Ø (in) 2 1/4 in Maximum line Ø (mm) 10 mm Maximum line Ø (in) 3/8 in Maximum working load (kg) 1080 kg Maximum working load (lb) 2380 lb

Read more less

80mm Element Stand Up BlockStand-up blocks are an addition to our Element line. Use them for sheeting and halyard systems, running backstays, controls and other applications where you don’t want the block to hit the deck.Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life. Specifications: Sheave: 80mm (3-1/8") Max Line: 16mm (5/8") Max Working Load: 2200kg (4850lbs)

Read more less

Midrange Double BlockMidrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.Features:  Sheave: 76mm/3" Maximum Line: 14mm/9/16" Max Working Load: 1270kg/2800lbs

Read more less

60mm Element Stand Up BlockStand-up blocks are an addition to our Element line. Use them for sheeting and halyard systems, running backstays, controls and other applications where you don’t want the block to hit the deck.Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life. Specifications: Sheave: 60mm (2-3/8") Max Line: 14mm (9/16") Max Working Load: 1100kg (2425lbs)

Read more less

45mm Double Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 108mm / 4-1/4in Weight: 180g / 6.3oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 875kg / 1929lb Breaking load: 1750kg / 3858lb

Read more less

45mm Double Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 127mm / 5in Weight: 195g / 6.8oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 875kg / 1929lb Breaking load: 1750kg / 3858lb

Read more less
