Seastar PA1200-3 12vDC Power Assist Pump with 15ft HarnessModel: PA1200-3 ORB Fittings Dramatically reduces steering effort in heavy or high torque applications Easy install. Wall or Floor mount OEM or retro-fit Simple add-o to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms) Compatible w/ power purge system Return to manual in failure mode Suitable for boats w/ multiple engines and rudders, multiple steering stations, and autopilots Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved SpecificationsVoltage12V System Pressure 1000 psi MAX Current Draw 40 A MAX, 60 A Peak (1 A System Electronics)

Read more less

Seastar PA6010 Power Assist Autopilot PumpModel: PA6010 Autopilot ready - a single installation (i.e. no need to break into system for install of pump). Converts manual hydraulic steering to power steering. Dramatic reduction in steering wheel torque. Easy installation. OEM or Retrofit. Simple add on to an existing SeaStar manual system (from 1.4 - 2.4 SeaStar helm pumps) Compatible with power purge system. Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved. Replaces other 12 & 24 volt systems Converts manual hydraulic steering for dramatic reduction in steering wheel torque and at the same time provides a pump for an autopilot installation.The SeaStar Power Assist Autopilot pump is the standard power assist product with the addition of a Type 1 or Type 2 autopilot pump. The SeaStar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes (type 1 & type 2).SpecificationsVoltage12vDC Fittings Compatible with standard SeaStar Hoses (HO51xx etc.) Oil Compatibility SeaStar Steering Fluid (MIL 5606) Autopilot Pump Sizes 60 in3/min (no load) Max Pressure 1000psi Typical Current Draw (Depending on application) 4 - 8 amps Pump cylinder capacity 4.9 in3 - 12.5 in3 What's in the Box: PA1200-3 Power Assist AP1219 Pump HA1205 SPA Adapter

Read more less

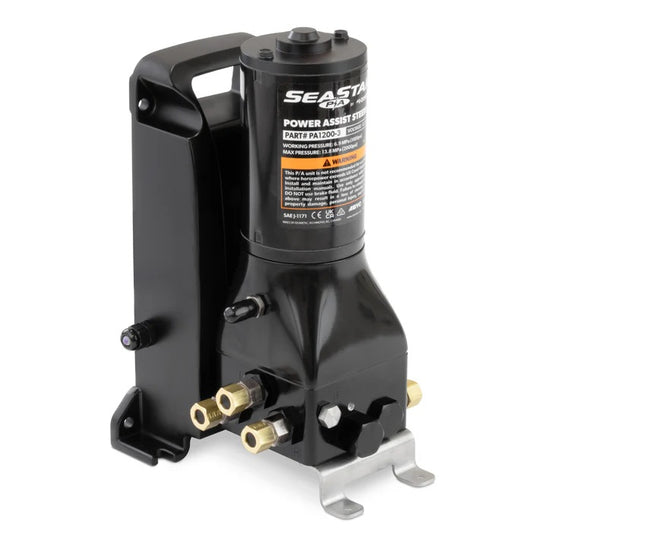

Seastar PA1200-3HP Power Assit Unit 12/24v 15ft HarnessModel: PA1200-3The marine industry is continually introducing heavier, more powerful outboard engines. The Dometic SeaStar Steering Power Assist lets you steer these bigger, faster boats with the same comfort and ease that you'd expect when driving a car. Recommended for any boat that is 200 hp and above.

Read more less

Domtic Seastar HF6007 ORB Fitting KitModel: HF6007What's in the Box: Tee Fitting, 1 End = -5 ORB, 1 end = 3/8 in tube, center = 3/8 in tube x 2 Connector fitting, -5ORB - 3/8 in tube x 2 Connector fitting, 1/4 in NPT - 3/8 in tube x 3 Tube nut, 3/8 in dia. X 6 Non-vented filler plug SeaStar nylon tube, 3/8 in dia. 25ft Elbow, 3/8 in tube (m) - -5 ORB x 2

Read more less

Kit consists of following items: Item Qty Tee fitting, 1 end 3/8 tube male, 1 end 1/4 in NPT male, center 3/8 in tube male 2 Connector 3/8 in tube male - -1/4 in NPT male 4 Tube nut - 3/8 in diameter 4 Non-vented filler plug 1 Seastar nylon tube 3/8 in diameter 25 ft

Read more less

Teleflex HA-1205 Stand Alone Autopilot SPA retrofit Kit Model: HA1205 All SeasStar Power Assists manufactured during or after August 2007 are compatible with this pump retrofit kit. To determin if your SeaStar Power Assist is compatible inspect the valve block face. It must have 3 tapped holes. If you have an older system the autopilot must be added separately to the steerign system and will require additional hoses. What's in the Box: 3 bolts 3 O-rings Loctite 242

Read more less

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2). AUTOPILOT ? KEY FEATURES Long life DC Motor (i.e. long life brushes) Compact design Simplified installation Low power consumption ABYC, CE?s and J1171 compliant Superior corrosion resistance Quiet operation All mounting bracket displacement included Voltage 12 volt Fittings Compatible w/ Standard Seastar Hose - Thread 9/16 in X 24 UNEF Wire Details Length 24 in Gauge 12 awg Connector None - Bare Leads Oil Compatibility Seastar Steering Fluid (MIL 5606) Weight 4.9 lbs (2.2 kg) Pump Sizes Type 1: 60 in3/min (no-load) Type 2: 100 in3/min (no-load) Maximum Pressure 1000 psi Typical Current Draw 12V Type 1: 4 ? 8 amps (Depending on Application) 12V Type 2: 5 ? 11 amps Ram Capacity Type 1 4.9 in3 - 14 in3 Type 2 14 in3 - 21 in3

Read more less

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2). AUTOPILOT ? KEY FEATURES Long life DC Motor (i.e. long life brushes) Compact design Simplified installation Low power consumption ABYC, CE?s and J1171 compliant Superior corrosion resistance Quiet operation All mounting bracket displacement included Voltage 12 volt Fittings Compatible w/ Standard Seastar Hose - Thread 9/16 in X 24 UNEF Wire Details Length 24 in Gauge 12 awg Connector None - Bare Leads Oil Compatibility Seastar Steering Fluid (MIL 5606) Weight 4.9 lbs (2.2 kg) Pump Sizes Type 1: 60 in3/min (no-load) Type 2: 100 in3/min (no-load) Maximum Pressure 1000 psi Typical Current Draw 12V Type 1: 4 ? 8 amps (Depending on Application) 12V Type 2: 5 ? 11 amps Ram Capacity Type 1 4.9 in3 - 14 in3 Type 2 14 in3 - 21 in3

Read more less
