Trident Marine Trident Marine 5/16" x 50 Boxed Low Permeation Type A1-15 Fuel Line Hose - Black [365-0566]

5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - BlackTrident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.Features: Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone Also provides excellent bend-ability NMMA Type Accepted & CE certified Application: Marine Fuel Hose (distribution, return, vent and transfer) For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel Construction: Tube: Nylon Internal Barrier, NBR Cover: NBR/PVC Blend Reinforcement: Polyester 2 spiral Temperature Range: -20°F to 212°F (-28ºC to 100ºC) Length: 50 ft. (15 m) Boxed Specifications: Inner Diameter: (inch) 5/16" / (mm) 7.92 Outer Diameter: (inch) 0.611 / (mm) 15.5 Burst Pressure: (psi) 400 / (mpa) 2.76 Working Pressure: (psi) 100 / (mpa) 0.69 Bend Radius: (inch) 1.75" / (mm) 44.5 Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198 Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10) *The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10 Quick Guide (pdf)

Read more less

$198.02 $124.99

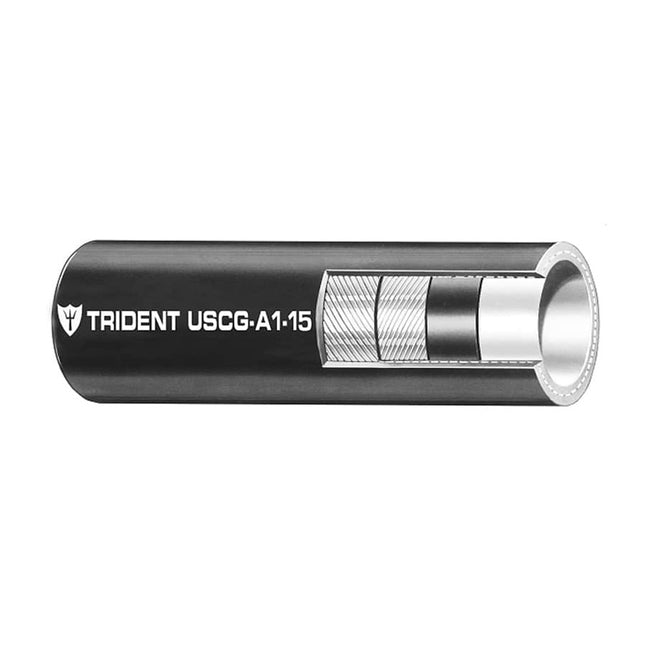

Trident Marine Trident Marine 3/8" x 50 Boxed Low Permeation Type A1-15 Fuel Line Hose - Black [365-0386]

3/8" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - BlackTrident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation, and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.Features: Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone Also provides excellent bend-ability NMMA Type Accepted & CE certified Application: Marine Fuel Hose (distribution, return, vent and transfer) For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel Construction: Tube: Nylon Internal Barrier, NBR Cover: NBR/PVC Blend Reinforcement: Polyester 2 spiral Temperature Range: -20°F to 212°F (-28ºC to 100ºC) Length: 50 ft. (15 m) Boxed Specifications: Inner Diameter: (inch) 3/8" / (mm) 9.50 Outer Diameter: (inch) 0.681 / (mm) 17.3 Burst Pressure: (psi) 400 / (mpa) 2.76 Working Pressure: (psi) 100 / (mpa) 0.69 Bend Radius: (inch) 2" / (mm) 50.8 Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233 Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10) *The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10 Quick Guide (pdf)

Read more less

$198.02 $124.99

Trident Marine Trident Marine 1-1/8" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-1186]

1-1/8" x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black HelixTrident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required. Features:Flexible, but the 147 series is less flexible than the 149 series of hosesApplication:Bilge and live well hoseSpecifications: Tube & Cover: Clear vinyl reinforced with black helix Color: Clear with black helix Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-49°C) Boxed: 50ft. / (15.24m) Inner Diameter: (inch) 1-1/8" / (mm) 28.6 Outer Diameter: (inch) 1.39" / (mm) 35.4 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45 Bend Radius: (inch) 3.5" / (mm) 8.9 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1-1/8" Box Dimensions: 8"H x 23"W x 23"L WT: 14.2 lbs UPC: 704917006192 Quick Guide (pdf)

Read more less

$184.90 $116.99

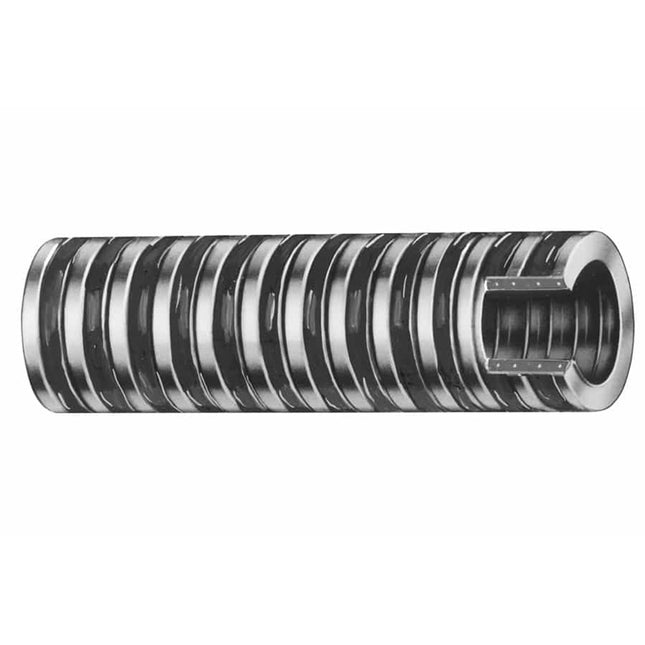

Trident Marine Trident Marine 3/4" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-0346]

3/4" x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black HelixTrident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required. Features:Flexible, but the 147 series is less flexible than the 149 series of hosesApplication:Bilge and live well hoseSpecifications: Tube & Cover: Clear vinyl reinforced with black helix Color: Clear with black helix Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-49°C) Boxed: 50ft. / (15.24m) Inner Diameter: (inch) 3/4" / (mm) 19 Outer Diameter: (inch) 0.968" / (mm) 24.6 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 11 / (Kg/m) 0.33 Bend Radius: (inch) 2.25" / (mm) 57.2 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 3/4" Box Dimensions: 5"H x 18"W x 18"L WT: 9.2 lbs UPC: 704917006154 Quick Guide (pdf)

Read more less

$137.39 $86.99

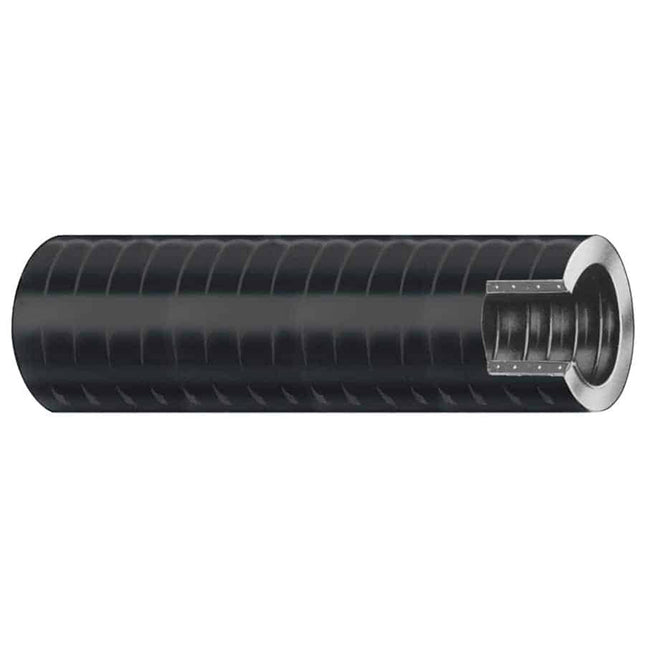

Trident Marine Trident Marine 1-1/2" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black [149-1126]

1-1/2" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - BlackTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features:149 series of hoses is extra flexible Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C) Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1-1/2" / (mm) 38.1 Outer Diameter: (inch) 1.792" / (mm) 45.5 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98 Bend Radius: (inch) 4" / (mm) 101.6 *Burst Pressure is 4 x Working Pressure Specifications: ID Diameter (inches): 1-1/2" Box Dimensions: 8"H x 23"W x 23"L WT: 23.2 lbs UPC: 704917010472 Quick Guide (pdf)

Read more less

$303.87 $191.99

Trident Marine Trident Marine 1-1/8" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black [149-1186]

1-1/8" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - BlackTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features:149 series of hoses is extra flexible Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C) Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1-1/8" / (mm) 28.6 Outer Diameter: (inch) 1.433" / (mm) 36.4 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80 Bend Radius: (inch) 3" / (mm) 76.2 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1-1/8" Box Dimensions: 8"H x 23"W x 23"L WT: 15 lbs UPC: 704917010434 Quick Guide (pdf)

Read more less

$213.60 $134.99

Trident Marine Trident Marine 3/4" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black [149-0346]

3/4" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - BlackTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features:149 series of hoses is extra flexible Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C) Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 3/4" / (mm) 19.1 Outer Diameter: (inch) .986" / (mm) 25 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99 Bend Radius: (inch) 3" / (mm) 76.2 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 3/4" Box Dimensions: 5"H x 18"W x 18"L WT: 9.4 lbs UPC: 704917017822 Quick Guide (pdf)

Read more less

$139.60 $87.99

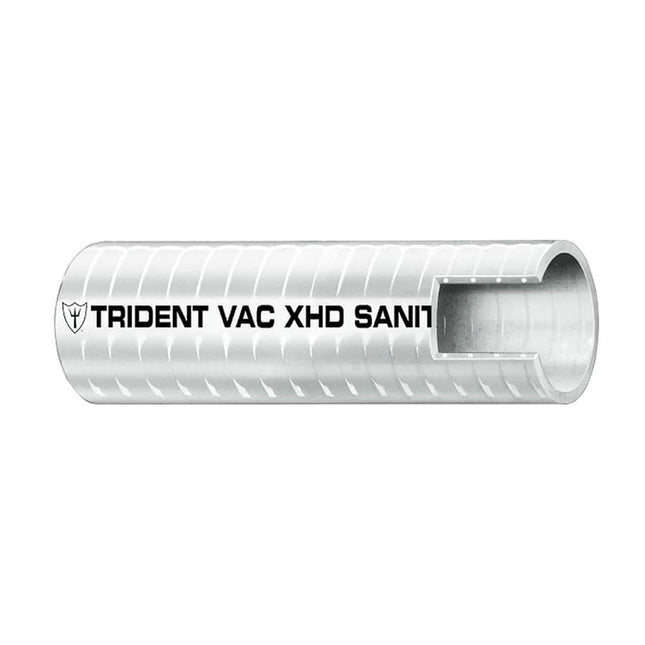

Trident Marine Trident Marine 1-1/2" x 50 Box VAC XHD Sanitation Hose - Hard PVC Helix - White [148-1126]

1-1/2" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - WhiteTrident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.Features: A hard PVC helix gives good flexibility and bend radius No cuffs are required Application: Specially compounded to provide resistance to odor permeation and (FDA) potable water fill Also for critical bilge, drain scupper, live well, etc Specifications: Tube & Cover: Hard PVC helix Color: White Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C) Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1-1/2" / (mm) 38.1 Outer Diameter: (inch) 1.788" / (mm) 45.4 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 22 / (Kg/m) 0.76 Bend Radius: (inch) 4" / (mm) 102 *Don't use with alcohol, anti-freeze, petrochemicals, or solvents*Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1-1/2" Box Dimensions: 10"H x 22"W x 22"L WT: 23.1 lbs UPC: 704917006352 Quick Guide (pdf)

Read more less

$281.10 $176.99

Trident Marine Trident Marine 1" x 50 Box VAC XHD Sanitation Hose - Hard PVC Helix - White [148-1006]

1" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - WhiteTrident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.Features: A hard PVC helix gives good flexibility and bend radius No cuffs are required Application: Specially compounded to provide resistance to odor permeation and (FDA) potable water fill Also for critical bilge, drain scupper, live well, etc Specifications: Tube & Cover: Hard PVC helix Color: White Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C) Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1" / (mm) 25.4 Outer Diameter: (inch) 1.262" / (mm) 32.1 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52 Bend Radius: (inch) 3" / (mm) 76.2 *Don't use with alcohol, anti-freeze, petrochemicals, or solvents*Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1" Box Dimensions: 5"H x 22"W x 22"L WT: 15.75 lbs UPC: 704917006291 Quick Guide (pdf)

Read more less

$190.67 $120.99
