Description

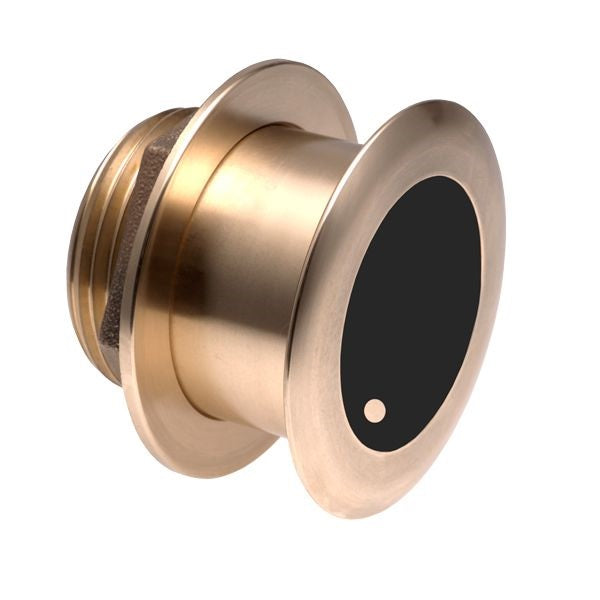

Airmar B175C-0-HW 0d Tilt High CHIRP Ultra Wide Beam With Humminbird 21-Pin MM Cable
Model: B175C-0-HW-21F
- Depth & fast-response water-temperature sensor
- High—CHIRPS from 150 kHz to 250 kHz
- 25° constant beamwidth
- 100 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
- Boat Size: 8 m (25’) and above
Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers
A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display
Specifications
| Deadrise Deadrise |
0° to 7° |
| Acoustic Window |
Urethane |
| Power rating |
1 kW @ 1% duty cycle |
| Frequency |
150 to 250 kHz-A (Broadband) |
What's in the Box:
- B175C-0-HW-MM Transducer
- MMC-21F Mix and Match Cable
