Description

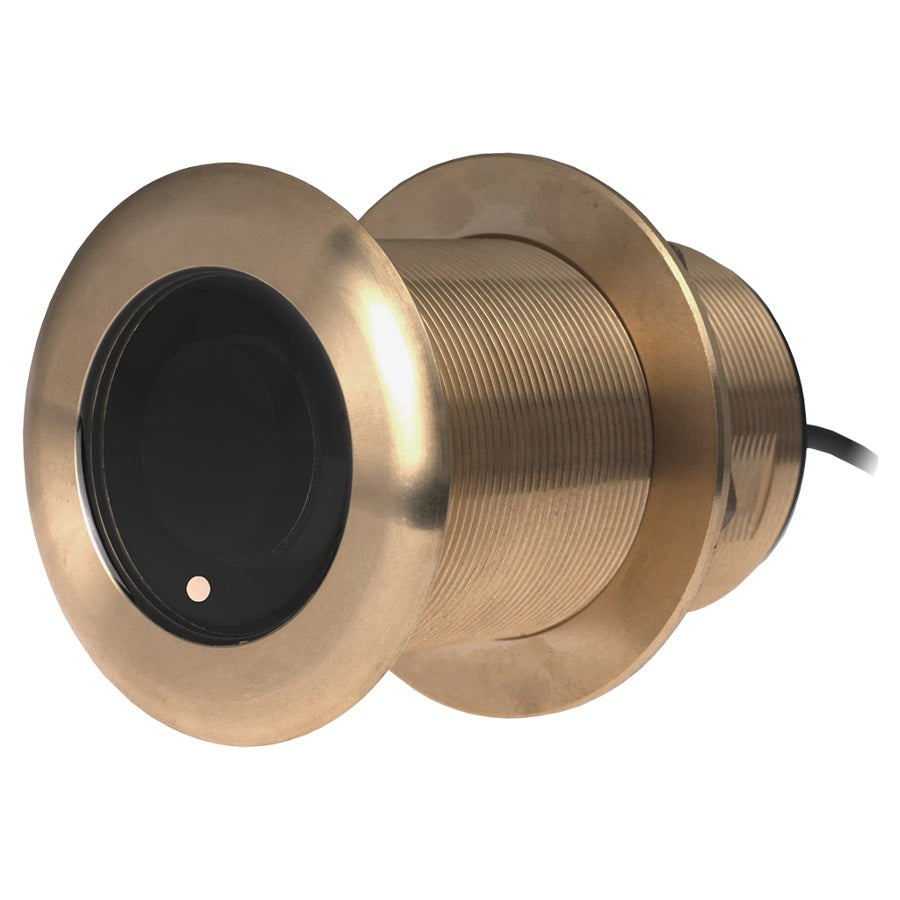

Airmar B60 50/200kHz 600 Watt 12 Degree Tilted Element Depth and Temperature with a Garmin 8-Pin
Model: B60-12-8G
- Depth and fast-response water temperature sensing
- 600 W of power
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16") outside the hull
- No effect on your boat’s running performance
- Bronze housing for fiberglass or wood hull
Specifications
| Acoustic Window |
Urethane |
| Cable-Length |
10 m (33') |
| Connector |
Garmin 8-Pin |
| Conventional Beam |
45°/12° |
| Deadrise Range |
8° to 15° |
| Frequency Band |
50/200 kHz |
| Material |
Bronze |
| Max Depth |
Low frequency- 366 m (1200'), High frequency- 206 m (700') |
| Tilt Angle |
12° |
| Weight |
1.4 kg (3 lb.) |
| Power Rating |
600 W |
| Functions |
Depth, Temperature |
| Hole Size |
60 mm (2-3/8") |
| Usable Shaft Length |
68.5 mm (2.70") |
