B&G Zeus S 7 7in Display C-MAP Discover

Description

Description

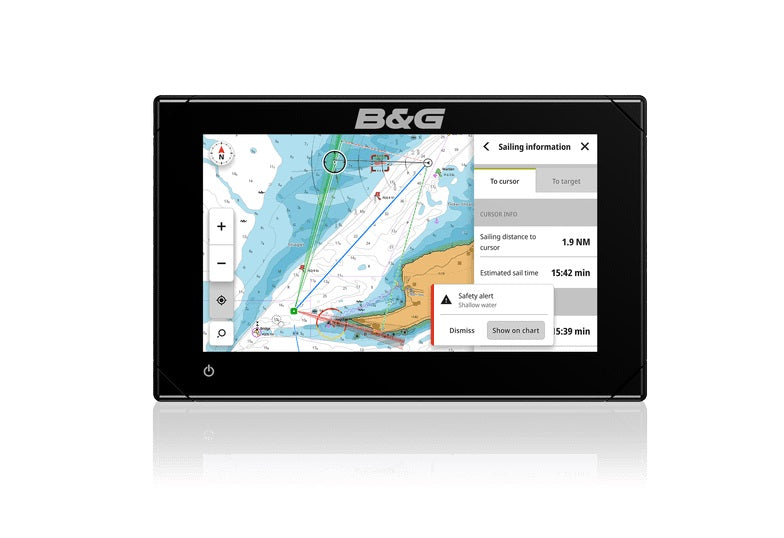

B & G Zeus S 7 Chartplotter AMER. 7-inch SolarMAX™ high definition display

Model: 000-15216-001
  • Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates
  • High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
  • Full integration with the capability to expand the system with Simrad® radar, autopilot, and more
  • Faster Autorouting with seamless accessibility
  • Stay on course with full Simrad® autopilot integration
  • Modern and straightforward interface
  • B&G App integration — keep your chart data at your fingertips, both on and off the water
  • Third-party app integration
  • Wireless connectivity, plus Ethernet and NMEA 2000® networking capability
  • IP Video Support

See the data you need, when you need it. Simply select your Sailing Mode for your situation, giving you just the information you need for Cruising or Racing.

Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP® powered Safety Alerts guard against grounding and dangerous objects.

C-MAP DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for easy and clear navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.

Put your Zeus® S at the heart of a complete sailing system with easy integration. With NMEA 2000®, you can connect to Autopilot, Instruments, Radar, Sailing Processors, Audio, Engines, and a wealth of other compatible products. Zeus S also integrates easily with the B&G App, letting you plan trips, review routes, and manage waypoints from home, then sync the moment you step onboard.

Across the device, our new and intuitive interface is designed to feel familiar. Zeus S boasts a handy Setup Wizard to get you started, and ongoing tips to help you get the most from your Zeus S Chartplotter and networked equipment.

Specifications
Display
Size and Type 7" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
Resolution 1024 x 600 px
Viewing Angles 85° (top, bottom, left, and right)
Screen Brightness >1200 nits
Backlight Color White
Supply Voltage 12 V DC (10 - 17 V DC min - max).
Power
Power Consumption max 11.5 W (830 mA at 13.8 V)
Recommended Fuse Rating 2A
Physical With bracket: W: 220 mm (8.66") x H: 145.9 mm (5.74") x D: 79.5 mm (3.13") No bracket, no suncover: W: 195 mm (7.68") x H: 123.0 mm (4.84") x D: 79.5 mm (3.13")
Weight 0.8 kg (1.7 lbs)
MountingType Bracket (supplied), panel mount or flush mount
Compass Safe Distance 50 cm (1.7 ft)
Environmental
Operating Temperature Range -15°C to 55°C (5°F to 131°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Waterproof rating IPx6 and IPx7
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Shock Vibration 100,000 cycles of 20 G
Interface and connections
Interface Multi-touch screen
Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Ethernet 1 port (5-pin connector)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 No
USB No
External Storage 1 MicroSD slot
GPS Internal, 10Hz, WASS, MSAS, EGNOS
GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels 32 Channels
GPS Update rate 10Hz
J1939 No
ConnectivityPcConnectivity No
WiFi IEEE 802.11b/g/n
Bluetooth Bluetooth 4.0 with support for Bluetooth Classic
Charts Supported C-MAP Discover X, C-MAP Reveal X
Radar Compatibility Halo Dome radars
Weather No
AIS Receive AIS data over NMEA 2000
Digital Switching Command DDS, CZone (control bar only on release)
Warranty
Warranty Period 2 Years

What's in the Box:
  • Zeus 7 S Display
  • M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA
  • B&G Zeus S 7 Suncover
  • 4-Pin Power Cable
  • Fuse and Fuse Holder
  • Mounting bracket for Simrad NSX 3007, GO7 XSR, I3007, P3007, and B&G Vulcan 7R,
  • NSX CORNER CLIP ACCESSORY

B&G Zeus S 7 7in Display C-MAP Discover

Low stock counter image  Quantity Available  3       Order Now!
