Description

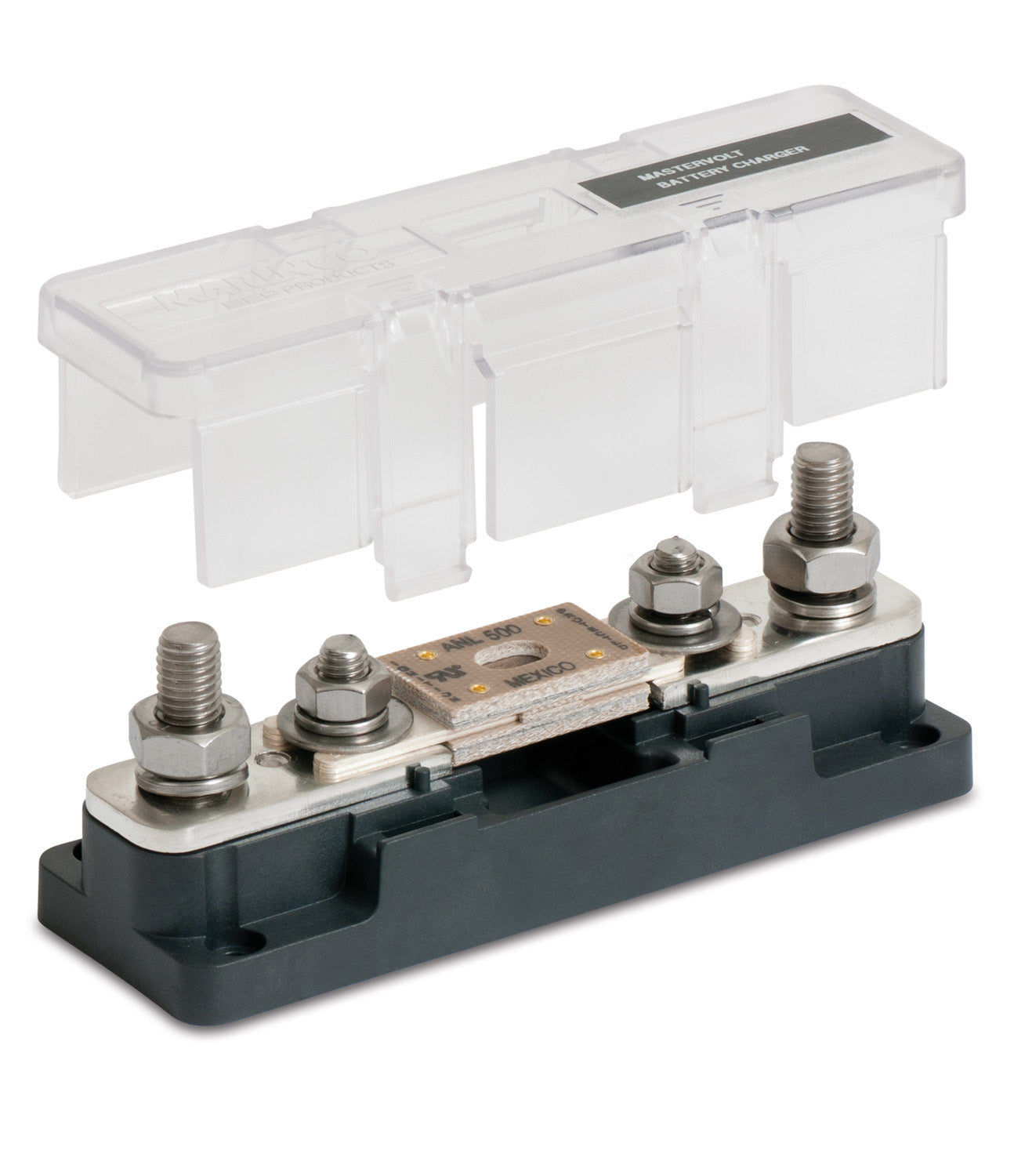

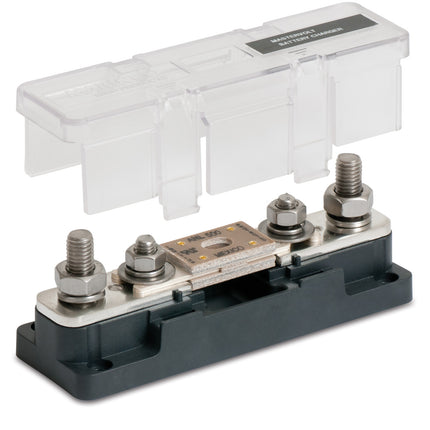

BEP 778-ANL2S 35-750A ANL Fuse Holder
Model: 778-ANL2S
- Radiused ends improve cable routing options
- for use with 5/16" (8mm) or 3/8" (10mm) ANL fuses
- High temperature, fibre reinforced plastic base provides strength and chemical resistance
- Clear polycarbonate cover
- Modular sizing and common interconnection height: Easily linked with other Pro Installer Busbars and Fuseholders saving installation time and space
- Compact footprints save space
- Fuse viewing "window" in cover aids visual inspection of fuse-state
These ANL fuse holders offer unparalleled circuit protection choice for both the installer and end-user.
Specifications
| CabLe connection |
10mm (3/8") studs |
| Fuse moutning studs |
8mm (5/16") |
| Fuse type |
ANL or ANN |
| Amperage range |
35-750A fuse dependant |
| max voltage |
50vDC |
| Dimensions |
5.8" x 1.9" x 2.4" |
