Description

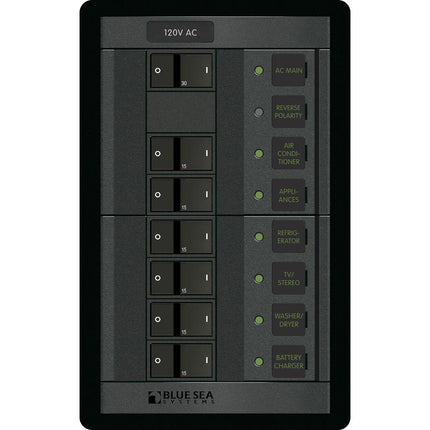

120 Volt AC Main + 6 Position - Vertical
Features:
- All circuit label positions are backlit
- "ON" indicating LEDs installed in all circuit positions
- Includes 4206-Square Format Label Set
Specifications:
-
Positions:t6
-
Nominal Voltage:t120V AC
-
Maximum Amperage*:t100A
-
Height:t7.75" (196.85mm)
-
Width:t4.88" (123.95mm)
-
Depth:t3.00" (76.2mm)
-
Weight:t2.70lb (1.22kg)
Includes:(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: AC
- Box Dimensions: 6"H x 6"W x 12"L WT: 2.6 lbs
- UPC: 632085012021
Quick Guide (pdf)Owner's Manual (pdf)
