Description

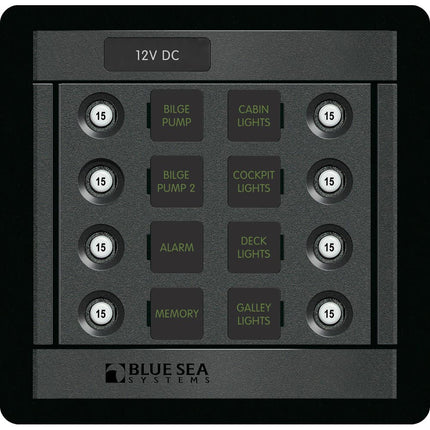

DC 8 Position CLB Square
Features:
- High-density circuit protection
- Includes 4205-Square Format Label Set
Specifications:
-
Positions:t8
-
Nominal Voltage:t12V DC / 24V DC
-
Maximum Amperage*:t90A
-
Height:t4.75" (120.65mm)
-
Width:t4.88" (123.95mm)
-
Depth:t3.50" (88.9mm)
-
Weight:t1.25lb (0.57kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:(8) - 7056 - Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Box Dimensions: 1"H x 1"W x 1"L WT: 1 lbs
- UPC: 632085014506
Quick Guide (pdf)Owner's Manual (pdf)
