Description

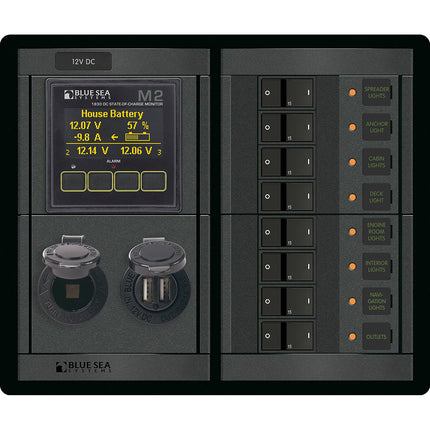

1497 - 360 Panel - 8 Position 12V Flat Rocker M2 Multimeter with SOC & Dual USB/12V Socket
Part of the Blue Sea Systems Battery Management Panels. This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.
DC sockets and USB charging are integrated into a popular sized circuit protection panel.
Features:
- ON-indicating LEDs
- Backlit label positions
Technical Specifications:
- Positions - Eight (8)
- Meter - M2 Multimeter w/SOC
- Nominal Voltage - 12V DC
- Maximum Amperage - 100A
- Circuit Breaker Type - 8 A-Series (15A)
- USB Output - 12/24V Dual USB
- Socket Output - 12V Dash socket
- Dimensions - (H x W x D) - 7.75" x 9.25" x 4" (197 x 235 x 102mm)
In the Box:
- 1497 Panel
- Instruction Manual
*Sold as an Individual
