Description

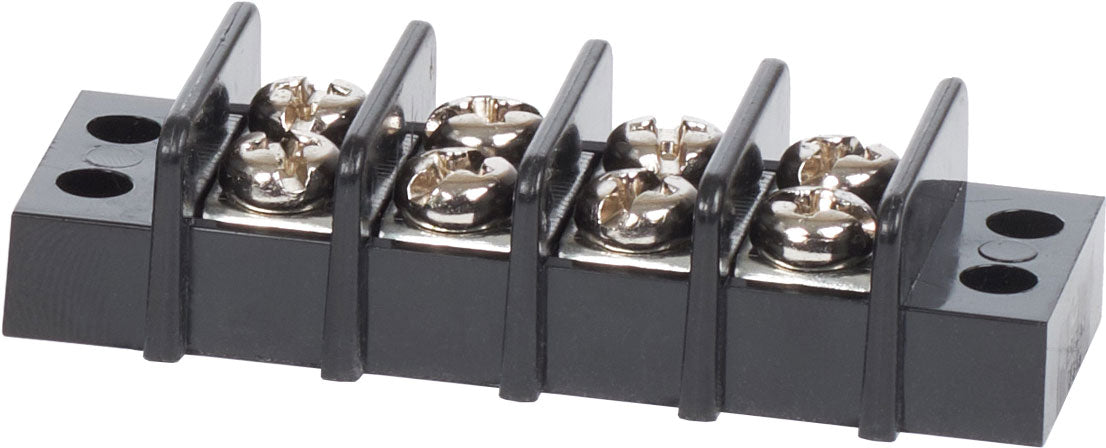

Blue Sea Systems Terminal Block 20A - 4 Circuit
Model: 2404-BSS
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications
| Circuits |
4 |
| Length |
2.17in (55.12 mm) |
| Maximum Voltage |
300V AC/DC |
| Continuous Rating |
20A |
| Base Material |
UL 94 V0, PC |
| Bus Material |
Nickel-Plated Brass |
| Mounting Screw |
#6 [M3.5] |
| Screw Material |
Stainless Steel |
| Screw Terminal Torque |
7 in-lb (0.79 Nm) |
| Terminal Screws |
M3.5 |
| Wire Terminal Size |
#6 [M3] |
