Description

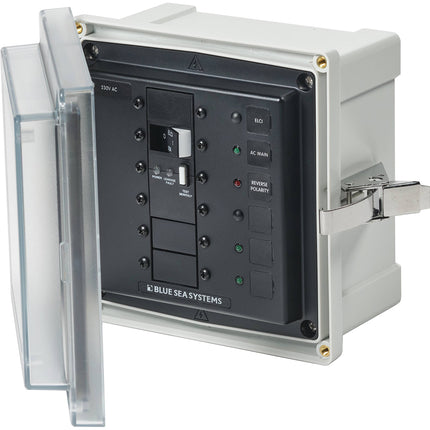

3121 - SMS Panel Enclosure with ELCI (16A) & 3 Blanks - 230V AC
The 3121-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (16A) Main 230V and 3 x Blank
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)
In the Box:
- 3121 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
Specifications:
- AC/DC: AC
- Voltage: 230
- Box Dimensions: 7"H x 9"W x 10"L WT: 3.9 lbs
- UPC: 632085031213
Quick Guide (pdf)Brochure (pdf)
