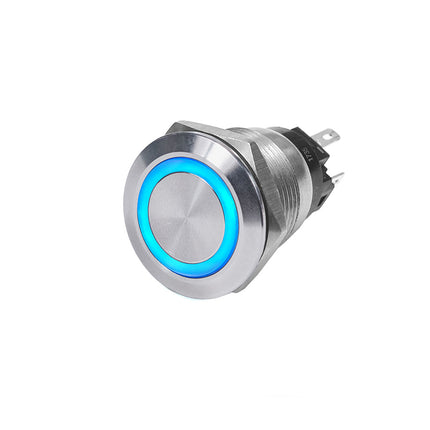

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A [4160]

Description

4160 SS Push Button Switch - Off-On - Blue - 10A

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)

Specifications

  • Action: OFF-ON
  • Amperage: 10A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum LED Operating Current: 20mA
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -55° C
  • Maximum Storage Temperature: 85° C
  • Illumination: Independent – Separate contacts for LED power
  • Mounting Hole: 19mm
  • Switching Cycles: 18,000
  • Termination: 5 – 0.110inch Quick Connect terminals

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Color: Stainless
  • Action: On/Off
  • Box Dimensions: 2"H x 3"W x 5"L WT: 0.05 lbs
  • UPC: 632085041601

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A [4160]

Product form

$27.06 $20.99

    Description

    4160 SS Push Button Switch - Off-On - Blue - 10A

    • 10A continuous
    • Single Pole Double Throw or Single Pole Single Throw
    • Can be wired for normally open or normally closed
    • Installs with .110inch quick connects (included in retail package)

    Specifications

    • Action: OFF-ON
    • Amperage: 10A @ 12V DC
    • Nominal Voltage: 12V DC
    • Maximum LED Operating Current: 20mA
    • Minimum Operating Temperature: -10° C
    • Maximum Operating Temperature: 70° C
    • Minimum Storage Temperature: -55° C
    • Maximum Storage Temperature: 85° C
    • Illumination: Independent – Separate contacts for LED power
    • Mounting Hole: 19mm
    • Switching Cycles: 18,000
    • Termination: 5 – 0.110inch Quick Connect terminals

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Color: Stainless
    • Action: On/Off
    • Box Dimensions: 2"H x 3"W x 5"L WT: 0.05 lbs
    • UPC: 632085041601
