Blue Sea Systems

Blue Sea 5001 Fuse Block MEGA 100-300A w/Cover [5001]

Blue Sea 5001 Fuse Block MEGA 100-300A w/Cover [5001]

Regular price $20.99 USD
Regular price $30.88 USD Sale price $20.99 USD
Sale Sold out
Shipping calculated at checkout.

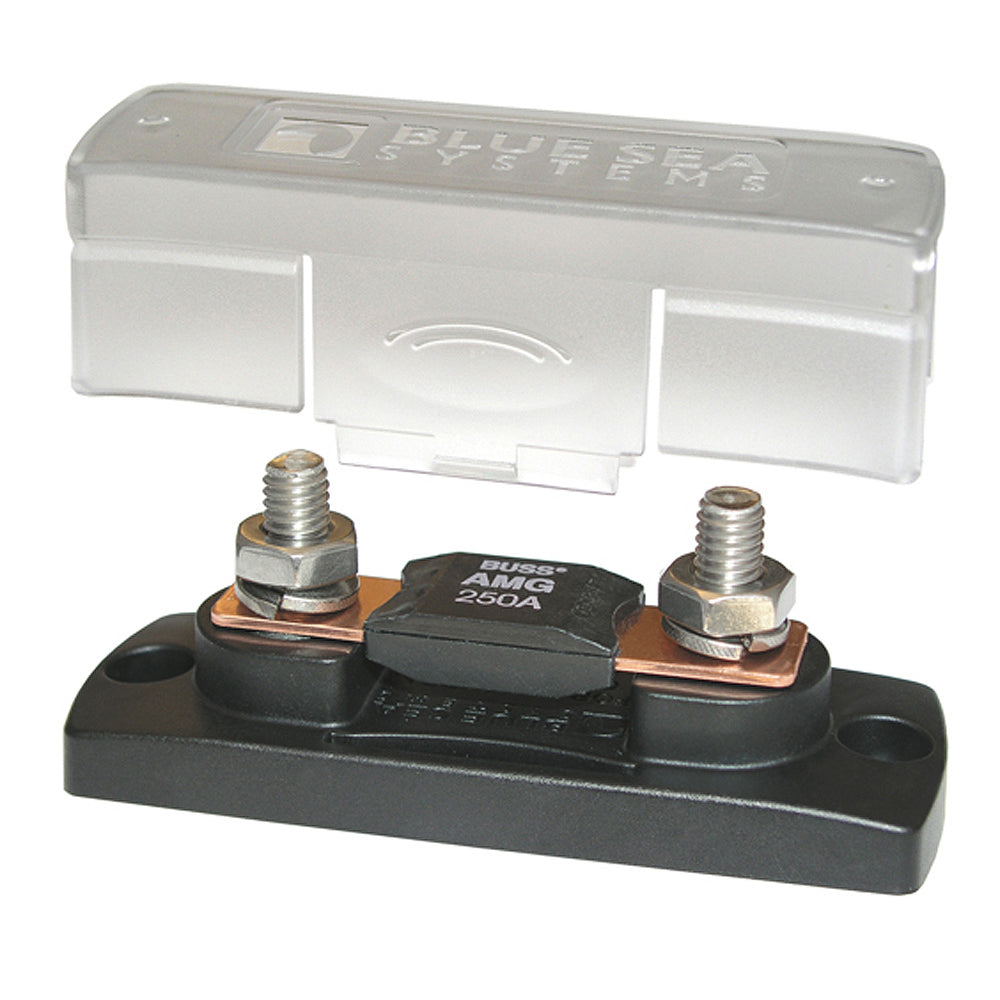

5001 Fuse Block MEGA 100-300A with Cover

Features:

  • The most economical system for 100-300 Ampere fusing
  • Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow wire access in any direction
  • For use on systems up to 32V DC
  • 5/16" stud terminals accept 5/16" (M8) Ring Terminals, 14AWG to 2/0 AWG Wire
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: MEGA/AMG
  • Type: Fuse Blocks
  • Box Dimensions: 2"H x 4"W x 8"L WT: 0.4 lbs
  • UPC: 632085050016
