Description

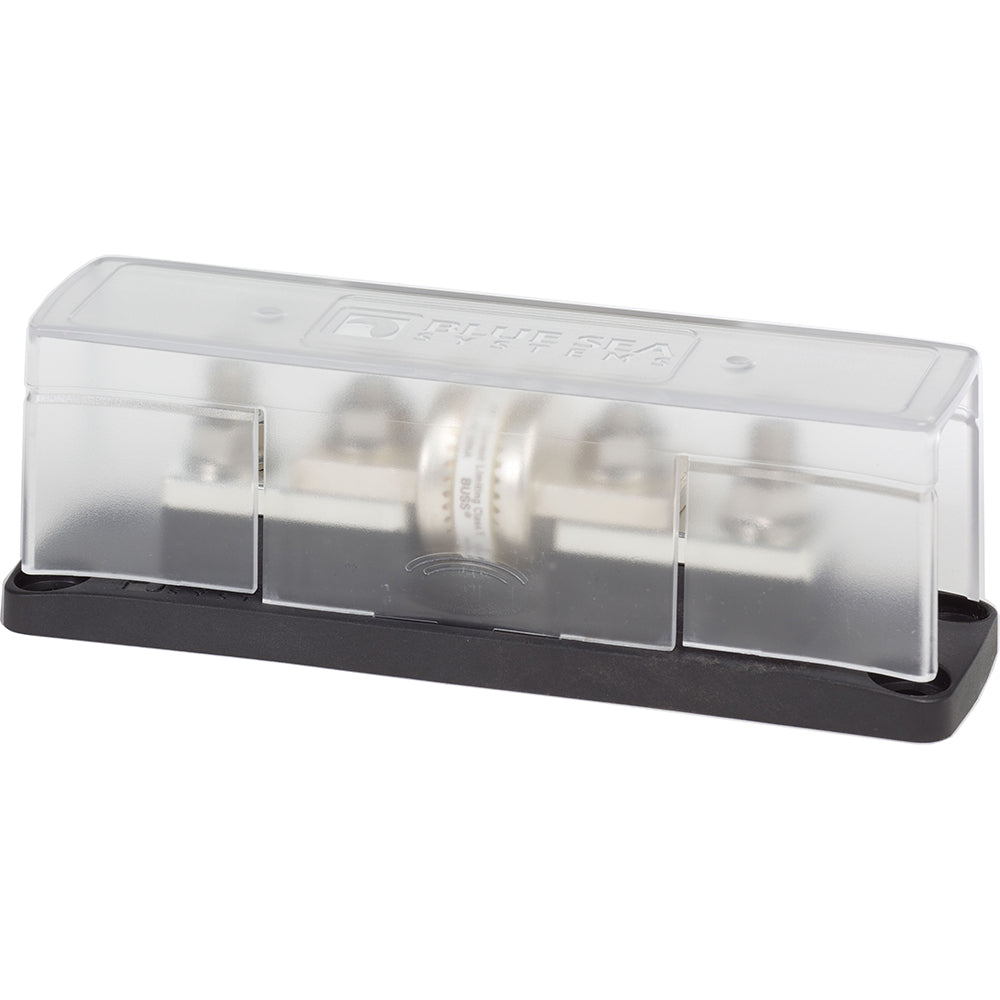

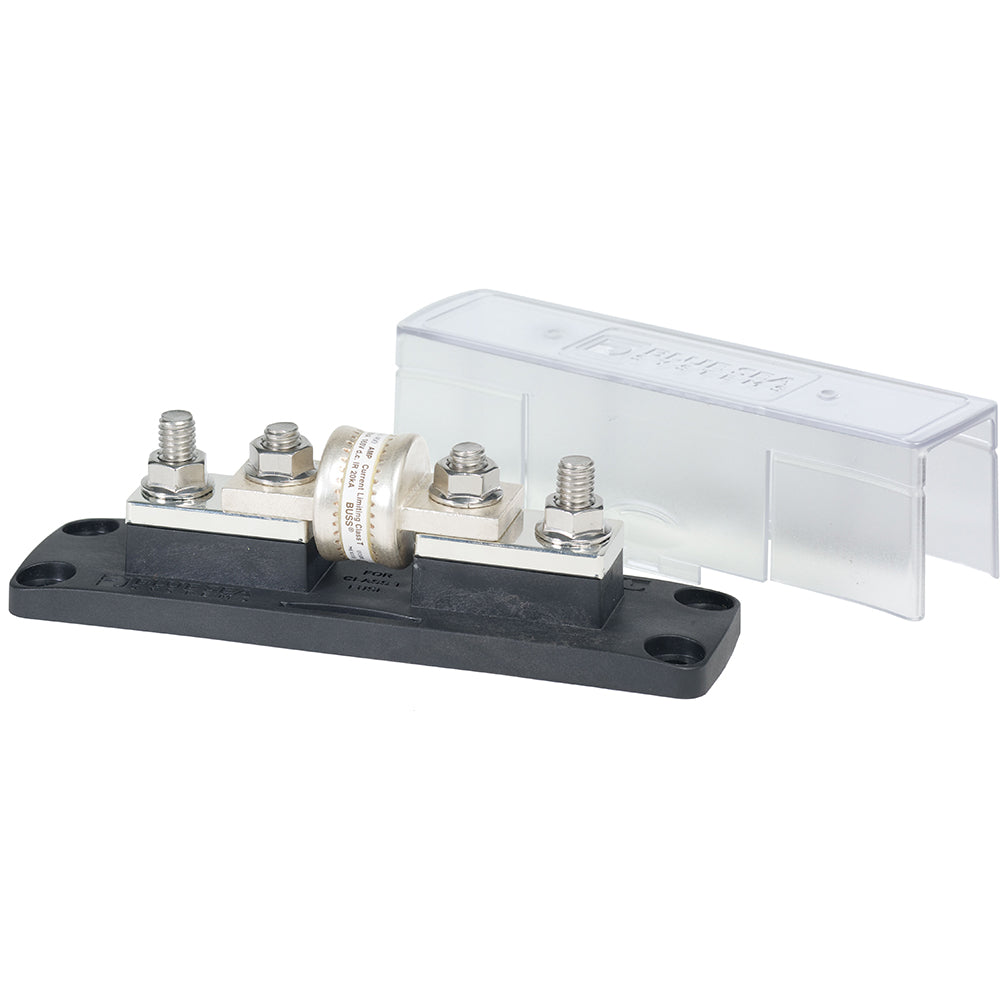

Fuse Block Class T 225-400 AMP
Part #: 5502
Features:
- Maximum Voltage: 160 Volts DC
- Maximum Amperage: 400 Amperes DC
- Maximum Torque: 190 in-lb (21.47 Nm) max.
- Terminal Stud Size: 3/8"-16 (M10)
- Mounting Holes: Accept 1/4" (M6) Screw
- Maximum Cable Size 4/0 AWG
- Fuse Mounting Blocks: Tin-Plated Copper
- Class T Fuses Available: 110-400 Amperes DC
Fuse Sold Sepereatly
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Fuse Type: Class T
- Type: Fuse Blocks
- Box Dimensions: 3"H x 8"W x 9"L WT: 1.1 lbs
- UPC: 632085055028
