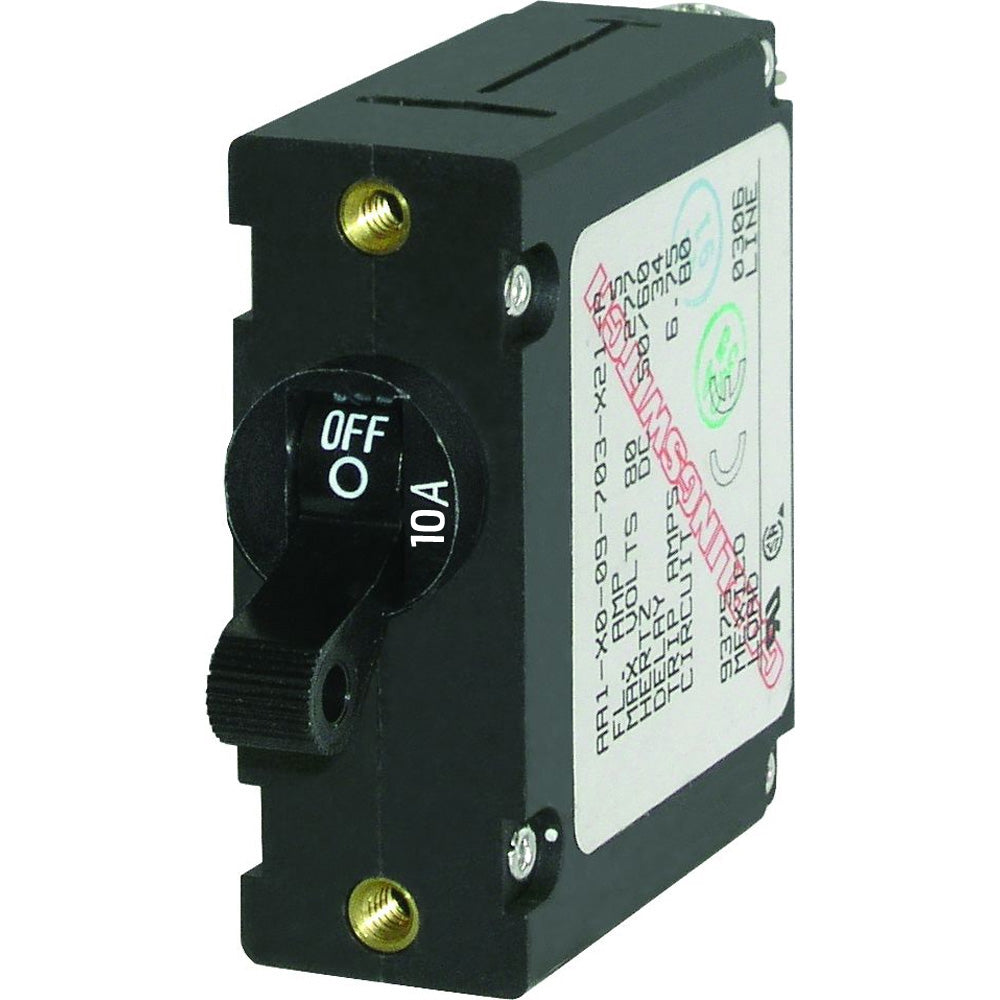

Blue Sea 7204 AC / DC Single Pole Magnetic World Circuit Breaker - 10 Amp [7204]

Description

AC / DC Single Pole Magnetic World Circuit Breaker

The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.

PN:   7204
Color:   Black
Amperage:   10 Amp
Delay:   Standard

Features:

  • The industry standard circuit breaker for Blue Sea Systems electrical panels
  • Combines switching and circuit protection into a single device
  • Single pole Quick Trip models are designed specifically for electronics protection
  • "Trip Free" design cannot be held "ON" during fault current condition

Specifications
Circuit Breaker Type Magnetic Hydraulic - Trip Free
Maximum Voltage 277 Volts AC / 65 Volts DC
Rated Switch Cycles 10,000@rated amperage and voltage


WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 10a
  • Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs
  • UPC: 632085072049
