Description

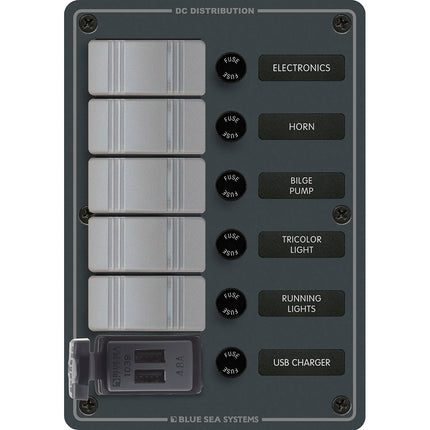

8121 - 5 Position Contura Switch Panel with Dual USB Chargers - 12/24V DC - Black
Designed for open-cockpit and flybridge applications using switches to complement existing controls commonly used on many boats.
Features:
- Includes 12/24V DC, 4.8A Dual USB chargers with intelligent device recognition that maximizes charge rate
- Designed for 12 or 24V DC systems
- Watertight mounting gasket
- ON indicating LEDs embedded in all switches
Technical Specifications:
- Nominal Voltage - 12/24V DC
- Operating Current - 18mA per switch
- Switch Rating - 20A@12V and 15A@24V DC
- USB - 12/24V Dual USB Charger 4.8A
- Dimensions (H x W x D) - 7.5" x 5.25" x 3" (190.5 x 133.35 x 76.2mm)
In the Box:
- 8121 Panel
- Labels
- Mounting hardware
*Sold as Individual
Specifications:
- AC/DC: DC
- Voltage: 12/24
- Box Dimensions: 5"H x 7"W x 12"L WT: 1.3 lbs
- UPC: 632085081218
