Description

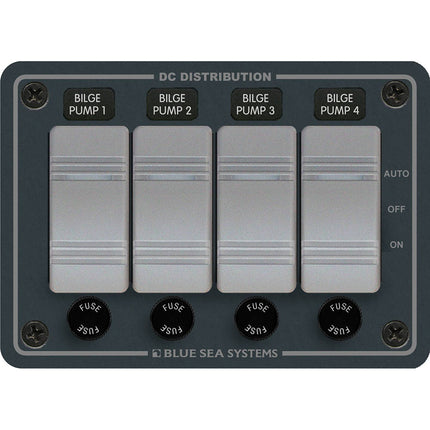

8666 Contura 4 Bilge Pump Control Panel
Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp
Features:
- Designed for 12 or 24V DC systems
- ON - OFF - AUTO Contura Switch
- Watertight mounting gasket
- Fuse holders accept commonly available AGC and MDL glass fuses
- "ON” LED embedded in switch indicates the pump is running
- Completely wired and ready to install
Specifications:
- Weatherproof - Water Resistant
- No. of Bilge Pumps - four (4)
- Nominal Voltage - 12/24V
- Panel Cumulative Rating - 45A
- Switch Rating: 20A @ 12V DC / 15A @ 24V DC
- Dimensions (H x W x D) - 3.75" x 5.25" x 3"
In the Box:
- Panel Mount AGC/MDL Fuse Holder (P/N 5021) x four (4)
- Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x four (4)
- Black 60 Label Set (P/N 8214)
*Sold as an Individual
Specifications:
- Action: on - off - auto
- Color: Black/Grey
- Throw/Pole: SPDT
- Box Dimensions: 5"H x 7"W x 9"L WT: 0.75 lbs
- UPC: 632085086664
Owner's Manual (pdf)
