Description

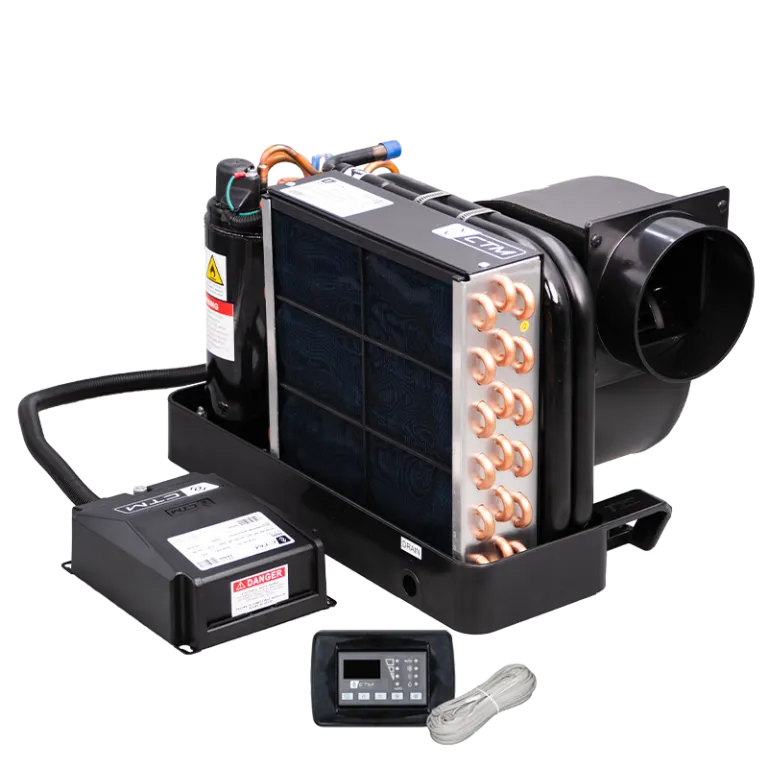

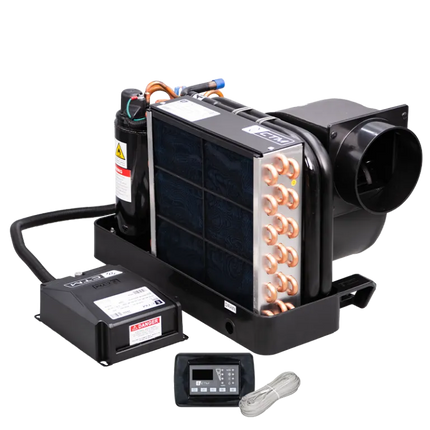

CTM CT-16H Marine Air Conditioner 16,000 BTU – 230V – 50/60HZ – Turbo Blower
16,000 BTUs of powerful, quiet, and efficient cooling. 230V. Titanium circulating coils, stainless steel bolts, and stainless steel structural pan with ABS tray ensure long-lasting, corrosion-proof performance in even the toughest of marine environments. 2 Year Warranty*. Patent Pending S/N 63/104189.
The quiet, powerful, and efficient CTM is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. The CTM is fully compatible with all Dometic, Cruisair, Marine Air, and Micro Air controls/thermostats and cables, making replacement of those systems a breeze.
CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a self-contained marine air conditioner that raises the bar on quality and performance.
And while lightweight and with a small footprint, the CTM CT includes titanium circulating coils, a high-velocity turbo blower, stainless steel bolts, and a stainless steel structural pan with Plastic ABS tray in order to ensure long-lasting, corrosion-proof performance in even the toughest of marine environments.
All CTM Control Boards, Temperature Sensors, and cables are made in the United States under strict quality standards. Every CTM Unit comes with an industry-standard 2-year warranty*, and knowledgeable and attentive customer service.
As marine A/C retailers, as well as boaters ourselves, we know what boaters are looking for in a marine A/C system — and this is exactly what the CTM line delivers
Specifications:
| Capacity |
16,000 BTU |
| Voltage |
208-230 V |
| Cycle |
50-60 Hz |
| Refrigerant Type |
R410A |
| Current Consumption Cool / Heat |
5.1 A / 6.6 A |
| Starting Amps |
16 A |
| Locked Rotor Amps |
34 A |
| Fuse Max. / Min. |
20 A / 12 A |
| Blower Airflow |
458 CFM |
| Blower Speed |
1420 RPM |
| Rotable Blower |
Yes / (under 270 degress) |
| Min. Supply Duct Size |
6 / 152 (in/mm) |
| Seawater Inlet Connection |
5/8″ / 16 (in/mm) |
| Suggested Water Flow |
500 GPH |
| Net Weight |
59 lbs / 27 kg |
Features of the CTM CT-16H
Compact Design: Perfect drop-in replacement for all major marine A/C Brands. It’s compact design makes it the perfect unit for small spaces.
Electrical Box: Rugged electrical box with fire retardant cover.
Titanium Condenser Coil: The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.
Stainless Steel Frame Base: Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.
ABS Insulated Pan: ABS is a versatile thermoplastic product that combines several compounds to offer a durable and corrosion-free material. This insulated pan is designed and made to last for years.
Quiet: Very quiet yet powerful marine air conditioning unit, making it a great option for powerboats and sailboats.
Rotatable Turbo Blower (<270°): High-velocity turbo blower that can be rotated to fit most customers’ needs. Rotatable <270 degrees, making ducting installation easier.
Universal Board: Next generation control board is compatible with most controllers in the market, such as OEM Brands like Dometic, Cruisair, and Marine Air. Also supports the TSEP Temperature sensor.
Reverse Cycle Heating: Enjoy powerful cooling from your CT Unit with the option of heating if needed. Thanks to reverse cycle, you can switch to heating when temperatures get low.
Digital Touch Control: The CT is compatible with the CTM Touch display – a 2.5″ Color Display with the latest technology in the industry, including numerous programmable parameters, operational features, and much more.
Dimensions:
A – Width: 20 in / 508mm
B – Drain Pan Width: 10 in / 254 mm
C – Height: 14 in / 356 mm
D – Depth: 13.5 in / 343 mm
E – Min. Duct Diameter: 6 in / 152 mm
Universal Control Board Layout
