Description
80-911-0122-00 - (connectors not included)

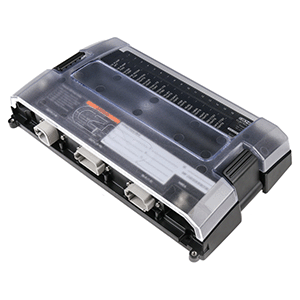

CZone Control 1 Interface - Charcoal
The Control 1 combines multiple input and output devices in to a single module, minimizing installation, interconnections and footprint. The Control 1 incorporates many of the core features and benefits of the fully featured Combination Output Interface (COI), but has been re-engineered to offer improved cost-per-channel value. The Control 1 features the same rugged design as the fully featured COI with IPX5 water ingress protection and complete mechanical fuse and bypass on all circuits as required by ABYC/CE. Industry standard Deutsch connectors provide "plug and play" installation.
Features:

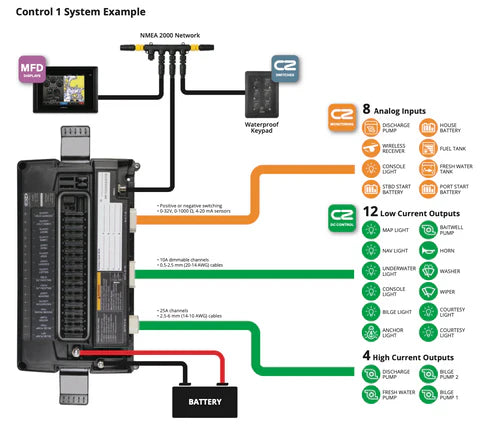

- Complete CZone Control and Monitoring system in a single box
- Modular design provides system options for wide range of vessels & RV’s
- Compatible with marine multi-function and black box chartplotter/fishfinders
- Equipped with advanced core CZone feature set
- ABYC compliant ATC fusing and mechanical bypass for redundancy
- PWM light dimming capability & smooth start
- Monitor tank levels, battery volts, temperature and pressure using industry standard sensors
- Bilge Pump Run Detection allows pump control and monitoring from a single wire
- Status LED’s for all outputs, DC supply & NMEA2000
- Additional volt monitoring on main DC connection
- In-built load shedding allows non-necessary loads to be turned off to preserve battery life
- USB port allows full system firmware & config updates (no PC or adapters required)
Applications
With the rapid adoption of digital switching systems into smaller vessels and the recreational vehicle market, CZone is committed to developing a portfolio that includes affordable digital control and monitoring solutions.
Control 1 Interface’s increased affordability ensures a wider range of OEM customers can deliver the benefits of digital control and monitoring to their customers, offering greater value, functionality and differentiation.
User and Installation Manual
