Description

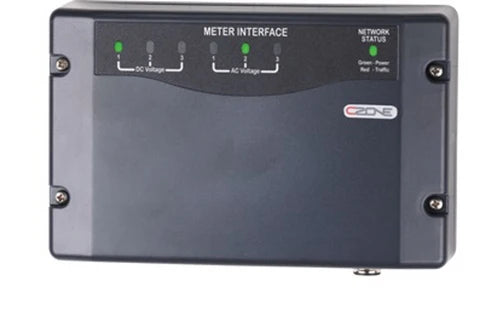

Meter Interface (MI) with Seal & Plug
80-911-0005-00

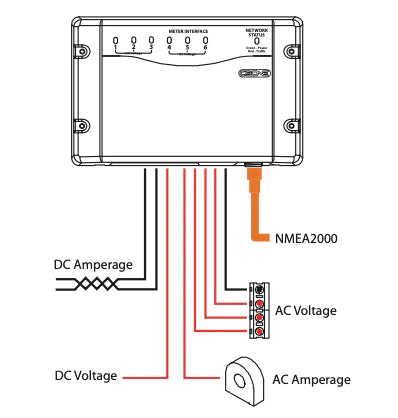

The Meter Interface accepts inputs from external AC and DC power metering sensors such as: AC and DC voltage and amps, AC kWatts, and DC battery capacity in amp hours and % remaining. All feature high and low alarms that can be set by the user.
AC
- 3 x AC voltage inputs (multi voltage)
- 2 x AC current inputs
- Calculates true RMS power
DC
- 3 x DC voltage inputs (multi voltage)
- 2 x DC current inputs
- Calculates battery capacity as ampere hours and percentage charge remaining
- Resolution for current metering down to 0.1 A
General
- Outputs standard NMEA 2000 power monitoring sentences
Note: High and low alarm levels can be set for all inputs.
