Description

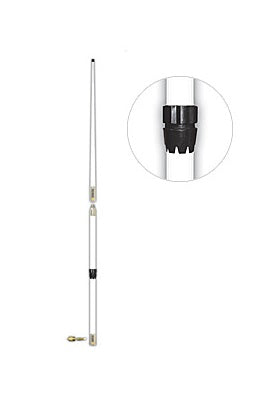

Digital Antenna 544-SSWR-S 16' White SSB Antenna with Rupp Collar
Model: 544SSWR-S
- Powerful brass radiators
- Soldered connections
- Centering foam insulator
- High gloss urethane finish
- 316 stainless steel ferrule
- Pre-installed RUPP collar
When the range of a VHF radio just won’t do, offshore vessel operators choose Digital Antenna’s high performance 16' Single Side Band antennas for exceptional communication over the entire HF frequency range (must use with a tuner). Heavy duty construction for use in the roughest seas, our SSB antennas are a popular choice for boaters when durability, performance and great looks are prerequisites.
To make installation easier, Digitals heavy duty 16’ SSB antennas are now available with a factory installed RUPP locking collar. The patented RUPP locking collar holds the antenna securely and conveniently unlocks for lowering. RUPP mounting arms are required; sold separately through a RUPP dealer.
All of Digitals antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability. UPS shippable.
Specifications
| Radiation Pattern |
Omni-Directiona |
| VSWR |
<1.5:1 = .5 - 30 MHz with Tuner |
| Max Input Power |
1000 watts |
| Exterior Finish |
White, UV stable poly-urethane coating |
| Ferrule |
316 Stainless Steel |
| RF Termination |
1/4"- 20 stainless steel stud |
| Wind Rating |
95 mph |
| Wire |
Not included |
| Length |
189.5" |
What's in the Box:
- Top section
- Bottom section
- Pre-installed RUPP collar
Quantity Available 1 Order Now!
