Description

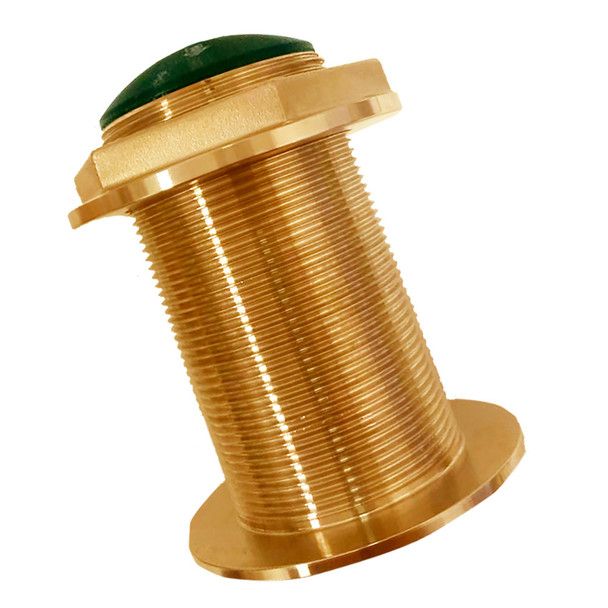

Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 0 degree Tilted Element
Model: BT70D600-00
Get target detail in shallow water and good deep-water botoom tracking.
this series is designed to minimiz drag and to perform at high speeds.
Specifications
| Function |
Depth and temperature |
| Frequency |
50/200kHz |
| Mount type |
Thru-hull |
| Tilt/deadrise |
0° tilte for 0° to 7° hull deadrises |
| Material |
Bronze |
| RMS Power |
600 watts |
| Beamwidth |
42° / 11° -3db |
| Depth |
Max@50kHz = 1200ft
Max at 200kHz = 700ft |
| Temp sensor |
NTC |
| Acoustic window |
Urethane |
| Weight |
54oz |
| Cable length |
27ft |
| Hole diameter |
2.38" |
