Description

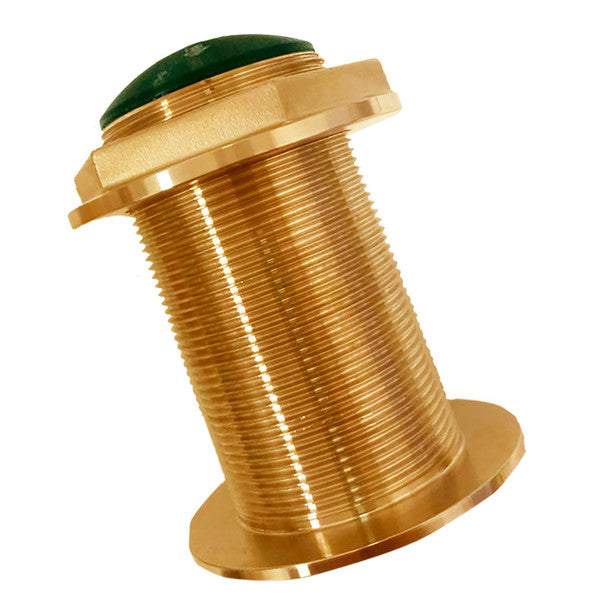

Echonautics BT70MA600 80-130kHz Medium CHIRP 600watts 12° Tilted Element
Model: BT70MA600-12
A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.
Designed to minimize drag and to perform at high speeds
Specifications
| Function |
Depth and Temperature |
| frequency |
CHIRP 80-130kHz |
| Mount style |
Thru Hull |
| Tilt/deadrise |
12° tilted element ; for 8° to 15° hull deadrise |
| Material |
Bronze |
| RMS Power |
600 watts |
| Beamwidth |
24° to 17° @3db |
| Depth |
max 900ft |
| Temperature sensor |
NTC |
| Accoustic window |
Urethane |
| Cable length |
27ft |
| Hole diameter |
2.38 in |
