Description

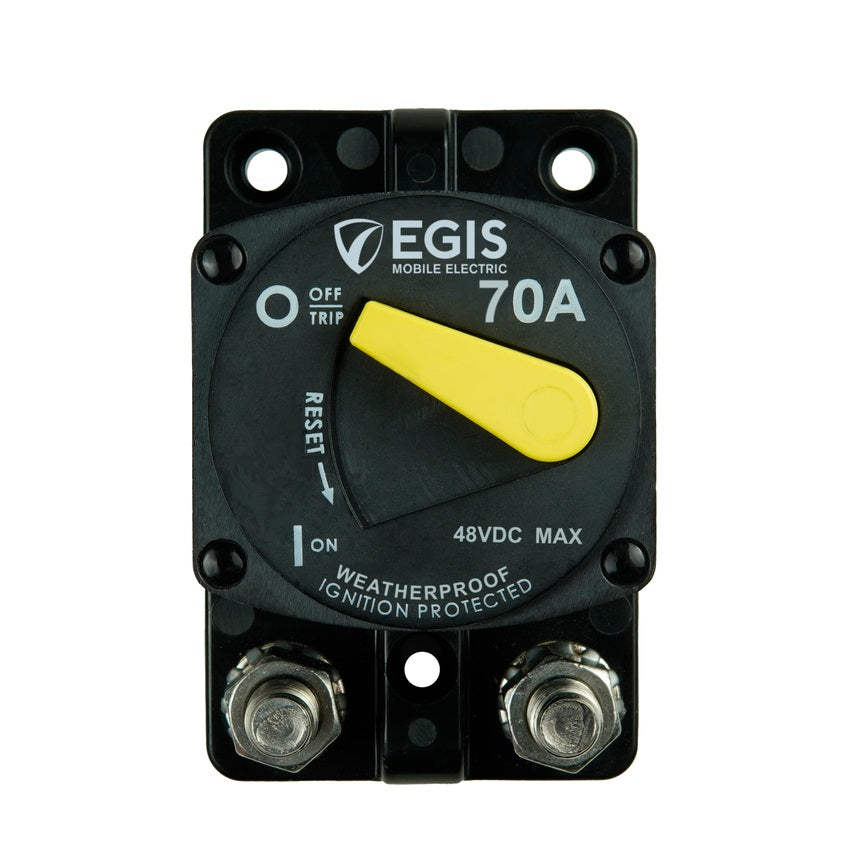

EGIS 87-Series 70 Amp Circuit Breaker Surface Mount
Model: 4704-070
- ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Reinforced Mounting Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.
- Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications
| CONTINUOUS CURRENT (AMPS) |
70 |
| MAX VOLTAGE (VDC |
48 |
| CYCLING ENDURANCE |
2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) |
5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) |
3,000 |
| INGRESS PROTECTION RATING |
IP66 |
